EWC1201 - Water Cooler Avanti - Free user manual and instructions

Product Type	Wine Chiller (Water Cooler model EWC1201)
Brand	Avanti
Model	EWC1201
Capacity	Up to 12 standard 750ml bottles or 4 standard + 8 burgundy bottles
Temperature Range	8°C to 18°C (47°F to 64°F)
Power Supply	115V AC / 60Hz, 65W
Number of Shelves	2 standard shelves + 1 vertical shelf
Door Type	Glass door with gasket
Interior Light	Yes, with automatic shut-off after 10 minutes
Control Panel	Digital display with lock function (auto-lock after 12 seconds)
Temperature Display	Toggle between °F and °C
Wine Type Indicators	Red, White, and Sparkling wine settings with color-coded lights
Cooling Technology	Superconductor refrigeration (no compressor)
Installation Type	Free-standing only (not built-in)
Clearance Requirements	At least 5 inches (127 mm) on back and sides for ventilation
Leveling Legs	Yes, adjustable leveling legs
Energy Saving Tips	Place in coolest area, away from heat sources and direct sunlight
Cleaning Instructions	Unplug unit; use warm water and baking soda for interior; mild detergent for shelves and exterior
Warranty	Limited 1-year warranty (parts and labor for defects)
Customer Service	Phone: [phone]; Parts orders: 800-220-5570

Frequently Asked Questions - EWC1201 Avanti

How do I unlock the control panel on my Avanti EWC1201 wine chiller?

Press and hold the A and down arrow buttons simultaneously for 3 seconds. You will hear a beep sound indicating the panel is unlocked. The panel auto-locks after 12 seconds of inactivity.

What is the temperature range and how do I set it?

The temperature range is 8°C to 18°C (47°F to 64°F). Unlock the panel, then press the up or down arrow to adjust. The display shows the current set temperature. For red wines (14-18°C), the RED indicator lights; for white (9-14°C) and sparkling (5-9°C), the WHITE indicator lights.

How many bottles can the EWC1201 store?

The EWC1201 can store up to 12 standard 750ml Bordeaux bottles, or a mix of 4 standard and 8 burgundy bottles. Actual capacity may vary due to bottle dimensions.

How do I clean the wine chiller?

Unplug the unit. Remove all bottles and shelves. Wash interior with a solution of 2 tablespoons baking soda per quart of warm water. Wash shelves with mild detergent. Wipe exterior with warm water and mild liquid detergent. Rinse and dry with a soft cloth.

What should I do during a power failure?

Most power failures are short and will not affect temperature if the door is opened minimally. For extended outages, protect your bottles by moving them to another cooling device. The unit will resume normal operation when power returns.

Why is my wine chiller not cooling enough?

Check the temperature setting. Ensure the door is fully closed and not opened frequently. Allow 5 inches of clearance on back and sides for ventilation. Verify the ambient temperature is within recommended range (23-26°C). If the control panel is locked, unlock it as described.

The interior light does not turn on. What could be wrong?

First, make sure the unit is plugged in and the circuit breaker is not tripped. Press the light button again; it may be in the OFF position. If still not working, the bulb may need replacement. Contact Avanti customer service for assistance.

How do I move the wine chiller safely?

Remove all bottles. Securely tape down loose shelves. Tape the door shut. Protect the exterior with a blanket. Avoid tilting the unit excessively to prevent damage to the cooling system.

Why is the door not closing properly?

Check if the wine chiller is level. Adjust the leveling legs if needed. Ensure the gasket is clean and free of debris. Verify that shelves are correctly positioned and not blocking the door. If the door was not installed correctly, refer to the manual for hinge adjustments.

What is covered under warranty?

Avanti provides a limited 1-year warranty for defects in material or workmanship under normal use. Parts and labor are free during this period. The warranty does not cover misuse, unauthorized repairs, or content losses. For commercial use, warranty is 90 days.

USER MANUAL EWC1201 Avanti

Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Help Us Help You	3
Parts and Features	4
Important Safety Instructions	5
Installation Instructions	5
Before Using Your Wine Chiller	5
Installation of Your Wine Chiller	5
Electrical Connection	6
Extension Cord	6
Operating Your Wine Chiller	7
Temperature Control	7
Storage Capacity	8
Interior Light	8
Care and Maintenance	8
Cleaning Your Wine Chiller	8
Power Failure	8
Moving Your Wine Chiller	8
Energy Saving Tips	8
Troubleshooting Guide	9
Service for Your Appliance	10
Wiring Diagram	10
Your Avanti Products Warranty	11
Instrucciones en Español	12 – 14
Registration Information and Registration Card	15

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new Wine Chiller properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

CAUTION:

THIS WINE CHILLER IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.

Write down the model and serial numbers.

You'll find them on a plate located on the rear outside wall of the Wine Chiller.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your Wine Chiller.

If you received a damaged Wine Chiller, immediately contact the dealer (or builder) that sold you the Wine Chiller.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your Wine Chiller. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

PARTS & FEATURES

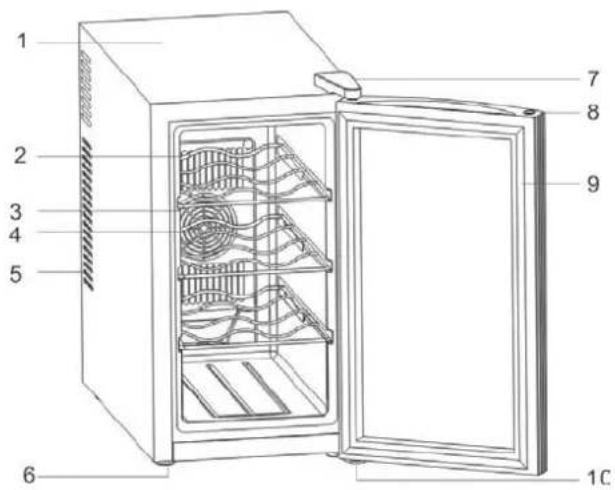

EWC801

1	Cabinet	6	Leveling legs
2	Shelf(Total 3)	7	Upper Door Hinge w/ Cover
3	Cold sink fan	8	Glass Door
4	Cold sink Fan Cover	9	Gasket
5	Ventilation Holes	10	Bottom hinge

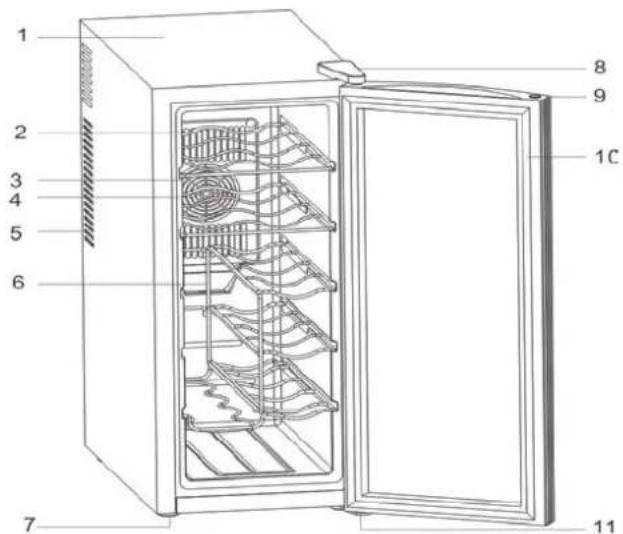

EWC1201

1	Cabinet	7	Leveling legs
2	Shelf(Total 2)	8	Upper Door Hinge w/ Cover
3	Cold sink fan	9	Glass Door
4	Cold sink Fan Cover	10	Gasket
5	Ventilation Holes	11	Bottom hinge
6	Vertical shelf

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

Read all instructions before using the Wine Chiller.DANGER or WARNING:Risk of child entrapment.Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.Before you throw away your old Wine Chiller:Take off the door. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the appliance.Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.Do not repair or replace any part of the wine chiller or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions. Replace the fuse with the same type.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Wine Chiller

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:

Model EWC801 Model EWC1201
(3) Shelves	(2) Standard Shelves(1) Vertical shelf
(1) Instruction Manual	(1) Instruction Manual

- Clean the interior surface with lukewarm water using a soft cloth.

Installation of Your Wine Chiller

• This Wine Chiller is designed to be free standing installation only, and should not be recessed or built-in (Fully recessed).
• Place your Wine Chiller on a surface that is strong enough to support it when it is fully loaded.
• Allow 5 inches of space between the back and sides of the wine chiller, which allows the proper air circulation to cool the heat sink.
• Locate the Wine Chiller away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• This Wine Chiller uses superconductor refrigeration technology (no compressor) and is not designed for storage in hot areas like garages, warehouses or outdoors since it is designed to operate at a maximum of 30 degrees below the ambient temperature.
• Avoid locating the unit in moist areas.
• Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
  • After plugging the Wine Chiller into a wall outlet, allow the unit to cool down for 2-3 hours before

placing any items in the compartment.

Electrical Connection

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This appliance requires a standard 115 Volt AC / 60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

Extension Cord

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

It is recommended you install the Wine Chiller in a place where the ambient temperature is between 23^-26^/72^-78^ . If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 8^-18^/47^-65^ may not be reached.

Recommended Temperatures for Chilling Wine.

Red Wines	14^ - 18^ C	57-65^ F
Dry/White Wines	9^ - 14^ C	49 - 58^ F
Rose Wines	10^ - 11^ C	51 - 53^ F
Sparkling Wines	5^ - 9^ C	40 - 49^ F

Temperature Ranges For Your Wine Chiller

Temperature Range

8 - 18 ^ C

47 – 64 ^ F

CONTROL PANEL

You select temperature display setting from Fahrenheit to Celsius degree by pushing this button. (Fahrenheit or Celsius indicator will appear in green color) The degrees will appear in blue color in the temperature display window.

SETTING THE TEMPERATURE CONTROL

Your Wine Cellar has been equipped with an "automatic" control panel lock, that will activate 12 seconds after the last time a button has been touched. Push the Ⓐ and ▼ button simultaneously for 3 seconds to unlock the control panel. You will hear a "BEEP" sound to alert you that the control is now active.

You can set the temperature as you desire by pushing the Ⓐ or ▽ button on the control panel for each zone. The temperature that you desire to set will increase 1°F or 1°C if you push the Ⓐ button once, on the contrary the temperature will decrease 1°F or 1°C if you push the ▽ button once.

When you store mostly red wines, the temperature needs to be set at between 14^ - 18^ C ( 57^ - 65^ F). The indicator marked “RED” will light up in Red.

When you store mostly white wines, the temperature needs to be set at between 9^ - 14^ C ( 49^ - 58^ F). The indicator marked “WHITE” will light up in White.

When you store mostly sparkling wines, the temperature needs to be set at between 5° - 9°C (40° - 49°F). The indicator marked “WHITE” will light up in White.

NOTE:

- When you use the wine chiller for the first time or restart the wine chiller after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the wine chiller is running for a few hours everything will be back to normal.

Storage Capacity

Model EWC801: You can place 8 standard bottles in this wine chiller.

Model EWC1201: You can place 12 standard bottles or 4 standard bottles and 8 burgundy bottles in this wine chiller.

Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. Bottle capacities are approximate maximums when storing traditional Bordeaux 750ml bottles and include bulk storage.

Interior Light

You can turn the interior light ON or OFF by pushing the button marked with the "Light" symbol. The light will be turned off automatically if it remains ON for 10 minutes. You have to push the button marked with the "Light" symbol 🧿/9 again and the light will turn back on.

CARE AND MAINTENANCE

Cleaning Your Wine Chiller

• UNPLUG the Wine Chiller, and remove all items including shelves.
- Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
- Wash the shelves with a mild detergent solution.
- Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
- Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

CAUTION

Failure to unplug the Wine Chiller could result in electrical shock or personal injury.

Power Failure

- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

Moving Your Wine Chiller

• Remove all bottles.
• Securely tape down all loose items (shelves) inside your appliance.
• Tape the door shut.
• Protect outside of appliance with a blanket, or similar item.

Energy Saving Tips

• The Wine Chiller should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
• One characteristic of superconductor units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for this type of unit.

PROBLEMS WITH YOUR WINE CHILLER?

You can solve many common Wine Chiller problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Wine Chiller does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.
Control panel is locked	Push the [IMAGE] and [IMAGE] button simultaneously for3 seconds to unlock the control panel.Wait for beep sound.
Wine Chiller is not cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.The Wine Chiller does not have the correct clearances.Abnormal voltage.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse.The light button is “OFF”.
Vibrations.	Check to assure that the Wine Chiller is level.
The door will not close properly.	The Wine Chiller is not level.The door was not properly installed.The gasket is dirty.The shelves are out of position.

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can have the confidence that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.

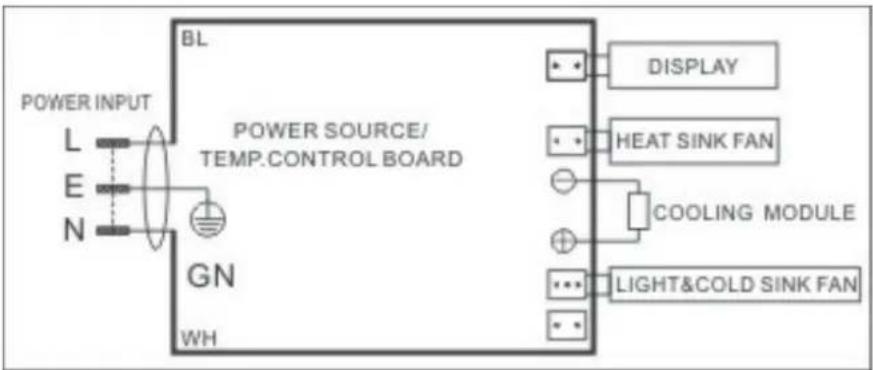

WIRING DIAGRAM

TECHNICAL / ELECTRICAL SPECIFICATIONS

Rated Voltage	115V
Rated Frequency	60Hz
Rated Input Power	65W

YOUR Avanti Products WARRANTY

Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.

WHAT IS COVERED

LIMITED ONE-YEAR WARRANTY

For one year from the date of purchase by the original owner, Avanti Products will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. Avanti Products will provide you with a reasonably similar replacement product that is either new or factory refurbished. All Avanti Appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.

WHAT IS NOT COVERED

• Content losses of food or other, due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
• Door springs, and/or frames.
• Inner door panels, door rails and/or door supports.
  • Light bulbs and/or plastic housing.
• Plastic cabinet liners.
  • Repairs performed by unauthorized servicers.

• Shipping and handling costs associated with the replacement of the unit.

• Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.

• Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
• Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the State of Alaska
• Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.

Thank you for purchasing this fine Avanti product. Please fill out this form and return it within 100 days of purchase and receive these important benefits to the following address:

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152 USA

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

AVANTI REGISTRATION FORM

Name

Address

City

State

Zip

Area Code

Phone Number

Did You Purchase An Additional Warranty:

□Extended

□None

Reason For Choosing This Avanti Product:

Please indicate the most important factors that influenced your decision to purchase this product.

□Price
□Product Features
□Avanti Products Reputation
□Product Quality
□Salesperson Recommendation
□Friend/Relative Recommendation
□Warranty
□Other

Model #

Serial #

Date Purchased

Store/Dealer Name

Occupation

As Your Primary Residence, Do You:

□Own

□Rent

Your Age:

□under 18

□18-25

□26-30

□31-35

□36-50

□over 50

Marital Status:

□Married

□Single

Is This Product Used In The:

□Home

□Business

How Did You Learn About This Product:

□Advertising

□In Store Demo

□Personal Demo

□Other

Comments

A01

PRINTED IN CHINA
