6950 - Waffle Maker OBH NORDICA - Free user manual and instructions

Product Type	Waffle Maker
Brand	OBH Nordica
Model	6950
Dimensions (L x W x H)	Approx. 25 x 20 x 10 cm
Weight	Approx. 1.5 kg
Power Supply	220-240 V, 50-60 Hz
Power Consumption	900 W
Non-Stick Plates	Yes, easy release
Temperature Control	Adjustable thermostat
Indicator Light	Power and ready lights
Number of Waffles	Makes one large waffle per batch
Cord Storage	Wrap-around cord base
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Overheat protection, cool-touch handle
Spare Parts Available	Contact manufacturer or authorized service
Reparability	Professional service recommended
Color	Typically stainless steel or black
Material	Plastic housing with metal plates

Frequently Asked Questions - 6950 OBH NORDICA

How do I use the OBH Nordica 6950 Waffle Maker for the first time?

Before first use, wipe the plates with a damp cloth and dry. Heat the appliance without batter for about 5 minutes to burn off any manufacturing residues. Then let it cool, wipe again, and it's ready.

What is the best temperature setting for golden waffles?

Start with medium setting. Adjust based on preference: lower for lighter waffles, higher for darker, crispier ones. The indicator light shows when it's ready.

How much batter should I pour in?

Pour enough batter to cover the bottom plate, but not overflow. Usually about 1 cup (240 ml) for a classic waffle. Close the lid gently; excess may ooze out.

How do I clean the waffle maker after use?

Unplug and let it cool. Wipe non-stick plates with a soft, damp cloth. Do not use abrasive cleaners or immerse in water. For stuck bits, brush with a soft pastry brush.

Can I store the waffle maker standing upright?

Yes, it is designed for vertical storage. Wrap the cord around the base and store in a dry place. Ensure it's completely cool before storing.

Why does the indicator light turn on and off?

This is normal: the thermostat maintains temperature. When the plate reaches set temp, the light goes off; when it cools slightly, the light comes back on to reheat.

What should I do if the waffles stick to the plates?

Ensure the plates are properly preheated and lightly greased with oil or non-stick spray before each use. Avoid overfilling. If still sticking, check if the non-stick coating is damaged.

Is the waffle maker safe to leave unattended?

No, never leave the appliance unattended while in use. It has overheat protection, but always supervise to prevent accidents.

Where can I find replacement parts for model 6950?

Contact OBH Nordica customer service or authorized service centers. Spare parts like plates or cord may be available. Check the manual for part numbers.

Can I use the waffle maker for other foods?

It is designed for waffle batter only. Do not use for other foods as they may damage the non-stick coating or cause uneven cooking.

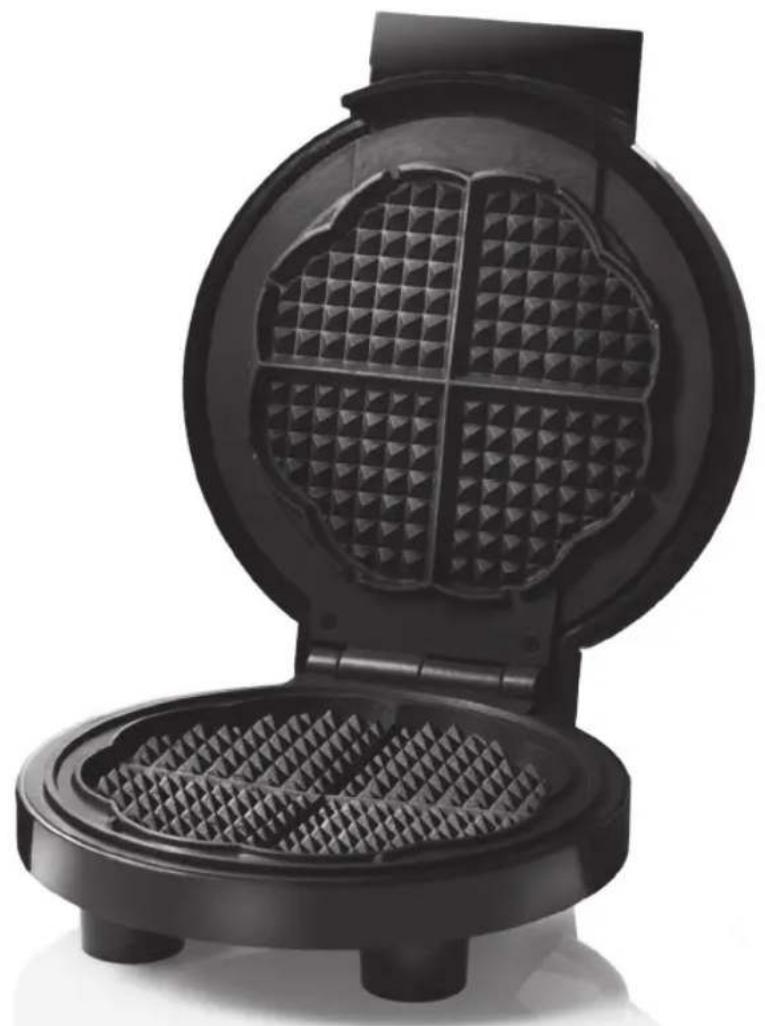

USER MANUAL 6950 OBH NORDICA

For crisp and golden brown waffles

Non-stick coating

Variable temperature

Power on indicator

Conical plates

Easy cleaning

Bruksanvisning – svenska......sida 3 – 6

Instruction manual – english ...... page 19 – 22

OBH Nordica Piano Black Våffeljärn

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 6950

OBH Nordica Norway AS

Postboks 5334, Majorstuen

0304 Oslo

TIF: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica 6950

220-240 V

1000 W

1. Read the instruction manual carefully before use and save it for future use.
2. Plug the appliance to a household outlet of 220-240V only and use the appliance only for the intended use.
3. Always unplug from the mains supply when the appliance is not in use.
4. Never immerse the appliance in water or any other liquid.
5. This appliance can be used by persons (including children from the age of 8) with reduced physical, sensory or mental capabilities or lack of experience with/knowledge about the appliance, if they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety and when they are aware of possible risks.
6. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
7. Cleaning and maintenance shall not be made by children under the age of 8 and they shall be supervised.
8. Position the appliance and the cord out of the reach of children under the age of 8.
9. Check that the cord is not hanging free from the edge of the table.
10. Do not place the appliance on or near hotplates, open fire or the like.
11. The appliance should only be used under supervision.
12. The appliance is not for outdoor use.
13. Take care that the cord does not touch the hot surfaces of the appliance or the plates and do not move the appliance, when it is hot.
14. The surfaces of the appliance get hot during use, so do not touch these parts and let the appliance cool before cleaning.
15. Only use wooden utensils in order to protect the non-stick coating of the plates.

16. When you switch off the appliance, always pull the switch and not the cord.

17. WARNING! In order to avoid a hazard due to inadvertent resetting, this appliance must not be supplied through an external switching device, such as e.g. a timer, or be connected to a circuit that is regularly switched on and off automatically.

18. Always check the appliance, the cord and the switch before use. If the cord is damaged, it must be replaced by the manufacturer, an authorized service agent or a similarly qualified person in order to avoid a hazard.
19. Extra protection can be obtained by installation of a residual current device of 30mA. Check with your installer.
20. The appliance is for domestic use only.
21. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any consequential damages to the product or other things are not covered by the warranty.

Before use

Wipe off the plates with a damp cloth and lubricate with some cooking grease before you use the waffle maker for the first time. Do not eat the first two waffles.

Use

Plug the appliance to a wall outlet and the signal lamp surrounding the temperature controller will turn orange. Set the wanted temperature by turning the temperature button on top of the waffle maker to the wanted setting. Setting 1 corresponds to low temperature (pale baking) and 5 corresponds to high temperature (darker baking). We recommend that you try your way to get the result that you want. When the set temperature has been reached, the signal lamp changes to green and the appliance is ready for use.

Baking

Pour the batter in the centre of the lower plate and close the waffle maker. It is important that the handles are not completely closed during baking, as this will prevent the waffle from "fermenting". The signal lamp may go on and off during baking, which means that the correct temperature is maintained.

Baking time

The baking time depends on the batter and the degree of baking you want. When you think that the waffle is done, open the appliance and lift the waffle with a plastic or wooden utensil (metal could damage the coating). Put the waffle on a grid to keep it crispy.

Cleaning

• Always unplug after use and before cleaning.
- Let the waffle maker cool completely before cleaning.
- Only use a damp cloth and possibly with a little washing-up liquid for cleaning the plates. Never use hard or sharp objects which may damage the coating.
- Wipe the housing with a damp cloth.
- Never immerse the appliance or the cord in water or any other liquid.

Basic recipe for crispy waffles

400 g wheat flour

150 g sugar

175 g butter

6 dl milk

2 eggs

1.5 tsp baking powder

1.5 tsp vanilla sugar

Mix all the dry ingredients. Add milk and melted butter. Whip thoroughly and add the eggs. You may use a hand mixer or an electric mixer. Let the butter rest at a cool place for about 30 minutes before baking the waffles. The batter should be thick. Bake the waffles and put them possibly on a grid. You get the best waffles if you can eat them while they are still warm.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment shall be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Warranty according to current law. Any claim shall be accompanied by the cash receipt with purchase date. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica AB

Löfströms allé 5

SE-172 55 Sundbyberg

Tel [phone]

www.obhnordica.se

Technical data

OBH Nordica 6950

220-240V AC

1000 W

These instructions are subject to alterations or improvements.

OBH NORDICA

Piano Black Waffle Maker

SE/UL/6950/UVN/030713
