Product Type	Replacement Battery Cartridge (RBC)
Brand	APC by Schneider Electric
Model	APCRBC107 (compatible with APCRBC106, APCRBC108, and many others)
Battery Type	Sealed Lead-Acid
Dimensions (H x W x D)	97 mm x 254 mm x 152 mm
Weight Range (RBC family)	0.700 - 35.00 kg
Housing Material	Plastic or Metal
Included Components	Wire harnesses, connectors, labels, miscellaneous hardware
Safety Warning	Batteries carry electrical charge; avoid short circuit across terminals
Compliance	EU Battery Directive 2006/66/EC
Disposal	Must be recycled through an authorized battery recycler
Recycling Information	www.APC.com/recycle
Manufacturer	Schneider Electric Industries SAS
Contact	800-788-2208
Publication Date	November 11, 2011

Frequently Asked Questions - APCRBC107 APC

What type of battery does the APCRBC107 use?

The APCRBC107 uses sealed lead-acid batteries. These are maintenance-free and commonly used in UPS systems.

What are the dimensions of the APCRBC107?

The dimensions are 97 mm x 254 mm x 152 mm (height x width x depth).

What is the weight of the APCRBC107?

The weight varies by model; the entire RBC family ranges from 0.700 to 35.00 kg. For the exact weight of your APCRBC107, check the product label.

How should I dispose of the APCRBC107?

Dispose of the APCRBC107 according to local regulations. It must be recycled through an authorized battery recycler. Do not throw it in household waste.

Can I disassemble the battery cartridge?

Only trained personnel should disassemble the cartridge due to the electrical hazard. It is recommended to ship the whole unit to a recycler.

Is the APCRBC107 compliant with EU directives?

Yes, it falls under the EU Battery Directive 2006/66/EC. It is not subject to the WEEE directive unless contained in a WEEE product.

How do I install the APCRBC107 in my UPS?

Follow the instructions in your UPS manual to remove the old RBC and insert the new one. Ensure the UPS is disconnected from power before installation.

What safety precautions should I take when handling this battery?

Avoid short circuiting the battery terminals. Wear protective gloves and safety glasses. The battery is heavy, so lift carefully.

Where can I find more information about recycling this product?

Visit www.APC.com/recycle for detailed recycling information and to find an authorized recycler.

What is the housing made of?

The housing is made of plastic or metal, depending on the specific model. These materials can be recycled through appropriate waste streams.

USER MANUAL APCRBC107 APC

Product End-of-Life Instructions

Product Range: Replacement Battery Cartridges (RBCs)

Marketing Model/Name: (List of multiple models if applicable)

APCRBC106, APCRBC107, APCRBC108, APCRBC109, APCRBC109J, APCRBC110, APCRBC111J, APCRBC113, APCRBC114, APCRBC115, APCRBC116, APCRBC120, APCRBC121, APCRBC122J, APCRBC123, APCRBC123J, APCRBC124, APCRBC124J, APCRBC130, APCRBC131, RBC1, RBC10, RBC11, RBC11J, RBC12, RBC12J, RBC12J-FJ, RBC13, RBC14, RBC17, RBC17J, RBC18, RBC2, RBC20J, RBC21, RBC22, RBC23, RBC24, RBC24J, RBC24J-FJ, RBC24J-NM, RBC25, RBC26, RBC28, RBC29, RBC2J, RBC3, RBC30, RBC31, RBC32, RBC32J, RBC33, RBC34, RBC34L, RBC35, RBC36, RBC38, RBC39, RBC4, RBC40, RBC45, RBC46, RBC47, RBC48, RBC48L, RBC48L-FJ, RBC49, RBC5, RBC50, RBC51, RBC52, RBC53, RBC55, RBC55J, RBC57, RBC57J, RBC59, RBC5J, RBC5J-FJ, RBC6, RBC60, RBC62, RBC63, RBC6L, RBC6L-NM, RBC7, RBC7L, RBC7L-FJ, RBC7L-NM, RBC8, RBC8J, RBC9

Purpose:

The product family must be disposed according to the legislation of the country. This document is intended for use by end of life recyclers or treatment facilities. It provides the basic information to assure an appropriate end of life treatment for the components and materials of the product.

Note :

This product range is in the scope of EU directive 2006/66/EC of 26 September 2006 (Battery Directive). This product is not in the scope of EU directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). However, this product range may be subject to the WEEE directive if the product is contained within another product, such as an uninterruptible power supply (UPS) that is subject to the WEEE directive.

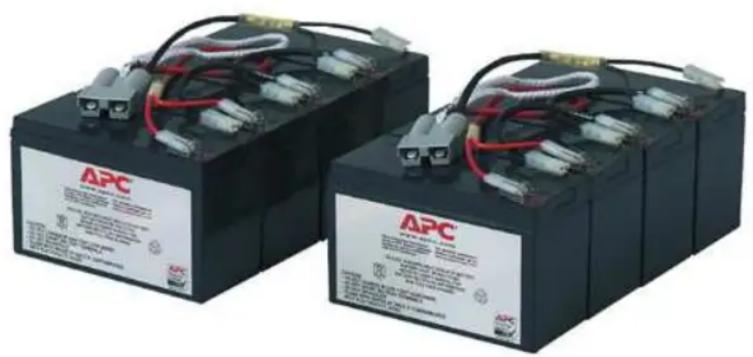

Two black APC battery units with red and white wiring, no visible text or symbols on the bases.

Size in mm:

97 x 254 x 152

Weight in kg:

between 0.700 and 35.00 with batteries

between 0.005 and 6.25 without batteries

Operations recommended for the end of life treatment

There are several steps to process the products at the end of life so as to recover components, materials or energy : Reuse → Separation for special treatment → Other dismantling → Shredding.

The components of the products that optimize the recycling performances are listed, identified and located hereunder.

Disassembly Instructions:

1. Remove the RBC(s) from the product per the instructions provided. Be careful, the RBCs are heavy.
2. RBCs are recommended to be shipped to recyclers as whole units. The batteries within RBCs carry an electrical charge that represents a safety hazard that can result in severe injury. Only personnel with appropriate training should disassemble RBCs.
3. Disassemble the RBC housing and remove the batteries. Place housing into appropriate recycling waste stream (metal or plastic).
4. Shear wire harnesses from batteries and place into appropriate recycling waste stream.
5. Batteries should be shipped to an authorized battery recycler for further processing.


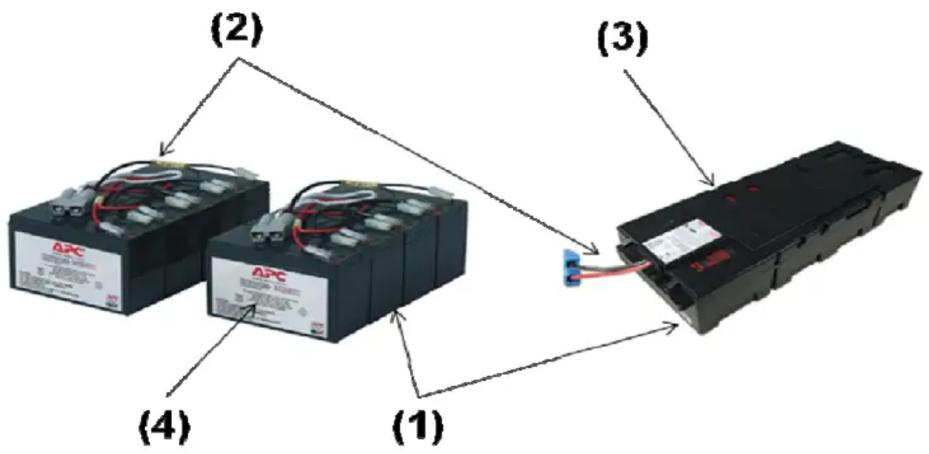

Replacement Battery Cartridge (RBC) product range consist of the following typical parts: (1) Sealed lead-acid Batteries, (2) Wire Harnesses, (3) plastic or metal cartridge parts, (4) labels, and (5) miscellaneous hardware.

Recommendation	Number on drawing	Components Weight	(Kg)	Comment
Special treatment (1)	Sealed Lead acid Batteries		0.675 – 4.50 each	Use authorized battery recyclerSee: Material Safety Data Sheet Available at www.APC.comCaution: Batteries may contain an electrical charge – avoid creating short across terminals.Caution: Cracked or bloated batteries may be hazardous and represent a lead(Pb) exposure.
(2) Wire Harnesses	0.05 –		0.15 each	Brominated flame retarded (BFR) nylon moulded connectors.

For more information please go to: http://www.apc.com/recycle/

Schneider Electric Industries SAS

APC by Schneider Electric

132 Fairgrounds Road

West Kingston, RI 02892

Phone [phone]

www.APC.com

APC by Schneider Electric has achieved compliance status and the accuracy of data in this document is based on our best knowledge as of the date of its publication.

ENVEOLI110701EN
