Product Type	In-ear monitoring diversity receiver
Brand	Sennheiser
Model	EK 300 IEM G3 (part of EW 300 IEM G3-C-EU)
Receiver Principle	Adaptive diversity
Frequency Range	516–558 MHz (Range C)
Switching Bandwidth	42 MHz
Sensitivity	< 1.6 μV for 52 dBA rms S/N
Squelch	Off, 5 to 25 dBμV, adjustable in 2 dB steps
Signal-to-Noise Ratio	Approx. 90 dB
Total Harmonic Distortion	< 0.9% at 1 kHz, nominal deviation
Audio Frequency Response	25 Hz to 15 kHz
Headphone Output Power	2 x 100 mW at 32 Ω
High Boost	+8 dB at 10 kHz
Limiter	-18 dB to -6 dB, adjustable in 6 dB steps, can be switched off
Power Supply	2 x AA batteries (1.5 V) or BA 2015 accupack
Operating Time	Approx. 4–6 hours (depending on volume level)
Dimensions	Approx. 82 x 64 x 24 mm
Weight	Approx. 200 g (including batteries)
Display	Backlit LCD (orange)
Antennas	Integrated; earphone cable shield serves as second antenna
Temperature Range	-10°C to +55°C
Cleaning	Use a slightly damp cloth; no solvents or cleansing agents
Safety	Hearing damage risk at high volumes; squelch should remain on to avoid hiss

Frequently Asked Questions - EW 300 IEM G3-C-EU SENNHEISER

How do I turn on the EK 300 IEM G3 receiver?

Turn the volume control clockwise until it clicks. The red ON LED will light up and the standard display appears.

What type of batteries does the receiver use?

It uses two AA size batteries (1.5 V) or the rechargeable Sennheiser BA 2015 accupack.

How long do the batteries last?

Operating time is approximately 4 to 6 hours, depending on the volume level.

How do I synchronize the receiver with the transmitter?

Use the Sync function via the infra-red interface. Place the transmitter's IR interface in front of the receiver's IR interface and follow the menu prompts. Alternatively, set the same frequency bank and channel manually.

What does 'MUTE' mean on the display?

'MUTE' indicates that the RF signal is deactivated or the transmitter is set to mono without pilot tone. Activate the RF signal on the transmitter or adjust the pilot tone setting.

How do I adjust the squelch on the receiver?

Go to the menu, select 'Squelch', and adjust the threshold from 5 to 25 dBμV in 2 dB steps. You can also switch it off, but this may cause hissing noise.

Can I use rechargeable batteries?

Yes, you can use the Sennheiser BA 2015 accupack. It can be charged using the optional L 2015 charger.

How do I clean the receiver?

Use a slightly damp cloth to clean the device. Do not use any solvents or cleansing agents.

What is adaptive diversity?

Adaptive diversity uses two antennas (one is the earphone cable shield) to improve reception by automatically selecting the stronger signal.

What should I do if there is no audio signal?

Check that transmitter and receiver are on the same channel, the RF signal is active, the squelch is set appropriately, and the pilot tone evaluation matches the transmitter mode.

USER MANUAL EW 300 IEM G3-C-EU SENNHEISER

evolutionwireless G3

300 IEM Series

Contents

Important safety instructions 2

The evolution wireless series ew 300 IEM G3 3

The frequency bank system 4

Product overviews 5

Overview of the SR 300 IEM G3 transmitter 5

Overview of the displays of the SR 300 IEM G3 transmitter 6

Overview of the EK 300 IEM G3 diversity receiver 7

Overview of the displays of the EK 300 IEM G3 diversity receiver 8

Putting the devices into operation 9

Putting the SR 300 IEM G3 transmitter into operation 9

Putting the EK 300 IEM G3 diversity receiver into operation 14

Using the devices 16

Switching the devices on/off 16

Monitoring the audio signal via headphones 17

Selecting a standard display on the diversity receiver 18

Deactivating the lock mode temporarily 18

Adjusting the audio channels on the transmitter 19

Activating/deactivating the RF signal on the transmitter 19

Synchronizing transmitters and EK 300 IEM G3 receivers via the infra-red interface 20

Using the operating menus 23

The buttons of the SK 300 IEM G3 transmitter 23

The buttons of the EK 300 IEM G3 diversity receiver 23

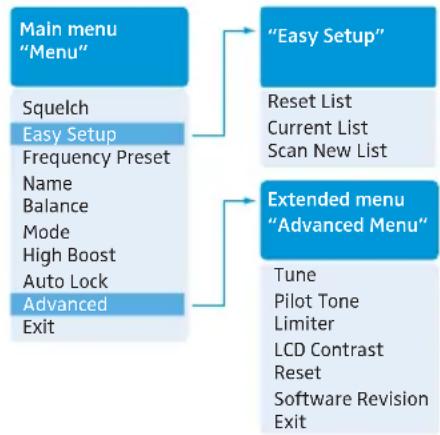

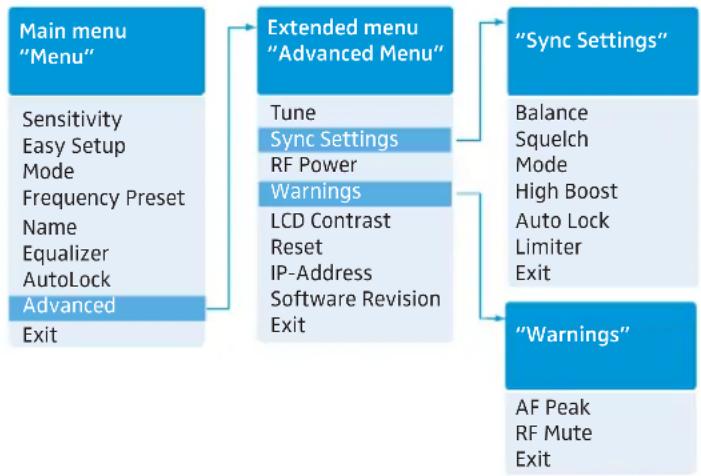

Overview of the operating menus 24

Synchronizing the transmitter with the diversity receiver 27

Cleaning the devices 28

If a problem occurs ... 29

Specifications 31

System 31

SR 300 IEM G3 transmitter 31

NT 2-3 mains unit 32

EK 300 IEM G3 diversity receiver .... 32

Connector assignment 33

Accessories 33

Manufacturer Declarations 34

For more detailed information on the individual sections of this instruction manual, visit the corresponding product page on our website at www.sennheiser.com.

Important safety instructions

System

• Read this instruction manual.
• Keep this instruction manual. Always include this instruction manual when passing the products on to third parties.
• Heed all warnings and follow all instructions in this instruction manual.
• Only clean the products when they are not connected to the mains. Use a cloth for cleaning.
• Only use attachments/accessories specified by Sennheiser.
• When replacement parts are required, only use replacement parts specified by Sennheiser or those having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
• Refer all servicing to qualified service personnel. Servicing is required if the products have been damaged in any way, liquid has been spilled, objects have fallen inside, the products have been exposed to rain or moisture, do not operate properly or have been dropped.
• WARNING: To reduce the risk of fire or electric shock, do not use the products near water and do not expose them to rain or moisture.

SR 300 IEM G3 transmitter

- Only use the supplied mains unit.

- Unplug the mains unit from the wall socket

– to completely disconnect the product from the mains,
– during lightning storms or
– when unused for long periods of time.

- Only operate the mains unit from the type of power source specified in the chapter "Specifications" (see page 31).

- Ensure that the mains unit is

– in a safe operating condition and easily accessible,

– properly plugged into the wall socket,

– only operated within the permissible temperature range,

– not covered or exposed to direct sunlight for longer periods of time in order to prevent heat accumulation (see "Specifications" on page 31).

- Do not block any ventilation openings. Install the products in accordance with the instructions given in this instruction manual.

- Do not install the products near any heat sources such as radiators, stoves, or other devices (including amplifiers) that produce heat.

- Do not overload wall outlets and extension cables as this may result in fire and electric shock.

• Danger due to high volumes

This product is also intended for professional use. Commercial use is subject to the safety-at-work regulations. Sennheiser, as the manufacturer, is therefore obliged to expressly point out possible health risks arising from use.

This product is capable of producing sound pressure exceeding 85 dB(A). 85 dB(A) is the sound pressure corresponding to the maximum permissible volume which is by law (in some countries) allowed to affect your hearing for the duration of a working day. It is used as a basis according to the specifications of industrial medicine. Higher volumes or longer durations can damage your hearing. At higher volumes, the duration must be shortened in order to prevent hearing damage. The following are sure signs that you have been subjected to excessive noise for too long a time:

- You can hear ringing or whistling sounds in your ears.

- You have the impression (even for a short time only) that you can no longer hear high notes.

EK 300 IEM G3 diversity receiver

Do not place the product near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat.

Intended use of the system

Intended use of the ew 300 IEM G3 series system includes:

• having read this instruction manual especially the chapter "Important safety instructions",
• using the products within the operating conditions and limitations described in this instruction manual.

"Improper use" means using the products other than as described in these instructions, or under operating conditions which differ from those described herein.

The evolution wireless series ew 300 IEM G3

The evolution wireless monitoring system ew 300 IEM G3 is a high-quality state-of-the-art RF transmission system with a high level of operational reliability and ease of use. Transmitter and diversity receiver are designed for monitoring applications and permit wireless transmission with studio-quality sound.

Features of the evolution wireless 300 IEM G3 series:

SR 300 IEM G3 transmitter	EK 300 IEM G3 receiver
Optimized PLL synthesizer and microprocessor technologyHDX noise reduction systemSwitching bandwidth of 42 MHz
Stereo/mono selectionEasy setup of a multi-channel system using the Easy Setup Sync functionSafe configuration of a multi-channel system using the WSM	Stereo/Focus selectionAdaptive diversity technology*Scan function (Easy Setup) for scanning the frequency banks for unused channelsAdjustable and switchable limiter

* The receiver uses the ground connection of the earphones cable as its second antenna to provide improved reception.

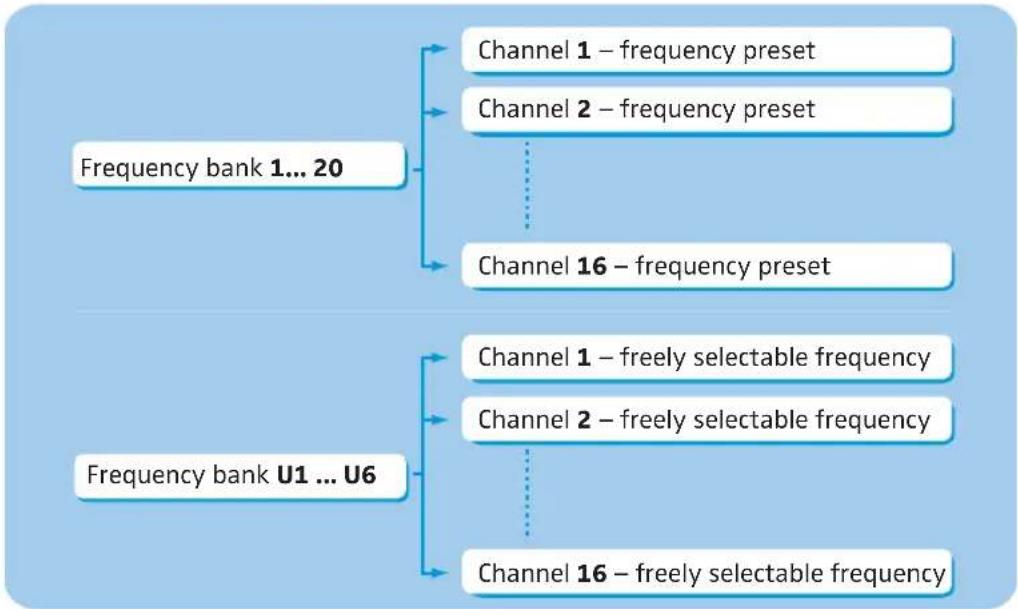

The frequency bank system

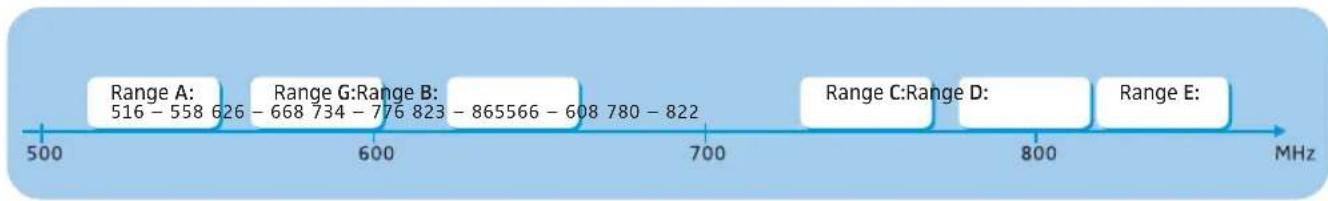

Transmitter and receiver are available in 6 UHF frequency ranges with 1,680 frequencies per frequency range:

Each frequency range (A–E, G) offers 26 frequency banks with up to 16 channels each:

Each of the channels in the frequency banks "1" to "20" has been factory-preset to a fixed frequency (frequency preset). The factory-preset frequencies within one frequency bank are intermodulation-free. These frequencies cannot be changed.

For an overview of the frequency presets, please refer to the supplied frequency information sheet. Updated versions of the frequency information sheet can be downloaded from the corresponding product page on our website at www.sennheiser.com.

The frequency banks "U1" to "U6" allow you to freely select and store frequencies. It might be that these frequencies are not intermodulation-free (see page 28).

Product overviews

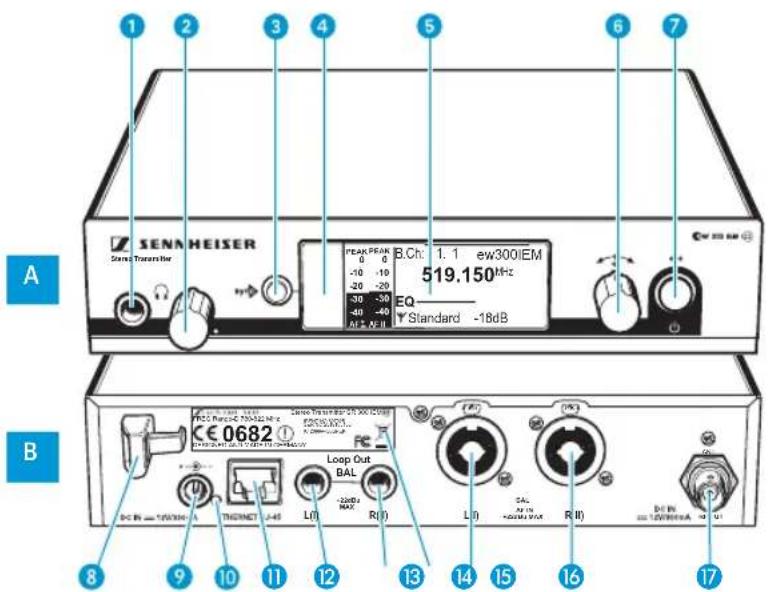

Overview of the SR 300 IEM G3 transmitter

A Operating elements – front panel C Bating elements – rear panel

1 Headphone output, 14'' (6.3 mm) jack socket (
2 Headphone volume control
③ button, backlit
4 Infra-red interface
5 Display panel, backlit in orange
6 Jog dial
7 STANDBY button with operation indication (red backlighting), serves as the ESC (cancel) key in the operating menu

8 Cable grip for power supply DC cable
9 DC socket (DC IN) for connection of NT 2-3 mains unit
10 LED (yellow) for network activity indication
11 LAN socket (ETHERNET RJ 45)
12 Audio output left (LOOP OUT BAL L(I)), 14 " (6.3 mm) jack socket
13 Audio output right (LOOP OUT BAL R(II)), 14 " (6.3 mm) jack socket
14 Type plate
15 Audio input left (BAL AF IN L(I)), 14 " (6.3 mm) jack/XLR-3 combo socket
16 Audio input right (BAL AF IN R(II)), 14 " (6.3 mm) jack/XLR-3 combo socket
17 Antenna output (RF OUT) with remote power supply input, BNC socket

In mono mode, the signal from the left audio input BAL AF IN L(I) 15 (1/4" (6.3 mm) jack/XLR-3 combo socket) is transmitted.

Overview of the displays of the SR 300 IEM G3 transmitter

After switch-on, the transmitter displays the standard display.

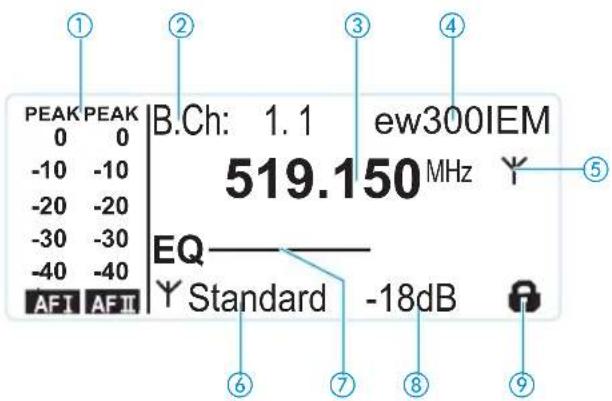

Display Meaning
1Audio level(AF = Audio Frequency)	PEAK PEAK0 0-10 -10 -20 -20-30 -30-40 -40AFI AF II	Modulation of the left (AF I) and right (AF II) audio channel with peak hold functionWhen the displays show full deflection, the audio input level is excessively high.When the transmitter is overmodulated frequently or for extended periods of time, the “PEAK” display is shown inverted. In addition, the display backlighting changes from orange to red and “AF-PEAK” flashes in alternation with the standard display.
2Frequency bank and channel	Current frequency bank and channel number
3Frequency Current transmission frequency
4Name Freely selectable name of the transmitter
5Transmission icon RF signal is being transmitted
6Transmission power Current transmission power
7Equalizer setting Current equalizer setting
8Input sensitivity	Current input sensitivity for the audio signal available at the audio input sockets BAL AF IN L (I) 15 and BAL AF IN R (II) 16
9Lock mode icon	Lock mode is activated (see page 18)

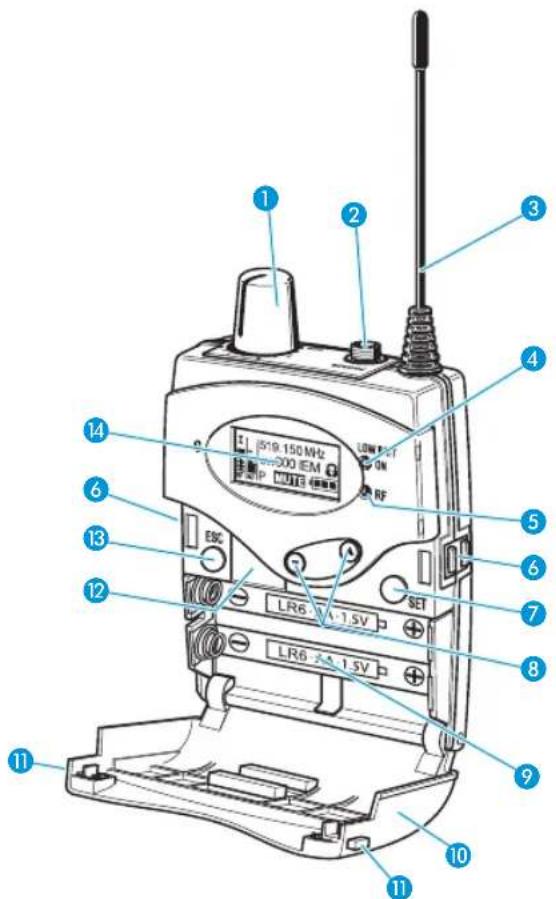

Overview of the EK 300 IEM G3 diversity receiver

1 On/off/volume control
2 3.5 mm stereo jack socket (PHONES), lockable
(the shield is used by antenna II)
3 Antenna I
4 Operation and battery status indicator, red LED
lit = ON
flashing = LOW BATTT
5 RF signal indication, green LED lit = RF

6 Charging contacts
7 SET button
8 ▲/▼ rocker button (UP/DOWN)

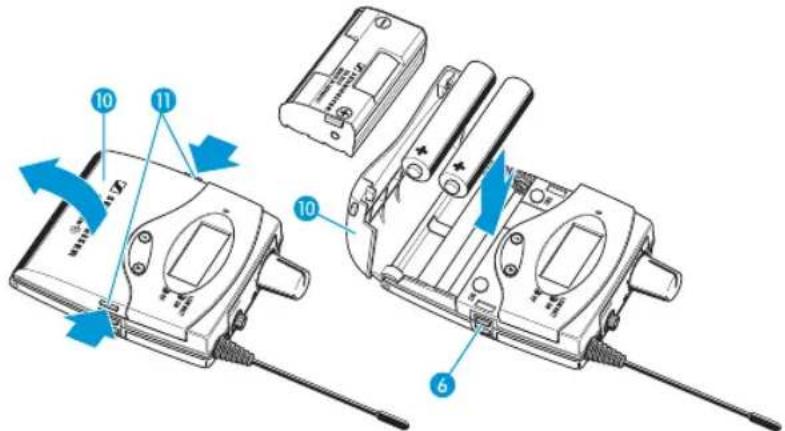

9 Battery compartment
10 Battery compartment cover
11 Battery compartment catches
12 Infra-red interface
13 ESC button
14 Display panel, backlit in orange

Overview of the displays of the EK 300 IEM G3 diversity receiver

After switch-on, the diversity receiver displays the standard display "Frequency/Name". For further illustrations and examples of the different standard displays, refer to page 18. The standard display displays the operating states of the diversity receiver. The display backlighting is automatically reduced after approx. 20 seconds.

Display Meaning

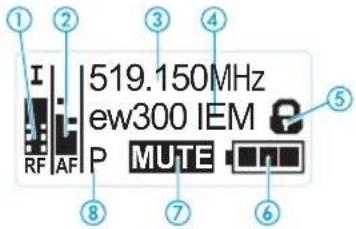

1 RF level "RF"(Radio Frequency)		Diversity display:Antenna input I is activeAntenna input II is activeRF signal level:Field strength of the received signalSquelch threshold level
2 Audio-Pegel „AF"(Audio Frequency)		Peak hold functionModulation of the transmitter (channel-separated when the transmitter is set to stereo mode)When the display shows full deflection, the audio input level is excessively high.
3 Frequency Current receiving frequency
4 Name Freely selectable name of the receiver
5 Lock mode icon	Lock mode is activated (see page 18)
6 Battery status Charge status:
7 Muting function"MUTE"	"Mute" is only displayed on the "Frequency/Name" standard display (see page 18)when the transmitter's RF signal is deactivatedor when the transmitter is set to mono mode and therefore does not transmit a pilot tone but the receiver's pilot tone evaluation is activated.
or audio channels	The audio channels are only displayed on the "Frequency/Limiter" and "Frequency/High Boost" standard displays (see page 18)StereoFocus
8 Pilot tone "P"	Activated pilot tone evaluation

Putting the devices into operation

Putting the SR 300 IEM G3 transmitter into operation

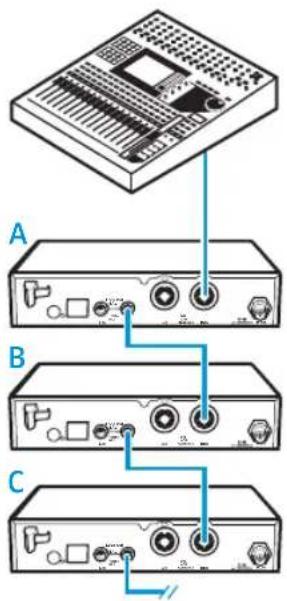

When using more than one transmitter, we recommend connecting remote antennas and, if necessary, using Sennheiser antenna accessories. Fore more information, visit the ew G3 product page at www.sennheiser.com.

Setting up the transmitter on a flat surface

Place the transmitter on a flat, horizontal surface. Please note that the device feet can leave stains on delicate surfaces.

The rack mount "ears" are designed to help protect the operating elements from damage or deformation, e.g. if the transmitter is dropped. Therefore, fasten the rack mount "ears", even if you do not want to rack mount your transmitter.

Mounting the rack mount "ears"

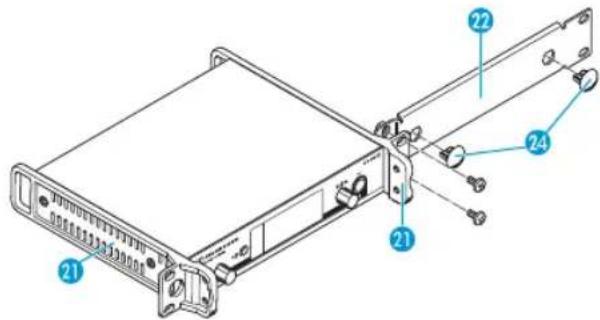

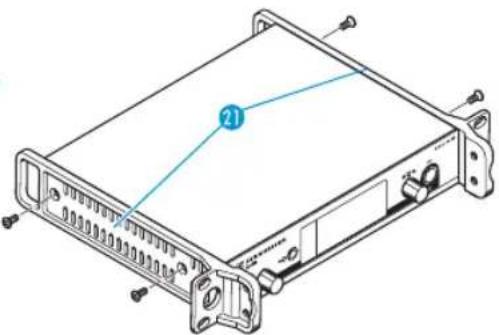

To fasten the rack mount "ears" 21

Isometric line drawing of a rectangular electronic device with ports and directional arrows (no text or symbols)

Technical line drawing of a server rack unit with labeled component (no text or symbols beyond part number 21)

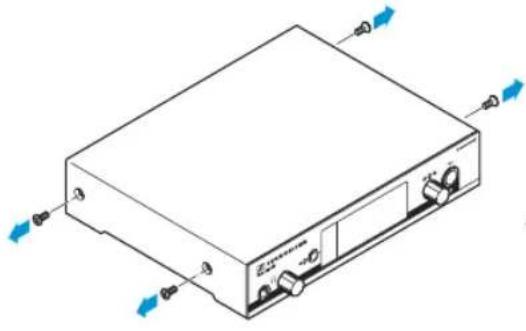

▶ Unscrew and remove the two recessed head screws (M4x8) on each side of the transmitter.
Secure the rack mount "ears" ^21 to the sides of the transmitter using the previously removed recessed head screws.

Fitting the device feet

Do not fit the device feet when mounting the transmitter into a 19" rack.

Clean the base of the transmitter where you want to fix the device feet.
▶ Fit the device feet to the four corners of the transmitter.

The supplied rod antenna 18 is suitable for use in good reception conditions.

Connect the rod antenna 18 to the BNC socket 17.

Connecting the rod antenna

Mounting the transmitter into a 19" rack

Do not fit the device feet when mounting the transmitter into a 19" rack.

CAUTION! Risks when rack mounting the transmitter!

When installing the device in a closed or multi-rack assembly, please consider that, during operation, the ambient temperature, the mechanical loading and the electrical potentials will be different from those of devices which are not mounted into a rack.

Make sure that the ambient temperature within the rack does not exceed the permissible temperature limit specified in the SR 300 IEM G3 specifications. If necessary, provide additional ventilation.
Make sure that the mechanical loading of the rack is even.
When connecting to the power supply, observe the information indicated on the type plate. Avoid circuit overloading. If necessary, provide overcurrent protection.
When rack mounting, please note that intrinsically harmless leakage currents of the individual mains units may accumulate, thereby exceeding the allowable limit value. As a remedy, ground the rack via an additional ground connection.

Rack mounting one transmitter

Secure the rack mount "ears" 21 of the supplied GA 3 rack adapter to the transmitter as described on page 9.
Secure the blanking plate 22 to one of the rack mount "ears" using two recessed head screws (M 6x10) (see diagram).

Connect the antenna. You have the following options:

• You can connect the supplied rod antenna 18 to the rear of the transmitter (see page 9). In this case, insert the two blanking plugs 24 into the holes of the blanking plate.
• You can use the AM 2 antenna front mount kit (optional accessory) and mount the rod antenna to the blanking plate ^27
• You can use a remote antenna, if necessary in conjunction with the AC 3 antenna combiner.

Slide the transmitter with the mounted blanking plate 22 into the 19" rack.

Secure the rack mount "ear" and the blanking plate to the 19" rack.

Rack mounting two transmitters

To mount two transmitters into a rack using the GA 3 rack adapter:

Place the two transmitters side by side upside-down onto a flat surface:

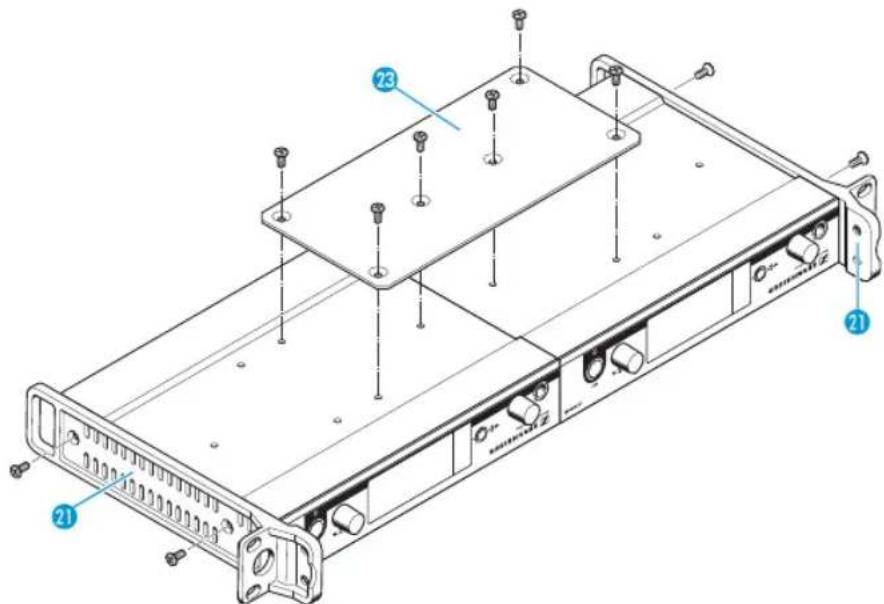

Secure the jointing plate 23 to the transmitters using six recessed head screws (M 3x6).
Secure the rack mount "ears" 21 to the transmitters as described on page 9.

To mount the antennas:

Use remote antennas, if necessary in conjunction with the AC 3 antenna combiner. For more information, visit the ew G3 product pages at www.sennheiser.com.

To mount the transmitters into the rack:

▶ Slide the transmitters into the 19" rack.
▶ Secure the rack mount "ears" to the 19" rack.

Connecting the mains unit

Only use the supplied mains unit. It is designed for the transmitter and ensures safe operation.

Insert the yellow connector of the NT 2-3 mains unit into the yellow socket ⑨ of the transmitter.
▶ Pass the cable of the mains unit through the cable grip 8.
Slide the supplied country adapter 20 onto the mains unit 19.
Plug the mains unit 19 into a wall socket.

The STANDBY button is backlit in red.

The AC 3 antenna combiner incorporates DC distribution to enable simultaneous powering of up to four transmitters via its BNC sockets. These transmitters do not require their individual power supply (see also page 12).

Connecting devices to the input sockets

Use a suitable cable to connect the output of an external device (e.g. a mixing console or an additional SR 300 IEM G3) to the input socket BAL AF IN L(I) 15 and/or BAL AF IN R(II) 16 (see also page 13).
Adjust the output level of your external device.
Via the operating menu, adjust the transmitter's input sensitivity. The input sensitivity is adjusted via the "Sensitivity" menu item and is common for both inputs (see page 24).

The input amplifier of the SR 300 IEM G3 is designed for line level input.

Connecting devices to the output sockets

Use a suitable cable to connect the input of an external device (e.g. a mixing console or an additional SR 300 IEM G3) to the output socket LOOP OUT BAL L(I) 12 and/or LOOP OUT BAL R(II) 13 (see also page 13).

The signal received from the AF input sockets BAL AF IN L(I) 15 and BAL AF IN R(II) 16 is actively buffered and then routed to the output sockets LOOP OUT BAL L(I) 12 and LOOP OUT BAL R(II) 13. The AF output sockets will therefore work only when the transmitter is switched on and powered.

Connecting a remote antenna to the BNC socket and positioning the antenna

Use a remote antenna when the transmitter position is not the best antenna position for optimum transmission. You can choose between two antennas:

• A 2003 UHF passive directional antenna
• A 1031 passive omni-directional antenna

Use a low-attenuation 50- cable to connect the antenna to the transmitter.
If possible, use a short antenna cable and as little connections as possible, since long cables and many connectors lead to an attenuation of the antenna signal.
▶ Position the antenna in the same room in which the transmission takes place.
▶ Observe a minimum distance of 1 m between the antenna and metal objects (including reinforced concrete walls).

Connecting the AC 3 antenna combiner to the BNC socket

To make multi-channel systems, you should use the AC 3 antenna combiner (optional accessory). The AC 3 allows you to operate up to four transmitters with a single antenna without virtually any intermodulation. In addition, the AC 3 incorporates DC distribution to enable simultaneous powering of up to four transmitters via its BNC sockets.

Connect the AC 3 antenna combiner to the BNC socket 17.

Daisy chaining audio signals

You can transmit the same audio signal (e.g. the sum of all audio signals) to several diversity receivers of a multi-channel system. To do so, you have to daisy chain this audio signal from one transmitter to the next via the output sockets LOOP OUT BAL L(I) 12 or LOOP OUT BAL R(II) 13. The audio signal is then transmitted by all transmitters on one of the two audio channels L(I) or R(II). The second audio channel allows you to transmit an individual audio signal (e.g. the instrument of a musician). Using the balance setting on the receiver, you can then adjust the relative levels of the sum of all audio signals and the individual audio signal. For this, the transmitter has to be set to stereo mode and the receiver to Focus mode.

To daisy chain an audio signal from one transmitter to the next:

Route a signal from the mixing console to the input socket (in this example: BAL AF IN R(II) 16) of transmitter A.
Connect the output socket LOOP OUT BAL R(II) 13 of transmitter A to the input socket BAL AF IN R(II) 16 of transmitter B.
Connect the output socket LOOP OUT BAL R(II) 13 of transmitter B to the input socket BAL AF IN R(II) 16 of transmitter C.
▶ Repeat for the other transmitters.

The AF output sockets LOOP OUT BAL L(I) 12 and/or LOOP OUT BAL R(II) 13 will work only when the transmitter is switched on and powered (see page 12).

Connecting transmitters in a network

You can connect several transmitters in a network. The transmitters are remote controlled via a PC running the "Wireless Systems Manager" (WSM) software. This software will assist in the quick and safe configuration of multi-channel systems.

The "Wireless Systems Manager" (WSM) software can be downloaded from the corresponding product page on our website at www.sennheiser.com.

Connect a standard network cable (at least Cat 5) to the LAN socket 11 of the transmitter.
Connect your transmitter to an Ethernet switch.
Connect the other transmitters to the Ethernet switch.
Connect a PC to the Ethernet switch.
When a transmitter is properly connected to the Ethernet switch or the PC, the yellow LED 10 at the rear of the transmitter lights up.
For further information on network operation using the WSM software, refer to page 27.

Putting the EK 300 IEM G3 diversity receiver into operation

Inserting the batteries/accupack

For powering the diversity receiver, you can either use two 1.5 V AA size batteries or the rechargeable Sennheiser BA 2015 accupack.

Open the battery compartment by pushing the two catches 11 in the direction of the arrows and open the cover 10.

Insert the two batteries or the accupack as shown above. Please observe correct polarity when inserting the batteries/accupack.
▶ Close the battery compartment by pressing on the center of the cover 10.

The battery compartment cover 10 locks into place with an audible click.

Charging the accupack

To charge the BA 2015 accupack:

Insert the diversity receiver into the L 2015 charger (optional accessory).

The L 2015 charger can only charge the combination BA 2015 accupack/diversity receiver. Standard batteries (primary cells) or individual rechargeable battery cells cannot be charged.

Attaching the diversity receiver to clothing

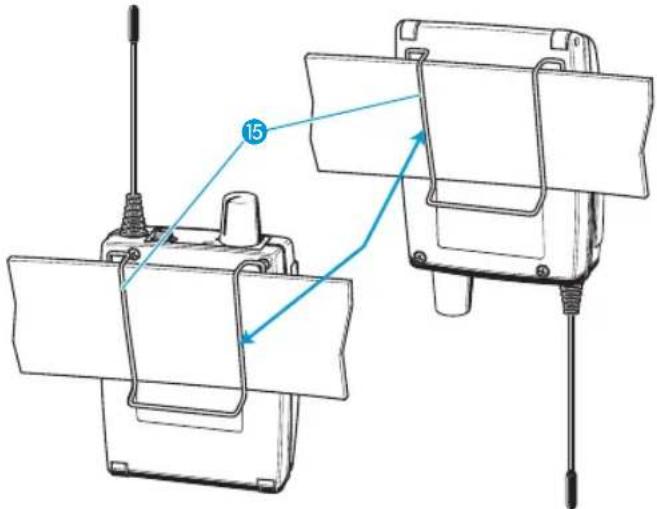

You can use the belt clip 15 to attach the diversity receiver to clothing (e.g. belt, waistband).

The belt clip is detachable so that you can also attach the diversity receiver with the antenna pointing downwards. To do so, withdraw the belt clip from its fixing points and attach it the other way round. The belt clip is secured so that it cannot slide out of its fixing points accidentally.

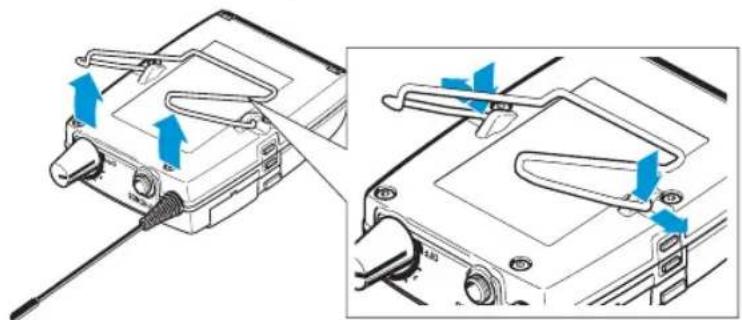

To detach the belt clip:

▶ Lift one side of the belt clip as shown.

Technical diagram showing two views of a mechanical device with blue arrows indicating directional movement (no text or symbols present)

Press down the belt clip at one fixing point and pull it out of the receiver housing.

▶ Repeat for the other side.

Using the devices

To establish a transmission link, proceed as follows:

1. Switch the transmitter on.

2. Switch the diversity receiver on.

The transmission link is established.

It is vital to observe the notes on frequency selection on page 27.

If you cannot establish a transmission link between transmitter and receiver:

Make sure that transmitter and receiver are set to the same frequency bank and to the same channel – the easiest way is to synchronize the devices (see page 20).
If necessary, read the chapter "If a problem occurs ..." on page 29.

Switching the devices on/off

Switching the SR 300 IEM G3 transmitter on/off

To switch the transmitter on (online operation):

▶ Press the STANDBY button ⑦. The transmitter switches on and the standard display appears. The transmitter transmits an RF signal and the transmission icon ⑤ is displayed.

To switch the transmitter on and to deactivate the RF signal on switch-on (offline operation):

Press the STANDBY button ⑦ until "RF Mute On?" appears on the display panel.

Press the jog dial. The transmission frequency is displayed but the transmitter does not transmit an RF signal. The transmission icon ⑤ is not displayed. In addition, the display backlighting changes from orange to red and "RF Mute" flashes in alternation with the standard display.

Use this function to prepare a transmitter for use during live operation without causing interference to existing transmission links.

To activate the RF signal:

Briefly press the STANDBY button 7. "RF Mute Off" appears on the display panel.

▶ Press the jog dial. The transmission icon ⑤ is displayed again.

To switch the transmitter to standby mode:

If necessary, deactivate the lock mode (see page 18).

Keep the STANDBY button ⑦ pressed until "OFF" appears on the display panel. The transmitter switches to standby mode.

When in the operating menu, pressing the STANDBY button ⑦ will cancel your entry (ESC function) and return you to the standard display.

The STANDBY button 7 is backlit in red both during operation and in standby mode.

To completely switch the transmitter off:

▶ Disconnect the transmitter from the mains by unplugging the mains unit from the wall socket. The backlighting of the STANDBY button 7 goes off.

Switching the EK 300 IEM G3 diversity receiver on/off

To switch the diversity receiver on:

▶ Turn the volume control ① clockwise until it clicks. The red ON LED ④ lights up. The "Frequency/Name" standard display appears on the display panel.

To switch the diversity receiver off:

▶ Turn the volume control ① counterclockwise until it clicks. The red ON LED ④ goes off and the diversity receiver switches off.

Monitoring the audio signal via headphones

CAUTION! Danger of hearing damage!

Listening at high volume levels for long periods can lead to permanent hearing defects.

Set the volume control to the minimum position before putting the headphones on.
Do not continuously expose yourself to high volumes.

To monitor the audio signal via the headphone output of the diversity receiver:

Connect earphones with a 3.5 mm stereo jack plug to the headphone output ②.
When switching the receiver on, slowly and carefully turn the volume control 1 clockwise.
Via the receiver's operating menu (see page 24), adjust:
- stereo or Focus operation ("Mode" menu item)
– the balance ("Balance" menu item)
- the treble boost ("High Boost" menu item)
- the limiter (" Limiter" menu item)

The ground connection of the earphones cable serves as the second antenna for adaptive diversity operation.

To monitor the audio signal via the headphone output of the transmitter:

Set the headphone volume control ② to the minimum position.
Connect headphones with a 14 " (6.3 mm) stereo jack plug to the headphone output 🔒 1.
▶ Gradually increase the volume and monitor the audio signal with the lowest possible volume.

Selecting a standard display on the diversity receiver

▶ Press the ESC button to select a standard display. In stereo mode, you can alternatively press the rocker button.

Contents of the display Selectable standard display
	"Frequency/Name" with "Mute" display ⑦
	"Frequency/Limiter" with display of the audio channels (Stereo/Focus) ⑦
	"Frequency/High Boost" with display of the audio channels (Stereo/Focus) ⑦

For more detailed information, refer to the chapter "Overview of the displays of the EK 300 IEM G3 diversity receiver" on page 8.

Deactivating the lock mode temporarily

You can activate or deactivate the automatic lock mode via the "Auto Lock" menu item. If the lock mode is activated, you have to temporarily deactivate it In order to be able to operate the devices:

SR 300 IEM G3 transmitter		EK 300 IEM G3 receiver
	Press the jog dial.		Press the SET button.
"Locked" appears on the display panel.
	Turn the jog dial.		Press the rocker button.
"Unlock?" appears on the display panel.
	Press the jog dial.		Press the SET button.
The lock mode is temporarily deactivated:When you are in the operating menu, the lock mode remains deactivated until you exit the operating menu.When a standard display is shown, the lock mode is automatically activated after 10 seconds.

The lock mode icon ⑨ of the transmitter or the lock mode icon ⑤ of the diversity receiver flashes prior to the lock mode being activated again.

Adjusting the audio channels on the transmitter

Via the "Mode" menu item, you can adjust the audio channels.

Select "Stereo" if you want to transmit two separate audio signals on channel I and channel II (e.g. channel I = audio signal of the presenter/musician, channel II = sum of all audio signals). Make sure that the receiver's pilot tone evaluation ("Pilot Tone" menu item) is activated.
This allows the presenter/musician to adjust the balance between the left and right stereo signal on his receiver.
Select "Mono" if you only want to transmit a mono audio signal. In this case, the signal from the left audio input BAL AF IN L 15 is transmitted.

During mono operation, you have to deactivate the pilot tone evaluation on the diversity receiver ("Pilot Tone" menu item) in order to ensure that your receiver outputs the same signal on channel I and II.

Activating/deactivating the RF signal on the transmitter

To deactivate the RF signal:

When the standard display is shown on the display panel, press the STANDBY button.

"RF Mute On?" appears on the display panel.

Press the jog dial. The RF signal is deactivated. The transmission icon ⑤ is not displayed. In addition, the display backlighting changes from orange to red and "RF Mute" flashes in alternation with the standard display.

To activate the RF signal:

Press the STANDBY button. "RF Mute Off?" appears on the display panel.

▶ Press the jog dial. The RF signal is activated and the display backlighting changes from red to orange.

You can also deactivate the RF signal on switch-on. For more information, refer to the chapter "Switching the devices on/off" on page 16".

Synchronizing transmitters and EK 300 IEM G3 receivers via the infra-red interface

Synchronization allows you to quickly and easily transfer transmitter and receiver settings from one device to the other, especially if you want to configure a multi-channel system. There are two transfer directions:

1. Easy Setup Sync: Transfer from the receiver to one or several transmitters

Once you have performed a frequency preset scan with a receiver, you can use the Easy Setup Sync function to transfer unused frequency presets from the receiver to the transmitters via the infra-red interface. In order to configure a multi-channel system, you use the diversity receiver to transfer the first unused channel from the selected frequency bank to the first transmitter and the next unused channel to the second transmitter and so on, thus ensuring that all transmitters of a multi-channel system operate on suitable frequencies.

2. Sync: Transfer from a transmitter to a receiver

Once you have selected and set the desired receiver settings on the transmitter (either manually or using the Easy Setup Sync function), you transfer these settings to a receiver. This configures the receiver and establishes a transmission link between transmitter and receiver.

Via the "Sync Settings" submenu, you can adjust the receiver parameters listed below and activate or deactivate their transfer to an EK 300 IEM G3 receiver.

Setting Transferred receiver parameter
“Balance”	Current balance setting (“-15”/“+15”)
“Squelch”	Current squelch setting (“Off”, “5 dB” ... “25 dB”)
“Mode”	Current audio mode setting (“Stereo”/“Focus”)
“High Boost”	Current treble boost setting (“flat”/“High boost”)
“Auto Lock”	Current lock mode setting (“active”/“inactive”)
“Limiter”	Current limiter setting (“-18 dB”, “-12 dB”, “-6 dB”, “Off”)

When carrying out the Sync function, the transmitter's current frequency bank and channel setting as well as the receiver parameters adjusted via the "Sync Settings" submenu are transferred to the EK 300 IEM G3 receiver via the infra-red interface.

Carrying out an Easy Setup Sync or a Sync function

The following assumes that you are using the Easy Setup Sync function for setting up a multi-channel system. You can also you the Easy Setup Sync function for establishing a transmission link between one transmitter and one EK 300 IEM G3 receiver.

Easy Setup Sync Sync
Switch all transmitters and one diversity receiver on.		Switch your transmitter and your diversity receiver on.
On all transmitters, call up the "Easy Setup" menu item.The text "Easy Setup Sync" and the icon appear on the display panels of the transmitters. The RF signal of the transmitters is automatically deactivated.		Press the sync button 3 on the transmitter.The syncon appears on the display panel of the transmitter.
Use your diversity receiver to perform a frequency preset scan (Scan New List).Select a channel within a frequency bank with a sufficient number of unused channels (Current List).		-
Place the infra-red interface of the receiver in front of the infra-red interface 4 of the first transmitter.The first unused frequency preset is transferred from the receiver to the transmitter.As soon as the transfer is completed, the display panel of the transmitter displays the numbers of the transferred frequency bank and channel.Please note that the transmitter does not store the frequency bank and channel setting. The RF signal remains deactivated.		Place the infra-red interface of the receiver in front of the infra-red interface 4 of your transmitter.The current frequency bank and channel setting as well as the parameters adjusted via the "Sync Settings" menu item are transferred from the transmitter to the receiver.When the transfer is completed, "√" appears on the display panel of the transmitter. The transmitter then switches back to the standard display.The transferred parameters are automatically adjusted and stored by the receiver. The transmission link between transmitter and receiver is now established.
Place the infra-red interface of the diversity receiver in front of the infra-red interfaces of the remaining transmitters, one after the other.In each case, the next unused frequency preset is transferred from the receiver to the transmitter.		-
Either:►Store the frequency bank and channel setting by pressing the jog dial on your transmitters.The RF signal is activated. You can carry out theSyncfunction (see right-hand column) at a later time to establish a transmission link between transmitters and receivers.		-
Or:►Immediately synchronize your receivers with your transmitters by carrying out theSyncfunction (see right-hand column). Thesyionin the left lower corner of the transmitter display indicates that theSyncfunction can be carried out.The transmission link between transmitters and receivers is established.		-
-To cancel the transfer:		►Press theSTANDBYbutton on the transmitter."X" appears on the display panel of the transmitter. "X" also appears if no suitable receiver was found.

Using the operating menus

The buttons of the SK 300 IEM G3 transmitter

Button Function of the button
Press the STANDBYbutton	• Switches the transmitter on and off• Cancels the entry and returns to the standard display (ESC function)• Activates/deactivates the RF signal (special function, see page 19)
Press the jog dial • Changes from the standard display to the operating menu	• Calls up a menu item• E n t e r s a s u b m e n u• Stores the settings and returns to the operating menu
Turn the jog dial • Changes to the next/previous menu item	• Changes the setting of a menu item

The buttons of the EK 300 IEM G3 diversity receiver

Button Function of the button
Press the ESC button	Selects a standard display (see page 18)Cancels the entry and returns to the current standard display (ESC function)
Press the SET button	Changes from the standard display to the operating menuCalls up a menu itemEnters a submenuStores the settings and returns to the operating menu
Press the rocker button▼▲	In Focus mode:Adjusts the balanceIn stereo mode:Selects a standard display (see page 18)Changes to the next/previous menu itemChanges the setting of a menu item

Overview of the operating menus

For more detailed information on the operating menus, refer to the instruction manuals of the transmitter and the diversity receiver which can be downloaded from www.sennheiser.com.

SR 300 IEM G3 transmitter

EK 300 IEM G3 receiver

Operating menu of the SR 300 IEM G3 transmitter

When the standard display is shown on the display panel, you can get into the main menu by pressing the jog dial. The extended menu "Advanced Menu" and the other menus can be accessed via the corresponding menu items.

Display Function of the menu item
Main menu "Menu"

Sensitivity Adjusts the input sensitivity (0 to -42 dB, adjustable in steps of 3 dB)
Easy Setup	Deactivates the RF signal and activates Easy Setup Sync (see page 27)
Mode Selects mono or stereo operation (see page 19)
Frequency Preset Changes the frequency bank and the channel
Name Enters the transmitter name
Equalizer	Changes the frequency response of the output signal using a graphic equalizer (+/- 12 dB, adjustable in steps of 2.4 dB)
AutoLock Activates/deactivates the automatic lock mode
Advanced	Calls up the extended menu “Advanced Menu”
Exit Exits the operating menu and returns to the standard display

Extended menu "Advanced Menu"

Tune	Sets the transmission frequencies for the frequency banks "U1" to "U6"
	Special function: Sets a channel and a transmission frequency for the frequency banks "U1" to "U6":▶ Select this menu item and call it up by pressing the jog dial 6 until the channel selection appears.
Sync Settings	Adjusts the receiver parameters and activates/deactivates their transfer to the EK 300 IEM G3 receiver. For an overview of the parameters, refer to page 20.

RF Power Adjusts the transmission power ("Low" or "Standard")

Display	Function of the menu item
Warnings	Activates/deactivates the warning messages (color change and warning messages)
LCD Contrast Adjusts the contrast of the display panel in 16 steps
Reset Resets the transmitter	When resetting the transmitter, only the selected settings for the pilot tone and for the frequency banks "U1" to "U6" remain unchanged. For an overview of the factory-preset default settings, refer to the supplied frequency information sheet.
IP-Address Adjusts the IP address of the transmitter
Software Revision Displays the current software revision
Exit	Exits the extended menu "Advanced Menu" and returns to the main menu
"Warnings"
AF Peak Audio overmodulation
RF Mute RF signal is deactivated
Exit	Exits the submenu "Warnings" and returns to the extended menu "Advanced Menu"

Operating menu of the EK 300 IEM G3 diversity receiver

Display Function of the menu item
Main menu "Menu"
Squelch	Adjusts the squelch threshold, adjustment range: 5 to 25 dBμV, adjustable in 2-dB steps, can be switched off
	CAUTION! Danger of hearing damage and material damage!
	If you switch the squelch off or adjust the squelch threshold to a very low value, loud hissing noise can occur in the receiver. The hissing noise can be loud enough to cause hearing damage or overload the loudspeakers of your system! ▶ Always make sure that the squelch is switched on (see above). ▶ Before adjusting the squelch threshold, set the volume of the headphone output to the minimum. ▶ Never change the squelch threshold during a live transmission.
	Special function (for servicing purposes only):With the squelch threshold set to "5 dB", you switch the squelch off by keeping the DOWN rocker button pressed for 3 seconds. If you then press the UP rocker button, you switch the squelch on again.
Easy Setup	Scans for unused frequency presets, releases and selects frequency presets
Frequency Preset Changes the frequency bank and the channel
Name Enters a freely selectable name
Balance Adjusts the balance
Mode Selects stereo or Focus mode
High Boost	Activates/deactivates the treble boost
Auto Lock	Activates/deactivates the automatic lock mode
Advanced	Calls up the extended menu "Advanced Menu"
Exit	Exits the operating menu and returns to the current standard display
"Easy Setup"
Reset List Releases all locked frequency presets
Current List Selects an unused frequency preset
Scan New List Scans for unused receiving frequencies (frequency preset scan)
Exit	Exits the submenu "Easy Setup" and returns to the main menu
Extended menu "Advanced Menu"
Tune	Sets the receiving frequencies for the frequency banks "U1" to "U6"Special function: Sets a channel and a receiving frequency for the frequency banks "U1" to "U6":Select this menu item and call it up by pressing the SET button 7 until the channel selection appears.
Pilot Tone Activates/deactivates the pilot tone evaluation
Limiter Adjusts the limiter
LCD Contrast Adjusts the contrast of the display panel
Reset Resets the diversity receiver
	When resetting the receiver, only the selected settings for the pilot tone and for the frequency banks "U1" to "U6" remain unchanged. For an overview of the factory-preset default settings, refer to the supplied frequency information sheet.
Software Revision	Displays the current software revision
Exit	Exits the extended menu "Advanced Menu" and returns to the main menu

Synchronizing the transmitter with the diversity receiver

When synchronizing the transmitter with the receiver, please observe the following:

Only use a transmitter and a receiver from the same frequency range (see the type plate on the transmitter and the receiver).
Make sure that the desired frequencies are listed in the enclosed frequency information sheet. You can also contact your Sennheiser partner who will be pleased to calculate intermodulation-free frequencies for you.
Make sure that the desired frequencies are approved and legal in your country and, if necessary, apply for an operating license.
The frequency information sheet can also be downloaded from the corresponding product page on our website at www.sennheiser.com.

Synchronizing the transmitter with the receiver – individual operation

Upon delivery, transmitter and receiver are synchronized with each other. If, however, you cannot establish a transmission link between transmitter and receiver, you have to synchronize the channels of the devices:

▶ First carry out the Easy Setup Sync function (see table on page 21, left-hand column). The transmitter is set to a suitable frequency.
Then carry out the Sync function (see table on page 21, right-hand column). This establishes a transmission link between transmitter and receiver.

Alternatively, you can set the channel on the transmitter manually:

Make sure that you set the transmitter to the same frequency bank and the same channel as the receiver.

Synchronizing transmitters with receivers – multi-channel operation

Network operation using the WSM

In multi-channel operation, the transmitters are remote controlled via a PC running the "Wireless Systems Manager" (WSM) software.

Advantages of controlling the transmitters via the "Wireless Systems Manager" (WSM) software:

• Detailed overview of all transmission and receiving channels
- Remote control of all transmitters in the network
- Combination of transmitters of different frequency ranges (see page 4)

Operation without network

Connect your transmitters and your PC in a network (see page 13).
▶ Switch your transmitters and your PC on (see page 16).
Launch the "Wireless Systems Manager" (WSM) software.
To set up your multi-channel system, proceed as described in the instruction manual of the "Wireless Systems Manager" (WSM) software.
First carry out the Easy Setup Sync function (see table on page 21, left-hand column). All transmitters are set to suitable transmission frequencies.
Then carry out the Sync function for each transmitter/receiver pair (see table on page 21, right-hand column).
This establishes a transmission link between each transmitter/receiver pair.

Using freely selectable frequencies

You can also freely select the frequencies and store these frequencies in the frequency banks "U1" to "U6".

If you want to use the frequency banks "U1" to "U6":

Make sure to use transmitters and receivers from the same frequency range (see page 4 and the type plates of the devices).

To ensure that the desired frequencies are intermodulation-free:

Contact your Sennheiser partner (see www.sennheiser.com).

Set each transmitter to the same frequency bank ("U1" to "U6").
On one of the transmitters, select a channel within this frequency bank (see page 24).
▶ Assign this channel one of the calculated transmission frequencies (see page 24). Either:
Then carry out the Sync function for each transmitter/receiver pair (see table on page 21, right-hand column). This establishes a transmission link between each transmitter/receiver pair. Or:
▶ Manually set the receiver to the same frequency bank, channel and frequency that you set on the transmitter (see page 24).

Cleaning the devices

CAUTION! Liquids can damage the electronics of the devices!

Liquids entering the housing of the devices can cause a short-circuit and damage the electronics.

▶ Keep all liquids away from the devices.

SR 300 IEM G3 transmitter

Before cleaning, disconnect the device from the mains.
▶ Use a slightly damp cloth to clean the device from time to time. Do not use any solvents or cleansing agents.

EK 300 IEM G3 diversity receiver

▶ Use a slightly damp cloth to clean the device from time to time. Do not use any solvents or cleansing agents.

If a problem occurs ...

SR 300 IEM G3 transmitter

Problem Possible cause	Possible solution
Transmitter cannot be operated, “Locked” appears on the display panel	Lock mode is activated	Deactivate the lock mode (see page 18 and page 24).
No operation indication	No mains connection	Check the connections of the mains unit.
No RF signal at the receiver	Transmitter and receiver are not on the same channel	Synchronize the transmitter with the receiver (see page 20).
	If “RF Mute” additionally appears on the transmitter display: RF signal is deactivated	Activate the RF signal of the transmitter (see page 19).
Very weak RF signal at the receiver	Transmission range is exceeded	Reduce the distance between receiver and transmitter.
		Reposition the antennas.
		Increase the transmission power (see page 24).
		Reduce the squelch threshold (see table on page 20).
RF signal available, no audio signal at the receiver	No input signal at the transmitter	Check the audio level on the transmitter display (see page 6).
	Very low input signal Check the audio level on the transmitter display (see page 6), increase the level of the input signal or adjust the input sensitivity (see page 24).
Audio signal has a high level of background noise	Transmitter sensitivity is adjusted too low	Adjust the transmitter sensitivity correctly (see page 24).
Audio signal is distorted	If “AF PEAK” additionally appears on the transmitter display: transmitter sensitivity is adjusted too high	Adjust the transmitter sensitivity correctly (see page 24).
	Receiver’s audio output level is adjusted too high	Reduce the receiver’s audio output level.

EK 300 IEM G3 diversity receiver

Problem Possible cause	Possible solution
Receiver cannot be operated, “Locked” appears on the display panel	Lock mode is activated Deactivate the lock mode (see page 18).
No operation indication	Batteries are flat or accupack is flat	Replace the batteries or recharge the accupack (see page 14).
No RF signal Transmitter	and receiver are not on the same channel	Set the transmitter and receiver to the same channel. Synchronize the transmitter with the receiver (see page 20).
	Transmission range is exceeded	Check the squelch threshold setting. Reduce the distance between transmitter and receiving antennas.
	RF signal is deactivated (“RF Mute”)	Activate the RF signal (see page 19).
RF signal available, no audio signal, “MUTE” appears on the display panel	Transmitter is muted Cancel the muting (see page 16).
	Receiver's squelch threshold is adjusted too high	Reduce the squelch threshold setting on the receiver.
	Transmitter is set to mono operation and therefore doesn't transmit a pilot tone	Deactivate the pilot tone evaluation.
	Transmitter is set to stereo operation and therefore transmits a pilot tone	Activate the pilot tone evaluation.
Audio signal has a high level of background noise	Transmitter sensitivity is adjusted too low	Adjust the transmitter sensitivity correctly.
Audio signal is distorted	Transmitter sensitivity is adjusted too high	Adjust the transmitter sensitivity correctly.
No access to a certain channel	During scanning, an RF signal has been detected on this channel and the channel has been locked	Set the transmitter operating on this channel to a different channel and redo the frequency preset scan.
	During scanning, a transmitter of your system operating on this channel has not been switched off	Switch the transmitter off and redo the frequency preset scan.

If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance.
To find a Sennheiser partner in your country, search at www.sennheiser.com under "Service & Support".

Specifications

System

Modulation wideband FM stereo (MPX pilot tone)

Frequency ranges 516–558, 566–608, 626–668, 734–776, 780–822,

823–865 MHz (A to E, G, see page 4)

Transmission/receiving frequencies

1680 frequencies, tuneable in steps of 25 kHz

20 frequency banks, each with up to 16 factory-preset channels

6 frequency banks with up to 16 user programmable channels

Switching bandwidth 42 MHz

Frequency stability ±10 ppm ( -10^ C to +55^ C)

Compander system Sennheiser HDX

Nominal/peak deviation ±24 kHz/±48 kHz

MPX pilot tone (frequency/deviation) 19 kHz/±5 kHz

AF frequency response 25 Hz to 15 kHz

THD (at 1 kHz and nominal deviation) < 0.9%

Signal-to-noise ratio at nominal load and

peak deviation > 90 dB

Temperature range -10^ to +55^

SR 300 IEM G3 transmitter

Antenna output

RF output power at 50 Ω

AF input BAL AF IN L (I)/BAL AF IN R (II)

Max. input level +22 dBu (line)

AF output LOOP OUT BAL L(I)/LOOP OUT BAL R(II)

Headphone output

Power supply

Current consumption

Dimensions

Weight

BNC socket, 50 Ω with remote power supply input 12 V DC

typ. 10/30 mW (Low/Standard), switchable

2 x XLR-3/1/4" (6.3 mm) jack combo socket,

electronically balanced

14'' (6.3 mm) stereo jack socket, balanced

1/4'' (6.3 mm) stereo jack socket

12 V ---

max. 350 mA

approx. 202 mm x 212 mm x 43 mm

approx. 980 g

In compliance with

Europe

CE

EMC EN 301489-1/-9

Radio EN 300422-1/-2

Safety EN 60065

Approved by

Canada

Industry Canada RSS 123,

IC: 2099A-G3SREK

limited to 806 MHz

USA

FCC-Part 74 FCC-ID: DMOG3SREK

limited to 698 MHz

NT 2-3 mains unit

Input voltage 100 to 240 V\~, 50/60 Hz

Current consumption max. 120 mA

Output voltage 12 V

Secondary output current 400 mA

Temperature range -10^ to +40^

In compliance with

Europe

EMC EN 55022, EN 55024, EN 55014-1/-2

Safety EN 60065

USA

47 CFR 15 subpart B

Canada ICES 003

The mains unit is certified in accordance with the legal safety requirements of Europe, the United States, Canada, Russia and Japan.

EK 300 IEM G3 diversity receiver

Receiver principle adaptive diversity

Sensitivity (with HDX, peak deviation)

Adjacent channel rejection

Intermodulation attenuation

Blocking

Squelch

Pilot tone squelch

S/N ratio (1 mV, peak deviation)

Max. output power

High Boost

Limiter

Power supply

Nominal voltage

Power consumption:

- at nominal voltage

• with switched-off receiver

Operating time

Dimensions

Weight (incl. batteries)

< 1.6 μV for 52 dBA _rms S/N

typ. ≥ 65 dB

typ. ≥ 70 dB

≥ 80 dB

Off, 5 to 25 dBμV, adjustable in steps of 2 dB

can be switched off

approx. 90 dB

2 x 100 mW at 32 Ω

+8 dB at 10 kHz

-18 dB to -6 dB, adjustable in steps of 6 dB, can be switched off

2 AA size batteries, 1.5 V or BA 2015 accupack

2.4 V ---

approx. 140 mA

≤ 25 μA

approx. 4 to 6 hrs (depending on volume level)

approx. 82 x 64 x 24 mm

approx. 200 g

In compliance with

Europe

EMC EN 301489-1/-9

Radio EN 300422-1/-2

Safety EN 60065

USA

47 CFR 15 subpart B

Approved by

Canada Industry Canada RSS 123

IC 2099A-G3SREK300

limited to 806 MHz

Connector assignment

SR 300 IEM G3 transmitter
1⁄4" (6.3 mm) stereo jack plug, balanced (BAL AF IN/LOOP OUT)	XLR-3F connector, balanced (BAL AF IN)	DC connector for power supply
1⁄4" (6.3 mm) mono jack plug, unbalanced	1⁄4" (6.3 mm) stereo jack plug for headphone output	EK 300 IEM G3 receiver
		3.5 mm jack plug

Accessories

The following EK 300 IEM G3 accessories are available from your specialist dealer:

009950 BA 2015 accupack

009828 L 2015 charger

500432 IE 4 earphones

The following SR 300 IEM G3 accessories are available from your specialist dealer:

503166 AC 3 antenna combiner

503167 GA 3 rack adapter

503158 NT 3-1 EU:

Power supply for powering the AC 3 antenna combine and four transmitters, EU version

503873 NT 3-1 US:

Power supply for powering the AC 3 antenna combine and four transmitters, 120 V version

503874 NT 3-1 UK:

Power supply for powering the AC 3 antenna combine and four transmitters, UK version

004645 A 1031 omni-directional broadband antenna

003658 A 2003 directional broadband antenna

002324 GZL 1019-A1 coaxial cable, type RG 58, BNC to BNC, 1 m

002325 GZL 1019-A1 coaxial cable, type RG 58, BNC to BNC, 5 m

Manufacturer Declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product.

For the current warranty conditions, please visit our web site at www.sennheiser.com or contact your Sennheiser partner.

In compliance with the following requirements

• RoHS Directive (2002/95/EC)
• WEEE Directive (2002/96/EC)

Please dispose of the devices at the end of their operational lifetime by taking them to your local collection point or recycling center for such equipment.

• Battery Directive (2006/66/EC)

The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return them to your specialist dealer. In order to protect the environment, only dispose of exhausted batteries.

CE Declaration of Conformity

• C€0682

- R&TTE Directive (1999/5/EC, EMC Directive (2004/108/EC), Low Voltage Directive (2006/95/EC))

The declarations are available at www.sennheiser.com.

Before putting the devices into operation, please observe the respective country-specific regulations.

Statements regarding FCC and Industry Canada

These devices comply with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) these devices may not cause harmful interference, and (2) these devices must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

These class B digital devices comply with the Canadian ICES-003.

Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment.

Before putting the devices into operation, please observe the respective country-specific regulations!

Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com

Printed in Germany Publ. 01/09 529679/A01
