Product Type	Diversity receiver for in-ear monitoring
Dimensions (approx.)	82 x 64 x 24 mm
Weight (incl. batteries)	approx. 125 g
Power Supply	2 AA batteries (1.5 V) or BA 2015 accupack
Operating Time	approx. 4–6 hours (depending on volume)
Frequency Ranges	516–558, 566–608, 626–668, 734–776, 780–822, 823–865 MHz (A–E, G)
Switching Bandwidth	42 MHz
Modulation	Wideband FM
Sensitivity (HDX, peak dev.)	<4 μV, typ. 1.6 μV for 52 dBA_rms S/N
Audio Output Power	2 x 100 mW at 32 Ω (at 2.4 V, 5% THD, nominal deviation)
Squelch Threshold	5 to 25 dBμV, adjustable in 2 dB steps, can be switched off
Limiter	-18 dB to -6 dB, adjustable in 6 dB steps, can be switched off
Pilot Tone Evaluation	Activatable/deactivatable
High Boost	+8 dB at 10 kHz
Balance Adjustment	31 steps, depending on Stereo/Focus mode
Audio Modes	Stereo / Focus
Display	Backlit orange LCD
Antenna System	Adaptive diversity using earphone cable ground as second antenna
Accessories (included)	IE 4 earphones, 2 AA batteries, frequency info sheet
Cleaning	Use a soft cloth; no solvents or liquids
Safety Features	Squelch and limiter prevent hearing damage; auto lock mode
Warranty	24 months (see www.sennheiser.com)
Compliance	CE, FCC, Industry Canada, RoHS, WEEE

Frequently Asked Questions - EK 300 IEM G3-G SENNHEISER

How do I pair the EK 300 IEM G3 receiver with a transmitter?

Use the Sync function: Place the infrared interfaces of the receiver and transmitter facing each other, then press the SYNC button on the transmitter. Alternatively, manually set both to the same frequency bank and channel.

What is the squelch threshold and how do I adjust it?

The squelch eliminates background noise when no signal is present. It can be adjusted from 5 to 25 dBµV in 2 dB steps via the Squelch menu item. A higher squelch reduces range but suppresses noise. It can be switched off (5 dB) but is not recommended due to hearing damage risk.

How long do the batteries last?

With two AA alkaline batteries, operating time is approximately 4 to 6 hours, depending on volume level. Rechargeable BA 2015 accupack can be used and charged in the L 2015 charger.

How do I set the limiter and why is it important?

The limiter protects your hearing by capping the maximum output. Adjust it via Advanced Menu > Limiter from -18 dB to -6 dB in 6 dB steps, or switch it off (not recommended). Always keep the limiter active during use.

What is the lock mode and how do I disable it temporarily?

Lock mode prevents accidental changes. When activated, press the SET button, then the rocker button, and confirm with SET to unlock temporarily. The lock automatically reactivates after 10 seconds on a standard display.

How do I clean the receiver?

Use only a dry soft cloth to wipe the exterior. Do not use liquids, solvents, or cleaning agents as they can damage the electronics.

How do I select a frequency for multi-channel operation?

Use the factory-preset frequency banks (1–20) which are intermodulation-free. For custom frequencies, use user banks U1–U6 and set them via Advanced Menu > Tune. For multi-channel, always use channels from the same frequency bank.

How do I synchronize the receiver with a transmitter using Easy Setup Sync?

First, perform a Scan New List on the receiver to find unused frequencies. Then, on the transmitter, enter the Easy Setup menu. Place the receiver's infrared interface in front of the transmitter's and the receiver will transfer an unused channel. Repeat for each transmitter.

How do I adjust the balance in Stereo and Focus modes?

In Stereo mode, balance adjusts left/right volume. In Focus mode, it adjusts the relative level of two mixed mono signals. Use the Balance menu item (31 steps) or the rocker button on a standard display in Focus mode.

What should I do if there is no RF signal?

Check that the transmitter and receiver are on the same frequency bank and channel. Synchronize them using the Sync function. Also ensure the transmitter is powered on and within range (10–150 m with line of sight).

USER MANUAL EK 300 IEM G3-G SENNHEISER

evolutionwireless G3

EK 300 IEM

Black electronic device with a display and antenna, no visible text or symbols on the device body.

Instruction manual

Contents

Important safety instructions 2

The EK 300 IEM G3 diversity receiver .... 3

Areas of application 3

The frequency bank system 3

Delivery includes 4

Product overview 5

Overview of the EK 300 IEM G3 diversity receiver .... 5

Overview of the displays 6

Putting the diversity receiver into operation 7

Inserting the batteries/accupack 7

Charging the accupack 7

Connecting the earphones 7

Attaching the diversity receiver to clothing 8

Using the diversity receiver 9

Switching the diversity receiver on/off and adjusting the volume ..... 9

Deactivating the lock mode temporarily 9

Selecting a standard display 10

Using the operating menu 11

The buttons 11

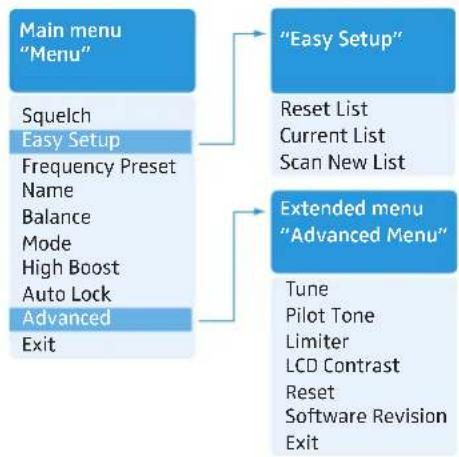

Overview of the operating menu 11

Working with the operating menu 12

Adjusting settings via the operating menu 14

The main menu "Menu" 14

The extended menu "Advanced Menu" 17

Synchronizing an SR 300 IEM G3 transmitter with the

diversity receiver 20

Setting the transmitters to intermodulation-free channels

(Easy Setup Sync) 20

Synchronizing transmitters with diversity receivers (Sync) 21

Using freely selectable receiving frequencies 21

Cleaning the diversity receiver 22

Recommendations and tips 22

If a problem occurs ... 23

Accessories 24

Specifications 24

Manufacturer Declarations 25

Index 27

Important safety instructions

• Read this instruction manual.
• Keep this instruction manual. Always include this instruction manual when passing the product on to third parties.
• Heed all warnings and follow all instructions in this instruction manual.
• Use only a cloth for cleaning the product.
• Do not place the product near any heat sources such as radiators, stoves, or other devices (including amplifiers) that produce heat.
• Only use attachments/accessories specified by Sennheiser.
• Refer all servicing to qualified service personnel. Servicing is required if the product has been damaged in any way, liquid has been spilled, objects have fallen inside, the product has been exposed to rain or moisture, does not operate properly or has been dropped.
• WARNING: To reduce the risk of short circuits, do not use the product near water and do not expose it to rain or moisture.

- This product is also intended for professional use. Commercial use is subject to the safety-at-work regulations. Sennheiser, as the manufacturer, is therefore obliged to expressly point out possible health risks arising from use.

This product is capable of producing sound pressure exceeding 85 dB(A). 85 dB(A) is the sound pressure corresponding to the maximum permissible volume which is by law (in some countries) allowed to affect your hearing for the duration of a working day. It is used as a basis according to the specifications of industrial medicine. Higher volumes or longer durations can damage your hearing. At higher volumes, the duration must be shortened in order to prevent hearing damage. The following are sure signs that you have been subjected to excessive noise for too long a time:

• You can hear ringing or whistling sounds in your ears.
• You have the impression (even for a short time only) that you can no longer hear high notes.

Replacement parts

When replacement parts are required, be sure the service technician uses replacement parts specified by Sennheiser or those having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Intended use

Intended use of the EK 300 IEM G3 diversity receiver includes:

• having read these instructions especially the chapter "Important safety instructions",
• using the product within the operating conditions and limitations described in this instruction manual.

"Improper use" means using the product other than as described in this instruction manual, or under operating conditions which differ from those described herein.

The EK 300 IEM G3 diversity receiver

This diversity receiver is part of the evolution wireless series generation 3 (ew G3). With this series, Sennheiser offers high-quality state-of-the-art RF transmission systems with a high level of operational reliability and ease of use. Transmitters and receivers are designed for monitoring applications and permit wireless transmission with studio-quality sound.

Features of the evolution wireless 300 IEM G3 series:

• Optimized PLL synthesizer and microprocessor technology
  • HDX noise reduction system
  • Adaptive diversity technology
• Switching bandwidth of 42 MHz
• Scan function (Easy Setup) for scanning the frequency banks for unused channels
• Adjustable and switchable limiter

Adaptive diversity

This diversity receiver uses the ground connection of the earphones cable as its second antenna to provide improved reception.

Areas of application

The receiver can be combined with the SR 300 IEM G3 transmitter.

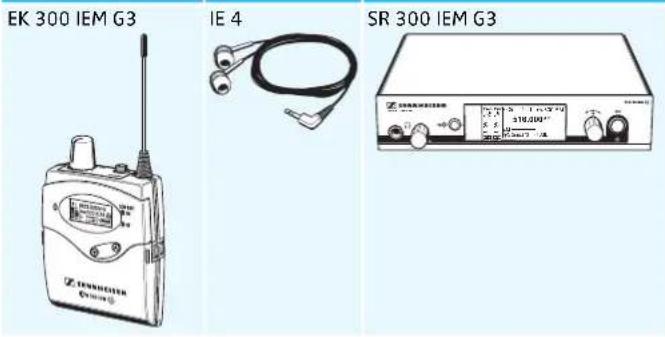

Diversity receiver Earphones Transmitter

The transmitter is available in the same UHF frequency ranges and is equipped with the same frequency bank system with factory-preset frequencies. An advantage of the factory-preset frequencies is that

• a transmission system is ready for immediate use after switch-on,
• several transmission systems can be operated simultaneously on the preset frequencies without causing intermodulation interference.

The frequency bank system

The diversity receiver is available in 6 UHF frequency ranges with 1,680 receiving frequencies per frequency range:

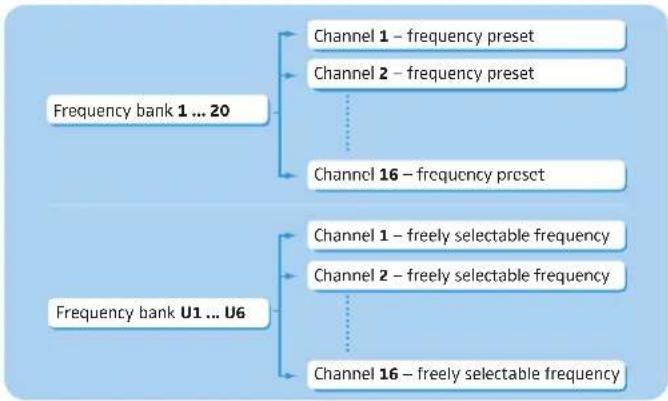

Each frequency range (A–E, G) offers 26 frequency banks with up to 16 channels each:

Each of the channels in the frequency banks "1" to "20" has been factory-preset to a fixed receiving frequency (frequency preset). The factory-preset frequencies within one frequency bank are intermodulation-free. These frequencies cannot be changed.

For an overview of the frequency presets, please refer to the supplied frequency information sheet. Updated versions of the frequency information sheet can be downloaded from the EK 300 IEM G3 product page on our website at www.sennheiser.com.

The frequency banks "U1" to "U6" allow you to freely select and store receiving frequencies. It might be that these receiving frequencies are not intermodulation-free (see page 20).

Delivery includes

The packaging contains the following items:

1 EK 300 G3 IEM diversity receiver
2 AA size batteries, 1.5 V
1 pair of IE 4 earphones
1 instruction manual
1 frequency information sheet

Product overview

Overview of the EK 300 IEM G3 diversity receiver

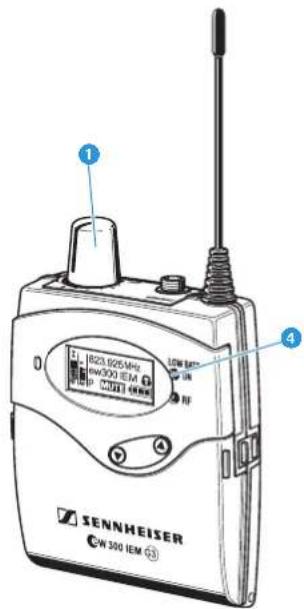

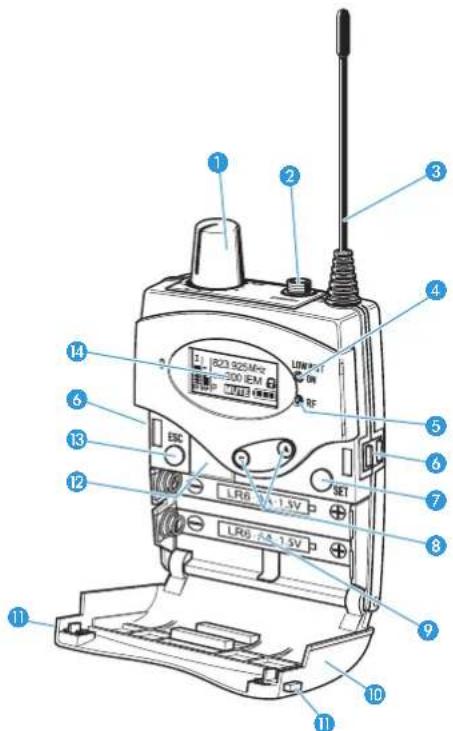

1 On/off/volume control
2 3.5 mm stereo jack socket (PHONES), lockable (the ground contact is used by antenna II)
3 Antenna I
4 Operation and battery status indicator, red LED lit = ON flashing = LOW BATT
5 RF signal indication, green LED lit = RF
6 Charging contacts
7 SET button
8 ▲/▼ rocker button (UP/DOWN)
9 Battery compartment
10 Battery compartment cover
Battery compartment catches
12 Infra-red interface
13ESC button
14 Display panel, backlit in orange

Overview of the displays

After switch-on, the diversity receiver displays the "Frequency/Name" standard display. For further illustrations and examples of the different standard displays, refer to page 10.

The display backlighting is automatically reduced after approx. 20 seconds.

Display Meaning
1RF level "RF"(Radio Frequency)		Diversity display:Antenna input I is activeAntenna input II is activeRF signal level:Field strength of the received signalSquelch threshold level
2Audio level "AF"(Audio Frequency)		Peak hold functionModulation of the transmitter (channel-separated when the transmitter is set to stereo mode)When the display shows full deflection, the audio input level is excessively high.
3Frequency Current receiving frequency(see page 17)
4Name Freely selectable name of the receiver(see page 15)
5Lock mode icon	Lock mode is activated (see page 10)
6Battery status Charge status:
		approx. 100%approx. 70%approx. 30%charge status is critical, the red LOW BATT LED is flashing:
7Muting function"MUTE"	"Mute" is only displayed on the "Frequency/Name" standard display (see page 10)when the transmitter's RF signal is deactivated orwhen the transmitter is set to mono mode and therefore does not transmit a pilot tone but the receiver's pilot tone evaluation is activated.
or audio channels The audio channels are only displayed on the "Frequency/Limiter" and "Frequency/High Boost" standard displays (see page 10)StereoFocus
8Pilot tone "P"	Activated pilot tone evaluation(see page 18)

Putting the diversity receiver into operation

Inserting the batteries/accupack

For powering the diversity receiver, you can either use two 1.5 V AA size batteries or the rechargeable Sennheiser BA 2015 accupack (see "Accessories" on page 24).

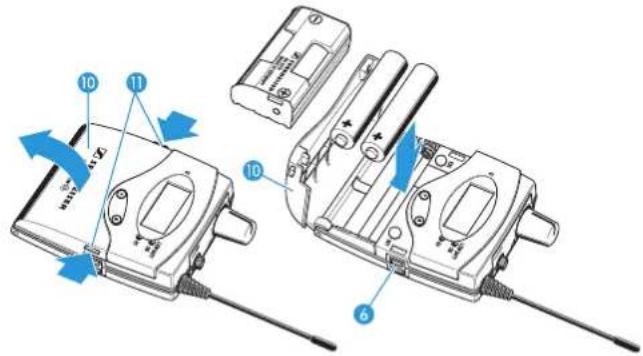

Open the battery compartment by pushing the two catches 11 in the direction of the arrows and open the cover 10.

Insert the two batteries or the accupack as shown above. Please observe correct polarity when inserting the batteries/accupack.
▶ Close the battery compartment by pressing on the center of the cover 10.

The battery compartment cover 10 locks into place with an audible click.

Charging the accupack

To charge the BA 2015 accupack:

Insert the diversity receiver into the L 2015 charger (see "Accessories" on page 24).

The L 2015 charger can only charge the combination BA 2015 accupack/diversity receiver. Standard batteries (primary cells) or individual rechargeable battery cells cannot be charged.

Connecting the earphones

Connect the earphones to the socket 2.

The ground connection of the earphones cable serves as the antenna for the second diversity section. For details on the connector assignment, refer to the diagram on page 25.

Attaching the diversity receiver to clothing

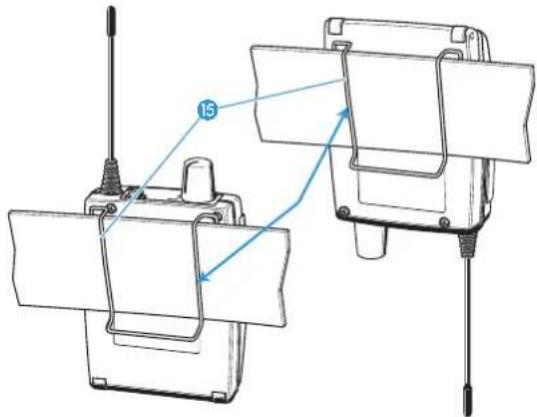

You can use the belt clip 15 to attach the diversity receiver to clothing (e.g. belt, waistband).

Technical line drawing of a mechanical assembly with no visible text or symbols

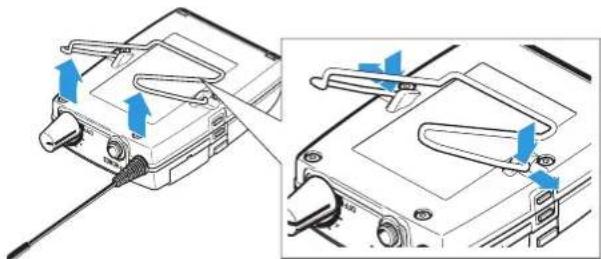

The belt clip is detachable so that you can also attach the diversity receiver with the antenna pointing downwards. To do so, withdraw the belt clip from its fixing points and attach it the other way round. The belt clip is secured so that it cannot slide out of its fixing points accidentally.

To detach the belt clip:

▶ Lift one side of the belt clip as shown.

Technical illustration of a device with blue arrows indicating directional movement (no text or symbols present)

Press down the belt clip at one fixing point and pull it out of the receiver housing.
▶ Repeat for the other side.

Using the diversity receiver

To establish a transmission link, proceed as follows:

1. Switch the diversity receiver on (see next section)

2. Switch a transmitter on (see the instruction manual of the transmitter).

The transmission link is established and the receiver's RF level display "RF" ① reacts.

It is vital to observe the notes on frequency selection on page 20.

If you cannot establish a transmission link between transmitter and receiver, read the chapter "Synchronizing an SR 300 IEM G3 transmitter with the diversity receiver" on page 20.

Switching the diversity receiver on/off and adjusting the volume

To switch the diversity receiver on:

▶ Turn the volume control ① clockwise until it clicks.

The red ON LED ④ lights up. The "Frequency/Name" standard display appears on the display panel.

To switch the diversity receiver off:

▶ Turn the volume control ① counterclockwise until it clicks. The red ON LED ④ goes off and the diversity receiver switches off.

To adjust the volume:

CAUTION! Hearing damage due to high volumes!

Listening at high volume levels for long periods can lead to permanent hearing defects.

Set the volume to a low level before putting the earphones on.
Do not continuously expose yourself to high volumes.

▶ Turn the volume control 1.

Deactivating the lock mode temporarily

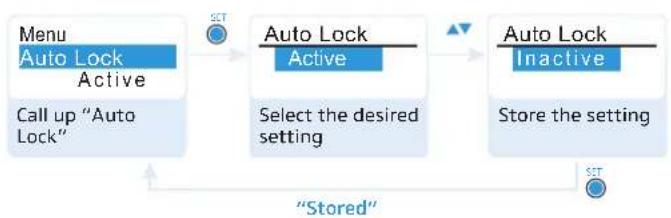

You can activate or deactivate the automatic lock mode via the "Auto Lock" menu item (see page 16). If the lock mode is activated, you have to temporarily deactivate it in order to be able to operate the receiver:

Press the SET button.

"Locked" appears on the display panel.

Press the rocker button.

"Unlock?" appears on the display panel.

Press the SET button.

- When you are in the operating menu, the lock mode remains deactivated until you exit the operating menu.

- When one of the standard displays is shown, the lock mode is automatically activated after 10 seconds.

The lock mode icon ⑤ flashes prior to the lock mode being activated again.

Selecting a standard display

Press the ESC button to select a standard display. In stereo mode (see page 16), you can alternatively press the rocker button.

Contents of the display Selectable standard display

"Frequency/Name" with "MUTE" display ⑦

"Frequency/Limiter" with display of the audio channels (Stereo/Focus) ⑦

"Frequency/High Boost" with display of the audio channels (Stereo/Focus) ⑦

For more detailed information, refer to the chapter "Overview of the displays" on page 6.

Using the operating menu

A special feature of the Sennheiser ew G3 series is the consistent, intuitive menu structure of transmitters and receivers. As a result, adjustments to the settings can be made quickly – even in stressful situations, for example on stage or during a live show or presentation.

The buttons

Button Function of the button
Press the ESC button[026H]	• Selects a standard display (see page 10)• Cancels the entry and returns to the current standard display (ESC function)
Press the SET button	• Changes from the current standard display to the operating menu• Calls up a menu item• Enters a submenu• Stores the settings and returns to the operating menu
Press the rocker button[3HCS]	• In Focus mode:Adjusts the balance (see page 16)• In stereo mode:Selects a standard display (see page 10)• Changes to the next/previous menu item• Changes the setting of a menu item

Overview of the operating menu

Display Function of the menu item Page
Main menu “Menu”		14
Squelch Adjusts the squelch threshold 14
Easy Setup Scans for unused frequency presets, releases and selects frequency presets		15
Frequency Preset	Sets the frequency bank and the channel	15
Name Enters a freely selectable name 15
Balance	Adjusts the balance	14
Mode	Selects stereo or Focus mode	14
High Boost	Activates/deactivates the treble boost	16
Auto Lock	Activates/deactivates the automatic lock mode	16
Advanced	Calls up the extended menu “Advanced Menu”	17
Exit	Exits the operating menu and returns to the current standard display	-
Display	Function of the menu item	Page
"Easy Setup"		15
Reset List Releases all locked frequency presets 15
Current List Selects an unused frequency preset 15
Scan New List Scans for unused receiving frequencies (frequency preset scan)		15
Exit	Exits "Easy Setup" and returns to the main menu	-
Extended menu "Advanced Menu"		17
Tune Sets the receiving frequencies for the frequency banks "U1" to "U6"		17
		Sets the frequency bank, the channel and the receiving frequency (frequency banks "U1" to "U6")
Pilot Tone	Activates/deactivates the pilot tone evaluation	18
Limiter Adjusts the limiter 18
LCD Contrast Adjusts the contrast of the display panel 19
Reset Resets the settings made in the operating menu		19
Software Revision	Displays the current software revision	19
Exit	Exits the extended menu "Advanced Menu" and returns to the main menu	-

Working with the operating menu

If the lock mode is activated, you have to deactivate it in order to be able to work with the operating menu (see page 10).

By way of example of the "Frequency Preset" menu, this section describes how to use the operating menu.

Changing from a standard display to the operating menu

Press the SET button. The current standard display is replaced by the main menu. The last selected menu item is displayed.

Selecting a menu item

Press the rocker button to change to the "Frequency Preset" menu item. The current setting of the selected menu item is displayed:

Menu Frequency Preset B.Ch: 1.1

Changing and storing settings


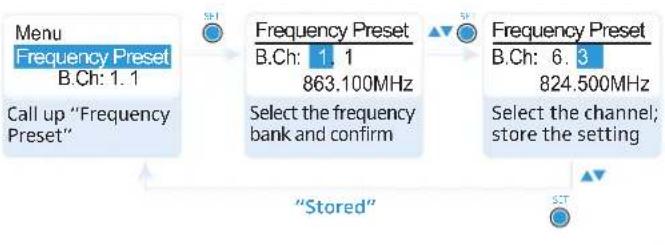

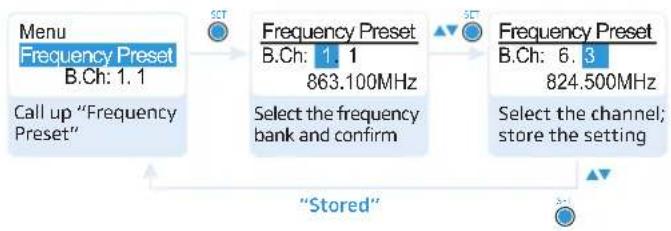

    A["Menu\nFrequency Preset\nB.Ch: 1.1\nCall up "Frequency Preset""] --> B["Frequency Preset\nB.Ch: 1.1\n863.100MHz\nSelect the frequency bank and confirm"]
    B --> C["Frequency Preset\nB.Ch: 6.3\n824.500MHz\nSelect the channel; store the setting"]
    C --> D["Stored"]

- Press the SET button to call up the menu item. - Press the rocker button to set the frequency bank.

SET

▼ △

SET

Press the SET button to confirm your selection.
▶ Press the rocker button to set the channel.
Press the SET button to store the setting.

Canceling an entry

ESC

Press the ESC button to cancel the entry. The current standard display appears on the display panel.

To subsequently return to the last edited menu item:

SET

Press the SET button repeatedly until the last edited menu item appears.

Exiting a menu item

To return to the next higher menu level:

▼ △

Change to the "Exit" menu item.

SET

▶ Confirm your selection. You return to the next higher menu level.

To directly return to the current standard display:

ESC

Adjusting settings via the operating menu

The main menu "Menu"

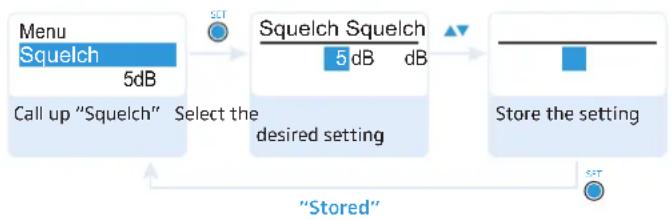

Adjusting the squelch threshold – “Squelch”

Adjustment range: 5 to 25 dB V, adjustable in 2-dB steps, can be switched off

The squelch eliminates annoying noise when the transmitter is switched off or when there is no longer sufficient transmitter power received by the receiver.

CAUTION! Danger of hearing damage!

If you switch the squelch off or adjust the squelch threshold to a very low value, loud hissing noise can occur in the receiver. The hissing noise can be loud enough to cause hearing damage!

Always make sure that the squelch is switched on.
Before adjusting the squelch threshold, set the volume of the headphone output PHONES to the minimum (see page 9).
▶ Never change the squelch threshold during a live transmission.

Adjust the squelch threshold – with the transmitter switched off – to the lowest possible setting that suppresses hissing noise.

A high squelch threshold reduces the transmission range.

The squelch should only be switched off for servicing purposes. With the squelch threshold set to "5 dB", you switch the squelch off by keeping the DOWN rocker button pressed for 3 seconds.

Display Squelch is ...

... switched on.

The dotted line ⑩ displays the squelch threshold.

... switched off.

The dotted line ⑩ goes off and the audio level display "AF" shows full deflection (hissing noise).

If you have accidentally switched off the squelch:

▶ Press the UP rocker button to switch the squelch on.

Scanning for, releasing and selecting frequency presets – "Easy Setup"

Menu item Function of the menu item

Reset List Releases all locked frequency presets

Current List Selects an unused frequency preset

Scan New List Automatically scans for unused receiving frequencies (frequency preset scan)

If receiving frequencies are used, they will be locked; if receiving frequencies are unused, they will be released. After the frequency preset scan, you can select an unused frequency preset.

Selecting the frequency bank and the channel – "Frequency Preset"

When setting up multi-channel systems, please observe the following:

Only the factory-preset receiving frequencies within one frequency bank ("1" to "20") are intermodulation-free. It is vital to observe the notes on frequency selection on page 20.

Overview of the frequency banks and channels:

Frequency bank Channels Type
“1” to “20”	up to 16 per frequency bank	System bank: frequencies are factory-preset
“U1” to “U6”	up to 16 per frequency bank	User bank: frequencies are freely selectable

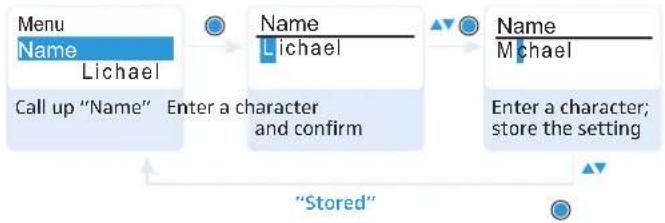

Entering a name – "Name"

Via the "Name" menu item, you can enter a freely selectable name (e.g. the name of the performer) for the receiver. The name is displayed on the "Frequency/Name" standard display (see page 10). The name can consist of up to 8 characters such as:

• letters (without pronunciation marks),
• numbers from 0 to 9,
  • special characters and spaces.

To enter a name, proceed as follows:

▶ Press the rocker button to select a character.

Press the SET button to change to the next segment/character or to store the complete entry.

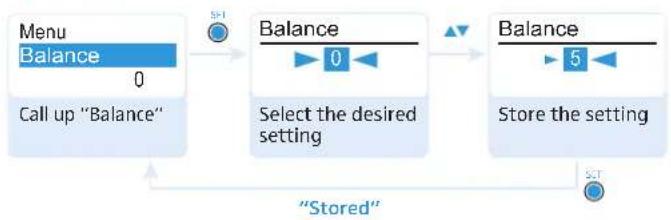

Adjusting the balance – "Balance"

You can adjust the balance in 31 steps. In Focus mode (see next section) and when one of the standard displays is shown, you can also use the rocker button to adjust the balance. The mode of operation of the balance setting depends on the selected audio mode (see next section).

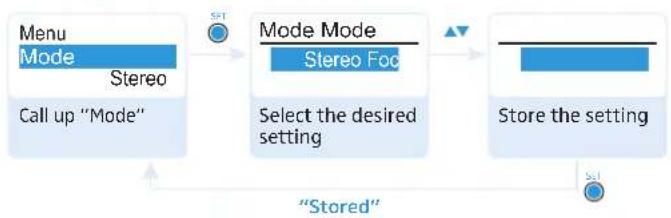

Switching between "Stereo" and "Focus" mode – "Mode"

The selected audio mode influences the mode of operation of the balance setting (see previous section).

Audio mode
Stereo focus	○○
The left-right signals are available as usual.The balance setting serves to adjust the balance between the left and right stereo signal.	The left-right signals are mixed and are available as a mono signal in both headphone channels.The balance setting serves to adjust the relative levels of the two separate channels in the mixed mono signal.
In both audio modes, the corresponding transmitter has to be set to stereo mode!

Activating/deactivating the treble boost – "High Boost"

Via the "High Boost" menu item, you can boost the treble response of the output signal (8 dB at 10 kHz).

Activating/deactivating the automatic lock mode – "Auto Lock"

The lock mode prevents that the balance is accidentally adjusted when the receiver is in Focus mode. In addition, the lock mode prevents accidental switching off or programming during operation. The lock mode icon ⑤ on the current standard display indicates that the lock mode is activated. For information on how to use the lock mode, refer to page 10.

The extended menu "Advanced Menu"

To get into the extended menu "Advanced Menu":

From the main menu, select "Advanced".

Setting the receiving frequencies and the frequency banks "U1" to "U6 - "Tune"

When you have selected one of the system banks and then select the "Tune" menu, the diversity receiver automatically switches to channel 1 of the frequency bank "U1". In this case, "U1.1" briefly appears on the display panel.

Upon delivery, the channels of the frequency banks "U1" to "U6" are not assigned a receiving frequency.

Via the "Tune" menu item, you can set a receiving frequency to be stored in the current channel or you can select a different channel in one of the frequency banks "U1" to "U6" and assign this channel a receiving frequency.

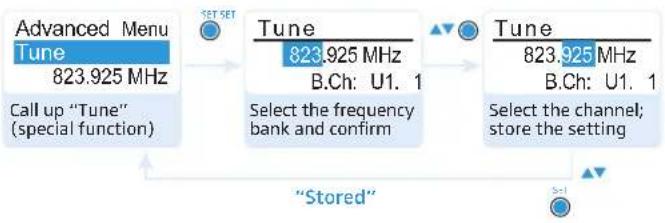

Setting a receiving frequency for the current channel

Press the rocker button until the "Tune" menu item appears.

Press the SET button.

The MHz section of the receiving frequency of the channel is highlighted.

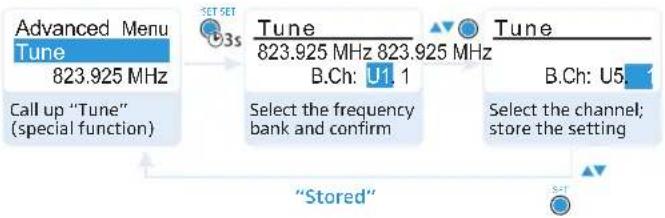


It is vital to observe the notes on frequency selection on page 20.

▶ Press the rocker button to set the MHz section of the frequency.

Press the SET button to confirm the MHz section of the frequency. The kHz section of the frequency is highlighted.

Press the rocker button to set the kHz section of the frequency.

Press the SET button to confirm the frequency. "Stored" appears on the display panel. The "Tune" menu item appears again.

Selecting a channel and assigning this channel a frequency

Press the rocker button until the "Tune" menu item appears.

Press the SET button and keep it pressed until the frequency bank is highlighted.

▶ Press the rocker button to set the frequency bank.
Press the SET button to confirm the frequency bank. The channel is highlighted.
▶ Press the rocker button to set the channel.
Press the SET button to confirm the channel. The frequency (MHz section) is highlighted.

Set the desired frequency (MHz and kHz section) as described in the previous chapter.

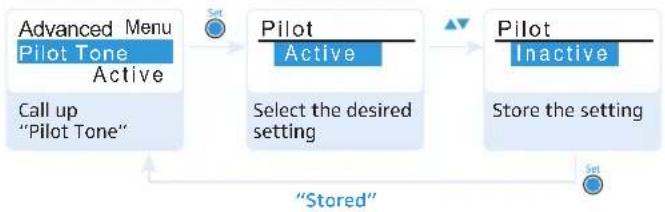

Activating/deactivating the pilot tone evaluation – "Pilot Tone"

The pilot tone encodes the stereo signal of the transmitter and supports the diversity receiver's squelch function, thus protecting against interference due to RF signals from other devices. When set to stereo operation, the transmitter adds an inaudible pilot tone to the transmitted stereo signal. The receiver detects and evaluates the pilot tone.

When the transmitter is set to mono operation, deactivate the pilot tone evaluation.

Display Meaning
No icon The pilot tone evaluation is deactivated.

P	The pilot tone evaluation is activated. The receiver does not receive a pilot tone because the transmitter operates in mono mode.
P	The pilot tone evaluation is activated. The receiver receives a pilot tone.

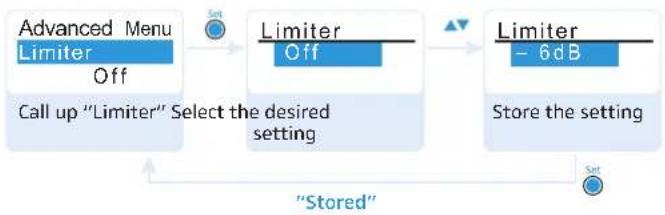

Adjusting the limiter- "Limiter"

CAUTION! Danger of hearing damage due to a switched-off limiter!

The limiter limits the volume at the headphone output PHONES and thus protects your hearing. With the limiter switched off, the receiver is capable of producing high sound pressure levels. Prolonged exposure to high sound pressure levels can cause permanent hearing defects.

Set the limiter to a low level before putting the earphones on.
Do not continuously expose yourself to high volumes.

You can adjust the limiter in 6-dB steps from -18 dB to -6 dB or switch it off (OFF).

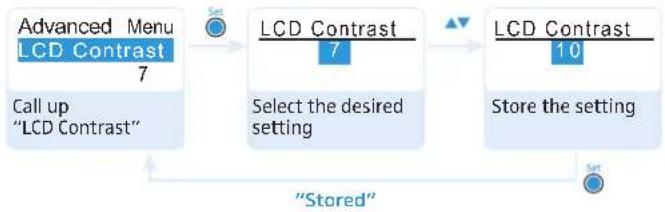

Adjusting the contrast of the display panel – "LCD Contrast"

You can adjust the contrast of the display panel in 16 steps.

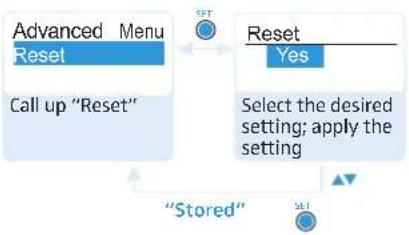

Resetting the settings made in the operating menu – "Reset"

When resetting the settings made in the operating menu, only the selected settings for the pilot tone and for the frequency banks "U1" to "U6" remain unchanged. For an overview of the factory-preset default settings, refer to the enclosed frequency information sheet.

Displaying the software revision – "Software Revision"

You can display the current software revision of the diversity receiver.

Synchronizing an SR 300 IEM G3 transmitter with the diversity receiver

When synchronizing the SR 300 IEM G3 transmitter with a diversity receiver, please observe the following:

Only use a transmitter and a diversity receiver from the same frequency range (see the type plates on the transmitter and the diversity receiver).
Make sure that the desired frequencies are listed in the enclosed frequency information sheet. You can also contact your Sennheiser partner who will be pleased to calculate intermodulation-free frequencies for you.
Make sure that the desired frequencies are approved and legal in your country and, if necessary, apply for an operating license.

Synchronization allows you to quickly and easily transfer transmitter and receiver settings from one device to the other, especially if you want to set up a multi-channel system. There are two transfer directions:

1. Easy Setup Sync: Transfer from the receiver to one or several transmitters

Once you have performed a frequency preset scan with a receiver, you use the Easy Setup Sync function to transfer unused frequency presets from the receiver to the transmitters. In order to set up a multi-channel system, you use the diversity receiver to transfer the unused channels from the selected frequency bank one after the other to the transmitters, thus ensuring that all transmitters of a multi-channel system operate on intermodulation-free frequencies.

1. Sync: Transfer from a transmitter to a receiver

Once you have selected and set the desired receiver settings on the transmitter (either manually or using the Easy Setup Sync function), you transfer these settings to a receiver. This configures the receiver and establishes a transmission link between transmitter and receiver.

When carrying out the Sync function, the transmitter's current frequency bank and channel setting as well as the receiver parameters adjusted via the "Sync Settings" submenu are transferred to the EK 300 IEM G3 receiver via the infra-red interface.

Setting the transmitters to intermodulation-free channels (Easy Setup Sync)

Upon delivery, the SR 300 IEM G3 transmitter and the diversity receiver are synchronized with each other. If, however, you cannot establish a transmission link between transmitter and diversity receiver, you first have to use the diversity receiver to determine intermodulation-free channels and then transfer these channels to the transmitters. In doing so, no transmission links are established.

On all transmitters, call up the "Easy Setup" menu item.
"Easy Setup Sync" appears on the display panels of the transmitters. The RF signals of the transmitters are deactivated. The transmitters await the transfer of a channel and a frequency bank via their infra-red interfaces.
With a diversity receiver, perform a frequency preset scan to scan the frequency banks for unused channels ("Scan New List", see page 15).
Select a frequency bank with a sufficient number of unused channels and a channel on this receiver ("Current List", see page 15).

Start the Easy Setup Sync function by placing the infra-red interface of this diversity receiver in front of the infra-red interfaces 4 of all transmitters, one after the other.

The diversity receiver transfers an unused channel from the selected frequency bank to the first transmitter and the next unused channel to the second transmitter and so on. As soon as a transfer is completed, the display panel of the transmitter displays the numbers of the transferred frequency bank and channel.

Synchronizing transmitters with diversity receivers (Sync)

In a second step, you transfer the frequency bank and channel settings from the transmitters to other diversity receivers (synchronization) and thus establish the transmission links.

If you want to carry out synchronization at a later time:

▶ Press the jog dial on the transmitter.

The frequency bank and the channel are stored. The transmitter's RF signal is activated again. You can synchronize this transmitter with a diversity receiver at any time (see the instruction manual of the transmitter).

To carry out synchronization immediately:

Start the Sync function by placing the infra-red interface of the first diversity receiver in front of the infra-red interface 4 of the first transmitter while simultaneously pressing the SYNC button 3 on the transmitter.

The diversity receiver is set to the same frequency bank and channel as the transmitter. The transmitter's RF signal is activated again. A transmission link is established between the first transmitter and the first diversity receiver.

Synchronize each of the remaining transmitters with one of the remaining diversity receivers.

Your multi-channel monitoring system is now ready for operation.

Instead of synchronizing, you can manually set the transmitters to the same frequency bank and channel that you set on the corresponding diversity receivers.

Using freely selectable receiving frequencies

You can also freely select the receiving frequencies and store these frequencies in the frequency banks "U1" to "U6".

It might be that the freely selected frequencies are not inter-modulation-free

If you are using frequencies from the frequency banks "U1" to "U6", it might be that the receiving frequencies are not intermodulation-free.

Contact your Sennheiser partner who will be pleased to calculate intermodulation-free frequencies for you (see www.sennheiser.com).

Set each diversity receiver to the same frequency bank ("U1" to "U6").

On one of the receivers, select a channel within this frequency bank and assign this channel a receiving frequency (see page 17).
Synchronize a transmitter with this receiver (see the instruction manual of the transmitter).
OR:
▶ Manually set the transmitter to the same frequency bank and channel that you set on the receiver.
▶ Repeat for the remaining transmitters and receivers as described above.

Cleaning the diversity receiver

CAUTION! Liquids can damage the electronics of the receiver!

Liquids entering the housing of the device can cause a short-circuit and damage the electronics.

Keep all liquids away from the receiver.
Do not use any solvents or cleansing agents.

▶ Use a cloth to clean the diversity receiver from time to time.

Recommendations and tips

... for the diversity receiver

• Make sure that the antenna and the earphones cable do not cross.
• For best results, make sure that the transmitter sensitivity is correctly adjusted.

... for optimum reception

• Transmission range depends to a large extent on location and can vary from about 10 m to about 150 m. There should be a "free line of sight" between transmitting and receiving antennas.
• To avoid overloading the receiver, observe a minimum distance of 5 m between transmitting and receiving antennas.

... for multi-channel operation

• When operating a multi-channel system, you should only use the channels within one frequency bank. Each of the frequency banks "1" to "20" accommodates factory-preset frequencies which are intermodulation-free.
• The frequency banks "U1" to "U6" allow you to freely select and store receiving frequencies (see page 17).
• When using several transmitters simultaneously, interference can be avoided by maintaining a minimum distance of 20~cm between two transmitters.

If a problem occurs ...

Problem Possible cause Possible solution
Diversity receiver cannot be operated, "Locked" appears on the display panel	Lock mode is activated Deactivate the lock mode (see page 10).
No operation indication	Batteries are flat or accupack is flat	Replace the batteries or recharge the accupack (see page 7).
No RF signal Transmitter and receiver are not on the same channel		Set the transmitter and receiver to the same channel. Synchronize the transmitter with the receiver (see page 20).

If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance.

To find a Sennheiser partner in your country, search at www.sennheiser.com under "Service & Support".

Accessories

The following EK 300 IEM G3 accessories are available from your specialist dealer:

Cat. No. Accessory

009950 BA 2015 accupack

009828 L 2015 charger

500432 IE 4 earphones

Specifications

RF characteristics

Modulation wideband FM
Frequency ranges 516–558, 566–608, 626–668,734–776, 780–822, 823–865 MHz(A to E, G, see page 3)
Receiving frequencies 1,680 frequencies,tuneable in steps of 25 kHz
	20 frequency banks, each with upto 16 factory-preset channels
	6 frequency banks, each with upto 16 user programmable channels

Switching bandwidth 42 MHz

Nominal/peak deviation ±24 kHz/±48 kHz

Receiver principle adaptive diversity

Sensitivity

(with HDX, peak deviation) <4 μV, typ. 1.6 μV for 52 dBA _rms S/N

Adjacent channel rejection typ. ≥ 65 dB

Intermodulation attenuation typ.≥70 dB

Blocking ≥ 80 dB

Squelch Off, 5 to 25 dBμV, adjustable in steps of 2 dB

Pilot tone squelch can be switched off

AF characteristics

Compander system	Sennheiser HDX
S/N ratio(1 mV, peak deviation)	approx. 90 dB
THD	≤ 0.9%
Output power at 2.4 V,5 % THD, nominal deviation	2 x 100 mW at 32
High Boost	+8 dB at 80 kHz
Limiter	-18 dB to -6 dB,adjustable in steps of 6 dB,can be switched off

Overall device

Temperature range	-10^ to +55^
Power supply	2 AA size batteries, 1.5 Vor BA 2015 accupack
Nominal voltage	2.4 V ===
Power consumption:
• at nominal voltage	approx. 140 mA
• with switched-off receiver	≤ 25 A

Operating time approx. 4 to 6 hrs

(depending on volume level)

Dimensions approx. 82 x 64 x 24 mm

Weight (incl. batteries) approx. 125 g

In compliance with

Europe

CE EMC: EN 301489-1/-9

Radio: EN 300422-1/-2

Safety: EN 60065

USA

FC 47 CFR 15 subpart B

Approved by

Canada Industry Canada RSS 123

IC 2099A-G3SREK300

limited to 806 MHz

Connector assignment

3.5 mm jack plug

Manufacturer Declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product.

For the current warranty conditions, please visit our web site at www.sennheiser.com or contact your Sennheiser partner.

In compliance with the following requirements

• RoHS Directive (2002/95/EC)
• WEEE Directive (2002/96/EC)

Please dispose of the diversity receiver at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment.

• Battery Directive (2006/66/EC)

The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return them to your specialist dealer. In order to protect the environment, only dispose of exhausted batteries.

CE Declaration of Conformity

• C€0682
• R&TTE Directive (1999/5/EC)

The declarations are available at www.sennheiser.com.

Before putting the device into operation, please observe the respective country-specific regulations.

Statements regarding FCC and Industry Canada

This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This class B digital device complies with the Canadian ICES-003.

Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment.

Before putting the device into operation, please observe the respective country-specific regulations!

Index

Accessories 24

Accupack

charging 7

inserting 7

Advanced Menu (extended menu)

overview 12

settings 17

Auto Lock (activating/deactivating the lock mode) 16

Balance (adjusting the balance) 16

Batteries

battery status 6

inserting 7

Buttons

ESC button 5

function of the \~ 11

SET button 5

UP/DOWN button 5

Channel

assigning a frequency 17

selecting 15

setting a frequency 17

Displays

adjusting the contrast of the dis-

play panel (LCD Contrast) 19

AF (audio level) 6

LOW BATT 6

MUTE 6

overview 6

RF (RF level) 6

standard displays 10

Earphones, connecting 7

Easy Setup (scanning for, releasing and selecting frequency presets) 15

Frequency bank

selecting 15

setting a frequency 17

\~ system 3

Frequency Preset (selecting a frequency bank/channel) 15

Frequency presets

releasing (Reset List) 15

searching for unused \~ (Scan New

List) 15

selecting (Current List) 15

High Boost (activating/

deactivating the treble

boost) 16

LCD Contrast (adjusting the

contrast of the display

panel) 19

Limiter (adjusting the limiter) 18

Lock mode

activating/deactivating (Auto

Lock) 16

deactivating temporarily 9

lock mode icon 6

Locked 10

LOW BATT 5

Menu (main menu)

overview 11

settings 14

Mode (switching between stereo and Focus mode) 16

Name (entering a name) 15

Operating menu

overview 11

settings 14

using 12

Pilot Tone (activating/deactivating

the pilot tone

evaluation) 18

Receiver

adjusting the volume 9

cleaning 22

switching off 9

switching on 9

Reset (resetting the settings made

in the operating menu) 19

RF signal indication 5

Software Revision (displaying the

software revision) 19

Squelch (adjusting the

squelch) 14

Transmitter (synchronizing with

receiver) 20

Troubleshooting 23

Tune (setting the receiving

frequencies and frequency

banks) 17

Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com

Printed in Germany Publ. 01/09 529681/A01
