Wien - Television SIEMENS - Free user manual and instructions

Product Type	Television
Brand	Siemens
Model	Wien
Screen Size	21.6 inches (55 cm)
Resolution	1366 x 768 pixels
Aspect Ratio	16:9
Brightness	350 cd/m²
Display Colors	16.7 million
Color System	PAL/BG/DK/SECAM
Sound System	BG/DK/I/L/L'
Audio Output Power	2 x 2W
Power Input	AC 100-240V, 50/60Hz
Power Consumption (Max)	65W
Standby Power Consumption	<1W
Weight	6 kg
Input Terminals	AV, SCART, S-Video, HDMI, VGA/PC Audio
CI Slot	1 (for conditional access)
Remote Control	Yes (requires 2x AAA batteries)
Teletext	Yes
MHEG5	Yes (UK only)
EPG	Yes (Electronic Program Guide)
Parental Lock	Yes (password protected)
Sleep Timer	Yes (adjustable)
Cleaning Instructions	Use a soft dry cloth for cabinet; for screen, use a slightly damp cloth with mild detergent
Safety Warnings	Do not expose to rain or moisture; unplug during lightning storms; keep ventilation openings clear
Disposal	Follow WEEE directive - do not dispose with household waste

Frequently Asked Questions - Wien SIEMENS

How do I turn on the Siemens Wien TV?

Connect the AC power cable and turn on the main power switch. The TV will enter standby mode. Press the Power button on the TV or the remote control to turn it on.

Why is there no sound from the TV?

Check the volume level by pressing VOL+. Ensure the mute function is not active (press MUTE to unmute). Verify the audio cables are properly connected to external devices. Try a different channel to rule out broadcast issues.

The remote control is not working. What should I do?

Remove any obstacles between the remote and the TV sensor. Check that batteries are installed with correct polarity (+ and -) and are not depleted. Try replacing with new AAA batteries. Ensure the remote is set to the correct mode (TV, not VCR).

How should I clean the TV screen?

Turn off and unplug the TV. Use a soft, lint-free cloth slightly dampened with a mixture of lukewarm water and a mild dishwashing detergent. Wring the cloth until nearly dry, then gently wipe the screen. Allow it to air-dry before turning on.

How can I reset the TV to factory settings?

Press MENU and navigate to the Option menu. Select Default and press ENTER. This will clear all programs and restore default settings. You may need to enter the password (default 0000).

How do I use the teletext feature?

Select a TV channel with teletext signal. Press the TEXT button (icon with a book) to enter teletext mode. Use number buttons to enter a page number (e.g., 100 for index). Press HOLD to freeze a page, REVEAL to show hidden text. Press TEXT again to exit.

How do I set the sleep timer?

Press the SLEEP button on the remote control repeatedly to cycle through timer options (e.g., 30, 60, 90, 120 minutes). Alternatively, go to MENU > Timer > Sleep and adjust using LEFT/RIGHT arrows. The TV will automatically enter standby after the set time.

What input sources are available on this TV?

The TV supports the following input sources: TV (antenna), DTV (digital), AV, SCART, S-Video, HDMI, and VGA/PC Audio. Press the SOURCE button on the remote or TV/AV on the panel to cycle through them.

How do I activate parental lock?

Press MENU and go to Lock. Set Lock System to On. Enter your 4-digit password (default 0000). You can then block specific channels via Program Blocked or set Parent Lock for age ratings (DTV mode). To unlock, enter the password again.

How should I dispose of the TV when it reaches end of life?

Do not dispose of the TV with household waste. Follow the WEEE Directive (2002/96/EC) by taking it to a designated collection point for recycling. Contact your local authority or retailer for information. The crossed-out wheeled bin symbol on the product indicates this requirement.

USER MANUAL Wien SIEMENS

Bedienungsanleitung

Operating Instructions

Inhalt

Warnung....1

Cartoon illustration of a smiling computer monitor holding a book and document (no text or symbols present)

Cartoon illustration of a computer monitor with a bandaged face and a money bag, symbolizing online overload or digital overload (no text present)

Cartoon illustration of a man presenting a smiling computer screen with a power cord (no text or symbols)

Cartoon illustration of a computer monitor with arms and a sad face, surrounded by clouds (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and two hands, one holding a device (no text or symbols present)

Cartoon illustration of a computer monitor with an angry face and a hand pointing at it, connected to an electrical outlet with lightning bolts (no text or symbols)

Sicherheitshinweise

Symbolic icon of a person assembling a large mechanical component, enclosed in a circle with diagonal lines (no text or symbols)

Cartoon illustration of a smiling computer monitor character with steam and lightning bolts around it (no text or symbols)

Illustration of a smiling computer monitor and a technician pointing at a toolbox (no text or symbols present)

Hinweis

Abstract grayscale rectangular shape with a white arrow pointing to a small internal feature (no text or symbols)

2

Cross-sectional view of a mechanical component or housing (no visible text or symbols)

3

Gray rectangular object with a white arrow pointing left, no visible text or symbols

1 DKEHGLHQWDVWHQ☐DXI☐\* HUI W

Vorderansicht

1 DKEHGLHQWDVWHQ☐DXI☐ \* HUI W

5 FNVHLWH

•LCN(Logical Channel Number)

Press"OK" to select, Press"Exit" to return

- System Information

Safety Instructions 3

Introduction 5

Installing Batteries 5

Cable Installation 6

Main Unit Control 7

Remote Control 9

Operation 11

TurningonandofftheTV 11

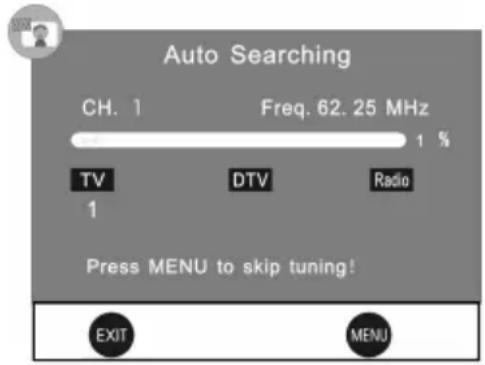

Nosignal 11

ChoosingaTVchannel 11

Volumeadjustment 11

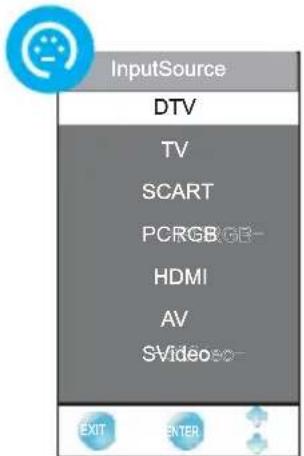

InputSource 12

UsingtheFunction 12

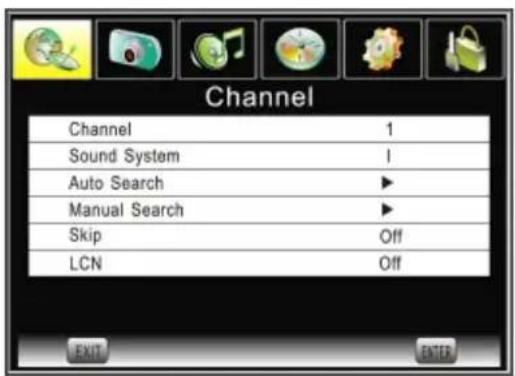

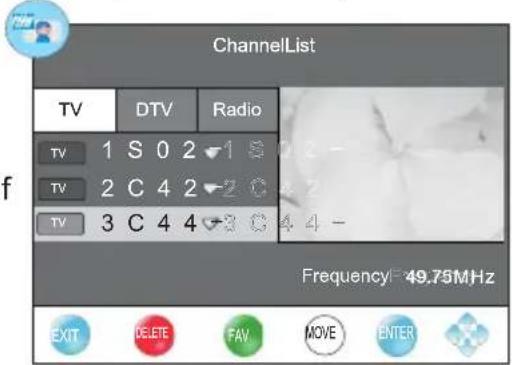

ChannelMenu 12

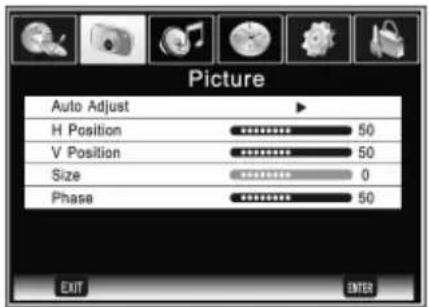

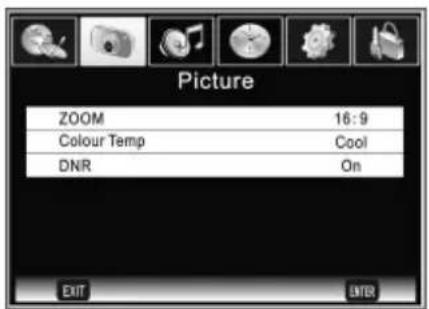

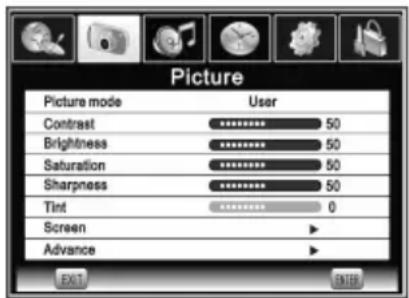

PictureMenu 13

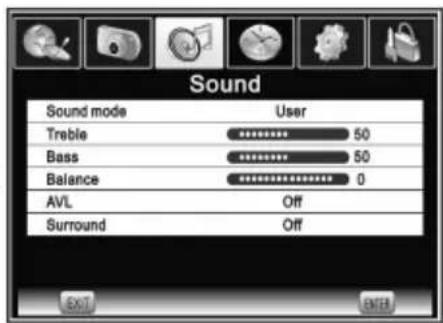

SoundMenu 14

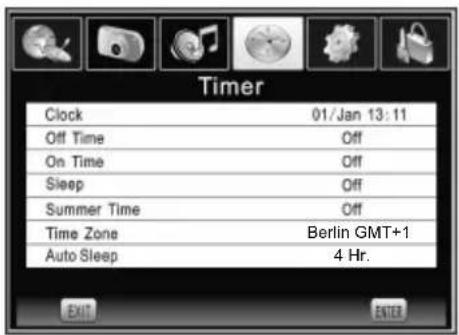

Timer Menu 15

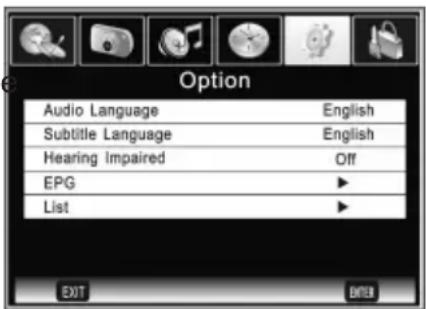

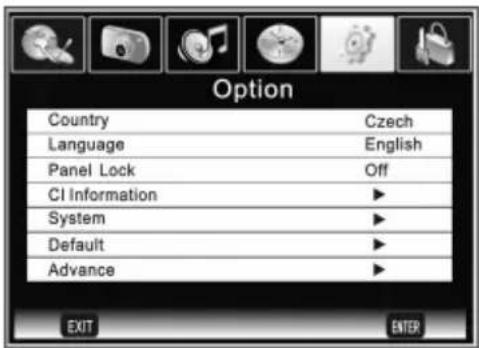

OptionMenu 15

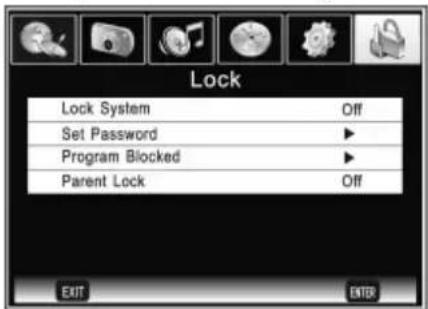

LockMenu 17

MHEG5 18

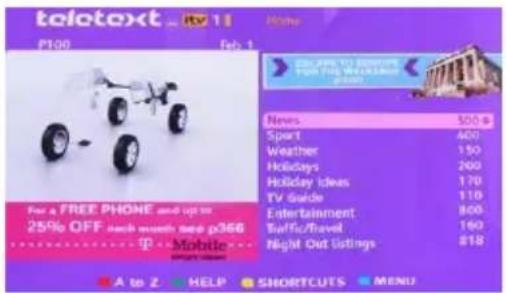

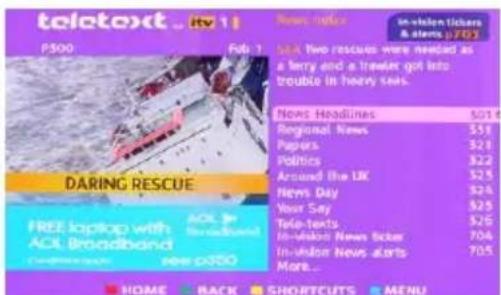

TELETEXT 19

Trouble Shooting 20

Maintenance 21

Specifications 22

WARNING:

TO REDUCETHE RISK OF ELECTRICSHOCKDO NOT REMOVE COVER(OR BACK).NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.

REGULATORY INFORMATION

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CAUTION:

DO not attempt to modify this product in any way without written authorization from suppiler. Unauthorized modification could void the user's authority to operate this product.

It is not recommended to keep a certain still image displayed on the screen for a long time as well as displaying extremely bright images on screen.

WARNING:

To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.

The Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

The MAINS plug is used as the disconnect device, and the disconnect device shall remain readily operable.

The product needs electrostatic prevention. Restart the product when fail to start due to the static caused by product terminals such as TV, AV, SCART, HDMI.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

CAUTION connecting the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and its if appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

On Disposal

• The fluorescent lamp used in this product contain a small amount of mercury.
• Do not dispose of this product with general household waste.
• Disposal of this product must be carried out in accordance to the regulations of your local authority.

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
   3.Heed all warnings.
3. Follow all instructions.

Cartoon illustration of a smiling computer monitor holding a document (no text or symbols on the monitor or background)

5.Do not use this apparatus near water.

1. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.


Cartoon illustration of a computer monitor with arms and a sad face, surrounded by clouds (no text or symbols)

1. Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Cartoon illustration of a computer monitor with a smiling face and a money bag, symbolizing online shopping or digital finance (no text present)

1. Clean only with a dry cloth.

Cartoon illustration of a computer monitor with a sad face and Chinese flag, accompanied by a printer (no text or symbols present)

1. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Illustration of a smiling man holding a cloth next to a computer monitor, with a power cord and a small electrical plug nearby (no text or symbols)

Cartoon illustration of a computer monitor with an angry face and lightning bolts, showing electrical connections (no text or symbols)

Safety instructions

1. Only use the attachments/ accessories specified by the manufacturer.

2. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

Symbolic icon of a person pushing a cart with a diagonal line, enclosed in a circle (no text or symbols)

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

Cartoon illustration of a smiling computer monitor with arms and legs, surrounded by clouds and a steam (no text or symbols)

1. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Illustration of a smiling computer monitor and a worker with a toolbox, both pointing at it (no text or symbols present)

Note

• If the TV feel cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with TV.
• Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However there have no adverse effect on the monitor's performance.
• Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effect on the screen.

Introduction

Installing Batteries

1

Push down to open the battery cover.

Abstract grayscale rectangular shape with a white arrow overlay (no text or symbols)

2

Insert two1.5V AAA size batteries in correct polarity. Don't mix old or used batteries with new ones.

Cross-sectional view of a mechanical component or housing (no visible text or symbols)

3

Close up the cover until the lock clicks.

Close-up of a dark rectangular object with a white arrow pointing upward, no visible text or symbols.

NOTE: The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

• Point the remote towards the remote control sensor of the wireless TV and use it within 7 meters.
• Put the used batteries into the recycling bin since it can negatively affect the environment.

Introduction

Cable Installation

- Before the installation and use, please read carefully the relevant content in "Notice for Maintenance and Safety".

1. Take the LCD TV from the wrapping package and put it in a drafty and LCD place.

Notice:

When you plug or unplay the LCD TV, computer or other equipments, you must make sure that the AC power has been already shut down; when unplugging the power cable or signal cable, please hold the plug(the insulated part), do not draw the body of the cable.

1. The RF output terminal can be connected with the RF input port of the TV.

2. The output AV terminal of DVD can be connected with the AV input port of the TV through AV cable.

3. Connect one end of the VGA cable with the VGA port on computer, connect the other end of the VGA cable with the VGA port on the TV, and tighten the bolts clockwise on the each end of VGA cable.

Notice:

While connecting the 15-pin VGA, please do not insert the plug overexertedly, for fear the pin might be broken.

1. Connect one end of the HDMI cable with HDMI output port, connect the other end of the HDMI cable with the HDMI port on the TV.

Notice:

While connecting the HDMI, please aim at carefully, do not insert overexertedly, for fear the pin might be broken.

1. Check and make sure that all AV cables are connected with the corresponding ports correctly.

2. Connect the AC power cable with 100V\~240V AC power supply.

Caution: The range of power input for the LCD TV is 100V\~240V/50Hz-60Hz, do not connect the TV power input port with the AC power out of the above range. Please hold the insulated part of the plug when you are unplugging the power cable, do not touch directly the metallic part of the cable.

Main Unit Control

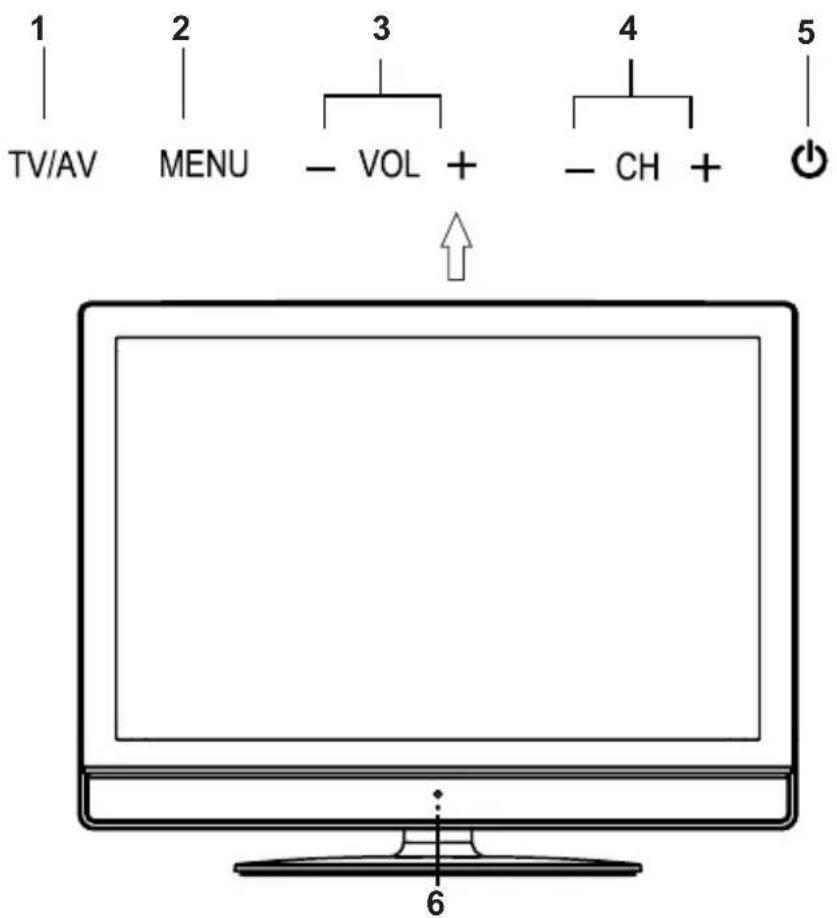

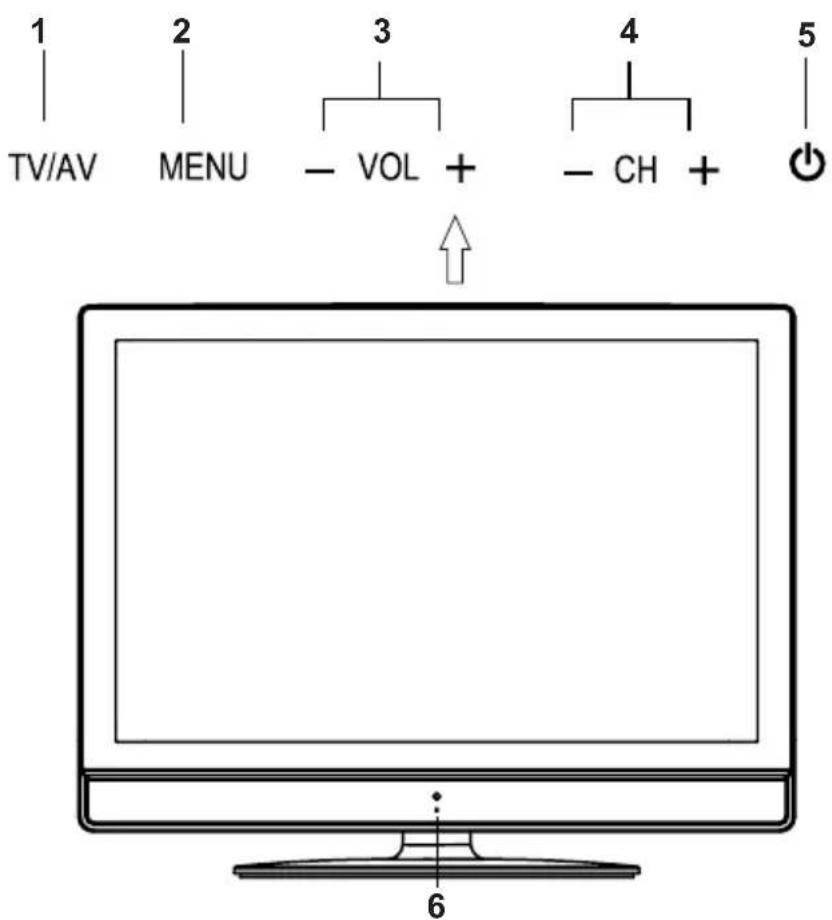

Front & Sides Panel

No.	Name	Description
1	TV/AV	To switch among the signal source
2	MENU	Open the menu or switch among the menus
3	VOL+/VOL-	Adjust the volume level
4	CH+/CH-	Press to change the TV channels and highlight selections(Up & Down) on the menu screen.
5		Turns the unit on and off
6	Power&Sensor	Power Indicator and Infrared sensor

Main Unit Control

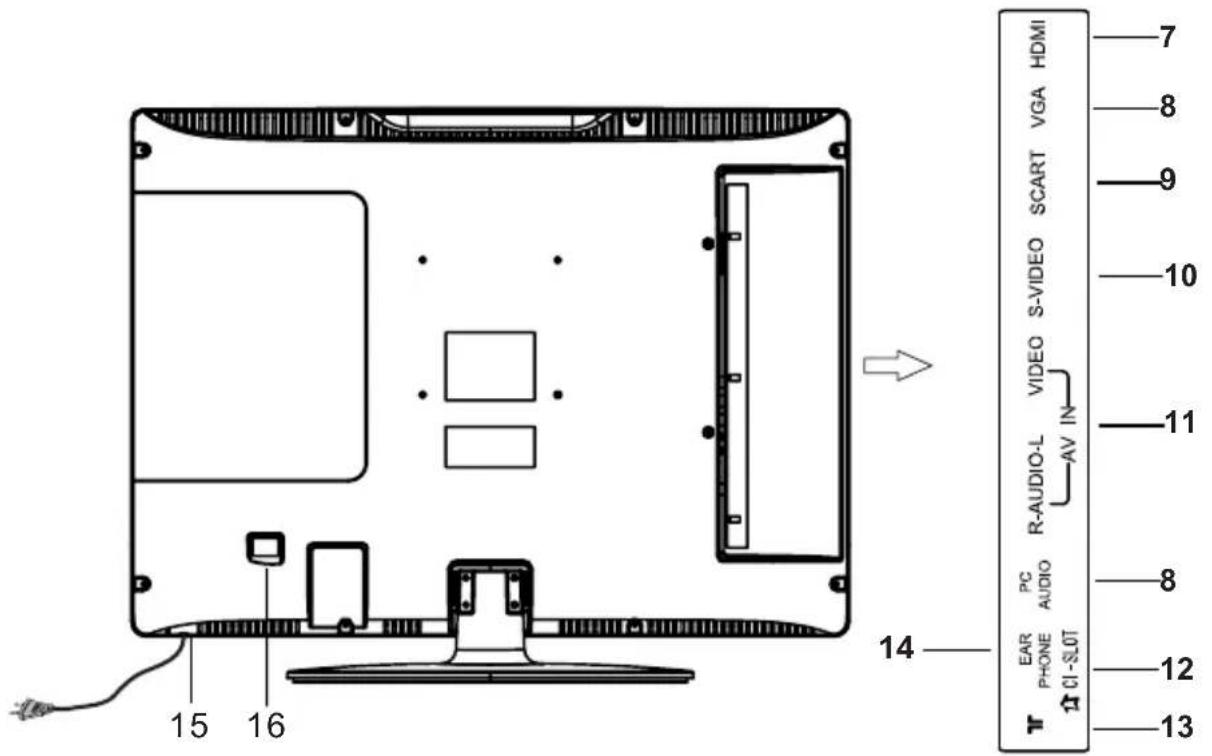

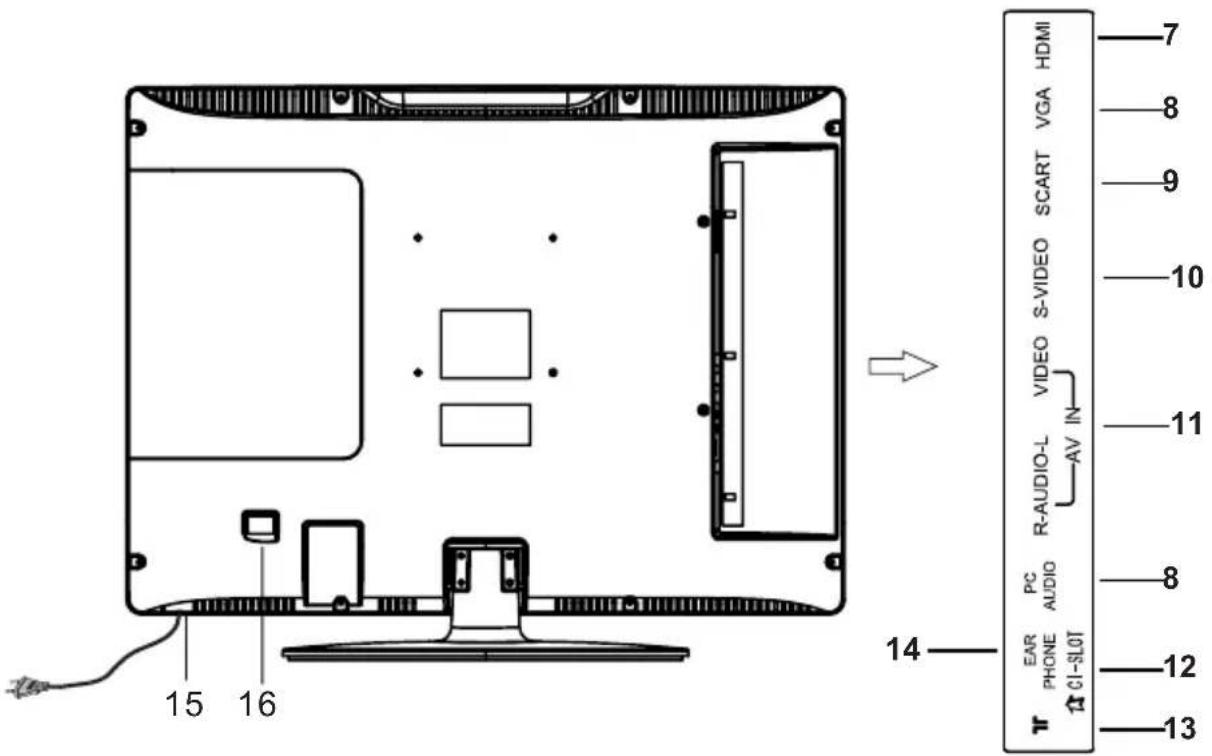

Rear Panel

No.Name	Description
7	HDMI	HDMI INPUT
8	VGA /PC AUDIO	PC INPUT
9	SCART	SCART INPUT/OUTPUT
10	S-VIDEO	S-VIDEO INPUT
11	AV IN	AV audio/video signal input
12	CI SLOT	INSERT CI CARD
13	RF IN	Antenna INPUT
14	EAR PHONE	EAR PHONE OUTPUT
15	AC 100-240V	Connect the power cord
16	POWER ON/OFF	Main switch

Remote Control

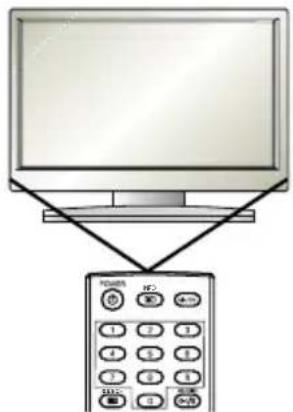

The buttons of the original remote control are as following:

Notice:

All pictures in this manual are examples, only for reference, actual product may differ from the pictures.

Remote Control

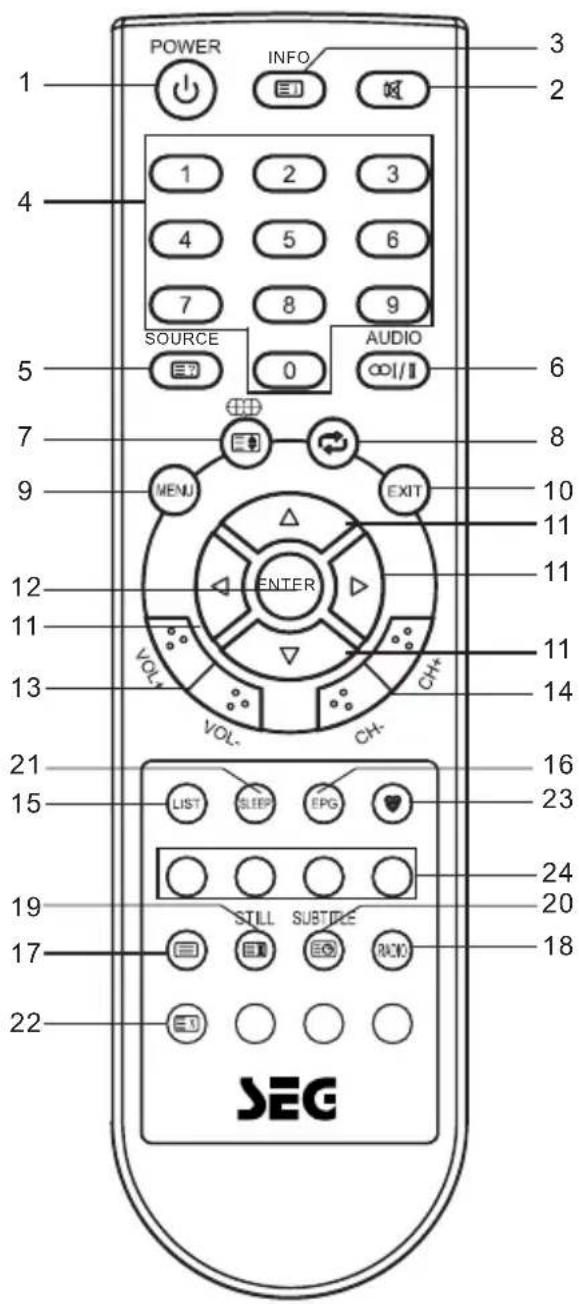

Definition of the buttons on remote control:

1. ⏻:Switch on or off TV set.

2. Press to mute or restore sound.

3.INFO:Press to display the current program information on the screen.

☐:Requests index page when index link is valid.

1. Number buttons (0-9): In TV mode, these buttons are used for inputting the numbers of channels, also, by these buttons you can be used for the password of importation.

5.SOURCE:Press to select signal source.

☐:Press to reveal the hidden information for some Teletext pages (e.g. answers to puzzles or riddles). Press again to hide the information.

1. AUDIO ( ^ I/II): The button can be used to switch among NICAM DUAL I, NICAM DUAL II, NICAM DUAL I+II, STEREO, MONO. And switch Audio language in DTV mode.

2. 📋:Press to change the size of Teletext screen in display mode.

The button can be used to select the size of the screen display.

1. RECALL: Return to last viewed program.

2. MENU: Press to enter the menu screen for various optional adjustable settings.

3. EXIT: Return the last layer OSD Menu or exit OSD Menu.

11.【↑】/【↓】/【←】[→]:To select the direction.

1. ENTER: Press to execute the selected item in the menu screen or enter the desired value in any input mode.

13.VOL+/VOL-:Press to adjust the volume level up or down.

1. CH+/CH-:Press to select channels in ascending or descending order and press these buttons to pageup or pagedown in list.

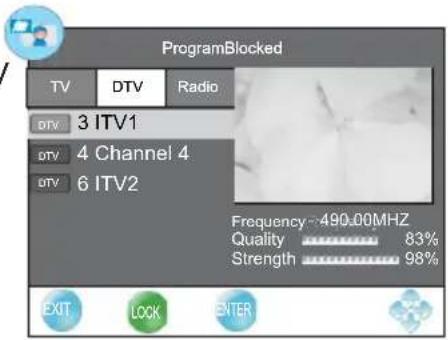

2. LIST: Press to call up the channel list. Press again to exit it.

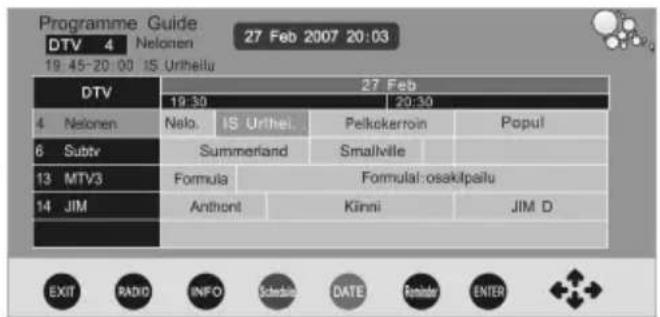

3. EPG: Press to call up the EPG(Electronic Program Guide) in the DTV mode. Press again to exit it.

4. ☐: Enter the Teletext, press again for MIX mode, press this button again to exit.

5. RADIO: Press to interchange the Radio and DTV programs when there is Radio program(In DTV mode).

6. ☐: Press to hold the Teletext page on display to prevent the page from changing. Press again to release the hold state.

STILL: Press to hold the picture.

1. SUBTITLE: Press to enter into subtitle mode/subpage/clock

2. SLEEP: Press to set the sleep timer. When the preset length of time has passed, the TV set enters standby mode.

3. ☑: Press to cancel the Teletext but not to exit the Teletext. Press again to exit from cancel mode.

4. ♥:Switch on/off the favorite programs list.

5. RED: Fast Teletext Control Keys.

GREEN: Fast Teletext Control Keys.

YELLOW: Fast Teletext Control Keys.

BLUE: Fast Teletext Control Keys.

operation

Turning on and off the TV

TURN ON LCD TV

1. Connect the AC input cable then turn on the power switch of the TV. At this time the TV will enter standby mode.
2. Press ⏻ button on TV or ⏻ button on remote control can turn on LCD TV from standby mode.

TURN OFF LCD TV

Press ⏻ button or ⏻ button on the remote control to enter standby mode.

No signal

- There is No Signal menu on screen when there is no input signal. In TV/DTV/VGA mode, if there is no signal in five minutes, the LCD TV will turn off automatically.

NO SIGNAL

Choosing a TV channel

1. Using the CH+/CH- on the panel of TV or on the remote control.
   ◆Press CH+ to increase channel number.
   ◆Press CH - to decrease channel number.
2. Using 0-9 digital buttons
   You can select the channel number by pressing 0 to 9.(In TV,DTV mode)
3. Example:
   ◆To select - channel(e.g.Channel 5): Press 5.
   ◆To select -- channel(e.g.Channel 20):Press 2 and 0 in a short time.

Volume adjustment

1. Press VOL+/- to adjust the volume.

1. If you want to switch the sound OFF, press the MUTE.

2. You can release mute by pressing MUTE or VOL+.

operation

Input Source

You can select the input source by pressing the SOURCE button on the remote control or the TV/AV on the panel. Press [↑] / [↓] button or Source button to cycle through the input source, for example:

NOTE: The picture is just for reference. Please operate with the OSD MENU of concrete TV and refer to the AV terminal board.

Using the Function

Menu overview

Many function settings and adjustments of the LCD TV will begin from the menu choosing. All operation can be followed as help bar shows. Press 【MENU】 button to display the main menu; Press MENU button or [←] / [→] button to cycle through the main menu: Channel, Picture, Sound, Timer, Option, Lock. Press [↑]/[↓] button to highlight the item to be adjusted. Press [←] / [→] button to adjust the submenu or subitem. When you satisfied with your adjustment, press EXIT button to exit the main menu.

When an item in MENU is displayed gray, it means that the item is not available or cannot be adjusted.

Channel Menu(In TV,DTV mode)

Press MENU button on the TV set or on the remote control to select the Channel menu.Shown as below:

Channel

To display the current channel number and press

【←】/【→】button to adjust it.

Sound System

Four modes to be selected: D/K, I, B/G, L (In TV mode).

operation

Auto Search

Select the [→] button to start auto search. Once the progress bar is full, the found channels will be stored and the unit will proceed to the search for TV, DTV, Radio. If you press MENU button in TV searching, the Auto Searching will skip to DTV searching as the suggestive picture shows.

- Manual Search

Mannul search option allows you to preset programs one by one. The first Source Sel.is TV, the other one is DTV.TV display that you are searching program on screen. Press red button to save your choice of program.

Source Sel.: Two modes to select: TV, DTV.

Current CH: To display the current physics channel number.

Frequency: To display the frequency of the searching program.

Search: To decrease and increase frequency you want. (In TV mode)

Fine: To little adjust the frequency (In TV mode). After adjustment, the current channel number changes yellow.

NOTE: In DTV mode, when highlighting Current CH or Frequency, the TV begin DTV Manual Search.

- Skip

Skip the current program. When setting the program skip as on, CH+/CH-【button cannot select it. But you can select the skipped program by pressing the number buttons directly. After adjustment, the current channel number changes to red.

\*LCN(Logical Channel Number)

LCN on/off.

Picture Menu

Press MENU button on the TV set or on the remote control to select the Picture menu. Shown as below:

- Picture mode

Select the Picture mode.

The manufacture's recommendation mode is HOME.

- Contrast/Brightness

Press [←] /[→] button to adjust the contrast/brightness of the picture.

♦Saturation

Press [←] /[→] button to adjust the colour saturation.

operation

- Sharpness

Press [←] / [→] button to adjust the Sharpness level of the picture.

•Tint

Press [←] / [→] button to adjust the tint of the picture (NTSC)

•Screen(In PC-RGB mode)

Auto Adjust: Press [→] button to adjust the position of the picture automatically.

H Position/V Position: Press [←] / [→] button to adjust the horizontal/vertical position.

Size/Phase: Press [←] / [→] button to adjust the size/phase of picture.

- Advance

ZOOM: Press [←] / [→] button to select the ZOOM mode.

Colour Temp: Press [←] / [→] button to select the Colour Temp mode.

DNR: Provide the picture with dynamic noise reduction treatment.

Sound Menu

Press MENU button on the TV set or on the remote control to select the Sound menu. Shown as below:

- Sound mode

Select the Sound mode.

- Treble/Bass

Press [←] / [→] button to increase and decrease the level of the high-pitcher/low-pitcher sounds.

Balance

Press [←] / [→] button to adjust the audio output between left and right speakers.

♦AVL (Auto Volume Level)

AVL automatically remains on the same level of volume if you change programmes. Because each broadcasting station has its own signal conditions, volume adjustment may be needed every time when the channel is changed. This feature allows users to enjoy stable volume levels by making automatic adjustments for each program.

- Surround

Press [←] / [→] button to switch the surround sound.

operation

Timer Menu

Press MENU button on the TV set or on the remote control to select the Timer menu. Shown as below:

Clock

Display the System time gotten from DTV signal stream or set the system time.

- Off Time

Press [→] button to set the time for turning off the TV.

- On Time

Press [→] button to set the time for turning on the TV.

Sleep

Press【←】/【→】button to select the Sleep Time you want.

Summer Time

Press [←] / [→] button to switch the Summer Time.

- Time Zone

Press【←】/【→】button to select the time zone.

• Auto Sleep

Press【←】/【→】button to select the Auto Sleep mode.

The TV will enter into standby mode automatically when there is no any operation in set time (the set time is 4 hours when leave the factory).

Option Menu

Press MENU button on the TV set or on the remote control to select the Option menu. Shown as below:

•Country

Press【←】/【→】button to select country.

Language

Press【←】/【→】button to select OSD language.

◆Panel Lock

Press【←】/【→】button to switch the Panel Lock.

When the Panel Lock is set as On, all of the buttons are locked, losing their functions (The TV can be controlled by the remote control only, this feature can be used to prevent viewing the TV by pressing button.

Press any button for more than 5 seconds to release it).

When it is set as Off, the buttons of TV are in normal mode.

operation

•CI Information

Note: The function can only be gotten when CI slot is available.

To watch encrypted programs under DTV mode, please insert CI card.

Operation: Please insert CI card into the PCMCIA slot according to the arrow on the CI card.

Notice: Please do not insert or pull out the CI card when power on.

Do not insert or pull out the CI card frequently so as to avoid any damages of the TV and the CI card.

During initialization of the CI card, please don't operate the TV.

CryptoWorks: Different cards have different information, taking CryptoWorks as a example. Enter this menu to look through the provider information of Cryptoworks.

Language: To set the language of menu.

CI-Module: Enter this menu to set module information and software download.

Information Message: To receive the mail information from TV station.

CryptoWorks Conditional Access

Main Menu

CryptoWorks

Language

CI-Module

Information Message

Press"OK" to select, Press"Exit" to return

System

Press [→] button to display the System Information: Software Information and Signal Information (Signal Information only in DTV mode).

Default

Press [→] button to clear all programs or resume default setting.

- Advance

Audio Language/Subtitle Language:

Press [←] /[→] to set the default Audio Language/th default Subtitle Language.

Hearing Impaired:

When hearing Impaired is ON, the TV screen will give some information to the people whose hearing are impaired when Hearing Impaired is Off, the information will be hidden.

◆EPG(Electronic programme guide, In DTV mode):

The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG. The EPG displays the programme details for next 7 days.

This function let you know the detailed information of the channel, indicating the time of the program playing. From the EPG it is possible to check the program information for the next eight days (If the information is available from the broadcaster).

ENTER: Press to change channel.

RADIO: Press RADIO button to switch between RADIO and DTV.

operation

INFO: Press to see the detailed information of the current channel.

Schedule: Press the green button Schedule to see the schedule information.

DATE:Press the yellow button to see the detailed information of the next days, and you can press [←] / [→] button to select the concrete date information.

Reminder: Press the blue button to book program.

•List(In TV/DTV mode):

Press [→] button to display the List picture. The list of program include TV, DTV, Radio. When press [↑]/[↓] button to change programs, the signal quality, singal strength, frequency will display on screen. (Only frequency in TV mode.)

DELETE: Press red button to delete the channel.

FAV:Press green button to set the channel as you favorite channel.

MOVE:Press yellow button to move the position of channel.

ENTER:Press ENTER button to change channel.

Lock Menu

Press MENU button on the TV set or on the remote control to select the Lock menu. Shown as below:

- Lock System

The feature can prevent unauthorized operating the TV set, unless entering 4-digit password.

When Lock System is on and the system is locked, we must input the system password at Auto Search, Manual Search, Clear All Programs or List. Press the right number buttons for the password.

The default password is "0000".

※ After a password correction has been confirmed, please remember it for entering into the Parent Guide menu, all functions can not be activated until the correct password is entered. If you forget, the super password of "1225" still valid.

operation

Press the number buttons on the remote control to set the new password. When the new password has been input twice, the setting is finished successfully. The TV will go back to previous menu.

- Set Password

Press [→] to see the Set Password submenu. Press the number buttons to enter the password. You can set your private password.

•Program Blocked(In TV,DTV mode)

Press the green button LOCK to lock the available program you want. Press the green button again to unlock it.

- Parent Lock(In DTV mode)

This feature can prevent children watching adult's TV programmes, according to the rating limit set. This function appearance according the information from broadcasting station. Therefore if the signal has incorrect information, this function does not operate.

MHEG5(Only available in UK)

MHEG5 (Multimedia and Hypermedia information coding Expert Group) is connecting the operation and function as media player. If you want to enter the MHEG5, subtitle must be set off.

Press red button or 📄 button to enter the MHEG5 menu. Press [↑]/[↓] button to select the satisfying item of you. Press ENTER button to highlight the submenu. You can operate the TV with the suggestive information. Press Exit button or 📄 button to exit the MHEG5 menu. Home Page:

After entering the selected item, you can view the main menu as:

Select the main item you want, you can see more particular details.

TELETEXT Operation

Display teletext

1. Select a TV station with a teletext signal.
2. Press the ☐ button to enter teletext mode.
3. Press the ☐tton 2nd to enter Mix mode, this function enables you to superimpose the teletext page over the TV program.
4. Press the ☐ button 3rd return or exit to the normal TV/DTV mode.

Page selection

1. Enter the page number (three digits) using the number buttons. If you press a wrong number during input, you must complete the three digit number and then reenter the correct page number.
2. The [↑]/↓ button and panel key CH+CH- can be used to select the preceding or following page.

Hold

You can press the ☐ button to hold a page, and press it again to release the page.

Index

Press the ☐ button to enter the main index page directly.

Enlarging Text

When a page is displayed, you can double the size of the text to make it easier to read.

1. Press the Ⓞ button to enlarge the top half of the page.
2. Press the ☐ button again to enlarge the bottom half of the page.
3. Press the 📄 button once more to return to the normal display.

Reveal mode

You can display concealed teletext information(e.g.Answer to puzzles or riddles etc.) by pressing ☐? button. Press ☐? button again to remove the information from the display.

Subpage

Some teletext may contain several sub-pages which are automatically paged in a certain cycle by the TV station.

1. Yon can enter into a certain subpage by pressing the SUBTITLE button directly and select the page number with number buttons. Enter the subpage number (e.g.0003) for the third subpage.
2. Press the button again to exit the subpage mode.
3. Press the ☐ button to return to the normal TV mode.

Colour buttons(Red, Green, Yellow, Cyan)

Press these buttons to access directly to the corresponding colour pages displayed at the lower part of the teletext screen.

Trouble shooting

Before contrast the service technician, perform the following simple checks. If any program still persists, unplug the LCD TV and calling for serving.

PROBLEM	POSSIBLE SOLUTION
No sound and picture	-Check whether the main plug has been connected to a wall outlet.-Check whether you have pressed the POWER button on the front of TV set.-Check the picture contrast and brightness settings.
Normal picture but no sound	-Check the volume.-Sound muted? Press the MUTE button.-Try another channel,the problem may be with the broadcast.-Are the audio cables installed properly?
The remote control does not work	-Check to see if there any object between the product and remote control causing obstruction.-Are batteries installed with correct polarity(+ to +,- to -)-Correct remote operating mode set: TV,VCR etc.?-Install new batteries
Power is suddenly turned off	-Is the sleep timer set?-Check the power control settings.Power interrupted.-No broadcast on station tuned with auto activated.
Picture appears slowly after switching on	-This is normal,the image is muted during the product startup process.Please contact your service center,if the picture has not appeared after five minutes.
No or poor colour or poor picture	-Adjust the colour in menu option.-Keep a sufficient distance between the product and theVCR.-Try another channel,the problem may be with the broadcast.-Are the VIDEO cables installed properly?-Activate the any function to restore the brightness of picture.
Horizontal/vertical bars or picture shaking	-Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	-Station or cable product experiencing problems.Tune to another station.-Station signal is weak,reorient antenna to receive weaker station.-Check for sources of possible interference.
Lines or streaks in pictures	-Check the antenna(Change the direction of the antenna).
No output from one of the speaks	-Adjust balance in menu option.
The signal is out of range	-Adjust resolution,horizontal frequency,or vertical frequency.-Check it whether the signal cable is connected or loose.-Check the input source.
Vertical bar or stripe on back ground& Horizontal Noise& Incorrect position.	-Work the auto configure or adjust clock,phase,or H/V position.
Screen colour is unstable or single colour.	-Check the signal cable.-Reinstall the PC video card.

NOTE: There is a problem in VGA mode(Only VGA mode applied).

Maintenance

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the screen

1. Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then used it to wipe the screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

Extended Absence

If you expect to leave your TV dormant for a long time(such as a vacation), it's a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc;
• No naked flame sources, such as lighted candles, should be placed on the apparatus;
• Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to protect the environment.
• Don't use the apparatus in tropical climates;
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable. The main plug shall remain readily operable.
• Keep minimum distances(5cm)around the apparatus for sufficient ventilation; (Minimum distance around the apparatus for sufficient ventilation.)

Disposal of old electrical appliances

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Specifications

Technical

of specifications the

TV

Screen Size	21.6" (Screen diagonal)
Screen Format 16:9
Physics Resolution 1366×768 pixel
Brightness	350(cd/m2)
Component Input Format 480i/p,	576i/p, 720p, 1080i
Display colors	16.7 M
Color system	PAL/BG/DK/SECAM
Sound system	BG/DK/I/L/L'
Antenna input	75 Ohm (electrically unsymmetrical)
Audio output power	2x2W
Voltage Input AC 100-240V ~50/60Hz
Maximum Power Consumption 65W
Stand-by Consumption	<1W
Weight	6kg
AV Input 1
PC/PC AUDIO Input 1
HDMI	1
SCART	1
S-Video	1
CI-Slot	1

Herstellergarantie

[e-mail]

[e-mail]
