Product Type	LED TV
Brand	ITT
Model	LED 26H-3675-W
Screen Size	22 inches (16:9)
Dimensions (with stand)	134 x 530 x 376 mm (DxLxH)
Weight (with stand)	4.45 kg
Power Supply	220-240 V AC, 50 Hz
Power Consumption (max)	50 W
TV Systems	PAL/SECAM B/G D/K K' I/I' L/L'
Digital Reception	DVB-T/T2 MPEG2/MPEG4 HD, DVB-C MPEG2/MPEG4 HD, DVB-S/S2 MPEG2/MPEG4 HD
Number of Channels	10000
Connections	HDMI (x2), SCART, VGA, USB, Side AV, Headphone, CI slot, SPDIF
Remote Control	Included with 2 x AAA batteries
Audio Output Power	2 x 2.5 W RMS (10% THD)
Sleep Timer	Yes, up to 6 hours
Child Lock	Yes
Teletext	Fastext, TOP text, Digital Teletext
USB Playback	Video, Music, Photo (MPEG, H.264, MP3, JPEG, etc.)
Cleaning Instructions	Unplug TV, use soft dry cloth; no liquid/ aerosol cleaners
Safety Precautions	Keep ventilation openings clear; avoid moisture; do not place near heat sources; use only with supplied stand or wall mount
Repair Information	Refer all servicing to qualified personnel; contact local dealer

Frequently Asked Questions - LED 26H-3675-W ITT

How do I install the batteries in the remote control?

Lift the cover on the back of the remote upward gently. Insert two AAA batteries matching the + and - ends correctly. Replace the cover.

How do I connect the antenna or cable?

Connect the aerial or cable to the antenna input on the back of the TV. For satellite, connect the LNB cable to the satellite input. Ensure the TV is plugged into a 220-240 V outlet.

What should I do during first time installation?

When you turn on the TV for the first time, select your language from the menu. Then choose your country and search type (Digital, Analog, or both). The TV will automatically scan and store available channels.

How can I play media from a USB drive?

Insert a USB drive into the USB port on the side of the TV. Press MENU, select Media Browser, then choose Video, Music, or Picture. Use the on-screen controls to play files. Supported formats include MPEG, H.264, MP3, JPEG, etc.

Why is there no picture on my TV?

Check that the TV is switched on and the correct input source is selected. Ensure the aerial is properly connected. If using an external device, verify the cables are secure. If the issue persists, try retuning channels.

How do I adjust the picture settings?

Press MENU, go to Picture menu. You can change Mode (Cinema, Game, Dynamic, Natural), Contrast, Brightness, Sharpness, Colour, and more. Use Power Save Mode to reduce energy consumption.

Can I mount the TV on a wall?

Yes, the TV supports wall mounting (optional kit not included). Follow the installation instructions carefully. Ensure the wall mount is secure and the TV is properly attached to prevent injury.

What should I do if the remote control stops working?

Replace the batteries with new ones. If it still does not work, you can use the control buttons on the TV itself (unless blocked by parental control). Ensure there are no obstacles between the remote and the TV sensor.

How do I update the TV software?

Go to Settings > Other Settings > Software Upgrade. You can scan for upgrades manually. The TV can also search for updates automatically in background or at 3:00 AM if enabled. Follow on-screen instructions.

What are the power saving features?

Enable Power Save Mode in the Picture menu: set to Eco to reduce brightness, or Picture Off to turn off the backlight. Also, switch off the TV completely when not in use to save energy.

USER MANUAL LED 26H-3675-W ITT

Front view of a modern computer monitor with a black screen and 'ITT' branding on the front panel (no additional text or symbols visible)

Vorwort

Kabelinstallation....11

Satelliten-Installation....11

Two black electronic devices with metallic components, one open and one closed (no visible text or symbols)

PAL/SECAM B/G D/K K' I/I' L/L'

DIGITALEMPFANG

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-C MPEG2

DVB-C MPEG4 HD

DVB-S / S2 MPEG2

DVB-S / S2 MPEG4 HD

EMPFANGSKANÄLE

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

Safety Precautions 22

Power source....22

Positioning the TV....22

Power cord and plug....22

Moisture and Water 23

Ventilation 23

Heat sources and Flames....23

Headphone Volume 23

Wall Mounting (optional) 23

LCD Screen 23

Cleaning....23

Environmental Information 23

Repair Information 23

Accessories included....24

TV - Features 24

Viewing the TV 24

TV Control Switch & Operation.... 24

Operation with the Remote Control 24

Input Selection....24

Changing Channels and Volume 24

Viewing remote control 25

Installing the Batteries to the Remote.... 27

Connect Power & Antenna/Cable/Satellite ..... 27

Switching On/Off....27

Switching the TV On 27

Switching the TV Off 27

First Time Installation.... 27

Aerial Installation 28

Cable Installation 28

Satellite Installation....28

Media Playback via USB Input 29

Media Browser Menu....29

Changing Image Size: Picture Formats 29

Using the Channel List 29

Sorting Channel List 29

Menu Features and Functions....30

Electronic Programme Guide (EPG) 33

Teletext....33

Software Upgrade.... 33

Troubleshooting & Tips....34

PC Typical Display Modes ....35

Supported File Formats for USB Mode 36

Specifications 36

Safety Precautions

Please read these instructions fully before installing or operating.

WARNING: Never let people (including children) with physical, sensory or mental abilities or lack of experience and / or knowledge unsupervised use electrical device!

Children may not recognize dangers right! The swallowing of batteries can be fatal. Keep batteries always out of reach of small children. If a battery is swallowed, immediately seek medical attention. Keep the packaging films out of reach of children. Risk of suffocation.

Power source

- The TV should be operated only from a 220-240 V AC, 50 Hz outlet.

- Warning: Do not leave your TV in standby or operating mode when you leave your house.

Positioning the TV

• For ventilation, please leave a clear space of at least 10cm all around the TV.
• Do not block the ventilation openings.
• Do not place the TV on sloping or unstable surfaces, the TV may tip over.
  • To prevent damage to the TV, do not place any objects on top of the TV.
• Only use the TV in moderate climates.

Power cord and plug

• The power cord plug should be easily accessible. In case of storms and lightning, when going on holiday, or when the TV is not used for a long period of time disconnect the power cord from the mains power socket.
• The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.
• Do not place the TV, furniture, etc. on the power cord or pinch the cord.
• Handle the power cord by the plug, do not unplug the TV by pulling the power cord.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Never make a knot in the power cord or tie it with other cords.
• Power cords should be placed in such a way that they are not likely to be stepped on or driven over.
• A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by a personnel.

Moisture and Water

• Do not use this TV in a humid or damp place (avoid bathrooms, the sink in the kitchen, and near the washing machine).
• Do not expose this TV to rain or water, as this may be dangerous.
• Do not place objects filled with liquids, flower vases, on top of the TV. Avoid from dripping or splashing.
• If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Ventilation

• The slots and openings on the TV set are intended for ventilation and to ensure reliable operation.
• To prevent overheating, these openings must not be blocked or covered in anyway.

Heat sources and Flames

• Do not expose the TV to direct sunlight or other heat sources.
• The TV should not be placed near to open flames and sources of intense heat such as an electric heater.
• Ensure that no open flame such as lighted candles, are placed on top of the TV.

Headphone Volume

- Excessive sound pressure from earphones and headphones can cause hearing loss, please take care.

Wall Mounting (optional)

- To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions (if the option is available).

LCD Screen

• Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.
• Take care not to scratch the screen with fingernails or other hard objects.

Cleaning

• Before cleaning, unplug the TV from the wall socket.
• Do not use liquid or aerosol cleaners. Only use a soft, dry cloth.

Environmental Information

This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efficiency feature of this TV. To reduce energy consumption, you should take the following steps:

You can use Power Save Mode setting, located in the Picture Settings menu. If you set Power Save Mode as Eco, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

Power Save Mode

If you set power save mode as Picture off, a message will appear on the screen and backlight will be off within three seconds. Press any button on the remote controller to activate the picture again.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Disconnect power when going away for longer time.

It is highly recommended to activate Power Save Mode setting to reduce your annual power consumption. Also it is recommended to disconnect the TV from the mains plug to save energy more when you do not use.

Please helps us to save environment by following these steps.

Repair Information

Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

Accessories included

Remote Control

Batteries: 2 x AAA

Instruction Book

Side AV Connection Cable (optional)

TV - Features

- Fully integrated digital/cable/satellite TV (DVB-T/C/S-S2).

• HDMI connectors for digital video and audio.

- USB input.

• 10000 programmes.

- OSD menu system.

- Scart socket for external devices.

- Stereo sound system.

- Teletext, fastext, TOP text.

• Headphone connection.

• Automatic programming system.

- Forward or backward manual tuning.

• Automatic power down after up to six hours.

- Sleep timer.

- Child lock.

• Automatic sound mute when no transmission.

- NTSC playback.

• AVL (Automatic Volume Limiting).

- PLL (Frequency Search).

- PC input.

- Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.

- Game Mode.

• Picture off function.

Viewing the TV

Line drawing of a flat-screen monitor with a stand (no text or symbols)

Top-down schematic of a computer monitor showing internal components and ventilation slots (no text or labels)

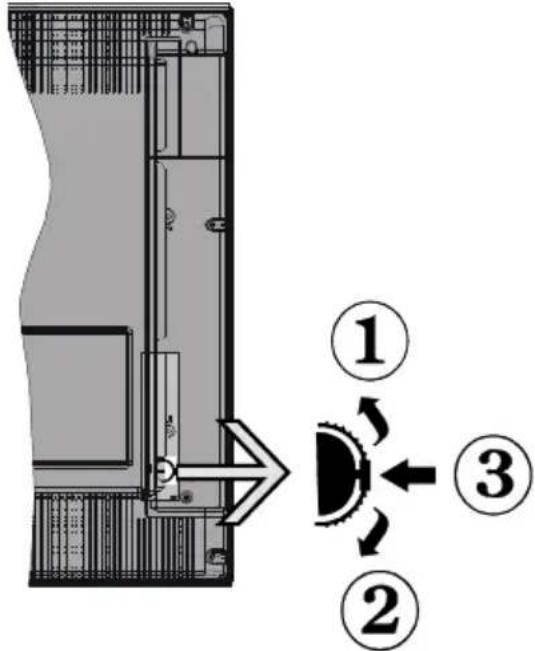

TV Control Switch & Operation

1. Up direction

2. Down direction

3. Programme/Volume / AV / Standby-On selection switch

You can move the switch, upward or downward to change the volume. If you want to change channels, press the middle of the switch once (Position 3) and then move upward or downward. If you press the middle of the switch once more, source OSD will be displayed. To select desired source, move the switch upward or downward and release. If you press the middle of the switch and hold about a few seconds, the TV will switch to standby mode. Main menu OSD cannot be displayed via the control button.

Operation with the Remote Control

Press MENU button on your remote control to display main menu screen. Use Left or Right button to select a menu tab and press OK to enter. Use Left / Right / Up / Down to select or set an item. Press RETURN or MENU button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press SOURCE button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the V+/- and P+/- buttons on the remote.

Viewing remote control

1. No function
2. Play (in Media Browser mode)
3. No function
4. Fast rewind (in Media Browser mode)
5. No function
6. Mono/Stereo - Dual I-II / Current Language
7. Image size
8. Teletext / Mix
9. Electronic Programme Guide
10. Numeric buttons
11. AV / Source
12. Menu on/off
13. Programme Down - Page up / Programme Up - Page down
14. Back to previous menu / Index page (in TXT mode)
15. Green button
16. Red button
17. Media Browser
18. My Button 1 (*)
19. My Button 2 (**)
20. Info / Reveal (in TXT mode)
21. Blue button
22. Yellow button
23. Exit
24. OK / Select / Hold (in TXT mode)
25. Volume up / down
26. Navigation buttons
27. Mute
28. Previous programme
29. Sleep timer
30. Favourite mode selection
31. Picture mode selection
32. Subtitle on-off / Subtitle (in Media Browser mode).
33. No function
34. Fast forward (in Media Browser mode)
35. Stop (in Media Browser mode)
36. Pause
37. Standby
38. Operation LED light

(*) MY BUTTON 1: This button's main function is to run Youtube link. However, if you want to change this function, you can press MY BUTTON 1 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function. Note that if you perform first time installation, MY BUTTON 1 will return to its default function

(**) MY BUTTON 2: This button's main function is to switch between DVB-T, DVB-C and DVB-S broadcasts. However, if you press MY BUTTON 2 for five seconds, you can set a function to it as described in My Button 1.

Note that if you perform first time installation, MY BUTTON 2 will return to its default function, switching between DVB-T, DVB-C and DVB-S broadcasts.

Connector	Type	Cables	Device
	Scart Connection (back)		(Notsupplied)
	VGA Connection (back)		(Notsupplied)
	PC/YPbPrAudio Connection (side)		SideAudio/Video ConnectionCable (Supplied)
	HDMI Connection (back)		(Notsupplied)
SPDIF	SPDIFF Connection (back)		(IVotsupplied)
	SideAV Connection (side)		AVConnection Cable(supplied)
	Headphone Connection (side)
	USB Connection (side)
	CI Connection (side)

NOTE: When connecting a device via the Side AV input, you must use the supplied connection cables

to enable connection. See the illustrations above. | To enable PC audio, you will need to use the supplied SIDE AV CONNECTION cable's WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. You can use the VGA input for connecting a YPbPr device. To do this, you need a YPbPr to PC cable (Not supplied).

Always connect a USB medium directly to the USB port on the TV. The use of a USB extension cord is not supported by the TV. The TV's USB port cannot communicate with a PC.

Installing the Batteries to the Remote

1. Lift the cover on the back of the remote upward gently.

2. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity.

3. Replace the cover.

Two black electronic components with metallic contacts and a triangular lens (no visible text or symbols)

Connect Power & Antenna/Cable/Satellite

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Switching On/Off

Switching the TV On

With power cord plug connected to the mains power socket, the TV is in 'Standby' mode.

To switch the TV on from standby mode:

Press the “ ” button and the TV will switch to standby mode. Then the standby LED lights up.

To switch on the TV from standby mode either:

a. Press the "⏻" button, P+ / P- or a numeric button on the remote control.

b. Press the middle of the “ ” button on the TV. By either method the TV will switch on.

Switching the TV Off

Press the “button on the remote control or press the standby” button, so the TV will switch to standby mode.

To turn off the TV completely, remove the power cord plug from the mains power socket.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

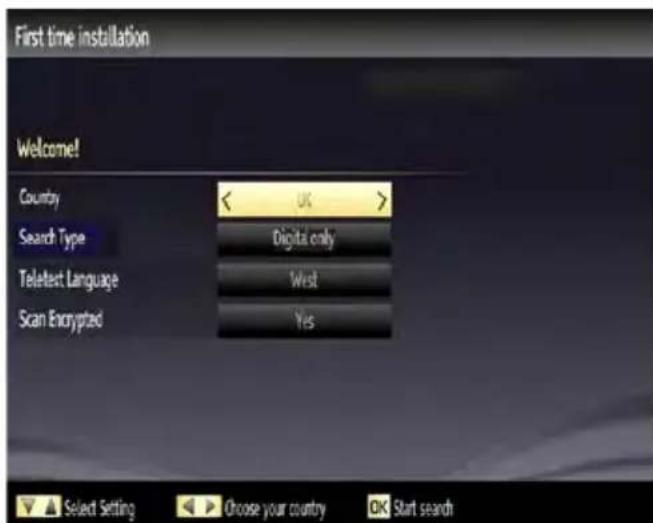

First Time Installation

When turned on for the first time, the selection" menu appears. The message "Welcome please select your language!" is displayed in all language options listed alphabetically.

Press the “↗” or “ ” button to highlight the required language, press OK button to select. “First Time Installation” appears. Use “〈” or “〉” button to set the required country, and press “↘” button to select Search Type (optional).

Use “” or “” to set the desired search type. Available search types are Digital and analog, digital only and analog only.

When set, press “√” to select Teletext Language. Use “<” or “” to select the desired Teletext Language. Next, select Scan Encrypted and set as Yes if you want to scan coded stations.

Press OK button on the remote control to continue and the following message will be displayed on the screen.

You must select a search type to search and store broadcasts from the desired source.

Aerial Installation

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

NOTE: You can press MENU button to cancel.

After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN(*), please select "Yes" and then press OK.

Press OK button to quit channel list and watch TV.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence.

Cable Installation

If you select CABLE option and press OK button on the remote control to continue, the following message will be displayed on the screen:

To continue please select YES and press OK. To cancel operation, select NO and press OK.

You can select frequency ranges from this screen. For highlighting lines you see, use “^” or “” button.

You can enter the frequency range manually by using the numeric buttons on the remote control.

Set Start and Stop Frequency as desired by using numeric buttons on the remote control.

After this operation, you can set Search Step as 8000 KHz or 1000 KHz.

If you select 1000 KHz, the TV will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search. The TV will search and store available broadcasts.

Satellite Installation

If you select Satellite option from the Search Type screen, you can set a satellite and watch satellite channels. When you select Satellite installation, Antenna Type menu will be displayed.

There are three types of antenna selection. You can select Antenna type as Direct, Unicable or DiSEqC switch by using “<” or “>” buttons.

Direct: If you have a single receiver and a direct satellite dish, select this antenna type. After selecting Direct, another menu screen will be displayed. Select an available satellite and press OK to scan for services.

Unicable: If you have multiple receivers and a unicable system, select this antenna type. Press OK to continue. Configure settings by following instructions on the screen. Press OK to scan for services.

DiSEqC switch: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. After selecting DiSEqC switch, another menu screen will be displayed. You can set four DiSEqC options (if available). Press GREEN button to scan all satellites or press YELLOW button to scan only the highlighted satellite. To save and exit press OK button.

Media Playback via USB Input

You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play files stored in a USB drive. 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives are supported.

IMPORTANT! You should back up your files before making any connections to the TV set in order to avoid any possible data loss. Manufacturer will not be responsible for any file damage or data loss. It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. Note: While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process.

Quickly plugging and unplugging USB devices, is a very hazardous operation. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and USB device itself. Do not pull out USB module while playing a file.

Media Browser Menu

You can play photo, music, and movie files on a USB disk by connecting it to your TV and using the Media Browser screen. To do this, perform the following: Insert a USB disk to the port on the side part of the TV. Press MENU button and select Media Browser tab by using Left/Right and OK buttons. Main media browser screen will be displayed. You can display the related content by selecting the Video, Music or Picture tab. Follow the button indications under each on screen menu for media playback features.

You can set your Media Browser preferences by using the Settings dialog.

Changing Image Size: Picture Formats

Programmes can be watched in different picture formats, depending on the transmission received. You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes. Press "SOURCE" button repeatedly to change the image size. You can shift the screen up or down by using " /or " " buttons while in 14:9 Zoom, Cinema or Subtitle.

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press MENU button to view main menu. Select Channel List item by using Left or Right button. Press OK to view menu contents. Select Edit Channel List to manage all stored channels. Use Up or Down and OK buttons to select Edit Channel List. Press Up or Down button to select the channel that will be processed. Press Left or Right button to select a function on Channel List menu. Use P+/P- buttons to move page up or down. Press MENU button to exit.

Sorting Channel List

You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use Active channel list setting. Select Active channel list from the Channel list menu by using “^” or “√” button. Press OK button to continue. You can select a network type option from the list by using “<” or “>” and OK buttons.

Menu Features and Functions

Picture Menu Contents
Mode	For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema, Game, Dynamic and Natural.
Contrast Sets the lightness and darkness values of the screen.
Brightness Sets the brightness value for the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Power Save Mode	To set Power Save Mode as Eco, Picture Off and Disabled. See the section, "Environmental Information" in this manual for further information on Power Save Mode.
Backlight (optional)	This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and Eco Mode. Backlight function will be inactive if Power Save Mode is set to On. Backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.
Advanced Settings
Dynamic Contrast	You can change contrast rate by using dynamic contrast function. Dynamic contrast can be set to one of these options: Low, Medium, High or Off.
Colour Temp Sets the desired colour tone.
Picture Zoom	Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema.Auto (Only available in Scart mode with SCART PIN8 high voltage/low voltage switching).
HDMI True Black(optional)	While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture.
Film Mode (optional)	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see motion scenes clearly.
Skin Tone Adjust the desired skin tone.
Colour Shift Adjust the desired colour tone.
RGB Gain	Press OK button to edit RGB gain. You can configure the colour temperature values using the RGB Gain feature.
Reset Resets the picture settings to factory default settings.
Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to right hand side or left hand side of the screen.
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

the fast

Menu Features and Functions

Sound Menu Contents
Volume Adjusts volume level.
Equalizer:	In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the MENU button to return to the previous menu. Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.
Balance This setting is used for emphasizing left or right speaker balance.
Headphone Sets headphone volume.
Sound Mode	You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.
AVL	Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).
Dynamic Bass (optional)	Enables or disables the Dynamic Bass.
Digital Out Sets digital out audio type.
Install and Retune Menu Contents
Automatic Channel Scan (Retune)	Displays automatic tuning options.Digital Aerial: Searches and stores aerial DVB stations.Digital Cable: Searches and stores cable DVB stations.Analogue: Searches and stores analogue stations.Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations.Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.Satellite: Searches and stores satellite stations.
Manual Channel Scan	This feature can be used for direct broadcast entry.
Network Channel Scan	Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings and starts first time installation. You can follow the instructions Installation section for more information on this process.

Menu Features and Functions

Settings Menu Contents
Conditional Access	Controls conditional access modules when available.
Language	Configures language settings.
Parental Configures	parental settings.
Timers Sets timers for selected programmes.
Date/Time	Sets date and time.Note:* The TV takes the time info via the broadcast. Correct time will be available on Date/ Time Settings, if the time info is provided in the broadcast.If the TV is in no channel mode, Date/Time settings can be changed. However, if there is a channel preset, only “Time Settings Mode” can be changed and if this is set to Manual, Time Zone will be enabled.* If the TV is switched to standby mode and switched on later and there is no broadcast available, time information will not be updated. If there is a present broadcast; however, time information will be taken via the broadcast. In other words, time information will be available according to these priorities: The TV first looks for the time info in the broadcast, then to the user preference, and lastly to the teletext time information.
Sources Enables or	disables selected source options.
Satellite Settings	Displays satellite settings.
Other Settings: Displays other setting options of the TV set:
Menu Timeout Changes timeout duration for menu screens.
Scan Encrypted	When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.
Blue Background	Activates or deactivates blue background system when the signal is weak or absent.
Software Upgrade	To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.
Application Version	Displays application version.
Hard of Hearing	If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.
Audio Description	Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track.
Auto TV Off	You can set the timeout value of auto off feature. After the timeout value is reached and the Tv is not operated for selected time , the TV will go off.
Biss Key	Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter BISS key on a broadcast, you can use Biss Key setting located in the Other Settings menu. Highlight Biss Key and press OK to enter keys on the desired broadcast.
Standby Search (optional)	If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On. If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process. Please activate Standby Search setting in order to enable your TV for automatically updating the broadcast frequency of the broadcaster, broadcast definition and similar changes.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the EPG button to view the EPG menu.

Info bar commands:

RED button: Previous day.

GREEN button: Next day.

YELLOW button: Zooms to the selected programme.

BLUE button - Next day: displays filtering options.

BLUE: displays filtering options.

Teletext

“teletext / Mix: Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix). Pressing again will quit the teletext mode.

"RETURN" Index: Selects the teletext index page.

"INFO"Reveal: Shows hidden information (e.g. solutions of games).

"OK" Hold: Holds a text page when convenient. Press again to resume.

“◀”/“▶ Subcode Pages: Selects subcode pages if available when the teletext is activated.

P+ / P- and numbers (0-9): Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “▼or “” commands will request the next or previous page respectively.

Digital Teletext (If available)

- Press the 📄 button. The digital teletext information appears. Operate it with the coloured buttons, cursor buttons and OK button.

The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen.

When the "☐" button is pressed again, the TV returns to television broadcasting.

Software Upgrade

Your TV is capable of finding and updating new software upgrades over broadcast channels. For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.
• Simply navigate on your main menu.

Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.

• In Upgrade Options menu select Scan for upgrade and press OK button.
• If a new upgrade is found, it starts to the upgrade. A progress bar indicates the remaining download progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) Background search and upgrade mode

- While TV is connected to Internet, in background it searches for critical software upgrades. If a critical software upgrade is found it downloads the upgrade silently. When download completes with success a message is displayed for reboot operation to activate new software. Press OK to continue with the reboot operation.

3) 3.AM search and upgrade mode

- If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version.

Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During reboot TV makes final initialization. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.

- If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you. Caution: While led is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-open again and can only be fixed by service personnel.

Troubleshooting & Tips

Image persistence - ghosting

Please note that ghosting may occur while displaying a persistent image (still or paused image). LED TVs' image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture mode for extended periods.

No power

If your TV has no power, please check the power cord plug is connect to the mains power socket.

Poor picture

1. Have you selected the correct TV system?
2. Is your TV or house aerial located too close to a non-earthed audio equipment or neon lights, etc.?
3. Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable?.
4. Check if you have entered the correct frequency.
5. Please retune the channels.
6. The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

1. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
2. Is the aerial connected properly?
3. Are the plugs connected tightly to the aerial socket?
4. Is the aerial cable damaged?
5. Are suitable plugs used to connect the aerial?
6. If you are in doubt, consult your dealer.

No sound

1. Has the TV been set to mute? To cancel mute, press the "OK" button, or increase the volume level.
2. Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control - does not operate

Your TV no longer responds to the remote control. The batteries may be exhausted, if so you can still use the control buttons on the TV. (* Is only possible if they are not blocked by parental control.)

Input sources - can not be selected

1. If you cannot select an input source, it is possible that no device is connected.
2. Check the AV cables and connections if you have tried to connect a device.

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

DIGITAL PLUS

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

PC Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.

Index	Resolution Frequency
1 640	x350p 60 Hz
2 640	x400p 60 Hz
3 102	4x768 60 Hz
4 128	0x768 60 Hz
5 136	0x768 60 Hz
6 720	x400 60 Hz
7 800	x600 56 Hz
8 800	x600 60 Hz
9 102	4x768 60 Hz
10 102	4x768 66 Hz
11 128	0x768 60 Hz
12 136	0x768 60 Hz
13 128	0x1024 60 Hz
14 128	0x960 60 Hz
15 128	0x1024 60 Hz
16 140	0x1050 60 Hz
17 192	0x1080 60 Hz
18 160	0x1200 60 Hz

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

DIGITAL RECEPTION

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-C MPEG2

DVB-C MPEG4 HD

DVB-S / S2 MPEG2

DVB-S / S2 MPEG4 HD

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

10000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER ( W_RMS ) (10% THD)

2 × 2,5

POWER CONSUMPTION (W)

50 W (max)

PANEL

16:9 display, 22" Screen Size

DIMENSIONS (mm)

DxLxH (With foot):134 x 530 x 376

Weight (Kg): 4,45

DxLxH (Without foot): 35 x 530 x 340

Weight (Kg): 4,25

Technical specifications and design may change without notice.

Supported File Formats for USB Mode

Media File	Extension	Format Remarks
		Video Audio (Maximum resolution/Bit rate etc.)
Movie	.mpg .mpeg MPEG1,2 MPEG Layer 1/2/3			MAX 1920x1080 @ 30P 20Mbit/sec
	.dat MPEG1,2		MPEG2
	.vob MPEG2
	.mkv H.264, MPEG1,2,4 EAC3/ AC3
	.mp4	MPEG4Xvid 1.00,Xvid 1.01, Xvid 1.02, Xvid 1.03,Xvid 1.10-beta1/2H.264	PCM/MP3
	.avi	MPEG2, MPEG4
		Xvid 1.00,Xvid 1.01, Xvid 1.02, Xvid 1.03,Xvid 1.10-beta1/2H.264	PCM
Music .mp3 -			MPEG 1 Layer 1 /2 (MP3)	32Kbps ~ 320Kbps(Bit rate)32KHz ~ 48KHz(Sampling rate)
Photo	.jpg .jpeg Baseline JPEG - max WxH = 15360x		8640 4147200bytes
	Progressive JPEG - maxWxH = 9600x6400		3840000bytes
	.bmp - - max WxH = 9600x6400 3840000bytes
Subtitle	.sub .srt	-	-	-

ITT
