Product Type	Portable DVD Player with DVB-T Tuner
Screen Size	7 inches TFT LCD
Aspect Ratio	16:9 or 4:3 selectable
Power Supply	AC 100-240V 50/60Hz (adapter), DC 12V (car adapter), Li-ion polymer battery 7.4V 1800mAh
Battery Life	Approximately 2 hours
Charging Time	Fast (unit off): 2.5-4 hours; Slow (unit on): 6-8 hours
Disc Playback	DVD, MPEG-4, VCD, SVCD, CD, CD-R/RW, JPEG, MP3
USB Playback	MPEG2/MPEG4/JPEG/MP3/WMA (FAT32)
Card Slot	SD/MMC/MS for playback and DVB-T recording
DVB-T Tuner	VHF 174-230MHz, UHF 470-862MHz; bandwidth 6/7/8MHz; COFDM 2k/8k
Audio Output	Built-in speaker, 3.5mm earphone jack (5mW), AV audio out (analog)
Video Output	AV out (CVBS video), AV in
Remote Control	Included; range 3-7m, angle 30° left/right
Recording Features	Timeshift and recording to SD card (FAT32, approx. 2GB/hour); timer recording (up to 8 events)
Dimensions	208 x 118 x 43 mm (L x D x H)
Weight	Approximately 0.85 kg
Power Consumption	Less than 9W
Accessories Included	AC adapter, car adapter, AV cable, earphones, remote control
Cleaning and Maintenance	Clean disc with soft cloth from center outward; do not use chemicals. Unplug unit before cleaning exterior with damp cloth.
Safety	Do not expose to rain/moisture; unplug during lightning; do not open cabinet; avoid watching while driving.
Repairability	Refer servicing to qualified personnel only; default passwords: 8806 (DVD), 0000/3330 (DVB-T)
General Information	Multi-language OSD, EPG, teletext, parental lock, favorite channel lists, MP3 lyric display

Frequently Asked Questions - DVXP276DT Dicra

How do I reset the parental lock password?

For DVD mode, the default password is 8806. For DVB-T mode, try 0000 or the universal code 3330.

How can I record TV programs?

Insert a high-speed SD card (FAT32) into the slot. Press REC to start recording. Default duration is 3 hours; press REC twice to set custom duration. Use STOP to end recording.

How do I scan for DVB-T channels?

Switch to DVB-T mode, go to Main Menu > Installation > Auto Scan or Channel Scan. Select search and press OK.

Can I play movies from a USB stick?

Yes. Insert a USB drive formatted as FAT32 with supported files (MPEG2/MPEG4/JPEG/MP3/WMA). Press USB on remote when in DVD mode.

How do I change the OSD language?

Press SETUP in DVD mode (stop or no disc) or go to Main Menu > Setup in DVB-T mode. Select OSD Language and choose your language.

How do I connect the player to a TV?

Use the included AV cable: yellow for video, red/white for audio. Connect to TV’s AV input. Turn on both devices and press DVD/AV/TV button to select AV mode.

What discs are compatible?

The player supports DVD, MPEG-4, VCD, SVCD, CD, CD-R/RW, JPEG, and MP3 discs. Do not use cracked or anamorphic discs.

How do I clean the disc?

Use a soft cleaning cloth and wipe from the center outward. For stubborn marks, dampen cloth with water. Do not use benzine or other chemicals.

The remote control doesn’t work. What should I do?

Ensure batteries are fresh and inserted correctly. Aim remote directly at the sensor from 3 to 7 meters within a 30° angle. Remove any obstructions.

How do I set a recording timer?

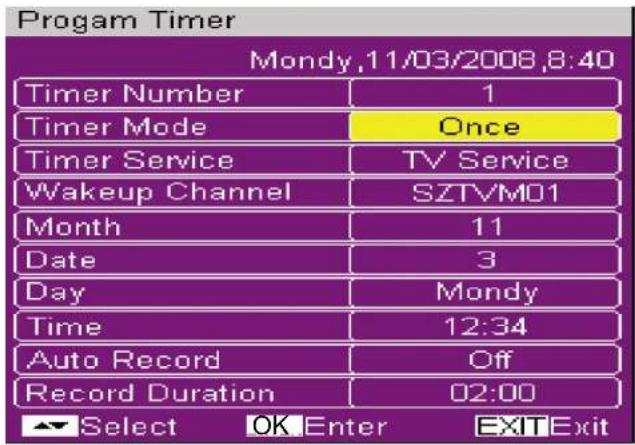

In DVB-T mode, go to Main Menu > Setup > Timer Setting. Select Program Timer and set timer number, mode (once/daily/weekly), channel, date, and duration. Up to 8 timers.

USER MANUAL DVXP276DT Dicra

CE

Da 3 a 7 metri

Precauzioni

Note sul disco

Sharpness

Lettore MP3: 32k – 320k UDF/ISO9660 file system

CE

USER MANUAL ENGLISH

Point for attention

Precautions

To prevent electric shock or fire hazard do not expose the unit to rain or moisture.

Warning: To avoid electric shock or fire hazard, do not open the cabinet, refer servicing to qualified person only.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance servicing instructions in the literature accompanying the appliance. warning to avoid electric shock please ensure plug is inserted completely.

CLASS 1 LASER PRODUCT:

This marking indicates the presence of laser beams used in this unit, and CLASS 1 refers to laser beams of the weaker class. There is no danger of hazardous radiation outside this unit.

Warning: for safety we advise that it is not allowed to watch video during driving!

Point for attention

◆Please read this safety&operation manual before you install and use the unit, and please follow the instruction. Pay attention to warning and do follow them.

◆Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exists from the appliance.

◆Please disconnect the unit under these conditions:Lightning,Rainstorm or you won't use it for a long time,this can avoid electric shock.

◆Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.

◆Power jack is used to disconnect the unit and should be easy accessible every time.

◆The power requirement of this unit is 100\~240VAC,50Hz/60Hz.

◆Check the connection regularly. If any rupture of failure in insulation, call for a maintenance man to replace them.

◆To ensure reliable operation, and to protect it from overheating, the unit must be put in somewhere well ventilated

Do not use power-line operated sets near water-for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Do not place the unit on an unstable object, the set may fall, causing serious injury to a child or an adult, and serious damage to the unit.

◆Never let any liquid spattered on the unit. It might cause electric shock or fire hazard.

Point for attention

◆Never place the unit near or over such objects:for example,radiator, heat register,stove or other heat sources(including amplifier).

◆Do not use cracked or anamorphic discs, or it might damage the loader.

◆Unplug the unit from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners, use a cloth lightly dampened with water for cleaning the exterior of the unit.

Do not repair the unit yourself, opening or removing the cover may expose you to dangerous voltage or other hazards, refer all servicing to qualified service personnel.

◆Never place heavy object on the unit.

◆Unplug the unit and refer servicing to qualified service personnel under the following conditions:

Notice:

Keep safety utilization of electric power. electrical wire of peripherals should marked with safety label.and the wire cannot be lose its security feature for random replacement.following this can avoid electric shock or fire hazard,in case such accident happens,you should contact qualified technician.

A. when the power cord or plug is damaged or frayed.

B. If liquid has been spilled or objects have fallen into the unit.

C. The unit has been exposed to rain or water.

D. If the unit does not operate normally when following the operating instructions.

E. If the unit has fallen or the cabinet has been damaged.

F. When the unit exhibits a distinct change in performance—this indicates a need for service.

◆ Tips: Upon completion of any service or repairs to the set, ask the service technician to perform routine safety checks to determine that the unit is in safe operating condition.

copyrights:

the copyright protected content cannot be copied.broadcasted,screened,cablecasted, played publicly and rented,unless it is authorized.

Point for attention

REMOTE FUNCTIONS

◆Aim the remote directly at the receiver on the unit while operating.
◆Do not drop the remote control on the floor or impact any other object.
◆Do not place the remote in a hot or moist location.
◆Do not let any water or other liquid fall on the remote.
◆Do not open the remote.
◆Distance:from 3 to 7m from the receiver.
◆Angle:about 30 left/right from the axle wire.
◆Do not expose the remote control to direct sunlight or other heating sources.

The remote control may get damaged.

Point for attention

Notes about the disc

Notes about handling discs:

Handle the disc by its edge, do not touch the surface.

Do not stick any kind of object on the disc surface.

- Notes about cleaning discs:

● Finger mark or dust on the surface may cause change in picture and sound.
Clean the disc with a cleaning cloth. Wipe the disc from the center out. If soft cloth cannot wipe the dust, use a wet cloth, then use a dry cloth.
- Do not use chemical products such as benzine,etc...

Notes about storage of discs:

- Do not expose the disc to direct sunlight or other heat sources. After playing, store the disc in its case

- Placing heavy object on it or stacking will make the disc bend.

Features

Features

7 inch TFT LCD

Γ 16:9 or 4:3 aspect ratio

Built in speaker; Earphone output.

Three kinds of power supply: Power Adapter, Li-Nion polymer chargeable battery and car adapter12V.

r-Li-Nion polymer chargeable battery7.4V-1800mAh.one fully charged battery can last for 2 hours.

Intelligent charging function.

- Use Power Adapter, Li-Nion polymer chargeable battery, you can charge while playing.

75 ohms antenna jack

Antenna for DVB-T

Remote control

- Audio/Video cable

r Earphones (3,5 mm jack)

r Digital DVB-T TV tuner

Support AUTO-search and MANUAL search.

Support EPG.

Support Multi-language OSD.

Support CHANNEL CONTROL, EDIT, TIMER, SUBTITLE.

r Support TELETEXT function.

Discs playback: DVD/ MPEG-4/JPEG/MP3/CD-DA/CD-R/CD-RW

MPEG4 (3.11/4/5 versions)

Contents

Operation interface 1-3

System connection 4

Basic playback----5 -9

Basic operation

System setup----10 -14

Setup menu

General setup

Audio setup

Video setup

Preference setup

Using the set box (DVB-T) 15-31

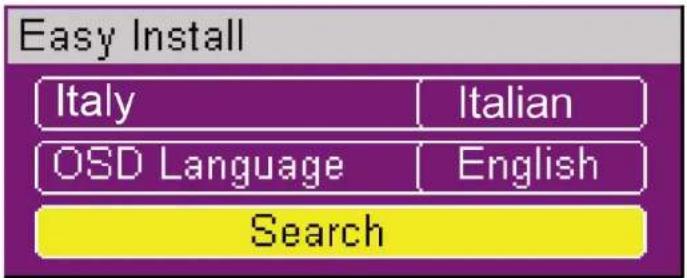

First Time Installation

Volume Control

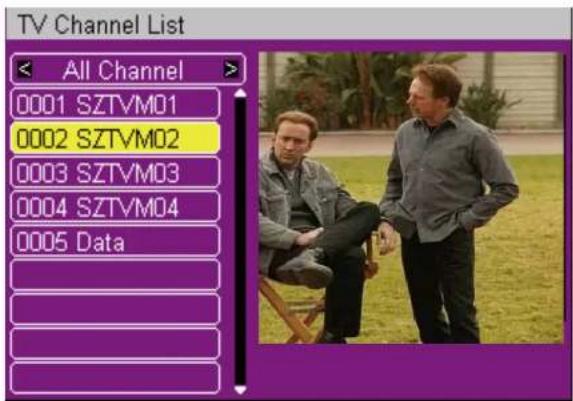

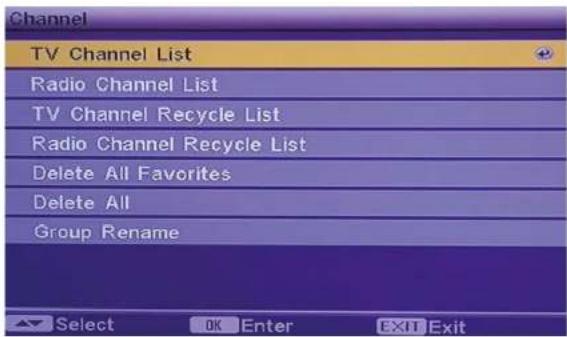

Channel Select

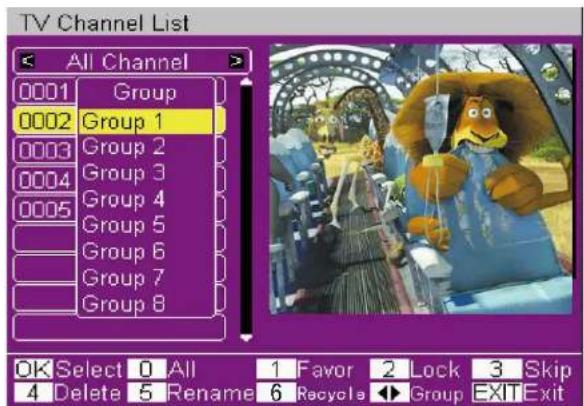

Favourites Channel List

Rename

Sort

Move

Channel Scan

Setup Menu

Timer

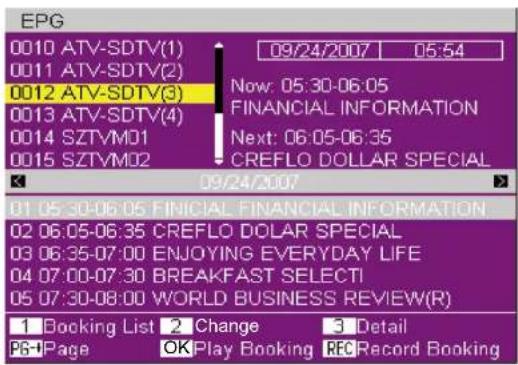

EPG(Electronic Program Guide)

Trouble shooting----32-33

Specifications----34-37

Operation interface

Mainbody operation interface

Operation interface

Connection interface

Operation interface

Remote interface

1. Switch DVD/TV/AV button
2. Number keys
3. SETUP
4. Channel up(DVB-T)/UP(DVD)
5. Volume DOWN/Left(DVD)
6. OK(DVD MODE) channel list (DVB-T MODE)
7. Page UP (DVB-T mode)
8. Channel Down DVD
9. Title
   10.Info
10. AUDIO
11. Subtitle function
    13.USB/CARD
12. PLAY/PAUSE
13. Fast backward/RED Button
14. Fast forward/GREEN Button
15. Switch Sound/Soundless button
16. Repeat play the current chapter (DVD), TV/Radio(DVB-T)
17. Exit
18. Volume UP/Right(DVD)
19. Page DOWN (DVB-T mode)
20. Goto(DVD)/FAV(DVBT)
21. Menu(DVD)/EPG (DVBT)
22. Zoom (DVD)/TTX (DVBT)
23. REC (DVBT)/Copy delete
24. STOP
25. Skip forward/BLUE Button
26. Skip backward/YELLOW Button

System connection

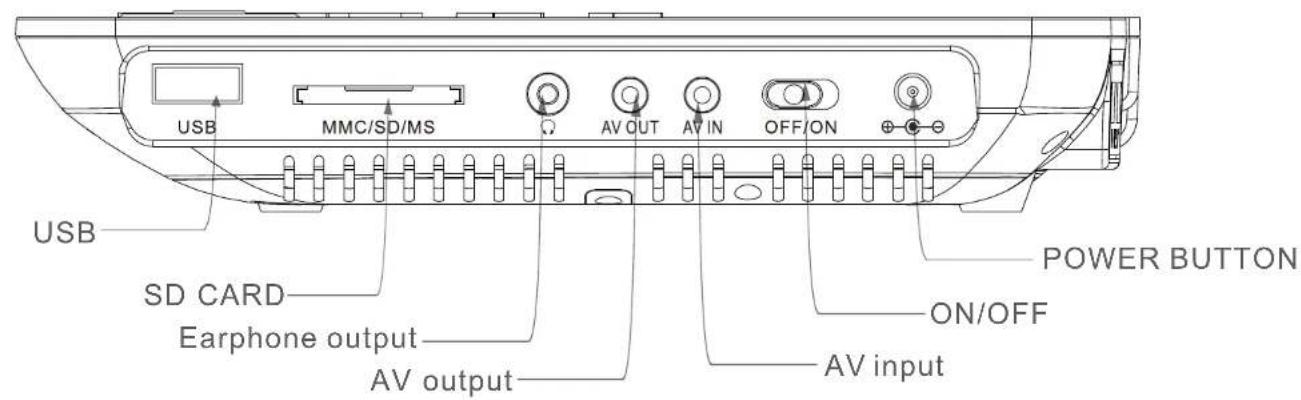

AV input/output and earphone connection

As per the picture, use the A/V cable to connect the player to a TV or other devices.

Turn on the portable DVD player and the other unit to which connection has been made. Press the DVD/DVBT/AV button on the portable DVD player or on the remote control to enter in A/V mode.

Note: The audio output only supports Analogue output. Use the AV cable in the accessory bag, connect the audio/video output on this unit to the corresponding Input on TV or stereo amplifier

Basic playback

Basic operation

【On/Off】

After connecting the AC adaptor, press the on/off button and the unit will turn on and switch to DVD mode.

【STOP】

When playing DVD, SVCD, VCD and CD disc, press the button once and the unit will memorize the current position. Press play/pause button and the unit will start from where you stop. Press stop button twice, the unit will stop and will lose the last memory.

【Play/pause】

When playing disc, press the button once to pause the current playback, Press once more to resume playback.

【SKIP】

When playing disc, press ◀◀ to play last chapter or title.

When playing disc, press ▶▶to play next chapter or title.

【Fast play】

When playing disc, press the button to fast play forward or backward.

Press ▶▶, playback speed will be

Press ◀◀, playback speed will be

Under fast play status, pressing [play/pause] will resume normal playback.

Basic playback

【Repeat】

This function activates "repeat one title only, one chapter, one track, or the whole disc". When playing a DVD, press the repeat button and the following display will appear:

Chapter repeat Title repeat Full repeat Repeat off

When playing a CD, VCD 1.1, SVCD or VCD 2.0 in pbc mode, if the repeat button is pressed, the following display will appear

Track repeat-Full repeat Repeat off

【Mute】

Press MUTE once, the sound will be turned off and the LCD monitor will show Mute. Press once more, the volume will return. You can also resume the volume by volume button + -.

【Volume】

The volume can be adjusted by volume button +- or by the knob. Set the knob to max and then adjust with +/-.

【Number buttons】

When playing CD, DVD, SVCD, VCD discs, number buttons will be unavailable when PBC is on.) You can choose the track you want directly by number buttons. For example, if you want to play track 8, press 0 first then press 8, if you want track 18, press 1 first then press 8.

Basic playback

【Audio】

When playing a multi channel SVCD, VCD, CD disc, press the "audio" key to chose a different audio output. The following display will appear:

Stereo---Left channel---Right channel

When playing a multi-language DVD, SVCD disc, press the "audio" key to chose the desired language. The following display will appear:

【Subtitle】

playing a Multi-Language disc, press the "SUBTITLE" key to chose a subtitle. The following display will appear.

【Menu】

when playing a SVCD, VCD2.0 disc, press the "MENU" BUTTON to activate/dissactivate the PBC function.

Basic playback

When playing back a DVD disc, press the "GOTO" key. The unit will display the search menu on the TV screen. See below picture.

Title chapter → Titletime → Chapter time

When playing back a SVCD, VCD disc, press the "GOTO" key. The unit will display the Search menu on the TV screen. See below picture.

Full disc time

Chapter time

Repertoire time

Move the cursor keys to chose the desired function. Press "enter" key into searching status chose the desired items by number key.

System setup (DVD)

Setup menu

When the unit is in DVD mode without any disc, press the setup key to enter the main menu system. See the below picture.

General

Audio

Video

Preference

Choose the desired function using the direction keys ▶ and press "OK" to confirm. Choose the desired function using the direction keys △ and press "OK" to confirm. Return to the setup menu by using the direction keys ▶ Press setup to edit the menu.

Note:

• By moving the cursor to the selected item, a display will appear at the bottom displaying the information
  The unit will memorize the setup configuration once you exit main menu.
  The unit can only enter in setup mode if it is in "stop" mode or tray is opened.

System setup

General setup

LCD display

Normal/PS

Normal/PS:display full image

LCD display

Normal/LB

Normal/LB:display the image as 4 3

LCD display

Wide

Wide Display the image as 16:9

OSD language: choose the desired OSD language.

Angle Mark: select display angle, when playing multi-angle DVD disc.

Screen saver: in ON mode a screen saver is activated, after some time

Last memory:

This function memorizes the end of the last playback and will resume from that point if the function is enabled.

MP3 Lyric

Show MP3 Lyric on or not.

System setup

Audio setup

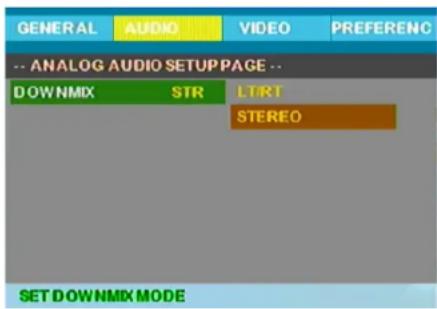

Γ Downmix

LT/RT: when playing 5.1ch disc, the left output channel includes signal of entire left channel, partial center channel and left& right surrounding channels; the right channel includes signal of entire right channel, partial center channel and left&right surrounding channels.

Stereo: when playing 5.1ch disc, the left output channel includes signal of entire left channel and part of center channel, the right channel includes signal of entire right channel, part of center channel.

System setup

Video setup

Sharpness

This option allows you to set the image sharpness and quality. you can choose among high, middle and low.

Brightness

Setup this item to control the brightness of image, available range from -15 to +15.

Contrast

Setup this item to control the contrast of image available range from -16 to +16.

Hue

Setup this item to control the hue of image, available range from -9 to +9.

Saturation

Setup this item to control the saturation of image, available range from -9 to +9.

System setup

Preference setup

TV type:

This unit can work with all types of televisions or LCD's.

Select the TV system:

A.PAL

Hongkong, China and Europe use this type, when TV type doesn't match this setup, the screen will be in black strip state.

B.Auto

Select TV type automatically.

C.NTSC

Taiwan, Japan, USA etc use this type.

Audio, subtitle, disc menu language setup:

This function will only be available if the DVD disc contains the information Set the language and subtitles, if the disc contains such info playback will start from the desired mode. In the subtitle mode you can turn it off by choosing OFF option.

Parental:

The discs can be encoded based on the contents with a level from 1 (film for all) to 8 (film for adults). When a level is set, the unit can only play discs with the same or lower rating than the one preset. Default password to choose the level is 8806.

Password: it is possible to set a different password than default; if you want to change the password select "change" and insert default password, then insert the new one and confirm with OK; if you forgot the new password you can always use default one.

Default:

This functions will load the original factory settings.

The initial password of the unit is 8806, after changing the password, press Enter key to confirm.

System setup

USB connection

the USB port is active under DVD mode, to enter USB mode you can press USB button on remote control
The unit can support the following formats: MPEG2/MPEG4/Xvid/JPEG/MP3/WMA.

(Some files may not work as not all formats and codecs are included)

When using a USB stick or a HDD drive, make sure the format used is FAT32.

USB function

In order to use the USB device, the unit should be in "Stop" or "No disc" mode, Press the USB button on the DVD player. Theloading time of the files and the content will depend on the size of these, and the amount of files. After having loaded the file, use the Key arrow buttons to select the files and press the "Enter" button to confirm, If you want to stop the playback, press the USB button.

USING THE SET BOX (DVB-T)

When you are in DVD mode, press DVD/DTV/AV key on remote control to switch to DVB mode.

1. First Time Installation

1. When the Set Top Box is switched on for the first time, a Easy Install" page be displayed.

1. Use the arrow keys ▲▼◀▶ to select the "Region" and "OSD Language".
2. Move highlight to "Search" button and press "OK" to begin the channel scan.
3. at the end of the scan you will be asked to choose the number to store the channels in conflict.

2. Volume Control

Use the "VOL+" and "VOL-" keys to increase or decrease the volume.

By pressing the "Mute" ☒ key, the audio will be turned off. Press the "Mute" ☒ again or press the Volume Keys to turn on the audio

USING THE SET BOX (DVB-T)

3. Channel

Press "SETUP" to display main menu and enter channel menu. Press OK button to display channels' list.

TV Channel List: You can change the channel in different ways:

USING THE SET BOX (DVB-T)

1. Use the arrow keys "▲" or "▼" to navigate through the channel list. When you reach the channel you want to watch, Press "OK" key.

It is possible to change channels with CH+/CH- key or by inserting the numbers of the channel.

1. The same procedure is for radio channels' list
2. Recycle List: there are two folder to store deleted TV/Radio channels. You can restore or delete completely the channels here.
3. Delete: delete favorite or all channels. Please note the channels can not be restore by this operation, but need reset or rescan. The code for delete all is "0000" or "3330"
4. RENAME: it is possible to rename the desired groups.

4. Favorites Channel List

Create the Favorite Channel List

You can create up to 8 Favorite Channel groups.

Press "OK" key to display All "Channel List and" move to the desired channel.

Press "1 Edit" and "1 Favor" to make appear 8 Favorite channel groups.

Move to the desired group with CH+/- keys, press "OK" and assign the channel to that group.

USING THE SET BOX (DVB-T)

Switch the All Channel List and Favorites Channel List

In the Channel List, press the "◀" or "▶" key to switch "All Channel List" and different "Favorites Channel List"

Switch between the different Favorites Channel List

Press the "FAV" key, a Favorites Channel Group List will be displayed for select.

USING THE SET BOX (DVB-T)

5. Rename

In the "TV Channel List", press "1" to edit the channel.

Pressing number [5] key, it will show a "Rename" window and you can rename the highlighted channel Press [Up][Down][Left][Right] key to move the highlight in" Rename" window Press[OK]to inputchar Move the highlight to "ENTER" and press [OK] key to save the modification

Move the highlight to "ESC" and press [OK] key to cancel the operation.

USING THE SET BOX (DVB-T)

6. Sort

In the "TV Channel List", press "3" to sort channel.

It will display a dialogue to confirm. If you select "Yes", it will display "Sort" box.

Press [Up] or [Right] key to move the highlight and press [OK] to select sort type such as Default/Name(A-Z)/Name(Z-A)/FTA/Lock.

USING THE SET BOX (DVB-T)

7. Move

In the "TV Channel List", press "4" to move channel.

Press "4" and then pop up a message, input the channel No. you want to move, press OK to confirm.

If the No. input is existed already, the unit will pop up a warning message, and the existed channel will be instanded after press OK to confirm.

8. Recycle

In the "TV Channel List", press "1" to edit the channel

Press number [6] key, it will show a "Recycle" window, when a channel is deleted,

It will be saved in this window you can comb out it in this menu

USING THE SET BOX (DVB-T)

9. Channel Scan

There are two different ways to scan channels, Auto Scan or Channel Scan.

In the Main Menu→Installation→Auto Scan, Move the highlight bar to "search" button. Press [OK] key to scan all the Channels, it is possible to proceed scan on all channels or only on" free" channels.

In Main Menu→Installation→Channel Scan, set the appropriate parameter. Move the highlight bar to "search" button. Press [OK] key to scan Channels.

USING THE SET BOX (DVB-T)

10. Setup Menu

Press the "SETUP" key to activate the main menu. Select the "Setup" option and press the "OK" key to enter the System Setup.

USING THE SET BOX (DVB-T)

OSD language: Change the OSD Language

TV system: Change the TV system: PAL/NTSC mode; 16:9/4:3 aspect ratio; video CVBS - LCN On/Off.

Region and Time: Setting the region and time

Timer Setting: for more information, refer to the next section.

OSD setting:

Subtitle display: set subtitles On/Off (the function must be supported by the TV channel)

OSD transparency: it is possible to set the OSD transparency from 10 to 50% or set to Off.

Load default OSD setting: press ENTER to return to default OSD settings.

BANNER DISPLAY: display time of the info bar

Parent Lock Setting:

Channels or Menu operations can be locked using password. The original password is "0000".

The universal password is "3330"

USING THE SET BOX (DVB-T)

It is also possible to change the default password with a new one, in case you forgot the new password set you can insert again the default password.

11. Timer

In the main menu, under setup/setting, press OK to enter Timer settings and then Program Timer; you can set the desired options.

Program Timer:

In this section, it is possible to set up to max 8 timer which allows the unit automatically turn on and recording.

Timer Number: it is possible to set up to 8 timer

Timer Mode: it is possible to set timer (once - daily - weekly - monthly - off)

Timer Service: set TV service or Radio service

Wakeup Channel: set the channel you want the unit to turn it on and/or recording

Month: set the month

Date: set the date

USING THE SET BOX (DVB-T)

Day: set the day of the week

Time: set the time

Auto Record: set ON/OFF

Record Duration: in recording mode set to ON set the duration, press OK and adjust the time with numeric buttons then press OK button again to confirm, press Exit to exit and save the inserted data.

Note: month, date, day are active based on Timer mode

12. Tools

Receiver info: technical data about the receiver

Game: there are two games (Snake, Othello)

Load default settings: insert the new password or default one and confirm to return to default settings.

Software Upgrade: the upgrade file will be available SD card only when the unit will need it.

13. EPG(Electronic Program Guide)

Press the "EPG" key to display all the information of the Channels.

USING THE SET BOX (DVB-T)

The following operations can be used in the EPG menu:

Change: Press "2" to switch between program list and event list

Play Booking: Select the Event and Press "ENTER" to book for play

REC Booking: Select the Event and Press "REC" to book for record.

Booking List: Press "1" to display the booking list

14. Media Player

1. When CARD disk is mounted, you can enter Main Menu→Media+→Media Player menu to play music, MP3 and WMA, video or browse pictures JPEG or watch the TV recording.

USING THE SET BOX (DVB-T)

1. In Main Menu → Media +→ Record Manage, the recorded video files are listed on the display. You can Lock, Delete or Rename the files or press [OK] key to play.
2. In Main Menu→Media+→Storage Manager, you can see the info of SD CARD device.
3. With MP3 files to adjust the volume, press audio button first and then set the level with CH+/- buttons For the Recording or Time shift functions, a CARD High Speed disk (FAT32) is needed. 1 hour video recording will need about 2Gbytes space. (The storage space is related to the program content.)

USING THE SET BOX (DVB-T)

15. Recording and Timeshifting

An CARD disk is needed to record and to use the timeshifting function.

15.1. Recording

After pressing the [REC] key, the recording begins and a "REC" bar appears.

The default recording duration is 3 hours. When "REC" bar is displayed, press "REC" key twice, and a "Record Duration box" appears, and you can set the recording duration.

Press [OK] key again to confirm and then [EXIT] key to exit menu.

When "REC"Bar is displayed, press [EXIT] key then the "REC" bar will disappear. A "REC" icon is displayed on the up-left corner.

To stop the recording, Press [STOP] key and confirm with OK button.

While there is only one channel recording, you can watch another channel which is of the same MUX. Using Time Shift function it is possible to return back and watch the desired scene and the continue watching the postponed broadcast, you can simply pause the program and start watching it again later pressing Play.

USING THE SET BOX (DVB-T)

This function needs a SD/MMC High Speed device inserted in the proper slot, the device should have about 2GB of free space.

When the function is active for few seconds, you can return back with Rew button to watch a particular scene or a goal of a football match, at the same time it is possible to fast forward with Fwd button to reach the real time of broadcasting program.

15.2 PVR Configuration

In the "Main Menu→Media+→PVR configuration" menu, you can set the following functions:

PVR Configuration
Preferred Storage	SD/Partitionl
TimeShift Time (min)	50
Record Type	TS
TimeShift To Rec )	Off
TimeShift	On
EXITExit

USING THE SET BOX (DVB-T)

1. Preferred Storage: SD partition (select the logic unit to store the datas)
2. TimeShift Time (min): you can reserve the time of Timeshifting. From 10 to 60 minutes.
3. Record Type:

"TS"→Transport Stream format(*.dvr). This format can only be played in Set Top Box.

"PS"→Program Stream format(*.mpg). This format can be played in your computer.

1. TimeShift To Rec:

"On"→When you press "REC" key, the data in timeshift buffer will be stored in the recorded file.

"Off"→When you start to record, it just records from the current time.

1. TimeShift:

"On"enable the Timeshifting

"Off" disable the Timeshifting

Disc format: System file FAT or NTFS.

Note:

Please don't remove the recording device before it is unmounted.

Trouble shooting

when facing problem with the unit, please check this list for a possible solution before asking for service.

Symptom	Reasons	Solutions
No loading	The disc cover is not closed	Close the disc cover
	DVD player is input work mode	Press mode key switch to DVD work mode
	parental control is applied	Clear the parental control or change the disc grade.
	Displaced the disc	Replace the disc
The unit fails to start	The unit does not connect to the current power	Connect the power
	The battery power is weak	ReCharge the battery
No LCD display	LCD setup is off	Press LCD on/off to turn on LCD display
Distorted picture	Disc is dirty/scratched	Clean the disc or change the disc
Key do not function	Power wave or other abnormal phenomena (such as static) is disturbing the normal condition	Switch on/off power or unplug/replug the power cord
	Remote control is not aimed at sensor directly	Point remote control at the remote sensor directly
Remote control does not work	Remote control is not aimed at sensor directly	Operate remote control within 7 meters
	Batteries are exhausted	Replace the batteries
DVB-T
No signal found	Aerial is disconnectedAerial is damaged/misalignedOut of digital signal area	Check aerial leadCheck aerialCheck with dealer
No picture or sound	Tuned to digital teletext channel	Turn to another channel
Scrambled channel message	Channel is scrambled	Select alternative channel

Trouble shooting

No response to Remote control	Receiver offHandset not aimed correctlyFront panel obstructedHand set battery exhausted	Plug in and turn on plugAim handset at front panelCheck for obstructionsReplace handset batteries
Forgotten channel lock code		Delete locked channel and scan channels a gain.
Forgotten channel lock code		Contact help lineTry the super code:"3330"
After moving the STB toanother room you find you are no longer able to receive digital reception	The aerial feed former new point may come through a distribution system which may reduce the digital signal now received by the box.	Try a direct feed from the antenna

Specifications

DVD Specifications

USB INPUT

from USB input it is possible to play files: MPEG2/MPEG4/JPEG/VCD/MP3/WMA

DVD/MPEG4/VCD/JPEG/MP3/CD disc player

Supported MPEG4 formats: 3.11 / 4 / 5 versions

MP3: 32k – 320k UDF/ISO9660 file system

Controls: Play/Pause/Stop/Skip/fast forward-backward

Repeat/Zoom/Subtitle/Parental lock

Multi Audio/Screen Saver

Frequency response: 20Hz to 20KHz

S/N ratio:>90db

Specifications

DVB-T

Tuner:

Frequency range: VHF 174MHz to 230MHz

UHF 470MHz to 862MHz

Band width: 6/7/8MHz

Antenna input: 75 ohms

Modulation:

modulation scheme: COFDM - 2k/8k

modulation OFDM: QPSK/QAM16, QAM64

Decoding: MPEG-2MP@ML

Aspect ratio: 4:3 - 16:9

Functions: Epg/Lcn/Teletext/Fav/Timer/parental lock/multi audio /subtitle

Conformity: EN 300744

SD/MMC INPUT

from SD/MMC input it is possible to record programs from DVB-T and play files JPEG/MP3/WMA or recorded.

Display: LCD TFT 9"

Specifications

AC/DC adaptor: AC 100 - 240V-50/60Hz 0,45A DC 9,0V - 1,0A

Max Consumption: <9W

Lithium battery : 7,4V / 1300mA

Fast charge (OFF): 2.5 / 4 hours

Slow charge (ON): 6 / 8 hours

AV input/output: CVBS video 2 channels

Earphones output: 5mW (3.5mm jack)

Dimensions: 208(L) x 118 (D) x 43(H) mm
