Product Type	Countertop Microwave Oven
Brand	UPO
Model	M317w
Power Supply	230 V ~ 50 Hz
Power Consumption	120 W (input)
Microwave Output Power	700 W
Operating Frequency	2450 MHz
Oven Capacity	17 L
Outside Dimensions (W x D x H)	452 x 358 x 262 mm
Cavity Dimensions (W x D x H)	315 x 279 x 210 mm
Weight (Uncrated)	10.5 kg
Control Type	Manual knobs (Power and Time)
Power Levels	6 levels: Low (120 W), Defrost (280 W), Mid-Low (340 W), Medium (460 W), Mid-High (600 W), High (700 W)
Timer	Up to 30 minutes (mechanical or electronic)
Safety Features	Door safety interlocks, child lock (supervision required for children)
Turntable	Glass tray with roller ring, removable
Interior Light	Yes (replaceable by service agent)
Ventilation Clearance	5 cm sides, 10 cm rear, 20 cm top
Cleaning	Wipe interior/exterior with damp cloth; mild detergent; do not let water enter vents
Recommended Utensils	Microwave-safe glass, ceramic, plastic; no metal or melamine
Installation Type	Freestanding, not built-in
Country of Origin	Sweden (Asko Appliances)

Frequently Asked Questions - M317w UPO

What should I do if the microwave oven does not start?

First, ensure the oven is plugged in securely. Check for a tripped circuit breaker or blown fuse. Make sure the door is fully closed to engage the safety interlocks. If the problem persists, contact an authorized service agent.

Can I use metal containers in this microwave?

No, metal containers or utensils with metal trim should not be used as they can cause sparks and damage the oven. Use only microwave-safe glass, ceramic, or plastic containers.

How do I clean the microwave oven?

Unplug the oven before cleaning. Wipe the interior and exterior with a damp cloth and mild detergent. Do not allow water to seep into ventilation openings. The glass tray can be washed in warm soapy water or dishwasher.

Why does food sometimes heat unevenly?

Uneven heating can occur if the food is not arranged properly or if the turntable is not rotating. Make sure the glass tray and roller ring are correctly positioned. Stir food midway for best results.

Is it safe to heat baby food or milk in the microwave?

Yes, but always stir or shake the contents and check the temperature before feeding to avoid burns. Never use sealed containers; they may explode.

What does the Defrost power level do?

The Defrost setting (280 W) uses lower power to gently thaw frozen foods without cooking them. It is suitable for meats, poultry, and fish. For best results, turn food occasionally.

Can I use the microwave empty?

No, operating the oven empty can damage it. Always have food or liquid inside when the microwave is on.

How do I remove odors from the microwave?

Place a bowl of water with lemon juice and lemon peel inside. Microwave on high for 5 minutes, then wipe dry with a soft cloth. This will eliminate most odors.

What should I do if the microwave causes interference with my TV or radio?

Interference can be reduced by cleaning the door and sealing surfaces, moving the radio/TV away from the microwave, or using a properly installed antenna. The microwave operates on 2450 MHz.

How much space should I leave around the microwave for ventilation?

Leave at least 5 cm on both sides, 10 cm at the rear, and 20 cm above the oven. Do not block the ventilation openings; this is essential for safe operation.

USER MANUAL M317w UPO

Line drawing of a microwave oven with control knobs and a side panel (no text or symbols)

SE Mikrovågsugn Bruksanvisning 2

NO Mikrobølgeovn Bruksanvisning 8

EN Microwave oven Instruction manual 27

SVERIGE:

Asko Appliances AB

Box 344532 24 SKARA

Tel: [phone]

Fax: [phone]

www.upo.se

NORGE:

Asko Hvitevarer AS

Vevelstadveien 113

1404 SIGGERUD

Tlf.: ([phone]

Fax: [phone]

www.upo.no

SUOMI:

Asko Kodinkone

Asko Appliances Holding AB

sivuliike Suomessa

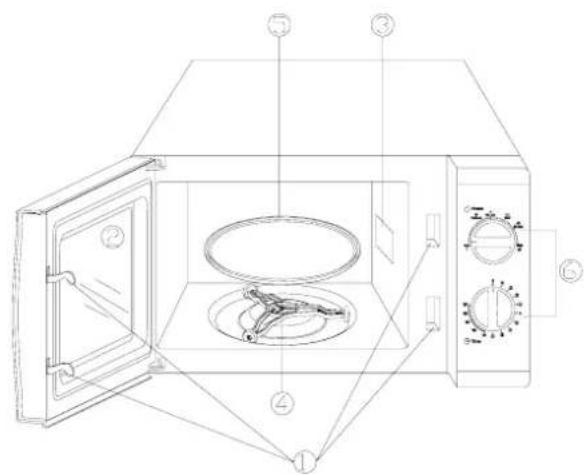

Beskrivning

1. Säkerhetslås

2.Ugnsfönster

1. Ugnsventilation

4.Roteringshjul

5.Roteringstallrik

6.Kontrollpanel

ADVARSEL-DETTE APPARATET MÅ JORDES.

Beskrivelse

1. Sikkerhetslås
2. Ovnsvindu
3. Ovnsventilasjon
4. Omdreiningsaksel
5. Dreietallerken
6. Kontrollpanel

Beskrivelse

1. Sikkerhedslås
2. Ovnvindue
3. Ovnventilation
4. Omdrejningsaksel
5. Drejetallerken
6. Kontrolpanel

Osat

Read the Instructions carefully and Keep for Future Reference.

SPECIFICATIONS

Power consumption: 230V~50Hz,120W
Output:	700 W
Operating Frequency: 2.450 MHz
Outside Dimensions: 452mm(B) X 358mm(D) X 262mm(H)
Oven Cavity Dimensions: 315mm(B) X 279mm(D) X 210mm(H)
Oven Capacity: 17 liter
Uncrated Weight: ca. 10,5 kg

Before you call for service

1. If the oven will not perform at all, the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

If none of the above rectify the situation, then contact the nearest authorized service agent.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

Radio interference

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven.
b) Place the radio, TV, etc. as far away from your microwave oven as possible.
c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

Installation

1. Make sure all the packing materials are removed from the inside of the door.

2. Inspect the oven after unpacking for any visual damage such as:

3. Misaligned Door

4. Damaged Door
5. Dents or Holes in Door Window and Screen

6. Dents in Cavity If any of the above are visible, DO NOT use the oven.

7. This Microwave Oven weighs 10,5 kg and must be placed on a horizontal surface strong enough to support this weight.

8. The oven must be placed away from high temperature and steam.
9. DO NOT place anything on top of the oven.
10. Keep the oven at least 5 cm away from both sidewalls and 10 cm away from rear wall to ensure the correct ventilation.
11. DO NOT remove the turn -table drive shaft.
12. As with any appliance, close supervision is necessary when used by children. WARNING-THIS APPLIANCE MUST BE EARTHED.
13. The plug socket should be within easy reach of the power cord.
14. This oven requires 1.5 KVA for its input consultation with service engineer is suggested when installing the oven. CAUTION: This oven is protected internally by a 250V,10 Amp Fuse.

Important safety instructions

• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (Only for the model with grill function)
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
• WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• The oven must have sufficient air flow. Keep 10 cm space at back; 5 cm at both sides and 20cm from top of the oven. Don't remove oven's feet, do not block air events of the oven.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the

possibility of ignition.

• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food deposits removed.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Safety instructions for general use

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or salaed oil bottle, as they may explode if heated in a microwave oven.
• Do not use conventional meat or candy thermometers.

• There are the thermometers available specifically for microwave cooking. These may be used.

• Microwave utensils should be used only in accordance with manufacturer's instructions.

• Do not attempt to deep-fry foods in this oven.

• Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

• Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

• Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

• When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

• Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

• To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

b) Remove wire twist-ties from bags before placing bag in oven.

c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

Control panel

The control panel consists of two operation options.

POWER

Setting the preset settings

TIME

Setting the time

EFFECT

Low effect: 120 watt

Defrost: 280 watt

Intermediate low effect: 340 watt

Medium effect: 460 watt

Intermediate high effect: 600 watt

High effect: 700 watt

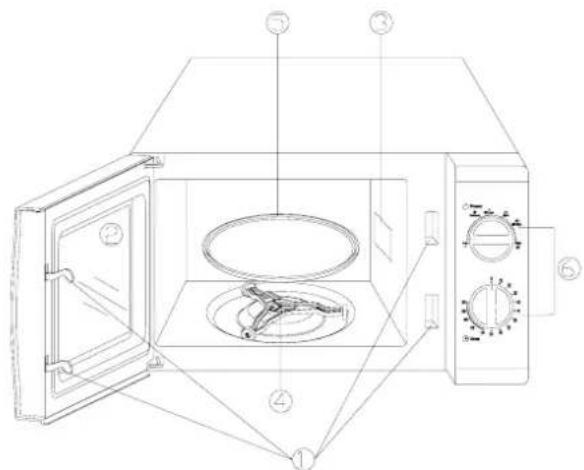

Description

1. Safety lock

2. Oven window

3. Oven ventilation

4. Turning axis

5. Turning plate

6. Control panel

Care of your microwave oven

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters of spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp colth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or sish washer. Cooking vapours collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
8. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.
9. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

Version: UPO/M317w/200911
