Product Type	Wall Mount
Brand	B-Tech
Model	BT8427
Mount Type	Fixed / Tiltable
Screen Size Compatibility	32" - 65"
VESA Compatibility	200x200 to 600x400 mm
Maximum Weight Capacity	50 kg
Material	Steel
Color	Black
Dimensions (W x H x D)	600 x 400 x 50 mm
Net Weight	3.5 kg
Installation Type	Wall mount on studs
Tilt Adjustment	0° to 15° forward tilt
Level Adjustment	±3° after installation
Security Features	Locking screws, safety clip
Spare Parts Availability	Individual parts available upon request
Repairability	Replaceable screws and brackets
Maintenance	Wipe with dry cloth; check screws annually
Warranty	2 years

Frequently Asked Questions - BT8427 B-Tech

What is the maximum screen weight supported by the BT8427?

The B-Tech BT8427 supports screens up to 50 kg. Always verify your screen's weight before mounting.

What VESA patterns are compatible with this mount?

It is compatible with VESA patterns from 200x200 mm up to 600x400 mm.

Can the mount tilt?

Yes, the mount offers a tilt range of 0° to 15° forward for optimal viewing angles.

Is the wall mount suitable for concrete walls?

Yes, but it must be installed into solid concrete or brick using appropriate anchors (not included). For drywall, mounting on studs is required.

What tools are needed for installation?

You will need a stud finder, level, drill, socket wrench, and screwdrivers. All mounting hardware is included.

How do I clean the wall mount?

Use a soft, dry cloth to wipe dust. Avoid abrasive cleaners or solvents.

Can I adjust the mount after the TV is attached?

Yes, the level adjustment allows ±3° correction after installation without removing the TV.

What safety features does the mount have?

The mount includes locking screws and a safety clip to prevent accidental dislodging.

Is the BT8427 compatible with curved TVs?

Yes, it can accommodate curved screens as long as the weight and VESA pattern are within limits. Ensure the curvature does not interfere with tilt.

Where can I find spare parts?

Spare parts are available through B-Tech customer service or authorized dealers. You can request specific screws or brackets.

USER MANUAL BT8427 B-Tech

This Pack Contains 1 Mount

PLEASE KEEP THIS FOR FUTURE REFERENCE

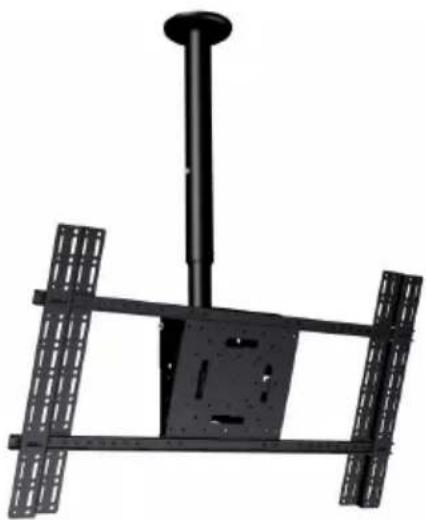

mountlogic® range

Mechanical support structure with vertical supports and a central cylindrical component (no text or symbols)

• Designed for screens up to 65" (165cm) / 70kg (154lbs)
• Universal interface fits screens with VESA and non-VESA mounting patterns up to 970mm (38.2") x 500mm (19.7")

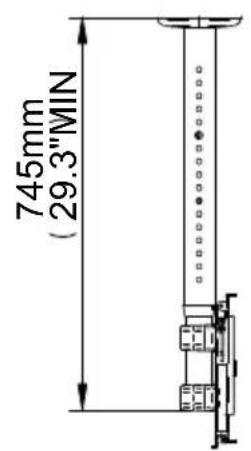

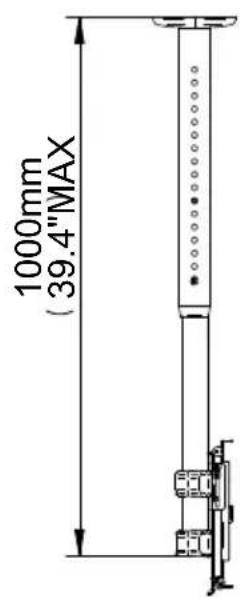

• Ceiling drop: 745mm (29.3") – 1000mm (39.4")
• Easy adjustment of tilt +20°
• Pre-assembled for simple 3 step installation
• Integrated cable management
• Mounts screen in landscape or portrait formats
• All mounting hardware and fixings included

CONTENTS

Installation Safety Notes....2

Parts List....4

Installation Instructions....6

Optional Accessories....17

Product Dimensions....18

B-Tech Contact Details....20

INSTALLATION TOOLS REQUIRED

13mm (1/2") spanner or socket

Drill

12mm (15/32") masonry bit or 8mm (5/16") wood bit

Pencil

Stud finder (optional)

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This ceiling mount is intended for use only with the maximum weights indicated. Use with flat screens heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Ltd recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some ceilings are not suitable for installation.

If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling.

When drilling holes in ceilings it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

FLAT SCREEN INTERFACE KIT

(FOR ATTACHING MOUNT TO BACK OF FLAT SCREEN)

REF PART NAME QTY

1	OUTER TUBE 1
2	TAPER TRIM 1
3	INNER TUBE 1
4	COVER PLATE 2
5	HEIGHT ADJUSTMENT PIN 1
6	M8 x 12mm HEX SCREW 2
7	COLLAR 2
8	M8 x 15mm GRUB SCREW 8
9	M8 x 65mm HEX SCREW 1
10	COLLAR COVER 4
11	TILT PLATE 1
12	HOOK PLATE 1
13	INTERFACE PLATE	1
14	CROSS RAIL	2
15	VERTICAL ARM	2
16	LONG TILT ARM	2
17	SHORT TILT ARM
18	M10 x 10mm GRUB SCREW	1
19	M8 x 12mm FLAT HEX SCREW	16
20	M8 SPRING WASHER 17
21	M5 x 15mm HEX SCREW 8
22	M5 METAL WASHER	10
23	M5 x 12mm PIN HEX SCREW	16
24	M6 METAL WASHER	8
25	M4 PIN HEX SECURITY KEY (FOR PARTS 8, 21 & 23)	1
26	M5 HEX KEY (FOR PARTS 6, 9 & 18)	2

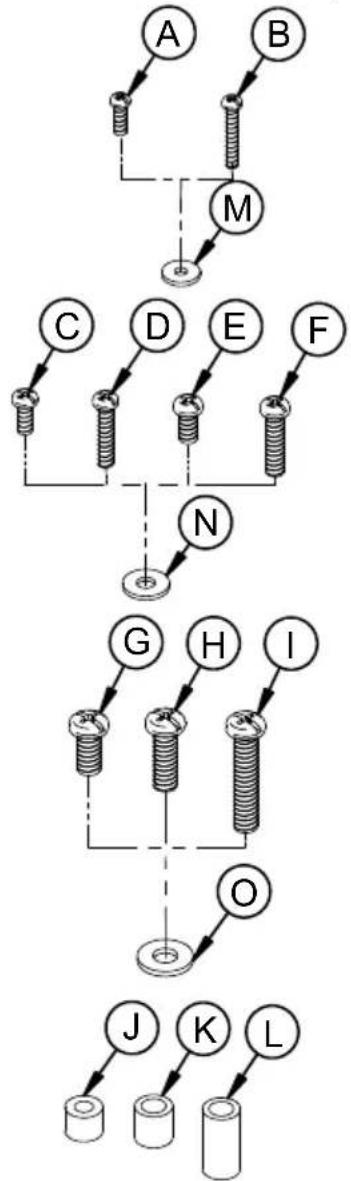

INTERFACE KIT

A	M4 X 12mm SCREW 4
B	M4 X 25mm SCREW 4
C	M5 X 16mm SCREW 4
D	M5 X 25mm SCREW 4
E	M6 X 16mm SCREW 4
F	M6 X 25mm SCREW
G	M8 X 16mm SCREW 4
H	M8 X 25mm SCREW 4
I	M8 X 40mm SCREW	4
J	M6 x 12mm SPACER (FOR PARTS B, D & F)	4
K M8 x 13mm SPACER (FOR PART H)		4
L M8 x 24mm SPACER (FOR PART I)		4
M	M4 METAL WASHER (FOR PARTS A & B)	4
N	M6 METAL WASHER (FOR PARTS C, D, E & F)	4
O	M8 METAL WASHER (FOR PARTS G, H & I)	8

FIXING KIT

A1	M10 x 60mm COACH SCREW	4
A2	M10 METAL WASHER	4
A3	No.12 WALL PLUG	4

WALL FIXING KIT (FOR FIXING MOUNT TO WALL)

INSTALLATION INSTRUCTIONS

1

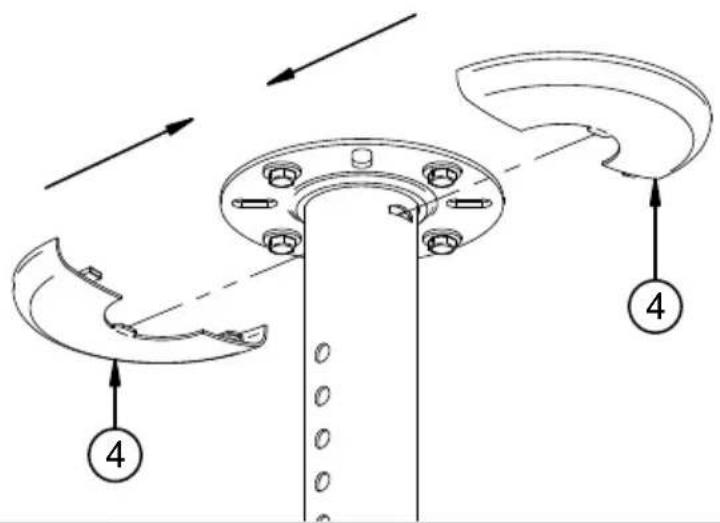

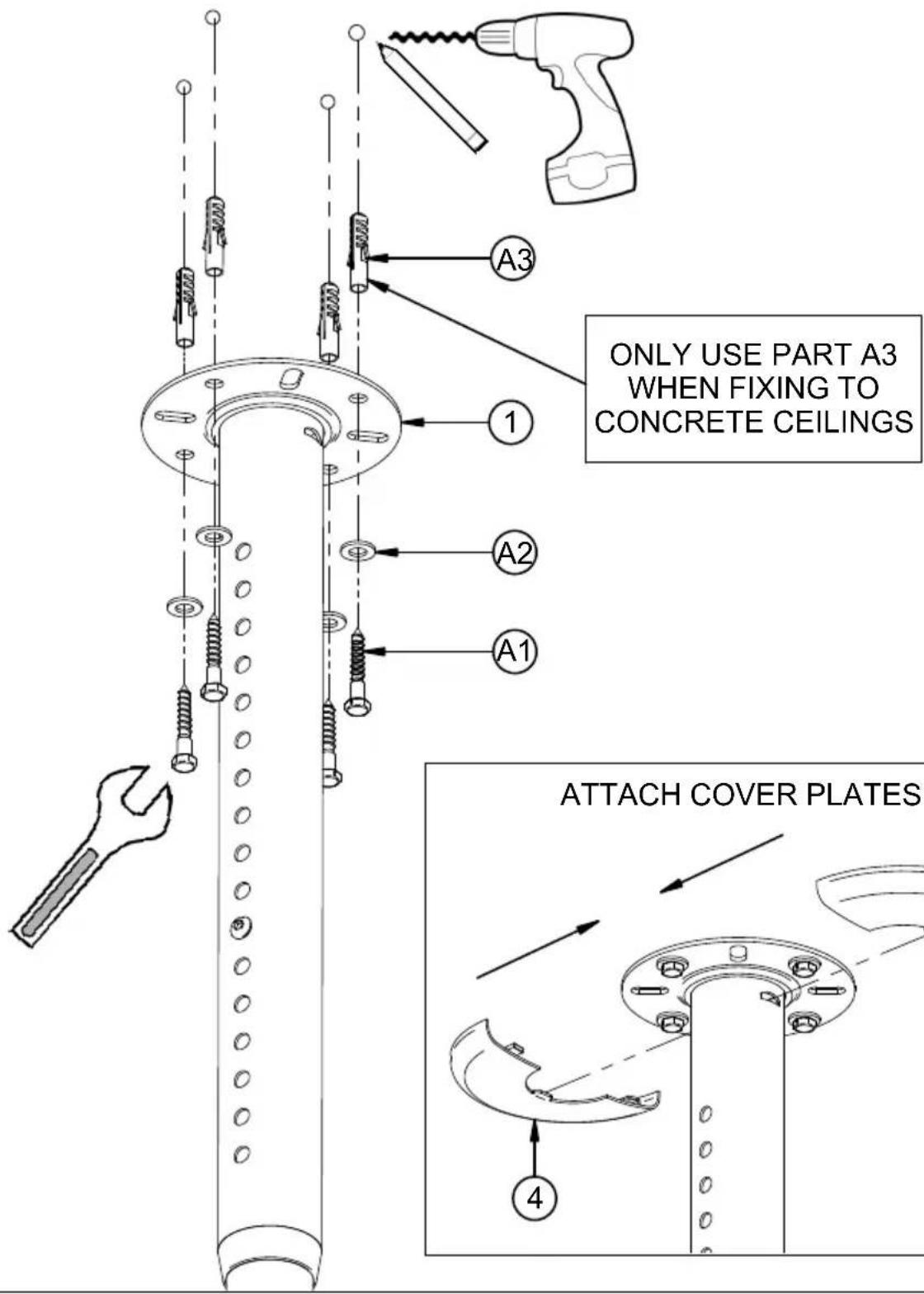

Fix the tube and tilt plate assembly to the ceiling.

6

ONLY USE PART A3 WHEN FIXING TO CONCRETE CEILINGS

2

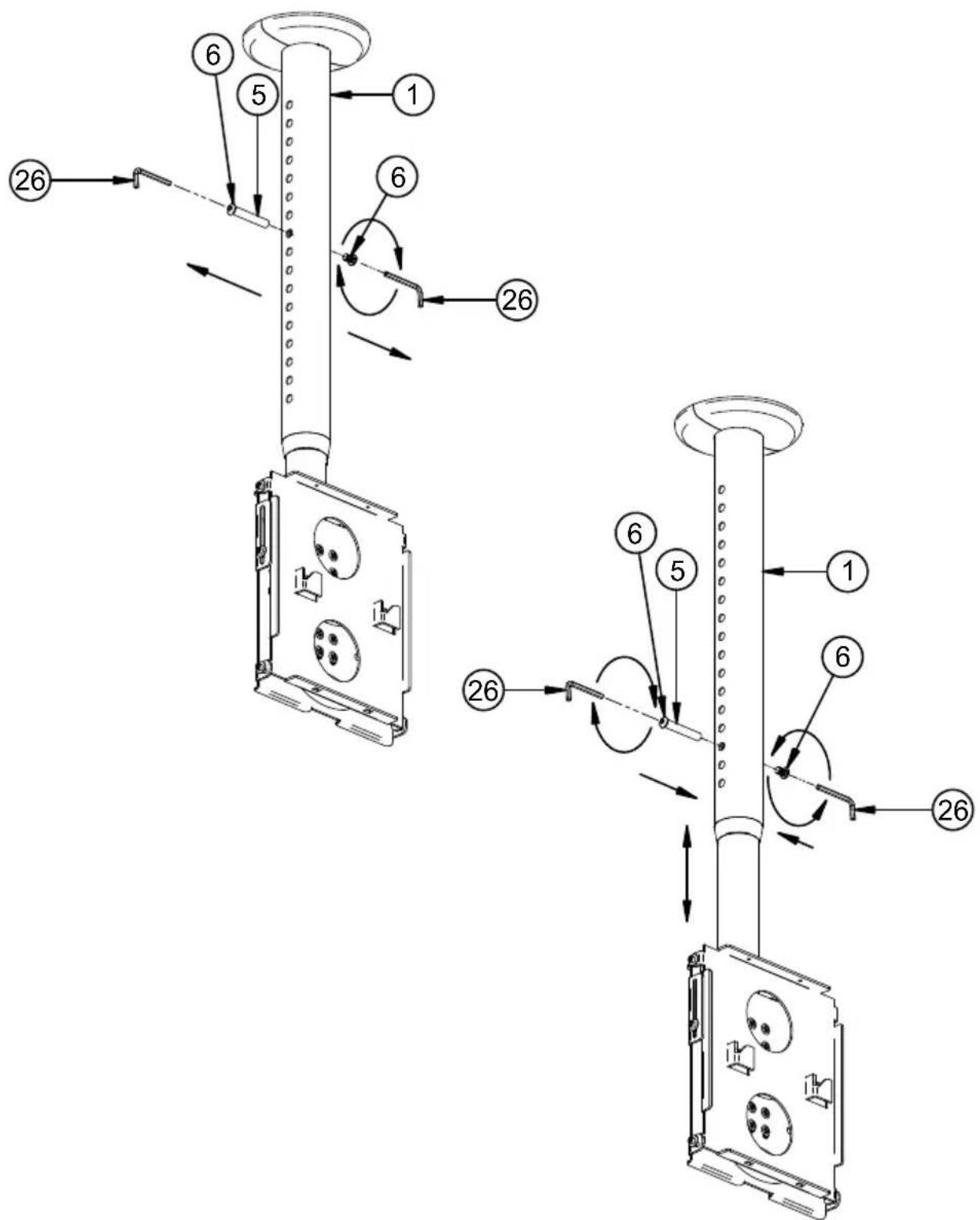

Adjust ceiling drop to desired height.

There are two methods of attaching the mount to the screen, depending on the screen fixing pattern.

A) VESA Fixings: 75 x 75mm, 100 x 100mm, 200 x 100mm or 200 x 200mm (page 6)
B) VESA Fixings: 300 x 200mm, 400 x 200mm, 300 x 300m, 400 x 300mm, 400 x 400mm, 600 x 400mm or 800 x 400mm and non-VESA up to 970 x 500mm (page 7)

3

Attach the interface to the back of the screen.

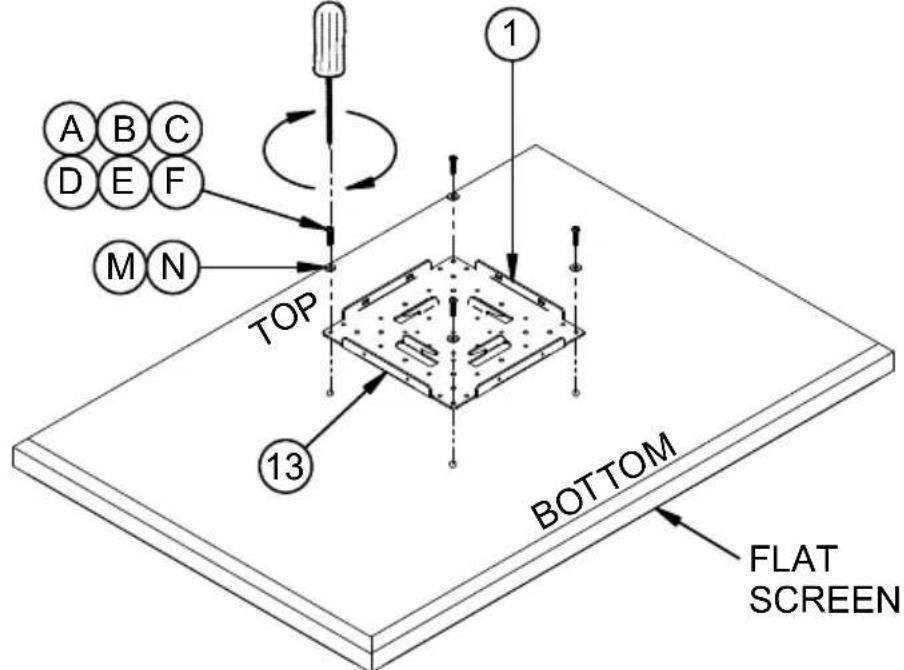

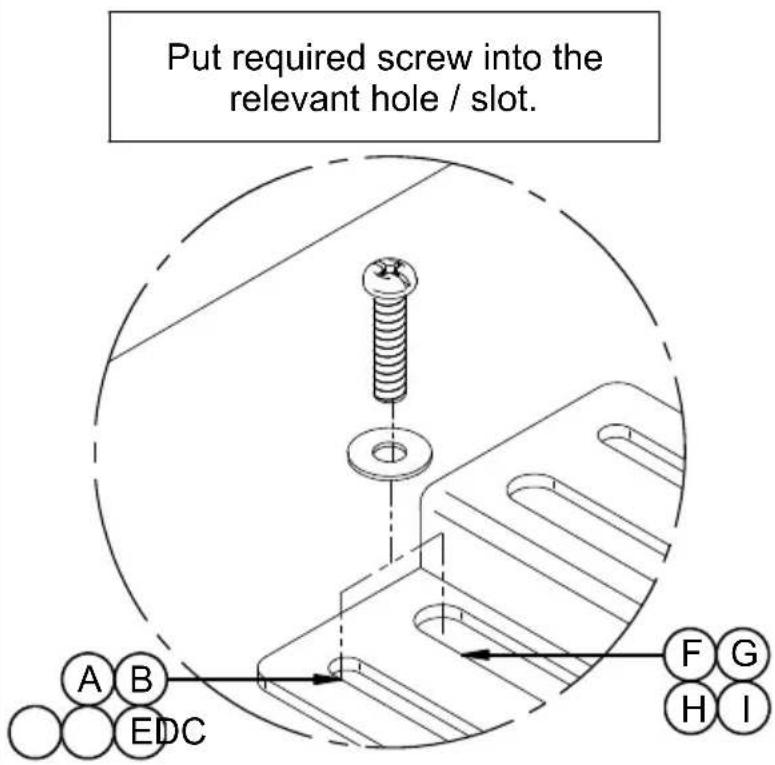

A) For VESA patterns up to 200 × 200 ~mm , attach interface plate to back of the screen.

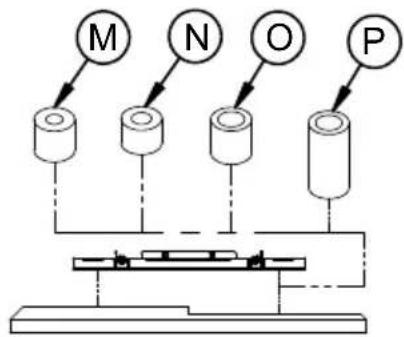

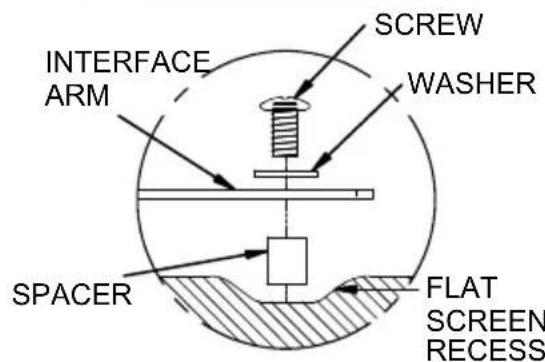

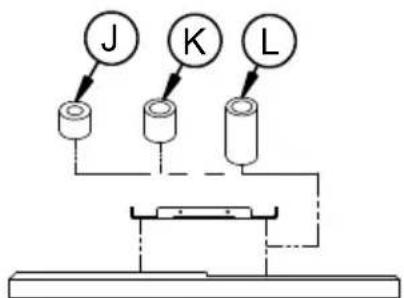

Use spacers on recess in flat screen & for extra space for cables.

8

Please refer to screen manufacturer manual for guidance on screen mounting.

B) For VESA patterns from 300 x 200mm up to 800 x 500mm and non-VESA patterns;

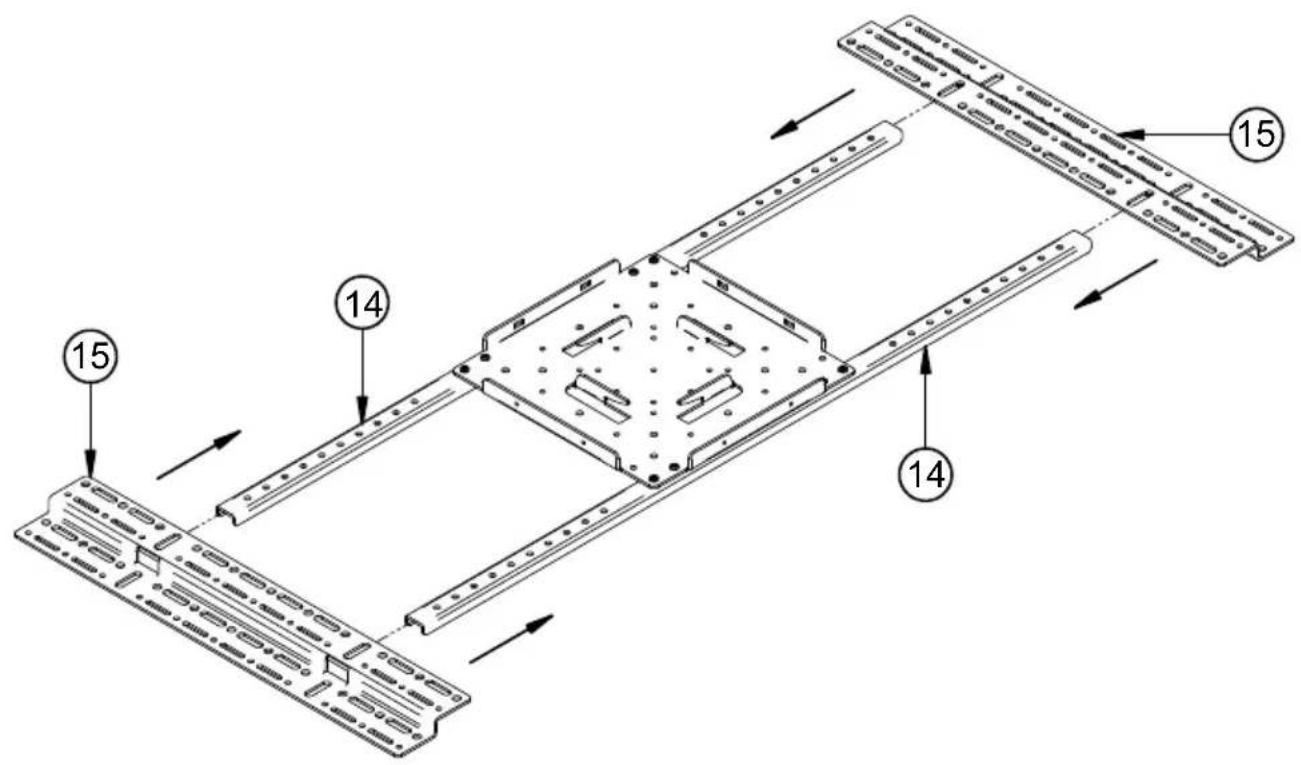

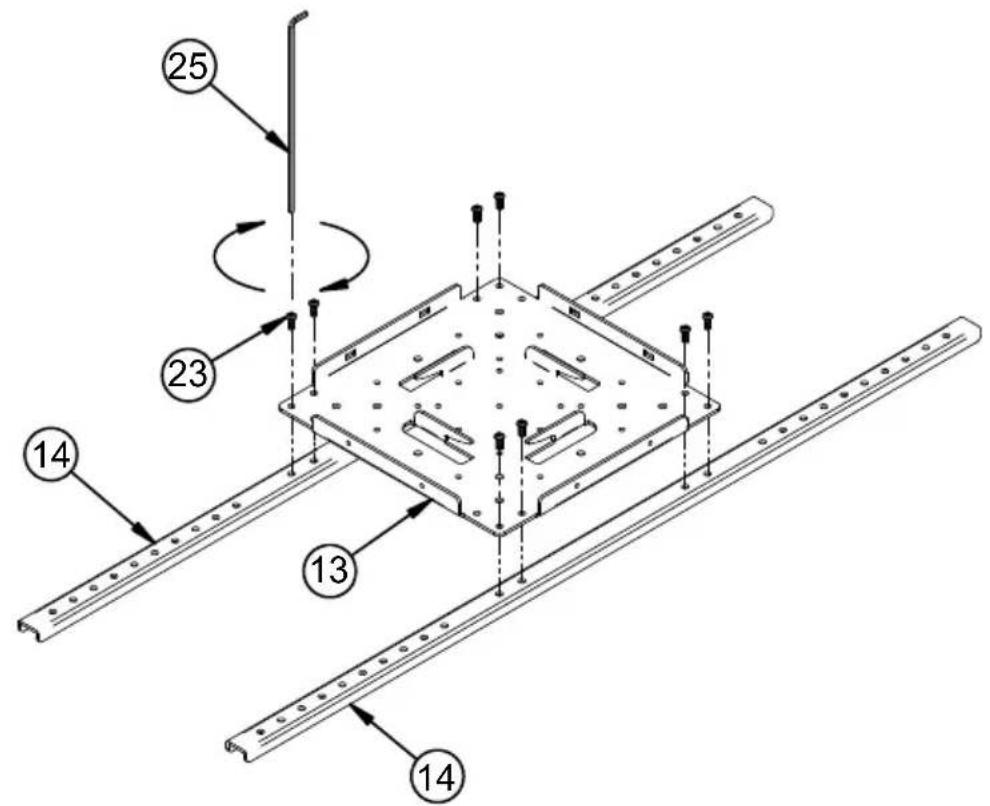

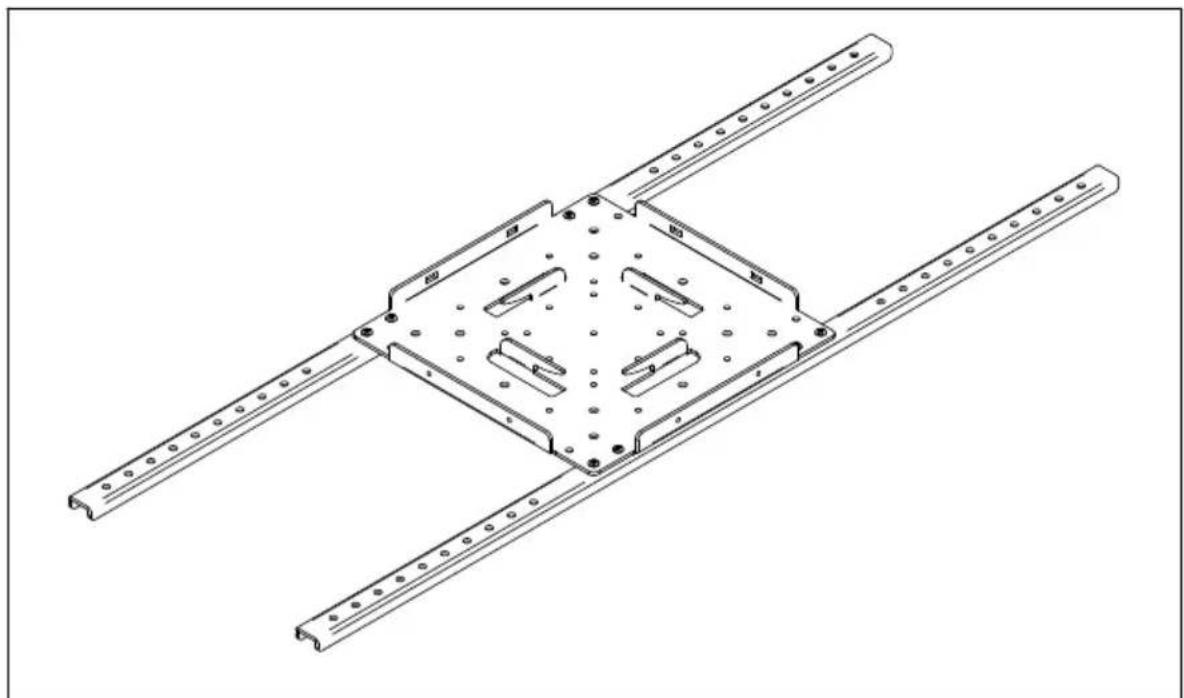

i. Attach the cross rails to the interface plate.

Technical line drawing of a mechanical assembly with two parallel plates and a central mounting bracket (no text or symbols)

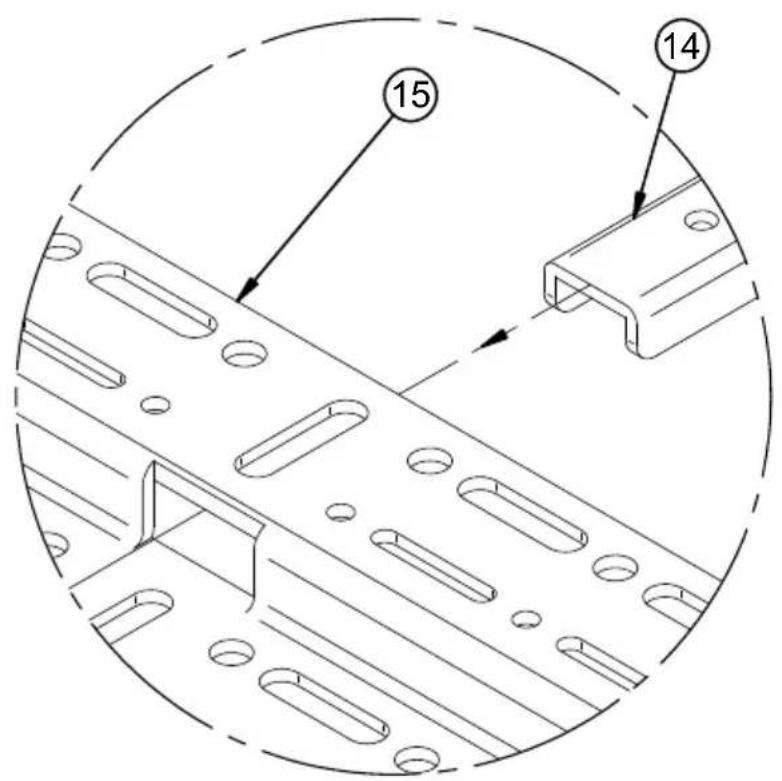

ii. Slide on the interface arms.

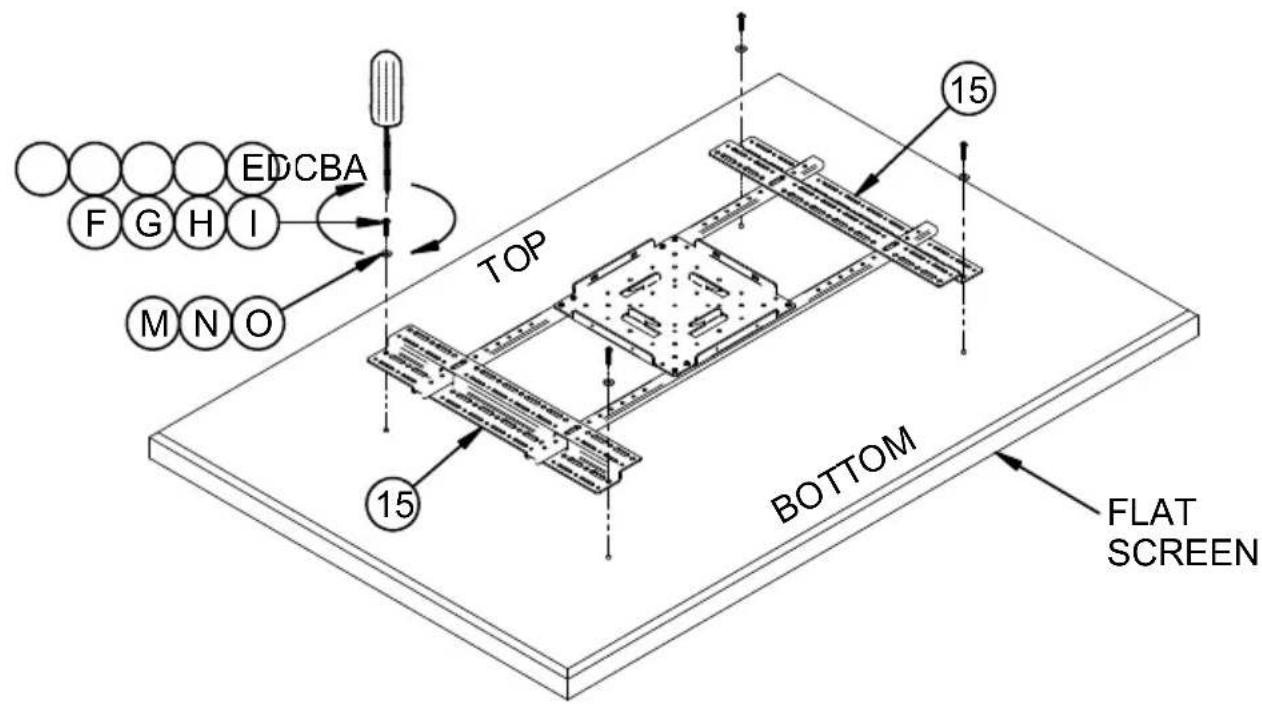

iii. Attach the interface arms to the flat screen.

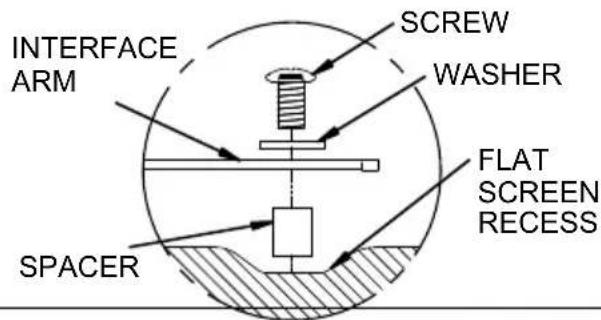

Use spacers on recess in flat screen & for extra space for cables.

Please refer to screen

manufacturer manual for guidance on screen mounting.

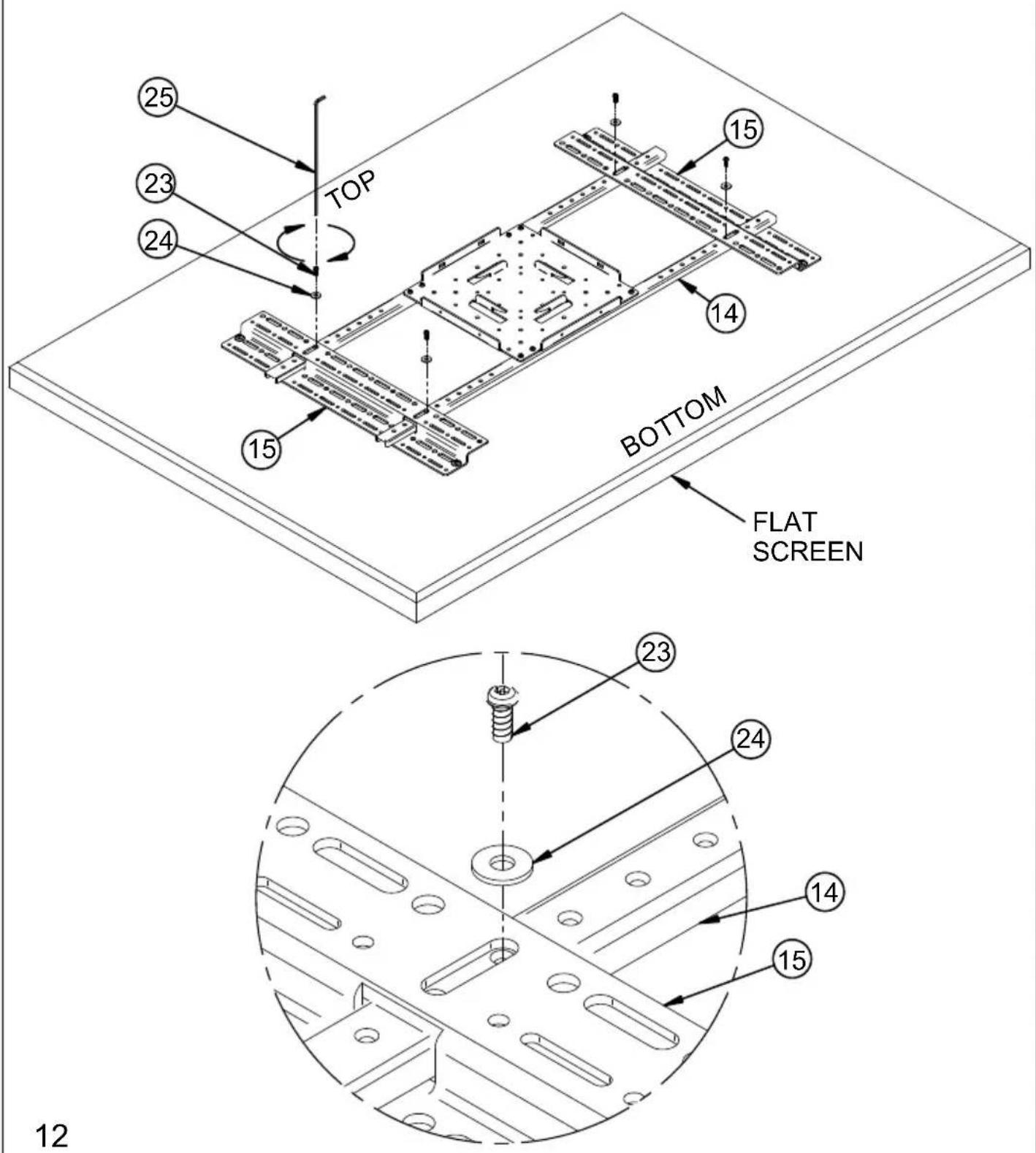

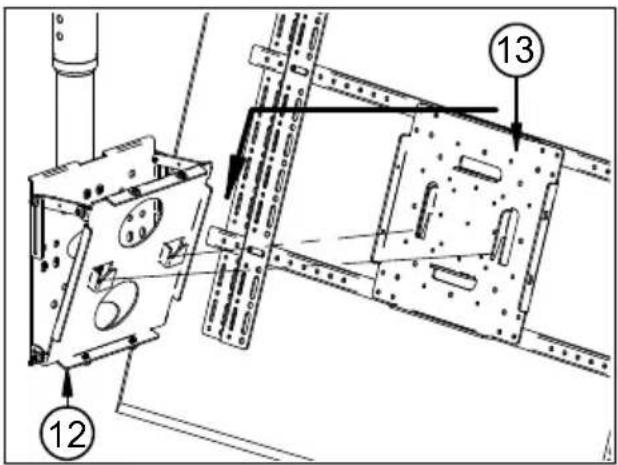

iv. Fix the cross rails to the interface arms.

Tilt options:

A) For installation with 20 tilt or without tilt follow step A (page 13) B) For installation with 15 short tilt arm follow step B (page 14)

4

Adjust and fix the tilt.

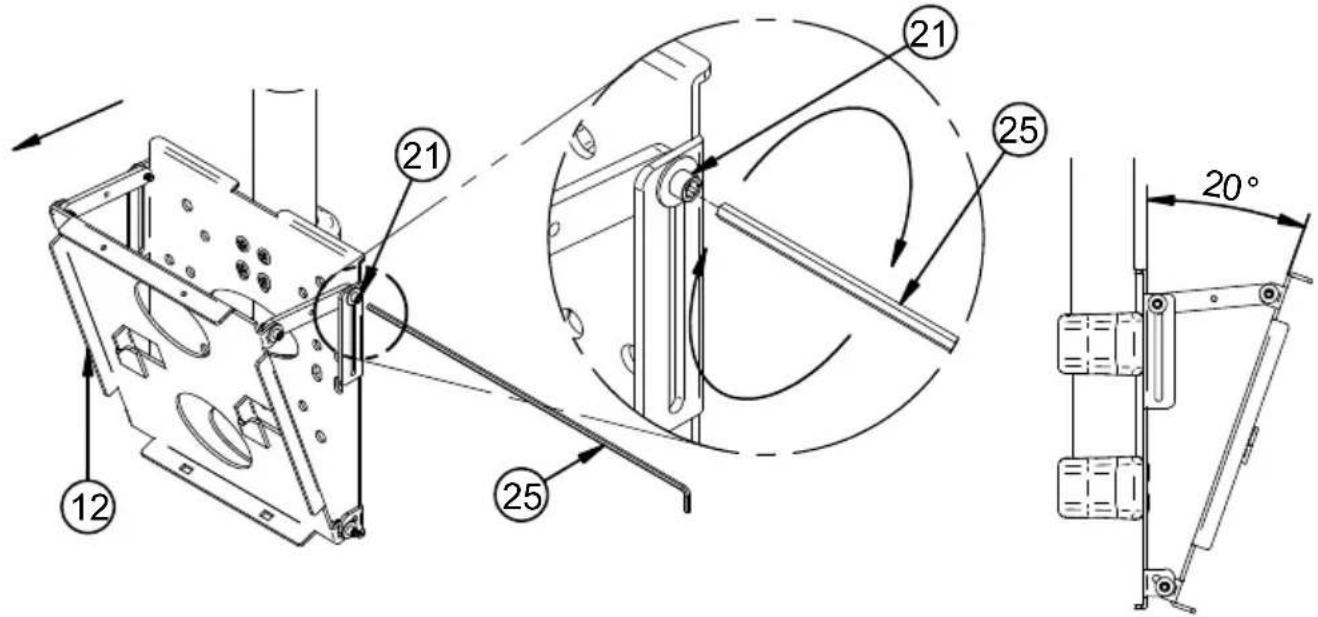

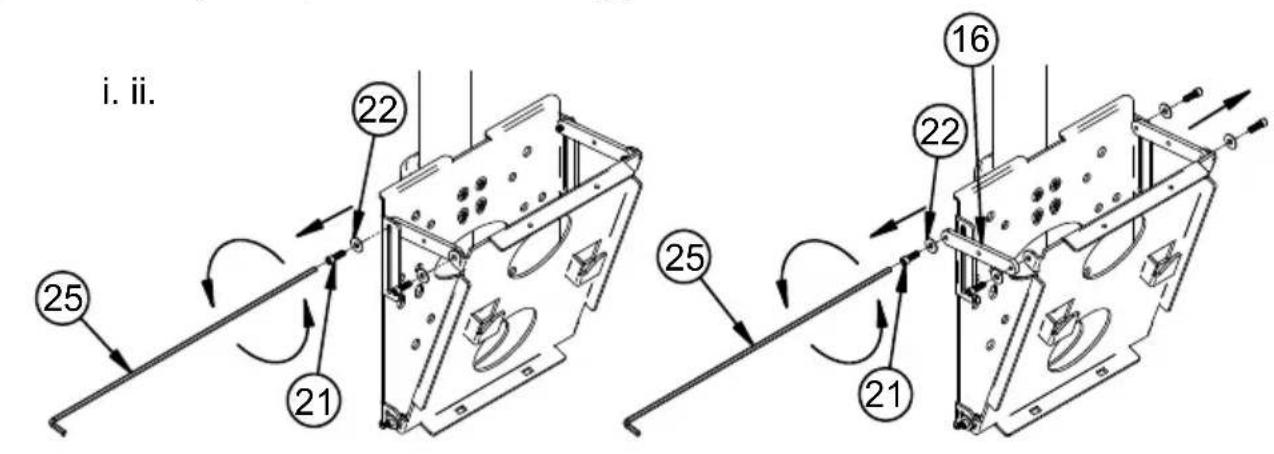

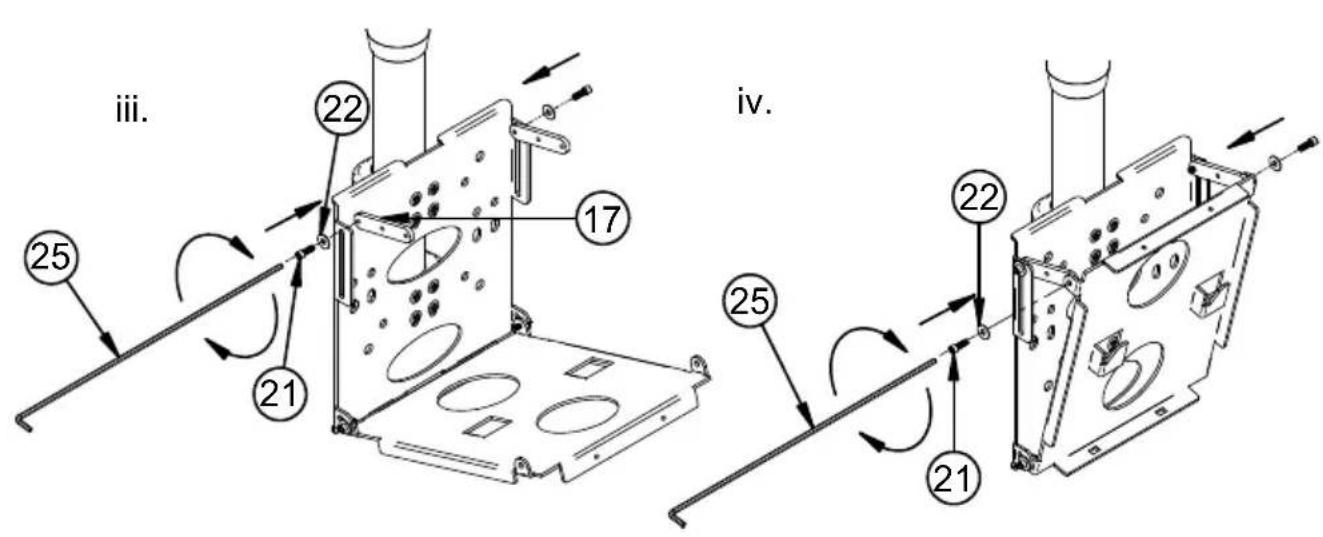

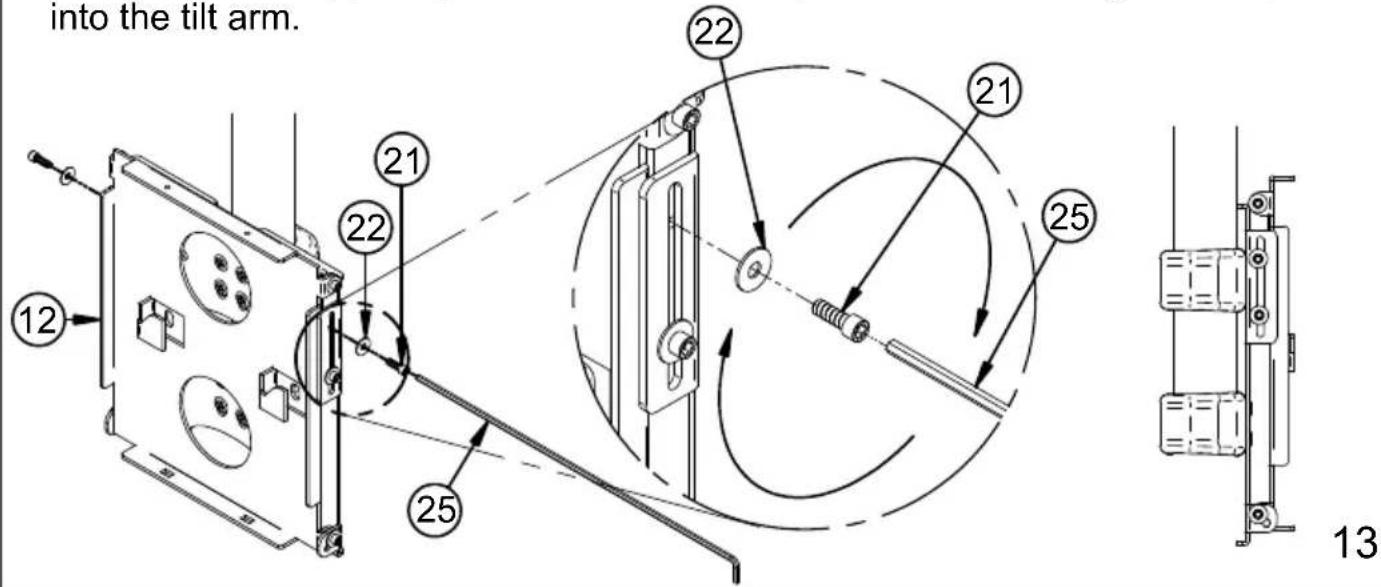

A) For 20^ tilt:

i. Tilt - To fix tilt, push part 12 forward to 20^ then tighten part 21.

ii. Flat - To fix flat, push part 12 flat and insert parts 21 & 22 through the tilt plate into the tilt arm.

B) For 15^ short arm tilt, remove parts 21 & 22 from the long tilt arm, then replace part 16 with part 17, then attach using parts 21 & 22.

6

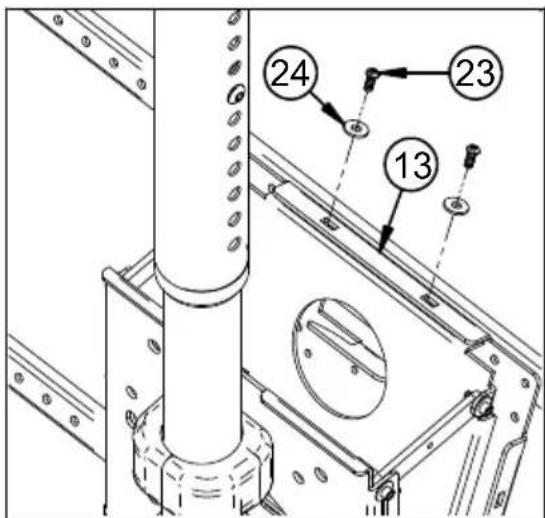

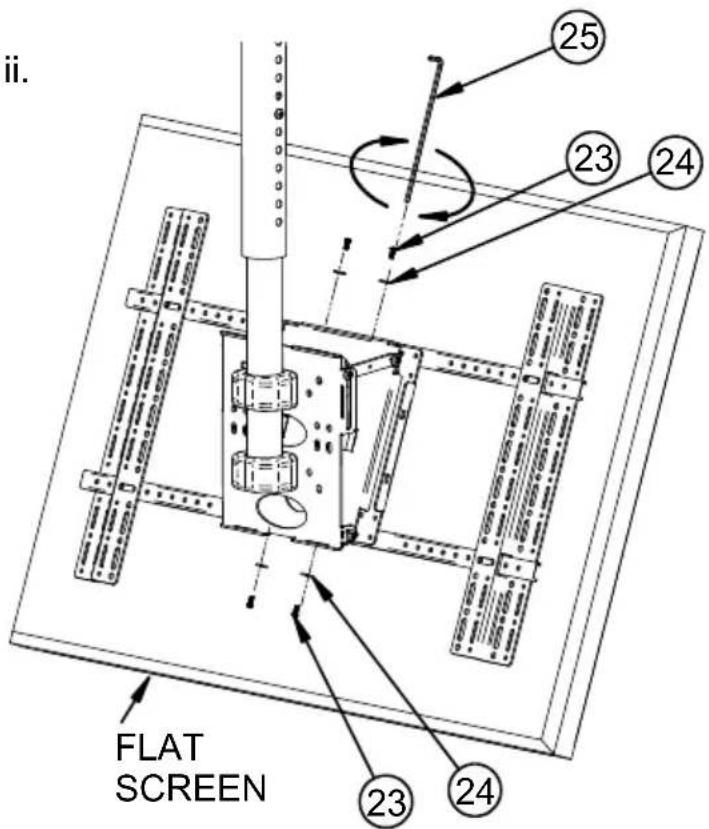

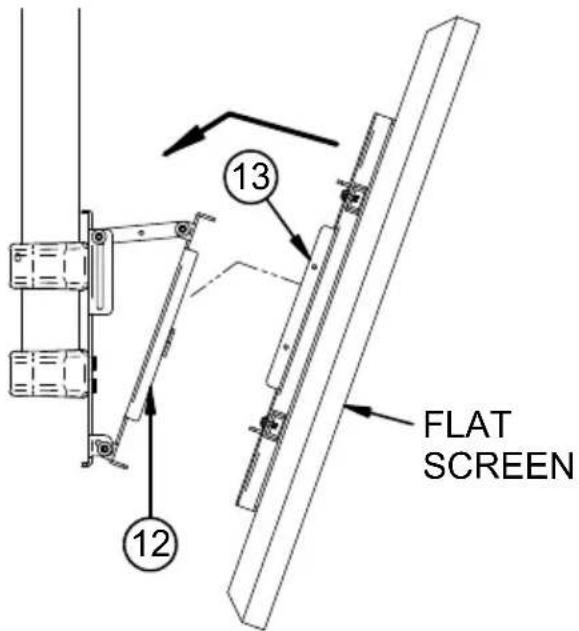

Hook the flat screen onto the hook plate then secure using parts 23 & 24.

i.

MAY REQUIRE 2 PEOPLE

ii.

7

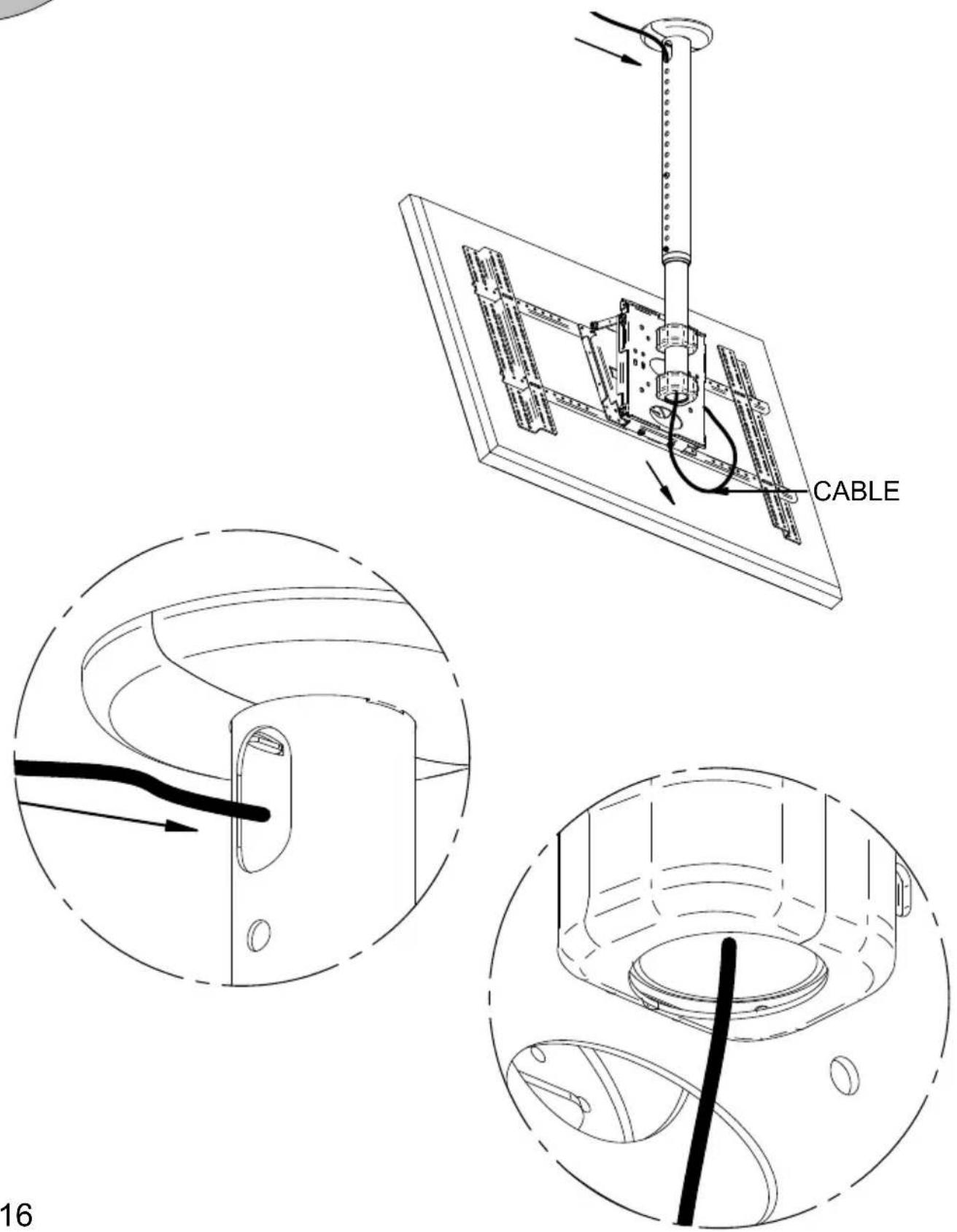

Optional - cable management

OPTIONAL ACCESSORIES

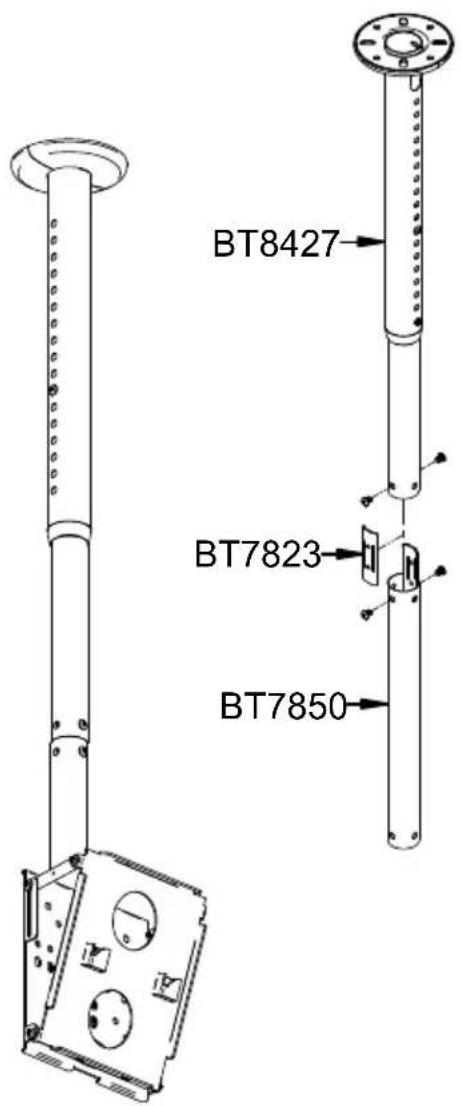

Pole Extension Example Install

SYSTEM2

This product is compatible with the System 2 range of professional install products from B-Tech

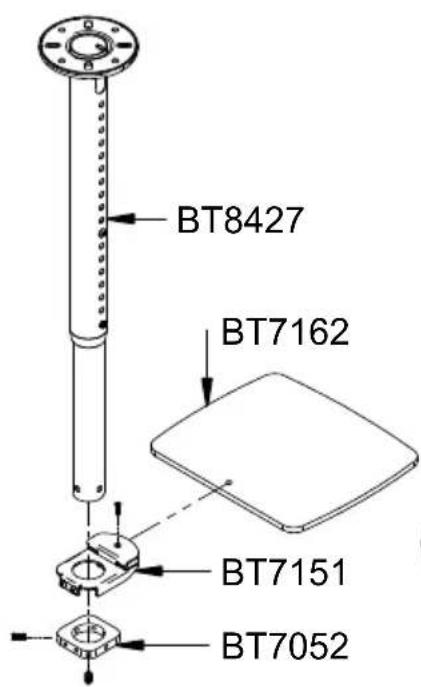

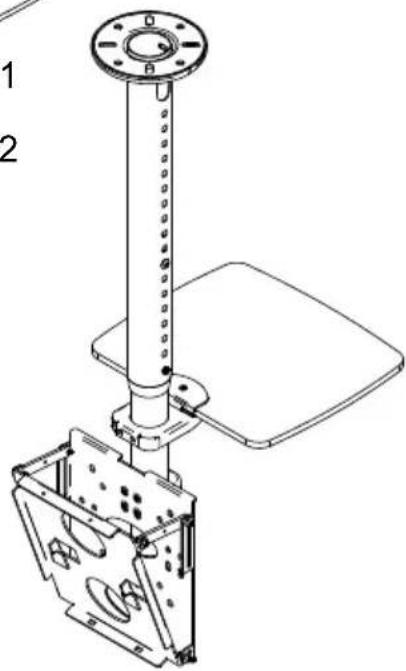

AV Component Shelf Example Install

Technical line drawing of a mechanical assembly with a cylindrical component and housing (no text or symbols)

Additional System 2 components and accessories are available from B-Tech.

Please visit www.btechavmounts.com for more information.

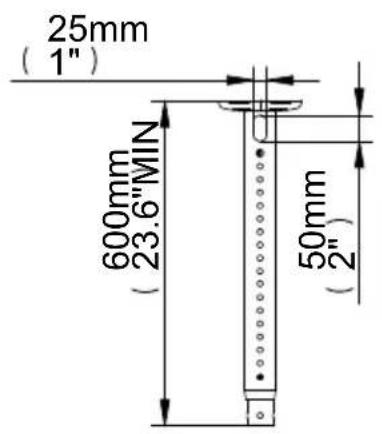

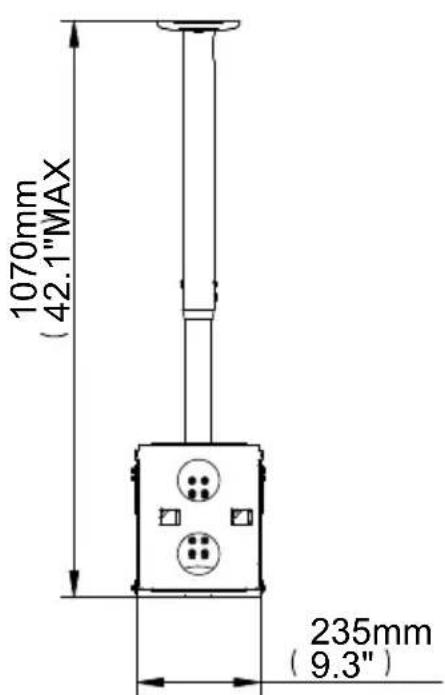

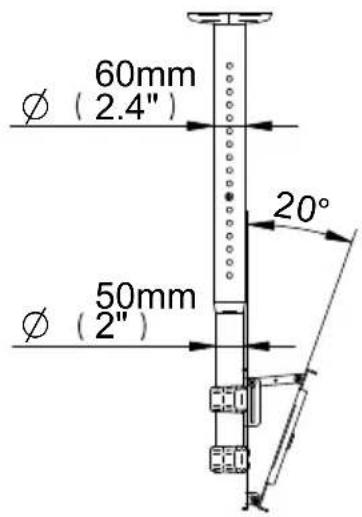

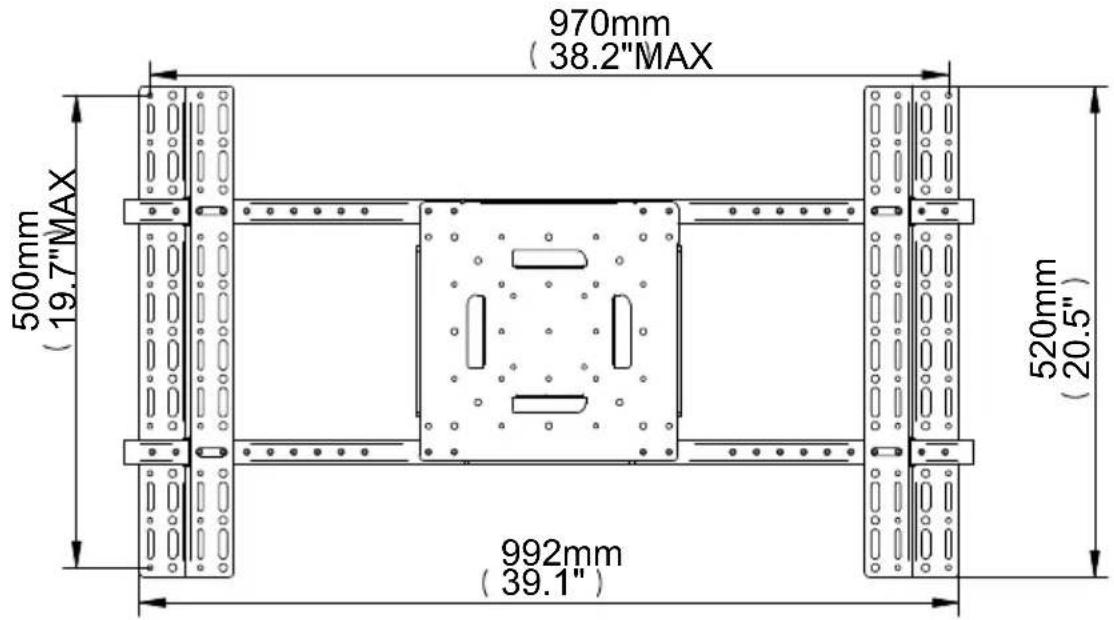

BT8427 PRODUCT DIMENSIONS

BT8427 PRODUCT DIMENSIONS

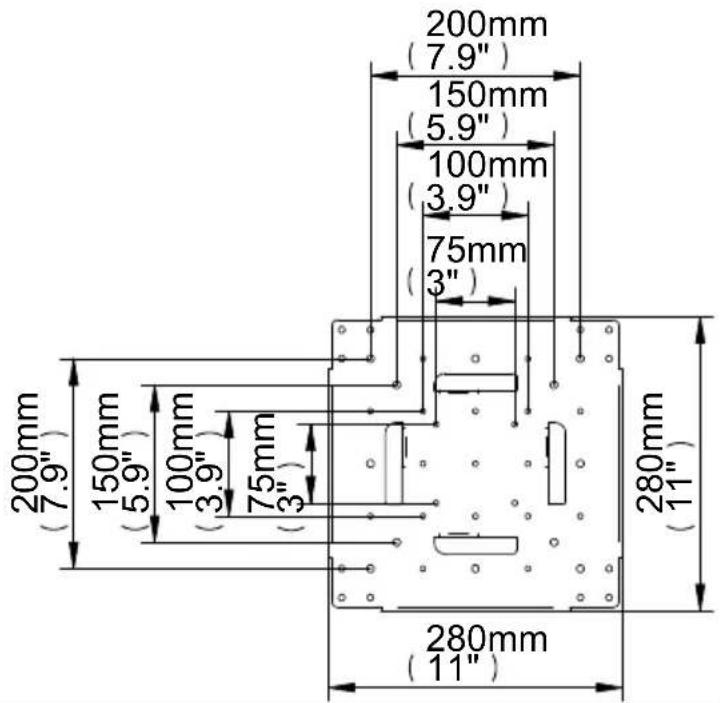

INTERFACE PLATE

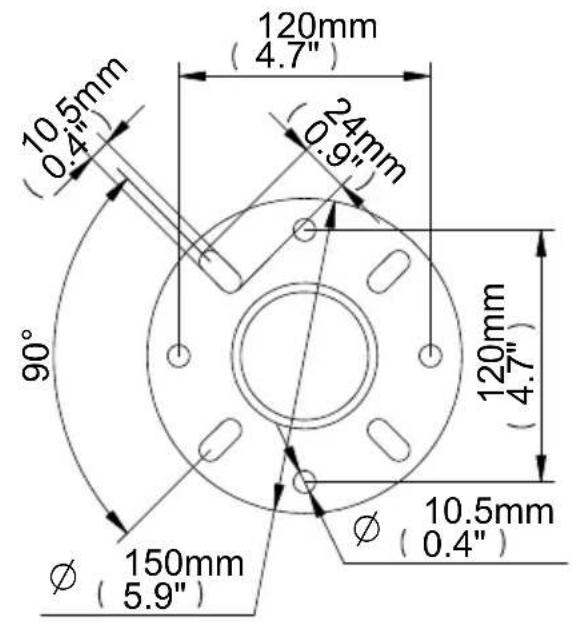

CEILING PLATE

INTERFACE PLATE

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

BETTER BY DESIGN

www.btechavmounts.com

B-TECH AUDIO VIDEO MOUNTS

HEAD OFFICE

Bennett House, Long March, Daventry, Northants NN11 4NR, UK

Email: [e-mail]

EUROPE

Brixtonlaan 32, Zaventem 1930,

Brussels, Belgium

Email: [e-mail]

NORTH AMERICA

203 Eggert Road,

Buffalo, NY 14215, USA

Email: [e-mail]

SINGAPORE

Ruby Industrial Complex,

Singapore 347740

Email: [e-mail]

ASIA PACIFIC

1503 Prosperity Millennia Plaza,

Quarry Bay, Hong Kong

Email: [e-mail]

©2010 Bennett Technologies Limited. All rights reserved.

B-Tech Audio Video Mounts is a division of Bennett Technologies Limited.

B-Tech. Better By Design, System 2 & Mountlogic are registered trademarks of Bennett Technologies Limited.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

IP-BT8427-V3-OR2BX-160610-01 MADE IN CHINA
