UA-767PBT - Sphygmomanometer A&D Médical - Free user manual and instructions

Product Type	Automatic Upper Arm Blood Pressure Monitor
Model	UA-767PBT
Brand	A&D Medical
Measurement Method	Oscillometric
Arm Circumference Range	22–42 cm (standard cuff)
Power Supply	4 AA batteries or AC adapter (optional, 6V DC, 1A)
Battery Life	Approximately 300 measurements with new alkaline batteries
Memory	2 users × 100 measurements each
Wireless Connectivity	Bluetooth 4.2 for data transfer to mobile app
Measurement Range	Pressure: 0–300 mmHg; Pulse: 40–200 beats/min
Accuracy	Blood pressure: ±3 mmHg; Pulse: ±5%
Display	LCD with large digits; systolic, diastolic, pulse, date/time
Indicators	Irregular heartbeat, body movement, cuff fit, hypertension classification (WHO)
Dimensions	Approx. 125 × 90 × 57 mm (H × W × D)
Weight	Approx. 300 g (without batteries)
Operating Environment	Temperature: 10–40 °C; Humidity: 15–85% RH
Storage Environment	Temperature: -20–60 °C; Humidity: 10–90% RH
Cleaning & Maintenance	Wipe with a soft dry cloth; do not immerse in water; store in protective case
Safety	Not intended for pregnant women or persons with arrhythmias unless under medical supervision; consult doctor
Included Accessories	Cuff, 4 AA batteries, instruction manual, storage case
Replaceable Parts	Replacement cuffs available (standard size); optional AC adapter

Frequently Asked Questions - UA-767PBT A&D Médical

How do I set the date and time on my UA-767PBT?

Press the 'Set' button until the year blinks, then use the 'M' button to adjust. Press 'Set' again to confirm and move to month, day, hour, minute. Complete by pressing 'Set' after setting minutes.

Can I use the monitor with a pacemaker?

It is generally safe, but consult your doctor. The monitor does not interfere with most pacemakers, but always follow medical advice.

How do I connect the monitor to my smartphone via Bluetooth?

Download the A&D Heart Track app, enable Bluetooth on your phone, and follow the app instructions. Ensure the monitor is in pairing mode (press Bluetooth button).

What does the irregular heartbeat symbol mean?

The monitor detects an irregular rhythm during measurement. It is not a diagnosis; consult your doctor if the symbol appears frequently.

How do I choose the correct cuff size?

Measure your arm circumference. The standard cuff fits 22–32 cm. For larger arms (32–42 cm), purchase the larger cuff (Model UA-CUF-3).

Why does my measurement show an error message?

Common causes: movement during measurement, loose cuff, or low battery. Ensure you sit still, cuff is snug but not tight, and replace batteries if needed.

How do I delete stored measurements?

Press and hold the 'M' button for 3 seconds in memory mode. Select the user (1 or 2) and confirm deletion by pressing the 'Start/Stop' button.

Can I use rechargeable batteries?

Yes, rechargeable NiMH AA batteries are suitable, but their voltage is lower (1.2V vs 1.5V). This may reduce battery life but does not affect accuracy.

How often should I calibrate my monitor?

A&D recommends calibration every 2 years or after a drop or damage. Contact A&D service or an authorized dealer.

What is the warranty period for the UA-767PBT?

Typically 5 years from date of purchase for the monitor and 2 years for accessories. Check your local warranty card for details.

USER MANUAL UA-767PBT A&D Médical

Digital Blood Pressure Monitor

Model UA-767 B

Contents

Dear Customers.... 2

Preliminary Remarks 2

Precautions.... 2

Parts Identification.... 3

Symbols......4

Using The Monitor 5

Installing / Changing The Batteries 5

Connecting The Air Hose 5

Attaching The Arm Cuff 6

How To Take Proper Measurements 6

Measurement.... 6

After Measurement 6

Measurements 7

Normal Measurement.... 7

Measurement With The Desired Systolic Pressure 8

Notes For Proper Measurement 8

What Is An Irregular Heartbeat 9

Pressure Bar Indicator 9

How The Wireless Connection Works.... 9

About Blood Pressure.... 10

What Is Blood Pressure? 10

What Is Hypertension And How Is It Controlled? ...... 10

Why Measure Blood Pressure At Home? 10

WHO Blood Pressure Classification 10

Blood Pressure Variations.... 10

Troubleshooting 11

Maintenance 12

Technical Data.... 12

Dear Customers

Congratulations on purchasing a state-of-the-art A&D blood pressure monitor, one of the most advanced monitors available today. Designed for ease of use and accuracy, this monitor will facilitate your daily blood pressure regimen.

We recommend that you read through this manual carefully before using the device for the first time.

Preliminary Remarks

☐ This device conforms to the European Directive 93/42 EEC for Medical Products. This is made evident by the C€0366 mark of conformity. (0366: The reference number to the involved notified body)
☐ The device complies with the statutory EMC (Electromagnetic Compatibility) directive 89/336/EEC. The WML-40AH is approved in accordance to R&TTE directive transmitter module marked by C₀₆₇₈ !, manufactured by MITSUMI incorporated to OEM product.
☐ The device complies with part 15 of the FCC rules and contains the FCC ID POOWML-C40.
☐ The device is designed for use on adults only, not newborns or infants.
□ Environment for use The device is for use indoors.

Precautions

☐ Precision components are used in the construction of this device. Extremes in temperature, humidity, direct sunlight, shock or dust should be avoided.
☐ Clean the device with a soft, dry cloth. Never use thinner, alcohol, benzine, or wet cloth.
☐ Avoid tightly folding the cuff or storing the hose tightly twisted for long periods, as such treatment may shorten the life of the components.
☐ The device and cuff are not water resistant. Prevent rain, sweat and water from soiling the device and cuff.
☐ Measurements may be distorted if the device is used close to televisions, microwave ovens, cellular telephones, X-ray or other devices with strong electrical fields.
☐ Used equipment, parts and batteries are not treated as ordinary household waste, and must be disposed of according to the applicable local regulations.

Parts Identification

Symbols

Symbols Function / Meaning Recommended Action
[1CT8]	Standby and power on.	——
[HAT2]	Battery installation guide	——
	Direct current	——
	Serial number	——
[SO40]	Date of manufacture	——
[3H4Z]	Type BF: Device, cuff and tubing are designed to provide special protection against electrical shocks.	——
[T6W6]	The indicator that appears while measurement is in progress. It blinks when the pulse is detected.	Measurement is in progress. Remain as still as possible.
[40H7]	Irregular Heartbeat indicator. (I.H.B.) The indicator that appears when an irregular heartbeat or any excessive body movement is detected during the measurement.	——
[86X9]	Previous measurements stored in MEMORY.	——
[5K12] Full Battery	The battery power indicator during the measurement.	——
[47N4] Low Battery	The indicator blinks when battery power is low.	Replace all batteries with new ones, when the indicator blinks.
[HCR]	Unstable blood pressure due to movement during the measurement.	Try the measurement again. Remain very still during the measurement.
	The systolic and diastolic values are within 10 mmHg of each other.	Fasten the cuff correctly, and try the measurement again.
	The pressure value did not increase during inflation.
[6X18]	The cuff is not fastened correctly.
	The pulse is not detected correctly.
SYS	Systolic blood pressure in mmHg	——
DIA	Diastolic blood pressure in mmHg.	——
PUL./min	Pulse per minute	——
[4MTW]	EC directive medical device label	——
[S2B6]	R&TTE directive transmitter module label	——
	WEEE label	——

Using The Monitor

Installing / Changing The Batteries

1. Slide the battery cover up to open it.
2. Remove the used batteries and insert new batteries into the battery compartment as shown, taking care that the polarities (+) and (-) are correct.
3. Slide the battery cover down to close.

Use only R6P, AA batteries.

CAUTION

☐ Insert the batteries as shown in the battery compartment. If not, the device will not work.
☐ When ☐ (LOW BATTERY mark) blinks in the display, replace all batteries with new ones. Do not mix old and new batteries. It may shorten the battery life, or cause the device to malfunction.
☐ (LOW BATTERY mark) does not appear when the batteries are drained.
☐ Battery life varies with the ambient temperature and may be shorter at low temperatures.
☐ Remove the batteries if the device is not to be used for a long time. The batteries may leak and cause a malfunction.
☐ Use the specified batteries only. The batteries provided with the device are for testing monitor performance and may have a limited life.

Connecting The Air Hose

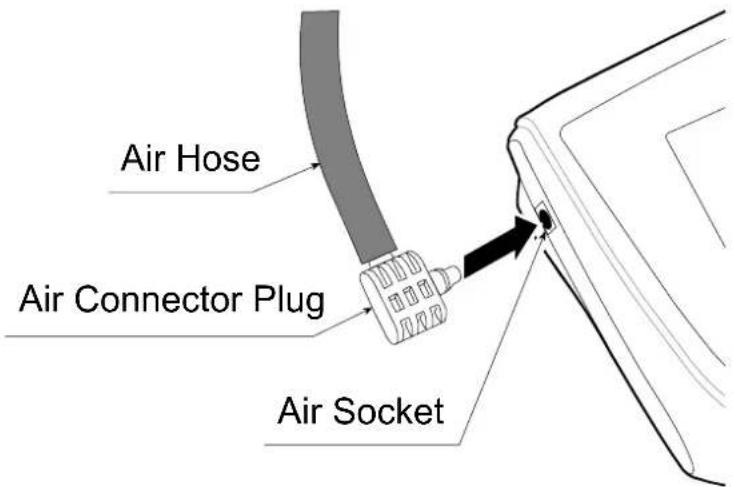

Insert the air connector plug into the air socket firmly.

Using The Monitor

Attaching The Arm Cuff

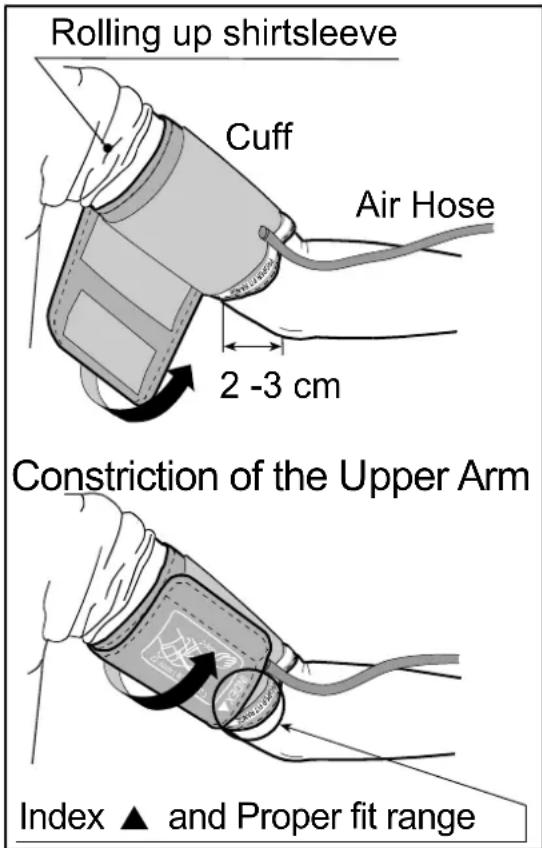

1. Wrap the cuff around the upper arm, about 2 - 3 cm above the elbow, as shown. Place the cuff directly against the skin, as clothing may cause a faint pulse, and result in a measurement error.
2. Constriction of the upper arm, caused by rolling up a shirtsleeve, may prevent accurate readings.
3. Confirm that the index ▲ points within the proper fit range.

How To Take Proper Measurements

For the most accurate blood pressure measurement:

☐ Sit comfortably at a table. Rest your arm on the table.
☐ Relax for about five to ten minutes before measurement.
☐ Place the center of the cuff at the same height as your heart.
□ Remain still and keep quiet during measurement.
☐ Do not measure right after physical exercise or a bath. Rest for twenty or thirty minutes before taking the measurement.
☐ Try to measure your blood pressure at the same time every day.

Measurement

During measurement, it is normal for the cuff to feel very tight. (Do not be alarmed)

After Measurement

After measurement, press the START button to turn off the power. Remove the cuff and record your data.

Note: The device has an automatic power shut-off function, which turns the power off approximately one minute after measurement.

Allow at least ten minutes between measurements on the same person.

Measurements

Model UA-767 Plus BT is designed to detect the pulse and to inflate the cuff to a systolic pressure level automatically.

If your systolic pressure is expected to exceed 230 mmHg or you use the optional small cuff, read "Measurement with the desired systolic pressure" on the next page.

Normal Measurement

1. Place the cuff on the arm (preferably the left arm). Sit quietly during measurement.
2. Press the START button.

The last data of systolic and diastolic pressure and pulse rate are displayed briefly. Then the display changes, as indicated in the figure at the right, as the measurement begins. The cuff starts to inflate. It is normal for the cuff to feel very tight. A pressure bar indicator is displayed, as in the figure at the right, during inflation.

Note: If you wish to stop inflation at any time, press the START button again.

1. When inflation is complete, deflation starts automatically and the ♥ (heart mark) blinks, indicating that the measurement is in progress. Once the pulse is detected, the mark blinks with each pulse beat.

Note: If an appropriate pressure is not obtained, the device starts to inflate again automatically.

1. When the measurement is complete, the systolic and diastolic pressure readings and pulse rate are displayed. The cuff exhausts the remaining air and deflates completely.
2. Press the START button again to turn off the power.

Note: Model UA-767 Plus BT is provided with an automatic power shut-off function. Allow at least ten minutes between measurements on the same person.

Measurements

Measurement With The Desired Systolic Pressure

If your systolic pressure is expected to exceed 230 mmHg or you use the optional small cuff, use this procedure.

1. Place the cuff on the arm (preferably the left arm).
2. Press and hold the START button until a number about 30 to 40 mmHg higher than your expected systolic pressure appears.
3. Release the START button to start measurement, when the desired number is reached. Then continue to measure your blood pressure as described on the previous page.

At heart level

Press and hold the button

Release the button at the desired systolic pressure

Refer to the previous page for measurement

Notes For Proper Measurement

☐ Sit down in a comfortable position. Place the arm to be used for the measurement on a table or other support so that the center of the cuff will be at the same height as your heart.
☐ Relax for about five or ten minutes before taking a measurement. If you are excited or depressed by emotional stress, the measurement will reflect this stress as a higher (or lower) than normal blood pressure reading and the pulse reading will usually be faster than normal.
☐ An individual's blood pressure varies constantly, depending on what you are doing and what you have eaten. What you drink can have a very strong and rapid effect on your blood pressure.
☐ This device bases its measurements on the heartbeat. If you have a very weak or irregular heartbeat, the device may have difficulty determining your blood pressure.
☐ Should the device detect a condition that is abnormal, it will stop the measurement and display an error symbol. See page 4 for the description of symbols.
☐ This blood pressure monitor is intended for use by adults only. Consult with your physician before using this device on a child. A child should not use this device unattended.

What Is An Irregular Heartbeat

Model UA-76Plus BT blood pressure monitor provides a blood pressure and pulse rate measurement even when an irregular heartbeat occurs. An irregular heartbeat is defined as a heartbeat that varies by 25% from the average of all heartbeats during the blood pressure measurement. It is important that you be relaxed, remain still and do not talk during measurements.

Note: We recommend contacting your physician if you see this (♡) indicator frequently.

Pressure Bar Indicator

The indicator monitors the progress of pressure during measurement.

How The Wireless Connection Works

At the end of the measurement, your blood pressure will be sent automatically to your health monitoring device. You do not need to do anything. If the health monitoring device is not working or is not within range of the blood pressure monitor, the blood pressure will be stored in the blood pressure monitor's memory (up to 40 sets).

About Blood Pressure

What Is Blood Pressure?

Blood pressure is the force exerted by blood against the walls of the arteries.

Systolic pressure occurs when the heart contracts. Diastolic pressure occurs when the heart expands. Blood pressure is measured in millimeters of mercury (mmHg). One's natural blood pressure is represented by the fundamental pressure, which is measured first thing in the morning while one is still at rest and before eating.

What Is Hypertension And How Is It Controlled?

Hypertension, an abnormally high arterial blood pressure, if left unattended, can cause many health problems including stroke and heart attack. Hypertension can be controlled by altering lifestyle, avoiding stress, and with medication under a doctor's supervision.

To prevent hypertension or keep it under control:

☐ Do not smoke Exercise regularly
- Reduce salt and fat intake - Have regular physical checkups
□ Maintain proper weight

Why Measure Blood Pressure At Home?

Blood pressure measured at a clinic or doctor's office may cause apprehension and can produce an elevated reading, 25 to 30 mmHg higher than that measured at home. Home measurement reduces the effects of outside influences on blood pressure readings, supplements the doctor's readings and provides a more accurate, complete blood pressure history.

WHO Blood Pressure Classification

Standards to assess high blood pressure, without regard to age, have been established by the World Health Organization (WHO), as shown in the chart.

Blood Pressure Variations

An individual's blood pressure varies greatly on a daily and seasonal basis. It may vary by

Reference Material: Journal of Hypertension 1999, Vol 17 No.2

30 to 50 mmHg due to various conditions during the day. In hypertensive individuals' variations are even more pronounced. Normally, the blood pressure rises while at work or play and falls to its lowest levels during sleep. So, do not be overly concerned by the results of one measurement.

Take measurements at the same time every day using the procedure

described in this manual to get to know your normal blood pressure. Regular readings give a more comprehensive blood pressure history. Be sure to note date and time when recording your blood pressure. Consult your doctor to interpret your blood pressure data.

Troubleshooting

Problem	Possible Reason	Recommended
Nothing appears in the display, even when the power is turned on.	Batteries are drained.	Replace all batteries with new ones.
	Battery terminals are not in the correct position.	Reinstall the batteries with negative and positive terminals matching those indicated on the battery compartment.
The cuff does not inflate.	Battery power is low.(LOW BATTERY mark) blinks. [ If the batteries are drained completely, the mark does not appear.]	Replace all batteries with new ones.
The unit does not measure. Readings are too high or too low.	The cuff is not fastened properly.	Fasten the cuff correctly.
	You moved your arm or body during the measurement.	Make sure you remain very still and quiet during the measurement.
	The cuff position is not correct.	Sit comfortably and still.Raise your hand so that the cuff is at the same level as your heart.
	——	If you have a very weak or irregular heat beat, the device may have difficulty in determining your blood pressure.
Other	The value is different from that measured at a clinic or doctor's office.	See “Why measure blood pressure at home”.
	——	Remove the batteries. Place them back properly and try the measurement again.

Note: If the actions described above do not solve the problem, contact the dealer. Do not attempt to open or repair this product, as any attempt to do so will make your warranty invalid.

Maintenance

Do not open the device. It uses delicate electrical components and an intricate air unit that could be damaged. If you cannot fix the problem using the troubleshooting instructions, request service from your dealer or from the A&D service group. The A&D service group will provide technical information, spare parts and units to authorized dealers.

The device was designed and manufactured for a long service life. However it is generally recommended to have the monitor inspected every 2 years, to ensure proper functioning and accuracy. Please contact either your authorized dealer or A&D for maintenance.

Technical Data

Type UA-767PBT / UA-767PBT-G

Measurement method Oscillometric measurement

Measurement range Pressure: 20 - 280 mmHg

Pulse: 40 - 200 beats / minute

Measurement accuracy Pressure: ±3 mmHg or 2%, whichever is greater Pulse:

Power supply 4 x 1.5V batteries (R6P or AA)

Upper arm circumference 22 - 32 cm (8.7" - 12.6")

Classification Type BF

Clinical test According to ANSI / AAMI SP-10 1987

EMC IEC 60601-1-2: 2001

Wireless communication WML-40AH (MITSUMI Electronics Co. Ltd.)

Operating condition +10°C to +40°C / 30%RH to 85 %RH

Storage condition -10°C to +60°C / 30%RH to 85 %RH

Dimensions Approx. 147 [W] x 64 [H] x 110 [D] mm

Weight Approx. 300 g, excepting batteries

CE0366

CE0678!

Note: Specifications are subject to change for improvement without prior notice.

The inspection for every two years of service is only recommended for European customers, in order to comply with regulatory requirements. Routine inspection and maintenance is not needed for non-European customers.
