Product Type	Bagless Canister Vacuum Cleaner
Brand	Hyundai
Model	H-VC1590
Power Supply	230 V, 50 Hz
Power Consumption	1800 W max
Suction Power	250–280 W
Dust Collector Capacity	2.2 L
Filtration System	5-step filtration with HEPA filter
HEPA Filter	Washable (clean with water, dry completely)
Motor Protection Filter	Yes, between dust bin and motor
Micronic Filter	Yes, on air outlet; replace every 6–12 months
Cord Length	5 m
Cord Rewind	Yes, with button
Telescopic Tube	Yes, adjustable length
Accessories Included	Metal floor brush, furniture/crevice nozzle
Net Weight	4.9 kg
Gross Weight	6.5 kg
Dimensions (Gift Box)	495 x 335 x 305 mm
Usage	Household only, not industrial
Storage	Wrap hose around telescopic tube, insert into body hole
Safety Features	Do not use without filters; unplug before cleaning; not for wet surfaces
Repairability	Contact authorized service center; do not repair yourself

Frequently Asked Questions - H-VC1590 HYUNDAI

How do I assemble the vacuum cleaner?

Fit the flexible hose by inserting it into the suction and turning clockwise. Attach the telescopic tube to the hose. Select the desired nozzle (floor brush or crevice tool).

How do I adjust the suction power?

Rotate the POWER control on the vacuum cleaner. Turn clockwise for stronger suction, anticlockwise for weaker suction.

How do I clean the dust bin?

Remove the hose. Press the button on the dust bin handle and pull the bin out. Open the bottom using the linchpin. Empty the dust. Clean the HEPA filter if needed. Reassemble by inserting the bin until it clicks.

How do I clean the HEPA filter?

Remove the HEPA filter from the dust bin. Clean it with a brush and warm water. Let it dry completely before reinserting. Rotate clockwise to lock it in place.

How often should I clean or replace the filters?

Clean the HEPA filter regularly. Clean the motor protection filter after 3–5 dust bin cleanings. Replace the micronic filter every 6–12 months.

What should I do if suction is weak?

Check if the dust bin is full. Clean or replace the filters. Ensure the hose and nozzle are not blocked. Remove any large objects from the floor before use.

Can I use the vacuum cleaner on wet surfaces?

No. To reduce the risk of electric shock, do not use outdoors or on wet surfaces. This vacuum is for dry household use only.

How do I store the vacuum cleaner?

Wrap the hose around the telescopic tube. Insert the telescopic tube into the hole on the body for compact storage.

What does the red mark on the cord mean?

The yellow mark indicates the ideal cord length. Do not pull the cord beyond the red mark to avoid damage.

Can I wash the HEPA filter in a washing machine?

No. Do not use a washing machine or hair dryer. Clean the filter by hand with warm water and let it air dry completely.

USER MANUAL H-VC1590 HYUNDAI

Line drawing of a mechanical device with no visible text or symbols

VACUUM CLEANER

Instruction manual

БЫТОВОЙ ПЫЛЕСОС

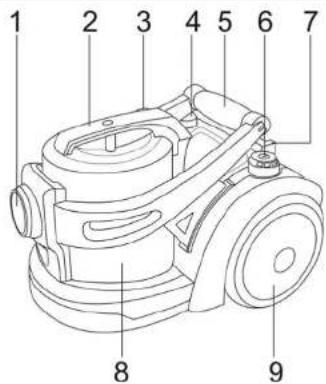

1. Air inlet
2. Dust bin container handle
3. Button to turn the dust bin container out
4. Cord rewind button
5. Carrying handle
6. POWER ON/OFF button (Speed regulator)
7. Horizontal parking hook
8. Dust bin container
9. Wheel

Important safeguards

When using this appliance, basic precautions should always be followed:

• Read this instruction manual carefully.
• Use the appliance only for household. Do not use for industrial purposes.
  • Before the first connecting of the appliance check that voltage indicated on the rating label corresponds the mains voltage in your home.
• Unplug the appliance from power supply, when not in use and before servicing.
• To reduce the risk of electric shock, do not use outdoors or on wet surfaces.
• To avoid damage of the flexible hose, do not fold or pull it strongly.

- Do not leave the vacuum cleaner, when plugged in.

- Do not allow children use it as a toy.

- Never switch off the appliance by pulling the cord.

• To avoid deforming of the plastic components of the appliance or fire accident, never put the appliance directly in sun shine or near any heater or the like.

- Do not handle plug with wet hands.

- Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, hair and anything that may reduce airflow.

- Use extra care, when cleaning on stairs.

- Do not make attempts to repair the appliance, adjust or replace parts in the vacuum cleaner. When malfunctions happen, contact the authorized service center for examination, repair, electrical or mechanical adjustment.

• Do not let the cord hang over edges or touch hot surfaces.
• Before you start using the vacuum cleaner, please remove large or sharp objects from the floor in order to prevent the damage of the filter or the dust bin.

Caution: Never use the vacuum cleaner without the filters.

Vacuum cleaner assembling

Always remove the plug from the power supply before fitting or removing accessories.

Fitting flexible hose

- Join hose and cleaner by means of joining hose and suction. Insert the hose into the suction and turn it clockwise.

Hose removing

- To remove flexible hose from the vacuum cleaner, turn it anticlockwise and pull.

Fitting telescopic tube and accessories

Extend the telescopic tube to the desired length by pressing the extension pipe button. Pull the cord to corresponding length, and insert the power plug. The yellow mark on the cord indicates the ideal cord length; never pull the cord beyond the red mark.

• Insert a flexible hose into a telescopic tube: directly cover the metal tube two part over the bend, adjust the suction force through adjusting the air flowing volume of the cleaner by sliding the regulating button on the bend handle.
  • Fit a nozzle to telescopic tube:

- Metal floor brush;

- Furniture/crevice nozzle is for cleaning furniture and corners.

Instruction for use

Before using the appliance, unwind a sufficient length of cord and insert the plug into the power supply. The mark on the cord shows the ideal cord length. Do not expand the cord beyond the red mark. Cord length: 5m .

To rewind the cord, press the Cord rewind button and controlling the cord with the other hand to ensure that it does not whip causing damage.

• Insert the power plug;
• Press down the switch button of the cleaner, keep it ON;
• You can adjust the vacuum cleaner power rotating the POWER control on the vacuum cleaner. Make the suction power stronger by turning it clockwise and make weaker by turning it anticlockwise.

- decrease power for cleaning curtains, books, furniture, etc.

- increase power for cleaning bare floor.

Advantages of your vacuum cleaner

- Your vacuum cleaner is equipped with 5 steps filtration system:

- HEPA-filter.

- the motor protection filter established between the dust bin container and the engine of a vacuum cleaner.

- the micronic filter, established on the air outlet.

- The 5-step filtration system reliably keeps a dust inside a vacuum cleaner and provides maximum careful and hygienic tidying up.

- Convenience of operation - the removable plastic dust bin, due to system of the clearing based on vorticose entering air in vacuum cleaner, dust instantly settles in dust bin.

Care and cleaning

- Switch off the appliance and pull out the plug from the power supply.

- Clean the outside of the appliance with a soft cloth with mild detergent. Harsh or abrasive detergent will damage the outside surface.

- Never immerse the appliance or cord into water and other liquids.

Cleaning dust bin container

- Clean dust bin container regularly.

- Switch off the appliance before cleaning dust bin container.

- Remove the flexible hose.

• To take the dust bin out of the vacuum cleaner body press the button on the dust container handle and pull the dust container out.

- Open the bottom of the container using the linchpin on it.

- To take the HEPA filter off rotate it anticlockwise and pull it out.

• Empty dust bin container.

Cleaning the HEPA filter

- Remove the HEPA filter from the dust bin container.

- For cleaning the filter use brush and water.

- Let the HEPA-filter and the cover dry up completely.

- To put the filter back insert it into the special slot at the top of the container and rotate it clockwise until it's fixed.

- Put the container back into the vacuum cleaner body until it's fixed.

Cleaning other filters

- Please clean the filters at least once a year. If you frequently use the appliance wash the motor filter after 3-5 cleanings of the dust container.

- Switch off the appliance and pull out the plug from the power supply.

• For cleaning the micronic filter, established on the air outlet, take off the rear grill from the unit and pull out the micronic filter. The air outlet filter may usually be used for six to twelve months. It's possible to begin to use the cleaner only after making it sure that all the filters have been correctly installed in the machine. You may either clean the filter or replace it if necessary.
• Wash the filter with warm water and dry in the sun.
• Set the filter back.

Caution:

• Never use the appliance without filters.
• Do not use a washing machine to rinse filters. Do not use a hair drier to dry them.

Storage

• Holding the handle, rotate the hose around the telescopic tube.
• Insert the telescopic tube into the hole on the body.

Specifications

Power supply 230 V, 50 Hz
Power 1800 W max
Dust collector volume 2.2 L
Net / Gross weight 4.9 kg / 6.5 kg
Suction power 250-280 W
Gift box dimension 495 x 335 x 305 mm
