GSP 875 - Dishwasher BOMANN - Free user manual and instructions

Type	Dishwasher
Brand	Bomann
Model	GSP 875

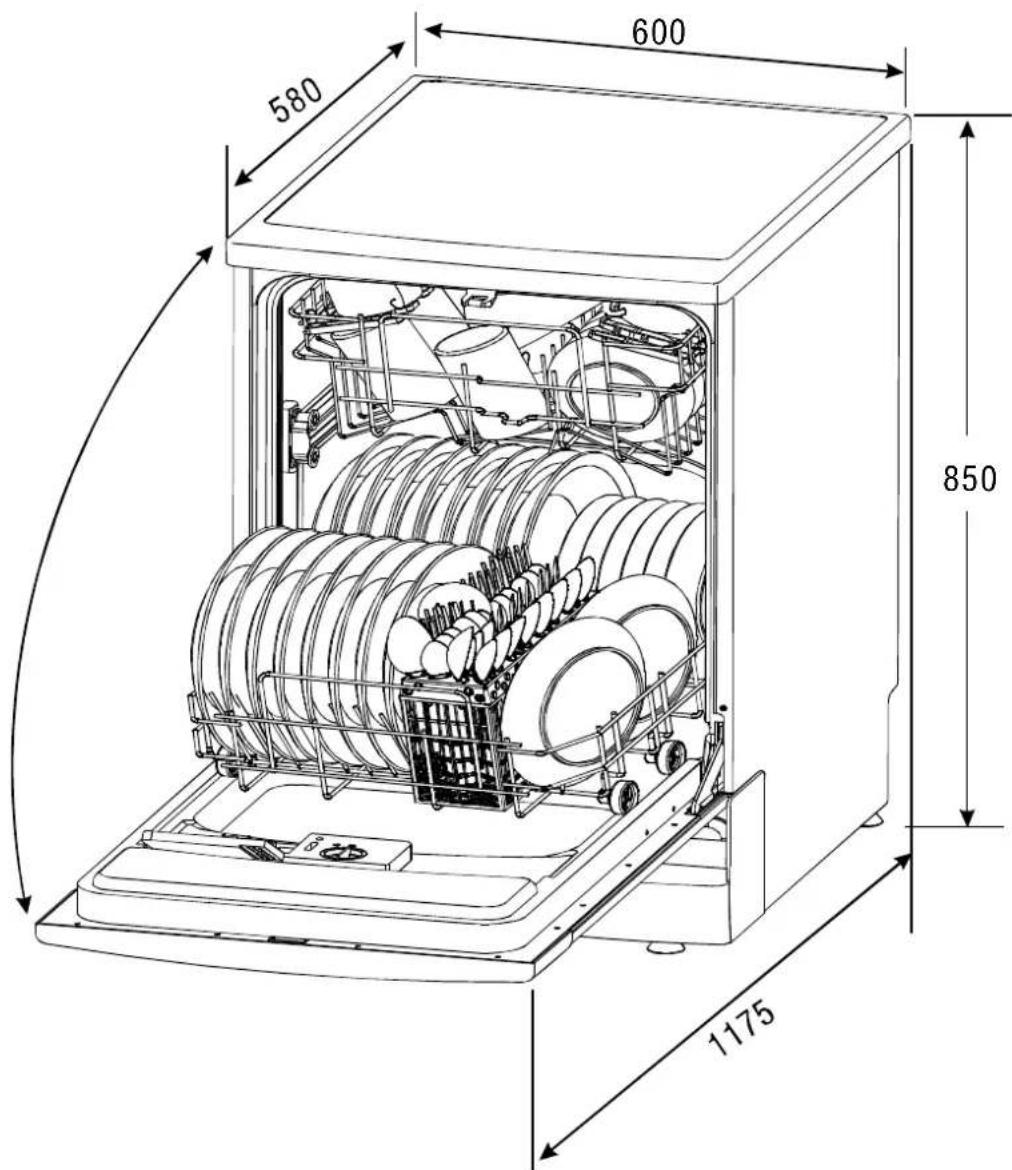

Dimensions (H x W x D)	850 x 600 x 580 mm
Capacity	12 place settings
Energy consumption (Eco program)	1.02 kWh
Water consumption (Eco program)	12.0 L
Programs	3in1, Intensive, Normal, Eco, 1 Hour, Rapid
Water pressure range	0.04 - 1.0 MPa
Hot water connection max	60 °C
Power supply	220-240 VAC / 50 Hz, 10 A
Water softener	Adjustable salt consumption
Rinse aid dispenser capacity	110 ml
Detergent dispenser	Main and pre-wash compartments
Filter system	Coarse, main, and fine filters
Noise level	Not specified
Weight	Approximately 45 kg
Safety features	Grounding, child lock, overflow protection
Warranty	Standard manufacturer's warranty

Frequently Asked Questions - GSP 875 BOMANN

How do I adjust the water softener?

Unscrew the salt container cap, rotate the ring on the container to the desired setting based on your water hardness (see chart in manual). Then fill with dishwasher salt and water.

What type of detergent should I use?

Use only detergent specifically designed for automatic dishwashers. You can use powder, gel, or tablets. Do not use soap or laundry detergent.

How often should I clean the filters?

The filter assembly should be cleaned once a week. Remove and rinse the coarse, main, and fine filters under running water.

My dishes are not drying properly. What can I do?

Increase the rinse aid setting (start at 4, go higher if needed). Also ensure you use the correct program with drying phase, and unload dishes after they cool.

How do I cancel a running program?

Press and hold the Start/Reset button for more than 3 seconds. The dishwasher will enter standby, then you can select a new program.

Why is there water left in the bottom of the dishwasher?

Check if the drain hose is kinked or clogged. Clean the filters. Ensure the sink drain is not blocked. If problem persists, call service.

Can I open the dishwasher during a cycle?

Yes, open the door carefully. The dishwasher will pause after the spray arms stop. Close the door to resume; it will restart after 10 seconds.

What does the '3in1' program do?

The 3in1 program is for normally soiled loads using multifunctional detergent tablets that combine detergent, rinse aid, and salt.

How do I clean the spray arms?

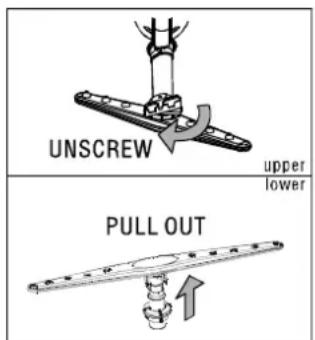

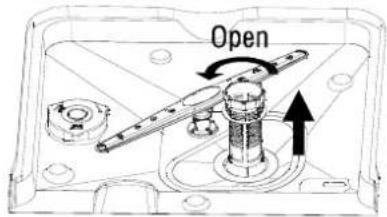

Remove the upper spray arm by unscrewing the nut clockwise, and pull out the lower spray arm upward. Wash in warm soapy water and clean jets with a soft brush.

What should I do if error codes appear?

If the Rapid light flickers, check water supply. If Eco light flickers, there may be an overflow. Turn off water and call service if needed.

USER MANUAL GSP 875 BOMANN

Technical line drawing of a multi-level cleaning machine with internal components and no visible text or symbols

Quick operation guide

Fordetailedoperatingmethodreadthecorrespondingcontentontheinstructionnmanual.

Switch on the appliance

Press the On/Off button to switch on the appliance, Open the door.

With each wash cycle.

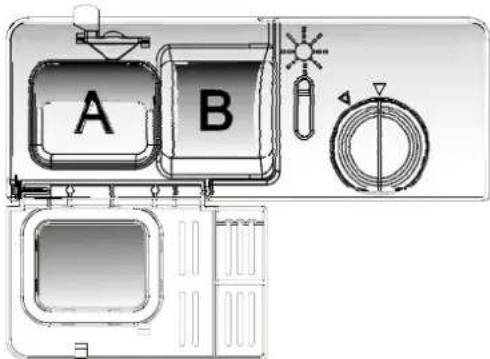

Compartment B:

Forprogrammeswithpre-washonly.

(Followtheuserinstructions!)

Checktherinseaidlevel

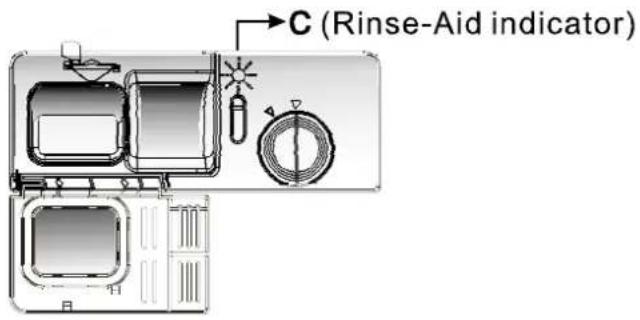

Mechanical indicator C.

Electricindicatoroncontrolpanel(ifprovided).

Checktheregeneration saltlevel

(Onmodelswithwatersoftenersystemonly.)

Electricindicatoroncontrolpanel(ifprovided).

Ifthereisnosaltwarninglightinthecontrolpanel

(forsomemodels),youcanestimatewhentofillthesaltinto

thesoftenerbythenumberofcyclesthedishwasherhasrun.

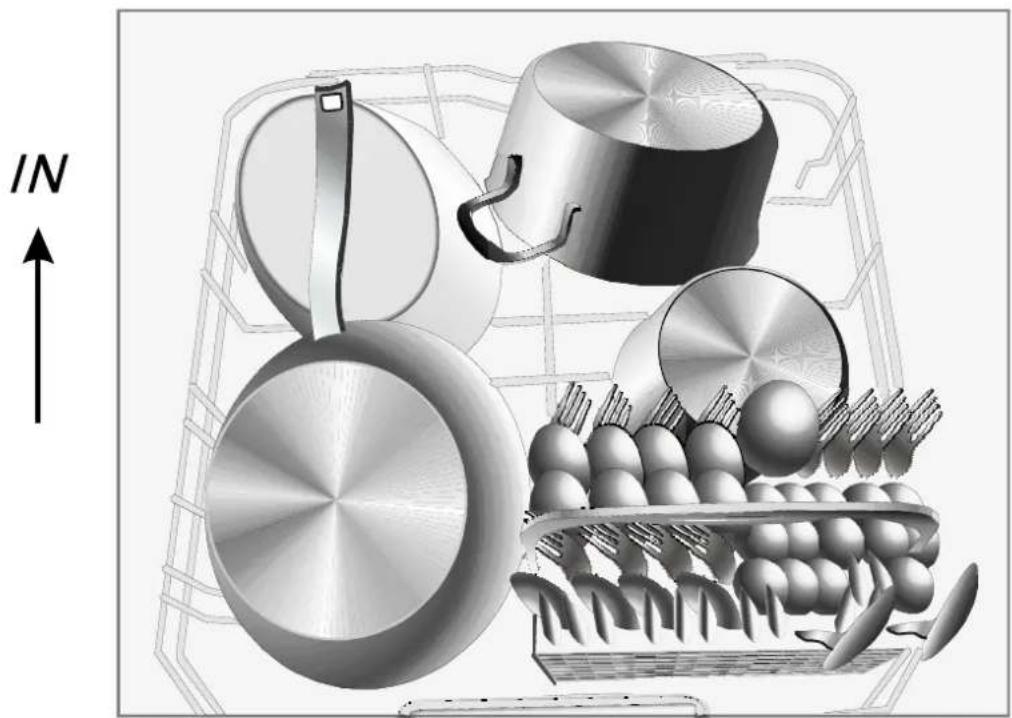

Loadthebaskets

Scrapeoffanylargeamountofleftoverfood. Softenremnantsofburntfoodinpans,

then load the baskets. Refer to the dishwasher loading instructions.

Selectaprogramme

Close the door, press the Programme button until the selected programme lights up.

( See the section entitled "Operationg instruction" )

Runningthedishwasher

Turn on the water tap and press the Start/reset button. The machine will start working

afterabout10seconds.

- Changingtheprogramme

• 1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispensermustberefilled.
     2.PresstheStart/Resetbuttonformorethan3secondstocanceltherunningprogramme.
• Selectanewprogramme.
  4.Restartthedishwasher.

- Addforgottendishesinthe dishwasher.

- 1. Openthedooralittletostopthedishwasher.

1. Afterthesprayarmsstopworking, you can open the door completely.
   3.Addtheforgottendishes.
2. Close the door, the dishwasher will start running again after 10 seconds.

WARNING!

Openthedoorcarefully. Hotsteammayescape when the door is opened!

- If the appliance is switched off during a wash cycle.

- If the appliance is switched off during a wash cycle, when switched

on again, please re-select the washing cycle and operate the dishwasher

accordingtotheoriginalPower-onstate).

Switchofftheappliance

Whentheworkingcyclehasfinished,thebuzzerof the

dishwasherwillsound8times,thenstop

TurnofftheapplianceusingtheON/OFFbutton.

Turnoffthewatertap,

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and moresusceptibletobreak.

They will also dry better. Unload the appliance, starting from the lower basket.

Read this Manual

DearCustomer,

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
- Keepittorefertoitatalaterdate.
■ Passitonto any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself.
If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1
2) Disposal....2
3) Operating Instructions....3 Control Panel....3 Dishwasher Features....3
4) Prior using for the first time....4 A、Water Softener....4 B、Loading the Salt into the Softener....5 C、Fill the Rinse Aid Dispenser....5 D、Function of Detergent....7

5) Loading the Dishwasher Basket....9 Attention before or after loading the Dishwasher Baskets....9 Loading the upper Basket....10 Loading the Lower Basket....10 Cutlery Basket....11 Therecommended method loading big dishware....12

6) Starting a washing programme....13 Wash Cycle Table....13 Turning on the Appliance....14 Change the Programme....14 At the End of the Wash Cycle....14

7) Maintenance and cleaning....15 Filtering System....15 Caring for the Dishwasher....16

8) Installation instruction....17 Positioning the Appliance....17 About Power Connection....17 Water Connection....18 Start of dishwasher....19

9) Troubleshooting Tips....20 Before calling for service....20 Error codes....21 Technical information....22

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING! When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofanelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith alllocalcodesandordinances.

▲ WARNING!

■ Improperconnection of the equipment-grounding conductor can result in the risk of an electric shock.
Check with a qualified electrician or service representative if you are indoubt whether the appliance is properly grounded. Donot modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

■ Donotabuse, siton, orstandonthedo rackofthedishwasher.
■ Donottouchtheheatingelementduringor immediatelyafteruse. (Thisinstructionisonlyapplicabletomachines withavisualheating element.)
Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of watersquirting out.
■ Do notplaceanyheavyobjects on or stand the door when it is open. The appliance could tip forward.

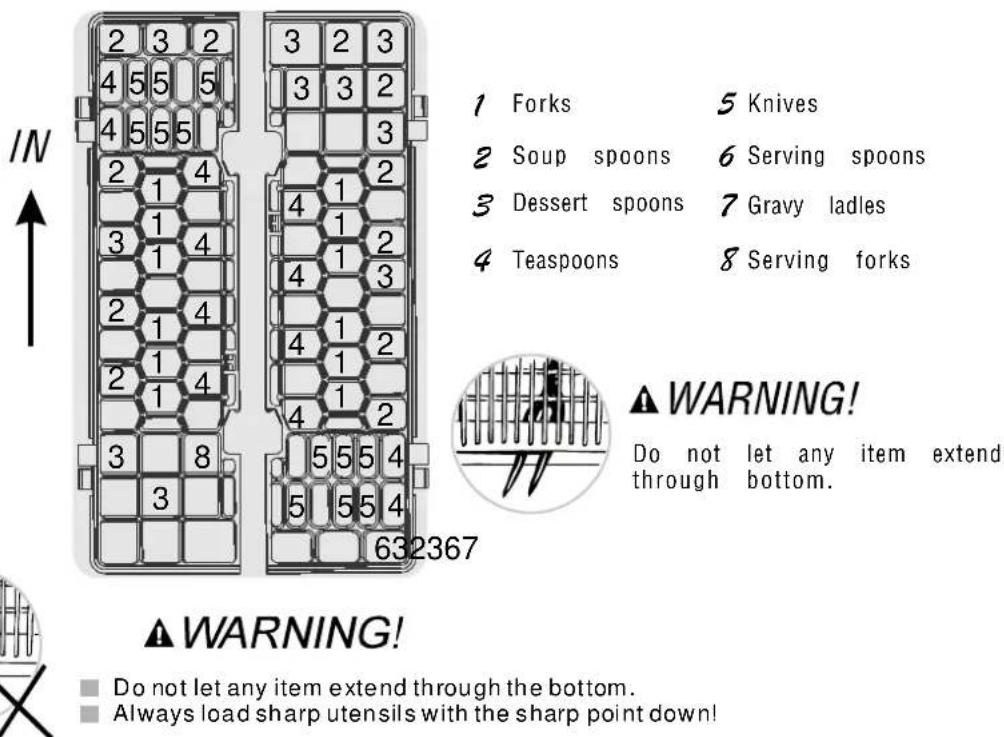

■ When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element.(This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

Keep children away from detergent and reinseaid, keep child away from the open door of the dishwasher, there could still be some detergent left inside.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Children should be supervised to ensure that they do not playwiththeappliance.
■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
■ The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
■ Removethe doortothewashingcompartment when removing an old dishwasher from service or discarding it.
■ Please dispose of packing materials properly.
■ Use the dishwasher only for its intended function
■ During installation, the power supply must not be excessively or dangerously bent or flattened. Donottamperwithcontrols.
■ The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
■ The maximum number of place settings to be washed is 12.
■ The maximum permissible inlet water pressure is 1 Mpa.
■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2.Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with the standard international abbreviations:

■ PE——for polyethylene, e.g. sheet wrapping material
■ PSforpolystyrene, e.g. padding material
■ POM — polyoxymethylene, e.g. plastic clips
■ PP — polypropylene, e.g. Salt filler
■ ABS — Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Therefore cut off the powersupplyable and makethedoorclosing device unusable.
■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
■ By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

3. Operation Instruction

IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions beforeusingitforthefirsttime.

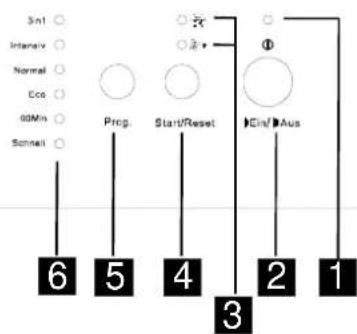

Control Panel

1 Power indicator light: To show the power supply.
2 Power switch: To turn on/off the power supply.
3 Salt and rinse aid warning lights: To come on when the softener or dispenser needs to be refilled.
4 Start/Resetbutton: To start the selected washing program or reset the washing program when the machine is working.
5 WashingProgramSelector: To select one of the six washing programs.

6 Program indicator lights: To show the washing program.
7 Delay Button: To Press the button to delay.
8 Delay time/Washing Phases indicator light: When you delay time (3, 6, 9, or 12 hours) and the door is close, relevant light will blink; during the cycle, the indicator light will just be on to show the relevant washing phases of cycle.

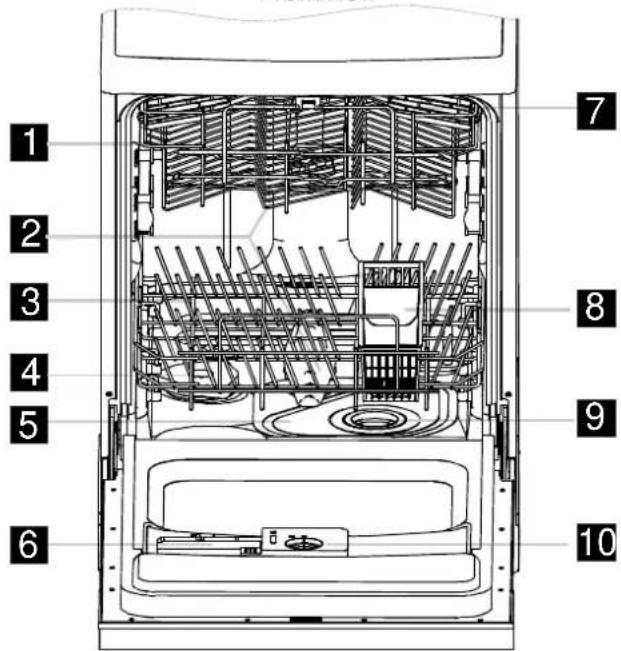

Dishwasher Features

Frontview

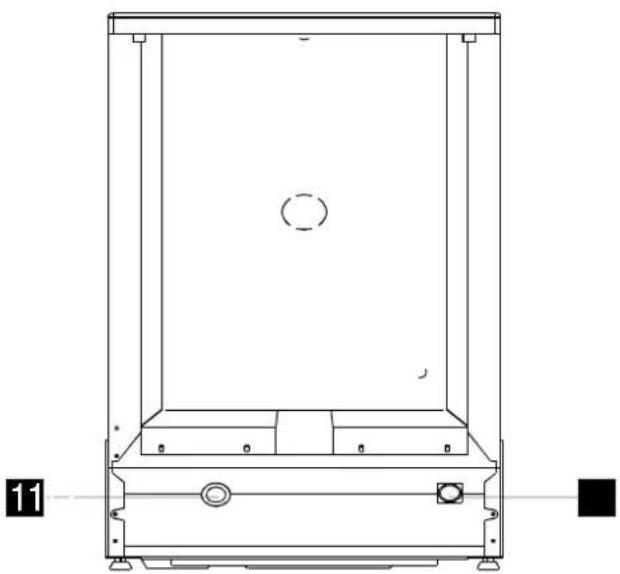

BackView

Technical line drawing of a mechanical device with no visible text or symbols

1 Upper Basket
2 SprayArms
3 LowerBasket

4 SaltContainer
5 MainFilter
6 Detergent Dispenser

7 CupShelf
8 CutleryBasket
9 CoarseFilter

10 RinseAidDispenser
11 Drainpipeconnector
12 Inletpipeconnector

4. Prior using for the first time

Before using your dishwasher for the first time:

A. Set the water softener
B. Add 1.5Kg dishwasher salt and then full fill the salt container with water
C. Fill the rinse aid dispenser
D. Fill in detergent

A. Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

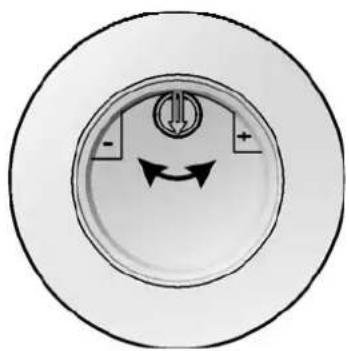

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Circular diagram with a central symbol and directional arrows, no readable text or labels

Please follow the steps below for adjustment in salt consumption.

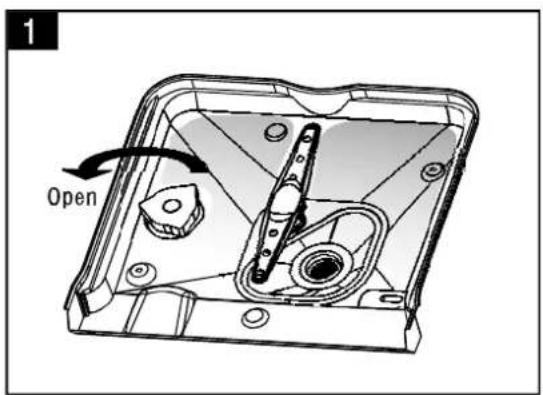

1. Unscrew the cap from the salt container.
2. There is a ring on the container with an arrow on it (see figure on the side), if necessary, rotate the ring in the anticlockwise direction from the "-" Setting toward the "+" sign, based on the hardness of the water being used. It is recommended that adjustments should be made in accordance with the following scheme:

WATERHARDNESS				SelectorPosition	Saltconsumption(gram/cycle)	Autonomy(cycles/1kgs)
dH	fH	Clarke	mmol/l
	0~140~80~	1.4 0~10		/	0	/
8~22	14~39	10~28	1.4~3.9	-	20	50
22~45	39~80	28~56	3.9~8	Mid	40	25
45~60	80~107	56~75	8~11	+	60	16

Note:1

1°dH=1.25°Clarke=1.78°fH=0.178mmol/l

^ DH: Germandegree

^° fH: Frenchdegree

*Clark: British degree

Note:2

"/"	Nosaltneedadded
"-"	Setting toward the"- " sign
"+"	Setting toward the"+ " sign
"Mid"	Setting toward between the"- "signand"+ " sign

Contact your local water board for information on the hardness of your water supply.

NOTE: If your model does not have any water softener, you may skip this section.

WATERSOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

B. Loading the Salt Into the Softener

Always use the salt intended for use with dishwasher.

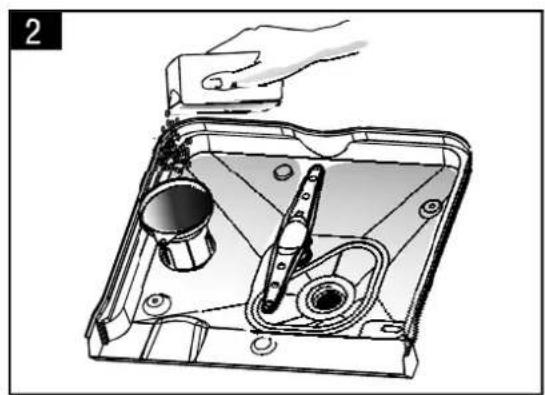

The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

■ Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
■ Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

Diagram of a mechanical device with a hand operating the top part, showing internal components like gears and a handle (no text or symbols present)

A Remove the lower basket and then unscrew and remove the cap from the salt container.
B Place the end of the funnel(supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C Full fill the salt container with water. It is normal for a small amount of water to come out of the salt container. 2 D After filling the container, screw the cap tightly back clockwise.
E Usually, the salt warning light will stop being illuminated within 2-6 days after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing program should be started (Wesuggesttousethe soakorrapid program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is outofwarranty.

NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the saltcontainerisfilled.
   If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

C. Fill the Rinse Aid Dispenser

RinseAidDispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed touseliquidrinseaids. The rinseaid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

FunctionofRinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4full
1 / 2 full
- 1 / 4 full - Should refill to eliminate spotting
Empty

Hand holding a device with a scroll, showing a hand pressing a button (no text or symbols visible)

Illustration of a cleaning tool with a bottle and a magnified view of the lid (no text or symbols)

Illustration of a hand pressing down on a device with a scroll wheel (no text or symbols)

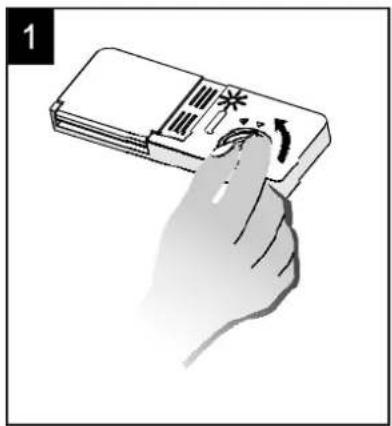

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.

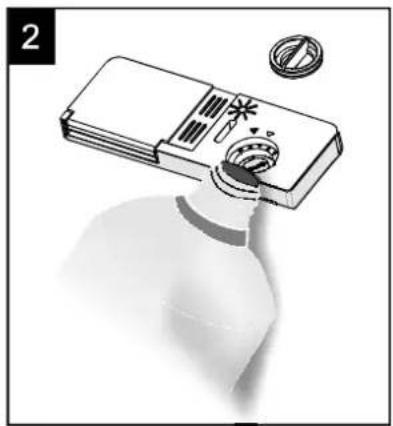

2 Pour the rinse aid into the dispenser, being careful not to overfill.

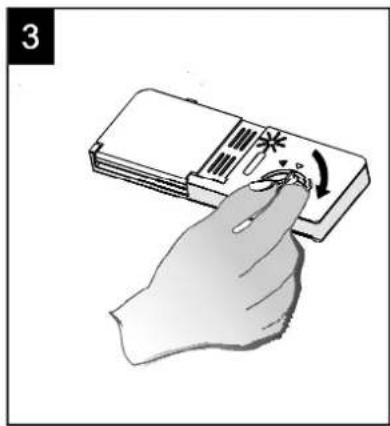

3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

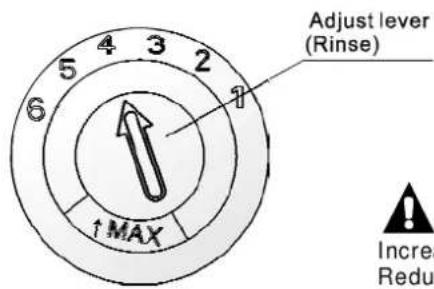

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knifeblades.

D. Function of Detergent

ProperUseofDetergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes.

Detergents

Thereare3sortsofdetergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split into two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

The use of formal washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason "normal wash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using intensive programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for anormal wash load. Moreheavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

AmountofDetergenttoUse

NOTE:

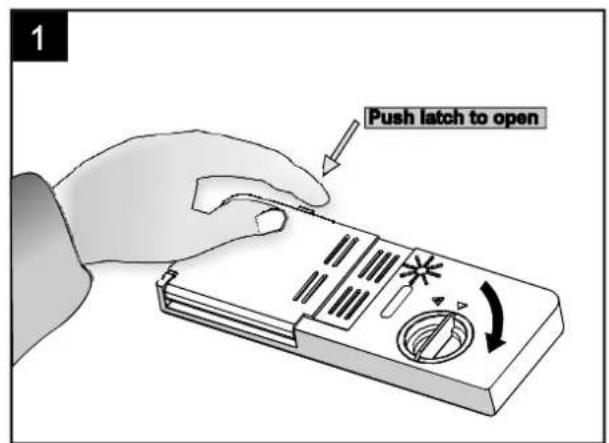

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Fillin Detergent

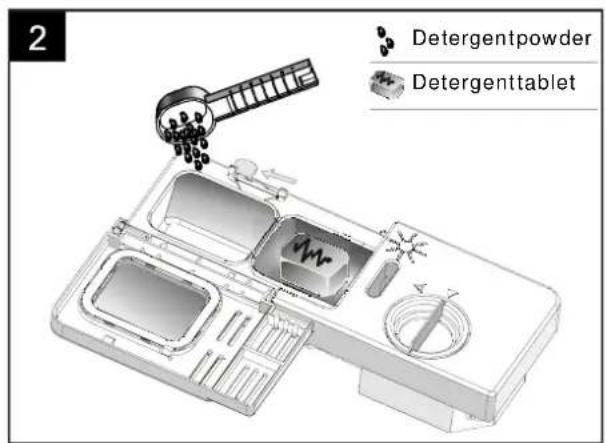

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A The place of main wash cycle detergent placed.

B The place of pre-wash cycle detergent placed.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Closethelidandpressuntilillocksinplace.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ You find information about the amount of detergent for the single programme on the last page.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

5. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Useamild detergentthat is described as 'kindtodishes'. If necessary, seek further information from the detergent manufacturers.
■ Forparticularitems, select a program with as low atemperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Arenotsuitable

■ Cutlery with wooden, hornchina or mother-of-pearlhandles

■ Plastic items that are not heat resistant

■ Oldercutlerywithgluedpartsthatarenot temperatureresistant

■ Bonded cutlery items or dishes

■ Pewterorcooperitems

■ Crystalglass

■ Steel items subject to rusting

■ Woodenplatters

■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after alargenumberofwashes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and itemsof cutlery mustnot lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware

Loading the Upper Basket

The upperbasket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

Position the dishes and cookware so that they will not get moved by the spray of water.

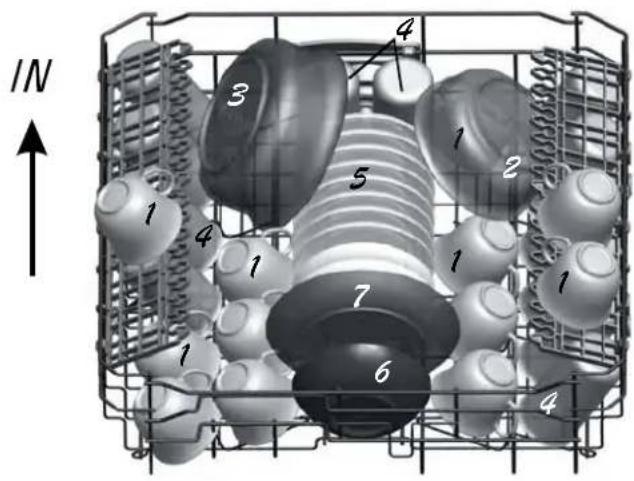

1 Cups
2 Small serving bowl
3 Large serving bowl
4 Glasses
5 Saucers
6 Dish
7 Dessert dishes

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the topspray arm.

Pleaseberemindedthat:

Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

7 Dessert dishes
8 Oval platter
9 Dinner plates
10 Soup plates
11 Silverware basket

■ The recommended method loading big dishware (applicable to the special dishware: e.g. big pan、plate)

Loading the Upper Basket

Loading the Lower Basket

Illustration of kitchen utensils including a pot, lid, and tray with food items, arranged in a basket (no text or symbols)

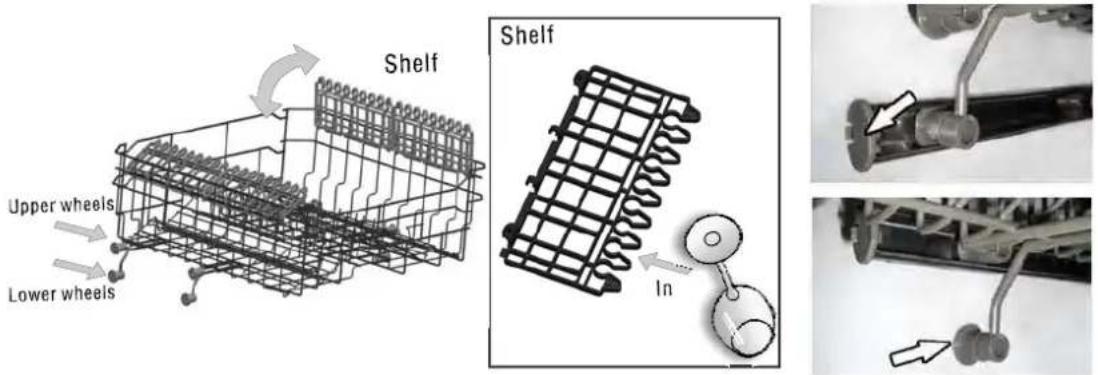

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back or be removed when not required for use.

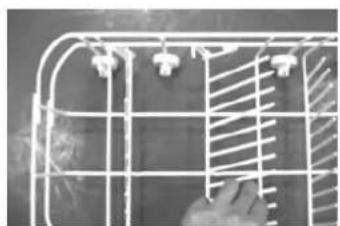

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikescanbefoldeddownas show in the picture right.

Close-up of a white wire cage with metal grating and a hand adjusting the panel (no text or symbols visible)

Cutlery Basket

Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

For personal safety and a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the handles-down.
■ But place knives and other potentially dangerous utensils are placed handles-up.

6. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
3in1	For normally soiled loads, use multifunctional detergent	Pre-wash(50 °C)Wash(55)°CRinseRinse(65 °CDrying)	3in1	160	1.35	16.0
Intensive	For heaviest soiled crockery, and normally soiled pot pans、dishes etc with dried on soiling	Pre-wash(50)°CWash(65)°CRinseRinseRinse(55)°CDrying	5/25g	125	1.36	19.5
Normal	For normally soiled loads, such as pots、glasses and lightly soiled pans.	Pre-wash(50)°CWash(55)°CRinseRinse(65)°CDrying	5/25g	160	1.30	16.0
Eco.(*EN50242)	Standard daily cycle for normally soiled loads,such as pots、plates、glasses	Pre-washWash(50)°CRinse(65)°CDrying	5/25g	165	1.02	12.0
1 Hour	For lightly soiled load that do not need excellent drying efficiency.	Wash(60)°CRinseRinse(50)°CDrying	30g.	60	0.95	12.0
Rapid	A shorter wash for lightly soiled loads and quick wash	Wash(40)°CRinseRinse(40)°C	20g.	30	0.50	11.0

NOTE:

*EN 50242 : This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:

■ Capacity:12setting
■ Position Upper basket: upper wheels on rails
■ Rinseaidsetting:6
■ The power consumption of off-mode is 0w
left-onmodeis0.73w

Turning On the Appliance

Starting acyclewash

1 Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled "Loading the Dishwasher").
2 Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4 Close the door, press the ON/OFF button, and the ON/OFF light will turn on.
5 Press the program button, the wash program will be changed as follows direction:

3in1->Intensive->Normal->Eco->1Hour->Rapid;

If a program is selected, the response light will light. Then press the Start/Reset button, the dishwasherbeginstostart.

When you press the Start/Reset button to pause during washing, the program light will stop blinking and the dishwasher will mooing every minute unless you press the Start/Resetbuttonto start.

Change the Program...

Premise:

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Press the start/reset button more than 3 seconds, the machine will be in standby state, then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle..."). NOTE: During delaying state, press the start/reset button, then you can change the program and delay time.
3 The program lights show the state of the dishwasher:
a) All program lights off----stand by
b) One of the program lights on----pause
c) One of the program lights blinking----run
c) Some of the up three program lights blinking fleetly----error

NOTE:

If you opened the door, the machine should pose. The program light will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish?

Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.

1 Pressthestart/resetbutton

2 Openthodooralittletostopthewashing.

3 Afterthesprayarmsstopworking, you can open the door completely.

4 Addforgottendishes.

5 Closethedoor

6 Pressthestart/resetbutton,thedishwasherwillrun after10seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ SwitchOfftheDishwasher

The program light is off, only in this case the programme has ended.
1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turnoff the watertap!

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

7. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

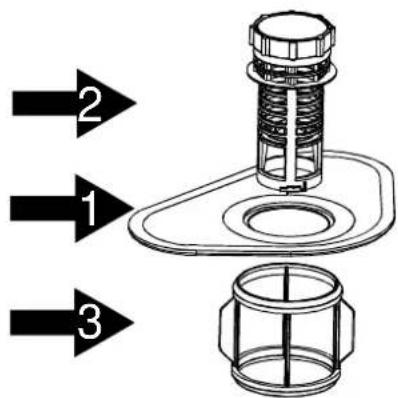

Mainfilter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilte 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.

Finefilter 3

Thisfilter holds soil and food residues in the sumparea and prevents it from being redeposit on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damaged dishes and utensils.

1

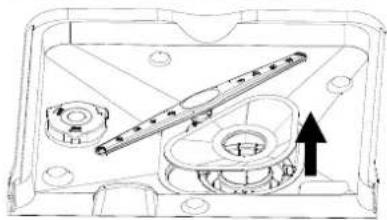

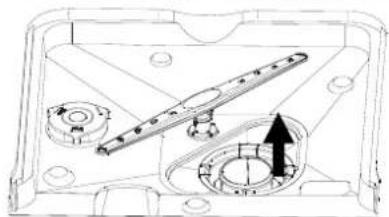

Step 1: Turn the filter in anti-clockwise direction, thenliftitup.

2

Technical line drawing of a mechanical assembly with gears and a lever (no text or symbols)

Step 2: lift the Main filter up

3

Technical line drawing of a mechanical assembly with no visible text or symbols

Step 3: lift the Fine filter up

NOTE: When following this procedure from step1 to step 3, the filter system will be removed; when following it from Step 3 to Step 1, the filter system will be installed.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters underrunning water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Diagram of a mechanical device with a handle and internal components, no text or symbols present

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows :

1. Cutoff the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

CleaningtheSprayArms

It is necessary to clean the spray arms regularly for hard waterchemicalswillclogthesprayarmjetsandbearings.

To remove the upper spray arm, screw off the nut clockwise then remove the arm.

To remove the lower spray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to cleanthejets. Replace them afterrinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ AfterEveryWash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ RemovethePlug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

Toclean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ WhennotinUseforaLongTime

It is recommend that your run a washcycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seal to last longer and prevent odours from forming within the appliance.

■ MovingtheAppliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odourstoform in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2°.

About Power Connection

WARNING!

Forpersonal safety:

■ DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
■ DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING CONNECTION FROM THE POWER CORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING!

■ Improper connection of the equipment earthing conductor can result in the risk of electric shock.
- Check with a qualified electrician or service representative if you are in doubt whe appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit pro outlet, please have a qualified electrician to install a proper outlet.

How to Connect the safety supply hose

Line drawing of a hand holding a faucet with a handle, no text or symbols present

The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.

Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice.

1 Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
2 Tighterthescrewsofthesafetysupplyhosetothefaucetwiththread3/4inch.
3 Turnwaterfullyonbeforestartingthedishwasher.

ABOUT THE SAFETY SUPPLY HOSE.

The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

▲ WARNING!

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to Disconnect the safety supply hose

1 Turnoffthewater.
2 Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severesplashing.
3 Unscrewthesafetysupplyhosefromthefaucet.

COLD WATER CONNECTION

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

HOT WATER CONNECTION

The water supply to the appliance can also be connected to the house hot water line (centralized system, heating system), as long as it does not exceed a temperature of 60^ C. In this case, the wash cycle time will be shortened by about 15 minutes and the wash efficiency slightly reduced.

The connection must be made to the hot water line following the same procedures as those for the connection to the cold water line.

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping. Use the special plastic support that comes with the appliance. The free end of the hose must be at a height between 40 and 100cm and must not be immersed in water.

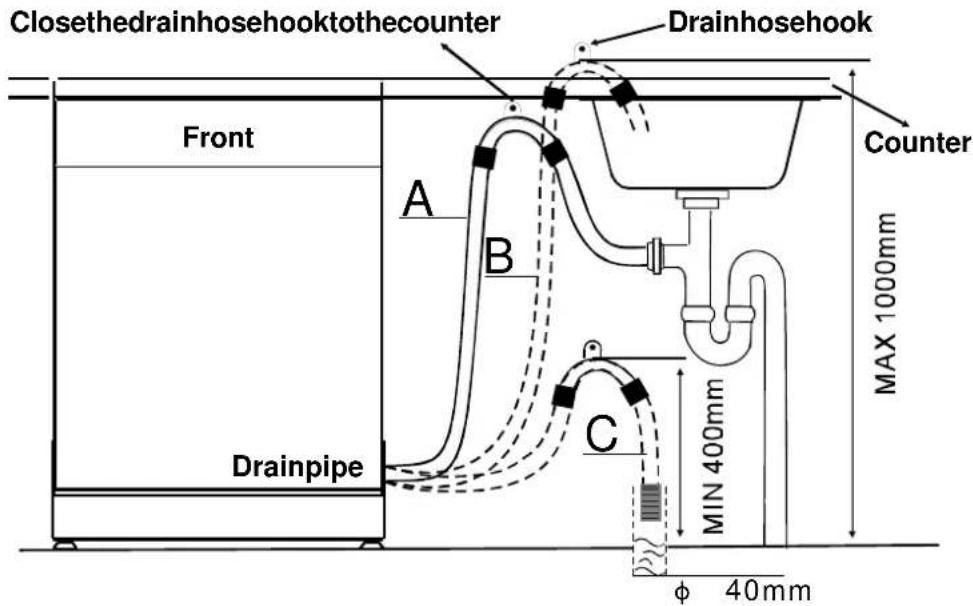

PLEASEHANGUPTHEDRAINHOSEEITHERWAYOFA,B,C

WaterOutlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SyphonConnection

The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed by a hose clip.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5 Thepowerisswitchedon
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher

Attention: Afterinstallation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes What To Do
Dishwasher doesn't start	Fuseblown,orthe circuitbreakeracted	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
	Powersupplyisnot turnedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket.
	Waterpressureislow	Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon.
	Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
water not pumped form dishwasher	Kinkindrainhose	Checkdrainhose.
	Filterclogged	Checkcoarsethefilter"Clean(eg3e4f0rfttled)
	Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell.Iftheproblemisthekitchensinknotdraining,youmay needaplumberratherthanaservicemanfordishwashers.
Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoidsuds.Ifthisoccurs,openthedishwasherandletsudsevaporate.Add1gallonofcoldwatertothetub.Closeandlatchthe dishwasher,thenselectanycycle.Dishwasherwilldrain outthewateratthefirststep.Openthedoorafterdraining isstopandcheckifthesudsisdisappeared.Repeatifnecessary.
	Spilledrinse-aid	Alwayswipeuprinse-aidspillsimmediately.
Stained tub interior	Detergentwith colourantwasused	Makesurethatthedetergentistheonewithout colourant.
White film on inside surface	Hardwaterminerals	Tocleantheinterior,useadampspongewith dishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds.
There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.
	Aprogrammewasnot runafterdishwasher saltwasadded.Traces ofsalthavegotteninto thewashcycle.	Alwaysrunthequickwashprogramme.withoutanycrockeryinthedishwasherand withoutselectingtheTurbofunction(ifpresent), afteraddingdishwashersalt.
	Thelidofthesofter isloose	Checkthelip.Ensurethefixisfine.
Knocking noise in the wash cabinet	As p ay a r m i s knockingagainst aniteminabasket	Interrupttheprogramme,andrearrangetheitems whichareobstructingthespayarm.r
Rattling noise in the wash cabinet	Itemsofcrockery arelooseinthe washcabinet	Interrupttheprogramme, andrearrangetheitemsofcrockery.
Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping.	Thishasnoinfluenceonthedishwasherfunction. ifindoubt,contactasuitablyqualifiedplumber.

	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemsareblocking thepathofspayarms.r	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination in the base of wash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect ashortestcycletowashtheglasswareandtoget themclean.
	Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminatethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Toolittlerinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
		Dishesareremoved toosoon	Donotemptyyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyoncet hedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogram hasbeenselected	Inshortprogramthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose aprogramwithalongwashingtime.
		Useofcutlerywith alow-qualitycoating	Waterdrainageismoredifficultwiththeseitems.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
The Rapid light flickers fleetly	Longerinlettime.	Faucetsisnotopened,orwaterintakeisrestricted, orwaterpressureistoolow.
The Eco light flickers fleetly	Overflow.	Someelementofdishwasherleaks.

WARNING!

■ If overflow occurs, turn off the main water supply before calling a service.
■ If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Height : 850mm
Width : 600mm
Depth : 580mm
Voltage connected Load: seerating label
Water pressure: 0.04-1.0MPa
Hot water connection : max 60 °C
Power supply: see rating label
Capacity:	12 Place settings
