| Product Type | Bluetooth Headset |
| Brand | Nokia |
| Model | BH-806 |
| Bluetooth Version | 2.1 + EDR |
| Bluetooth Profiles | Headset Profile 1.1, Hands-Free Profile 1.5 |
| Range | Up to 10 meters (33 feet) |
| Talk Time | Up to 5 hours |
| Standby Time | Up to 100 hours (up to 3 months when kept in carrying clip) |
| Battery Type | Internal, non-removable rechargeable lithium-ion |
| Charging Connector | Proprietary charger connector on carrying clip |
| Compatible Chargers | AC-10, AC-6, DC-10, DC-6, DC-11, DC-11K, DT-600, CA-146C |
| Indicator Light | Red, green, blue, yellow (multifunction) |
| Voice Prompts | English or Chinese (selectable) |
| Multipoint Connection | Up to 2 devices simultaneously |
| Pairing Memory | Up to 8 paired devices |
| Earpiece Design | In-ear with interchangeable earpads |
| Carrying Clip | Integrated clip for belt or pocket, also used as charger cradle |
| Weight | Approx. 10 g (0.35 oz) |
| Dimensions (H x W x D) | Approx. 42 x 18 x 24 mm (without clip) |
| Operating Temperature | 15°C to 25°C (59°F to 77°F) recommended for battery |
| Surface Material | Nickel-free plating, stainless steel inside |
| Maintenance | Clean with soft, dry cloth; do not use liquids or abrasives |
| Safety Warnings | Contains small parts and magnets; keep away from children and magnetic media |
Frequently Asked Questions - BH-806 NOKIA
User questions about BH-806 NOKIA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Headphones in PDF format for free! Find your manual BH-806 - NOKIA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BH-806 by NOKIA.
USER MANUAL BH-806 NOKIA
With the Nokia J headset, you can handle calls hands-free, even when you are using two mobile devices at the same time.
Note: The surface of this product does not contain nickel in the platings. There is one of this device contains stainless steel.
Warning:
This product may contain small parts. Keep them out of the reach of small children.
Parts of the product are magnetic. Metallic materials may be attracted to the product. Do not place credit cards or other magnetic storage media near the product, because information stored on them may be erased.
Read this user guide carefully before using the product. Also, read the user guide for the device that you connect to the product.
For more information, go to www.nokia.com/support.
About Bluetooth connectivity
You can use Bluetooth to make a wireless connection to other compatible devices, such as mobile devices.

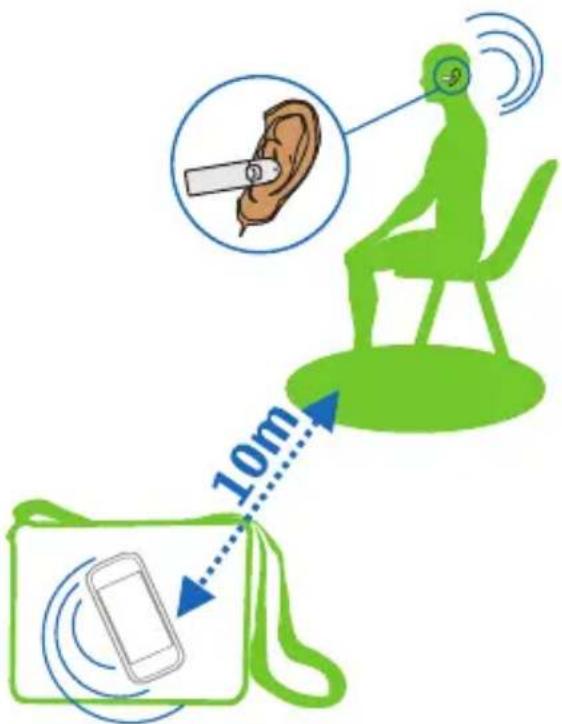

Devices do not need to be in direct line-of-sight, but they must be within 10 metres (33 feet) of each other. The connection may be affected by obstructions such as walls or other electronic devices.
This device is compliant with Bluetooth Specification 2.1 + EDR supporting the following profiles: Headset Profile 1.1 and Hands-Free Profile 1.5. Check with the manufacturers of other devices to determine their compatibility with this device.
Get started

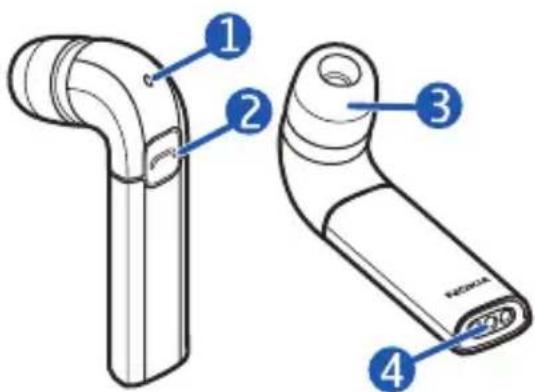

Keys and parts
1 Indicator light
2 Multifunction key
3 Earpiece
4 Microphone

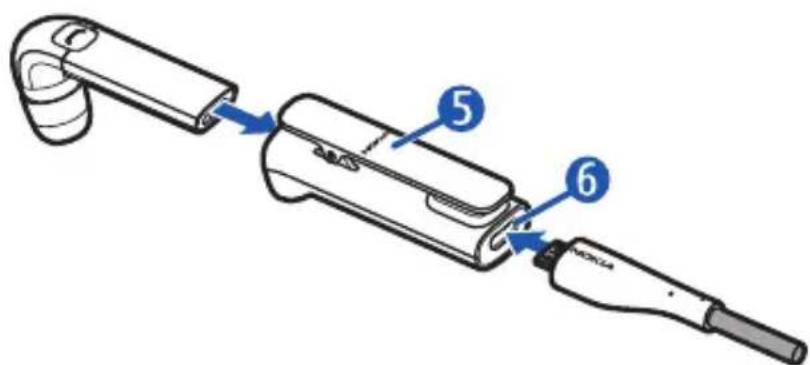

5 Carrying clip
6 Charger connector
Start using your headset
When you switch on your headset for the first time, voice prompts help you set up your headset.
The headset comes with different sized earpads. Select the earpad that fits the best and is the most comfortable for your ear. To change the earpad, pull the current earpad from the earpiece, and push the new earpad into place.
1 To switch the headset on, remove it from the carrying clip. If the headset doesn't switch on, charge the battery.
2 Gently push the earpiece into your ear.
3 To select the language, follow the voice prompts. You can select English or Chinese. Pairing mode is activated.
4 To pair the headset with a compatible device, follow the voice prompts.
Charge the battery
Warning:
Use only chargers approved by Nokia for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous. Use of unapproved chargers may present a risk of fire, explosion, or other hazard.
1 Connect the charger to a wall outlet.
2 Place the headset in the carrying clip.
3 Connect the charger cable to the charger connector in the clip. The red indicator light turns green when the battery is fully charged.
4 Disconnect the charger from the carrying clip, then from the wall outlet.
When you unplug a charger, hold and pull the plug, not the cord.
The fully charged battery has power for up to 5 hours of talk time and up to 100 hours of standby time. If you keep the headset in the carrying clip, the standby time is up to 3 months.
When the battery charge is low, the red indicator light flashes, and you hear a voice prompt every 5 minutes. If you have deactivated voice prompts, the headset beeps every 5 minutes.
Check the battery charge
Make sure the headset is switched on, and touch and hold ☐ for 2 seconds. A voice prompt tells you the battery charge level.
Switch the headset on or off
Switch on
Remove the headset from the carrying clip. The headset beeps, and a green indicator light flashes once.
The headset connects to the last connected device. If you have never paired the headset with a device, or you have cleared the device pairings, pairing mode is activated.
Switch off
Place the headset in the carrying clip. The headset beeps, and a red indicator light flashes once. All active calls are ended.
If not connected to a device within 30 minutes, the headset switches off.
Tip: Don't have the carrying clip with you? To switch the headset off, press and hold ☐ for 4 seconds. To switch the headset on, press ☐
Pair and connect the headset to your mobile device
Before using the headset, you must pair and connect it to a compatible device.
1 To switch the headset off, press and hold ☐ for 4 seconds.
2 Switch on the device to pair with.
3 If you have never paired the headset with a device, or you have cleared the device pairings, switch the headset on.
If you have previously paired your headset with another device, press and hold for 5 seconds.
Pairing mode is activated, and a blue indicator light starts to flash quickly. Follow the voice prompts.
4 Within 3 minutes, activate Bluetooth on the device, and set it to search for Bluetooth devices. For details, see the user guide of the device.
5 Select the headset from the list of found devices.
6 If required, enter the passcode 0000.
You can pair your headset with 8 compatible devices, but you can only connect it to a maximum of 2 devices at the same time.
With some mobile devices, you may need to make the connection separately after pairing.
Wear the headset
Gently push the earpiece into your ear.
When you're not using your headset, keep it in the carrying clip.
Tip: Have your headset always at hand — clip it to your pocket as you would a pen.
Make calls
Make and receive calls
To make and receive calls using your headset, you need to connect it to your mobile device.
Make a call
Make a call in the normal way.
Answer a call
Remove the headset from the carrying clip.
Tip: If the headset is not in the carrying clip, touch ☐.
End a call
Place the headset in the carrying clip.
Tip: To end a call, you can also touch ☐ twice.
Reject a call
Touch ☐ twice.
Switch a call between your headset and mobile device
Touch and hold ☐ for 2 seconds.
You can redial the last called number or use voice dialling, if your mobile device supports these features with the headset.
Redial the last called number
When no call is in progress, press 📐.
Use voice dialling
When no call is in progress, press and hold ☐ for 2 seconds, and follow the instructions in the user guide of your mobile device.
Change the volume
Set the desired volume level on your connected mobile device. The selected volume level is saved as the minimum volume level for the device that is currently connected to the headset. Your headset adjusts the volume automatically according to the level of background noise.
Pair and connect the headset to two devices
When you use the headset for the first time, it automatically connects to your mobile device. You can also connect your headset to another device, and manage calls from, for example, both your personal and your work mobile device at the same time.
1 To switch the headset off, press and hold ☐ for 4 seconds.
2 Activate pairing mode, and pair the headset with the second device.
3 Make sure Bluetooth is activated on both devices, and switch the headset off and back on. The headset connects to both devices.
Handle calls from two devices
If your headset is connected to two mobile devices, you can handle calls from both at the same time.
End an ongoing call, and answer a call on another device
Touch 📐.
Put an ongoing call on hold, and answer a call on another device
Touch and hold ☐ for 2 seconds.
Switch between active and held calls
Touch and hold ☐ for 2 seconds.
End an ongoing call, and activate a held call
Touch 📐.
If you redial or use voice dialling, the call is made on the device you last had an active call on with the headset.
Settings
Deactivate voice prompts
Get verbal feedback and instructions, for example, when pairing your device.
Make sure the headset is switched on, and touch and hold ☐ for 9 seconds. You hear a voice prompt, and a yellow indicator light flashes once.
Activate voice prompts
Touch and hold ☐ for 9 seconds. You hear a voice prompt, and a green indicator light flashes once.
Clear device pairings
When you clear the device pairings, you need to select the language again.
1 To switch the headset off, press and hold 📄 for 4 seconds.
2 Press and hold 📞 for 9 seconds. The headset beeps twice, and the red and green indicator lights alternate.
3 When the headset switches on, follow the voice prompts. Pairing mode is activated.
Change the language
When you change the language, your device pairings are cleared, and you need to pair and connect your headset to your device again.
1 To switch the headset off, press and hold ☐ for 4 seconds.
2 Press and hold ☐ for 9 seconds. The headset beeps twice, and the red and green indicator lights alternate.
3 When the headset switches on, follow the voice prompts. Pairing mode is activated.
Product and safety information
Battery and charger information
This device has an internal, nonremovable, rechargeable battery. Do not attempt to remove the battery from the device as you may damage the device.
This device is intended for use when supplied with power from the following chargers: AC-10, AC-6, DC-10, DC-6, DC-11, DC-11K, DT-600, and CA-146C. The exact charger model number may vary depending on the type of plug. The plug variant is identified by one of the following: E, X, AR, U, A, C, K, or B.
The battery can be charged and discharged hundreds of times, but it will eventually wear out.
Talk and standby times are estimates only. Actual times are affected by, for example, device settings, features being used, battery condition, and temperature.
If the battery has not been used for a long time, to begin charging, you may need to connect the charger, then disconnect and reconnect it.
If the battery is completely discharged, it may take several minutes before the charging indicator is displayed.
When your charger is not in use, unplug it from the electrical plug and the device. Do not leave a fully charged battery connected to a charger, as overcharging may shorten the battery's lifetime. If left unused, a fully charged battery will lose its charge over time.
Always keep the battery between 15^ and 25^ (59°F and 77°F). Extreme temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold battery may not work temporarily.
Do not dispose of batteries in a fire as they may explode. Dispose of batteries according to local regulations. Recycle when possible. Do not dispose as household waste.
Use the charger for its intended purpose only. Improper use or use of unapproved chargers may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty. If you believe the charger is damaged, take it to a service centre for inspection before continuing to use it. Never use a damaged charger. Only use the charger indoors.
Take care of your device
Handle your device, battery, charger and accessories with care. The following suggestions help you protect your warranty coverage.
- Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode electronic circuits.
• Do not use or store the device in dusty or dirty areas. Moving parts and electronic components can be damaged. - Do not store the device in high temperatures. High temperatures can shorten the life of the device, damage the battery, and warp or melt plastics.
- Do not store the device in cold temperatures. When the device warms to its normal temperature, moisture can form inside the device and damage electronic circuits.
- Do not attempt to open the device.
• Unauthorised modifications may damage the device and violate regulations governing radio devices.
• Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and mechanics. - Only use a soft, clean, dry cloth to clean the surface of the device.
• Do not paint the device. Paint can clog the moving parts and prevent proper operation.
Recycle
Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials. Check product environmental information and how to recycle your Nokia products at www.nokia.com/werecycle, or with a mobile device, nokia.mobi/werecycle.
Crossed-out wheeled-bin symbol
The crossed-out wheeled-bin symbol on your product, battery, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies in the European Union. Do not dispose of these products as unsorted municipal waste. For more information on the environmental attributes of your device, see www.nokia.com/ecodeclaration.
Copyright and other notices
DECLARATION OF CONFORMITY
Hereby, NOKIA CORPORATION declares that this BH-806 product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/declaration_of_conformity/.
C€0560
© 2011 Nokia. All rights reserved.
Nokia, Nokia Connecting People, and the Nokia Original Accessories logo are trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.
Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.
To the maximum extent permitted by applicable law, under no circumstances shall Nokia or any of its licensors be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.
The availability of particular products may vary by region. Please check with your Nokia dealer for details. This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited.
/Issue 2.0 EN
