| Product Type | Curtain Detector |
| Detection Method | Digital PIR (Passive Infrared) |
| Detection Range | 10 m x 2.4 m (curtain pattern) |
| Installation | Wall-mounted, indoor/outdoor |
| Power Supply | 12 VDC (±15%) |
| Current Consumption | 15 mA (typical) |
| Alarm Output | NC relay, 100 mA / 24 VDC |
| Tamper Output | NC, 100 mA / 24 VDC |
| Operating Temperature | -30°C to +55°C |
| Dimensions (H x W x D) | 120 x 60 x 50 mm |
| Weight | 150 g |
| Protection Rating | IP54 |
| Adjustable Sensitivity | Yes, via potentiometer |
| LED Indicator | Yes, for walk test |
| Mounting Height | 2.0 - 2.5 m recommended |
| Compliance | CE, EN 50131-2-4 Grade 2 |
| Pet Immunity | Up to 25 kg |
| Warranty | 2 years |
Frequently Asked Questions - AOCD-CL Satel

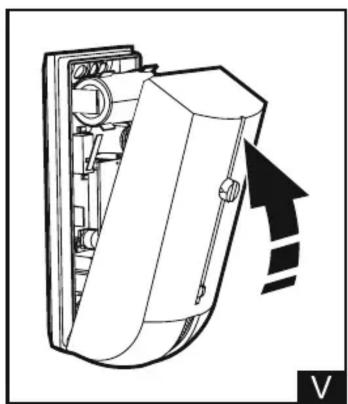

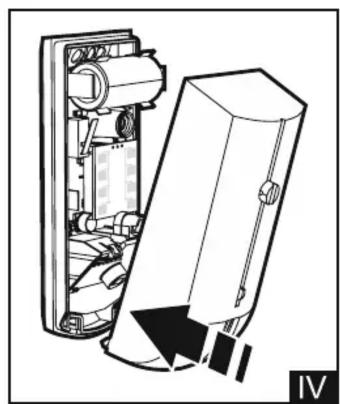

How do I install the AOCD-CL detector?
Mount the detector on a wall at a height of 2.0-2.5 m. Ensure the detection zone covers the protected area. Connect power (12 VDC) and alarm outputs as per the wiring diagram. Perform a walk test to verify coverage.

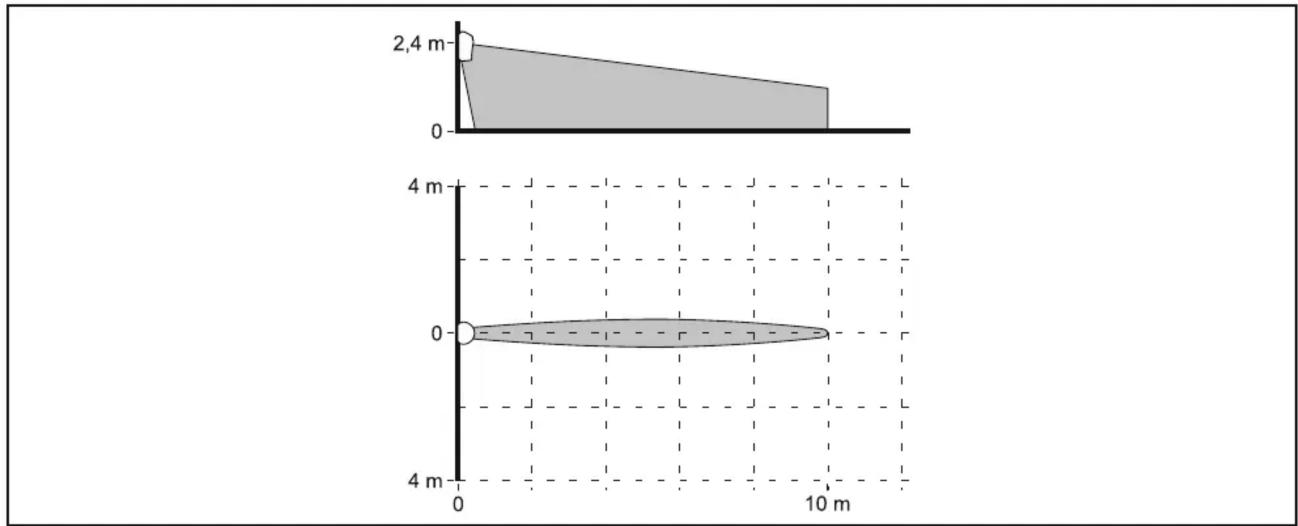

What is the detection pattern of the AOCD-CL?
The AOCD-CL creates a curtain-shaped detection zone, typically 10 m long and 2.4 m high. It is ideal for protecting windows, doors, or passageways.
Can the AOCD-CL be used outdoors?
Yes, it has an IP54 rating, making it suitable for outdoor use under eaves or in partially sheltered areas. Avoid direct exposure to rain or snow.
How to reduce false alarms?
Adjust the sensitivity potentiometer to an appropriate level. Ensure the detector is not facing heat sources or direct sunlight. Pet immunity is up to 25 kg; animals larger may trigger alarms.
What is the power consumption of the AOCD-CL?
Typical current consumption is 15 mA at 12 VDC. Standby current is lower. Use a regulated power supply.
How do I perform a walk test?
Enable the walk test mode (see manual). Walk across the detection zone. The LED indicator will flash each time you are detected. Adjust sensitivity if needed.
Is the AOCD-CL compatible with my alarm panel?
The detector has a NC relay output (normally closed) and a tamper output. It is compatible with most alarm panels that accept these signals. Check panel specifications.
What is the operating temperature range?
The AOCD-CL operates from -30°C to +55°C, suitable for most climates.
How to clean the detector?
Use a soft, dry cloth to wipe the housing. Do not use solvents or abrasive cleaners. Keep the detection window clean for optimal performance.
What does the tamper output do?
The tamper switch activates if the detector cover is removed or the device is detached from the wall. Connect it to a 24-hour zone on your alarm panel.
