15G455 - Uncategorized Verto - Free user manual and instructions

Product Type	Plant trapping device (strapping/tying machine)
Brand	Verto
Model	15G455
Dimensions	340 x 165 x 25 mm
Weight (with tape and staples)	550 g
Maximum Workpiece Diameter	Under 45 mm
Belt Width	11 mm
Staple Type	604C
Magazine Capacity	200 staples
Power Source	Manual (hand-operated)
Operation	Press moving handle to tie and cut tape
Blade Replacement	Replace when worn; additional blade included
Included Accessories	Tape, staples, spare parts kit
Safety Precautions	Read manual before use; handle blade with care
Environmental Disposal	Do not dispose with household waste; recycle at appropriate facility

Frequently Asked Questions - 15G455 Verto

How do I load staples into the 15G455?

Hold the unit with your left hand, press down on the pusher knob with your right hand and pull it back (Fig. H1-H2). Load staples with feet facing down into the magazine (Fig. H3). Insert the pusher (Fig. H4) and push it towards the front (Fig. H5). Maximum capacity is 200 staples type 604C.

How do I load the tape?

Open the magazine cover (Fig. A1) and the tape guide cover (Fig. A4). Load the tape as shown in Fig. B4, then close the covers until they snap. Extend the tape so it protrudes about 1 cm from the lower stapler mechanism (Fig. A6).

How do I tie objects with the device?

Press the strap onto the objects and move the machine so the object is inside the jaws (Fig. E1-E2). Press the moving handle (Fig. E3) to the end. The object will be bound with both tape and staple, and the tape will be cut automatically.

How do I replace the cutting blade?

When the blade becomes dull, hold the front of the handle assembly and staple magazine assembly, use pliers to pull out the old blade (Fig. A10), then insert a new blade. Be careful as the blade is very sharp. An additional blade is included.

How do I remove stuck staples?

Dismantle the pusher assembly and remove the loaded staples. Use a steel wire or small screwdriver to remove the stuck staples (Fig. G).

What type of staples does the 15G455 use?

The device uses staple type 604C. The magazine holds up to 200 staples.

What is the maximum workpiece diameter?

The maximum workpiece diameter is under 45 mm.

What are the dimensions and weight of the device?

Dimensions are 340 x 165 x 25 mm, and weight with tape and staples is 550 g.

How do I remove the tape from the machine?

Grasp the moving handle and press so the strap catcher catches the end of the strap (Fig. C3). Release the handle; the tape will be pulled out (Fig. D). If it doesn't catch, press harder several times.

How should I dispose of the device?

Do not throw it away with household waste. Dispose of it at a suitable recycling facility to protect the environment and human health.

USER MANUAL 15G455 Verto

PL INSTRUKCJA ORYGINALNA (OBSŁUGI)......4

DE ÜBERSETZUNG (BENUTZERHANDBUCH)......5

HU FORDÍTÁSI (FELHASZNÁLÓI) KÉZIKÖNYV....6

RO MANUAL DE TRADUCERE (UTILIZATOR)....7

EN

TRANSLATION (USER) MANUAL

Plant trapping device : 15G455

NOTE: BEFORE USING THE EQUIPMENT, PLEASE READ THIS MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE. PERSONS WHO HAVE NOT READ THE INSTRUCTIONS SHOULD NOT CARRY OUT ASSEMBLY, ADJUSTMENT OR OPERATION OF THE EQUIPMENT.

SPECIFIC SAFETY PROVISIONS

NOTE!

Read the operating instructions carefully, follow the warnings and safety conditions contained therein. The appliance has been designed for safe operation. Nevertheless: installation, maintenance and operation of the appliance can be dangerous. Following the following procedures will reduce the risk of injury and reduce the installation time of the appliance.

WORKING WITH A WINCH

HOW TO LOAD STAPLES

1. holding the unit with your left hand, use your right hand to press down on the pusher knob and pull it back Fig. H1 H2.
2. load the staples into the magazine assembly so that the staple feet are facing downwards and position them in the pusher assembly fig H3. Magazine capacity 200 staples type 604C.
3. after loading the staples, insert the pusher Fig. H4 and push it towards the front of the tying machine Fig. H5.

HOW TO OPEN A TAPE HOLDER

1. place your finger on the top of the cover fig. A11, then open the cover with your thumb by pressing the top part.

HOW TO LOAD THE TAPE

1. open the magazine cover fig. A1 and the tape guide cover fig. A4, load the tape as shown in fig. B4 and close the covers until they "snap" into place.

2. extend the tape so that it protrudes approximately 1cm from the lower stapler mechanism fig. A6.

HOW TO REMOVE THE TAPE

1. grasp the moving handle of the strapping machine and press so that the strap catcher catches the end of the strap Fig. C3.

NOTE: Once the tape catcher has caught the end of the tape, do not press down harder on the handle.

1. Release the handle. The tape will be pulled out fig. D.

2. in case the tape catcher does not catch the tape after grabbing the handle, press the handle harder several times until the tape is caught.

HOW TO TIE OBJECTS

1. Press the strap onto the objects to be tied and move the tying machine so that the object to be tied is inside the jaws Fig. E1 E2.

2. press the moving handle fig. E3 to the end with the tape centrally placed and the object will be bound with both tape and staple. At the same time, the tape will be cut off.

HOW TO REPLACE A BLADE

1. when the blade becomes worn and is not sharp enough to cut the tape effectively, replace it with a new one.

2. Holding the front of the handle assembly Fig. F and the staple magazine assembly with your hand, pull out the old blade Fig. A10 using the pliers and insert the new blade. Proceed very carefully so as not to damage the edge of the blade.

CAUTION: As the blade is very sharp, it must be handled with care to avoid injury during replacement. An additional blade is included with the unit.

HOW TO REMOVE STUCK STAPLES

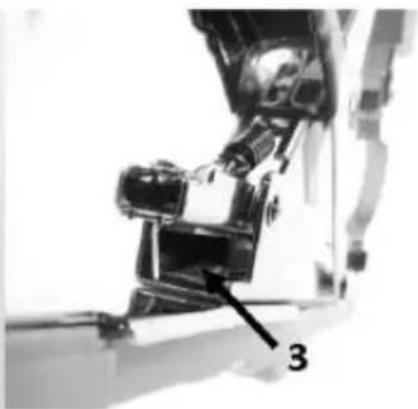

1. dismantle the pusher assembly and remove the loaded staples. Remove the staples using a steel wire or small screwdriver fig. G

Description of graphic elements

The numbering below refers to the components of the device shown on the graphic pages of this manual.

Designation	Description
1	Tape magazine
2	Staple magazine lock
3	Tie rod moving handle
4	Belt guide
5	Magazine and staple guide
6	Stapler mechanism
7	Tape
8	Stapler top mechanism
9	Tape gripper
10	Strap cutter
11	Ribbon magazine lock

* There may be differences between the graphic and the actual product

Kit contents:

• Tying machine
• Tape
• Staples
• Spare parts kpl.

Rated data
Dimensions	340X165X25 mm
Weight with tape and staples	550 g
Maximum workpiece diameter	Under 45 mm
Belt width	11mm
Staple type	604C
Magazine capacity	200pcs

ENVIRONMENTAL PROTECTION

The product should not be thrown away with household waste, should be disposed of at suitable facilities. A non-recycled product is potential danger to the environment and human health.

"Grupa Topex Spółka z ograniczoną odpowiedzialnością" Spółka komandytowa with its registered office in Warsaw, ul. Pograniczna 2/4 (hereinafter: "Grupa Topex") informs that all copyrights to the content of this manual (hereinafter: "Manual"), including, among others. Its text, photographs, diagrams, drawings, as well as its composition, belong exclusively to Grupa Topex and are subject to legal protection under the Act of 4 February 1994 on Copyright and Related Rights (ie Journal of Laws 2006 No. 90 Poz. 631, as amended). Copying, processing, publishing, modification for commercial purposes of the entire Manual and its individual elements, without the consent of Grupa Topex expressed in writing, is strictly prohibited and may result in civil and criminal liability.
