Product Type	Automatic Cable Reel
Brand	Hazet
Model	9040D-2.5
Dimensions (W x D x H)	429 x 350 x 175 mm
Net Weight	9.2 kg
Power Supply Voltage	230 V AC
Cable Type	H07RN-F 3 x 2.5 mm²
Cable Length	20 m
Connecting Cable Length	1.5 m
Temperature Range	-20°C to +45°C
Power Plug Type	Type EF (Safety plug, 2-pin)
Rated Power (wound)	1600 W
Rated Power (unwound)	3200 W
Automatic Cable Winding	Yes
Hose Stop Function	Yes, at any point
Braked Winding	Yes, for accident prevention
In-line Circuit Breaker	Included
Integrated Drill Template	On packaging
Housing Material	High-quality closed special plastic
Mounting Bracket	Rotating metal, drill hole spacing 186 mm
Overheating Protection	Yes, with red switch
Intended Use	Only for dry indoor rooms
Installation	Wall or ceiling mountable
Safety Notes	Do not cover; do not connect in series

Frequently Asked Questions - 9040D-2.5 Hazet

What is the maximum power when the cable is fully unwound?

When fully unwound, the Hazet 9040D-2.5 can handle a maximum power of 3200 W.

What type of cable does the Hazet 9040D-2.5 use?

The cable is a heavy-duty rubber cable type H07RN-F 3 x 2.5 mm².

Can the cable reel be mounted on the ceiling?

Yes, the Hazet 9040D-2.5 can be installed on both walls and ceilings using the supplied rotating metal mounting bracket.

What should I do if the overheating protection activates?

If the overheating protection is triggered, immediately pull out the power plug and press the red switch to reset.

What is the drill hole spacing for the mounting bracket?

The drill hole spacing for the mounting bracket is 186 mm, with a drill template provided on the packaging.

Is the cable reel suitable for outdoor use?

No, the Hazet 9040D-2.5 is designed only for dry indoor rooms and should not be used outdoors.

What is the operating temperature range?

The device can operate in temperatures ranging from -20°C to +45°C.

Does the reel have a stop function?

Yes, the hose stop function allows you to stop at any point during unwinding or rewinding.

What is the net weight of the cable reel?

The net weight of the Hazet 9040D-2.5 is 9.2 kg.

How long is the connecting cable?

The connecting cable has a length of 1.5 m.

USER MANUAL 9040D-2.5 Hazet

Icon of an open book with a lowercase 'i' symbol, representing information (no text or symbols present)

Symbolic warning sign depicting two figures with crossed hands and tools, enclosed in an octagonal frame (no text)

Symbolic illustration of a hand holding a device with sparkles, enclosed in a circle (no text or symbols)

Illustration of a hand cleaning a sheet of paper with clock, wrench, and checkmark symbols (no text or labels)

Illustration of a camera with an umbrella, snowflake, and sun symbols above (no text or labels)

Simple line drawing of a trash bin with no text or symbols

Application:

• Automatic cable reel offers tidiness in the workshop – cable not left lying around, thus reducing the risk of ac
• Hose stop function possible at any point with "Stop at any point"
• Braked winding to prevent risk of accidents
  • Including in-line circuit breaker
• 230V AC
• Only suitable for indoor use

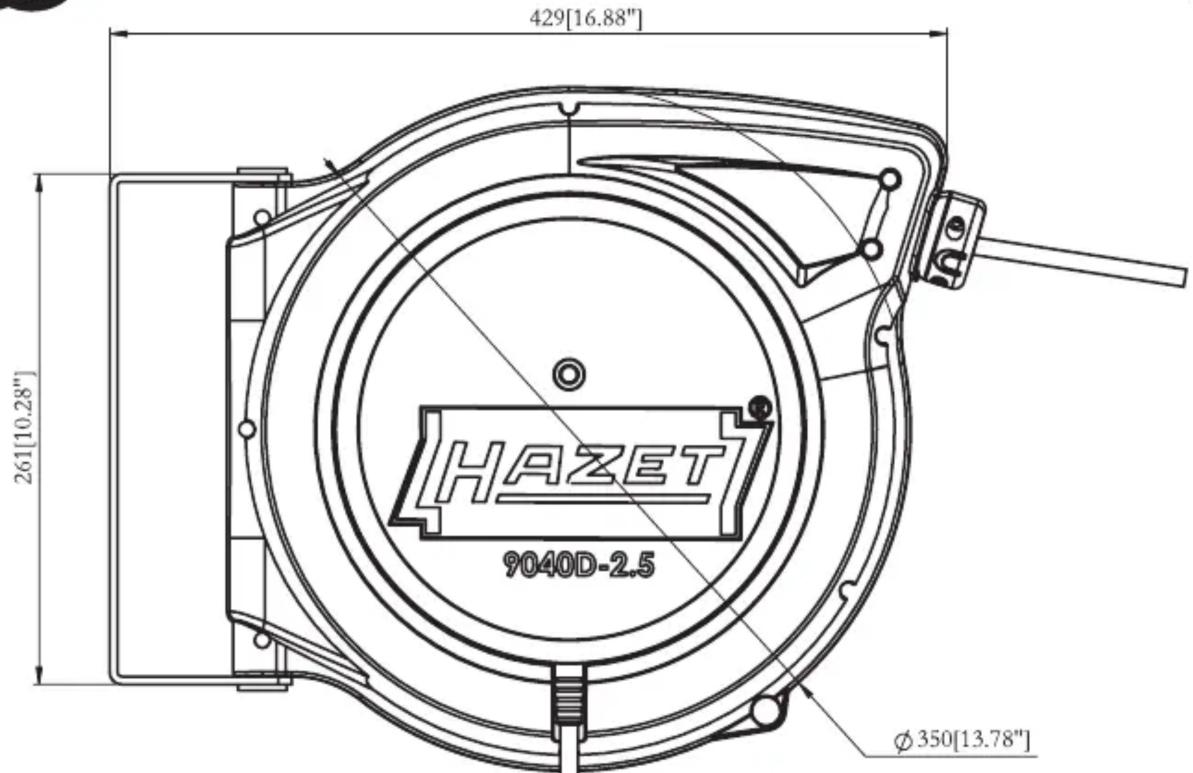

  • Dimensions: 429 x 350 x 175 mm
  • Cable: H07RN-F 3 x 2.5 mm2
• Cable length: 20 m
• Connecting cable length: 1.5 m
• Integrated drill template for mounting on cardboard packaging
  • High-quality, closed special plastic case
• Supplied with rotating metal mounting bracket made for separate installation at the workplace
• Drill hole spacing of the mounting bracket: 186 mm
  • Resilient when wound up with 1600 Watt
  • Resilient when unwound with 3200 Watt
  • Net weight (kg): 9.2 kg
  • Temperature range: -20^ - 45^
  • Power plug: Type EF 2Pin (Safety plug)

Icon of an open book with a lowercase 'i' symbol on top, representing information (no text or symbols present)

Symbolic warning sign depicting two workers crossed with tools, no text present

Cross-sectional diagram of a mechanical or electrical component with no visible text or symbols

Illustration of a hand cleaning a sheet of paper with clock, wrench, and checkmark symbols (no text or labels)

Illustration of a camera with an umbrella, snowflake, and sun symbols above (no text or labels)

Simple line drawing of a trash bin crossed with diagonal lines, no text or symbols present

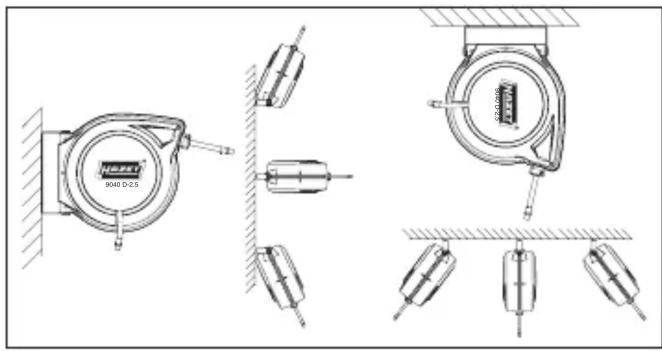

Wall and ceiling installation

Application:

• Only for use in dry rooms.
• If the overheating protection has been activated, pull out the power plug and press the red switch.

Note: The built-in safety devices must on no account be removed, changed or bypassed!

Note:
ot connect in series!
Do not cover and operate!
Feeder: ..... Slowly braked feed

Locking mechanism: . . . . . at any point

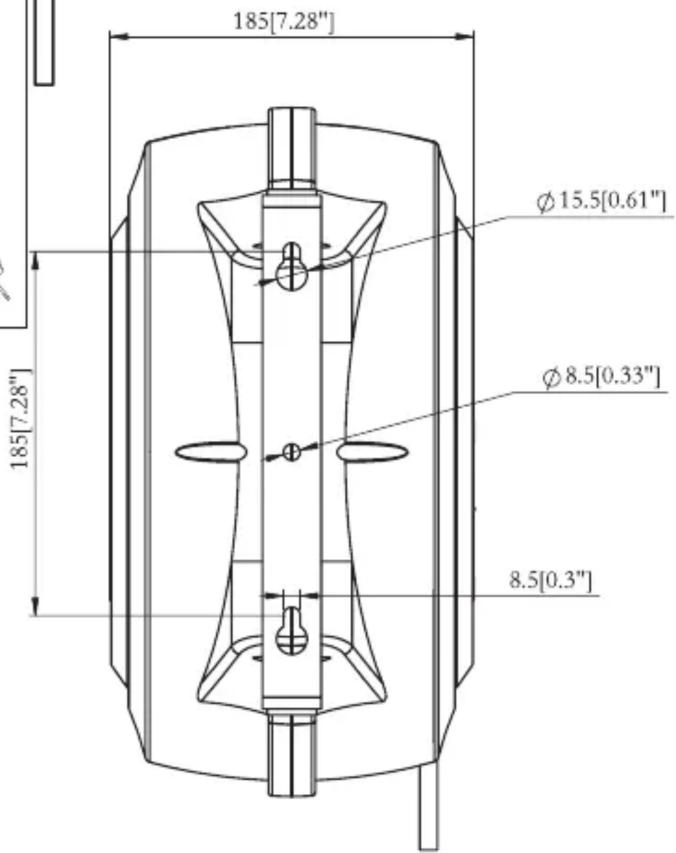

Drill hole spacing of the mounting bracket:...186 mm with drill template on packaging

HAZETNo.
	m	kg	mm2	Volt
9040 D-2.5 20 + 1.5		9.2 3	x 2.5 230
