Product Type	Built-in Dishwasher
Dimensions (HxWxD)	85 x 60 x 60 cm
Weight	45 kg
Power Supply	220-240 V ~50 Hz
Energy Class	A+
Capacity	14 place settings
Noise Level	44 dB(A)
Number of Programs	6
Key Programs	Auto, Eco, Intensive, Quick, Glass, Pre-rinse
Water Consumption (per cycle)	10 L
Energy Consumption (per cycle)	1.02 kWh
Water Protection	AquaStop
Child Lock	Yes
Control Type	Electronic touch
Display	Digital
Cutlery Basket	Third rack
Delay Start	1-24 hours
Self-Cleaning Filter	Yes
Adjustable Rack	Yes
Salt and Rinse Aid Indicator	Yes
Material (Interior)	Stainless steel
Color	Stainless steel
Door Type	Sliding panel
Installation	Built-in
Spare Parts Availability	Up to 10 years

Frequently Asked Questions - KDI 6955 SD Kernau

How do I start the first wash cycle?

Before first use, fill the salt and rinse aid dispensers. Load the dishwasher, add detergent, select a program (e.g., Auto), and press Start. Ensure water supply is connected.

What type of detergent should I use?

Use dishwasher detergent in powder, gel, or tablet form. For best results, choose a product with rinse aid and salt built-in. Avoid using hand washing liquid.

Why is the dishwasher not draining?

Check if the drain hose is kinked or blocked. Clean the filter in the bottom of the tub. Also, ensure the sink drain is not clogged. If problem persists, check the pump.

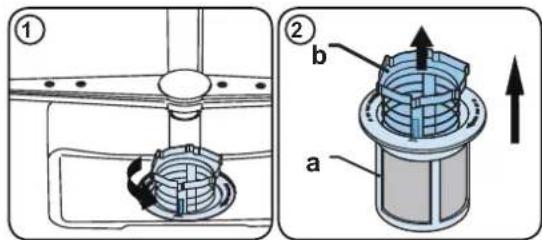

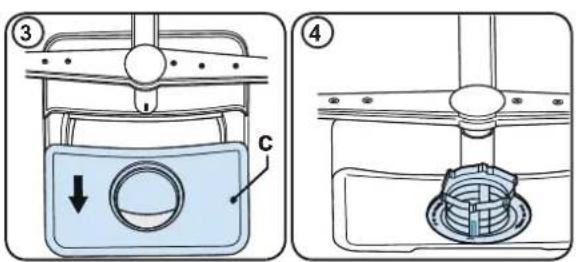

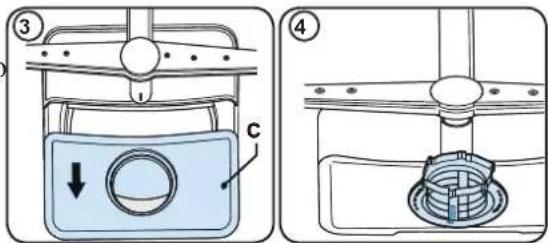

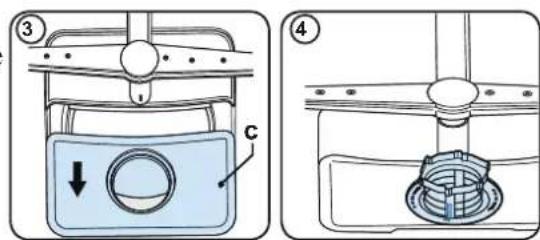

How do I clean the filter?

Remove the lower rack and unscrew the cylindrical filter assembly. Rinse under running water, remove any debris, and reassemble. Clean at least once a month.

Why are the dishes not drying properly?

Ensure rinse aid is filled and the drying setting is enabled. Use a higher temperature program for better drying. Also, open the door slightly after cycle ends.

Can I install the dishwasher myself?

Installation requires connecting water supply, drain, and power. It is recommended to hire a qualified technician. The manual provides detailed steps.

What does the error code E1 mean?

Error E1 typically indicates a water supply issue. Check that the water tap is open, the inlet hose is not kinked, and the water pressure is adequate.

How do I adjust the water hardness setting?

Refer to the manual to find the water hardness level in your area. Use the control panel to set the corresponding value (usually levels H1-H6). This optimizes salt usage.

Is it safe to use dishwasher tablets?

Yes, tablets are safe and convenient. Place them in the detergent dispenser. For shorter programs, use half a tablet to avoid residue.

How do I descale the dishwasher?

Use a commercial dishwasher descaler or a mixture of citric acid. Run a hot cycle (e.g., Intensive) with the descaler in the detergent compartment. Repeat every 3-6 months.

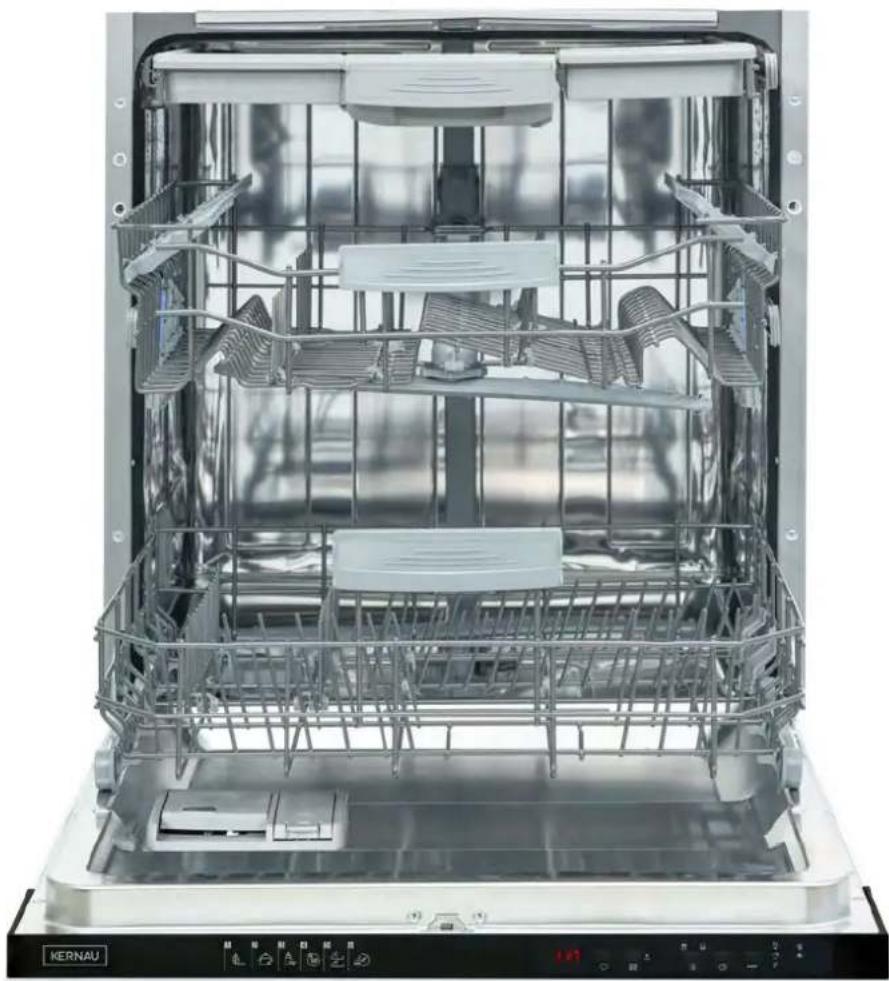

USER MANUAL KDI 6955 SD Kernau

Interior view of a KernaU appliance showing internal compartments and structural steel framework (no text or symbols visible)

www.kernau.com

SZANOWNY KLIENCIE

Illustration of a hand holding a faucet with a valve, no text or symbols present

Simple line drawing of a faucet with a valve and a warning symbol (no text or labels)

WAZ ODPROWADZAJACY WODE

Technical diagram of a mechanical component with a flanged shaft and a circular base (no text or symbols)

Illustration of a hand holding a stringed cable inside a circular component, with no visible text or symbols.

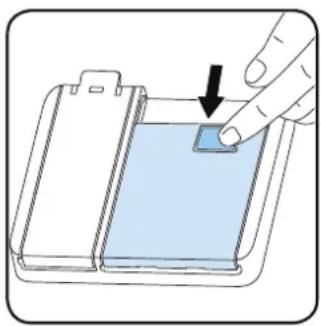

Illustration of a hand pressing down on a blue liquid in a container (no text or symbols)

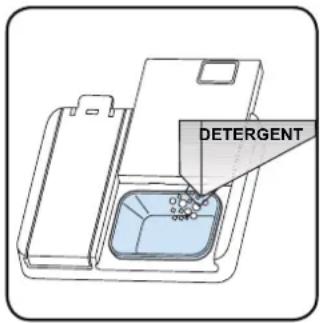

DETERGENT COMBI

Illustration of a hand inserting a card into a notebook (no text or symbols visible)

Line drawing of a mechanical component with a cylindrical tool inserted into a housing (no text or symbols)

3D wireframe model of a mechanical or structural component with internal channels and arrows indicating flow or movement (no text or symbols)

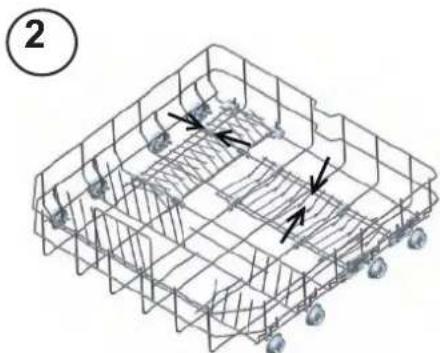

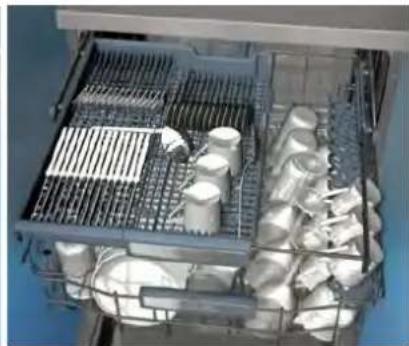

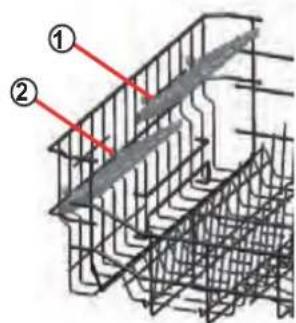

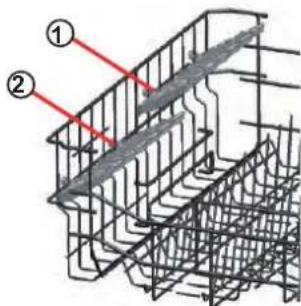

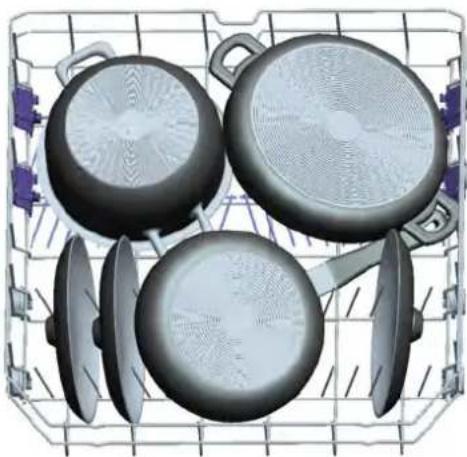

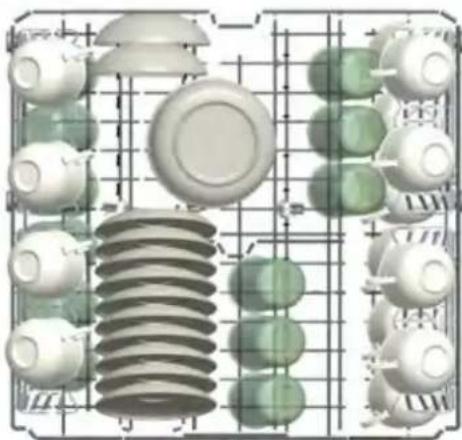

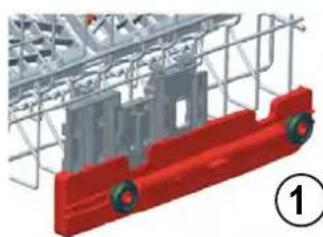

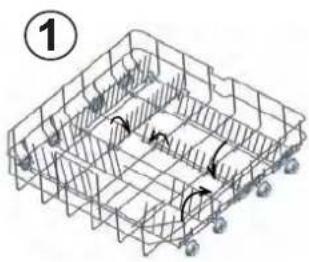

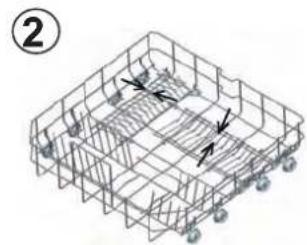

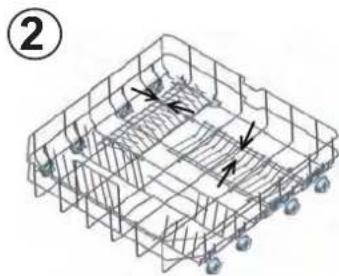

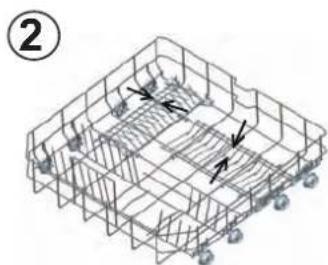

Składane kratki

Isometric line drawing of a multi-level mechanical or structural component with no visible text, numbers, or symbols.

Isometric view of a wireframe shopping cart with wheels and arrows indicating movement (no text or symbols)

Top-down view of a modern kitchen appliance with a metal tray and white cups on the side (no visible text or symbols)

3D rendering of a mechanical assembly with internal components and mounting brackets (no visible text or symbols)

Interior view of a kitchen appliance with multiple circular fixtures and a rack (no visible text or symbols)

Interior view of a stainless steel kitchen appliance with metal grilles and stacked containers (no visible text or symbols)

3D cutaway view of a washing machine showing internal components like rollers and filter (no text or labels)

3D rendering of four cooking pots arranged in a wire basket (no text or symbols visible)

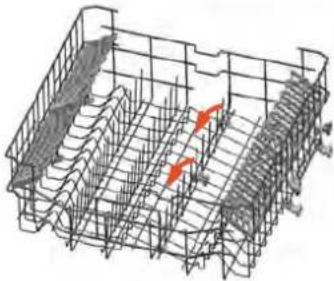

Górny kosz

Diagram of electrical insulator components arranged in a grid layout (no text or labels)

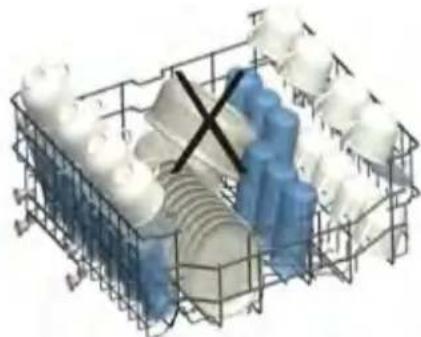

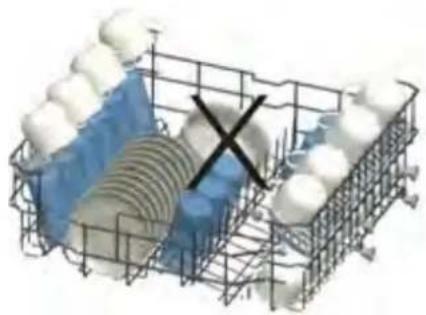

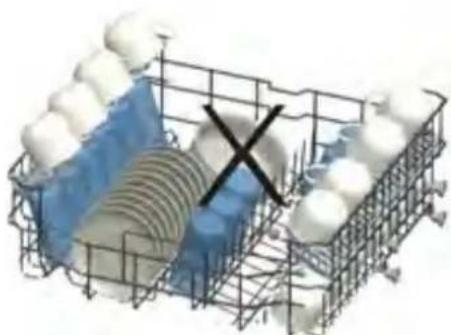

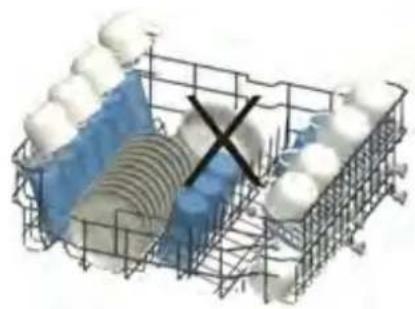

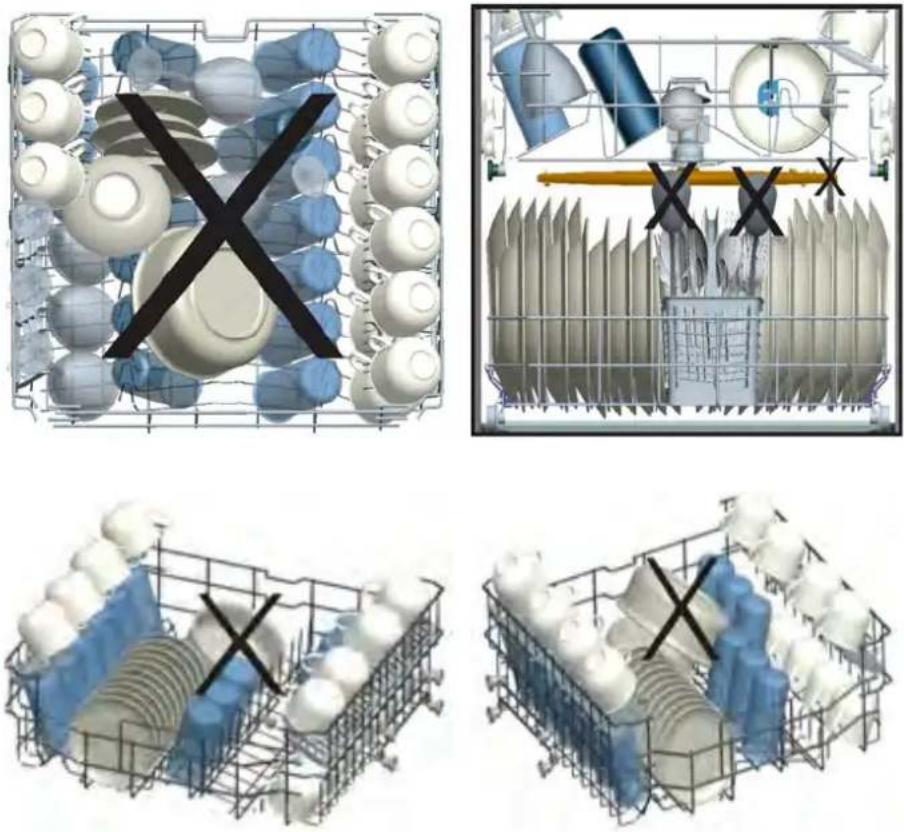

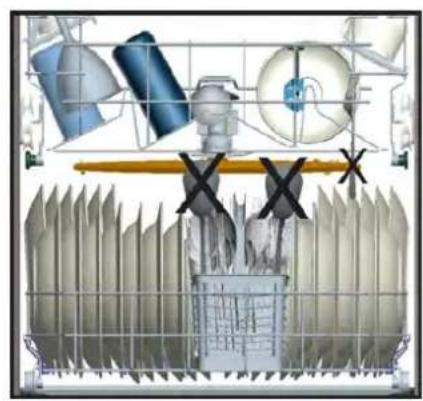

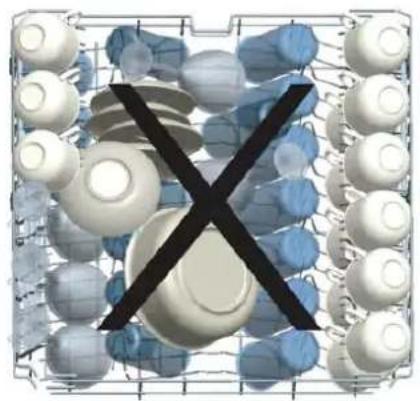

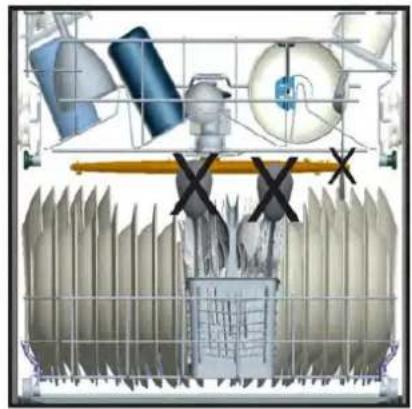

ZŁE SPOSOBY WKŁADANIA NACZYŃ

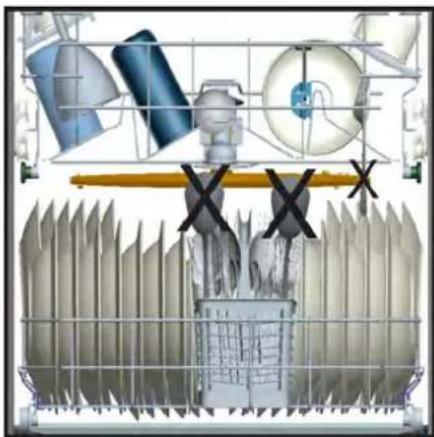

3D rendered grid with a black 'X' symbol overlay, no text or symbols present

Technical diagram of a mechanical assembly with components and cross symbols (no readable text or labels)

3D wireframe model of a server rack with a blue mesh overlay and a black 'X' symbol (no text or labels)

3D wireframe model of a mechanical assembly with blue and white components, no visible text or symbols

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Pompa odpływowa

Interior view of a KernaU appliance showing internal compartments and display screen (no text or symbols on main structure)

CONTENTS

CHAPTER 1. TECHNICAL SPECIFICATIONS ...... 34

CHAPTER 2. SAFETY INSTRUCTIONS ...... 35

GENERAL SAFETY ARNINGS 35

INSTALLATION WARNINGS 35

DURING USEGE 35

CHILDREN SAFETY 36

IN THE EVENT OF A FAULT 36

RECOMMENDATIONS 36

RECYCLING.... 37

PACKAGING AND THE ENVIRONMENT 37

UNSUITABLE ITEMS FOR DISHWASHING 37

CHAPTER 3. INSTALLATION ...... 38

MACHINE POSITIONING 38

WATER CONNECTION 38

WATER INLET HOSE 38

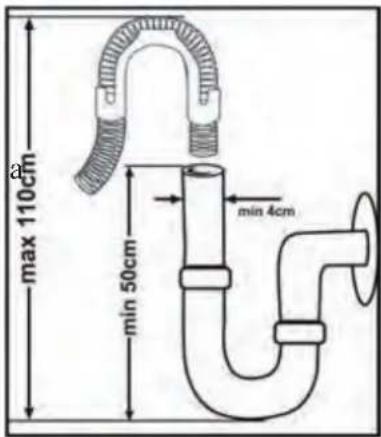

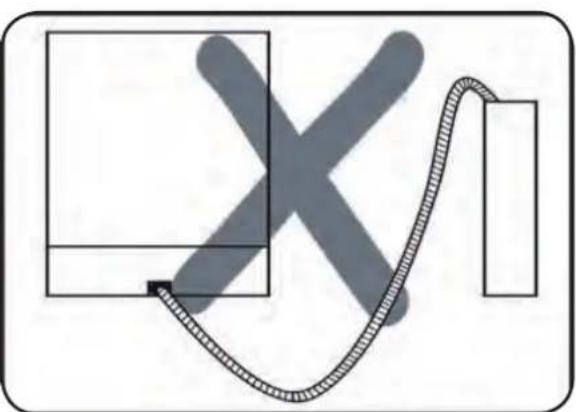

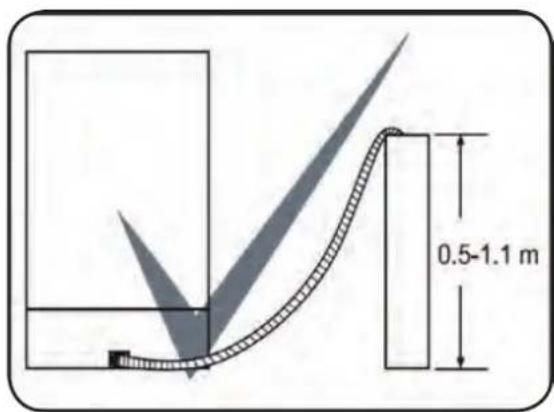

DRAIN HOSE 39

ELECTRICAL CONNECTION 39

CHAPTER 4. BEFORE USING THE APPLIANCE ...... 40

PREPARING YOUR DISHWASHER FOR FIRST USE 40

WATER DESCALING WEIGHT 40

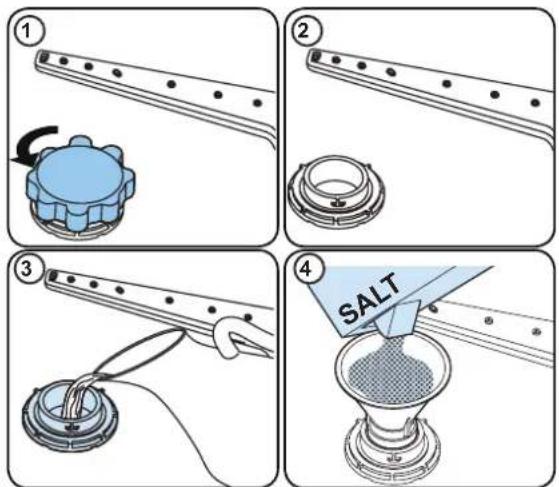

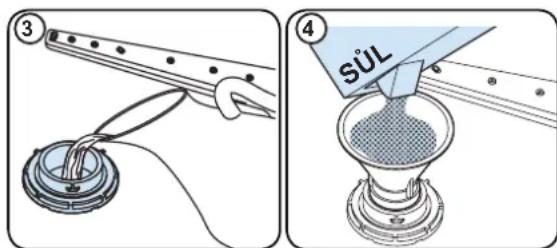

FILL THE SALT (IF AVAILABLE) 40

TEST STRIP 41

WATER HARDNESS TABLE 41

WATER SOFTENER SETTING 41

DETERGENT USAGE 42

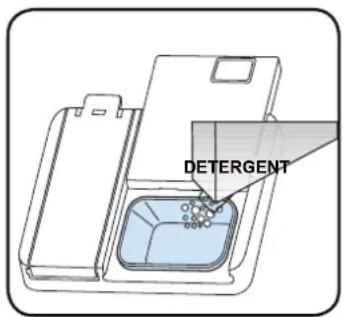

FILLING THE DETERGENT 42

COMBI DETERGENT 42

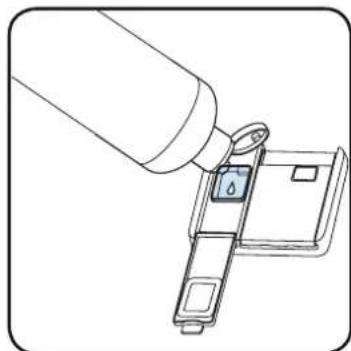

FILLING THE RINSE-AID AND SETTING 42

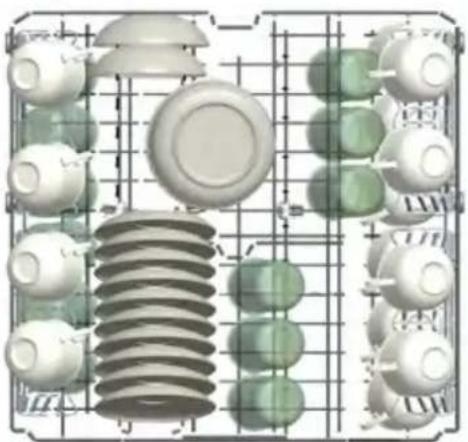

CHAPTER 5. LOADING YOUR DISHWASHER ...... 44

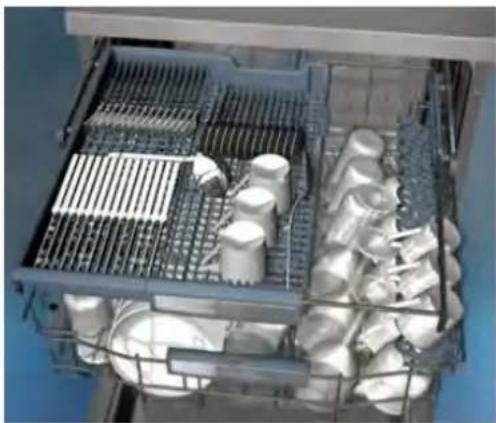

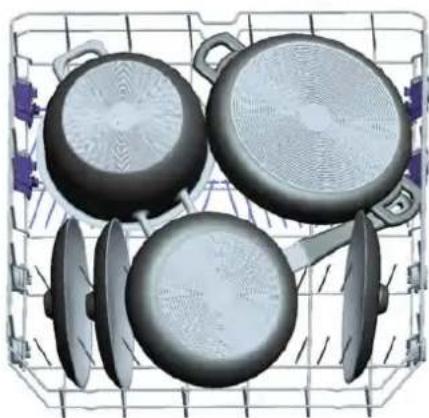

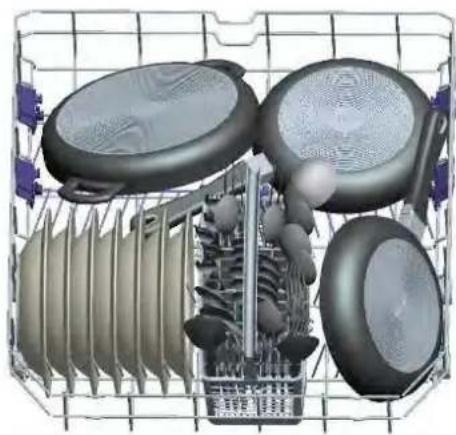

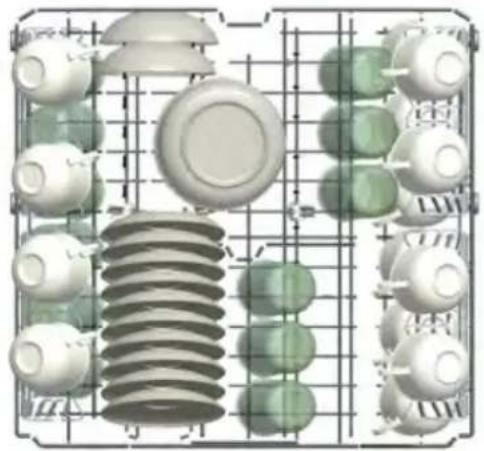

ALTERNATIVE BASKET LOADS 46

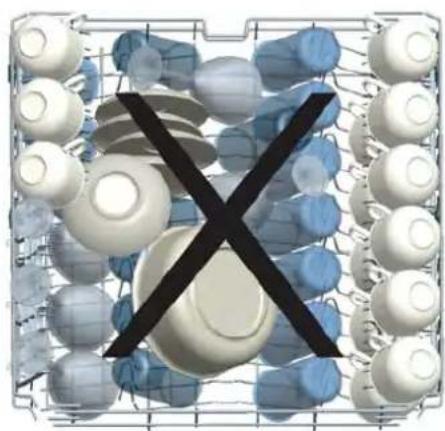

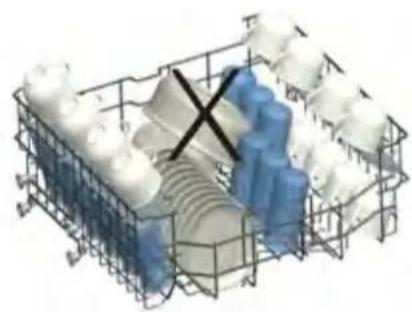

INCORRECT LOADS 47

CHAPTER 6. PROGRAMME TABLE ...... 48

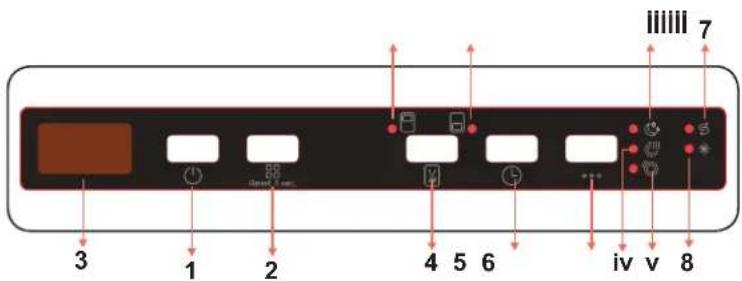

CHAPTER 7. THE CONTROL PANEL ...... 49

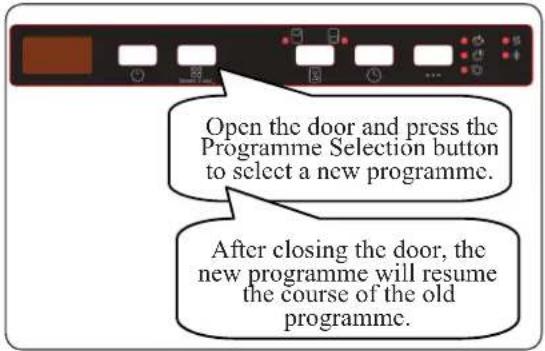

CHANGING A PROGRAMME 50

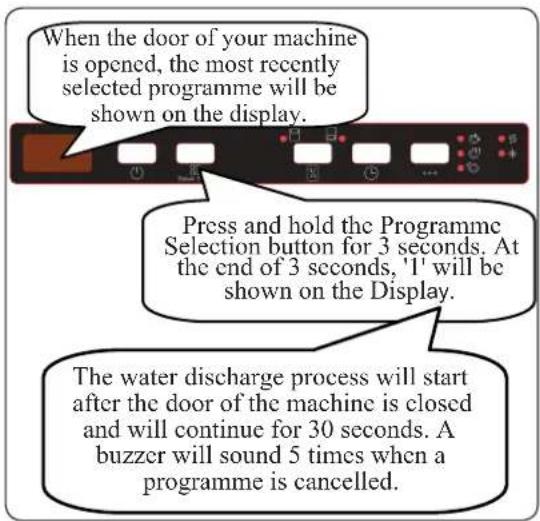

CANCELLING A PROGRAMME 50

CHAPTER 8. CLEANING AND MAINTENANCE .... 53

CHAPTER 9. TROUBLESHOOTING .... 55

CHAPTER 10. PRACTICAL INFORMATION ...... 58

CHAPTER 11. DISPOSAL OF USED EQUIPMENT ...... 59

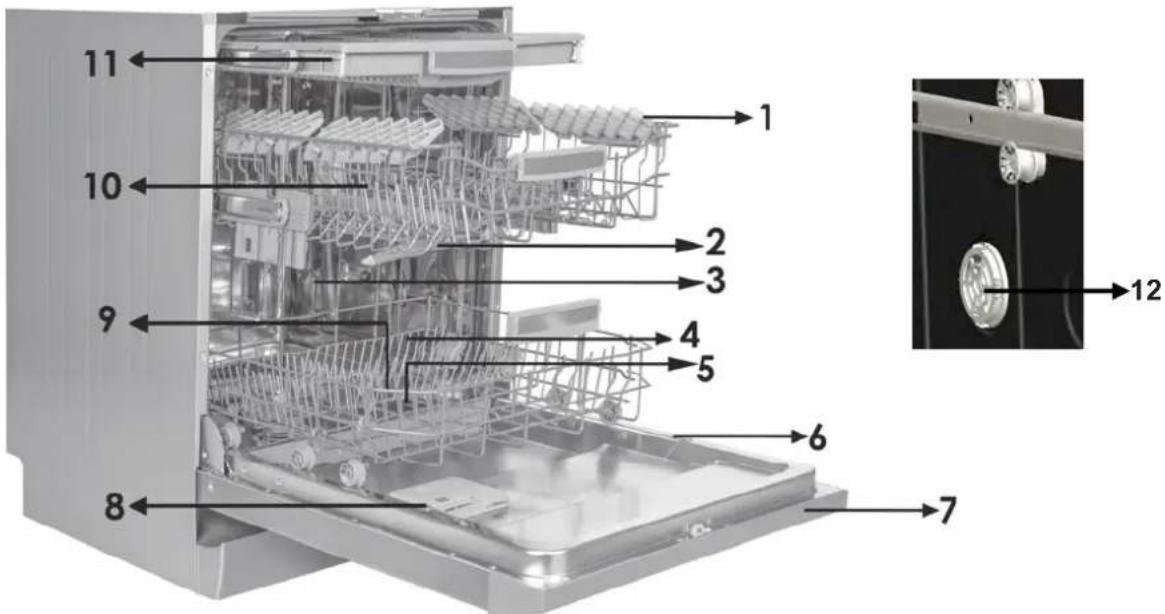

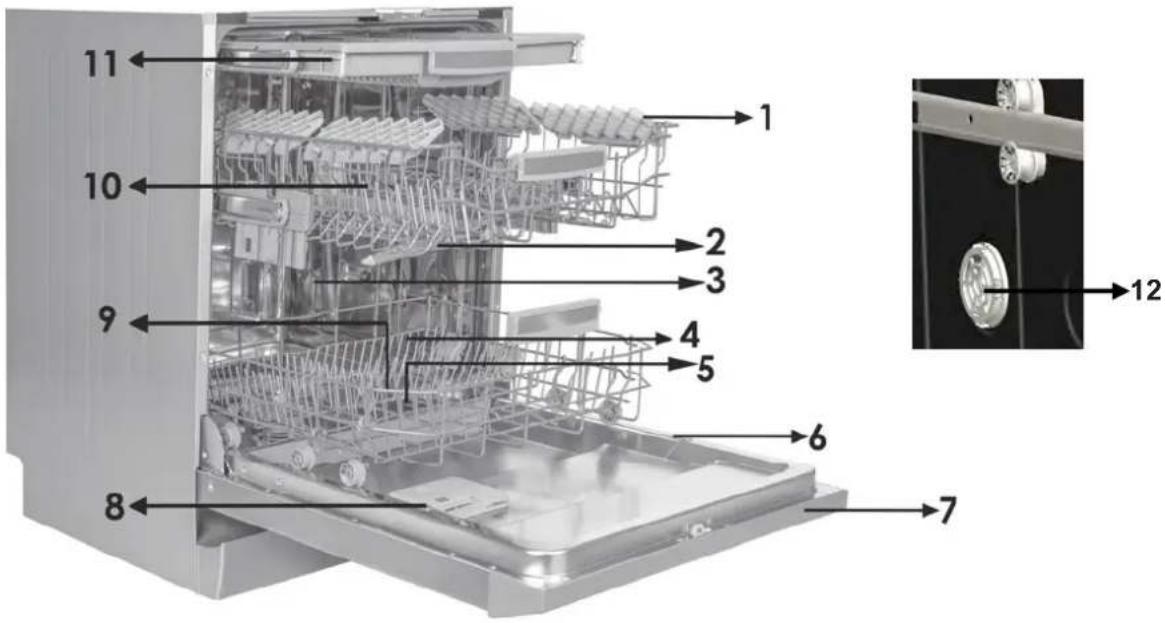

CHAPTER 1. TECHNICAL SPECIFICATIONS

1. Upper basket with racks

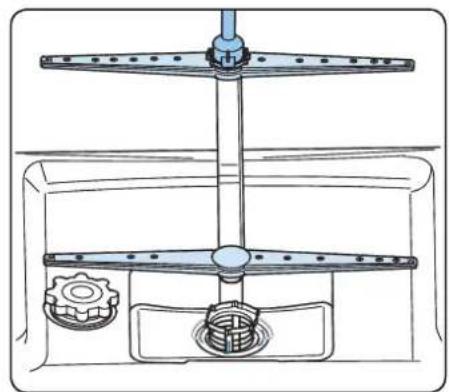

2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters

6. Rating plate

7. Control Panel

8. Detergent and rinse-aid dispenser
9. Salt dispenser
10. Upper basket track latch

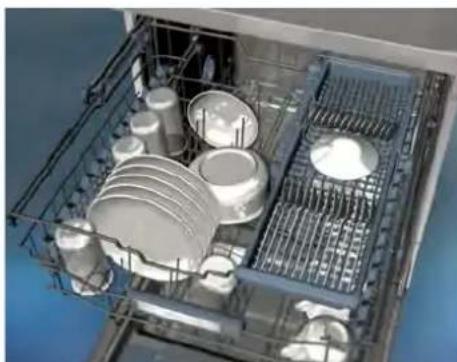

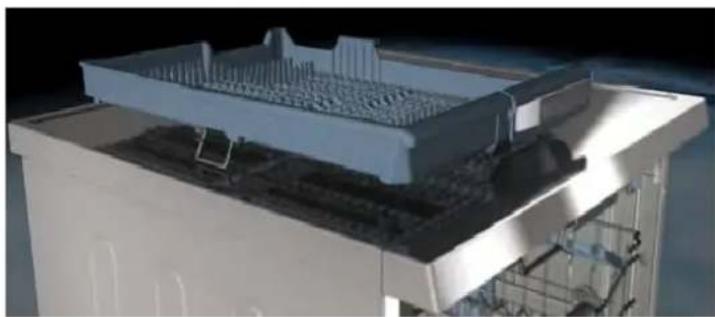

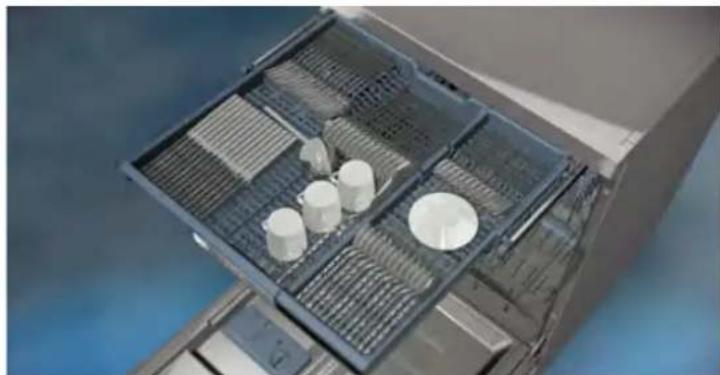

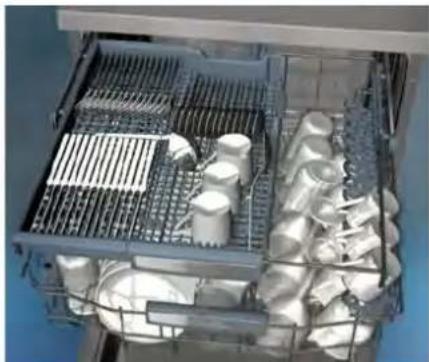

11. Upper Cutlery Basket
12. Turbo Drying Unit: This system enhances the drying performance of your dishes.

Capacity 15 place settings
Height 870 mm - 820 mm
Width 598 mm
Depth 550 mm
Net weight	38 kg
Operating voltage / frequency	220-240 V, 50 Hz
Total power 1900 W
Heater power 1800 W
Pump power 100 W
Drain pump power	30 W
Water supply pressure	0,03 MPa (0,3 bar)-1 MPa (10 bar)
Total current	10 A

CE DECLARATION OF CONFORMITY

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

CHAPTER 2. SAFETY INSTRUCTIONS

GENERAL SAFETY WARNINGS

- Read these instructions carefully before using your appliance and keep this manual for future reference.

- Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

- This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved. Children should not be allowed to play with the appliance.

- Remove packaging and keep it out of reach of children.

- Keep children away from detergents and rinse aids.

- There may be some residue left in the machine after washing. Keep children away from the machine when it is open.

INSTALLATION WARNINGS

- Choose a suitable and safe place to install your machine.

• Only original spare parts should be used with the machine.

- Unplug the machine before installation. Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

- Check that the indoor electrical fuse system is connected in line with safety regulations.

- All electrical connections must match the values on the plate.

- Ensure the machine does not stand on the electrical supply cable.

- Never use an extension cord or a multiple socket connection.

• The plug should be accessible after the machine is installed.

• After installation, run your machine unloaded for the first time.

• The machine must not be plugged in during positioning.

• Always use the coated plug supplied with your machine.

• If the electrical cable is damaged, it should only be replaced by a qualified electrician.

DURING USAGE

- This machine is for household use; do not use it for any other purpose. Commercial usage of the dishwasher will void the guarantee.

- Do not get up, sit or place a load on the open door of the dishwasher, it may fall over.

- Never put into the detergent and rinse aid dispensers of your machine anything other than those detergents and rinse aids which are produced specifically for dishwashers. Our company will not be responsible for any damage that might occur in your machine otherwise.

- The water in the machine's washing section is no drinking water do not drink it.

- Due to danger of explosion, do not put into the machine's washing section any chemical dissolving agents such as solvents.

- Check whether plastic items are heat-resistant before washing them in the machine.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not put into your machine those items which are not suitable for dishwashing. Also, do not fill any basket above its capacity. Our company will not be responsible for any scratch or rust to form on the inner frame of your machine due to basket movements otherwise.

- Especially because hot water may flow out, the machine door should not be opened under any circumstances while the machine is in operation. In any case, a safety device ensures that the machine stops if the door is opened.

- Do not leave your dishwasher's door open. Failure to do so may lead to accidents.

- Place knives and other sharp-ended objects in the cutlery basket in blade-down position.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including -children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- If EnergySave option is selected as "Yes", The door will be opened at the end of the program. Do not force to close the door to avoid harm auto door mechanism during 1 minute. The door must be open during 30 minutes to get effective drying.(in models with auto door opening system)

Warning: Do not stand in front of the door after the signal sounds belonging auto-open.

CHILDREN SAFETY

• After unpackaging the device remove the packaging material out of reach of children.

• Do not let children to play with the appliance or its starting.

- Keep the detergents and rinse aid out of reach of children.

- Do not let children to stay close to opened device, because inside the appliance can be detergents residues.

- Ensure that the old dishwasher do not hazard for children. It happened that children locked themselves inside old dishwashers. To avoid this situation, break the door lock and disconnect the electric cables.

IN THE EVENT OF A FAULT

- All equipment malfunctions should only be removed by qualified persons. Repairs carried out by persons other than authorized service personnel will void the warranty.

- Before starting repair, make sure that the device is disconnected from the power supply. Turn off the fuse or disconnect the device from the power supply. Do not disconnect the appliance from the power supply by pulling on the cable. Make sure that the water supply has been disconnected.

RECOMMENDATIONS

- To save energy and water, remove coarse dirt from the dishes before placing them in the machine. Start the device when it is full.

• Use the pre-wash program only when necessary.
• Place objects such as bowls, glasses and pots upside down in the appliance.
• We recommend that you do not put any other dishes in the dishwasher or more than specified.

RECYCLING

• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations: (>PE<, >PS<, >POM<, >PP<, )
• The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different materials.

PACKAGING AND THE ENVIRONMENT

Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

• Check for any damage to your machine or to its packaging. Never start a machine damaged in any way, make sure to contact an authorised service.
• Unwrap the packaging materials as indicated and dispose of them in accordance with the rules.

UNSUITABLE ITEMS FOR DISHWASHING

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials.
• Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals.
• Temperature-sensitive plastics, copper or tincoated containers.
  • Aluminium and silver objects.
• Some delicate glasses, ornamental printed porcelains; some crystal items, adhered cutlery, lead crystal glasses, cutting boards, synthetic fibred items.
• Absorbent items such as sponges or kitchen rugs.

IMPORTANT:

Take care to buy dishwasher-proof sets in your future purchases.

CHAPTER 3. INSTALLATION

MACHINE POSITIONING

- When determining the place to put your machine on, take care to choose a place where you can easily load and unload your dishes.

- Do not put your machine in any location where there is the probability for the room temperature to fall below 0^ .

- Before positioning, take the machine out of its packaging by following the warnings located on the package.

- Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made.

- Do not grip the machine by its door or panel in order to move it.

• Take care to leave a certain clearance from all sides of the machine so that you can comfortably move it back and forth during cleaning.

- Make sure that the water inlet and outlet hoses do not get squeezed while positioning the machine. Also, make sure that the machine does not stand on the electrical cable.

- Adjust the machine's adjustable feet so that it can stand level and balanced. Proper positioning of the machine ensures problem-free opening and closing of its door.

- If the door of you machine does not close properly, check if the machine is stable on the floor it stands; if not, adjust the adjustable feet and ensure its stable position.

WATER CONNECTION

Be sure that the indoor plumbing is suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing.

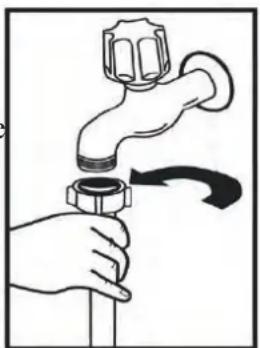

WATER INLET HOSE

Do not use the water inlet hose of your old machine, if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long - unused water inlet hose to your machine , run water through it for a while before making the connection. Connect the water inlet hose directly to the water inlet tap. The pressure supplied by the tap should be at a minimum of 0.03 Mpa and and at a maximum of 1 Mpa. If the water pressure is above 1 Mpa, a pressure-relief valve should be fitted in between.

After the connections are made, the tap should be turned on fully and checked for water tightness. For the safety of your machine, make sure to always turn off the water inlet tap after each wash programme is finished.

NOTE: Aquastop water spout is used in some models. In case of using Aquastop, a dangerous tension exists. Do not cut Aquastop water spout. Do not let it get folded or twisted.

Note printing on the water inlet hose!

If models are marked with 25^ , the water temperature may be max. 25 ^ (cold water). For all other models: Cold water preferred; hot water max. temperature 60 ^ .

Illustration of a hand holding a faucet with a valve, no text or symbols present

Simple line drawing of a faucet with a valve and base, no text or symbols present

WATER OUTLET HOSE

The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink. This connection should be at a minimum of 50 cm and at maximum of 110 cm from the floor plane.

IMPORTANT:

When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, our company will not accept responsibility.

Simple line drawing of a curved path with a cross symbol, no text or labels present

ELECTRICAL CONNECTION

- The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

• The plug on this appliance may incorporate 10A fuse depending on the target country.

- Your machine is set according to 220-240 V. If the mains voltage in your location is 110 V, connect a transformer of 110/220 V and 3000 W in between. The machine should not be plugged in during positioning.

• Always use the coated plug supplied with your machine.

- Running in low voltage will cause a decline in washing quality.

- The machine's electrical cable should be replaced by an authorised service or an authorised electrician only. Failure to do so may lead to accidents.

- For safety purposes, always make sure to disconnect the plug when a wash programme is finished.

• In order not to cause an electric shock, do not unplug when your hands are wet.

- When disconnecting your machine from the mains supply, always pull from the plug. Never pull the cord itself.

CHAPTER 4. BEFORE USING THE APPLIANCE

PREPARING YOUR DISHWASHER FOR FIRST USE

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
• Remove all packaging material inside the machine.
• Set the water softener level.
  • Fill the rinse aid compartment.

WATER DESCALING WEIGHT

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, White lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used.

Machine can only be used by special dishwasher salt to soften the water.

Do not use any small grained or powdered type of salts which can easily soluble. Using any other type of salt can damage your machine.

FILL THE SALT (IF AVAILABLE)

To add softener salt, open the salt compartment cap by turning it counter clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. If available, using a funnel (4) will make filling easier. Replace the cap and close it. After every 20-30 Cycles add salt into your mach until it fills up (approx. 1 kg).

Fill the salt compartment with water the first time you fill the salt compartment only. Use softener salt specifically produced for use in dishwashers.

When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine.

If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.

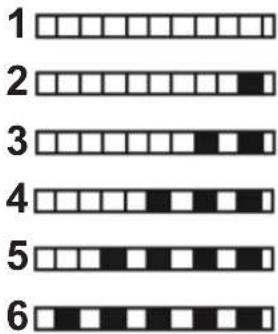

TEST STRIP

The washing efficiency of the device depends on the softness of the water supplied. In this case the device is equipped with system, which decreases the water hardness supplied from the water supply network. If this system is correctly set, the washing efficiency will be higher. To get to know the water hardness level supplied to the house, please contact with the water supply company or determine the water hardness level with the test strip (if is available).

1. Open the test strip.

1. Run water through the tap (1min.)

1. Keep the strip in the water (1sec)

2. Shake the strip.

3. Wait (1min.)

1. Set the hardness level of your machine.

NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

WATER HARDNESS TABLE

LEVEL GERMAN DH FRENCH DF BRITISH DE INDICATOR
1 0-5 0-9 0-6				The display will show “1” then “L”.
2 6-11 10-20 7-14				The display will show “2” then “L”.
3 12-17	21-30	15-21		The display will show “3” then “L”,
4 18-22	31-40	22-28		The display will show “4” then “L”.
5 23-31	41-55	29-39		The display will show “5” then “L”.
6 32-50	56-90	40-63		The display will show “6” then “L”.

WATER SOFTENER SETTING:

The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use a test strip (if available).

• Open the door of the machine.
• Hold down the Programme button until "SL" disappears.
  • The machine will display the last setting.
• Set the level by pressing the Programme button.
  • Turn off the machine to save the setting..

- Turn on the machine, and press the Programme button as soon as the machine is turned on.

DETERGENT USAGE:

• Only use detergents specifically designed for domestic dishwashers. Keep your detergents in cool, dry places out of reach of children.
• Add the proper detergent for the selected program to ensure the best performance. The amount of detergent needed depends on the cycle, load size, and soil level of dishes.
• Do not fill detergent into the detergent compartment more than required; otherwise you can see whitish streaks or bluish layers on glass and dishes and may cause glass corrosion. Continued use of too much detergent may cause machine damage.
• Using little detergent can result in poor cleaning and you can see whitish streaksin hard water.
• See the detergent manufacturer's instructions for a further information.

FILLING THE DETERGENT

Push the latch to open the dispenser and pour in the detergent.

Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.

Illustration of a hand inserting a small object into a device panel (no text or symbols)

COMBI DETERGENT

• These products should be used according to the manufacturer's instructions.
• Never put combined detergents into the interior section or the cutlery basket.
• Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination.
• We recommend you do not use combined detergents in short programmes. Please use powder detergents in such programmes.
• If you encounter problems when using combined detergents, please contact the detergent manufacturer.
• When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to the correct level.

RINSE-AID USAGE

• The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for stain-free utensils and clear glasses. The rinse aid is automatically released during the hot rinse phase. If rinse aid dosage setting set too low, whitish stains remains on dishes and dishes do not dry and washed clean.
• If rinse aid dosage setting set too height, you can see bluish layers on glass and dishes.

FILLING THE RINSE-AID AND SETTING

- To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps before turning on the machine:

• Push the programme button and hold it down.
• Turn on the machine.
• Hold down the programme button until “rA” disappears from the display. Rinse aid setting follows water hardness setting.
  • The machine will display the last setting.
• Set the level by pushing the programme button.
• Switch off the machine to save the setting.
• The factory setting is "4".
• If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

Illustration of a hand inserting a card into a notebook (no text or symbols)

Line drawing of a bottle pouring liquid into a device with a warning symbol (no text or labels)

LEVEL BRIGHTENER DOSE INDICATOR
1	Rinse-aid not dispensed	R1 is shown on the display.
2	1 dose is dispensed	R2 is shown on the display.
3	2 dose is dispensed	R3 is shown on the display.
4	3 dose is dispensed	R4 is shown on the display.
5	4 dose is dispensed	R5 is shown on the display.

CHAPTER 5. LOADING YOUR DISHWASHER

For best results, follow these loading guidelines.

Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.

Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. You can place cups, glasses, stemware, small plates, bowls, etc. in upper basket. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

When placing long stem glasses and goblets, lean them against the basket edge or rack and not against other items.

Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards otherwise water can collect on items.

If there is cutlery basket in machine, you are recommended to use the cutlery grid in order to obtain the best result. Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack.

Dishes and cutlery should not be placed above each other.

WARNING:

Take care not to obstruct the rotation of spray arms.

WARNING:

Make sure after loading the dishes do not prevent opening the detergent dispenser.

RECOMMENDATIONS

Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.

Do not overload the drawers or place dishes in the wrong basket.

WARNING:

To avoid any possible injuries, place long-handle and sharp-pointed knives with their sharp points facing down or horizontally on the baskets.

Top basket

These racks are designed to increase the capacity of the top basket. You can place your glasses and cups on the racks. You can adjust the height of these racks. Thanks to this feature, you can place different sizes of glasses under these racks. Thanks to height adjustment plastics mounted on the basket, you can use your racks in 2 different heights. In addition, you can place long forks, knives and spoons on these racks laterally, so that they do not block the revolution of propeller.

3D wireframe diagram of a grid structure with orange arrows indicating direction (no text or symbols)

Foldable racks

Foldable racks on the upper basket are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained.

You can use foldable racks by raising them upwards, or by folding down.

Top basket height adjustment while it is full

Basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed. Basket of your machine is set to upper position in factory settings. In order to raise your basket, hold it from both sides and pull it upwards. In loaded basket adjustment mechanism, make sure that both sides are in the same position (up or down).

3D wireframe diagram of a structural framework with red and blue components, no visible text or symbols

3D rendering of a red and gray industrial machine component with no visible text or symbols

3D mechanical assembly diagram showing red components mounted on a metal frame structure (no text or symbols visible)

Lower basket Folding racks

In the lower basket of the machine, there are four folding racks that are designed to allow you to make it easier to place big items such as pots, pans, etc. If required, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. To adjust them, raise them upwards, or fold down.

Isometric line drawing of a multi-level shopping cart filled with animal pens and animal wheels (no text or symbols)

Isometric view of a shopping cart with multiple wheels and internal compartments (no text or symbols)

Upper Cutlery Basket

The upper cutlery basket is designed for the placement of large and small cutlery and utensils.

Interior view of a modern kitchen appliance with plastic cups and grating (no visible text or symbols)

Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with the basket after washing.

3D cutaway view of a mechanical assembly with layered components and mounting brackets (no visible text or symbols)

The Upper Cutlery Basket is composed of two pieces; if you need to make space for the dishes in the upper bas-ket, you can take out the left or right part of the upper cutlery basket in order to obtain more space.

Interior view of a kitchen appliance showing multiple kitchen utensils and dish units (no visible text or labels)

Interior view of a stainless steel rack with plastic bottles and metal grating (no visible text or symbols)

WARNING: Knives and other sharp objects must be placed horizontally in the cutlery basket.

ALTERNATIVE BASKET LOADS

Lower basket

3D cutaway view of a washing machine showing internal components like fan, washer, and fan blade (no text or labels)

3D rendering of a basket containing four cooking pots (no text or symbols visible)

Top basket

Diagram of electrical insulators and capacitors arranged in a grid layout (no text or labels)

INCORRECT LOADS

Incorrect Loads

Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result.

CHAPTER 6. PROGRAMME TABLE

PROGRAM	DESCRIPTION	LEVEL OF SOIL	DETERGENT AMOUNT A: 25 CM 3 B: 15 CM3	PROGRAM DURATION (MIN)	ELECTRICITY CONSUMPTION (kWh/cycle)	WATER CONSUMPTION l/cycle)
P1 Eco	Standard program for normally soiled daily using dishes with recuded energy and water consumptios.	Medium	A	254	0,861	9,0
P2 Smart 50°C-70°C	Auto program for heavily soiled dishes.	Heavy	A	109-179	1,250-1,900	11,8-24,0
P3 Smart 30°C-50°C	Auto program for normally soiled delicate dishes.	Medium	A	72-91	0,650-0,850	10,6-17,7
P4 Steam Wash	Suitable for heavily soiled dishes with effective cleaning by steam.	Heavy	A	161	1,750	20,3
P5 Hygiene 70°C	Suitable for heavily soiled dishes, requiring hygienic washing.	Heavy	A	127	1,700	16,0
P6 Super 50'	Suitable for normally soiled daily dishes with faster program.	Medium	A	50	1,000 9,5
P7 Dual Pro Wash	Suitable for both lightly soiled delicate glassware on upper rack and heavily soiled crockery on lower rack.	Heavy	A	113	1,600 15,4
P8 Quick 30'	Suitable for lightly soiled dishes and quick wash.	Light	A	30	0,650	10,9
P9 Mini 14'	Fastest program for lightly soiled and recently used dishes and suitable for 4 place settings.	Light	B	14	0,340	6,6

• The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions.
• Values given for programmes other than the eco programme are indicative only
• If your model has turbidity sensor, it has Auto program instead of Intensive program.
• Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.
• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
• Only use powder detergent for short programs.
• Short programs do not include drying.
• To assist drying, we recommend slightly opening the door after a cycle is complete.
• You can access the product database where the model information is stored by reading the QR code on the energy label.

NOTE: According to regulations 1016/2010 and 1059/2010, Eco program energy consumption values may differ. This table is in line with regulations 2019/2022 and 2017/2022.

CHAPTER 7. THE CONTROL PANEL

1. On/Off button

2. Programme button

3. Display

4. Half Load button

5. Delay button

6. Options button

7. Salt lack warning indicator

8. Rinse Aid lack warning indicator

i. Upper Basket - Half Load led

ii. Lower Basket - Half Load led

iii. Extra Silent led

iv. Extra Dry led

v. Extra Fast led

1. On/Off Button

Switch the machine on by pressing On / Off button. When machine is on, "--" will be shown on the Display (3).

2. Program Selection Button

Select a suitable programme for your dishes by pressing Program Selection button. The programme will start automatically when the door is closed.

3. Display

The Display shows the number and total time of the selected programme alternately and the remaining time during operation. .

4. Half Load Button

Press the Half Load button to select the area of the dishwasher that contains the dishes to be washed. You can select both baskets, the upper basket only, or the lower basket only. Press the button until the led (i,ii) corresponding to the basket containing the dishes to be washed illuminates. Dishes in other areas will not be washed.

5. Delay Button

Press the Delay Start button to delay the start time of a programme for 1 hour up to 19 hours. Pressing once will delay the start time for 1 hour, and continuing to press the button will increase the delay duration. Press the Delay button to change or cancel the delayed start. If you turn off the machine after activating the delay time, the delayed time is cancelled.

6. Options Button

- Press the Options button once to activate the Extra Silent option. Select Extra Silent option to decrease the water pressure, therefore providing a more sensitive and silent wash. This option can only be selected at the beginning of a programme. Extra Silent led (iii) will illuminate.

- Press the Options button twice to activate the Extra Dry option. Select Extra Dry option to add extra drying steps to a programme in order to obtain drier dishes. This option increases water temperature of the final rinse step and duration of the drying step. Extra Dry led (iv) will illuminate.

- Press the Options button three times to activate the Extra Fast option. Select the Extra Fast option to reduce the programme duration. The washing water temperature and pressure will increase to ensure an improved washing quality in a shorter duration. This option can only be selected at the beginning of a programme. Extra Fast led (v) will illuminate.

NOTE: If an extra feature has been used on the most recent wash programme, this feature will remain active on the next selected programme. To cancel this feature on the newly selected wash programme, press the feature button until the light on the button switches off.

7. Salt lack warning indicator

When there is insufficient softening salt, the Salt Lack Warning Indicator will illuminate to indicate the salt chamber needs filling.

8. Rinse Aid lack warning indicator

When there is insufficient rinse aid, the Rinse Aid Lack Warning Indicator will illuminate to indicate the rinse aid chamber needs filling

Changing the Program

When you want to change the program while a washing program is running on.

NOTE: Open the door slightly at first to avoid water spillage if you wish to stop the wash programme before it is complete

Cancelling the Program

When you want to cancel the program while a washing cycle is running on.

Switching the Machine Off

NOTE: Do not open the door before a programme is complete.

NOTE: Leave the door slightly open at the end of a wash programme to speed up drying.

NOTE: If the door of the machine is opened or the power is cut during operation, the program will continue when the door is closed or the power returns.

Buzzer Sound Control

To change the buzzer sound level, follow the below steps:

1. Open the door and press Delay (5) and Options (6) buttons simultaneously for 3 seconds.
2. When sound setting is recognized, buzzer gives a long sound and machine will display last set level, from "S0" to "S3".
3. To decrease sound level press Delay button (5). To increase sound level, press Options button (6).
4. To save the selected sound level, turn off the machine. "S0" level means all voices are off. Factory setting is "S3".

Save Power Mode

To activate or deactivate save power mode, follow the below steps:

1. Open the door and press Half Load ( and Delay (5) buttons simultaneously for 3 seconds.
2. After 3 seconds, the machine will displ last Setting, "IL1" or "TL0".

3. When Save Power Mode is activate "IL1" will be displayed. On this mode, interior lights will turn off 4 minutes after the door is opened, and the machine will turn off after 15 minutes of no activity in order to save energy.

4. When Save Power Mode is deactivat “IL0” will be displayed. If Save Power Mode is deactive, interior lights will be on as long as the door is open, and the machine will always be on unless it is turned off by user.

5. To save the selected setting, turn off the machine. In factory setting, Save Power Mode is active.

Natural Ion Tech (Model depending)

This function provides extra hygiene to the machine thanks to Ion Technology. Natural Ion Tech function is activated by pressing Half Load (4) button for 3 seconds. Meanwhile display counts from 1 to 3. At the end of 3 seconds, “Ion” will be displayed which indicates Natural Ion Tech function is activated. The button is released after “Ion” is displayed. If no intervention by user, 24 hour after activation of Natural Ion Tech function, it is automatically cancelled.

NOTE: If machine is turned off, Ionizer function is cancelled.

NOTE: Natural Ion Tech function does not work with any program.

Crystalight (Model Depending)

This technology which have Ion and Light Technology together, provides to extra hygiene. It prevents bad odor during a washing program that includes a drying step.

Crystalight function is activated or deactivated by pressing Half Load (4) button for 6 seconds. At the end of 6 seconds, “UV1” will be displayed which indicates Crystalight function is activated. When it is deactivated, at the end of 6 seconds, “UV0” will be displayed. Crystalight setting follows Natural Ion Tech setting.

Default set is “UO”.

NOTE: If user do not deactivate Crystalight function at the end of program, it will remain active until the machine turns off.

NOTE: If Crystalight or Ionizer function is active, ionizer led lights up like dimming during door is open.

Infoled 2.1 (Model Dependent

LED Indicator State of the Machine
Red, continuous	The machine is running a program.
Red, flashing	A program is cancelled.
Red, flashing rapidly	The machine has a fault. Refer to section "Automatic fault warnings and what to do".
Green, continuous	A program is finished.

CHAPTER 8. CLEANING AND MAINTENANCE

Cleaning your dishwasher is important to maintain the machine's service life Make sure that the water softening setting (If available) is done correctly and correct amount of detergent is used to prevent limescale accumulation. Refill the salt compartment when the salt sensor light comes on.

Oil and limescale may build up in your Dishwasher over time. If this occurs:

- Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.

• To extend the life of your dishwasher, clean the appliance regularly on each month

- Wipe the door seals regularly with a damp cloth to remove any accumulated residue or foreign objects.

Filters

Clean the filters and spray arms at least once a week. If any food waste remains or foreign objects on the coarse and fine filters, remove them and clean them thoroughly with water.

a) Micro Filter

b) Coarse Filter

c) Metal Filter

To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1). Pull the coarse filter out of the micro filter (2). Then pull and remove the metal filter (3). Rinse the filter with lots of water until it is free of residue. Reassemble the filters. Replace the filter insert, and rotate it clockwise (4).

- Never use your dishwasher without a filter.

- Incorrect fitting of the filter will reduce the washing effectiveness.

- Clean filters are necessary for proper running of the machine.

Spray arms

Make sure that the spray holes are not clogged and that no food waste is stuck to the spray arms. If there is any clogging, remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

Technical line drawing of a mechanical assembly with two components and a central shaft (no text or symbols)

Drain pump

Large food residues or foreign objects that will not be trapped in the filters can clog the dirty water pump. If this happens, the rinse water remains above the filter.

Warning: Cut hazard!

When cleaning the dirty water pump, be careful not to cut yourself with broken glass or sharp cutlery etc. Procedure:

1. Always disconnect the device from the power supply first.
2. Remove the dish baskets.
3. Remove the filters.
4. Select water, use a sponge if necessary.
5. Check the emptied area and remove any foreign matter.
6. Install filters.
7. Insert the baskets.

CHAPTER 9. TROUBLESHOOTING

TROUBLE CODE	POSSIBLE FAULT	WHAT TO DO
FF	Water inlet failure	Make sure the water inlet tap is open and water is flowing.
		Separate the inlet hose from the tap and clean the filter of the hose.
		Contact for service if the error continues..
F5	Insufficient water	Contact for service.
F3	Continuous water input	Close the tap and contact for service.
F2	Inability to discharge water	Water discharge hose and filters may be clogged.Cancel the program. If the error continues, contact for service.
F8	Heater error	Contact for service.
F1	Overflow	Unplug the machine and close the tap. Contact for service.
FE	Faulty electronic card	Contact for service.
F7	Overheating error Contact for service.
F9	Divisor position error	Contact for service.
F6	Faulty heater sensor	Contact for service.
HI	High voltage failure	Contact for service.
LO	Low voltage failure	Contact for service.

• The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used.
• Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.
• Contact information for your customer service can be found on the back of this document.
• Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Customer service

PL: [phone]

Mon 7:00 - 17:00

Tue-Fri 9:00 - 17:00

[e-mail]

KERNAU

If the programme does not start:

• Check, if the plug is connected to the power socket.
• Check, the fuse.
  • Check, if the water inlet is open.
• Check, if the device's door is open.
• Check, if the device is turned of with the On/OFF button.
• Check, if the filter on the water inlet or device filter are not blocked.

If in the detergent chamber remain the detergent residue:

Check, if the detergent was placed into wet detergent chamber.

If after ending the selected program, water is accumulated in the device:

• Check, if the exhaust water hose is clogged or bended.
  • Check, if the filters are blocked.
  • Check, if the program is not finished.

If during the washing cycle can be sounded the clicking or knocking noises:

• Check, if the dishes were improperly placed.
  • Check, if the spray arms are hitting the dishes.

If the device interrupting the operation during washing cycle:

• Check, if power breakdown.
  • Check, if water supply malfunction.
• Check, if the programme can be in standby mode.

If the partial food waster remains on the dishes:

• Check, if dishes placed incorrectly, sprayed water not reaching affected dishes.
  • Check, if dishes leaning each another.
  • Check, if not enough detergent used.
• Check, if wrong wash programme selected. Spray arms clogged with food waste.
• Check, if filter and water drain pump clogged or filter misplaced.

If whitish stains remain on dishes:

• Check, if not enough detergent used
- Check, if rinse and dosage and/or water softener set too low.
• Check, if high water hardness level
- Check, if salt compartment cap not closed properly.

If the dishes do not dry:

• Check, if drying option is not selected.
• Check, if rinse aid dosage set too low.

If rust stains form on the dishes:

• Check, if stainless-steel quality of the dishes is insufficient.
  • Check, if high level of salt in wash water.
  • Check, if salt compartment cap not closed properly.
• Check, if too much salt spilled in the Dishwasher while filling it with salt.
  • Check, if a poor main grounding.

If the door does not open or close properly:

• Check, if on the door was mounted the furniture front with improper weight.
  • Check, if the door spring is not tight enough.

CALL THE AUTHORIZED SERVICE, IF AFTER CONDUCTED ABOVE INDICATION THE PROBLEM WAS NOT SOLVED.

CHAPTER 10. PRACTICAL INFORMATION

1. When the machine isn't in operation:
2. Disconnect the plug and close the tap.

3. Leave the door slightly open to prevent odour formation.

4. Select the dry option to remove water droplets.

5. Wash dishes in intensive program.

6. Remove all metal containers from the device.

7. Do not add detergent

8. Place dishes in the machine properly to achieve the best energy consumption, washing and drying performance. Please see the programme and consumption table for more information.

9. Clean all rough waste before you place dirty dishes to the machine.

10. Turn on the device only when it is completely full.

11. Only use Prewash programme when necessary.

12. Observe the informations regarding programs and the table with average consumption values during program selection.

13. Do not place the machine near a refrigerator because it will reach high temperatures.

14. If the appliance is located in a place where the risk of freezing exists, you must completely drain the water that has remained in the machine. Turn off the water tap, disconnect the water inlet hose from the tap and allow the interior water to drain.

CHAPTER 11. DISPOSAL OF USED EQUIPMENT

Fig. A

Fig. B

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. A crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries.

Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials.

Penalties may be imposed in accordance with national legislation for improper disposal of this product.

If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device.

Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

UŽIVATELSKÁ PŘÍRUČKA MYČKA KDI 6955 SD

Interior view of a stainless steel kitchen appliance with multiple tiered compartments and ventilation grilles (no visible text or symbols)

www.kernau.com

OBSAH

KAPITOLA 1. TECHNICKÉ ÚDAJE ...... 62

KAPITOLA 2. BEZPEČNOSTNÍ POKYNY A DOPORUČENÍ ...... 63

PO DORUČENÍ SPOTŘEBIČE 63

BODY, KTERÝM JE TŘEBA BĚHEM INSTALACE VĚNOVAT POZORNOST ...... 63

PŘI KAŽDODENNÍM POUŽITÍ 63

Z DŮVODU BEZPEČNOSTI VAŠICH DĚTÍ 64

V PŘÍPADĚ PORUCHY 64

DOPORUČENÍ 64

RECYKLACE....64

PŘEDMĚTY, KTERÉ NEJSOU VHODNÉ K MYTÍ V MYČCE NÁDOBÍ ...... 64

KAPITOLA 3. INSTALACE SPOTŘEBIČE ...... 65

UMÍSTĚNÍ SPOTŘEBIČE 65

PŘIPOJENÍ VODY 65

HADICE PRO PŘÍVOD VODY 65

VYPOUŠTĚCÍ HADICE 66

PŘIPOJENÍ K ELEKTRICKÉ SÍTI 66

KAPITOLA 4. PŘÍPRAVA SPOTŘEBIČE K POUŽITÍ ...... 67

PŘED PRVNÍM POUŽITÍM SI PŘEČTĚTE NÁVOD K POUŽITÍ 67

VÝZNAM ODSTRANĚNÍ VODNÍHO KAMENE Z VODY 67

PLNĚNÍ ZÁSOBNÍKU NA SŮL 67

NASTAVENÍ SPOTŘEBY SOLI 67

TESTOVACÍ PROUŽEK 68

NASTAVENÍ TVRDOSTI VODY 68

POUŽITÍ DETERGENTU 69

PLNĚNÍ DÁVKOVAČE PRACÍHO PROSTŘEDKU 69

KOMBINOVANÝ PRACÍ PROSTŘEDEK 69

PLNĚNÍ OPLACHOVACÍM PROSTŘEDKEM A NASTAVENÍM 70

KAPITOLA 5. PLNĚNÍ MYČKY NÁDOBÍ ...... 72

ALTERNATIVNÍ PLNĚNÍ KOŠE 74

VADNÉ ZATÍŽENÍ 75

KAPITOLA 6. TABULKA PROGRAMÜ 76

KAPITOLA 7. OVLÁDACÍ PANEL 77

ZMĚNA PROGRAMU 78

ZRUŠENÍ PROGRAMU 78

KAPITOLA 8. ÚDRŽBA A ČIŠTĚNÍ ..... 81

KAPITOLA 9. CHYBOVÉ KÓDY A ŘEŠENÍ PROBLÉMŮ 83

KAPITOLA 10. PRAKTICKÉ A UŽITEČNÉ INFORMACE ....86

KAPITOLA 11. LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ ...... 87

KAPITOLA 1. TECHNICKÉ ÚDAJE

BODY, KTERÝM JE TŘEBA BĚHEM INSTALACE VĚNOVAT POZORNOST

Illustration of a hand holding a faucet with a valve, no text or symbols present

Simple line drawing of a faucet with a valve and a switch, no text or symbols present

POZNÁMKA:

Illustration of a hand pressing down on a blue surface with a black arrow indicating direction (no text or symbols)

3D wireframe model of a mechanical or structural assembly with internal grid and directional arrows (no text or symbols)

Skládací rošty

Isometric line drawing of a shopping cart with wheels and directional arrows indicating movement (no text or symbols)

3D wireframe model of a shopping cart with wheels and internal compartments, no text or symbols present

Interior view of a stainless steel kitchen appliance with open drawer and side compartments (no visible text or symbols)

3D cutaway view of a mechanical assembly with internal components and mounting brackets (no visible text or symbols)

Two-panel image showing a washing machine interior with multiple kitchen utensils and compartments, no visible text or symbols.

3D cutaway view of a kitchen appliance showing internal components like fans, ovens, and dishwashers (no text or labels visible)

3D rendering of four cooking pots arranged in a wire cage (no text or symbols visible)

Horní koš

Diagram of electrical insulator components arranged in a grid layout (no text or labels)

VADNÉ ZATÍŽENÍ

3D rendered image of a grid with blue and white spherical objects, featuring a black 'X' symbol overlay (no text or symbols present)

Diagram of a mechanical or industrial system with components and a grid, no visible text or symbols

3D wireframe model of a mechanical assembly with blue components and white spherical bodies, no visible text or symbols

3D wireframe model of a mechanical component with blue and white parts, no visible text or symbols

Ostřikovací ramena:

Technical diagram of a mechanical assembly with gears and shafts (no text or labels)

Vypouštěcí čerpadlo

Interior view of a stainless steel kitchen appliance with multiple tiered compartments and ventilation grilles (no visible text or symbols)

www.kernau.com

3MICT

ГЛАВА 1. ТЕХНІЧНІ ХАРАКТЕРИСТИКИ ...... 90

Illustration of a hand holding a faucet with a valve, no text or symbols present

Simple line drawing of a faucet with a warning symbol (no text or labels)

ПРИМІТКА:

Simple line drawing of a curved path with a cross symbol, no text or labels present

Illustration of a mechanical component with a gear-like base and a ruler, no text or symbols present

Technical line drawing of a mechanical component with a circular base and flange (no text or symbols)

Diagram showing a hand holding a tool interacting with a circular component, no text or symbols present

Illustration of a hand pressing down on a blue rectangular object with a black arrow indicating downward motion (no text or symbols)

eXiGtAaHnIuJiaT13NiHnJrEaYuDexN3yG1h+13

Illustration of a hand using a tool to press or install a blue notebook (no text or symbols visible)

Line drawing of a hand inserting a small component into a device (no text or symbols)

3D wireframe model of a mechanical cage or rack structure with no visible text or symbols

Розкладні решітки

3D architectural or engineering diagram showing structural elements and directional arrows (no text or symbols)

3D rendering of a red industrial machine component with metal frame structure (no visible text or symbols)

3D mechanical assembly diagram showing red components mounted on a metal frame structure (no text or symbols visible)

Isometric line drawing of a shopping cart with wheels and decorative elements (no text or symbols)

Isometric line drawing of a shopping cart with multiple lanes and wheels, no text or symbols present

Interior view of a stainless steel kitchen appliance with multiple compartments filled with white cups and a white bowl (no visible text or symbols)

3D rendering of a mechanical assembly with layered components and mounting brackets (no visible text or symbols)

Interior view of a kitchen appliance with multiple circular components and a rack (no visible text or symbols)

Interior view of a stainless steel rack with plastic containers and cooling fins (no visible text or symbols)

3D cutaway view of a washing machine showing internal components like blades, gears, and fan (no text or labels)

3D wireframe model of cooking pots arranged in a grid (no text or symbols visible)

Верхній кошик

3D diagram of industrial equipment layout with insulators, coils, and housing (no text or labels)

Diagram showing a cross symbol crossed over a grid of white and blue circular objects (no text or labels)

Cross-sectional diagram of a mechanical assembly with no visible text or symbols

3D wireframe model of a mechanical assembly with blue and white components, no visible text or symbols

3D wireframe model of a mechanical or electronic component with blue and white surfaces, no visible text or symbols

Mechanical diagram showing a valve assembly with a rotating component (no text or symbols)

Mechanical assembly diagram showing a circular component inserted into a housing (no text or symbols)

Technical diagram of a mechanical assembly with gears and shafts (no text or labels)
