Product Type	Dishwasher
Brand	Kernau
Model	KDI 6754
Capacity	15 place settings
Dimensions (Height x Width x Depth)	820-870 mm x 598 mm x 570 mm
Net Weight	39.6 kg
Operating Voltage / Frequency	220–240 V / 50 Hz
Total Current	10 A
Total Power	1900 W
Water Supply Pressure	0.03 – 1 MPa
Programmes	Eco, Smart 60-70°C, Steam Wash, Hygiene 70°C, Super 50', Dual Pro Wash 60°C, Quick 30'
Control Panel	On/Off, Programme, Display, Half Load, Delay, Options buttons; Salt and Rinse Aid indicators
Water Softener	Adjustable hardness level (1-6) with test strip
Rinse Aid Dosage	Adjustable levels 1-5 (factory setting 4)
Safety Features	Child lock, auto door stop, Aquastop (model dependent), overheating protection
Cleaning & Maintenance	Filters (micro, coarse, metal) and spray arms removable for cleaning; drain pump accessible
Additional Functions	Extra Silent, Extra Dry, Extra Fast, Half Load, Delay Start (1-19h), Natural Ion Tech, Crystalight (model dependent)
Energy Consumption (Eco programme)	0.861 kWh/cycle
Water Consumption (Eco programme)	9.0 L/cycle
Noise Level	Not specified in manual; typical for class
Warranty	Subject to authorised service; spare parts available for at least 10 years

Frequently Asked Questions - KDI 6754 Kernau

How do I install the dishwasher?

Position the machine on a flat, stable surface near a water tap and drain. Connect the water inlet hose directly to the tap (pressure 0.03-1 MPa). Attach the drain hose to a drain pipe or sink spigot, ensuring a height of 50-110 cm from the floor. Plug into a grounded outlet. Do not use extension cords. Refer to the Installation chapter for details.

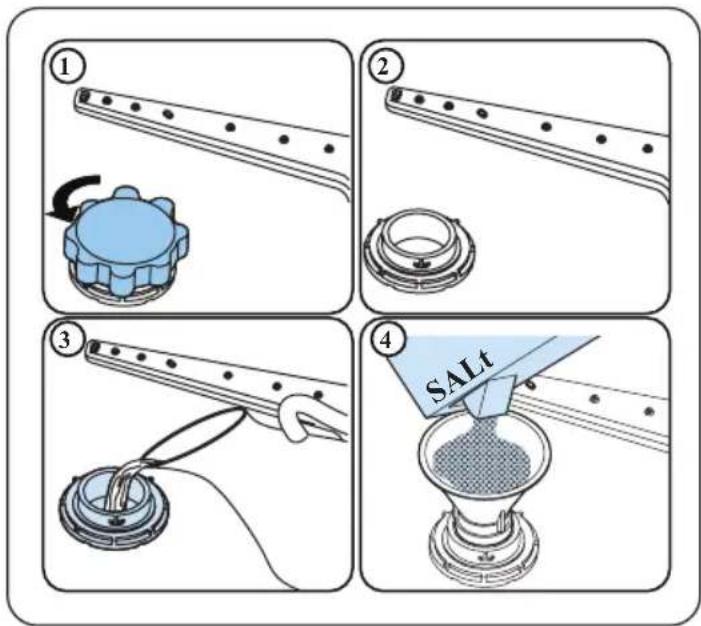

How do I fill the salt compartment?

Open the salt cap by turning counterclockwise. On first use, fill with 1 kg of dishwasher salt and water until almost overflowing. After that, add salt every 20-30 cycles. Only use special dishwasher salt. Do not use small-grained or powdered salt. See Filling the Salt section.

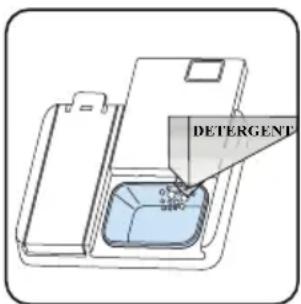

What detergent should I use and how much?

Use only detergent designed for dishwashers. For heavily soiled dishes, use 25 cm³ (A) or 15 cm³ (B) as shown in the programme table. For normal loads, follow the detergent manufacturer's instructions. Do not overfill; too much detergent can cause streaks or glass corrosion. See Detergent Usage.

How do I select the right programme?

Press the Programme button to scroll through options: Eco (standard, energy-saving), Smart (auto for heavy), Steam Wash (heavy with steam), Hygiene 70°C (sanitising), Super 50' (normal faster), Dual Pro Wash (mixed load), Quick 30' (light soil). The display shows the duration. Close the door to start. See Programme Table.

Why are there white spots on my dishes?

White spots usually indicate hard water or insufficient rinse aid. Check the water hardness setting (adjust via salt level) and increase rinse aid dosage. Ensure salt compartment is filled and cap is tight. See Troubleshooting for whitish stains.

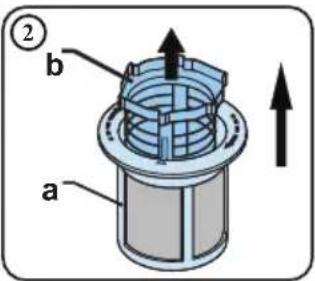

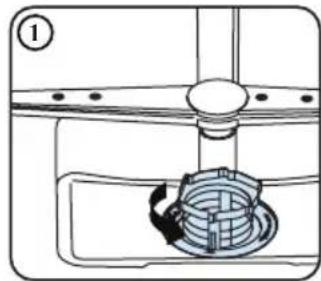

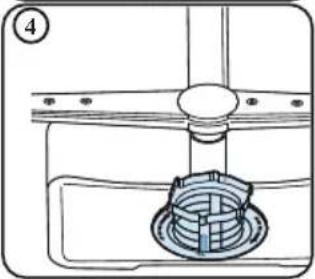

How do I clean the filters?

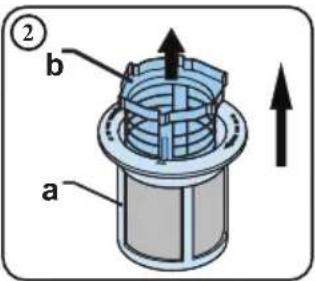

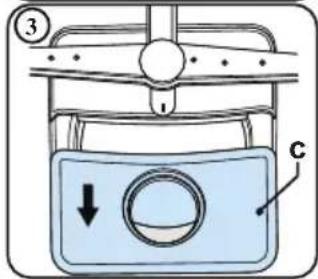

Turn the filter assembly counterclockwise and lift it out. Separate the micro, coarse, and metal filters. Rinse them under running water until clean. Reassemble and rotate clockwise to lock. Clean filters at least once a week. Never operate without filters. See Filters section.

What does the 'FF' error code mean?

Error code FF indicates a water inlet failure. Check if the water tap is open and water is flowing. Disconnect the inlet hose and clean the filter at the hose end. If the error persists, contact service. See Automatic Fault Warnings.

Can I use combined detergents (all-in-one tablets)?

Yes, but follow the manufacturer's instructions. Do not use them in short programmes (e.g., Quick 30'). If you switch from combined to separate detergents, reset water hardness and rinse aid levels. See Using Combined Detergents.

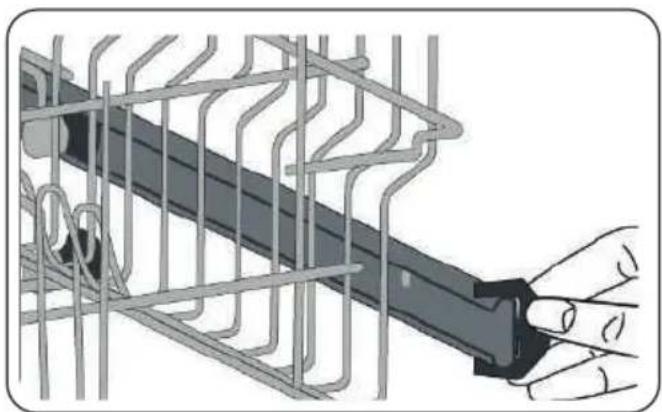

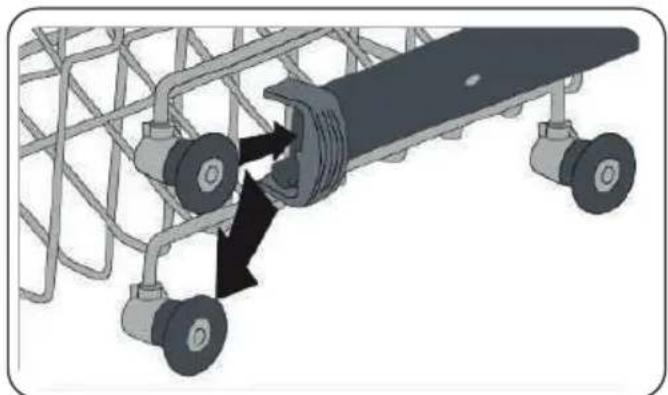

How do I adjust the upper basket height?

Turn the rail stop clips at the ends of the rails to open them. Pull out the basket and change the wheel position to raise or lower it. Reinstall and close the clips. In higher position, more space for large pots in lower basket. See Upper Basket Height Adjustment.

What is the Eco programme and when should I use it?

The Eco programme is the standard cycle for normally soiled dishes, optimised for low energy and water consumption (0.861 kWh, 9 L). It runs for 4 hours 14 minutes. Use it for daily loads to save resources. It complies with EU ecodesign regulations.

USER MANUAL KDI 6754 Kernau

Illustration of a hand holding a faucet with a valve, showing a right-hand rule (no text or symbols)

OSTRZEŻENIE

Simple line drawing of a faucet with a valve and base, no text or symbols present

RYZYKO PORAŻENIA PRĄDEM

Close-up of a mechanical component with a labeled part '12' and metallic parts (no readable text or symbols beyond the number)

OGÓLNY WYGLĄD PRODUKTU

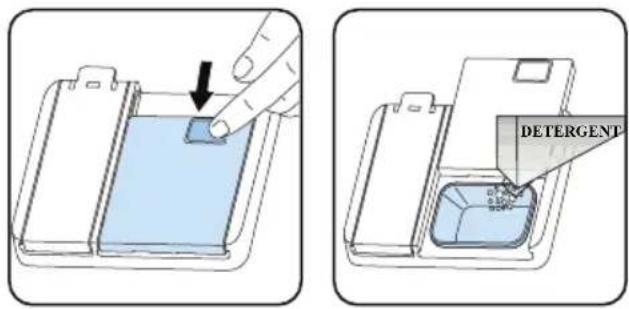

WYKORZYSTANIE DETERGENTU

Illustration of a hand pressing down on a blue surface with a black arrow indicating the step (no text or symbols present)

STOSOWANIE POŁĄCZONYCH DETERGENTÓW

Illustration of a hand using a tool to press or install a device into a rectangular container (no text or symbols visible)

Line drawing of a hand inserting a lock into a device (no text or symbols)

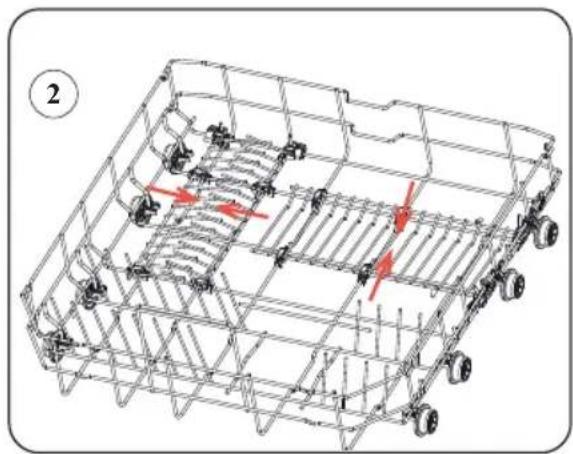

Technical line drawing of a modular vehicle chassis with wheels and structural supports (no text or symbols)

Technical line drawing of a multi-wheeled vehicle chassis with visible structural components and red directional arrows indicating motion or force (no text or symbols)

Kosz górny

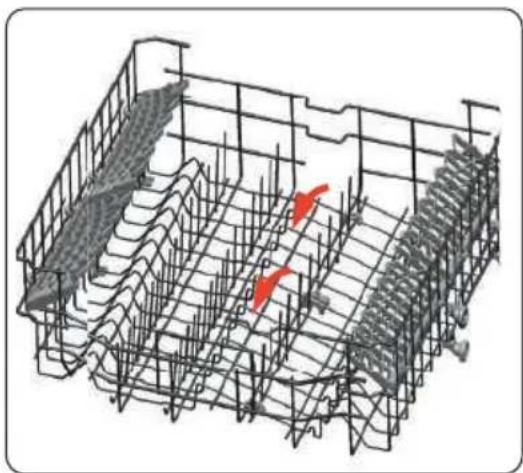

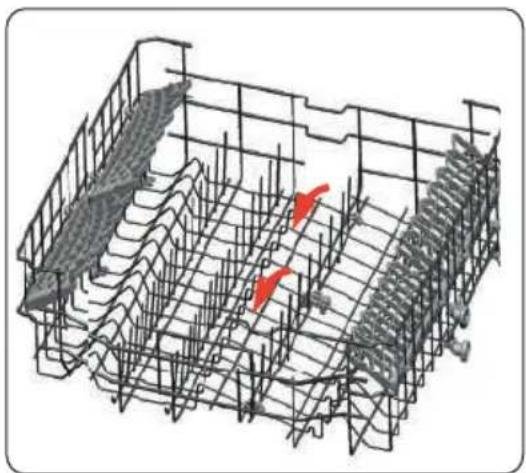

Regulacja wysokości

Illustration of a hand inserting a cable into a grid-like structure (no text or symbols)

3D wireframe model of a mechanical or structural component with no visible text or symbols

Diagram of a mechanical assembly with rotating wheels and a central component, showing directional arrows (no text or symbols)

Close-up of a mechanical device with multiple compartments filled with white cylindrical components, no visible text or symbols.

3D architectural rendering of a building complex with roof and structural elements (no visible text or symbols)

Interior view of a modern kitchen appliance with multiple circular fixtures and a rack (no visible text or symbols)

Interior view of a kitchen appliance with cooling rack, plastic cups, and storage unit (no visible text or symbols)

OSTRZEŻENIE

Two technical diagrams showing 3D views of mechanical components inside a wire cage (no text or symbols)

Diagram of electrical insulators and capacitors arranged in a grid layout (no text or labels)

3D technical diagram showing mechanical components and a grid structure with no visible text or symbols

3D structural diagram of a grid with embedded spheres and a black X mark, no text or symbols present

3D wireframe model of a mechanical or industrial component with blue and white surfaces, no visible text or symbols

ROZDZIAŁ 6. TABELA PROGRAMÓW

Diagram of a mechanical component with a central hub and internal structure, no visible text or symbols

Technical line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

POMPA ODPLYWOWA

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Caption Description
	Warning Serious injury or death risk
	Risk of electric shock Dangerous voltage risk
	Fire	Warning; Risk of fire / flammable materials
	Caution Injury or property damage risk
	Important/Note Operating the system correctly

CONTENTS

CHAPTER 1. Safety instructions ....36

General safety warnings....36

During usage....37

CHAPTER 2. Installation ....39

Machine positioning....39

Water connection....39

Water inlet hose 39

Drain hose (Model depending)....40

Electrical connection....41

CHAPTER 3. Technical specifications....42

General appearance....42

Technical specifications....42

Recycling....43

Packing and the environment 43

CHAPTER 4. Before using the appliance....44

Preparing your dishwasher for first use....44

Salt usage (if available) 44

Fill the salt (if available)....44

Test strip 45

Water hardness table....45

Water softener system....46

Setting....46

Detergent usage....46

Filling the detergent....46

Using combined detergents 47

Rinse-aid usage....47

Filling the rinse-aid and setting....47

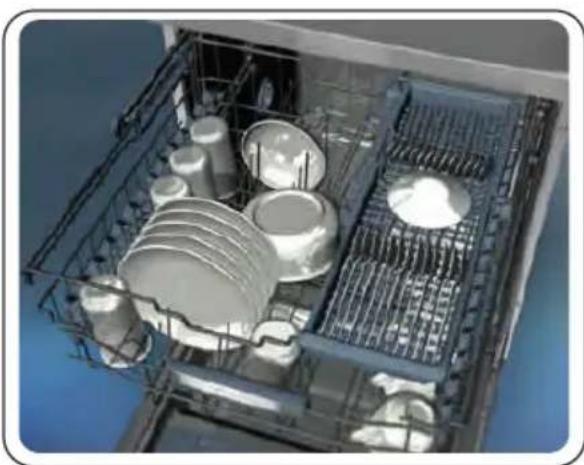

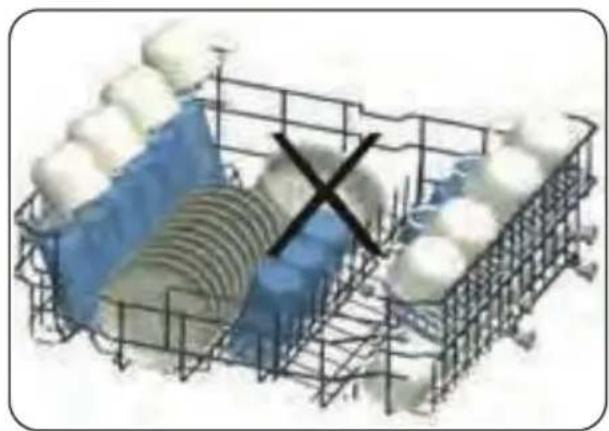

CHAPTER 5. Loading your dishwasher....48

Recommendations 48

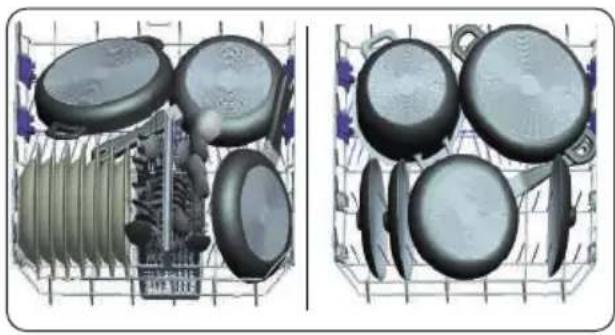

Alternative basket loads 51

CHAPTER 6. Programme table....52

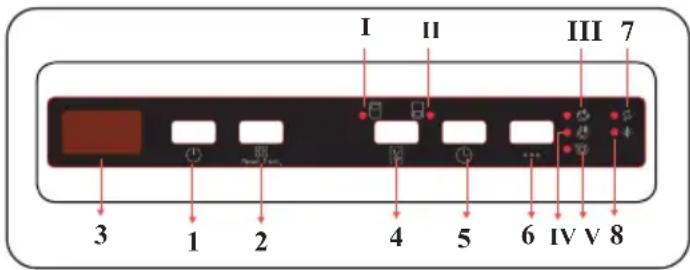

CHAPTER 7. The control panel....53

CHAPTER 8. Cleaning and maintenance ....57

Filters....57

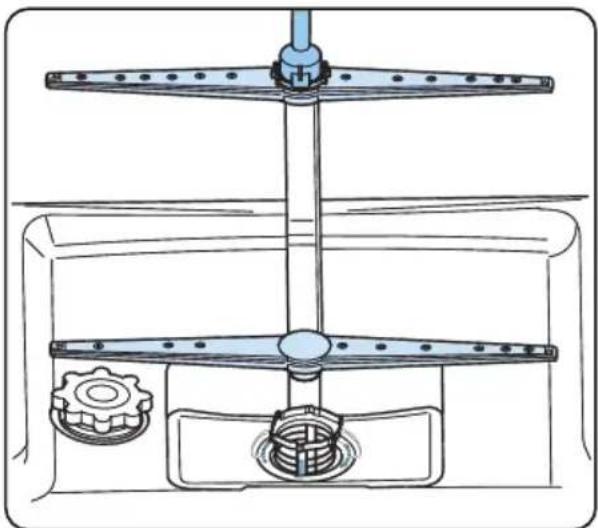

Spray Arms 58

Drain Pump....58

CHAPTER 9. Troubleshooting....59

Automatic fault warnings and what to do....61

CHAPTER 10. Disposal of used equipment....62

CHAPTER 1. SAFETY INSTRUCTIONS

GENERAL SAFETY WARNINGS

- Read these instructions carefully before using your appliance and keep this manual for future reference.

CAUTION

Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

CAUTION

This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved. Children should not be allowed to play with the appliance.

WARNING

Remove packaging and keep it out of reach of children.

CAUTION

Keep children away from detergents and rinse aids.

CAUTION

There may be some residue left in the machine after washing. Keep children away from the machine when it is open.

INSTALLATION WARNINGS

• Choose a suitable and safe place to install your machine.
• Only original spare parts should be used with the machine.

RISK OD ELECTRIC SHOCK / CAUTION

Unplug the machine before installation.

CAUTION

Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

CAUTION

Check that the indoor electrical fuse system is connected in line with safety regulations.

CAUTION

All electrical connections must match the values on the plate.

RISK OD ELECTRIC SHOCK / CAUTION

Ensure the machine does not stand on the electrical supply cable.

FIRE

Never use an extension cord or a multiple socket connection.

CAUTION

The plug should be accessible after the machine is installed.

• After installation, run your machine unloaded for the first time.

RISK OD ELECTRIC SHOCK / CAUTION

The machine must not be plugged in during positioning.

CAUTION

Always use the coated plug supplied with your machine.

RISK OD ELECTRIC SHOCK / CAUTION

If the electrical cable is damaged, it should only be replaced by a qualified electrician.

- Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

DURING USAGE

• This machine is for domestic use only; do not use it for other purposes. Commercial use will void the guarantee.

CAUTION

Do not stand, sit or place loads on the open door the dishwasher.

CAUTION

Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.

CAUTION

Do not drink water from the machine.

WARNING

Due to the danger of explosion, do not place any chemical dissolving agents into the machine's washing section.

- Check the heat-resistance of plastic items before washing them in the machine.

CAUTION

Only put items in the machine which are suitable for dishwashing, and take care not to overfill the baskets.

CAUTION

Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened.

CAUTION

The machine door should not be left open. It may cause accidents.

CAUTION

Place knives and other sharp objects in the cutlery basket in a blade-down position.

RISK OD ELECTRIC SHOCK / CAUTION

For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not attempt to close the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds.

CAUTION

In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.

RISK OD ELECTRIC SHOCK / CAUTION

Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap.

IMPORTANT

Operation at a low voltage will cause a decline in performance levels.

CAUTION

For safety, disconnect the plug once a program has finished.

RISK OD ELECTRIC SHOCK

To avoid an electric shock, do not unplug the machine with wet hands.

FIRE / CAUTION

Pull the plug to disconnect the machine from the mains, never pull on the cord.

CHAPTER 2. INSTALLATION

MACHINE POSITIONING

When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0^ C. Read all warnings located on the packaging before removing the packaging and positioning the machine. Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position. Do not hold the machine by its door or panel. Leave an adequate distance around the machine to allow ease of movement when cleaning.

RISK OD ELECTRIC SHOCK

Ensure the water inlet and outlet hoses are not squeezed or trapped and that the machine does not stand on the electrical cable while positioning. Adjust the feet so the machine is level and balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly.

CAUTION

Please install the decorative panel as indicated on the assembly sheet. Otherwise, the door may not open properly and steam leakage problem may occur.

WATER CONNECTION

We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing. Note printing on the water inlet hose! If models are marked with 25^ , the water temperature may be max. 25^ C (cold water).

For all other models: Cold water preferred; hot water max. temperature 60 °C.

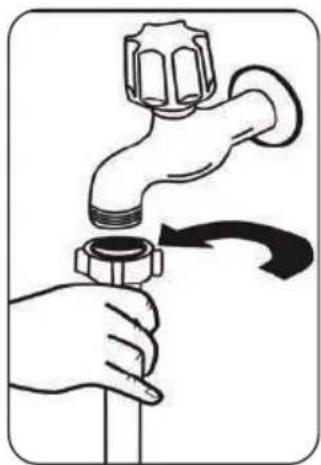

WATER INLET HOSE

Illustration of a hand holding a faucet with a valve, showing a right-hand rule for valve adjustment (no text or symbols)

WARNING

Use the new water inlet hose supplied with your machine, do not use an old machine's hose.

WARNING

Run water through the new hose before connecting.

WARNING

Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

WARNING

After the connections are made, turn the tap on fully and check for water leaks. Always turn off the water inlet tap after a wash program has finished.

Simple line drawing of a faucet with a valve and base, no text or symbols present

RISK OD ELECTRIC SHOCK

An Aquastop water spout is available with some models. Do not damage it or allow it to become kinked or twisted.

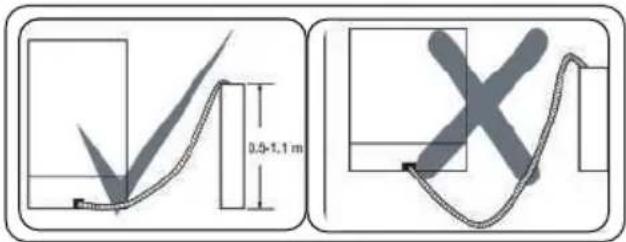

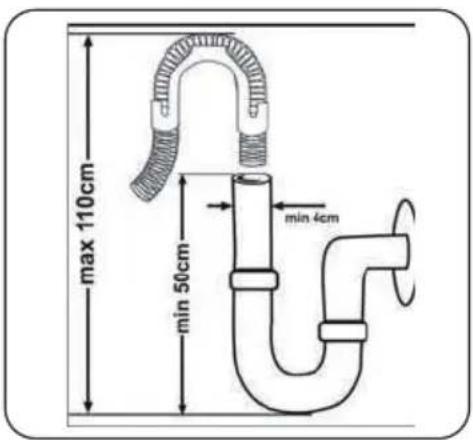

DRAIN HOSE (MODEL DEPENDING)

Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This connection should be minimum 50 cm and maximum 110 cm from floor that dishwasher is placed.

IMPORTANT

Items will not wash properly if a drain hose longer than 4 m is used.

ELECTRICAL CONNECTION

WARNING

Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110V, connect a transformer of 110/220 V and 3000 W between the electrical connection.

RISK OD ELECTRIC SHOCK / CAUTION

Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications" table".

RISK OD ELECTRIC SHOCK / CAUTION

The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.

RISK OD ELECTRIC SHOCK / CAUTION

In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

RISK OD ELECTRIC SHOCK / CAUTION

The plug on this appliance may incorporate 13A fuse depending on the target country. (For Example UK, Saudi Arabia).

CHAPTER 3. TECHNICAL SPECIFICATIONS

Close-up of a mechanical component with two circular components and a numbered arrow pointing to the number 12 (no text or symbols on the main subject)

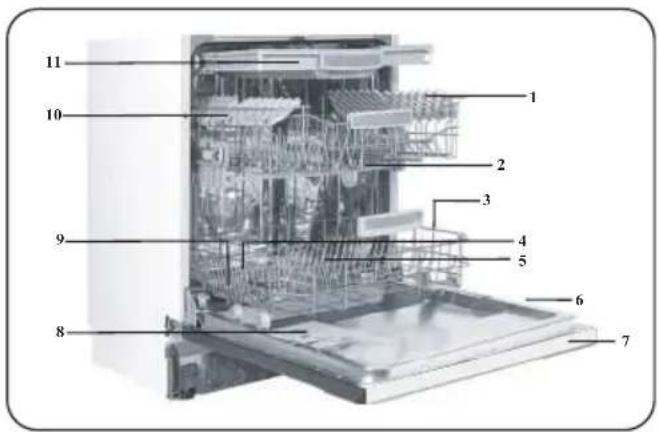

GENERAL SPPEARANCE

1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
7. Control panel
8. Detergent and rinse-aid dispenser
9. Salt dispenser
10. Upper basket track latch
11. Cutlery basket

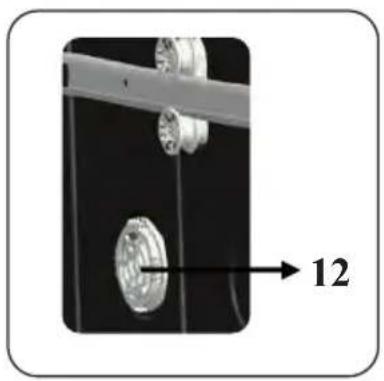

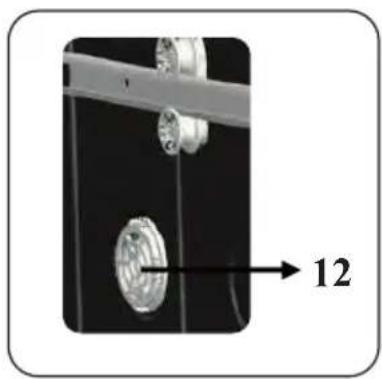

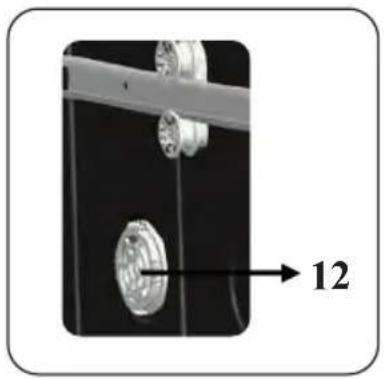

12. Turbo Drying Unit: This system enhances the drying performance of your dishes.

TECHNICAL SPECIFICATIONS

Capacity 15 place settings
DimensionsHeightWidthDepth	820-870(mm)598(mm)570(mm)
Net weight 39,6 kg
Operating voltage / frequency 220–240 V / 50 Hz
Total current 10 (A)
Total power 1900 (W)
Water supply pressure	Maximum:1 (Mpa)Minimum:0.03 (Mpa)

RECYCLING

• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations: (>PE<, >PP<, etc.)
• The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different materials.

PACKING AND THE ENVIRONMENT

- Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

CE Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of Your Old Machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where the product was purchased.

CHAPTER 4. BEFORE USING THE APPLIANCE

PREPARING YOUR DISHWASHER FOR FIRST USE

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
- Remove all packaging material inside the machine.
• Set the water softener level.
• Fill the rinse aid compartment

SALT USAGE (IF AVAILABLE)

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, White lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used. Machine can only be used by special dishwasher salt to soften the water. Do not use any small grained or powdered type of salts which can easily soluble. Using any other type of salt can damage your machine.

FILL THE SALT (IF AVAILABLE)

To add softener salt, open the salt compartment cap by turning it counter clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. If available, using a funnel (4) will make filling easier. Replace the cap and close it. After every 20-30 Cycles add salt into your machine until it fills up (approx. 1 kg).

Only add water to the salt compartment on first use.

Use softener salt specifically produced for use in dishwashers. When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine. If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.

TEST STRIP

Run water through the tap (1min.)	Keep the strip in the water (1sec)	Shake the strip	Wait (1min.)	Set the hardness level of your machine

NOTE

The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

WATER HARDNESS TABLE

Level German dH French dF British dE Indicator
1 0–5	0–9 0–6 L1 is shown	on the display.
2 6–11	10–20 7–14 L2 is shown on the display.
3 12–17	21–30 15–21 L3 is shown on the display.
4 18–22	31–40 22–28 L4 is shown on the display.
5 23–31	41–55 29–39 L5 is shown on the display.
6 32–50	56–90 40–63 L6 is shown on the display.

WATER SOFTENER SYSTEM

The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use a test strip (if available).

SETTING

In order to change the salt level, follow the below steps:

• Open the door of the machine.
• Turn on the machine, and press the Programme button as soon as the machine is turned on.
• Hold down the Programme button until "SL" disappears.
  • The machine will display the last setting.
• Set the level by pressing the Programme button.
• Turn off the machine to save the setting.

DETERGENT USAGE

Only use detergents specifically designed for domestic dishwashers. Keep your detergents in cool, dry places out of reach of children. Add the proper detergent for the selected program to ensure the best performance. The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

Do not fill detergent into the detergent compartment more than required; otherwise you can see whitish streaks or bluish layers on glass and dishes and may cause glass corrosion. Continued use of too much detergent may cause machine damage. Using little detergent can result in poor cleaning and you can see whitish streaksin hard water. See the detergent manufacturer's instructions for a further information.

FILLING THE DETERGENT

Push the latch to open the dispenser and pour in the detergent. Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.

USING COMBINED DETERGENTS

These products should be used according to the manufacturer's instructions. Never put combined detergents into the interior section or the cutlery basket. Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination. We recommend you do not use combined detergents in short programmes. Please use powder detergents in such programmes. If you encounter problems when using combined detergents, please contact the detergent manufacturer. When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to the correct level.

RINSE-AID USAGE

The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for stain-free utensils and clear glasses. The rinse aid is automatically released during the hot rinse phase. If rinse aid dosage setting set too low, whitish stains remains on dishes and dishes do not dry and washed clean. If rinse aid dosage setting set too height, you can see bluish layers on glass and dishes.

FILLING THE RINSE-AID AND SETTING

To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps before turning on the machine:

• Open the door of the machine.
• Turn on the machine, and press the Programme button as soon as the machine is turned on.
• Hold down the Programme button until “rA” disappears. Rinse aid setting follows water hardness setting.
• The machine will display the last setting.
• Change the level by pressing the Programme button.
• Turn off the machine to save the setting.

The factory setting is "4".

If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

Illustration of a hand using a tool to press or adjust a device (no text or symbols visible)

Line drawing of a hand inserting a small component into a device (no text or symbols)

Level Brightener Dose Indicator
1 Rinse-aid not dispensed	r1 is shown on the display.
2 1 dose is dispensed	r2 is shown on the display.
3 2 doses are dispensed	r3 is shown on the display.
4 3 doses are dispensed	r4 is shown on the display.
5 4 doses are dispensed	r5 is shown on the display.

CHAPTER 5. LOADING YOUR DISHWASHER

For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended You can place cups, glasses, stemware, small plates, bowls, etc. in upper basket. Do not lean long glasses against one another or they cannot remain steady and may receive damage. When placing long stem glasses and goblets, lean them against the basket edge or rack and not against other items. Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards otherwise water can collect on items.

If there is cutlery basket in machine, you are recommended to use the cutlery grid in order to obtain the best result. Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack. Dishes and cutlery should not be placed above each other.

WARNING

Take care not to obstruct the rotation of spray arms.

WARNING

Make sure after loading the dishes do not prevent opening the detergent dispenser.

RECOMMENDATIONS

Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.

IMPORTANT

Do not overload the drawers or place dishes in the wrong basket.

WARNING

To avoid any possible injuries, place long-handle and sharppointed knives with their sharp points facing down or horizontally on the baskets.

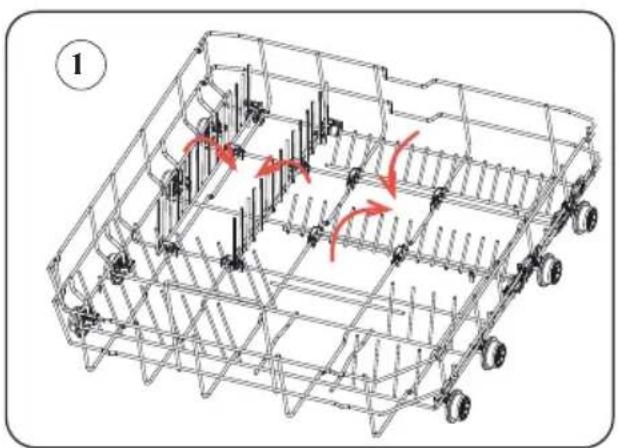

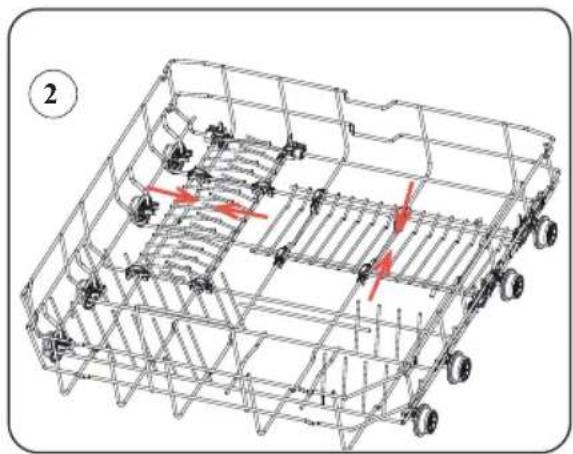

Four Folding Racks

The folding racks allow easier placement of larger items, such as pots and pans. Each section can be folded separately. The racks can be raised up, or folded down, as shown in the images.

Technical line drawing of a modular vehicle chassis with wheels and structural elements, no text or symbols present

Technical line drawing of a mechanical chassis frame with no visible text or symbols

Upper Basket

Height Adjustment

Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in the image below), then pull out and remove the basket. Change the position of the wheels, then reinstall the basket to the rail, making sure to close the Rail Stop Clips. When the upper basket is in the higher position, large items such as pans can be placed on the lower basket.

Illustration of a hand using a cable to install a mechanical component (no text or symbols visible)

3D wireframe model of a structural grid with red directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with rotating wheels and a central component, showing directional arrows (no text or symbols)

Height Adjustable Rack (peg type)

The foldable racks in the upper basket enable the placement of large items such as pots and pans. Each section can be folded separately. The foldable racks can be either raised up or folded down.

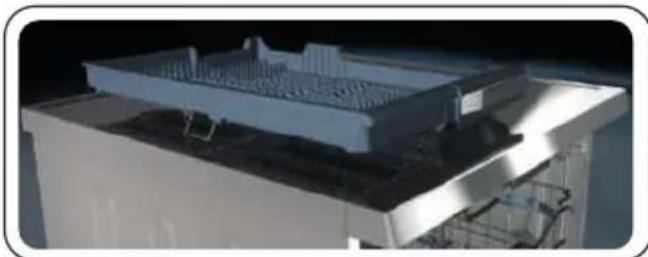

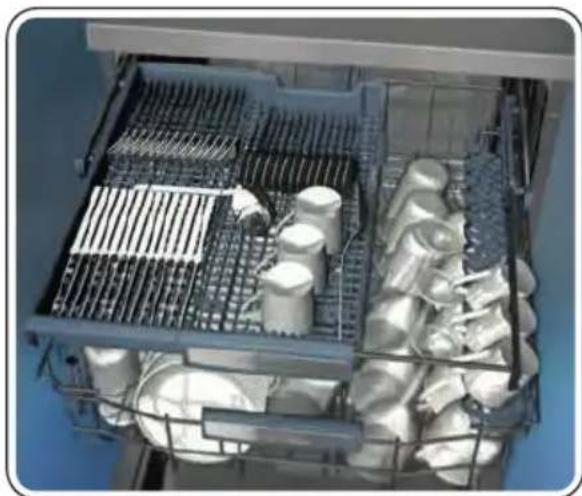

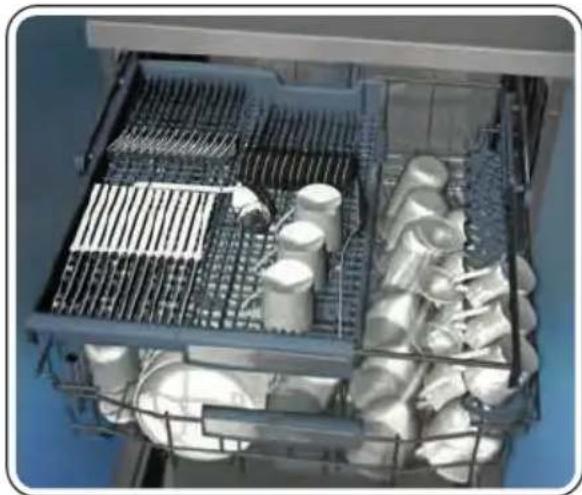

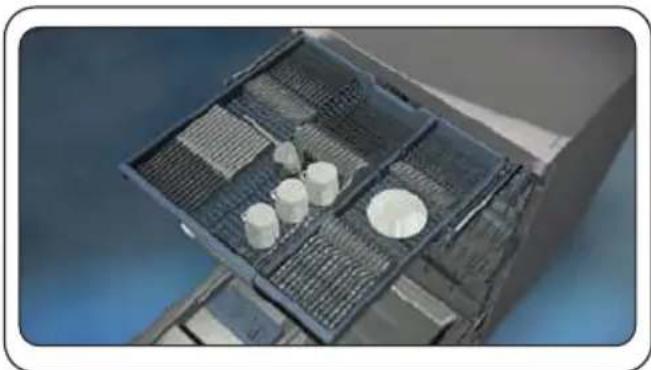

Upper Cutlery Basket

The upper cutlery basket is designed for the placement of large and small cutlery and utensils.

Stacked industrial storage bins with white cylindrical components, no visible text or symbols

The basket is easily removed from the dishwasher, therefore allows ease of use when removing your items, along with the basket, after washing.

3D architectural rendering of a modern building with a grid structure and roof (no visible text or symbols)

The upper cutlery basket is composed of two pieces that can be separately removed. Remove the left or right section of the cutlery basket in order to obtain more space for items in the upper basket.

Interior view of a modern kitchen appliance with multiple circular fixtures and a rack (no visible text or symbols)

Interior view of a kitchen appliance with cooling rack, plastic cups, and storage tanks (no visible text or symbols)

WARNING

Knives and other sharp objects must be placed horizontally in the cutlery basket.

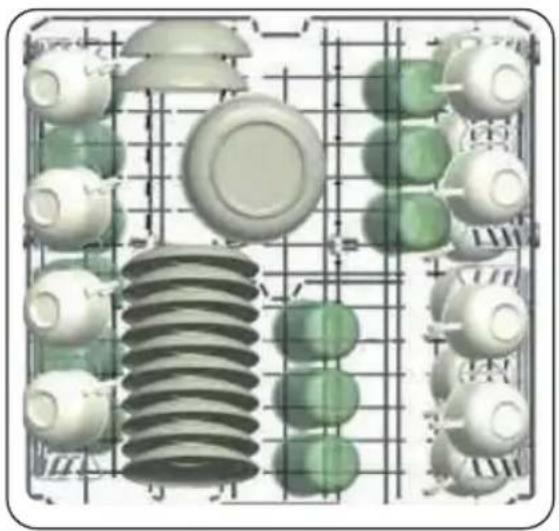

ALTERNATIVE BASKET LOADS

Lower Basket Top Basket

Two 3D-rendered kitchenware models in a grid, one with a coiled bed and the other with multiple pots (no text or symbols visible)

Diagram of industrial equipment components arranged in a grid, including insulators and gauges (no text or labels)

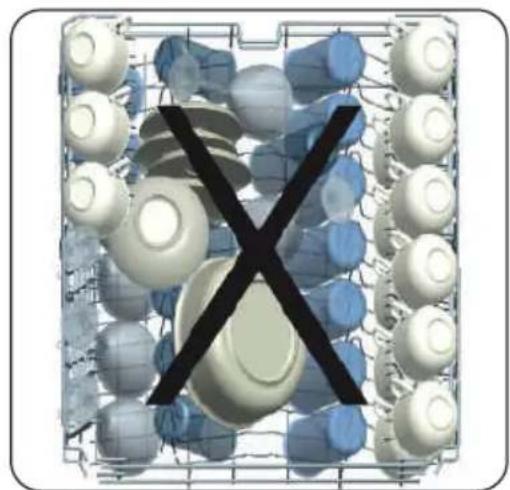

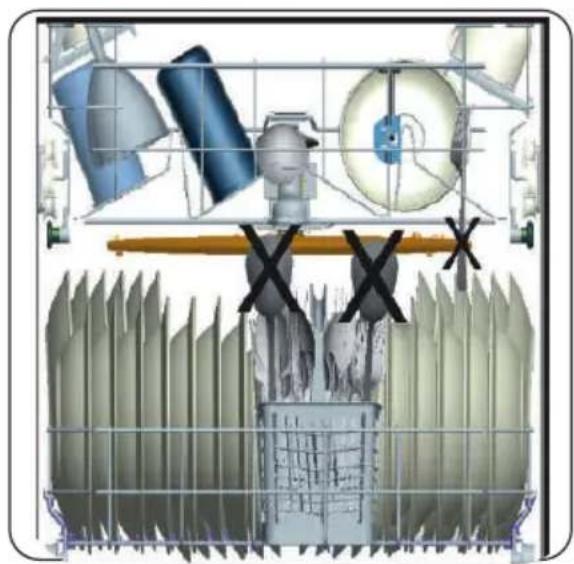

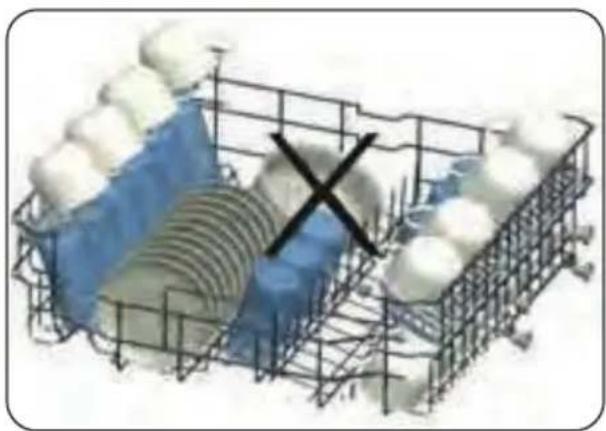

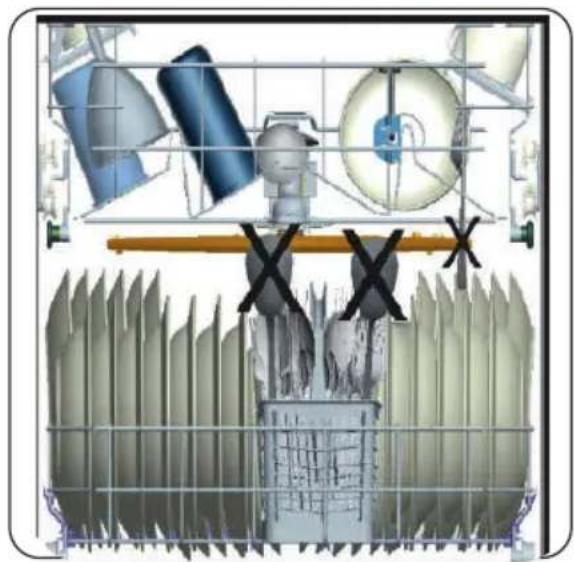

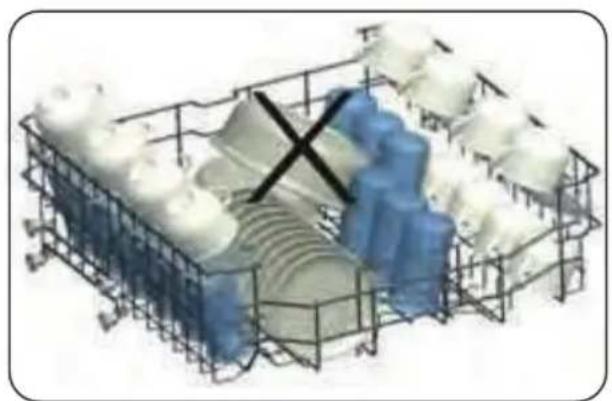

Incorrect Loads

Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result.

3D rendered image of a grid with blue and white spherical objects, overlaid with a black 'X' symbol (no text or labels)

3D structural diagram of a grid with embedded spheres and a central X mark (no text or symbols)

Diagram of industrial equipment components including rollers, flasks, and a conveyor system (no text or labels)

3D wireframe model of a mechanical assembly with blue and white components, no visible text or symbols

CHAPTER 6. PROGRAMME TABLE

	P1 P2 P3	P4 P5 P6 P7
Program Name:	Eko	Smart 60°C - 70°C Z	Steam Wash Hygiene 70°C Super 50'			Dual Pro Wash 60°C	Quick 30'
Type of Soil:	Standard program for normally soiled dialy using dishes with reduced energy and water consumptions.	Auto program for heavily soiled dishes.	Suitable for heavily soiled dishes with effective cleaning by steam	Suitable for heavily soiled dishes requiring hygienic washing	Suitable for normally soiled daily dishes with faster program	Suitable for both lightly soiled delicate glassware on upper rack and heavily soiled crockery on lower rack	Suitable for lightly soiled dishes and quick wash.
Level of Soil:	Medium Heavy Heavy Heavy Medium Heavy			Light
Amount of Detergent A: 25 cm3 B: 15 cm3	A	A	A	A	A	A	A
Program Duration (h:min)	04:14	01:49 - 02:59	02:41	02:07	00:50	01:53	00:30
Electricity consumption (kWh/cycle)	0.861	1.250 - 1.900	1.750	1.700	1.000	1.600	0.650
Water consumption (l/cycle)	9.0	11.8 - 24.0	20.3	16.0	9.5	15.4	10.9

• The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions.
  • Values given for programmes other than the eco programme are indicative only.
• Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used

to assess compliance with the EU ecodesign legislation.

• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
• Only use powder detergent for short programs.
• Short programs do not include drying.
• To assist drying, we recommend slightly opening the door after a cycle is complete.
• You can access the product database where the model information is stored by reading the QR code on the energy label.

NOTE

According to regulations 1016/2010 and 1059/2010, Eco program energy consumption values may differ. This table is in line with regulations 2019/2022 and 2017/2022.

CHAPTER 7. THE CONTROL PANEL

1. On/Off button
2. Programme button
3. Display
4. Half Load button
   I. Upper Basket - Half Load led
   II. Lower Basket - Half Load led
5. Delay button
6. Options button
7. On/Off Button

III. Extra Silent led

IV. Extra Dry led

V. Extra Fast led

1. Salt lack warning indicator

2. Rinse Aid lack warning indicator

Turn the machine on by pressing On/Off button. When machine is on, „--” will be shown on the Display (3).

1. Programme Button

Select a suitable programme for your dishes by pressing Programme button. The programme will start automatically when the door is closed.

1. Display

The Display shows the number and duration of the selected programme alternately and the remaining time during operation.

1. Half Load Button

Press the Half Load button to select the area of the dishwasher that contains the dishes to be washed. You can select both baskets, the upper basket only, or the lower basket only. Press the button until the led (I,II) corresponding to the basket containing the dishes to be washed illuminates. Dishes in other areas will not be washed.

5. Delay Button

Press the Delay Start button to delay the start time of a programme for 1 hour up to 19 hours. Pressing once will delay the start time for 1 hour, and continuing to press the button will increase the delay duration. Press the Delay button to change or cancel the delayed start. If you turn off the machine after activating the delay time, the delayed time is cancelled.

6. Options Button

Press the Options button once to activate the Extra Silent option. Select Extra Silent option to decrease the water pressure, therefore providing a more sensitive and silent wash. This option can only be selected at the beginning of a programme. Extra Silent led (III) will illuminate.

Press the Options button twice to activate the Extra Dry option. Select Extra Dry option to add extra drying steps to a programme in order to obtain drier dishes. This option increases water temperature of the final rinse step and duration of the drying step. Extra Dry led (IV) will illuminate.

Press the Options button three times to activate the Extra Fast option. Select the Extra Fast option to reduce the programme duration. The washing water temperature and pressure will increase to ensure an improved washing quality in a shorter duration. This option can only be selected at the beginning of a programme.

Extra Fast led (V) will illuminate

NOTE

If an extra feature has been used on the most recent wash programme, this feature will remain active on the next selected programme. To cancel this feature on the newly selected wash programme, press the feature button until the light on the button switches off.

7. Salt Lack Warning Indicator

When there is insufficient softening salt, the Salt Lack Warning Indicator will illuminate to indicate the salt chamber needs filling.

8. Rinse Aid Lack Warning Indicator

When there is insufficient rinse aid, the Rinse Aid Lack Warning Indicator will illuminate to indicate the rinse aid chamber needs filling.

NOTE

If you decide not to start the selected programme, please see the “Changing a Programme” and “Cancelling a Programme” sections.

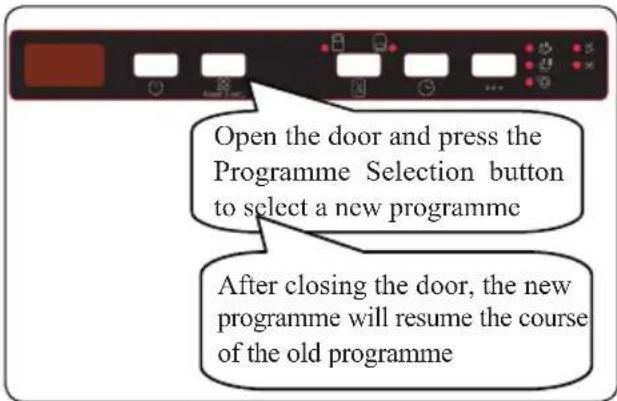

Changing a Programme

Follow the steps below to change a programme while in operation.

NOTE

Open the door slightly at first to stop a programme before it is complete in order to avoid water spillage.

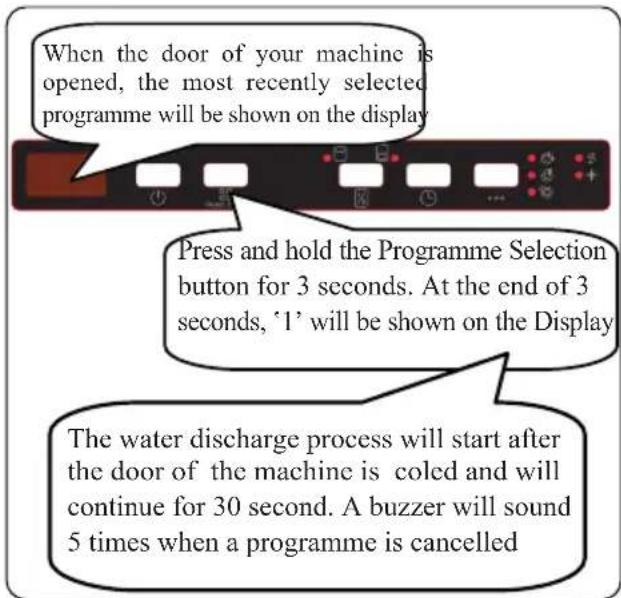

Cancelling a Programme

Follow the steps below to cancel a programme while in operation.

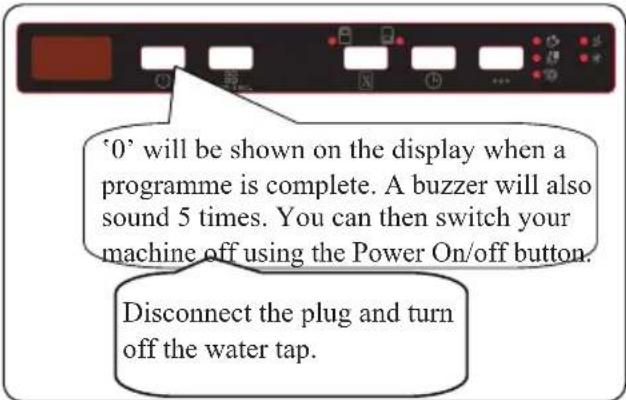

Switching the Machine Off

NOTE

Do not open the door before a programme is complete.

NOTE

Leave the door slightly open at the end of a wash programme to speed up drying.

NOTE

If the door of the machine is opened or the power is cut during operation, the program will continue when the door is closed or the power returns.

Buzzer Sound Control

To change the buzzer sound level, follow the below steps:

1. Open the door and press Delay (5) And Options (6) buttons simultaneously for 3 seconds.
2. When sound setting is recognized, buzzer gives a long sound and machine will display last set level, from "S0" to "S3".
3. To decrease sound level press Delay button (5). To increase sound level, press Options button (6).
4. To save the selected sound level, turn off the machine.

"S0" level means all voices are off. Factory setting is "S3".

Save Power Mode

To activate or deactivate Save Power Mode, follow the below steps:

1. Open the door and press Half Load (4) and Delay (5) buttons simultaneously for 3 seconds.
2. After 3 seconds, the machine will display last Setting, "IL1" or "IL0".
3. When Save Power Mode is activated, "IL1" will be displayed. On this mode, interior lights will turn off 4 minutes after the door is opened, and the machine will turn off after 15 minutes of no activity in order to save energy.
4. When Save Power Mode is deactivated "IL0" will be displayed. If Save Power Mode is deactive, interior lights will be on as long as the door is open, and the machine will always be on unless it is turned off by user.
5. To save the selected setting, turn off the machine

In factory setting, Save Power Mode is active.

Natural Ion Tech (Model Depending)

This function provides extra hygiene to the machine thanks to Ion Technology. Natural Ion Tech function is activated by pressing Half Load (4) button for 3 seconds. At the end of 3 seconds, “Ion” will be displayed which indicates Ionizer function is activated. The button is released after “Ion” is displayed. If no intervention by user, 24 hour after activation of Ionizer function, it is automatically cancelled.

NOTE

If machine is turned off, Ionizer function is cancelled.

NOTE

Natural Ion Tech function does not work with any program.

Crystalight (model depending)

This technology which have Ion and Light Technology together, provides to extra hygiene. It prevents bad odor during a washing program that includes a drying step.

Crystalight function is activated or deactivated by pressing Half Load (4) button for 6 seconds. At the end of 6 seconds, "UV1" will be displayed which indicates Crystalight function is activated. When it is deactivated, at the end of 6 seconds, "UV0" will be displayed.

Crystalight setting follows Natural Ion Tech setting.

Default set is "UO".

NOTE

If user do not deactivate Crystalight function at the end of program, it will remain active until the machine turns off.

NOTE

If Crystalight or Ionizer function is active, ionizer led lights up like dimming during door is open.

Infoled 2.1 (Model Dependent)

LED Indicator State of the Machine
Red, continuous The machine is running a program
Red, flashing A program is cancelled
Red, flashing rapidly	The machine has a fault. Refer to section „Automatic fault warnings and what to do”.
Green, continuous A program is finished.

CHAPTER 8. CLEANING AND MAINTENANCE

Cleaning your dishwasher is important to maintain the machine's service life. Make sure that the water softening setting (If available) is done correctly and correct amount of detergent is used to prevent limescale accumulation. Refill the salt compartment when the salt sensor light comes on. Oil and limescale may build up in your Dishwasher over time. If this occurs:

• Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.
  • To extend the life of your dishwasher, clean the appliance regularly on each month
• Wipe the door seals regularly with a damp cloth to remove any accumulated residue or foreign objects.

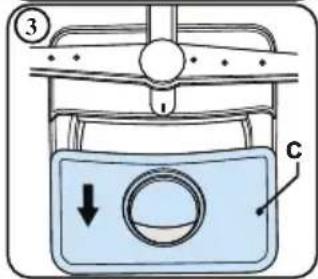

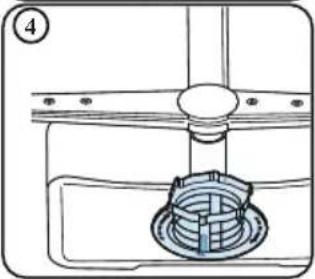

FILTERS

Clean the filters and spray arms at least once a week. If any food waste remains or foreign objects on the coarse and fine filters, remove them and clean them thoroughly with water.

a) Micro Filter
b) Coarse Filter
c) Metal Filter

Diagram of a mechanical assembly with a central component and a curved housing (no text or symbols)

Technical line drawing of a mechanical component with a central hub and base plate (no text or symbols)

To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1). Pull the coarse filter out of the micro filter (2). Then pull and remove the metal filter (3). Rinse the filter with lots of water until it is free of residue. Reassemble the filters. Replace the filter insert, and rotate it clockwise (4).

• Never use your dishwasher without a filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are necessary for proper running of the machine.

SPRAY ARMS

Make sure that the spray holes are not clogged and that no food waste or foreign object is stuck to the spray arms. If there is any clogging, remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

DRAIN PUMP

Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

WARNING

Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

In this case:

1. First always disconnect the appliance from the power supply.
2. Take out baskets.
3. Remove the filters.
4. Scoop out water, use a sponge if required.
5. Check the area and remove any foreign objects.
6. Install filters.
7. Re-insert baskets.

CHAPTER 9. TROUBLESHOOTING

FAULT POSSIBLE	CAUSE TROUBLESHOOTING
The programme does not start	Your Dishwasher is not plugged in	Plug your Dishwasher in
	Your Dishwasher is not switched on	Switch your Dishwasher on by pressing the On/Off button
	Fuse blown Check your indoor fuses
	Water inlet tap is closed Turn	on the water inlet tap
	Your Dishwasher door is open Close the Dishwasher door
	Water inlet hose and machine filters are clogged	Check the water inlet hose and machine filters and make sure they are not clogged
Water remains inside the machine	Water drain hose is clogged or twisted	Check the drain hose, then either clean or untwist it
	The filters are clogged Clean the filters
	The programme is not finished yet	Wait until the programme is finished
Machine stops during washing	Power failure Check mains power
	Water inlet failure Check water tap
Shaking and hitting noises are heard during a wash operation	The spray arm is hitting the dishes in the lower basket	Move or remove items blocking the spray arm
Partial food wastes remain on the dishes	Dishes placed incorrectly, sprayed water not reaching affected dishes	Do not overload baskets
	Dishes leaning each another	Place dishes as instructed in the section on loading your dishwasher
	Not enough detergent used	Use the correct amount of detergent, as instructed in the programme table
	Wrong wash programme selected	Use the information in the programme table to select the most appropriate programme
	Spray arms clogged with food waste	Clean the holes in the spray arms with thin objects
	Filters or water drain pump clogged or filter misplaced	Check the drain hose and filters are correctly fitted
Whitish stains remains on dishes	Not enough detergent used	Use the correct amount of detergent, as instructed in the programme table
	Rinse aid dosage and/or water softener setting set too low	Increase rinse aid and/or water softener level
	High water hardness level	Increase water softerner level and add salt
	Salt compartment cap not closed properly	Check that the salt compartment cap is closed properly
Dishes do not dry	Drying option is not selected	Select a programme with a drying option
	Rinse aid dosage set too low Increase rinse aid dosage setting
Rust stains form on the dishes	Stainless-steel quality of the dishes is insufficient	Use only dishwasher-proof sets
	High level of salt in wash water	Adjust the water hardness level using water hardness table
	Salt compartment cap not closed properly	Check that the salt compartment cap is closed properly
	Too much salt spilled in the Dishwasher while filling it with salt	Use funnel while filling salt to the compartment to avoid spillage
	A poor mains grounding	Consult a qualified electrician immediately
Detergent remains in the detergent compartment	Detergent was added when the detergent compartment was wet	Make sure detergent compartment is dry before use

AUTOMATIC FAULT WARNINGS AND WHAT TO DO

TROUBLE CODE	POSSIBLE FAULT POSSIBLE FAULT
FF	Water inlet system failure.	Make sure the water inlet tap is open and water is flowing.
		Separate the inlet hose from the tap and clean the filter of the hose.
		Contact for service if the error continues.
F5 Pressure system failure. Contact for service.
F3 Continuous water input Close the tap and contact for service.
F2 Inability to discharge water.		Water discharge hose and filters may be clogged.
		Cancel the program.
		If the error continues, contact for service.
F8 Heater error. Contact for service.
F1 Overflow.		Unplug the machine and close the tap.
		Contact for service.
FE Faulty electronic card Contact for service.
F7 Overheating. Contact for service.
F9 Divisor position error. Contact for service.
F6	Faulty heater sensor.	Contact for service.
HI	High voltage failure.	Contact for service.
LO	Low voltage failure.	Contact for service.

The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used.

Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.

Contact information for your customer service can be found on the back of this document. Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

CHAPTER 10. DISPOSAL OF USED EQUIPMENT

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. a crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials. Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device. Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

Fig. A

Fig. B

KERNAU

NÁVOD K POUŽITÍ

MYČKA

KDI 6754

Illustration of a hand holding a faucet with a valve, showing a right-hand rule for lifting or adjusting the valve (no text or symbols present)

VAROVÁNÍ

Simple line drawing of a faucet with a valve and a valve labeled 'L7' (no text or symbols beyond basic diagram)

NEBEZPEČÍ ZASAŽENÍ ELEKTRICKÝM PROUDEM

Close-up of mechanical components with a numbered arrow pointing to a circular component (no text or symbols visible)

OBECNÝ VZHLED

POUŽITÍ KOMBINOVANÝCH MYCÍCH PROSTŘEDKŮ

Illustration of a hand using a tool to press or adjust a device from a flat panel (no text or symbols present)

Line drawing of a hand inserting a lock into a device (no text or symbols)

Technical line drawing of a modular vehicle chassis with wheels and structural supports (no text or symbols)

Technical line drawing of a multi-wheeled vehicle chassis with visible structural components and red directional arrows indicating motion or force (no text or symbols)

Illustration of a hand holding a mechanical component with internal wiring (no text or symbols)

3D wireframe model of a mechanical or structural component with no visible text or symbols

Diagram of a mechanical assembly with wheels and a conveyor belt, showing directional arrows (no text or symbols)

Close-up of a black plastic tray with white circular cutouts, placed on a blue surface (no text or symbols visible)

3D cutaway view of a building interior with structural elements (no visible text or symbols)

Interior view of a kitchen appliance with multiple circular compartments and a rack (no visible text or symbols)

Interior view of a kitchen appliance with stainless steel grilles and storage tanks (no visible text or labels)

VAROVÁNÍ

Two 3D-rendered kitchen utensils in a grid, one with cooling fan and others with cooking panes (no text or symbols)

Diagram of industrial equipment components arranged in a grid, including insulators and housing (no text or labels)

Nesprávné plnění

3D rendered diagram of a grid with blue and white spherical objects and a black 'X' symbol overlay (no text or labels)

3D structural diagram of a grid with embedded components and a black X mark, no visible text or symbols

Technical diagram of a mechanical assembly with components and grid lines (no readable text or symbols)

3D wireframe model of a mechanical assembly with blue and white components, no visible text or symbols

KAPITOLA 6. TABULKA PROGRAMÜ

Diagram of a mechanical component with a circular housing and a rotating arrow, no text or symbols present

Technical line drawing of a mechanical component with a central hub and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

VYPOUŠTĚCÍ ČERPADLO

Illustration of a hand holding a faucet with a valve, showing fluid flow direction (no text or symbols)

УВАГА

Simple line drawing of a faucet with a valve and base, no text or symbols present

Close-up of a mechanical component with two circular features and a numbered arrow pointing to the number 12 (no text or symbols on the main subject)

ЗАГАЛЬНИЙ ВИГЛЯД

Illustration of a hand using a tool to press or install a device into a rectangular box (no text or symbols visible)

Line drawing of a hand inserting a lock into a device (no text or symbols)

Technical line drawing of a modular vehicle chassis with wheels and structural supports (no text or symbols)

Technical line drawing of a multi-wheeled vehicle chassis with visible structural components and red directional arrows indicating motion or force (no text or symbols)

Верхній кошик

Регулювання висоти

Illustration of a hand holding a mechanical component with internal wiring (no text or symbols)

3D wireframe model of a mechanical or structural component with no visible text or symbols

Diagram of a mechanical assembly with wheels and a conveyor belt, showing directional arrows (no text or symbols)

Close-up of a mechanical device with multiple compartments filled with white cylindrical components, no visible text or symbols.

3D rendering of a mechanical assembly with layered components and mounting base (no visible text or symbols)

Interior view of a kitchen appliance with multiple plates and metal grilles (no visible text or symbols)

Interior view of a kitchen appliance with metal grilles and cylindrical containers (no visible text or symbols)

УВАГА

Two 3D-rendered kitchenware models in a grid, one with a coiled bed and the other with multiple pots (no text or symbols visible)

Diagram of electrical insulator components arranged in a grid layout (no text or labels)

3D rendered image of a grid with blue and white spherical objects, overlaid with a black 'X' symbol (no text or labels)

3D structural diagram of a grid with embedded spheres and a central X mark (no text or symbols)

Diagram of industrial equipment components including rollers, flasks, and a cage with no visible text or symbols

3D wireframe model of a mechanical assembly with blue and white components, no visible text or symbols

РОЗДІЛ 6. ТАБЛИЦЯ ВИБОРУ ПРОГРАМ

Diagram of a mechanical component with a central hub and internal structure, no visible text or symbols

Technical diagram of a mechanical component with a central hub and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)
