Product Type	Computer Power Supply Unit
Model	ZM1200-EBT
Brand	Zalman
Dimensions (W x D x H)	150 x 180 x 86 mm
Weight	3.7 kg
AC Input Voltage	100-240 VAC ±10%
AC Input Frequency	50-60 Hz ±3%
AC Input Current	15 A (100 VAC)
Total Power Output	1200 W
+3.3V Output	25 A, 130 W combined
+5V Output	25 A, 130 W combined
+12V Output	100 A, 1200 W
-12V Output	0.3 A, 3.6 W
+5VSB Output	4 A, 20 W
Efficiency (Typical)	92% @ 230 VAC
PFC Type	Active PFC (up to 99%)
Protection Features	OCP, OVP, UVP, SCP, OPP, OTP
Operating Temperature	0 to +50 °C
Storage Temperature	-20 to +70 °C
Operating Humidity	5% to 95% RH
Connectors Included	Mainboard (24-pin), CPU (2x 4+4-pin), PCIe (8x 6+2-pin), SATA (3x), ODD (8x), FDD (1x)
Accessories	Screws (4), Cable ties (5), AC power cord, User manual
Certifications	FCC, CE, EAC, RoHS

Frequently Asked Questions - Watttera ZM1200-EBT ZALMAN

What is the maximum power output of the Zalman Watttera ZM1200-EBT?

The ZM1200-EBT provides a total continuous power output of 1200 W, with up to 100 A on the +12V rail.

Is the ZM1200-EBT compatible with the latest ATX standards?

Yes, it complies with ATX12V 2.3 and EPS12V standards, and includes a 24-pin mainboard connector and dual 4+4-pin CPU power connectors.

What protection features does this power supply have?

It includes Over-Current Protection (OCP), Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), Short-Circuit Protection (SCP), Over-Power Protection (OPP), and Over-Temperature Protection (OTP).

What is the efficiency rating of the ZM1200-EBT?

It achieves up to 92% efficiency at typical load (50%) under 230 VAC, making it compatible with 80 PLUS Gold standards.

Can I replace the modular cables?

Yes, the ZM1200-EBT is fully modular, allowing you to connect only the cables you need for cleaner cable management.

How do I clean or maintain the power supply?

Unplug the power cord and use compressed air to blow out dust from the fan and vents. Do not open the casing or use liquids.

What are the dimensions of the ZM1200-EBT?

The physical dimensions are 180 mm depth, 150 mm width, and 86 mm height (standard ATX size).

Does it support multiple graphics cards?

Yes, it includes 8 PCIe 6+2-pin connectors, supporting multi-GPU configurations like SLI or CrossFire.

Is it safe to use in humid environments?

The power supply is rated for operation at 5% to 95% relative humidity (non-condensing), but avoid direct exposure to moisture.

What warranty does Zalman offer for this product?

Zalman typically offers a 10-year warranty on the Watttera series, but check your local retailer for specific terms.

User questions about Watttera ZM1200-EBT ZALMAN

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Adaptateur pour ordinateur in PDF format for free! Find your manual Watttera ZM1200-EBT - ZALMAN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Watttera ZM1200-EBT by ZALMAN.

USER MANUAL Watttera ZM1200-EBT ZALMAN

High Efficiency Switching Power Supply

※ To ensure safe and easy installation, Please read the following precautions.

www.ZALMAN.com

1. Warnings and Safety Precautions

ZALMAN Watttera ZM1200-EBT - Warnings and Safety Precautions - 1

Warning

Neglecting the following may cause serious injury or death.

Opening the cover of the product while the power cord is plugged into an outlet may cause electrocution or critical damage to the product.
Handling the power cord with wet hands may cause electrocution.
Inserting fingers or metallic objects into the cooling fan may cause injury or electrocution.

ZALMAN Watttera ZM1200-EBT - Warning - 1

Caution

Neglecting the following may cause minor injuries, degrade product conditions or cause malfunction.

▶ Operating the product in an extremely cold or hot environment can degrade product performance and lifespan.
- Exposure to liquids may cause malfunction.
▶ Operation in a humid or non-ventilated environment may reduce product lifespan.
▶ Plugging the main power connector P1 into the motherboard while the product is connected to the AC power source may cause damage to the motherboard.
▶ Make sure that the connectors are connected to their designated locations, and that the connectors are not oriented in the wrong direction when connecting the DC output connectors.
▶ Please use gloves to prevent injuries during installation.
▶ Product designs and specifications may be revised without prior notification to improve quality and performance.

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.

2. Components

ZALMAN Watttera ZM1200-EBT - Components - 1
Power Supply

ZALMAN Watttera ZM1200-EBT - Components - 2
Four Screws

ZALMAN Watttera ZM1200-EBT - Components - 3

Five Cable Ties

ZALMAN Watttera ZM1200-EBT - Components - 4
AC Power Cord

ZALMAN Watttera ZM1200-EBT - Components - 5
User's Manual

3. Specifications

1) ZM650-EBT Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC ±10%			Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz ±3 l				I_max	I_peak
AC Input Current	100VAC	10A		+3.3V 0.0A 22A				120W	650W
	240VAC +5V 0.0A 22A
PFC Type Active	PFC +12V 0.0A 54.2A 650W
Power Factor Correction	Max 99% -12V 0.0A 0.3A 3.6W
Inrush Current Limit(@ Cold Start at 25°C)	100VAC	Max 150A		+5VSB	0.0A	3A		15W
	240VAC			Ambient Temperature
Efficiency	Max 92% @ 230VAC, Typical load			Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 95% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.0V		Dimensions		160(D) x 150(W) x 86(H)mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		2.4kg
DC Output Ripple & Noise	Vout Standard Range			At Full Load	Protection Funtions
	+3.3VDC	50mV			Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC	120mV			Under-Voltage Protection (UVP)
	-12VDC	120mV			Short-Circuit Protection (SCP)
	+5VSB	50mV			Over-Power Protection (OPP)
					Over-Temperature Protection (OTP)

2) ZM750-EBT Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC ±10%				Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz ±3 l					min	hax	beak
AC Input Current	100VAC	10A			+3.3V 0.0A 22A				120W	750W
	240VAC +5V 0.0A 22A
PFC Type Active	PFC +12V 0.0A 62.5A 750W
Power Factor Correction	Max 99% -12V 0.0A 0.3A 3.6W
Inrush Current Limit(@ Cold Start at 25°C)	100VAC	Max 150A			+5VSB	0.0A	3A		15W
	240VAC				Ambient Temperature
Efficiency	Max 92% @ 230VAC, Typical load				Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 95% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.0V		Dimensions		160(D) x 150(W) x 86(H)mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		2.5kg
DC Output Ripple & Noise	Vout Standard Range			At Full Load	Protection Funtions
	+3.3VDC	50mV			Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC	120mV			Under-Voltage Protection (UVP)
	-12VDC	120mV			Short-Circuit Protection (SCP)
	+5VSB	50mV			Over-Power Protection (OPP)
					Over-Temperature Protection (OTP)

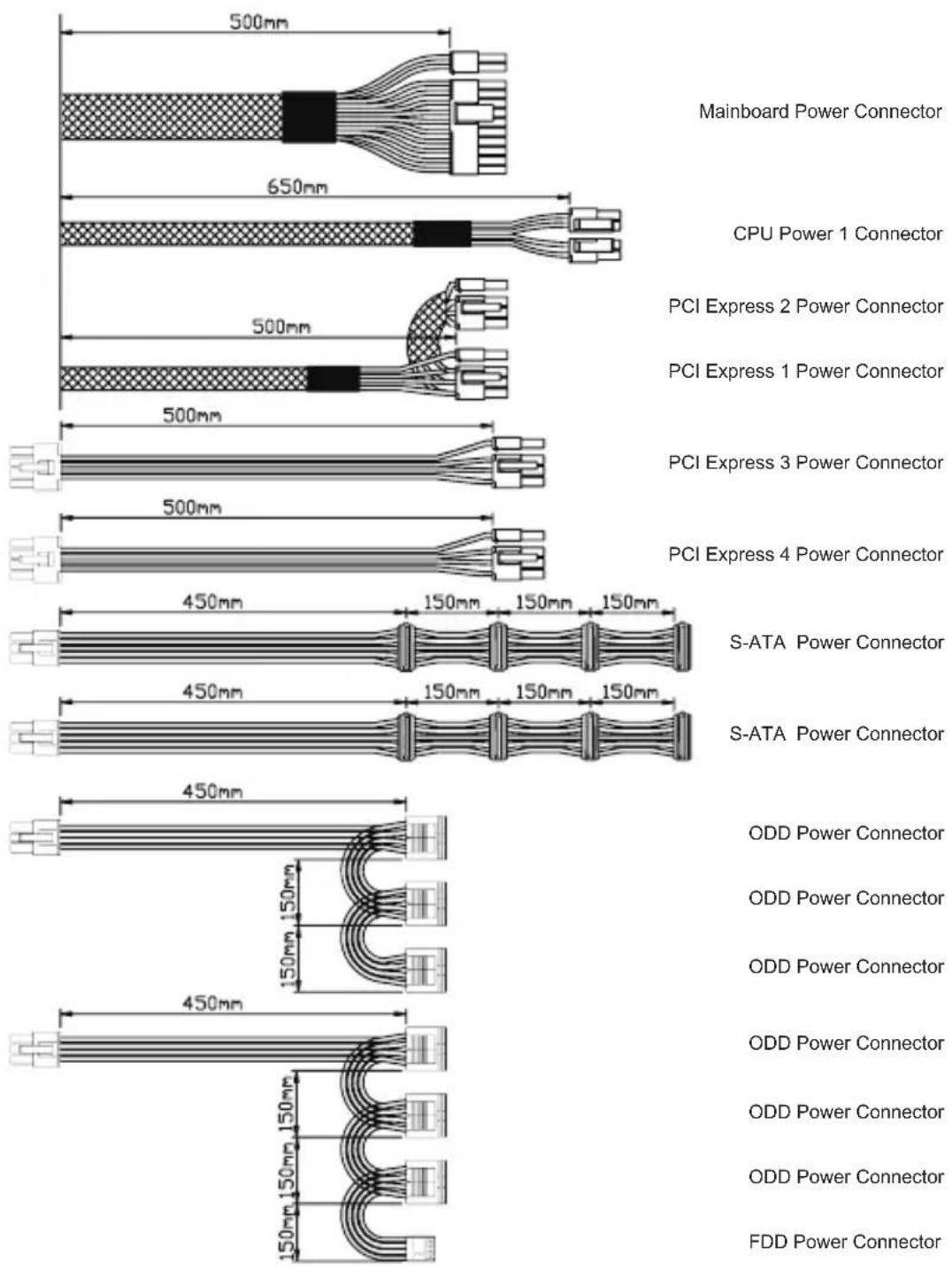

3) ZM650/750-EBT Cable Specifications
Mainboard Power Connector 650mm CPU Power 1 Connector PCI Express 2 Power Connector PCI Express 1 Power Connector PCI Express 3 Power Connector PCI Express 4 Power Connector 450mm 150mm 150mm 150mm S-ATA Power Connector 450mm 150mm 150mm 150mm S-ATA Power Connector 450mm ODD Power Connector ODD Power Connector ODD Power Connector ODD Power Connector ODD Power Connector FDD Power Connector

3. Specifications

1) ZM850-EBT Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC ±10%			Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz ±3 l				pp	Imax	Ipeak
AC Input Current	100VAC	15A		+3.3V 0.0A 25A				130W	850W
	240VAC +5V 0.0A 25A
PFC Type Active	PFC +12V 0.0A 70.5A 846W
Power Factor Correction	Max 99% -12V 0.0A 0.3A 3.6W
Inrush Current Limit(@ Cold Start at 25°C)	100VAC	Max 150A		+5VSB	0.0A	4A		20W
	240VAC			Ambient Temperature
Efficiency	Max 92% @ 230VAC, Typical load			Operation		0 ~ +50°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 95% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.0V		Dimensions		180(D) x 150(W) x 86(H)mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		3.2kg
DC Output Ripple & Noise	Vout Standard Range			At Full Load	Protection Funtions
	+3.3VDC	50mV			Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC	120mV			Under-Voltage Protection (UVP)
	-12VDC	120mV			Short-Circuit Protection (SCP)
	+5VSB	50mV			Over-Power Protection (OPP)
					Over-Temperature Protection (OTP)

3) ZM1000-EBT Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC ±10%			Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz ±3 l				min	I_max	I_mask
AC Input Current	100VAC	15A		+3.3V 0.0A 25A				130W	1000W
	240VAC +5V 0.0A 25A
PFC Type Active PFC +12V 0.0A 83.4A 1000W
Power Factor Correction	Max 99% -12V 0.0A 0.3A 3.6W
Inrush Current Limit(@ Cold Start at 25°C)	100VAC	Max 150A		+5VSB	0.0A	4A		15W
	240VAC			Ambient Temperature
Efficiency	Max 92% @ 230VAC, Typical load			Operation		0 ~ +50°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 95% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.0V		Dimensions		180(D) x 150(W) x 86(H)mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		3.6kg
DC Output Ripple & Noise	Vout Standard Range			At Full Load	Protection Funtions
	+3.3VDC	50mV			Over-Current Protection (OCP)
	+5VDC	50mV			Over-Voltage Protection (OVP)
	+12VDC	120mV			Under-Voltage Protection (UVP)
	-12VDC	120mV			Short-Circuit Protection (SCP)
	+5VSB	50mV			Over-Power Protection (OPP)
					Over-Temperature Protection (OTP)

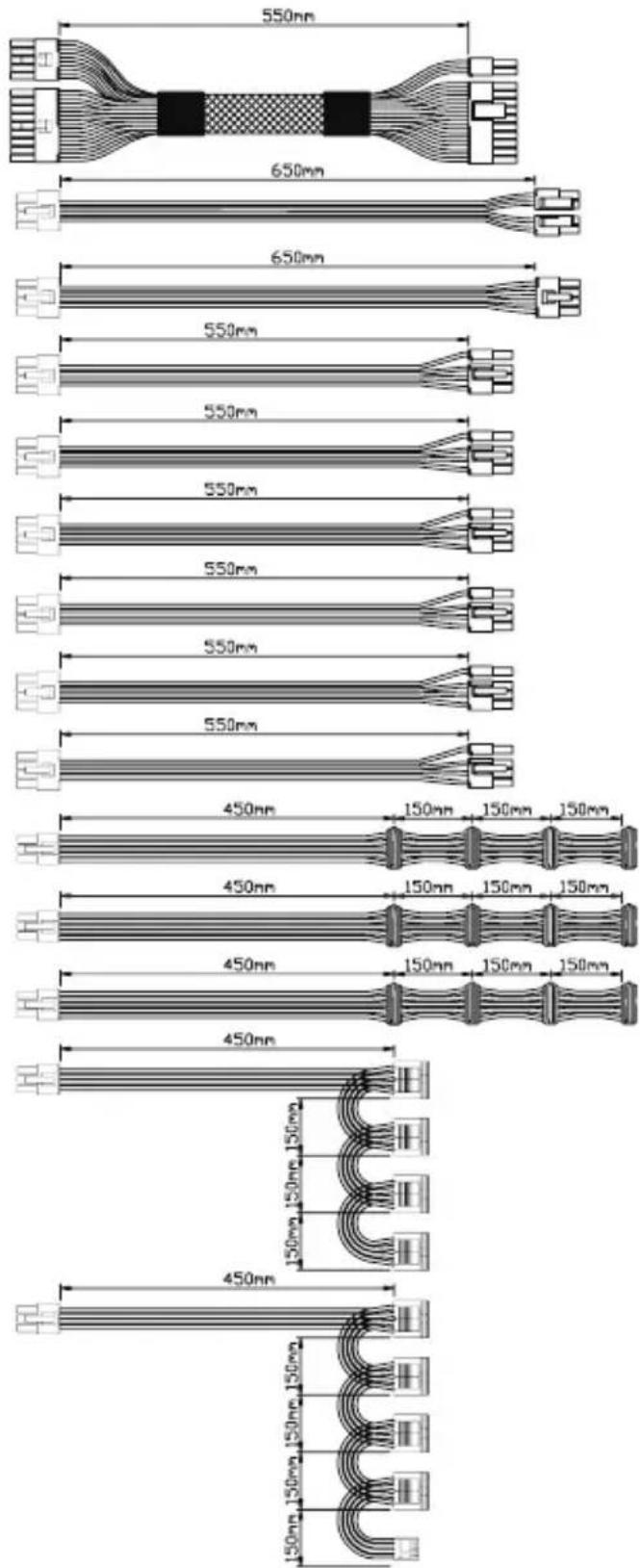

4) ZM850/1000-EBT Cable Specifications
550nm 650nm 550nm 550nm 550nm 550nm 450nm 150nm 150nm 150nm 450nm 150nm 150nm 150nm 450nm 150nm 150nm 150nm 450nm 150nm 150nm 150nm 150nm 150nm 150nm 150nm 150nm 150nm

Mainboard Power Connector

CPU Power 1 Connector

CPU Power 2 Connector

PCI Express 1 Power Connector

PCI Express 2 Power Connector

PCI Express 3 Power Connector

PCI Express 4 Power Connector

PCI Express 5 Power Connector

PCI Express 6 Power Connector

S-ATA Power Connector

ODD Power Connector

3. Specifications

1) ZM1200-EBT Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC ±10%			Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz ±3 l				min	Imax	Ibsk
AC Input Current	100VAC	15A		+3.3V 0.0A 25A				130W	1200W
	240VAC +5V 0.0A 25A
PFC Type Active	PFC +12V 0.0A 100A 1200W
Power Factor Correction	Max 99% -12V 0.0A 0.3A 3.6W
Inrush Current Limit(@ Cold Start at 25°C)	100VAC	Max 150A		+5VSB	0.0A	4A		20W
	240VAC			Ambient Temperature
Efficiency	Max 92% @ 230VAC, Typical load			Operation		0 ~ +50°C
DC Output Voltage Regulation	Vout	Regulation Range	At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V	Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V	Operation		5% ~ 95% RH
	+12VDC	±5%	+11.4 ~ +12.6V	Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.0V	Dimensions		180(D) x 150(W) x 86(H)mm
	+5VSB	±5%	+4.75 ~ +5.25V	Weight		3.7kg
DC Output Ripple & Noise	Vout Standard Range		At Full Load	Protection Funtions
	+3.3VDC	50mV		Over-Current Protection (OCP)
	+5VDC	50mV		Over-Voltage Protection (OVP)
	+12VDC	120mV		Under-Voltage Protection (UVP)
	-12VDC	120mV		Short-Circuit Protection (SCP)
	+5VSB	50mV		Over-Power Protection (OPP)
				Over-Temperature Protection (OTP)

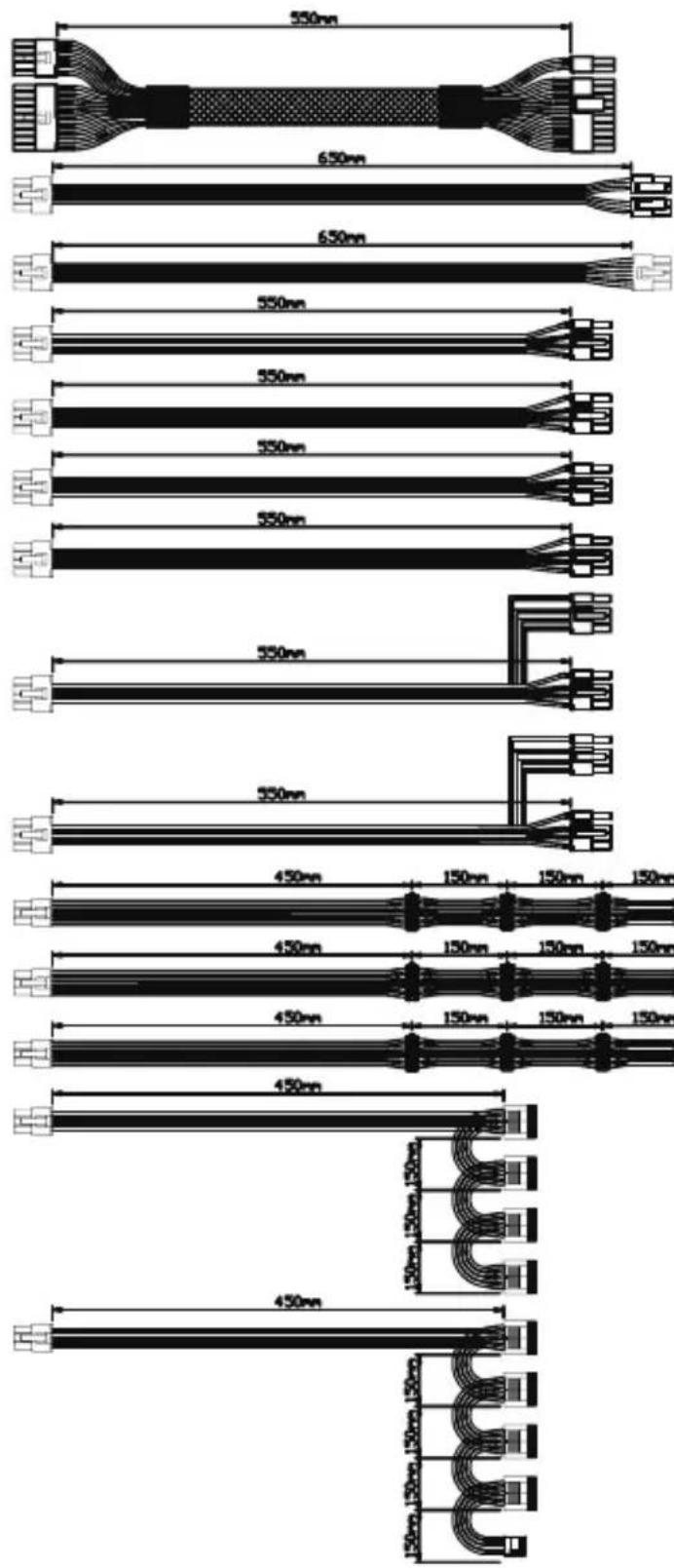

4) ZM1200-EBT Cable Specifications
550nm 650nm 550nm 550nm 550nm 550nm 550nm 450nm 150nm 150nm 150nm 450nm 150nm 150nm 150nm 450nm 150nm 150nm 150nm 450nm 450nm

Mainboard Power Connector
CPU Power 1 Connector
CPU Power 2 Connector
PCI Express 1 Power Connector
PCI Express 2 Power Connector
PCI Express 3 Power Connector
PCI Express 4 Power Connector
PCI Express 6 Power Connector
PCI Express 5 Power Connector
PCI Express 8 Power Connector
PCI Express 7 Power Connector
S-ATA Power Connector
S-ATA Power Connector
S-ATA Power Connector
ODD Power Connector
ODD Power Connector
ODD Power Connector
ODD Power Connector
ODD Power Connector
ODD Power Connector
ODD Power Connector
ODD Power Connector
FDD Power Connector

ZALMAN Watttera ZM1200-EBT - Specifications - 2

4. Certifications

ZALMAN Watttera ZM1200-EBT - Certifications - 1

FCC Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

CBC€

ZALMAN Watttera ZM1200-EBT - Certifications - 2

EAC K RoHS

1. Warnings and Safety Precautions

ZALMAN Watttera ZM1200-EBT - Warnings and Safety Precautions - 1

Warning

3. Spécifications

1) ZM850-EBT Electrical & Physical Spécifications

CPU Power 1 Connector

CPU Power 2 Connector

PCI Express 1 Power Connector

PCI Express 2 Power Connector

PCI Express 3 Power Connector

PCI Express 4 Power Connector

PCI Express 5 Power Connector

PCI Express 6 Power Connector

S-ATA Power Connector

ODD Power Connector

3. Spécifications

1) ZM1200-EBT Electrical & Physical Spécifications

ZALMAN Watttera ZM1200-EBT - Spécifications - 1

4. Certifications

ZALMAN Watttera ZM1200-EBT - Certifications - 1

FCC Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

CBC€

ZALMAN Watttera ZM1200-EBT - Certifications - 2

EAC K RoHS

Five Cable Tie

ZALMAN Watttera ZM1200-EBT - Certifications - 3
AC Power Cord

ZALMAN Watttera ZM1200-EBT - Certifications - 4
User's Manual

3. Especificaciones

CPU Power 1 Connector

CPU Power 2 Connector

PCI Express 1 Power Connector

PCI Express 2 Power Connector

PCI Express 3 Power Connector

PCI Express 4 Power Connector

PCI Express 5 Power Connector

PCI Express 6 Power Connector

S-ATA Power Connector

ODD Power Connector

3. Specifications

1) ZM1200-EBT Electrical & Physical Specifications

AC Input Range	Voltage 100~240VAC ±10%			Vout	Output Load Rating			Combined Power
	Frequency 50Hz ~ 60Hz ±3 l				min	Imax	Ibsk
AC Input Current	100VAC	15A		+3.3V 0.0A 25A				130W	1200W
	240VAC +5V 0.0A 25A
PFC Type Active	PFC +12V 0.0A 100A 1200W
Power Factor Correction	Max 99%			-12V	0.0A	0.3A		3.6W
Inrush Current Limit(@ Cold Start at 25°C)	100VAC	Max 150A		+5VSB	0.0A	4A		20W
	240VAC			Ambient Temperature
Efficiency	Max 92% @ 230VAC, Typical load			Operation		0 ~ +50°C
DC Output Voltage Regulation	Vout	Regulation Range	At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V	Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V	Operation		5% ~ 95% RH
	+12VDC	±5%	+11.4 ~ +12.6V	Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.0V	Dimensions		180(D) x 150(W) x 86(H)mm
	+5VSB	±5%	+4.75 ~ +5.25V	Weight		3.7kg
DC Output Ripple & Noise	Vout Standard Range		At Full Load	Protection Funtions
	+3.3VDC	50mV		Over-Current Protection (OCP)
	+5VDC	50mV		Over-Voltage Protection (OVP)
	+12VDC	120mV		Under-Voltage Protection (UVP)
	-12VDC	120mV		Short-Circuit Protection (SCP)
	+5VSB	50mV		Over-Power Protection (OPP)
				Over-Temperature Protection (OTP)

4) ZM1200-EBT Cable Specifications
550nm 650nm 550nm 550nm 550nm 550nm 550nm 450nm 150nm 150nm 150nm 450nm 150nm 150nm 150nm 450nm 150nm 150nm 150nm 450nm 450nm

ZALMAN Watttera ZM1200-EBT - Specifications - 2

4. Certifications

ZALMAN Watttera ZM1200-EBT - Certifications - 1

FCC Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

CBC€

ZALMAN Watttera ZM1200-EBT - Certifications - 2

EAC K- RoHS

2. Комплектация

ZALMAN Watttera ZM1200-EBT - Комплектация - 1
Блок питания

ZALMAN Watttera ZM1200-EBT - Комплектация - 2
сетевой шнур

Manual

CPU Power 1 Connector

CPU Power 2 Connector

PCI Express 1 Power Connector

PCI Express 2 Power Connector

PCI Express 3 Power Connector

PCI Express 4 Power Connector

PCI Express 5 Power Connector

PCI Express 6 Power Connector

S-ATA Power Connector

ODD Power Connector

4. сертификация

ZALMAN Watttera ZM1200-EBT - сертификация - 1

FCC Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

CBC€

ZALMAN Watttera ZM1200-EBT - сертификация - 2

EAC K RoHS

1. 경고 및 주의사항

ZALMAN Watttera ZM1200-EBT - 경고 및 주의사항 - 1

경고

케이블 타이 - 5개

ZALMAN Watttera ZM1200-EBT - 경고 및 주의사항 - 2
전원 코드

ZALMAN Watttera ZM1200-EBT - 경고 및 주의사항 - 3
취급 설명서

3. 제품 사양

CPU Power 1 Connector

CPU Power 2 Connector

PCI Express 1 Power Connector

PCI Express 2 Power Connector

PCI Express 3 Power Connector

PCI Express 4 Power Connector

PCI Express 5 Power Connector

PCI Express 6 Power Connector

S-ATA Power Connector

ODD Power Connector

3. 제품 사양

4.인증

Table of contents Click a title to access it

High Efficiency Switching Power Supply
Warnings and Safety Precautions
Warning
Caution
Components
Specifications
Certifications
Spécifications
Especificaciones
Комплектация
сертификация
경고 및 주의사항
제품 사양
4.인증

Manual assistant

Waiting for your message

📷

Product information

Brand : ZALMAN

Model : Watttera ZM1200-EBT

Category : Adaptateur pour ordinateur
