Product Type	Hot Air Fryer (Oil-free)
Model	HAF-B2000WH
Brand	Heinner
Power Consumption	2000 W
Rated Voltage	220-240 V ~ 50/60 Hz
Basket Capacity	5 L
Color	White
Temperature Control	Digital, 80°C to 200°C (adjustable in 5°C increments)
Timer	Digital, up to 60 minutes (adjustable in 1-minute increments)
Preset Programs	8 preset programs for popular foods
Control Panel	Touch buttons with digital display
Heating Technology	Rapid Air Circulation (top heating element + fan)
Safety Features	Automatic shut-off, overheat protection, cool-touch handle, non-slip feet
Cleaning & Maintenance	Non-stick basket and pan, dishwasher-safe parts, wipe exterior with damp cloth
Dimensions (approx.)	30 x 30 x 35 cm (estimated)
Weight (approx.)	5 kg (estimated)
Included Accessories	Basket, outer pan, user manual, warranty card
Warranty	Standard manufacturer warranty (details in manual)

Frequently Asked Questions - HAF-B2000WH Heinner

Can I use oil in this air fryer?

No, this is an oil-free hot air fryer. Do not fill the pan with oil or frying fat. You may lightly brush oil on ingredients for crispiness, but never pour oil into the pan.

How do I clean the air fryer?

Unplug and let cool. Clean the basket and pan with hot water, mild detergent, and a non-abrasive sponge. The inside of the appliance can be wiped with a damp cloth. The heating element can be brushed to remove residues. Do not immerse the housing in water.

Why is white smoke coming out of my air fryer?

White smoke is usually caused by grease residues in the pan or cooking very greasy foods. Ensure the pan is properly cleaned after each use. Greasy ingredients like sausages may produce smoke, but this is normal.

How do I preheat the air fryer?

The air fryer does not require preheating. However, if you start with a cold appliance, add 3 minutes to the cooking time. You can also run it empty for 3 minutes at the desired temperature if preferred.

Can I use the air fryer to reheat food?

Yes, set the temperature to 150°C and heat for up to 10 minutes. Check frequently to avoid overcooking.

What should I do if the air fryer does not turn on?

Ensure it is plugged into an earthed wall socket. Check that the timer is set (not at 0). If still not working, contact authorized service.

Why are my fries not crispy?

Pat potato sticks dry before adding oil. Cut them smaller for crispier results. Use slightly more oil if desired. Also, shaking the basket halfway through helps.

How much food can I cook at once?

Do not exceed the MAX line in the basket. For crispy fries, the optimal amount is 500 grams. Overfilling may lead to uneven cooking.

Can I put the pan in the dishwasher?

The pan and basket are non-stick and can be cleaned in the dishwasher. However, hand washing with a soft sponge is recommended to prolong the non-stick coating.

What are the dimensions of the air fryer?

Exact dimensions are not provided in the manual, but approximate size is 30 x 30 x 35 cm. Ensure at least 10 cm clearance around the appliance for proper airflow.

USER MANUAL HAF-B2000WH Heinner

White air fryer with black control panel and digital display (no visible text or symbols)

Fig. 2

Fig. 1

Fig. 3

Line drawing of a white air fryer with a handle and side panel, showing no text or symbols

Fig. 4

Fig. 5

Line drawing of a modern air fryer with a handle and side panel (no text or symbols)

Fig. 6

White air fryer with black control panel and digital display (no visible text or symbols)

• Hot air fryer
• Basket capacity: 5L
• Power: 2000W

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. PACKAGE CONTENT

Hot air fryer
User manual
Warranty card

III. SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.

2. Do not touch hot surfaces.

3. To protect against electric shock do not immerse cord, plugs, or base in water or other liquid.

4. WARNING: This electrical appliance contains a heating function. Surfaces, also different than the functional surfaces, can develop high temperatures. Since temperatures are differently perceived by different persons, this equipment shall be used with CAUTION. The equipment shall be touch only at intended handles and gripping surfaces and use heat protection like gloves or similar. Surfaces other than intended gripping surfaces shall get sufficiently time to the cool down before getting touched.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on Or taking off parts.

6. Type Y: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

12. Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

14. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are old than 8 and supervised.

15. Keep the appliance and its cord out of reach of children less than 8 years.

16. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

Please read this manual carefully before you use the appliance and save it for future reference.

Danger

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
• Never immerse the housing, which contains electrical components and the heating elements, in water nor rinse it under the tap.
• Do not let any water or other liquid enter the appliance to prevent electric shock.

- Always put the ingredients to be fried in the basket, to prevent it from coming into contact with the heating elements.

- Do not cover the air inlet and the air outer openings while the appliance is operating.

- Do not fill the pan with oil as this may cause a fire hazard.

- Never touch the inside of the appliance while it is operating.

The temperature of accessible surfaces may be high when the appliance is operating.

Warning

• Check if the voltage indicated on the appliance fits the local mains voltage.
• Do not use the appliance if there is any damage on plug, mains cord or other parts.
• Do not go to any unauthorized person to replace or fix damaged main cord.
• Keep the mains cord away from hot surfaces.
• Do not plug in the appliance or operate the control panel with wet hands.
• Do not place the appliance against a wall or against other appliances. Leave at least 10cm free space on the back and sides and 10cm free space above the appliance. Do not place anything on top of the appliance.

• Do not use the appliance for any other purpose than described in this manual.

- Do not let the appliance operate unattended.

- During hot air frying, hot steam is released through the air outlet openings, Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the pan from the appliance.

- Any accessible surfaces may become hot during use (Fig.2)

- Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pay from the appliance.

Caution

• Ensure the appliance in placed on a horizontal, even and stable surface.
• This appliance is designed for household use only. It may not suitable to be safely used in environments such as staff kitchens, farms, motels, and other non-residential environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.
• If the appliance is used improperly or for professional or semi-professional purposes or if it is not used improperly or for professional or semi-professional purposes or it is not used according to the instructions in the user manual, the guarantee becomes invalid and we could refuse any liability for damage caused.
  • Always unplug the appliance while not using.
• The appliance needs approximately 30 minutes to cool down for handle or cleaning safely.

IV. DESCRIPTION

This all now Hot-air fryer provides an easy and healthy way of preparing your favorite ingredients. By using hot rapid air circulation and a top grill, it is able to make numerous dishes. The best part is that the Hot-air fryer heats food at all directions and most of the ingredients do not need any oil.

Fig. 2

Fig. 1

Fig. 3

Line drawing of a cooking air fryer with a handle and lid, showing no text or symbols

Fig. 4

Fig. 5

Fig. 6

1. Control panel	6. Basket release button
2. Lid ornament	7. Basket handle
3. Upper housing	8. Air outlet openings
4. Upper housing ornament	9. Power cord
5. Basket	10. Outer pan

V. USING THE APPLIANCE

BEFORE FIRST USE

1. Remove all packaging materials.
2. Remove any stickers or labels from the appliance.
3. Thoroughly clean the basket and pan with hot water, some washing-up liquid and a non-abrasive sponge.
4. Wipe inside and outside of the appliance with a moist cloth.
5. This is an oil-free fryer that works on hot air. Do not fill the pan with oil or frying fat.

PREPARING FOR USE

1. Place the appliance on a stable, horizontal and even surface.

Do not place the appliance on non-heart-resistant surface.

1. Place the basket in the pan (Fig.3).

2. Pull the cord from the storage compartment which locates on the bottom of the appliance.

Do not fill the pan with oil or any other liquid.

Do not put anything on top of the appliance, the airflow will be disrupted and affects the hot air frying result.

USING THE APPLIANCE

The oil-free can prepare a large range of ingredients

HOT AIR FRYING

1. Connect the mains plug into an earthed wall socket.
2. Carefully pull the pan out of the Hot-air fryer (Fig.6)
3. Put the ingredients in the basket. (Fig.5)
4. Slide the pan back into the Hot-air fryer (Fig 4)

Noting to carefully align with the guides in the body of the fryer.

Never use the pan without the basket in it.

Caution: Do not touch the pan during and some time after use, as it gets very hot.

Only hold the pan by the handle.

1. Determine the required preparation time for the ingredient (see section 'Settings' in this chapter).
2. Some ingredients require shaking halfway through the preparation time (see section "Settings" in this chapter). To shake the ingredients, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the fryer.

Caution: Do not press the button the handle during shaking. (Fig.3)

Tip: To reduce the weight, you can remove the basket from the pan and shake the basket only. To do so, pull the pan out of the appliance, place it on a heat-resistant surface and press the button of handle. and lift the basket out of the pan

Tip: If you set the timer to half the preparation time, you hear the timer bell when you have to shake the ingredients. However, this means that you have to set the timer again to the remaining preparation time after shaking.

1. When you hear the timer bell, the set preparation time has elapsed. Pull the pan out of the appliance and place it on a the trial framework.

Note: You can also switch off the appliance manually. To do this, turn the time control knob to 0.

1. Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer to a few extra minutes.

2. To remove ingredients (e.g. fries), pull the pan out of the Hot-air fryer and place it on trial framework, and press the basket release button and lift the basket out of the pan.

Do not turn the basket upside down with the pan still attached to it, as any excess oil that has collected on the bottom of the pan will leak onto the ingredients.

The pan and the ingredients are hot and hot fryer. Depending on the type of the ingredients in the I fryer, steam may escape from the pan.

1. Empty the basket into a bowl or onto a plate.

Tip: To remove large or fragile ingredients, lift the ingredients out of the basket by a pair of tongs

1. When a batch of ingredients is ready, the Hot-air fryer is instantly ready for preparing another batch.

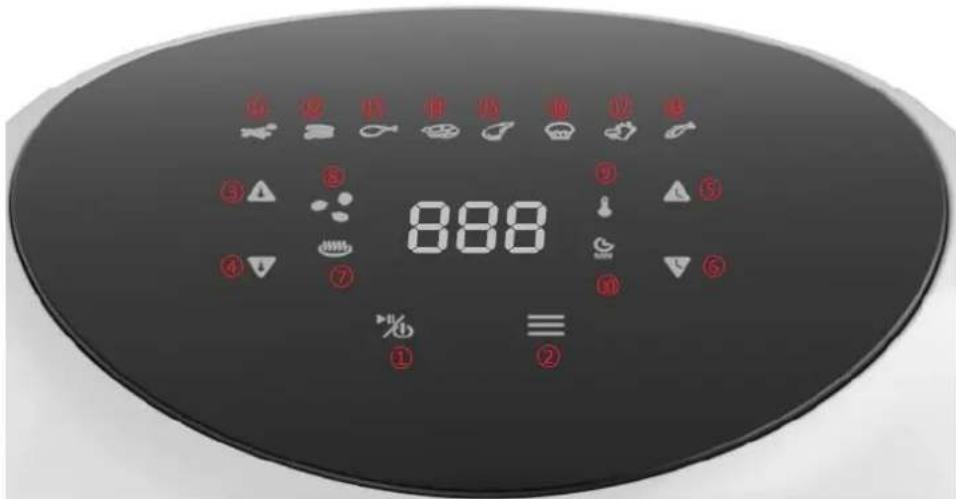

CONTROL PANEL INSTRUCTIONS

OPERATION INSTRUCTIONS:

- Button 1 –Power Button

Once the Outer Basket and Fry Basket are properly placed in the main Unit housing, the Power Button will be illuminated. Selecting the power button for 3 seconds will make the unit's default temperature 200, while the cooking time will be set to 15 minutes. Selecting the Power Button a second time will start the cooking process. Pressing the power button for 3 seconds to close the entire device during cooking. All the lights go out, the fan stops working.

Note: During cooking, you can touch the button to control the pause and start of cooking.

- Button 2 – Preset Button

Selecting the “ [REDACTED] ” Preset Button enables you to scroll through the 8 popular food choices. Once selected, the predetermined time and cooking temperature function begins.

- Button 3&4 –Temperature Control Buttons

The + and – symbols enable you to add or decrease cooking temperature 5^ C at a time. Keeping the button held down will rapidly change the temperature. Temperature Control range: 80^ C- 200^ C.

- Button 5&6 –Timer Control Buttons

The + and – symbols enable you to add or decrease cooking time, one minute at a time. Keeping the button held down will rapidly change the time.

• Indicator light "7"- Heating indicator
  • Indicator light "8" - Fan indicator
• Indicator light "9" - Temperature indicator
• Indicator light "10"- Timer indicator
• Indicator light "11-18" - Recipe indicator

SETTINGS:

This table below will help you to select the basic settings for the ingredients.

Note: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients. Because the Rapid Air technology instantly reheats the air inside the appliance instantly Pull the pan briefly out of the appliance during hot air frying barely disturbs the process.

Tips

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.
• Shaking smaller ingredients halfway through the preparation time optimizes the end result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Hot-air fryer within a few minutes after you added the oil.
• Do not prepare extremely greasy ingredients such as sausages in the Hot-air fryer.
  • Snacks that can be prepared in a oven can also be prepared in the Hot-air fryer
• The optimal amount for preparing crispy fries is 500 grams.
• Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
• Place a baking tin or oven dish in the Hot-air fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients
• You can also use the Hot-air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150^ C for up to 10 minutes.

The table below will help you to select the basic settings for the ingredients:

	Min-max Amount (g)	Time (min.)	Temperature (°C)	Shake	Extra information
Potato & fries
Thin frozen fries	400-500	18-20	200	shake
Thick frozen fries	400-500	20-25	200	shake
Potato gratin	600	20-25	200	shake
Meat & Poultry
Steak	100-600	10-15	180
Pork chops	100-600	10-15	180
Hamburger	100-600	10-15	180
Sausage roll	100-600	13-15	200
Drumsticks	100-600	25-30	180
Chicken breast	100-600	15-20	180
Snacks
Spring rolls	100-500	8-10	200	shake	Use oven-ready
Frozen chicken nuggets	100-600	6-10	200	shake	Use oven-ready
Frozen fish fingers	100-500	6-10	200		Use oven-ready
Frozen bread crumbed cheese snacks	100-500	8-10	180		Use oven-ready
Stuffed vegetables	100-500	10	160
Baking
Cake	400	20-25	160		Use baking tin
Quiche	500	20-22	180		Use baking tin/oven dish
Muffins	400	15-18	200		Use baking tin
Sweet snacks	500	20	160		Use baking tin/oven dish

Note: Add 3 minutes to the preparation time when you start frying while the Hot-air fryer is still cold.

VI. CLEANING AND STORAGE

CLEANING

Clean the appliance after every use.

The pan and the non-stick coating basket. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.

1. Remove the mains plug from the wall socket and let the appliance cool down.

Note: Remove the pan to let the Hot-air fryer cool down more quickly.

1. Wipe the outside of the appliance with a moist cloth.

2. Clean the pan and basket with hot water, some washing-up liquid and a non-abrasive sponge.

You can use degreasing liquid to remove any remaining dirt.

Tip: If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water with some washing-up liquid. Put the basket in the pan and let the pan and the basket soak for approximately 10 minutes.

1. Clean the inside of the appliance with hot water and non-abrasive sponge.

2. Clean the heating element with a cleaning brush to remove any food residues.

STORAGE

1. Unplug the appliance and let it cool down.

2. Make sure all parts are clean and dry.

VII. TROUBLESHOOTING

Guarantee and service

If you need service or information or if you have a problem, please contact the authorized service center (you find its phone number in the worldwide guarantee leaflet).

Issue	Possible cause	Solution
The Hot-air fryer does not work	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not set the timer.	Turn the timer knob to the required preparation time to switch on the appliance.
The ingredients fried with the air fryer are not done.	The amount of ingredients in the basket is too big.	Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly.
	The set temperature is too low.	Turn the temperature control knob to the required temperature setting (see section ‘settings’ in chapter ‘Using the appliance’).
	The preparation time is too short.	Turn the timer knob to the required preparation time (see section ‘Settings’ in chapter’ Using the appliance’).
The ingredients are fried unevenly in the air fryer.	Certain types of ingredients need to be shaken halfway through the preparation time.	Ingredients that lie on top of or across each other (e.g. fries) need to be shaken halfway through the preparation time. See section ‘Settings’ in chapter ‘Using the appliance’.
Fried snacks are not crispy when they come out of the air fryer.	You used a type of snacks meant to be prepared in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
I cannot slide the pan into the appliance properly.	There are too much ingredients in the basket.	Do not fill the basket beyond the MAX indication.
	The basket is not placed in the pan correctly.	Push the basket down into the pan until you hear a click.
White smoke comes out of the appliance.	You are preparing greasy ingredients.The pan still contains grease residues from previous use.	When you fry greasy ingredients in the air fryer, a large amount of oil will leak into the pan. The oil produces white smoke and the pan may heat up more than usual. This does not affect the appliance or the end result.White smoke is caused by grease heating up in the pan . make sure you clean the pan properly after each use.
Fresh fries are fried unevenly in the air fryer.	You did not use the right potato type.	Use fresh potatoes and make sure they stay firm during frying.
	You did not rinse the potato sticks properly before you fried them.	Rinse the potato sticks properly to remove starch from the outside of the sticks.
Fresh fries are not crispy when they come out of the air fryer.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly before you add the oil.
		Cut the potato sticks smaller for a crispier result.
		Add slightly more oil for a crispier result.

VIII. TECHNICAL DETAILS

Power	2000W
Voltage	220-240V, 50/60Hz
Color	White

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

CE

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

White air fryer with digital display and black handle (no visible text or symbols)

Фиг. 2

Фиг. 1

Фиг. 3

Line drawing of a white air fryer with an arrow pointing to the side panel (no text or symbols present)

Фиг. 4

Фиг.

Line drawing of a cooking air fryer with handle and side panel (no text or symbols)

Фиг. 6

White air fryer with black control panel and digital display (no visible text or symbols)

2. Ábra

1. Ábra

2. Ábra

Line drawing of a cooking air fryer with a handle and side arm, showing no text or symbols

1. Ábra

5. Ábra

Line drawing of a cooking air fryer with handle and side panel (no text or symbols)

1. Ábra
