ION Hurricane H9 - Vacuum Cleaner Niceboy - Free user manual and instructions

Product Type	Cordless Stick & Handheld Vacuum Cleaner
Brand	Niceboy
Model	ION Hurricane H9
Dimensions (without accessories)	295 x 108 x 210 mm
Weight	1.5 kg
Power	400 W, 30 kPa
Rated Voltage	DC 29.6 V
Battery Type	Li-ion, 2200 mAh
Charging Time	3.5 h
Runtime	Up to 45 min
Dust Container Capacity	0.5 L
Noise Level	<75 dB
Filter Type	Washable HEPA filter + metal filter
Filter Maintenance	Clean every 15-30 days; replace every 4 months
Package Contents	Vacuum cleaner, Battery, Power adapter, Crevice nozzle with LED, 2-in-1 attachment, Floor brush, Flexible nozzle, Articulated tube, Pet nozzle, Seat and fabric nozzle
Charging Options	Charge battery separately or in vacuum; also via charging stand
Display	Yes, with touch control and battery status
Safety Certifications	EU Directives 2014/30/EU, 2014/35/EU, 2011/65/EU
Warranty (Battery)	6 months (consumable item)

Frequently Asked Questions - ION Hurricane H9 Niceboy

Why does the vacuum cleaner not turn on?

The battery may be dead. Charge the battery. Also check if the floor brush is blocked and clean it if necessary.

Why is the battery not charging?

Ensure the vacuum cleaner or charging stand is properly connected to a power source. The battery must touch the charging pins in the stand. Insert the vacuum cleaner correctly into the stand.

How can I improve low suction power?

Check and clean the suction holes of the vacuum cleaner and accessories. Empty the dust container if full. Clean the filters if they are clogged. Also check the floor brush for blockages.

What does a red flashing light on the display mean?

Possible causes: using the wrong power adapter (use only the original adapter), the brush is not inserted correctly or blocked, suction holes are blocked, air passage is blocked, filters are clogged, or the vacuum cleaner is overheating. Check these items and let it cool down if needed.

How do I clean the filters?

Open the dust container by pressing the fuse on the container. Loosen the metal filter by turning it counter-clockwise and remove it. The HEPA filter and metal filter are washable. Clean them with water and let them dry completely before reinserting. Do not use abrasive cleaners.

How often should I replace the filters?

Clean the HEPA filter every 15-30 days depending on usage. Replace it with a new one every 4 months or as needed based on filter condition.

Can I use the vacuum cleaner outdoors?

No, the vacuum cleaner is designed for indoor cleaning only. Do not use it on wet surfaces or outdoors. Avoid cleaning in humid places.

What accessories are included in the package?

The package includes: vacuum cleaner, battery, power adapter, crevice nozzle with LED, 2-in-1 attachment, floor brush, flexible nozzle, articulated tube, pet nozzle, and seat and fabric nozzle.

How do I empty the dust container?

Press the fuse on the dust container to release the lid. Empty the contents into a trash bin. It is recommended to empty after each cleaning for optimal suction.

Is the battery removable? How do I remove it?

Yes, the battery is removable. Press the button on the bottom of the battery and slide it away from the vacuum cleaner body. The battery can be charged separately or inside the vacuum.

USER MANUAL ION Hurricane H9 Niceboy

Cordless Stick & Handheld Vacuum Cleaner

SCHÉMA ZAŘÍZENÍ

Technical line drawings of mechanical components, one showing a circular component with an arrow indicating direction (no text or symbols)

ČÍŠTĚNÍ A ÚDRŽBA

Technical illustration showing a machine emitting particles and a mechanical device with rotating components (no text or symbols)

SCHÉMA ZARIADENIA

Technical line drawings of mechanical components, one showing a circular component with an arrow indicating direction (no text or symbols)

ČISTENIE A ÚDRŽBA

Technical illustration of a mechanical device and its internal components, showing powder particles and a rotating mechanism (no text or symbols)

DEVICE DIAGRAM

1. Display
2. Touch control
3. Battery power connector
4. Battery
5. Dust container
6. Dust container lid fuse

7. Dust container fuse

8. Power button and mode button (auto/manual)

CHARGING

The battery can be charged separately or in the vacuum cleaner using a power adapter. The battery can also be charged by inserting the vacuum cleaner into the charging stand. Make sure the charging pins of the stand are touching the battery. To prevent the free-standing charging stand from tipping over, insert a vacuum cleaner with a flexible tube and a floor brush. The battery charging status is displayed on the vacuum cleaner's display. To remove the battery, press the button on the bottom of the battery and then slide the battery away from the body of the vacuum cleaner. The current battery capacity is shown on the display of the vacuum cleaner. If you charge the battery outside the vacuum cleaner, the charging status is shown by the LED on the top of the battery.

Technical line drawing of a mechanical component with a circular head and internal shaft (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

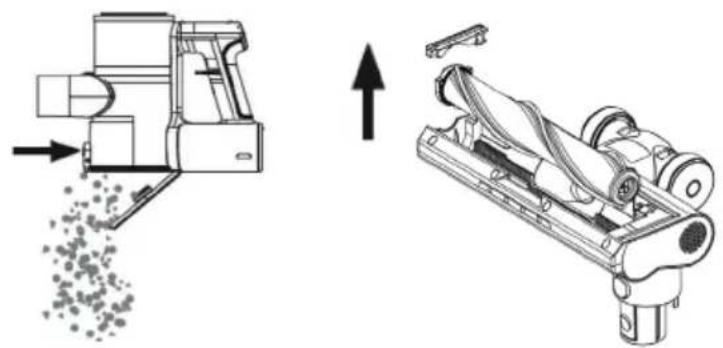

CLEANING AND MAINTENANCE

Before cleaning, unplug the vacuum cleaner and remove the battery to avoid possible injury. Never submerge the entire vacuum cleaner or its parts in water.

Use a dry or slightly damp cloth to clean the vacuum cleaner and its accessories.

Do not use abrasive or aggressive cleaning agents for cleaning.

We recommend emptying the contents of the dust container into the trash after each cleaning. A full container can reduce the suction power of the vacuum cleaner.

We recommend cleaning the HEPA filter of the vacuum cleaner once every 15-30 days,

depending on the frequency of use, and replacing it with a new one every 4 months, or depending on the condition of the filter.

To open the dust container, press the fuse on the dust container and the lid of the container will then be released. Loosen the metal filter by slightly turning it counter-clockwise and remove it from the vacuum cleaner. The HEPA filter together with the metal filter are washable.

Technical illustration showing a mechanical device and its internal assembly with arrows indicating process flow (no text or symbols present)

For problem-free operation of the vacuum cleaner, we recommend regularly cleaning the floor brush, especially from tangled hair.

PARAMETERS

Vacuum cleaner dimensions (without accessories):	295 x 108 x 210 mm
Adapter:	AC 100-240 V, 50/60 Hz, 0.4 A
Output voltage:	DC 27 V
Rated voltage:	DC 29.6V
Li-lon battery capacity:	2,200 mAh
Power:	400 W, 30 kPa
Charging time:	3.5 h
Duration of use:	up to 45 min
Dust container capacity:	0.5 l
Weight of the vacuum cleaner:	1.5 kg
Noise level:	<75 dB

Niceboy s.r.o. hereby declares that NICEBOY ION Hurricane H9 complies with Directives 2014/30/EU, 2014/35/EU, and 2011/65/EU. The full content of EU Declaration of Conformity is available on the following websites: https://niceboy.eu/cs/declaration/ion-hurricane-h9

The battery or accumulator that may be included with the product has a life of six months because it is a consumable item. Improper handling (prolonged charging, short circuit, breakage by another object, etc.) can lead to fires, overheating or battery leakage, for example.

PACKAGE CONTENTS

Vacuum cleaner, Battery, Power adapter, Crevice nozzle with LED, 2-in-1 attachment, Floor brush, Flexible nozzle, Articulated tube, Pet nozzle, Seat and fabric nozzle

SOLUTIONS TO THE MOST COMMON PROBLEMS

PROBLEM	POSSIBLE CAUSE	SOLUTION
The vacuum cleaner does not work	The battery is dead.	Charge the battery.
	The floor brush is blocked.	Clean the floor brush.
The battery is not charging.	The vacuum cleaner or charging stand is not connected to an electrical outlet.	Connect the vacuum cleaner or charging stand to a power source.
	The battery does not touch the charging pins in the stand.	Insert the vacuum cleaner into the charging stand correctly.
The power of the vacuum cleaner is low.	The suction holes are clogged.	Clean the suction holes of the vacuum cleaner and accessories.
	The dust container is full.	Empty the dust container.
	The filters of the vacuum cleaner are clogged.	Clean the vacuum cleaner filters.
	The floor brush is blocked.	Clean the floor brush.
The filter cannot be inserted into the vacuum cleaner.	The filter is clogged.	Check and clean the filters if necessary.
A red light flashes on the display.	The wrong power adapter is used.	Use only the original adapter from the manufacturer for charging.
	The brush is not inserted correctly/is blocked.	Check the floor brush.
	The suction holes are blocked.	Check the suction holes of the vacuum cleaner and the accessories used.
	The air passage is blocked. The filters are clogged.	Check the vacuum cleaner filters.
	The vacuum cleaner is overheating.	Let the vacuum cleaner cool down.

SAFETY INSTRUCTIONS

• Please read this manual carefully before using the product and use the product according to the instructions in this manual.
  • Use only original manufacturer's accessories.
  • Use only original batteries and charging docks that are specific to the product.

- If you need to hand over the product to a third party, enclose the operating instructions with it.

- Any operation contrary to these instructions may result in damage to the product and personal injury.

- The product is designed for indoor cleaning. Do not use the product to clean outdoor areas (such as outdoor terraces) or other surfaces.

• Never use this vacuum cleaner outdoors or in humid places.

- This appliance is not a toy. When using it, pay attention to your safety and the people around you, especially children and people with reduced physical, sensory and mental abilities and knowledge, if they are not supervised by a person responsible for their safety.

- The products cannot be used by children under the age of 8 years. If necessary, this must be done under the supervision of a guardian.

- Do not use the product if it is not working properly due to a fall, damage, outdoor use or water ingress. To prevent injury, the product should be repaired by the manufacturer or its after-sales service.

- Do not use the product if the power cord, socket or charging dock is damaged.

• Do not touch the vacuum cleaner or the charging adapter with wet hands.

• Before using the products, make sure that a complete dust box with all filters is installed

• Use of the product in an open flame environment is prohibited.

- Do not use the product in extreme heat (above 40^ ) or very cold (below 4^ ).

- Keep hair, clothing, fingers and other parts of the body away from the suction operating parts of the product.

• Do not use the product on wet or waterlogged soil.

- Avoid any objects, such as:

• Stones, waste paper

• Flammable materials

• Cigarettes, matches, ashes or other objects that may cause a fire.

- Do not use the device if the suction opening is blocked. At the suction opening, remove dust, cotton wool, hair, etc. to ensure smooth air circulation in the suction opening.

- Use the power cord carefully to avoid damaging it. Do not use the power cord to pull or pull on the device.

• Do not use the power cord as a handle.

- Do not close the power cord in between the door and doorpost.

• Do not pull the power cord by sharp corners and folds.

- If the suction opening is blocked, switch off the vacuum cleaner immediately and clean the suction opening.

SECURITY MEASURES

- Keep the main brush cleaning tools out of the reach of children.

- Keep hair, loose clothing, fingers and all body parts well away from openings and moving parts.

• Do not use the product on burning objects (such as cigarette butts).

- Do not use the product to clean hard or sharp objects (such as decorative remnants, glass and nails).

- Before cleaning or servicing the product, the product must be switched off and the plug must be unplugged.

• Do not use a wet cloth or liquids to clean the product.

- Use the product in accordance with the operating instructions. Any loss or damage caused by improper use is the responsibility of the user.

• Danger of explosion if the battery is replaced with the wrong type.

- Dispose of used batteries according to the instructions on the product packaging.

• Do not consume the battery, there is a risk of chemical burns.
• This product contains a lithium battery. Ingestion of a lithium battery can cause severe internal burns in as little as 2 hours and can lead to a fatal injury.
• Keep new and used batteries out of the reach of children.
• If you believe that the batteries may have been swallowed or placed in any part of the body, seek medical attention immediately.
• Throwing a battery into a fire or hot oven or mechanically crushing or cutting a battery can lead to an explosion.
  • Leaving the battery in an environment of extremely high temperature may cause an explosion or leakage of flammable liquid.
• A battery exposed to extremely low air pressure may result in an explosion or leakage of flammable liquid.
• Improper handling (prolonged charging, short-circuiting, breakage by another object, etc.) may result in fire, overheating or leakage of hazardous substances from the battery.
• The battery or accumulator that may be included in the product is subject to a six-month service life as it is a consumable material.
• Do not disassemble, repair or modify the battery or charging station.
• Protect the charging station from heat (such as heating vents).
• When removing the battery, the product must be disconnected from the power supply.
• Do not wipe or clean the charger tips with a wet cloth or wet hands. A battery exposed to extremely low air pressure may result in an explosion or leakage of flammable liquid.
• Improper handling (prolonged charging, short-circuiting, breakage by another object, etc.) may result in fire, overheating or leakage of hazardous substances from the battery.
• The battery or accumulator that may be included in the product is subject to a six-month service life as it is a consumable material.
• Do not disassemble, repair or modify the battery or charging station.
• When removing the battery, the product must be disconnected from the power supply.
• Do not wipe or clean the charger tips with a wet cloth or wet hands.

USER INFORMATION FOR DISPOSING ELECTRICAL AND ELECTRONIC DEVICES (HOME USE)

This symbol located on a product or in the product's original documentation means that the used electrical or electronic products may not be disposed together with the communal waste. In order to dispose of these products correctly, take them to a designated collection site, where they will be accepted for free. By disposing of a product in this way, you are helping to protect precious natural resources and helping to prevent any potential negative impacts on the environment and human health, which could be the result of incorrect waste disposal. You may receive more detailed information from your local authority or nearest collection site. According to national regulations, fines may also be given out to anyone who disposes of this type of waste incorrectly.

User information for disposing electrical and electronic devices. (Business and corporate use) In order to correctly dispose of electrical and electronic devices for business and corporate use, refer to the product's manufacturer or importer. They will provide you with information regarding all disposal methods and, according to the date stated on the electrical or electronic device on the market, they will tell you who is responsible for financing the disposal of this electrical or electronic device. Information regarding disposal processes in other countries outside the EU. The symbol displayed above is only valid for countries within the European Union. For the correct disposal of electrical and electronic devices, request the relevant information from your local authorities or the device seller.

DE

GERÄTEDIAGRAMM

Technical line drawings of mechanical components, one showing a circular component with an arrow indicating direction (no text or symbols)

Technical illustration showing a machine and a mechanical device with arrows indicating process flow (no text or symbols)

ESZKÖZDIAGRAM

Technical line drawings of mechanical components, one showing a circular component with an arrow indicating direction (no text or symbols)

Technical illustration showing a mechanical device and its corresponding mechanical assembly with arrows indicating motion (no text or symbols present)

DIJAGRAM UREĐAJA

1. Prikaz
2. Upravljanje dodirom
3. Gumb za uključivanje i način rada (automatski/ručni)
4. Priključak za napajanje baterie
5. Baterija
6. Spremnik za prašinu
7. Osigurač poklopca spremnika za prašinu
8. Osigurač spremnika za prašinu

PUNJENJE

Technical line drawings of mechanical components, one showing a circular component with an arrow indicating direction (no text or symbols)

ČIŠĆENJE I ODRŽAVANJE

Technical illustration of a mechanical device and its assembly, showing powder particles and a conveyor mechanism (no text or symbols)

SCHEMAT URZĄDZENIA

Technical line drawings of mechanical components, one showing a circular component with an arrow indicating direction (no text or symbols)

CZYSZCZENIE I KONSERWACJA

Technical illustration of a mechanical device and its internal gear assembly (no text or symbols)

SHEMA NAPRAVE

1. Zaslon
2. Upravljanje na dotik
3. Gumb za vklop in gumb za način (samodejno/ročno)
4. Priključek za napajanje baterie
5. Baterija
6. Posoda za prah
7. Varovalka pokrova posode za prah
8. Varovalka posode za prah

POLNJENJE

Technical line drawings of mechanical components, one showing a circular component with an arrow indicating direction (no text or symbols)

ČIŠČENJE IN VZDRŽEVANJE

Technical illustration of a mechanical device and its internal assembly, showing powder particles and motion arrows (no text or symbols)

PARAMETRI

Dimenzije sesalnika (brez dodatkov):	295 x 108 x 210 mm
Napajalnik:	AC 100-240 V, 50/60 Hz, 0,4 A
Izhodna napetost:	DC 27 V
Nazivna napetost:	DC 29,6 V
Kapaciteta Li-Ion baterije:	2.200 mAh
Moč:	400 W, 30 kPa
Čas polnjenja:	3,5 h
Trajanje uporabe:	do 45 min
Prostornina posode za prah:	0,5 l
Teža sesalnika:	1,5 kg
Raven hrupa:	<75 dB

Niceboy s.r.o. izjavlja, da je NICEBOY ION Hurricane H9 v skladu z Direktivami 2014/30/EU, 2014/35/EU in 2011/65/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjih spletnih straneh: https://niceboy.eu/cs/declaration/ion-hurricane-h9

DIAGRAMA DISPOZITIVULUI

Technical line drawing of a mechanical component with a circular head and internal shaft (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

CURATENIE SI MENTENANTA

Technical illustration of a mechanical device and its internal gear mechanism, showing powder input and assembly (no text or symbols)

SOLUTII PENTRU CELE MAI OBIECTE PROBLEME

INSTRUCTIUNI CU PRIVIRE LA SIGURANTĂ

ENHETSDIAGRAM

Technical line drawings of mechanical components, one showing a circular component with an arrow indicating a feature, the other showing a cylindrical device with arrows indicating motion (no text or symbols present)

Technical illustration of a mechanical device and its corresponding assembly, showing powder particles and a rotating roller mechanism (no text or symbols)

Prague 4, Czech Republic, ID: 294 16 876.

Made in China.

RoHS
