Product Type	Cordless Stick Vacuum Cleaner
Brand	Niceboy
Model	ION Hurricane H5 Plus
Dimensions (L x W x H)	130 x 24.5 x 20.5 cm
Weight	1.3 kg
Power	140 W
Battery Type	Li-Ion, 22.2 V, 2200 mAh
Charging Time	4.5 - 5 hours
Runtime	Up to 35 minutes
Dust Container Capacity	0.5 L
Noise Level	<78 dB
Filter Type	Washable HEPA filter + metal pre-filter
Charging Adapter	DC 27 V / 0.5 A
Package Contents	Vacuum cleaner, battery, power adapter, extension attachment, crevice nozzle, 2-in-1 attachment, floor brush, floor/carpet brush, flexible nozzle
Recommended Filter Cleaning Interval	Every 15-30 days
Recommended Filter Replacement	Every 4 months
Battery Lifespan	6 months (consumable item)
Safety Features	Overheat protection, battery fuse, automatic shut-off
Country of Origin	China

Frequently Asked Questions - ION Hurricane H5 Plus Niceboy

How long does the battery take to charge?

The battery takes approximately 4.5 to 5 hours to fully charge. Use only the original adapter.

What is the maximum runtime?

The vacuum cleaner can run for up to 35 minutes on a full charge, depending on the suction power setting.

Can I use the vacuum cleaner while it is charging?

No, the vacuum cleaner cannot be used while charging. It must be disconnected from power before use.

How do I clean the filter?

Remove the dust container, then turn the metal filter counter-clockwise to detach it. The HEPA filter and metal filter are washable. Clean them with water and let them dry completely before reinstalling. Replace the HEPA filter every 4 months.

Why is the vacuum cleaner not sucking strongly?

Common causes include a full dust container, clogged attachments or filters, or a blocked floor brush. Check and empty the container, clear blockages, and clean or replace the filter.

What does the automatic shut-off feature do?

The vacuum cleaner may automatically shut off to prevent overheating or if the battery is depleted. It also turns off if the dust container is full or extensions are blocked. Allow the vacuum to cool for at least 45 minutes before restarting.

Can I wash the dust container?

Yes, the dust container can be removed and washed with a damp cloth. However, do not submerge the entire vacuum cleaner or use harsh cleaning agents.

Is the battery removable?

Yes, the battery is removable. Press the lock button and slide the battery downwards to detach. It can be charged either attached to the vacuum or separately.

What safety precautions should I take?

Always unplug the vacuum and remove the battery before cleaning. Keep away from children, do not use on wet surfaces or to pick up flammable materials. Never use a damaged charger or cord.

What accessories are included?

The package includes: extension attachment, crevice nozzle, 2-in-1 attachment, floor brush, floor/carpet brush, and flexible nozzle.

USER MANUAL ION Hurricane H5 Plus Niceboy

User Manual / Cordless Stick Vacuum

CZ

SCHÉMA ZAŘÍZENÍ

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with internal structure and spring (no text or symbols)

Technical line drawings of various household appliances and components, including a motor, fan, and cable (no text or labels)

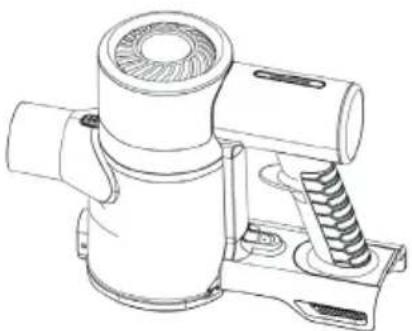

SCHÉMA ZARIADENIA

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with internal structure and spring assembly (no text or symbols)

Technical line drawings of various household appliances and components, including a vacuum cleaner, filter, and cord (no text or labels present)

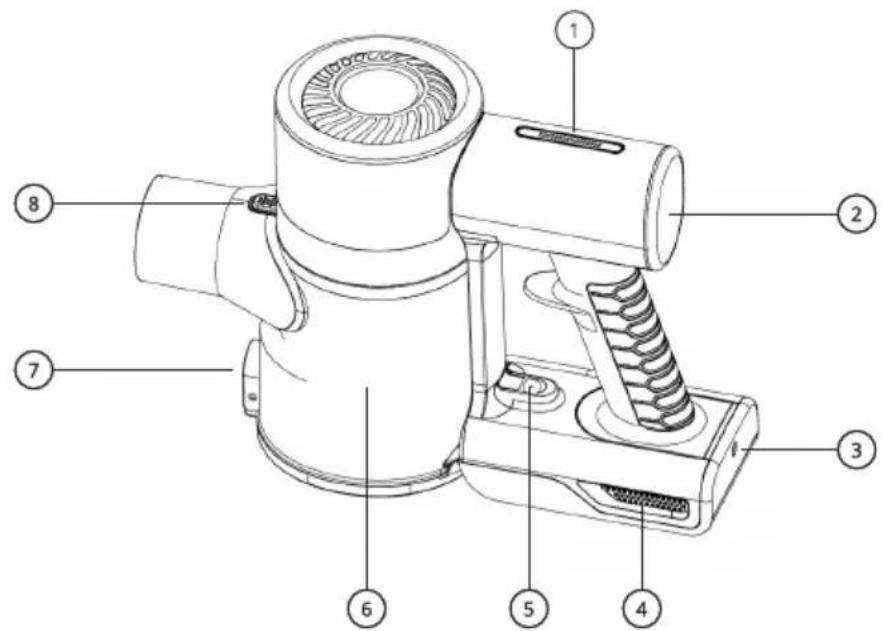

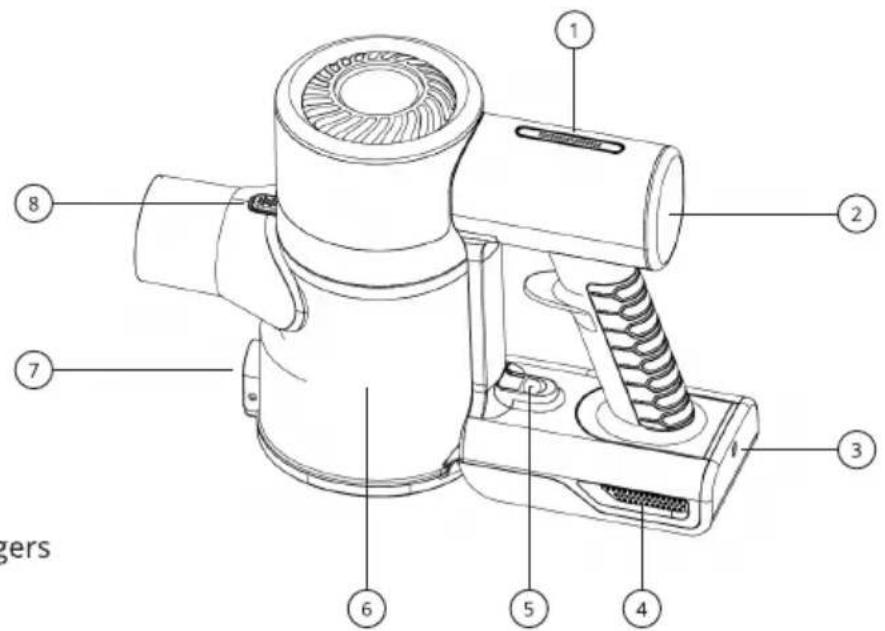

1. Battery charge indicator
2. Vacuum cleaner control panel
3. Charging port
4. Battery
5. Battery fuse
6. Dust container
7. Dust container lid fuse
8. Dust container fuse

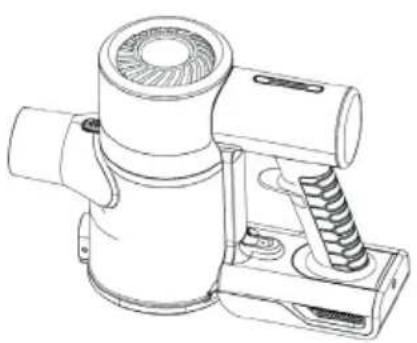

CHARGING

Charge the battery to 100% before first use. Charging time is 4.5-5 hours.

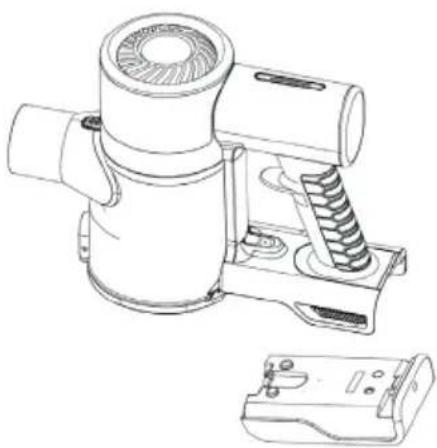

To disconnect the battery from the vacuum cleaner, press and hold the lock and remove the battery downwards. To attach the battery back to the vacuum cleaner, align the latches on the vacuum cleaner so that they fit into the grooves in the battery and then click the battery by moving the battery to the vacuum cleaner. A click will be heard when the attachment is successful.

Technical line drawing of a mechanical device with internal components and spring (no text or symbols)

Technical line drawing of a mechanical component with internal structure and spring (no text or symbols)

The battery is charged with the adapter included in the package. For charging, use only the original adapter from the manufacturer. The battery can also be charged outside the body of the vacuum cleaner. To extend the life of the vacuum cleaner, use a lower suction power on hard floors. Use higher suction power on carpets. The vacuum cleaner cannot be used while charging.

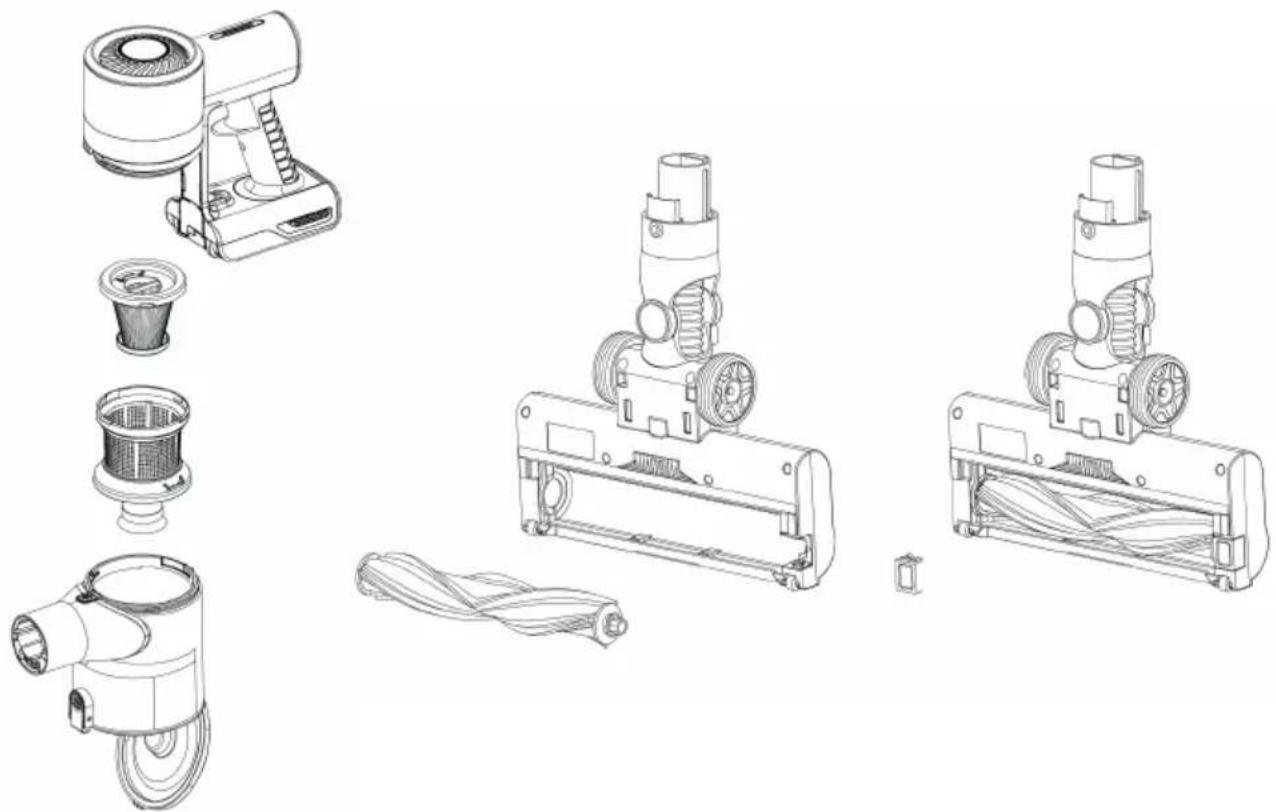

CLEANING MAINTENANCE

• Before cleaning, unplug the vacuum cleaner and remove the battery to avoid possible injury.
• Never submerge the entire vacuum cleaner or its parts in water.
• Use a dry or slightly damp cloth to clean the vacuum cleaner and its accessories.
- Do not use harsh or aggressive cleaning agents for cleaning.
• We recommend emptying the contents of the dust container into the trash after each cleaning. A full container can reduce the suction power of the vacuum cleaner.
• We recommend cleaning the HEPA filter of the vacuum cleaner once every 15-30 days, depending on the frequency of use, and replacing it with a new one every 4 months, or depending on the condition of the filter.
- To open the dust container, press the lock on the dust container and the lid of the container will then be released. Loosen the metal filter by slightly turning it counter-clockwise and remove it from the vacuum cleaner. The HEPA filter together with the metal filter are washable. The entire dust container can be removed from the vacuum cleaner, see picture.

Technical line drawings of various household appliances and components, including a vacuum cleaner, filter, and cord (no text or labels present)

For problem-free operation of the vacuum cleaner, we recommend regularly cleaning the floor brush, especially from tangled hair.

PARAMETERS

Vacuum cleaner dimensions: 130 x 24.5 x 20.5 cm

Adapter: DC 27 V / 0,5 A

Nominal battery voltage: 22.2 V

Li-Ion battery capacity: 2,200 mAh

Power: 140 W,

Charging time: 4.5-5 h

Duration of use: up to 35 min

Dust container capacity: 0.5 l

Weight of the vacuum cleaner: 1.3 kg

Noise level: <78 dB

Niceboy s.r.o. hereby declares that NICEBOY ION Hurricane H5 PLUS complies with Directives 2014/30/EU, 2014/35/EU, and 2011/65/EU. The full content of EU Declaration of Conformity is available on the following websites: https://niceboy.eu/cs/declaration/ion-hurricane-h5-plus

The battery or accumulator that may be included with the product has a life of six months because it is a consumable item. Improper handling (prolonged charging, short circuit, breakage by another object, etc.) can lead to fires, overheating or battery leakage, for example.

PACKAGE CONTENTS

Vacuum Cleaner, Battery, Power Adapter, Extension Attachment, Crevice Nozzle, 2-in-1 Attachment, Floor Brush, Floor/Carpet Brush, Flexible Nozzle

SOLUTIONS TO THE MOST COMMON PROBLEMS

PROBLEM	POSSIBLE CAUSE	SOLUTION
The vacuum cleaner does not suck at all or weakly.	The dust container is full.	Check the dust container, if it is full, empty it.
	The suction holes of the attachments or the vacuum cleaner are clogged.	Check the attachments for blockages.
	The floor brush is blocked.	Check the floor brush and remove hair and dirt that could reduce the performance of the vacuum cleaner.
	The vacuum cleaner attachments are not attached correctly.	Check that the vacuum cleaner attachments are securely attached.
	The filters of the vacuum cleaner are clogged.	Check the filters, if they are clogged they must be cleaned.
The vacuum cleaner turns itself off.	The battery of the vacuum cleaner is discharged.	It needs to be recharged before the next cleaning.
	The dust container is full.	The dust container must be emptied before further cleaning.
	Extensions are blocked.	Before proceeding with cleaning, it is necessary to check the suction holes of the attachments and the vacuum cleaner.
	The vacuum cleaner is overheating.	The vacuum cleaner must be allowed to cool down for at least 45 minutes before the next cleaning.

SAFETY INSTRUCTIONS

- Please read this manual carefully before using the product and use the product according to the instructions in this manual.

• Use only original manufacturer's accessories.

• Use only original batteries and charging docks that are specific to the product.

- If you need to hand over the product to a third party, enclose the operating instructions with it.

- Any operation contrary to these instructions may result in damage to the product and personal injury.

- The product is designed for indoor cleaning. Do not use the product to clean outdoor areas (such as outdoor terraces) or other surfaces.

- Never use this vacuum cleaner outdoors or in humid places.

- This appliance is not a toy. When using it, pay attention to your safety and the people around you, especially children and people with reduced physical, sensory and mental abilities and knowledge, if they are not supervised by a person responsible for their safety.

- The products cannot be used by children under the age of 8 years. If necessary, this must be done under the supervision of a guardian.

- Do not use the product if it is not working properly due to a fall, damage, outdoor use or water ingress. To prevent injury, the product should be repaired by the manufacturer or its after-sales service.

- Do not use the product if the power cord, socket or charging dock is damaged.

- Do not touch the vacuum cleaner or the charging adapter with wet hands.

• Before using the products, make sure that a complete dust box with all filters is installed

• Use of the product in an open flame environment is prohibited.

- Do not use the product in extreme heat (above 40^ ) or very cold (below 4^ ).

- Keep hair, clothing, fingers and other parts of the body away from the suction operating parts of the product.

- Do not use the product on wet or waterlogged soil.

- Avoid any objects, such as:

• Stones, waste paper

- Flammable materials

• Cigarettes, matches, ashes or other objects that may cause a fire.

- Do not use the device if the suction opening is blocked. At the suction opening, remove dust, cotton wool, hair, etc. to ensure smooth air circulation in the suction opening.

- Use the power cord carefully to avoid damaging it. Do not use the power cord to pull or pull on the device.

• Do not use the power cord as a handle.

- Do not close the power cord in between the door and doorpost.

- Do not pull the power cord by sharp corners and folds.

- If the suction opening is blocked, switch off the vacuum cleaner immediately and clean the suction opening.

SECURITY MEASURES

- Keep the main brush cleaning tools out of the reach of children.

- Keep hair, loose clothing, fingers and all body parts well away from openings and moving parts.

- Do not use the product on burning objects (such as cigarette butts).

- Do not use the product to clean hard or sharp objects (such as decorative remnants, glass and nails).

- Before cleaning or servicing the product, the product must be switched off and the plug must be unplugged.

• Do not use a wet cloth or liquids to clean the product.
• Use the product in accordance with the operating instructions. Any loss or damage caused by improper use is the responsibility of the user.
  • Danger of explosion if the battery is replaced with the wrong type.
• Dispose of used batteries according to the instructions on the product packaging.
• Do not consume the battery, there is a risk of chemical burns.
• This product contains a lithium battery. Ingestion of a lithium battery can cause severe internal burns in as little as 2 hours and can lead to a fatal injury.
• Keep new and used batteries out of the reach of children.
• If you believe that the batteries may have been swallowed or placed in any part of the body, seek medical attention immediately.
• Throwing a battery into a fire or hot oven or mechanically crushing or cutting a battery can lead to an explosion.
  • Leaving the battery in an environment of extremely high temperature may cause an explosion or leakage of flammable liquid.
• A battery exposed to extremely low air pressure may result in an explosion or leakage of flammable liquid.
• Improper handling (prolonged charging, short-circuiting, breakage by another object, etc.) may result in fire, overheating or leakage of hazardous substances from the battery.
• The battery or accumulator that may be included in the product is subject to a six-month service life as it is a consumable material.
• Do not disassemble, repair or modify the battery or charging station.
• Protect the charging station from heat (such as heating vents).
• When removing the battery, the product must be disconnected from the power supply.
• Do not wipe or clean the charger tips with a wet cloth or wet hands. A battery exposed to extremely low air pressure may result in an explosion or leakage of flammable liquid.
• Improper handling (prolonged charging, short-circuiting, breakage by another object, etc.) may result in fire, overheating or leakage of hazardous substances from the battery.
• The battery or accumulator that may be included in the product is subject to a six-month service life as it is a consumable material.
• Do not disassemble, repair or modify the battery or charging station.
• When removing the battery, the product must be disconnected from the power supply.
• Do not wipe or clean the charger tips with a wet cloth or wet hands.

USER INFORMATION FOR DISPOSING ELECTRICAL AND ELECTRONIC DEVICES (HOME USE)

This symbol located on a product or in the product's original documentation means that the used electrical or electronic products may not be disposed together with the communal waste. In order to dispose of these products correctly, take them to a designated collection site, where they will be accepted for free. By disposing of a product in this way, you are helping to protect precious natural resources and helping to prevent any potential negative impacts on the environment and human health, which could be the result of incorrect waste disposal. You may receive more detailed information from your local authority or nearest collection site. According to national regulations, fines may also be given out to anyone who disposes of this type of waste incorrectly.

User information for disposing electrical and electronic devices.

(Business and corporate use)

In order to correctly dispose of electrical and electronic devices for business and corporate use, refer to the product's manufacturer or importer. They will provide you with information regarding all disposal methods and, according to the date stated on the electrical or electronic device on the market, they will tell you who is responsible for financing the disposal of this electrical or electronic device. Information regarding disposal processes in other countries outside the EU. The symbol displayed above is only valid for countries within the European Union. For the correct disposal of electrical and electronic devices, request the relevant information from your local authorities or the device seller.

GERÄTEDIAGRAMM

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawings of various household appliances and components, including a vacuum cleaner, filter, and cord (no text or labels present)

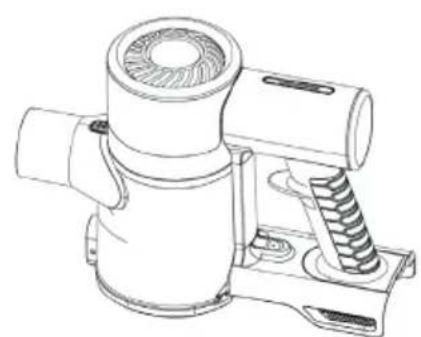

ESZKÖZdiagram

Technical line drawing of a mechanical device with internal components and spring (no text or symbols)

Technical line drawing of a mechanical device with internal components and a separate housing (no text or symbols)

Exploded view diagram of a cleaning or assembly process showing exploded views of mechanical components (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Baterija se puni pomoću adaptera koji dolazi u paketu. Za punjenje koristite samo originalni adapter proizvođača. Baterija se može puniti i izvan kućišta usisavača. Kako biste produžili vijek trajanja usisavača, koristite nižu snagu usisavanja na tvrdim podovima. Koristite veću snagu usisavanja na tepisima. Usisavač se ne može koristiti tijekom punjenja.

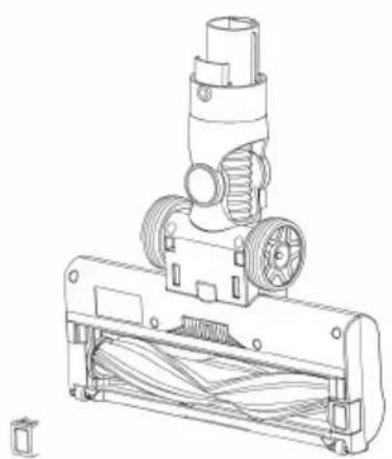

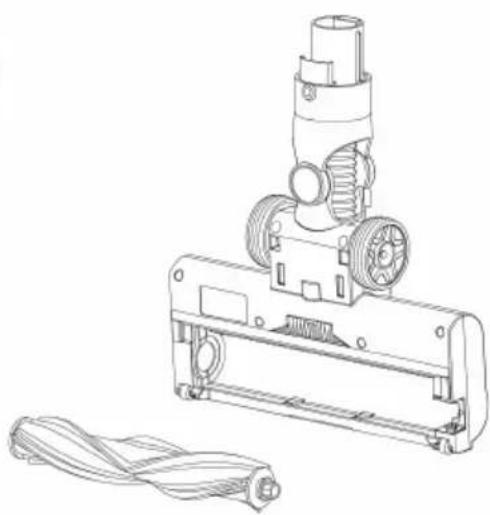

ODRŽAVANJE ČIŠĆENJA

Technical line drawing of a mechanical device showing exploded and assembled views (no text or symbols)

Technical line drawing of a mechanical device with two separate components: a cylindrical component and a coiled cable (no text or symbols present)

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawings of various household appliances and components, including a motor, fan, and cable (no text or labels present)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with internal structure and spring (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Exploded line drawings of various household appliances and components, including a motor, fan, and cable (no text or labels)

SOLUȚII PENTRU CELE MAI DESPRE PROBLEME

INSTRUCTIUNI CU PRIVIRE LA SIGURANTĂ

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with internal structure and spring (no text or symbols)

Technical line drawings of various household appliances and components, including a vacuum cleaner, filter, and cable (no text or labels present)

Prague 4, Czech Republic, ID: 294 16 876.

Made in China.
