GG6010 - Glue gun BLAUPUNKT - Free user manual and instructions

Type of product	Hot glue gun
Brand	Blaupunkt
Model	GG6010
Power supply	220-240V ~50-60Hz
Power consumption	100 W
Working temperature	120-180 °C
Glue stick diameter	11 mm
Heating time	Approximately 5-10 minutes
Continuous use limit	Up to 20 minutes
Dimensions (approx.)	200 x 150 x 50 mm
Weight (approx.)	300 g
Material	Plastic body, metal nozzle
On/Off switch	Yes
Trigger feed	Yes
Stand	Integrated fold-out stand
Nozzle type	Standard round nozzle
Safety overheating protection	Not specified, but built-in thermal fuse
Maintenance	Wipe with a damp cloth after cooling
Intended use	Home DIY, crafts, light repair
Included accessories	None (glue sticks sold separately)

Frequently Asked Questions - GG6010 BLAUPUNKT

What glue stick size does the GG6010 use?

The GG6010 uses 11 mm diameter glue sticks. Always select high-quality sticks for best results.

How long does it take to heat up?

The heating time is approximately 5 to 10 minutes. The glue may start to flow gently once ready.

Can I use the glue gun continuously for more than 20 minutes?

It is not recommended to use the gun for longer than 20 minutes continuously. Let it cool down if needed.

What is the working temperature range?

The working temperature is between 120°C and 180°C, depending on the glue stick and application.

Is it safe to leave the glue gun unattended?

No, never leave the glue gun unattended while plugged in. Always switch off and unplug after use.

How do I clean the glue gun?

Unplug and allow the gun to cool completely. Wipe the exterior with a damp cloth. Do not immerse in water.

Why is there smoke coming from the glue gun?

A slight smoke may appear during first use and can last up to 10 minutes. This is normal as manufacturing residues burn off.

Can children use this glue gun?

This tool is not intended for persons with limited physical or mental abilities unless supervised. Children should be supervised and kept away from the hot tool.

What should I do if the glue is not flowing?

Ensure the gun is fully heated (5-10 min). Check that the glue stick is properly inserted and of correct diameter. If still blocked, unplug and clean the nozzle after cooling.

How should I store the glue gun after use?

Allow the gun to cool completely, then store in a safe, dry place out of reach of children. Protect from rain and moisture.

USER MANUAL GG6010 BLAUPUNKT

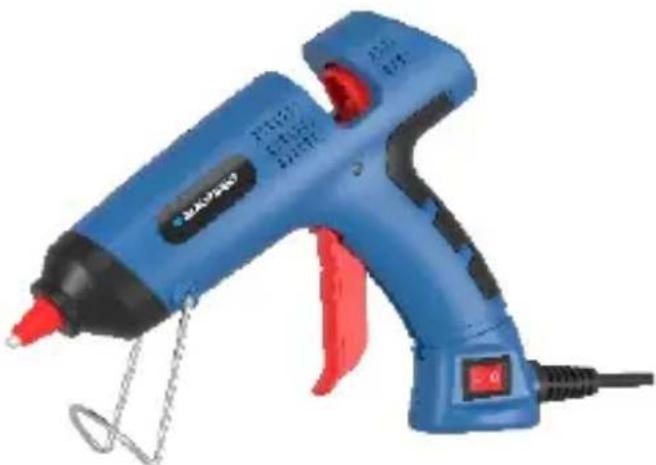

Blue and red electric iron glue gun with a black handle and white tip, no visible text or symbols on the tool body.

Blue and red electric glue gun with a black handle and control panel (no visible text or symbols)

Enjoy it.

Hot glue gun Pistolet do klejenia na gorąco Heißklebepistole Пистолет за горещо лепило Pištolj za vruće ljepilo Horká lepicí pistole Kuumliimi půstol

Пістóли ερμής κόλλας Karšto klijų pistoletas Karstās līmes pistole Pistol cu lipici fierbinte Horúca lepiaca pištol' Pištola za vroče lepilo Ragasztópisztoly

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement, no text or symbols present

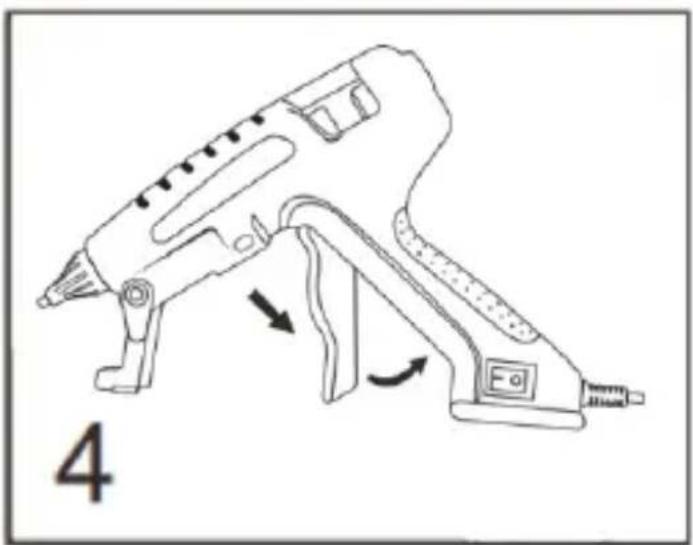

Line drawing of a hand tool with arrows indicating motion, labeled '4' (no text or symbols on the diagram itself)

IMPORTANT NOTES

- Before using the appliance, read the operating instructions and follow the instructions contained therein. The manufacturer is not liable for damage caused by use of the appliance other than for its intended purpose or incorrect handling. The operating instructions must be retained so that they can also be used for subsequent use of the product.

- Only connect the appliance to an outlet with characteristics in accordance with the values on the rating plate. Carefully check the condition of the glue gun, its cord and plug before each use. If the power cord is damaged, contact the manufacturer or a qualified technician. Do not modify the unit's electrical plug or use the cord for other purposes, which may increase the risk of electric shock. Do not modify the appliance.

- Avoid direct body contact with the hot body of the appliance and the adhesive, which reach high temperatures during operation.

- It is forbidden to use the device near explosive gases or flammable materials.

- This tool is not intended for persons with limited physical or mental abilities unless they are under the supervision of an appropriate person.

- Ensure that children do not have access to the glue gun. Children should be supervised not to play with the appliance.

- Do not leave the glue gun unattended. After using the gun, allow it to cool down before putting it away in a safe place. Protect it from rain and moisture to avoid the risk of electric shock.

- Make sure the gun is properly plugged in before starting work.

- When using it for the first time, a slight smoke may appear, which is normal and may last for up to 10 minutes.

- It is not recommended to use the gun for longer than 20 minutes continuously.

- Avoid working with the gun in extremely hot or cold conditions.

- Select high quality adhesive sticks, as they have a significant impact on the function and quality of the joint.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Usage:

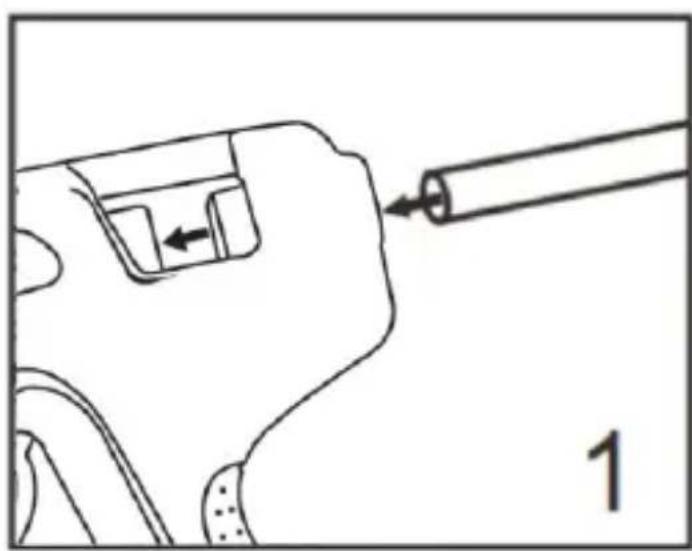

Selecting the right glue stick: Select the correct glue stick size (GG3010-7 mm / GG6010-11mm diameter stick) and insert it through the feed hole, push it into the central section until resistance is encountered.

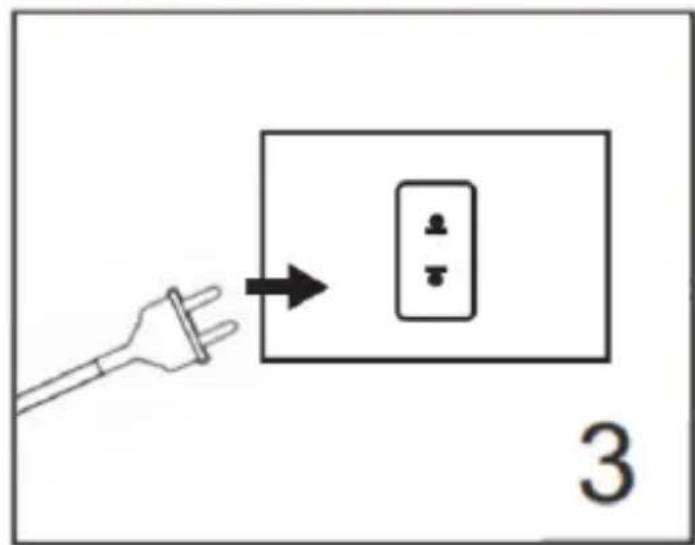

Preparing the device: Ensure that the glue gun is properly plugged in and placed on a stable surface. Switch the appliance on using the on/off switch. Place the gun in a tilted position on the stand with the nozzle facing downwards.

Heating up the gun: Wait until the gun has reached the correct temperature, usually about 5-10 minutes. The glue may gently start to flow out through the nozzle.

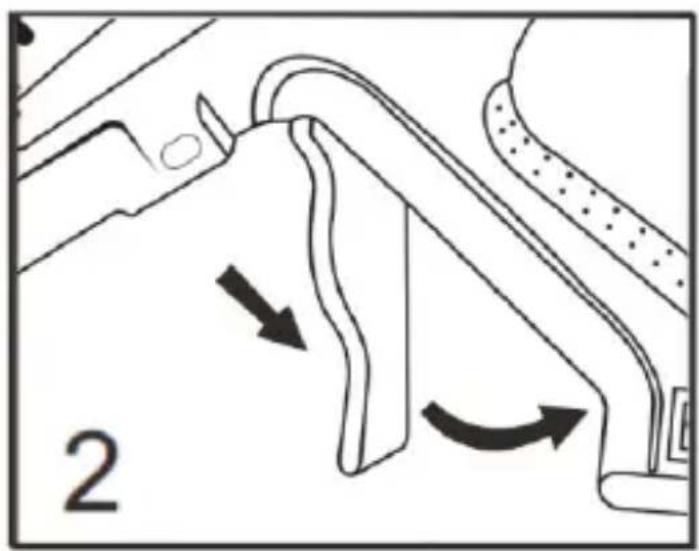

Applying glue: Once the gun has reached the correct temperature, press the trigger of the gun to apply the glue to the surface.

Avoid pressing the trigger too hard. Once the glue has been applied to the surface, join the parts to be glued together.

When finished working: Switch off the gun, disconnect it from the power supply and put it in a safe place to cool down.

Maintenance and cleaning: Before working on the glue gun in any way, unplug it from the socket. Always remember to wait until the glue gun has cooled down. Wipe the glue gun with a damp cloth.

Technical data

Power supply: 220-240V\~50-60Hz

Power: GG3010-30W / GG6010-100W

Working temperature: 120-180°C

WAŻNE INFORMACJE
