FRO-281 AW - Freezer Orava - Free user manual and instructions

Product Type	Freezer (No-Frost)
Brand	Orava
Model	FRO-281 AW
Technology	No-Frost (automatic defrost)
Dimensions (H x W x D) without handle	1860 x 595 x 650 mm
Space Required in Use (H x W x D)	2010 x 695 x 752.5 mm
Power Supply	220-240 V, 50 Hz
Climate Class	SN / T (10 °C to 43 °C)
Temperature Range	-16 °C to -24 °C (adjustable)
Freezer Sensor	Electronic control with digital display
Super Freeze Mode	Yes (rapid freezing, auto-off after 24 h)
Economy Mode	Yes (optimal energy at -18 °C)
Drink Cool Mode	Yes (timer up to 30 min)
Screen Saver Mode	Yes (auto after 30 sec idle)
Child Lock	Yes (press & hold two buttons)
Mute Mode	Yes (silences alarms and button sounds)
Refrigerant	R600a (flammable, environmentally friendly)
Interior Storage	4 compartments (flaps, drawers, bottom drawer, big drawer)
Ice Making	Ice tray and icematic (in some models)

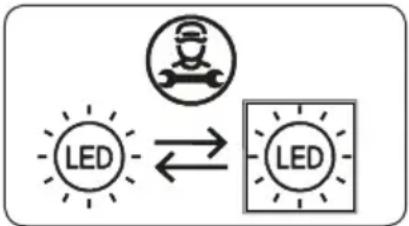

LED Lighting	Yes (replaceable by service)
Adjustable Legs	Yes (front leveling)
Door Reversibility	Not reversible with handles (contact service for models without handles)
Freezer Shield	Yes (operates down to -15 °C ambient)
Compressor Delay	5 minutes (protects compressor)
Max Altitude	2000 m
Spare Parts Availability	Minimum 7-10 years for specific components

Frequently Asked Questions - FRO-281 AW Orava

How do I adjust the freezer temperature?

Press the TEMPERATURE SET button repeatedly to cycle through available temperatures (-16 °C to -24 °C). The set value flashes; after 5 seconds of inactivity, the new temperature is saved. Recommended normal setting is -18 °C.

What is Super Freeze mode and when should I use it?

Super Freeze mode rapidly lowers the freezer temperature to freeze large amounts of fresh food or ready meals. Press the MODE button until 'SF' appears on the display. The mode automatically turns off after 24 hours or when the sensor detects sufficiently low temperature. Activate it 24 hours before placing fresh food for best results.

How do I activate the child lock?

Press and hold the DRINK COOL and MODE buttons simultaneously for 5 seconds. A child lock symbol appears on the display. Use the same method to deactivate. Child lock prevents accidental changes to settings.

What does Drink Cool mode do?

Drink Cool mode is a timer that reminds you when drinks should be ready. Press DRINK COOL to set a time from 0 to 30 minutes (in 5-minute increments). An alarm sounds when time expires. It is not a cooling intensifier; you must adjust time based on bottle temperature and check regularly to avoid bursting.

Does the freezer need manual defrosting?

No, the freezer uses No-Frost technology and defrosts automatically. Water from defrosting drains into a vaporisation container at the back and evaporates. Clean the container periodically with soapy water to prevent odours.

Why is my freezer making noise?

Normal noises include cracking (ice expansion, defrosting), short clicks (thermostat switching), motor hum (compressor running), bubbling/gurgling (refrigerant flow), and water flowing (to evaporator). In No-Frost models, air blowing noise is also normal. If the noise is excessive or unusual, check if the appliance is level and contacting walls.

The edges of the freezer feel warm. Is that normal?

Yes, especially in summer when the compressor runs more, the surfaces in contact with the door gasket may become warm. This is normal operation and prevents condensation.

How should I clean the freezer?

Disconnect the power before cleaning. Use a soft cloth with warm water and bicarbonate of soda. Avoid abrasive cleaners, detergents, or pouring water on the appliance. Clean the condenser brush at least twice a year to save energy. Dry all parts thoroughly before reconnecting.

What do error codes like E01, E08, E09 mean?

E01/E02/E03/E06/E07 indicate sensor faults – call service. E08 means low voltage (<170 V) – check power supply; this protects the compressor. E09 means the freezer is not cold enough – often after power loss: set a colder temperature or Super Freeze, remove thawed food, and keep door closed. If error persists, contact service.

How can I save energy with this freezer?

Place the freezer in a cool, ventilated room away from heat sources and sunlight. Let hot food cool before storing. Cover liquids to reduce humidity. Avoid frequent and long door openings. Use Economy mode (set to -18 °C). Clean door gaskets and ensure they seal properly. Keep the condenser clean.

USER MANUAL FRO-281 AW Orava

Simple line drawing of a door with a vertical slot on the left side (no text or symbols)

FRO-281 AW

Diagram of two heat exchanger-like structures with internal components (no text or symbols)

Architectural line drawing of a two-story building facade with internal structure and ventilation duct (no text or symbols)

Architectural line drawing of a two-story building facade with a double door and circular vent (no text or symbols)

• Stlačte tlačidlo MODE, kým sa nevyberie režim super mrazenia, na displeji sa zobrazí „SF“.
• Pokial' bliká kontrolka režimu super mrazenia, na 5 sekúnd nestláčajte žiadne tlačidlo. Zaznie pípnutie na potvrdenie spustenia režimu super mrazenia.

Illustration showing three different hand positions: a keyboard, a grid-patterned keyboard, and a hand holding a weight with a black X mark (no text or symbols)

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

1.3 Během provozu

Architectural line drawing of a two-story building facade with windows and a door, showing structural details (no text or symbols)

Line drawing of a front view of a wall-mounted air conditioner unit with two circular vent indicators and a small car (no text or symbols)

Illustration showing three hand gestures: a keyboard, a scroll with curved arrows, and a hand holding a cross (no text or symbols)

Nádobu na led neplňte vodou. Mohla by prasknout.

4 SKLADOVÁNÍ POTRAVIN

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly

CONTENTS

1 SAFETY INSTRUCTIONS .... 50

1.1 General Safety Warnings ....50
1.2 Installation warnings....54
1.3 During Usage....54

2 DESCRIPTION OF THE APPLIANCE....56

2.1 Dimensions....57

3 USING THE APPLIANCE .... 58

3.1 Information on No-Frost technology ....58
3.2 Display and Control Panel....59

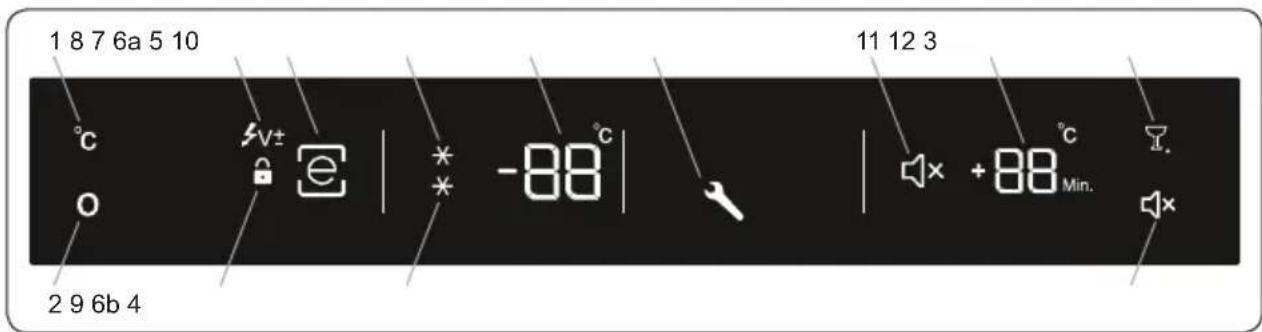

3.3 Operating Your Freezer 59
3.3.1 Freezer Temperature Adjustment 59
3.3.2 Super Freeze Mode....59
3.3.3 Economy Mode....60
3.3.4 Drink Cool Mode....60
3.3.5 Screen Saver Mode....60
3.3.6 The Child Lock Function....61
3.3.7 Mute Mode....61
3.4 Temperature Adjustment Warnings....61
3.5 Accessories 62

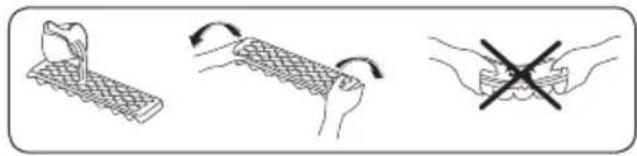

3.5.1 Ice Tray (In some models) 62
3.5.2 The Icematic (In some models) 62

4 FOOD STORAGE 62

5 CLEANING AND MAINTENANCE....65

5.1 Defrosting 65

6 SHIPMENT AND REPOSITIONING....66

6.1 Transportation and Changing Positioning ....66

6.2 Repositioning the Door....66

7 BEFORE CALLING AFTER-SALES SERVICE 67

8 TIPS FOR SAVING ENERGY....69

9 TECHNICAL DATA....69

10 INFORMATION FOR TEST INSTITUTES ....70

11 CUSTOMER CARE AND SERVICE....70

1 SAFETY INSTRUCTIONS

1.1 General Safety Warnings

Read this user manual carefully.

⚠ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
⚠ WARNING: Do not damage the refrigerant circuit.
⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
⚠ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
⚠ WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the instructions.
⚠️ If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and

natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:

-staff kitchen areas in shops, offices and other working environments.

-farm houses and by clients in hotels, motels and other residential type environments.

-bed and breakfast type environments;

-catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1.2 Installation warnings

Before using your freezer for the first time, please pay attention to the following points:

• The operating voltage for your freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your freezer may have an odour when it is operated for the first time. This is normal and the odour will fade when your freezer starts to cool.
• Before connecting your freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your freezer where it will not be exposed to direct sunlight.
• Your freezer must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• If your freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not cover the body or top of freezer with lace. This will affect the performance of your freezer.

• Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.

• Do not place heavy items on the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).
• Before using your freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the freezer after cleaning.
• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.
  • Install the two plastic distance guides (the

parts on the black vanes -condenser- at the rear) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall.

- The distance between the appliance and back wall must be a maximum of 75 mm.

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

1.3 During Usage

• Do not connect your freezer to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
• Do not place glass bottles or cans in your freezer as they will burst when the contents freeze.
• Do not place explosive or flammable material in your freezer.

• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.

• Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

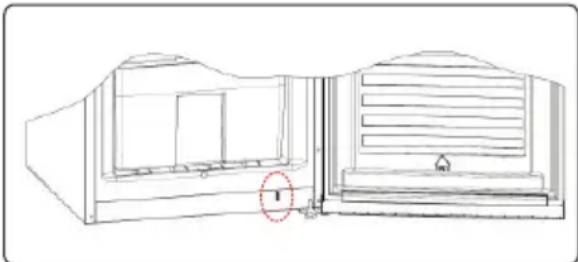

When the door of the freezer is closed, a vacuum seal will form. Wait for 1 minute before reopening it.

This application is optional for easy opening of the door. With this application, a little condensation may occur around this area and you may remove it.

Technical line drawing of a mechanical component with internal structure and mounting bracket (no text or symbols)

Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be

caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

2 DESCRIPTION OF THE APPLIANCE

This appliance is not intended to be used as a built-in appliance.

This presentation is only for information about the parts of the

appliance. Parts may vary according to the appliance model.

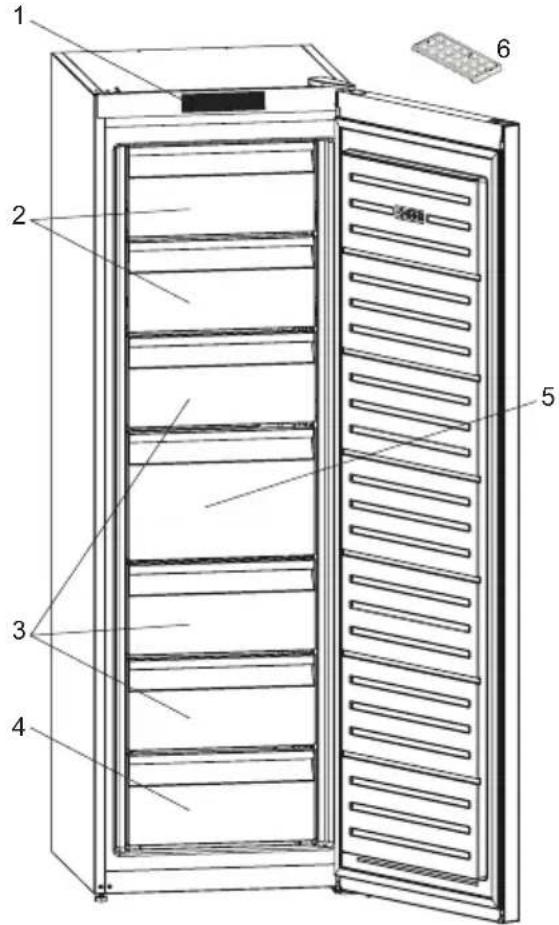

1. Control panel
2. Freezer flaps
3. Freezer drawers
4. Freezer bottom drawer
5. Freezer big drawer
6. Ice tray (In some models)

Line drawing of a room layout with a double-bell timer and a bus, no text or symbols present

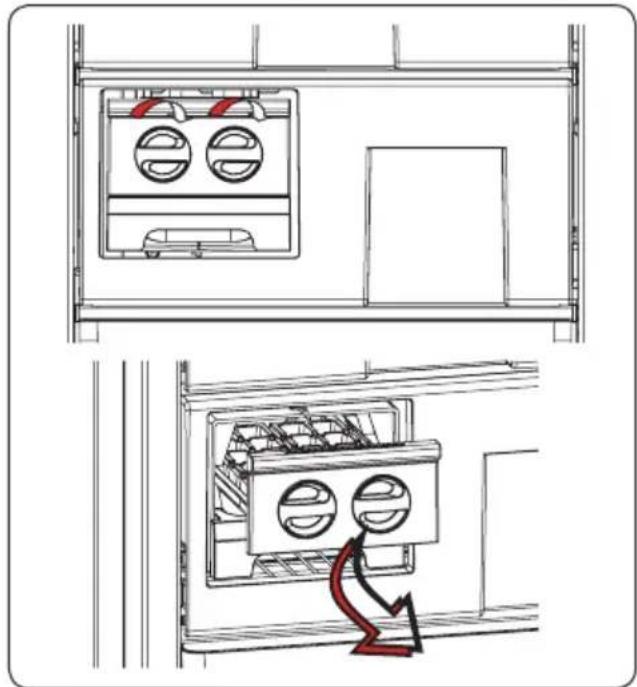

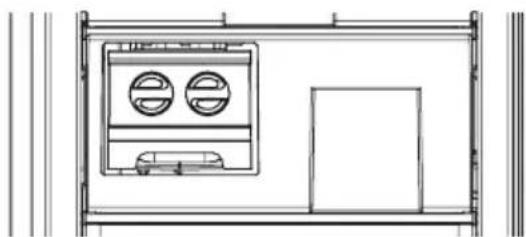

In some models there is a shelf with icematic in the top basket

General notes:

Freezer Compartment (Freezer): Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

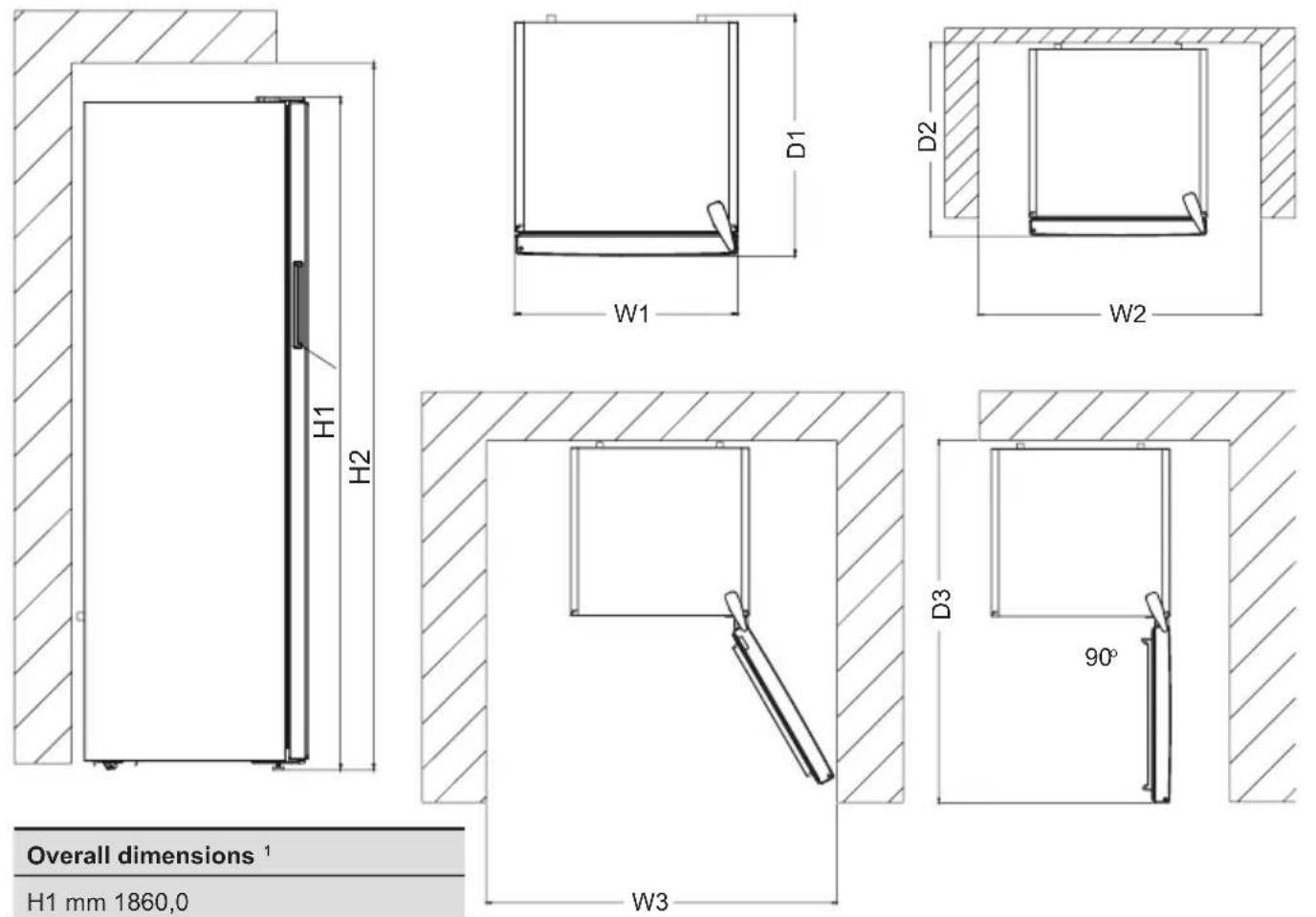

2.1 Dimensions

Overall dimensions1

H1 mm 1860,0

W1 mm 595,0

D1 mm 650,0

1 the height, width and depth of the appliance without the handle.

Space required in use2

H2 mm 2010,0

W2 mm 695,0

D2 mm 752,5

2 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air.

Overall space required in use3

W3 mm 710,6

D3 mm 1243,5

3 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment.

3 USING THE APPLIANCE

3.1 Information on No-Frost technology

No-frost freezers differ from other static freezers in their operating principle.

In normal freezers, the humidity entering the freezer due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the freezer, place the food that needs to be kept frozen in a separately cooled container and remove the ice gathered in the freezer compartment.

The situation is completely different in no-frost freezers. Dry and cold air is blown into the freezer compartment homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing.

Therefore your no-frost freezer allows you ease of use, in addition to its huge capacity and stylish appearance.

3.2 Display and Control Panel

Using the Control Panel

1. Freezer set button (FS)
2. Mode button (M)
3. Drink cool button
4. Mute button
5. Freezer set value display
   6a / 6b. Super freeze symbol
6. Economy mode symbol
7. Low voltage symbol
8. Child lock symbol
9. Alarm (SR) symbol
10. Sound off symbol
11. Drink cool value display*

*Active symbol may change according to language (Min-Dk.)

3.3 Operating Your Freezer

Lighting (If available)

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

3.3.1 Freezer Temperature Adjustment

• The initial temperature value for the freezer compartment is -18^ .
• Press the TEMPERATURE SET button to adjust the temperature value.
• The value for the freezer compartment will change to a lower temperature each time this button is pressed while the indicator is flashing.
• (-16^, - 17^, - 18^, - 19^, - 20^, -21^, - 22^, - 23^, - 24^)

• After reaching the desired temperature, wait for 5 seconds without pressing any buttons. Your freezer will now operate at that temperature.
- If you continue to press the button after the value for the freezer compartment reaches -24 °C (maximum cold position), the temperature values will start again from -16 °C.

Recommended Temperature Values for Freezer

When to adjust	Inner Temperature
For minimum freezing capacity -16	°C, -17 °C
In normal usage	-18 °C, -19 °C,-20 °C or -21 °C
For maximum freezing capacity	-22 °C, -23 °C or-24 °C

3.3.2 Super Freeze Mode

Purpose:

• To freeze large amounts of food
• To freeze ready foods
• To freeze food more quickly
• To store seasonal foods for a long time.

How To Use?

• Press the MODE button until the Super Freeze mode is selected, 'SF' will show on the display.
• While the Super Freeze Mode indicator is flashing, do not press any buttons for 5 seconds. A beep will sound to confirm Super Freeze mode is active.

- While the Super Freeze mode is active, 'SF' will be displayed.

Super freeze mode will automatically cancel after 24 hours, depending on the environmental temperature or when the freezer sensor reaches a sufficiently low temperature.

3.3.3 Economy Mode

The optimum condition for your freezer is at -18 °C as it will consume minimum energy.

Purpose:

• To operate your freezer more economically.

How To Use?

- Press the MODE button until a circle appears around the Economy symbol.

- If no button is pressed for 1 second, Economy mode will be set. The circle will blink three times and an alarm will sound.

- While Economy mode is active, 'E' will be displayed.

To cancel, you will just need to press on mode button.

3.3.4 Drink Cool Mode

How To Use?

Press the DRINK COOL button to activate Drink Cool mode. Each press of the button will increase the time by 5 minutes starting from 0 up to 30 minutes, then will start again from 0. The time will show on the Drink Cool Value display. An alarm will sound when the Drink Cool mode is complete.

Important: This is a timer, not a cooling process.

Adjust the time according to the temperature of the bottles before they are placed in the freezer. For example, you may initially set the time as 5 minutes in the

beginning, then, if the bottle is not cool enough after this time, you might set a further 5 or 10 minutes.

Regularly check the temperature of the bottles while this mode is active. When the drinks are cool enough, you must take them out of the appliance.

If the bottles are left in the appliance for too long while the Drink Cool mode is active, they can burst.

3.3.5 Screen Saver Mode

Purpose

This mode saves energy by switching off all control panel lighting when the panel is left inactive.

How To Use?

• Screen saver mode will be activated automatically after 30 seconds.
• If you press any key while the lighting of the control panel is off, the current machine settings will reappear on the display to let you make any change you wish.
• If you do not cancel the screen saving mode or press any key for 30 seconds, control panel will remain off.

To deactivate the screen saving mode,

• To cancel the screen saving mode, first of all, you need to press any key to activate the keys and then press and hold the MUTE button for 3 seconds.
  • To reactivate screen saving mode, press and hold the MUTE button for 3 seconds.
• While Screen Saver mode is active, Child Lock can also be activated.
• If no buttons are pressed for five seconds after activating Child Lock, the control panel lights will switch off.
• Press any button to view the previous settings and whether Child Lock is active. Child Lock can also be cancelled while Screen Saver mode is active, as described in the Child Lock Function section.

3.3.6 The Child Lock Function

Purpose:

To prevent unintentional or accidental changes being made to settings.

Activating Child Lock:

Press and hold the DRINK COOL and MODE buttons simultaneously for 5 seconds.

Use the same method to deactivate Child Lock.

Child Lock will also deactivate if the electricity is interrupted or the freezer is unplugged.

3.3.7 Mute Mode

Press the MUTE button to activate this mode. While this mode is active, there will be no button or alarm sounds.

To cancel this mode, press the MUTE button again.

3.4 Temperature Adjustment Warnings

• It is not recommended that you operate your freezer in environments colder than 10^ C in terms of its efficiency.
• Do not start another adjustment while you are already making an adjustment.
• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the freezer and the ambient temperature in the location of your freezer.
• In order to allow your freezer to reach the operating temperature after being connected to mains, do not open the door frequently or place large quantities of food in the freezer. Please note that, depending on the ambient temperature, it may take 24 hours for your freezer to reach the operating temperature.

- A 5 minute delay function is applied to prevent damage to the compressor of your freezer when connecting or disconnecting to mains, or when an energy breakdown occurs. Your freezer will begin to operate normally after 5 minutes.

- Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

Important installation instructions

This appliance is designed to work in difficult climate conditions (up to 43 degrees C or 110 degrees F) and is powered with ‘Freezer Shield’ technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

3.5 Accessories

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

3.5.1 Ice Tray (In some models)

• Fill the ice tray with water and place in the freezer compartment.
  • After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.

Illustration showing three different hand positions: a keyboard, a keyboard with rotation arrows, and hands holding a cup with a cross (no text or symbols)

3.5.2 The Icematic (In some models)

Technical line drawing showing a front panel with two circular components and a side view of the interior enclosure (no text or symbols)

• Pull the lever towards you and remove the ice maker tray
  • Fill with water to the marked level
• Hold the left end of the lever and set the ice-tray on the icebox
• When ice cubes have formed, twist the lever to drop the ice cubes into the icebox.

Do not fill the icebox with water in order to make ice. It will break.

4 FOOD STORAGE

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.
• Do not store fresh food next to frozen food as it can thaw the frozen food.
• Before freezing fresh food, divide it into portions that can be consumed in one sitting.
• Consume thawed frozen food within a short period of time after defrosting
• Never place warm food in the freezer compartment as it will thaw the frozen food.
  • Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.
• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.
• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.
• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.

• The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.

• The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

• To use the maximum capacity of the freezer compartment, use the glass shelves for the upper and middle section, and use the lower basket for the bottom section.
• Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf's greater freezing power. Fast freezing shelf is the bottom drawer of the freezer compartment.

If you would use maximum freezing capacity of your freezer:

• While freezing fresh foods, the maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
• For optimum appliance performance to reach maximum freezing capacity, activate Super Freeze (SF) mode 24 hours before placing fresh food into the freezer.
• After placing fresh food into the freezer, 24 hours is generally sufficient for freezing. "Super Freeze" mode will be deactivated automatically in 2-3 days to save energy.

If you would freeze a small amount (up to 3 kg) in your freezer:

• Place your food without touching already frozen food and activate “Fast Freezing” mode. You can put your food next to other frozen food after it is completely frozen (after minimum 24 hours).
• Do not re-freeze frozen food after it has thawed. This may cause health issues, such as food poisoning.
• Allow hot food to completely cool down before placing it in the freezer.
• When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.

NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily.

Important note:

• Never refreeze thawed frozen food.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time. Therefore, add small amounts of spices to food to be frozen, or the desired spice should be added after the food has thawed.
• The storage time of food is dependent on the type of oil used. Suitable oils are margarine, calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.

The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment.

Meat and fish Preparation		Maximum storage time (months)
Steak Wrap in foil 6 - 8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami Should be kept packaged even if it has a membrane
Chicken and turkey Wrap in foil 4 - 6
Goose and duck	Wrap in foil 4 - 6
Deer, rabbit, wild boar	In 2.5 kg portions or as fillets	6 - 8
Freshwater fish (Salmon, Carp, Crane, Catfish)	After cleaning the bowels and scales of the fish, wash and dry it. If necessary, remove the tail and head.	2
Lean fish (Bass, Turbot, Flounder)		4
Fatty fishes (Tuna, Mackerel, Bluefish, Anchovy)		2 - 4
Shellfish	Clean and in a bag	4 - 6
Caviar	In its packaging, or in an aluminium or plastic container	2 - 3
Snails	In salty water, or in an aluminium or plastic container	3
NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

Vegetables and Fruits	Preparation	Maximum storage time (months)
String beans and beans	Wash, cut into small pieces and boil in water	10 - 13
Beans	Hull, wash and boil in water	12
Cabbage	Clean and boil in water	6 - 8
Carrot	Clean, cut into slices and boil in water	12
Pepper	Cut the stem, cut into two pieces, remove the core and boil in water	8 - 10
Spinach	Wash and boil in water	6 - 9
Cauliflower	Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while	10 - 12
Eggplant	Cut into pieces of 2cm after washing	10 - 12
Corn	Clean and pack with its stem or as sweet corn	12
Apple and pear	Peel and slice	8 - 10
Apricot and Peach	Cut into two pieces and remove the stone	4 - 6
Vegetables and Fruits Preparation		Maximum storage time (months)
Strawberry and Blackberry	Wash and hull 8 - 12
Cooked fruits Add 10 % of	sugar to the container 12
Plum, cherry, sourberry	Wash and hull the stems 8 - 12

	Maximum storage time (months)	Thawing time at room temperature (hours)	Thawing time in oven (minutes)
Bread 4 - 6 2 - 3 4-5 (220-225 °C)
Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C)
Pastry 1 - 3 2 - 3 5-10 (200-225 °C)
Pie 1 - 1,5 3 - 4 5-8 (190-200 °C)
Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C)
Pizza 2 - 3 2 - 4 15-20 (200 °C)

Dairy products Preparation		Maximum storage time (months)	Storage conditions
Packet (Homogenized) Milk	In its own packet	2 - 3 Pure Milk – in its own	packet
Cheese - excluding white cheese	In slices	6 - 8	Original packaging may be used for short-term storage.Keep wrapped in foil for longer periods.
Butter, margarine	In its packaging	6

5 CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not wash your appliance by pouring water on it.

Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.
• The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.

- Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.

The power supply must be disconnected during cleaning.

5.1 Defrosting

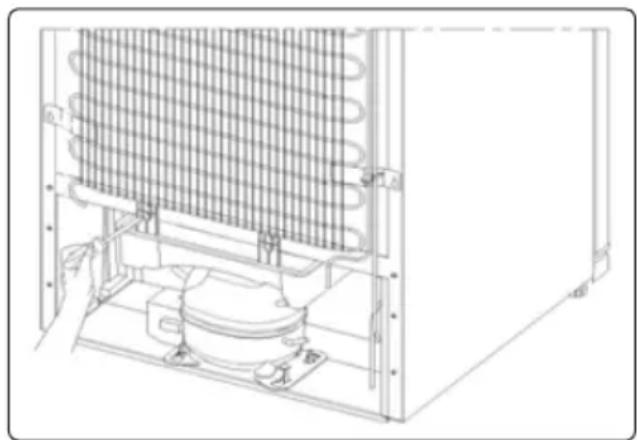

Technical line drawing of a refrigerated industrial machine with cooling panel and cooling unit (no text or symbols)

- Your appliance performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your

appliance and evaporates there.

• Make sure you have disconnected the plug of your appliance before cleaning the vaporisation container.
• Remove the vaporisation container from its position by removing the screws as indicated. Clean it with soapy water at specific time intervals. This will prevent odours from forming.

Replacing LED Lighting

To replace any of the LEDs, please contact the nearest Authorised Service Centre.

Note: The numbers and location of the LED strips may change according to model.

If product equipped with LED lamp

This product contains a light source of energy efficiency class .

If product equipped with LED Strip(s) or LED card(s)

This product contains a light source of energy efficiency class .

6 SHIPMENT AND REPOSITIONING

6.1 Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts (drawers, ice trays and so on) or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

6.2 Repositioning the Door

• It is not possible to change the opening direction of your appliance door if door handles are installed on the front surface of the appliance door.
• It is possible to change the opening direction of the door on models without handles.
• If the door-opening direction of your appliance can be changed, contact the nearest Authorised Service Centre to change the opening direction.

7 BEFORE CALLING AFTER-SALES SERVICE

Errors

Your freezer will warn you if the temperature of the freezer is at an improper level or if a problem occurs with the appliance. Warning codes are displayed in the freezer Indicators.

ERROR TYPE MEANING WHY WHAT TO DO
E01 Sensor warning			Call Service for assistance as soon as possible.
E02 Sensor warning			Call Service for assistance as soon as possible.
E03 Sensor warning			Call Service for assistance as soon as possible.
E06 Sensor warning			Call Service for assistance as soon as possible.
E07 Sensor warning			Call Service for assistance as soon as possible.
E08 Low Voltage Warning		Power supply to the device has dropped to below 170 V.	- This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levelsIf this warning continues an authorised technician needs to be contacted.
E09	Freezer compartment is not cold enough	Likely to occur after long term power failure.	1. Set the freezer temperature to a colder value or set Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Remove any products which have thawed/defrosted during this error. They can be used within a short period of time.3. Do not add any fresh produce to the freezer compartment until the correct temperature has been reached and the error is no longer.If this warning continues an authorised technician needs to be contacted.

If you are experiencing a problem with your freezer, please check the following before contacting the after-sales service.

Your freezer is not operating

Check if:

• There is power
• The plug is correctly placed in the socket
• The plug fuse or the mains fuse has blown

- The socket is faulty. Examine this by plugging your freezer into a working socket.

A rise in the temperature may be caused by:

- Opening the doors frequently for long periods of time

• Loading the appliance with large quantities of warm foods
  • A high ambient temperature
• An error with the appliance.

Your freezer is operating noisily

Normal noises

Cracking (ice cracking) noise occurs:

• During automatic defrosting
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking noise occurs: When the thermostat switches the compressor on/off.

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash occurs:

Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs: Due to water flowing to the evaporation container. This noise is normal during defrosting.

Air blowing noise occurs: In No-Frost freezers during normal operation of the system due to the circulation of air.

The edges of the freezer in contact with the door joint are warm

Especially during summer (warm seasons), the surfaces in contact with the door joint may become warmer during the operation of the compressor, this is normal.

There is a build-up of humidity inside the freezer

Check if:

• All food is packed properly. Containers must be dry before being placed in the freezer.
• The freezer door is opened frequently. Humidity of the room enters the freezer when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high.

- There is a build-up of water droplets on the rear wall. This is normal after automatic defrosting (in Static Models).

The door does not open or close properly

Check if:

• There is food or packaging preventing the door from closing
• The door compartments, shelves and drawers are placed correctly
  • The door joints are broken or torn
• Your freezer is on a level surface.

Important Notes:

• In the case of a power failure, or if the appliance is unplugged and plugged in again, the gas in the cooling system of your freezer will destabilise, causing the compressor protective thermal element to open. Your freezer will start to operate normally after 5 minutes.
• If the appliance will not be used for a long period of time (such as during holidays), disconnect the plug. Defrost and clean the freezer, leaving the door open to prevent the formation of mildew and odour.
• If the problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre.
• This appliance is designed for domestic use and for the stated purposes only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with these instructions, we emphasise that the manufacturer and the dealer will not be responsible for any repair or failure within the guarantee period.

8 TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
4. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
5. The door gasket must be clean and pliable. In case of wear, replace the gasket.

9 TECHNICALDATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance. It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

10 INFORMATION FOR TEST INSTITUTES

Appliance for any EcoDesign verification shall be compliant with EN 62552.

Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at Chapter 2. Please contact the manufacturer for any other further information, including loading plans.

11 CUSTOMERCAREAND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index.

The information can be found on the rating plate. You can find the rating label inside the fridge zone on the left lower side.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website to:

www.orava.eu

52501676
