USER MANUAL IR 257 BTDAB GoGen

• Thank you for buying our product.
- Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

SAFETY

General

• Do not drop the device and do not expose it to liquid, moisture or humidity. These might lead to damage to the device.
• If the device is moved from a cold environment into a warmer one, do let it adapt to the new temperature before operate the device. Otherwise, it might lead to condensation and cause malfunctions in the device.
• Do not use the device in the dust environment as dust can damage the interior electronic components and lead to malfunctions in the device.
• Protect the device from strong vibrations and place it on stable surfaces.
• Do not attempt to disassembly the device.
• If the device is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• To maintain the compliance with the WiFi RF exposure requirement, place the product at least 20 cm from nearby persons except when operating the controls.

Power adapter

• Only use the power adaptor delivered with the device.
• The socket outlet should be installed near the device and should be easily accessible.
• Never touch the power plug with wet hands and never pull on the power cable when pulling the plug out of the power socket.
• Make sure the electrical voltage specified on the device and its power plug is corresponding to the voltage of the power socket. Incorrect voltage will destroy the device.

Risks associated with high volumes

Connect headphones with volume set low and increase it if required. Prolonged listening through some headphones at high volume settings can result in hearing damage. To prevent possible hearing damage, do not listen at high volume levels for long periods.

Battery handling and usage

- Only adults should handle battery. Do not allow a child to use this apparatus unless the battery cover is securely attached.

- Remove batteries if exhausted or if they will not be used again for a long period. The incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst, therefore:

- Do not mix battery types, e.g. alkaline with zinc carbonate.

- When inserting new batteries, replace all batteries at the same time.

- Do not mix battery types, e.g. alkaline with zinc carbonate. - When inserting new batteries, replace all batteries at the same time.

- Batteries contain chemical substances, so they should be disposed of properly.

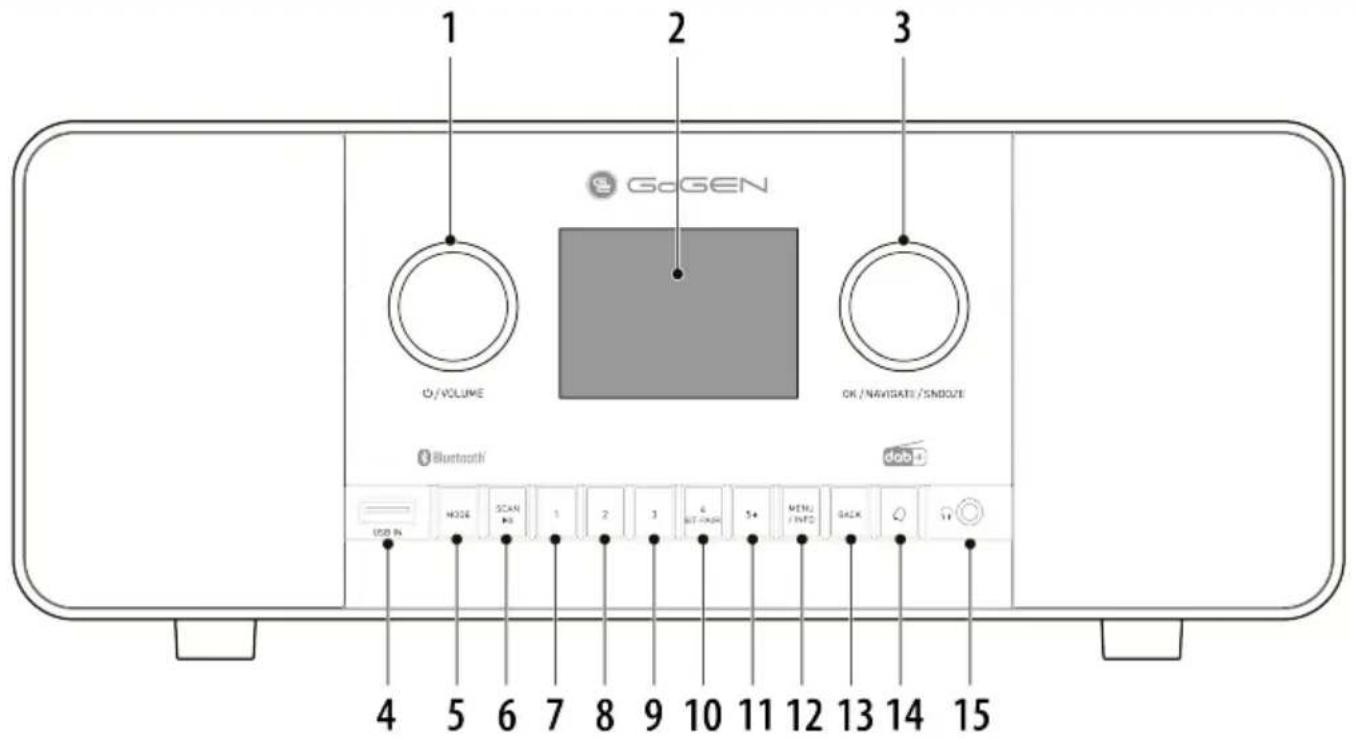

PRODUCT OVERVIEW AND CONTROL BUTTONS

1. /VOLUME knob
2. Display
3. OK/NAVIGATE/SNOOZE knob
4. USB port
5. MODE button
6. SCAN/ button
7. PRESET 1 button
8. PRESET 2 button
9. PRESET 3 button

10. PRESET 4/BT-PAIR button

11. PRESET 5+ button

12. MENU/INFO button
13. BACK button
14. button
15. Headphone output

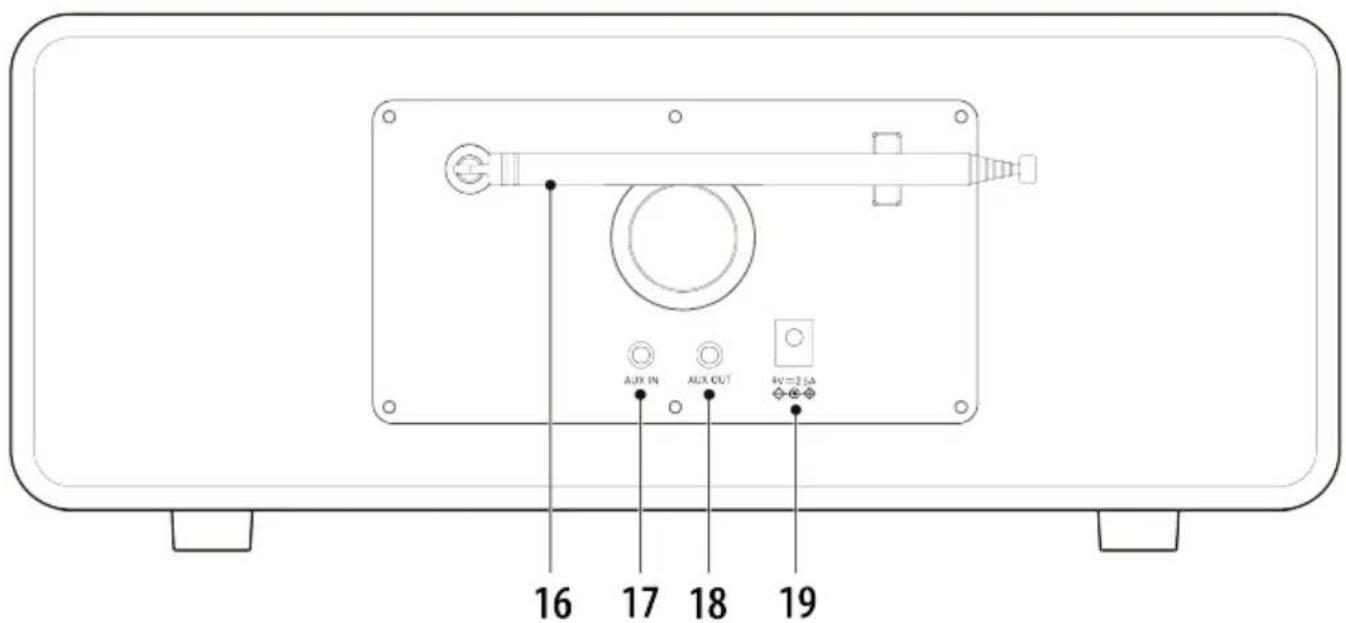

16. Antenna
17. AUX IN socket
18. AUX OUT socket
19. DC IN socket

REMOTE CONTROL BUTTONS

	Power on/offAlarm Off
SNOOZE	Press repeatedly to set the snooze period
◀/▶	FM: Press repeatedly to set desired station/frequencyPress and hold to search for the previous/next stationDAB: Press to skip to the previous/next stationUSB/BT: Press to skip to the previous/next track
▶	USB/BT: Start/Pause playback
■	USB/BT: Stop playback
	USB: Repeat playback
	USB: Random playback
	Press repeatedly to set the sleep timer
	Alarm1/Alarm2 settingStandby mode: Activation/deactivation of the Alarm 1/Alarm 2
INFO	Press repeatedly to view information about the currently playing content
BACK	Step back
SCAN	FM: Press to search for the next stationDAB: Press to start a full scan
EQ	Select equalizer preset
MODE	Mode selection
MENU	Open menu
^/√	Move up/downFM: Press repeatedly to set desired station/frequencyDAB: Press to view the Station list
VOL+/-	Increase/Decrease volumeStep forward/Step back in the menu
OK	Confirm entryDAB: Press to view the picture or information in the full-screen size
P+/-	DAB/FM: Up/down preset selection
0~9	Press to select a preset 1-9 directlyPress and hold to store a radio station to the presets 1-9 directly
	Mute, unmute
PRESET	Press and hold to store a radio station to the presetsPress to select a preset

To install the batteries

Lift off the battery compartment cover from the rear of the remote control. Insert 2 x 1,5V AAA size batteries in accordance with the diagram in the battery compartment. Take care to observe the correct polarity.

Remote control operation

To operate the device with the remote control, point the remote handset at the remote sensor on the front panel and press the appropriate button on the remote handset.

The remote works best within a range of 6 \~ 7 meters from the front panel and on an angle of 30 degrees. Bright sunlight or room light conditions can interfere with the remote control. If the remote operation is unsatisfactory or stops working entirely, first try replacing the remote batteries, then try reducing the room lighting conditions.

GETTING STARTED

Connect the power adaptor to the back of device and plug it into power socket. Pull out the rod DAB/FM antenna for DAB and FM reception.

Connecting the headphones

Turn the volume down before using the headphones. Inset the headphone plug (standard 3,5 mm) into the headphone socket.

GENERAL DEVICE FUNCTIONS

Power on/off

Press the ⏻ button to switch on the device. Press and hold the same button again to switch the device back to Standby mode. The time, WiFi connection status and any active alarm times display on the screen.

Menu operation

Press and hold the MENU/INFO button to open the menu. On the menu, rotate the OK/NAVIGATE knob to move through the items. Press the OK/NAVIGATE knob to confirm.

Press the BACK button to step back. Press the MENU/INFO button exit the menu.

Mode selection

Press the MODE button repeatedly to switch between modes.

Volume

Rotate the VOLUME knob to adjust the volume.

Now playing information

While stream/DAB/FM is playing, the screen shows some information about the station, press the MENU/INFO button to view.

Press the OK/NAVIGATE knob to view the picture or information in the full-screen size.

PRESETS

You can store up to 30 of your favorite DAB or FM stations to the memory. This will enable you to access your favorite stations quickly and easily. To store a preset, you must first be listening to the station that you would like to save.

Storing to Presets 1 \~ 4

To store a radio station to the presets, press and hold the PRESET 1 \~ 4 button, the display will show [Preset Stored].

Storing to Presets 1 \~ 30

To store a radio station to the presets, press and hold the PRESET 5+ button, the display will show [Save to Preset]. Select one of the 30 presets, and press the OK/NAVIGATE knob to confirm.

Recalling Presets 1 \~ 4

Press the PRESET 1 \~ 4 button to select the station you want to listen to.

Recalling Presets 1 \~ 30

To select a preset, press the PRESET 5+ button, the display will show [Recall from Preset].

Select one of the listed preset stations, press the OK/NAVIGATE knob to confirm.

NOTE: When a preset station is playing, it shows [★ 1], [★ 2], etc. at the bottom of the display.

FIRST INSTALLATION

Language settings

The first time you turn it on, the language selection screen will appear. Select the desired language, and press the OK/NAVIGATE knob to continue.

Time and date settings

• Select [12] for 12-hour display format or [24] for 24-hour display format. If you select the 12-hour format, the display shows AM in the morning or PM in the afternoon after the time.
• Choose how the time data will be synchronized: [Update from DAB], [Update from FM], [Update from Network] or [No update].

NOTE: If you choose [Update from Network] you must set your time zone [Set timezone], and in the next step summer time [Daylight saving]. If you choose [No update], you will have to enter the date and time manually.

Network settings

- If you want to control the device in all operating modes via the app, set [Keep network connected?] to [YES]. If choosing [NO], it won't be possible to control the device from the app.

Note: The power consumption in standby mode will be higher when the network connection is kept up.

- The device searches for WLAN networks. After the search is finished, a list of available networks will be displayed. Select your preferred network and enter the password.

NOTE: To enter the password, use the OK/NAVIGATE knob to highlight the next relevant character and press the knob to select each character in turn. Backspace (BCSP), OK and Cancel can be found on the right of the password screen.

Once the installation is complete, press the OK/NAVIGATE knob to start using the device.

MODE SELECTION

INTERNET RADIO / PODCASTS

The device can play thousands of radio stations and podcasts from around the world through a broadband Internet connection. When you select Internet radio or Podcasts mode, the device directly contacts the portal to get a list of stations or podcasts, organized into different categories like Country, Popular, Genre, and so on. Choose the required category and search for the station or podcast to listen to.

NOTE: The contents and submenus may change from time to time.

MUSIC PLAYER / USB

NOTE: Only MP3 audio format is supported. The device supports USB drives (FAT32) up to 32 GB. The USB port does not support charging external devices.

Playback

To view files stored on USB, press and hold the MENU/INFO button and choose [USB Playback]. Select the desired folder/track and the OK/NAVIGATE knob to start playback.

My playlist

To add a track to the [My playlist], press and hold the OK/NAVIGATE knob while playing the desired track. To view the added tracks, press and hold the MENU/INFO button and choose [My playlist]. To delete the list, press the MENU/INFO button and choose [Clear My playlist].

Repeat playback

Press ⬇ button on the remote control, the display will show [ ⇌ ] and the current folder will be played repeatedly. To cancel press the same button.

Random playback

Press ✗ button on the remote control, the display will show [✗] and the tracks from the current folder will be played randomly. To cancel press the same button.

DAB+ RADIO

DAB mode receives DAB/DAB+ digital radio and displays information about the station, stream and track playing.

Scanning for stations

• The first time you select DAB radio mode, or if the station list is empty, the radio automatically performs a full scan to see what stations are available.
• To start a full scan choose [Scan] in the menu.
• To start a manual tune choose [Manual tune] and the desired frequency.

Station selection

To view the station list press the BACK button or select [Station list] in the menu. Rotate the OK/NAVIGATE knob to select the desired station, and press the knob to confirm the selection.

Settings menu

[Prune invalid] > Once the scan is complete, the radio shows a list of available stations. To remove all invalid stations (marked with ?) that are listed but not available choose this option.

[DRC] (Dynamic range compression) > If you are listening to music with a high dynamic range in a noisy environment, you may wish to compress the audio dynamic range. This makes quiet sounds louder, and loud sounds quieter. You can change DRC as off, low or high.

FM RADIO

FM radio mode receives analog radio from the FM band and displays RDS (Radio Data System) information about the station and where broadcast.

Scanning for stations

• To activate Full Scan, press and hold SCAN/▶. When the full scan is complete, all found stations are saved to presets.
• To search for FM stations manually, press repeatedly ◀ / ▶ buttons on the remote control until your desired frequency is reached. Press and hold the same buttons to search for the previous/next station.

Settings menu

[Scan settings] > By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations. To change the scan settings to stop only at stations with good signal strength, select [YES] after choosing [Strong station only?].

[Audio settings] > All stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss). To play weak stations in mono, select [YES] after choosing [Listen in mono only?].

[Auto presetting] > To activate Full Scan, select [YES] after choosing [Start auto presetting].

BLUETOOTH

Pair your phone with the device before listening to music. If the device is not paired with any phone, the ☒con will flash at the bottom display. Activate Bluetooth of mobile phone and search for device name "IR 257 BTDAB" then connect it.

NOTE: If you are asked to enter a passcode, enter 0000.

If the pairing is successful, the 📄con will be solid and you can use the device to listen to music from your mobile phone.

NOTE: The operational range between the unit and the device is approximately 8 meters. If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter pairing mode automatically. For better signal reception, remove any obstacles between the unit and the Bluetooth device. Compatibility with all devices and media types is not guaranteed. Some mobile phones with Bluetooth functions may connect and disconnect as you make and end calls. This is not an indication of a problem with your unit.

Disconnecting the paired mobile phone

To disconnect your phone from the device, press PRESET 4/BT-PAIR button.

AUX IN

This device provides AUX IN socket, through this 3,5 mm jack external audio sources can be connected to this unit and be amplified.

• In AUX mode, connect your device with a cable (not included) to the AUX IN socket.
• Adjust the volume to your desired level.

NOTE: When using an external device, all playback features can only be controlled by the external device.

AUX OUT

The AUX OUT socket on the device's rear is provided to connect the device to an external amplifier.

ALARM

There are two wake-up alarms with a snooze facility. Each alarm can be set to start in a particular mode.

Press 🔒 button or select [Alarms] in the [Main menu] to set or change an alarm. After setup all the parameters, select [Save] to activate.

NOTE: When the alarm is set, it shows the [icon] and/or [icon] icon at the bottom of the display.

At the set time, the alarm will sound:

• Press the button on the device or on the remote control to turn off the alarm.
• To temporarily silence, press the SNOOZE button on the remote control. You can set the snooze period (5, 10, 15, 30 min.). The radio returns to standby for the set period, with the alarm icon flashing.

SLEEP TIMER

To set the sleep timer press repeatedly 📊 button on the remote control or select [Sleep] in the [Main menu]. Rotate the OK/NAVIGATE knob to adjust the sleep time OFF, 15, 30, 45 or 60 minutes and confirm.

NOTE: When the sleep time is set, it shows the [37] icon with the remaining time at the bottom of the display.

UNDOK

The device gives a feature of network remote by smartphone or tablet in iOS or Android system. By downloading the assigned app named UNDOK, you can view all the modes the device. Search UNDOK from Google Play or Apple Store, and install it to your smartphone or tablet.

Before using the UNDOK app, make sure the device and the smartphone / tablet are in the same WiFi network. Launch the app. The app initializes and scans for Internet Radio in the network. Tap the device to make the connection.

When prompted, enter the current PIN code. The default PIN is 1234. You can view and edit the current PIN on the Internet Radio in the menu. Select your desired mode in the main page. You may then control the selected mode on your smartphone / tablet and on the display of the device simultaneously.

NOTE: Be aware that if another smartphone / tablet with the app in the same network have access with the device, the original connection will be cut off.

SYSTEM SETTINGS

EQUALISER

Several preset EQ modes are available: Flat, Rock, Classic, Pop, Vocal, Jazz.

A user-defined [My EQ] setting is available. Select [My EQ profile setup] to create your own setup with custom bass, treble settings.

STREAMING AUDIO QUALITY

Set the streaming quality to Low quality, Medium quality or High quality.

NETWORK

[Network wizard] > Search for available AP SSID (Wireless networks). Then input the password to connect your wireless network.

[PBC Wlan setup] > Connect the AP that supports WPS (WiFi Protected Setup).

[View settings] > View the information of the currently connected network.

[Manual settings] > Enable or disable DHCP (Dynamic Host Configuration Protocol). Input the SSID, WEP / WPA key and/or other configuration.

[NetRemote PIN Setup] > View and edit the NetRemote PIN. The default NetRemote PIN is: 1234.

The NetRemote PIN is required when you want to connect a smartphone or Tablet PC to your device.

[Network profile] > View the list of registered networks. You can also delete unwanted networks.

Press OK to delete the selected network.

NOTE: The device remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find.

[Clear network settings] > Clear all the current network settings.

If you enable [Keep network connected] the device will not disconnect from the wireless network, even if you are in standby mode. This option allows the device to be ready for UNDOK control.

TIME/DATE

[Set Time/Date] > Set the time/date manually.

[Auto update] > Auto-update the time/date from the selected source.

You can also edit the details of the time/date settings: Set format, Clock style.

INACTIVE STANDBY

Set the desired time, after which the device will go into standby mode automatically in case it is not controlled.

LANGUAGE

Set the desired language.

NOTE: The default language is Czech. Available languages: English, Hungarian, Czech, Slovak, and Polish.

FACTORY RESET

Resetting all user settings to default values, so that time and date, network configuration, and presets are lost.

SOFTWARE UPDATE

[Auto-check setting] > Check for new updates from time to time automatically.

Automatic updating is enabled by default.

[Check now] > Search for available updates immediately.

You will be asked if you want to go ahead with the download and installation of an update.

After a software upgrade, all user settings are maintained.

NOTE: Before starting a software upgrade, ensure that the device is plugged into a stable main power connection.

Disconnecting power during an upgrade may permanently damage the device.

SETUP WIZARD

With this function, you can start the setup wizard at any time.

INFO

View the SW version and the Radio ID.

BACKLIGHT

Set the desired time [Timeout], after which the display backlight level will be changed.

Adjust the levels of backlight for both states [On level] / [Dim level].

MAINTENANCE / CLEANING

• Always power off the device when cleaning it.
- Never use any harsh or strong solvents to clean the device since these may damage the surface of the device. Dry, soft cloth is appropriate, however, if the device is extremely dirty, it may be wiped off with a slightly moist cloth. Make sure the device is dried off after cleaning.

When you are necessary to ship the device, store it in its original package. Save the package for this purpose.

TROUBLESHOOTING

ERROR REMEDY
The device does not switch on.	Check it the power adaptor is connected properly.
No sound.	Turn on the sound as it may be muted. Increase the volume.Pull any connected headphone or speaker from the connector jack.
No network connection can be established.	Check the WLAN function.Try to set an IP address at the device.Activate the DHCP function on the router and make the connection again at the device.A firewall is activated on the network > set the respective program in such a way that access is possible.Reboot the router
Hiss in FM mode.	Check/move the FM antenna.Move the radio.
No stations available / burbling / intermittent in DAB mode.	Move the radio.Rescan local stations only (high-strength).Check the local DAB coverage.
Alarm does not work.	Switch on the alarm.Due to the volume setting, refer to the solutions of “No sound”.The source of alarm was set to be station but there is no network connection. Change the source of alarm or reconfigure the connection.
All other undetermined cases.	The smart radio may process large amount of data after a period of operation, no matter in which mode, it will cause the system freeze or malfunction. Reboot the device if necessary.
	The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.
	The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference.

SPECIFICATIONS

Display: 2,8", 320 x 240 pxl, TFT colour display

FM Frequency Range: 87,5 - 108 MHz

DAB+ Frequency Range: 174,928 - 239,200 MHz

Number of preset stations: 30 Internet / 30 DAB / 30 FM

BT Frequency Range/EIRP: 2402 - 2480 MHz / 14,32 dBm (EIRP)

Supported WLAN networks: WiFi IEEE 802.11b/g/n, 2,4 GHz/5 GHz

Supported security protocols: WEP, WPA, WPA2, WPS

Power supply: 9 V / 2,5 A DC

Power consumption (in operation): < 19 W

Power consumption (standby): ≤ 1 W

Remote Control Power Supply: 2 x 1,5V AAA battery

Power output: 2 x 5 W (RMS)

Dimensions: 330 x 135 x 205 mm

Weight: 2,2 kg

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

PACKAGE CONTENTS

Internet/DAB+/FM Radio, Power adaptor, Remote control, 2 x 1,5V AAA batteries, User manual

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE

REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENSION.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate

waste handling of this product. The recycling of materials will help to conserve natural resources.

For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type IR257BTDAB is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.GoGEN.cz/declaration_of_conformity

WPROWADZENIE

STACJE ZAPISANE W PAMIĘCI

STREAMING HANGMINŐSÉG

	EN - English
Charging adapter
A	Manufacturer's name or trademark, business registration number and address	Shenzhen Guijin Technology Co.,Ltd., 301, No. 72, Songxin Industrial, Hongxin Community, Songgang Street, Bao' an Shenzhen, 518105 Guangdong, P. R. China
B	Model identifier GJ27WE-0900250V
C	Input voltage 100-240 V
D	Input frequency 50/60 Hz
E	Output voltage 9,0 V
F	Output current 2,5 A
G	Output power 22,5 W
H	Average efficiency in active mode 86,94%
I	Low load efficiency (10%) 83,24%
J	Power consumption without load	0,09 W

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JENMART INDUSTRIAL (HK) CO., LIMITED is under license. Other trademarks and trade names are those of their respective owners.

Abstract black and white circular logo with stylized white 'S' shape (no text or symbols)
