Product Type	Electric Grater
Brand	RGV
Model	Robusta Junior
Intended Use	Grating hard cheese, dry bread, and similar solid foods
Dimensions (L x P x H)	170 x 229 x 250 mm
Net Weight	2.05 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	150 W
Max Continuous Operation	5 minutes
Noise Level	<68 dBA
Max Ambient Temperature	+30 °C
Hopper Opening (X x K)	79 x 60 mm
Grater Roller	Removable, sharp, with cap
Container Capacity	Included container with drilled lid and solid lid
Safety Features	Pictogram warning for moving parts, maintained-action switch (must be held to operate)
Cleaning	Grater roller and hopper removable, dishwasher safe up to 55°C; body wipe with damp cloth
Warranty	24 months from date of purchase
Accessories Included	Grater roller, container with lids, power cord, instruction manual

Frequently Asked Questions - Robusta Junior RGV

Can I grate soft cheese with this grater?

For optimal results, cheese should not be particularly soft. Hard cheeses like Parmesan or Pecorino work best.

How long can I use the grater continuously?

Do not operate the appliance continuously for more than 5 minutes. Take breaks to avoid overheating.

Can I clean the appliance with water?

Never immerse the appliance body, power cord, or plug in water. Clean the body with a damp cloth. The grater roller and hopper can be washed in running water or dishwasher (max 55°C).

What should I do if the grater jams?

Release the start button immediately. Unplug the appliance, then remove the hopper and grater roller as described in the manual to clear the blockage.

How do I remove the grater roller for cleaning?

Hold the hopper steady, rotate the cap (6a) clockwise to unhook it, then carefully extract the grater roller. Wash with water, but do not remove the cap from the roller.

Can I use the grater without the container?

No, only use the appliance with the container (8) correctly positioned under the hopper to collect grated food.

Why does the pressing lever not stay up?

For safety, the pressing lever (3) is designed to close when released. It does not remain in a raised position.

What food can be grated?

This appliance is intended for grating hard cheese, dry bread, and similar solid foods. Do not process overly soft or hard items.

What should I do if the appliance overheats?

Immediately stop use, unplug the appliance, and let it cool down. If it does not start again, contact an authorized dealer or technical support.

Can I repair the grater myself?

Any repairs must be carried out by authorized personnel. Unauthorized repairs void the warranty.

USER MANUAL Robusta Junior RGV

Colorful abstract logo with a house and wavy line, no text or symbols present

ROBUSTA

JUNIOR

Technical line drawing of a mechanical device with no visible text or symbols

(Translation of original instructions)

Introduzione

Gentile Cliente,

Line drawing of two hands shaking, no text or symbols present

Indice

IT

IT

E

Sicurezze

K5. Sollevare la leva pressore (3).

Line drawing of a person using a cart with a bag, no text or symbols present

IT

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Technical illustration of a sewing machine with a red arrow indicating motion (no text or symbols)

Line drawing of hands operating a sewing machine with a lock icon and red arrow indicating rotation (no text or symbols)

Thank you for choosing our product and we are confident that this choice will meet your expectations in full.

Before using this equipment, please read carefully this "instruction manual" in order to optimize the functional characteristics and eliminate any problems that may arise from incorrect use.

Line drawing of two hands shaking, no text or symbols present

Index

EN

A Introduction Page 21
B Important safety information...... “ 22
C Warnings for use ...... “ 23
D Important warnings .... “ 25
E Technical specifications.... " 26
F Content of the packaging .... “ 26
G Appliance description.... " 27
H Safety devices.... " 27
J At first use .... “ 28
K Use of the appliance .... “ 28
L Tips “ 31
M Cleaning and maintenance .... “ 32
N Possible problems.... " 35
- Disposal of the appliance .... “ 35
P Additional warnings.... " 36
Q Conventional warranty conditions .... “ 37

Indice

IT

Meaning of warning signs in the booklet

GER: Indicates an imminently hazardous situation which, if not avoided, could result in serious injury or even death. The use of this term is limited to the most extreme situations.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, could result in serious injury (and in extreme cases death).

RNING: Indicates a potentially hazardous situation which, if not avoided, may result in minor injuries to personnel or damage to equipment. It also alerts the user on incorrect operating modes.

Safety warnings essential before use

Carefully read the instructions in this manual as they provide important information for safe installation, use and maintenance.

Keep this booklet for future reference.

- The packaging materials (plastic bags, polystyrene boxes, etc.) must not be left within reach of children as potential sources of danger.

Read with attention this instruction before use.

- Use this appliance only for its intended purpose as described in this instruction manual.

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.

Warnings for use

To ensure safe operation:

- Before each use, verify the mechanical integrity of the device and of all its components. The device body and all components must not show cracks or tears. The protective sheath and the plug of the power cord should not be cracked or broken. Upon the occurrence of the above, disconnect the plug from the wall socket and take the unit to the dealer for the necessary checks.

Before plugging the appliance, ensure that the line voltage corresponds to that indicated on the rating plate.

The nameplate is located under the appliance.

- The electrical safety of the device is ensured only if connected to an efficient earthing system in accordance with current safety standards.

To verify this important requirement you need the help of professionally qualified personnel.

The manufacturer can not be held responsible for damage caused by lack of earthing.

- For your safety, it is recommended to supply power through a differential switch (RCD) with a tripping current not exceeding 30 mA. - Do not obstruct the cooling grilles during operation of the appliance.

- Never immerse the appliance, the power cord and plug in water or other liquids.

- Do not clean the appliance directly with water or other liquids (direct jet, etc.).

- Do not disconnect the electrical appliance by pulling the power cord.

- Do not use or store this appliance outdoors, in a wet environment or near water.

- Place the appliance on a horizontal supporting and firm plane whose surface is not sensitive (eg, lacquered furniture, tablecloths, etc..). Items such as caps, jars etc.. shall be placed on the appliance.

EN

Make sure that the unit is leant in a safe manner.

The appliance can be used by children aged 8 years or over and by persons with reduced physical, sensory or mental capabilities, without experience or the necessary knowledge, as long as they are under supervision or after they received instructions on the safe use of the appliance and on awareness of the dangers linked to it.

Cleaning and maintenance destined to be carried out by the user must not be carried out by children without supervision.

An electric appliance is not a toy. Use and store it out of the reach of children; the latter must be supervised to ensure they do not play with the appliance.

During operation, the power outlet should be easily accessible in the event that it is necessary to disconnect the appliance.

Do not place the appliance under a power socket.

Make sure the power cord does not protrude from the bearing plane to avoid that someone may, even inadvertently, pull it overturning the appliance.

Do not leave the power cord within the reach of children.

Do not try to repair the appliance. The appliance MUST be checked and/or repaired at an authorized dealer.

Any repairs carried out on the device by unauthorized personnel will void the warranty automatically.

This appliance shall only be destined for the use for which it has been expressly conceived, namely to grate foods such as seasoned cheese, dry bread, etc.

Any other use is considered improper and therefore dangerous.

The manufacturer cannot be held responsible for any damage deriving from improper, incorrect, or unreasonable uses.

Avoid contact with all the moving parts.

Switch off the appliance and disconnect it from the electric power supply before cleaning it or carrying out maintenance.

Important warnings

To reduce the risk of fire, electric shock, injury to persons when using your appliance, follow basic precautions, including the following:

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid any risk.

- Do not store or use this appliance outdoors.

- Do not use the appliance near sinks, taps, in moist places or near a pool or other containers of liquid.

- Do not electrically connect the appliance by means of the use of an external timer or a remote control system.

- Do not install the appliance near sources of heat or flammable materials; in a room subject to humidity, oil smokes, dust, direct sunlight, rain, where leakage of gas may occur or on a not levelled surface.

- Do not spray volatile substances such as insecticide on the surface of the appliance.

• Always disconnect the plug from the power outlet before proceeding with cleaning or displacement of the appliance.

Only for domestic use

Should there be problems with the appliance, contact an authorised service centres.

Avoid repairing the appliance on your own.

Any repairs carried out on the device by unauthorised personnel will automatically invalidate the warranty, even if it has not reached the expiration date.

	SPECIFICATIONS

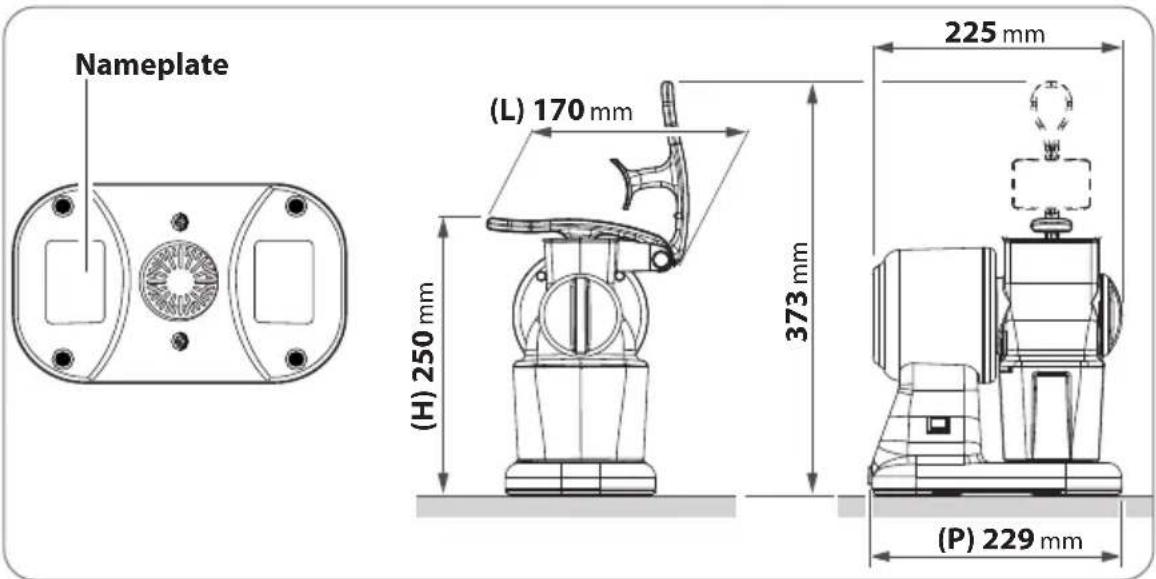

Appliance dimensions (L x P x H) mm 170 x 229 x 250
Mouth interior size (X x K) mm 79 x 60
Appliance net weight kg 2,05
Noise level (1)		dBA <68
Max. ambient temperature °C +30
Electrical data	- Voltage: V~ 220/240
	- Frequency: Hz 50
	- Power:	W	150
- Kb (maximum time of continuous use)		min	5'
(1)Level of A-weighted equivalent continuous acoustic pressure

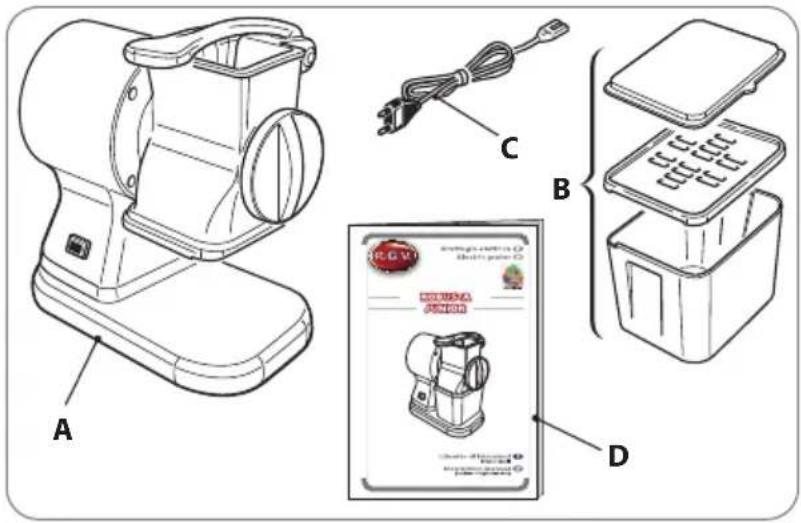

Content of the packaging

A. Appliance
B. Container with lids
C. Electric power cord
D. Instruction manual

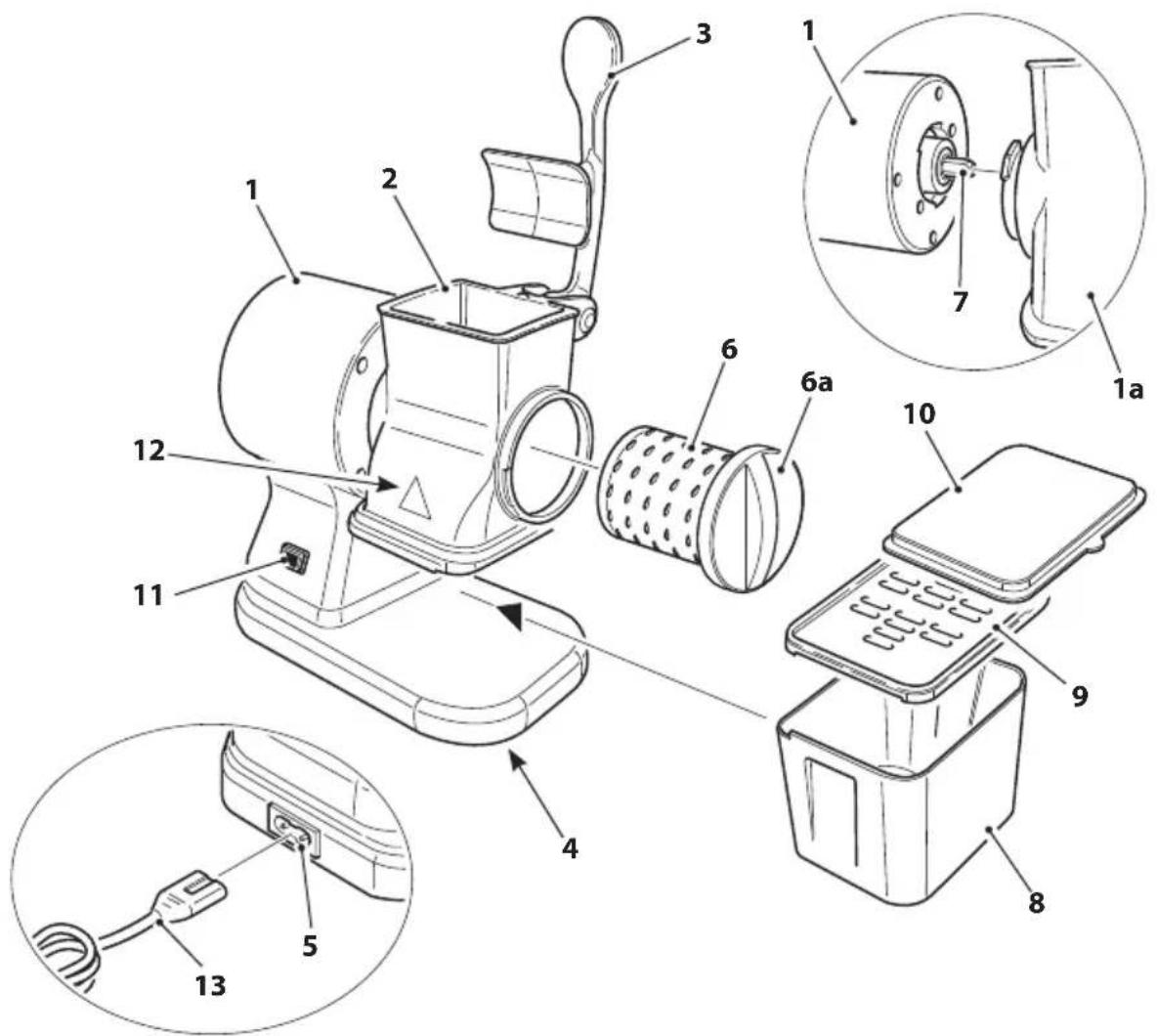

Appliance description

1. Appliance body
2. Hopper
3. Pressing device lever
4. Feet
5. Power socket

6. Grater roller
   6a. Grater roller cap

7. Motor shaft

8. Container
9. Drilled lid
10. Container lid
11. Maintained-action switch
12. Safety pictograms
13. Power cord

Safety devices

- On the appliance is present a pictogram (12) which warns the user of a potential danger or prohibition:

DANGER LABEL - Moving mechanical parts.

At first use

J1. Remove all the components of the packaging and the possible labels; dispose everything according to the legislative provisions in force.

- Before disposing of the materials of the packaging, make sure that all components indicated in paragraph "F" are present.

J2. Place the appliance on an horizontal and stable bearing plane.

Make sure that all feet (4) are supported by the plane.

J3. Clean the appliance body (1), the hopper (2), the pressing device lever (3) with a moist cloth.

J4. Remove and wash the grater roller (6), the clean the appliance as described in paragraph "M" (Cleaning and maintenance).

The grater roller (6) is equipped with sharp parts; handle it with care.

J5. Use the appliance as described in paragraph "K".

- In order to remove all the possible manufacturing residues, make the appliance work for a few minutes with dry bread and toss the product.

Use of the appliance

K1. Place the appliance on an horizontal and stable bearing plane. Make sure that all feet (4) are supported by the plane.

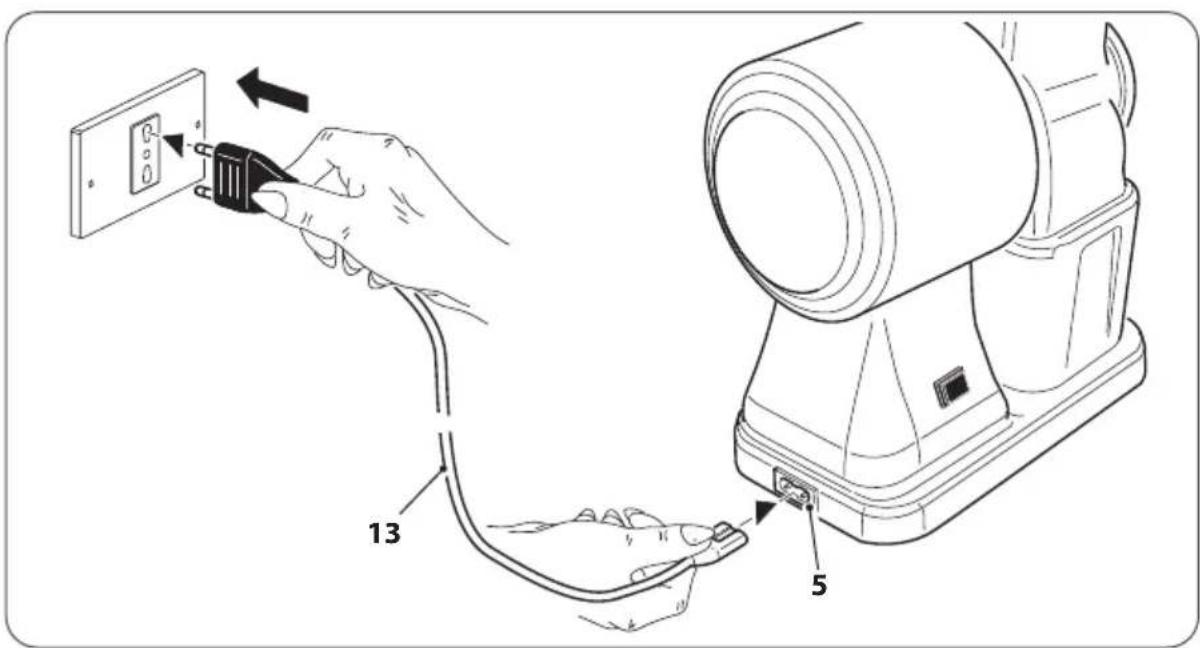

K2. Completely unroll the power cord (13) and insert it in the socket (5).

K3. Connect the plug to the power socket making sure that the mains voltage corresponds to the one indicated on the appliance data label.

Make sure the power cord (13) does not protrude from the bearing plane to avoid that someone may, even inadvertently, pull it overturning the appliance.

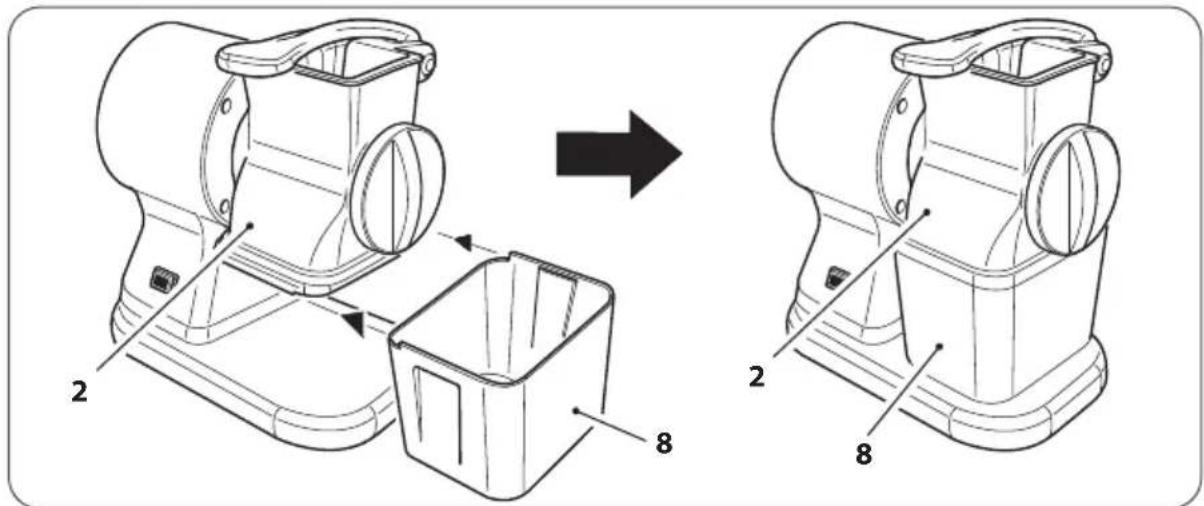

K4. Position the container (8) in its specific seat.

ONLY use the appliance AFTER having placed the container (8) correctly under the outlet mouth of the hopper (2).

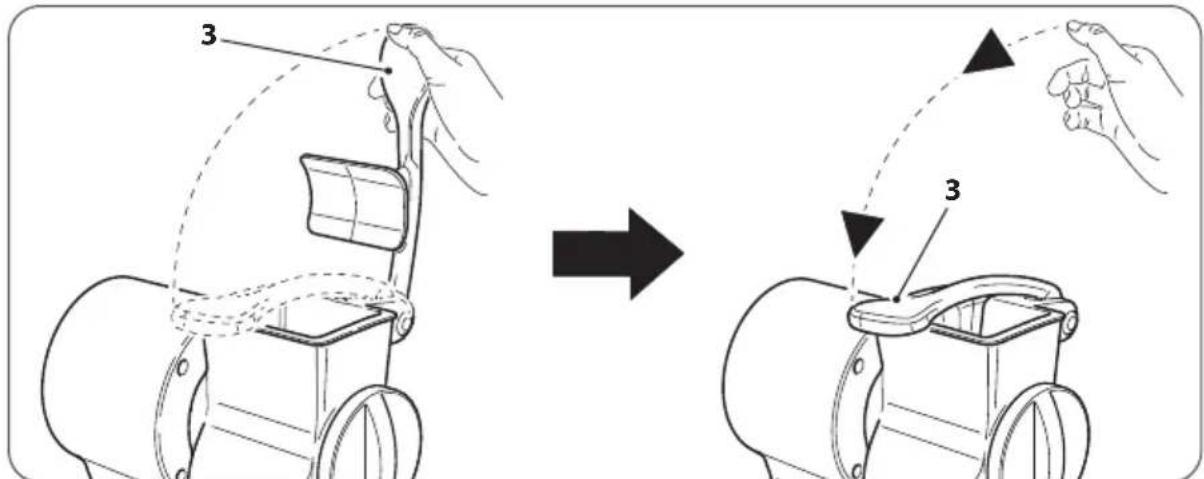

K5. Raise the pressing device lever (3).

For safety reasons, pressing device lever (3) DOES NOT remain in a raised position; it closes when released.

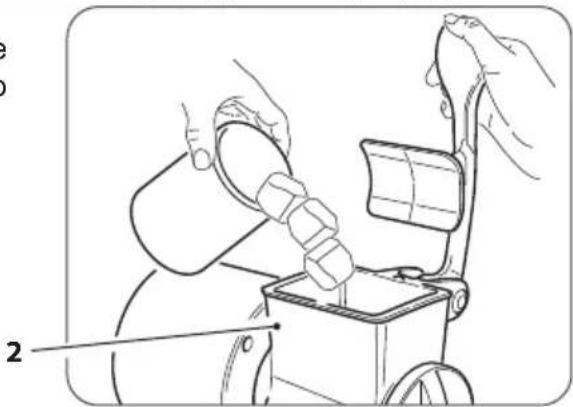

K6. Insert a maximum of 3/4 pieces of the cheese to be grated (\~ 20g each) into the hopper (2).

Line drawing of a person using a cart with a bag, no text or symbols present

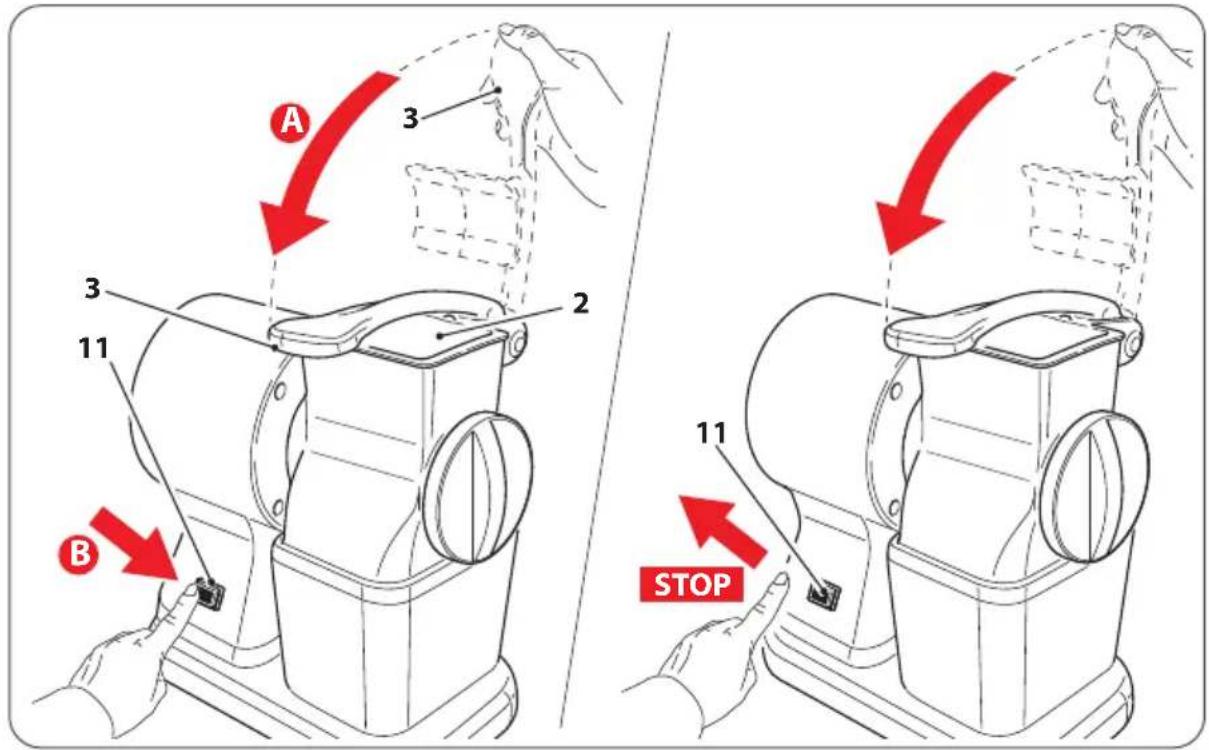

K7. Lower the pressing device (3) into the hopper (2).
K8. Keep the start-up button (11) pressed to start the appliance.
K9. Release the button (11) to stop the rotation of the grater roller (6).

- Do not raise the pressing device lever (3) from the hopper (2) without having released the start-up button (11) FIRST!

• Wait a few seconds before raising the pressing device lever (3).

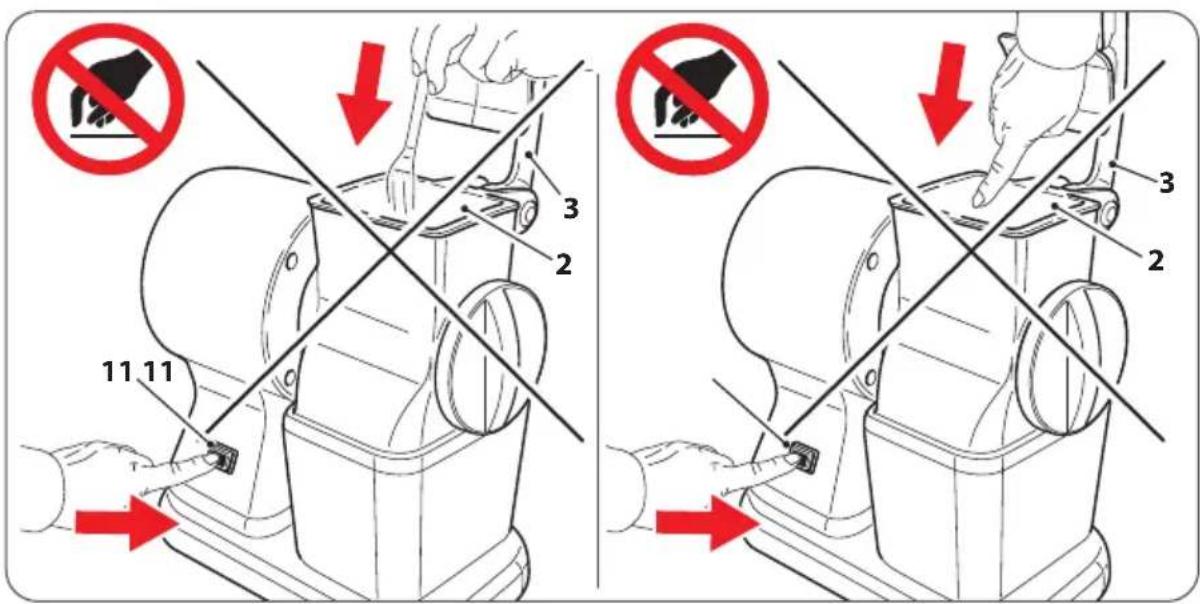

• Do not insert your fingers or other objects into the hopper (2) !

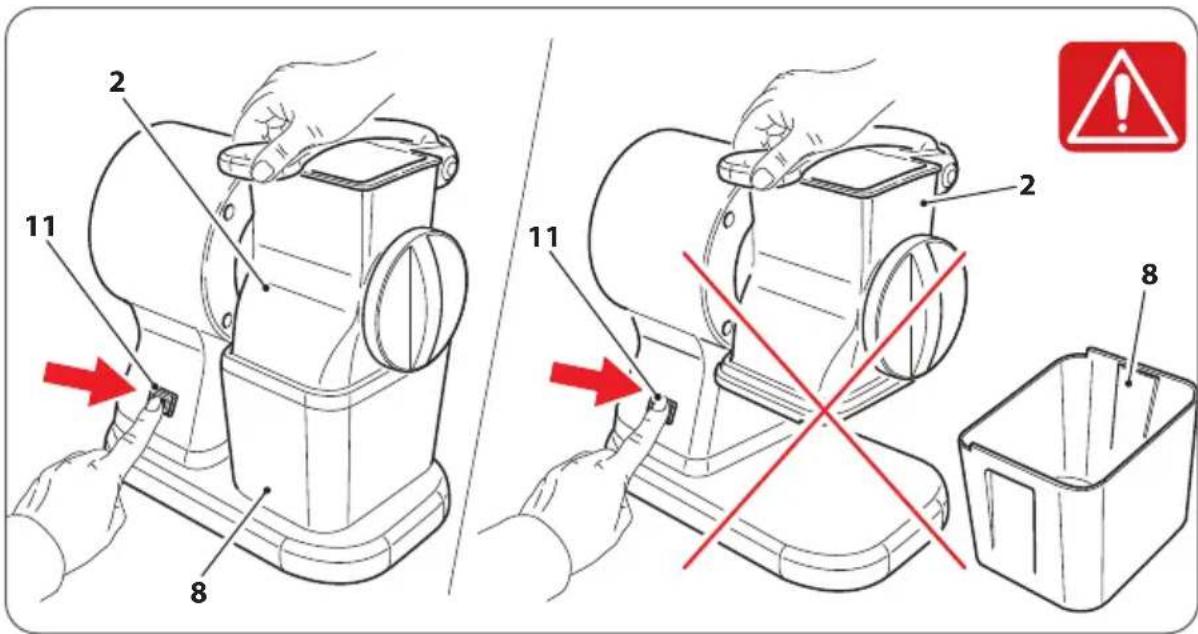

ONLY use the appliance with the container (8) correctly positioned under the hopper (2).

- Do not make the appliance work continuously for more than 5 minutes. It is advised to take breaks.

K11. When the grater roller (6) is stationary, remove the container (8) from the appliance.

Tips

- If the appliance is used for the first time, or after a long period in which it has not been used, clean the appliance body (1) with a moist cloth to remove dust.

Clean the appliance accurately before storing it, especially if you do not intend to use it shortly.

Remove and wash the grater roller (6), then clean the appliance as described in paragraph "Cleaning and maintenance".

- Do not press the food on the grater roller (6) excessively.

- To obtain satisfying results and to avoid accumulations of foods in the hopper (2), the foods to be processed must be solid and compact.

- Cut the foods into small pieces to ease their introduction into the hopper (2).

- In order to be grated optimally, cheese must not be particularly soft.

- For optimal use of the appliance, apply a pressure not higher than 1Kg on the lever (3).

Cleaning and maintenance

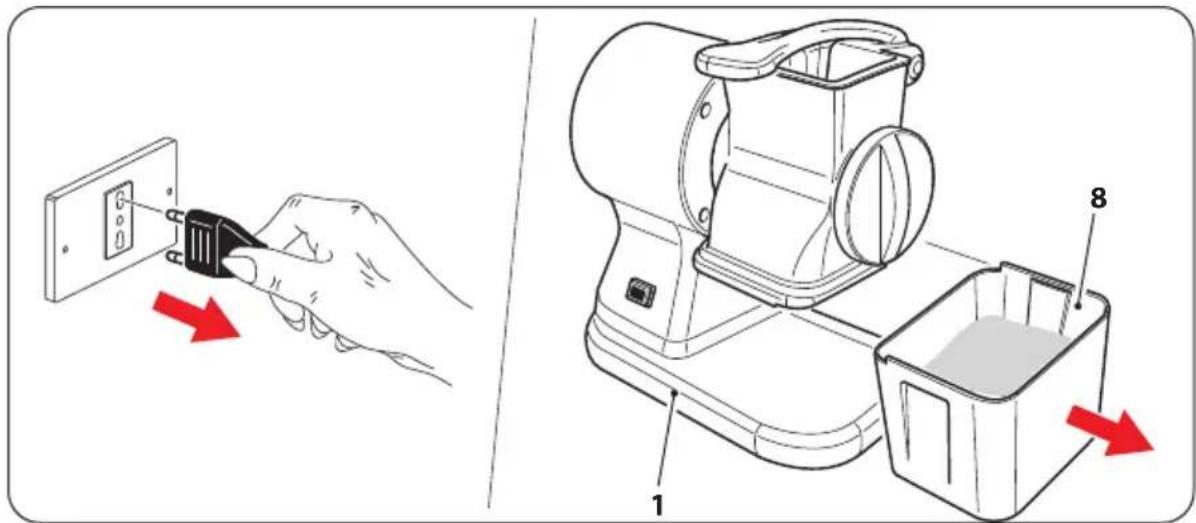

- Before carrying out cleaning and displacement operations, stop the appliance, then ALWAYS disconnect the plug from the power outlet.

Hand inserting a plug into an electrical outlet (no text or symbols visible)

M1. At the end of use, remove possible food residues from the hopper (2).
M2. For cleaning of the appliance body (1) and of the inside of the hopper (2), use a moist cloth avoiding the use of abrasive or corrosive materials or detergents.

- The grater roller (6) is equipped with sharp parts; pay attention while inserting your hand in the duct! - Wear gloves.

- Do not immerse the appliance body (1) in water or in other liquids. Do not let water or other liquids enter in the air grills.

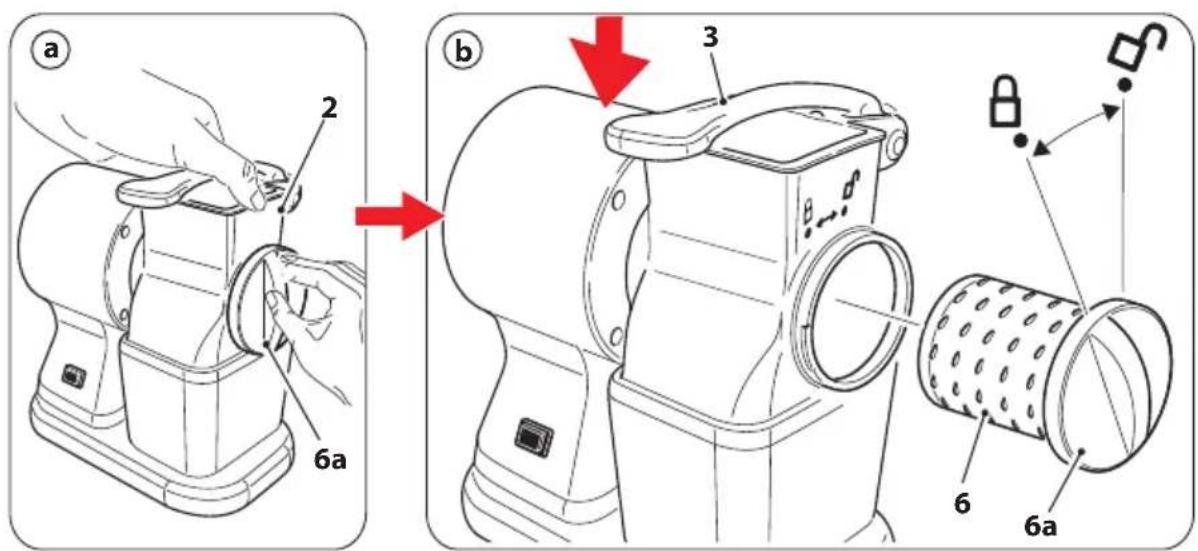

M3. Correct procedure to extract and clean the grater roller (6)

- Follow this procedure if a food remains "clogged" between the grater roller (6) and the hopper (2).

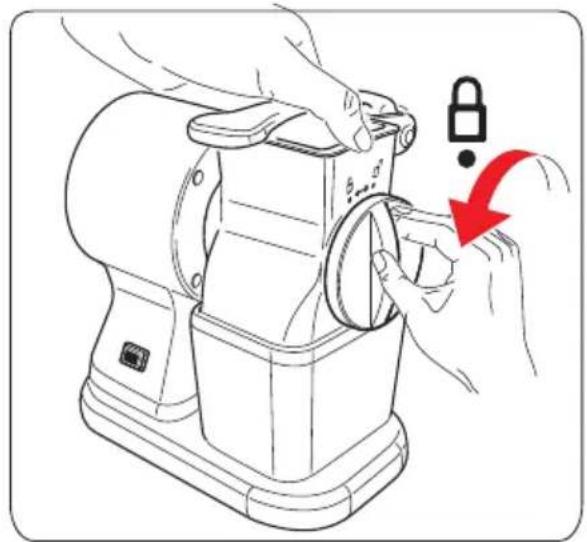

a. Keep the hopper stationary with one hand (2) and simultaneously rotate the cap (6a) clockwise until unhooking it.
b. Extract the grater roller (6) with care.
c. Wash the grater roller (6) complete of the cap (6a) with running water or in the dishwasher (max 55°C).

- Do not remove the cap (6a) from the grater roller (6).

- To ease drying of the grater roller (6), leave it in vertical position with the cap (6a) upwards.

d. Wait for it to be completely dry before reassembling it.

e. After removing the grater roller (6) and extracting the container (8) from underneath the hopper (2), it is possible to unhook the hopper (2) from the motor body (4).

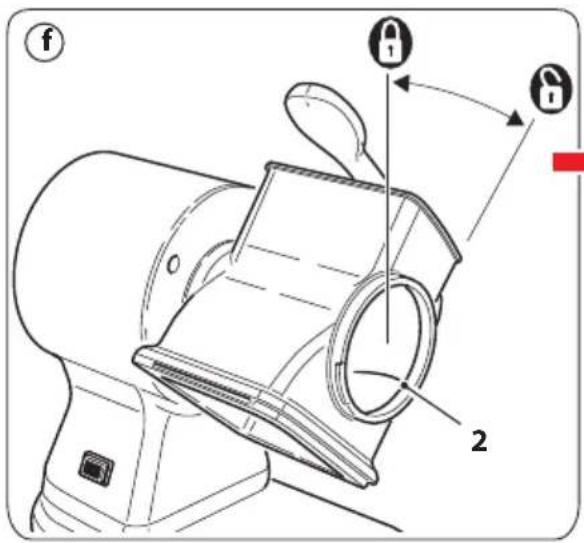

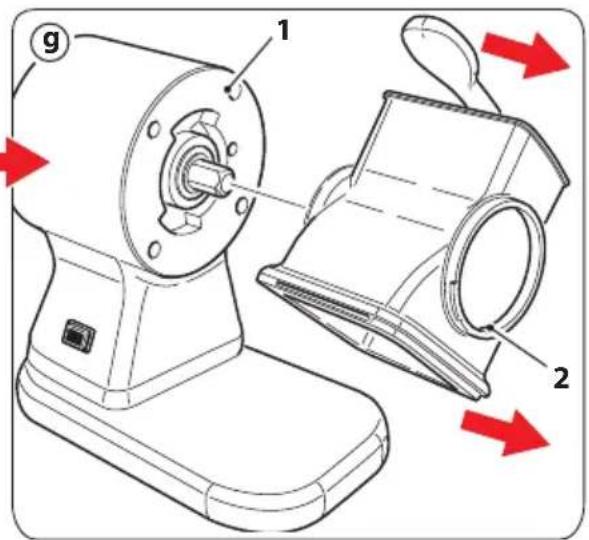

f. Unhook the hopper (2) from the appliance body (1) by rotating it clockwise.

g. Wash the hopper (2) with running water or in the dishwasher (max 55°C).

h. Wait for the hopper (2) to be completely dry before reassembling it.

i. To reassemble the components, work in reverse order with respect to what has been described above.

- When the hopper (2) is assembled on the appliance body (1) and the grater roller (6) on the hopper (2), make sure they are hooked correctly.

Technical illustration of a sewing machine with a red arrow indicating motion (no text or symbols)

Line drawing of hands operating a sewing machine with a lock icon and red arrow indicating rotation (no text or symbols)

The grater roller (6) is equipped with sharp and pointed parts; handle it with care.

M4. How to use the container (8).

a. After grating the desired food, disconnect the plug from the power socket, then extract the container(8) from the appliance body.

b. Position the drilled lid (9) on the container (8).
c. To preserve the freshness of the processed food, close the container with the specific lid (10).

It is not possible to position the lid (10) directly on the container (8).

Possible problems

- If the result of processing is not satisfying, check that....

..... processed food is suitable (not too soft nor too hard)

.... its size is correct.

Do not try to sharpen the grater roller (6).

- If the appliance should overheat, interrupt the use immediately, remove the plug from the power outlet, then wait for it to cool down, then try to start it again.

If the appliance does not start, please refer to an authorized retailer or contact the assistance service (technical support).

- In case of malfunction, please refer to an authorized retailer or contact the assistance service (technical support).

Disposal of the appliance

The crossed-out wheeled bin symbol placed on the product and on the

accompanying documentation indicates that the product itself is subject to Directive 2012/19/EU which regulates the collection, the management, the processing and the disposal of electrical and electronic equipment waste (WEEE).

When the product reaches the end of its lifetime must therefore not be disposed of as a common mixed urban waste but it must be subject to sorted collection at authorized collection centers.

Responsible disposal of electrical and electronic equipment waste helps to ease the material resources sustainable recycling and reuse, as well as to avoid possible damages to the environment and to human health caused by uncontrolled waste disposal.

The municipalities organize sorted collection centers specialized for WEEE. For more detailed information regarding the WEEE collection and pick-up systems, it is possible to refer to your own municipality or to the local household waste disposal service.

Moreover, at the time of purchase of a new equivalent equipment intended to be used in a household environment, the customer has the right to freely lend, at the rate of one on one, the used equipment to the distributor which will provide for its disposal as required by law.

Professional purchasers are exhorted to contact their own supplier to check the terms and conditions of the purchase contract.

Additional warnings

- Before connecting the appliance, make sure that the data on the plate correspond to those of the electricity distribution network.

The plate is located on the bottom of the unit body.

- In case of incompatibility between the socket and power cable plug, have the socket replaced with a suitable type by a qualified professional who will also have to make sure that the section of the cord is suitable for the power absorbed by the appliance.

We do not recommend the use of adapters, multiple sockets and / or extensions.

When their use is absolutely necessary, you must use only simple or multiple adapters and extensions that comply with current safety standards, taking care not to exceed the range limit.

- The use of an electrical appliance requires the observance of some fundamental rules.

In particular:

• do not touch or use the appliance with wet or damp hands or bare feet;
• do not pull the power cord or the appliance itself to remove the plug from the socket;
• do not allow the appliance to be used by children or unfit persons without supervision.

- In case of failure and/or malfunction, turn it off and do not tamper with it. For repairs only contact an authorized dealer.

Failure to comply with the above may compromise the safety of the device.

- If you decide not to use this appliance again you must make it inoperative by cutting the cord after removing the plug from the socket.

It is also recommended to make harmless those parts which may constitute a danger, especially for children who could use an abandoned appliance for their games.

- The installation must be carried out according to the manufacturer's instructions. Improper installation may cause damage to persons, animals or property in respect of which the manufacturer can not be held responsible.

- To avoid dangerous overheating it is recommended to unroll the power cord for its entire length and use the device as recommended in the paragraph "Warnings for Use".

- DO NOT allow it to be unnecessarily connected to the power. Disconnect the plug from the outlet when the appliance is not used.

Conventional warranty conditions

This Warranty does not affect your statutory rights under D. Lgs. 02/022002, n. 24.

With this guarantee, the manufacturer suggests the Purchaser to address directly a Point of Sale which to comply with the restoration in a fast, safe and unquestionable quality.

This Warranty is effective regardless of the evidence that the defect - resulting from man - ufacturing defects present at the time of purchase of the device, except as provided in paragraph "d" of this text.

a) Warranty duration: 24 months from date of purchase.

After the first 12 months of warranty, the warranty on the unit will be managed by the Stores within 12 months of legal guarantee in strict application of the provisions of Legislative Decree 02/022002, n. 24.

b) The warranty is effective: In case of a request for assistance, the warranty is valid only if you show the warranty certificate together with a document, valid receipt, showing the identification details of the seller, the product and the date on which the purchase was made.

c) Warranty extension: Repair DOES NOT stop nor change the duration of the warranty which will expire on its legal deadline.

d) Limitations of Warranty:

The warranty does not cover any damage resulting from:

- negligence, incompetence, recklessness and carelessness in use (failure to comply with the rules in this manual);

- maintenance not covered in this booklet or performed by unauthorized personnel;

- tampering or interventions to increase the power or efficacy of the product;

- incorrect installation (power supply with a voltage other than that listed on the nameplate and in this booklet);

- improper use of the appliance;

- damage due to normal wear and tear of the components, impacts, falls, transport damage.

- the guarantee does not cover the repair / replacement of parts subject to wear during normal use of the product (hooks, kneading, blades, belts, connectors...).

e) Costs: In cases not covered by the warranty, the manufacturer reserves the right to charge the customer the cost of repair or replacement of the appliance.

f) Manufacturer's responsibility: The manufacturer is not liable for any damage that may directly or indirectly affect persons, property or pets as a consequence of failure to comply with all the requirements set out in this "Instructions for Use" booklet and concerning especially the warnings regarding installation, use and maintenance.

How to contact technical support

• Tel. [phone]

• Fax [phone]

[e-mail]

www.rgv.it

GRATER

Timbro e Firma del rivenditore : Stamp and Signature of the retailer :

22072 Cermenate (CO) Italy

www.rgv.it

Ed.: 11/2022
