Basic Plus - Baby bed Caretero - Free user manual and instructions

Product Type	Travel cot (baby bed)
Brand	Caretero
Model	Basic Plus
Mattress Dimensions (nominal)	120 cm x 60 cm
Inner Height (lowest floor position)	At least 500 mm from top of mattress to top of side
Inner Height (highest floor position)	At least 200 mm from top of mattress to top of side
Maximum Child Weight	14 kg
Maximum Child Height	86 cm
Age Limit for Second Floor (upper position)	Up to 6 months
Compliance Standard	EN 716:2017-07
Material - Frame	Metal tubes
Material - Mattress	Hardcover foam with fabric cover
Material - Sides	Textile with plastic parts
Cleaning Instructions	Clean plastic parts with damp cloth and soap; textiles with damp cloth and mild detergent
Features	Two floor levels, folding design, carrier bag included, mattress with velcro straps
Safety Features	Locking mechanisms on sides, no sharp edges, no loose parts, anti-suffocation mattress
Usage Environment	Indoor, room temperature, away from direct sunlight and heat sources
Number of Children	One at a time
Distributor	IKS 2, 9 Rybnicka Street, 43-190 Mikolow, Poland

Frequently Asked Questions - Basic Plus Caretero

How do I unfold the Caretero Basic Plus travel cot?

Unfold all four corners, then lift the long sides first until they lock, followed by the short sides. Press the center of the floor down until flat. Check that all locking mechanisms are engaged before use.

What are the dimensions of the mattress?

The mattress has a nominal length of 120 cm and width of 60 cm. Only use the mattress provided with the cot.

What are the weight and height limits for this travel cot?

Discontinue use when the child reaches 86 cm in height or weighs more than 14 kg, or if the child is able to climb out.

Can I use the second floor level for a newborn?

Yes, the second floor level is suitable for a child up to 6 months old. It requires installing metal tubes and fastening the floor with a zipper and clip. Always supervise your child when using the second floor.

How do I fold the cot for storage?

Remove the mattress and lift the center of the floor. Press the buttons on the bottom of the locks on the long sides, then lower the sides. Repeat for the short sides. Fold all legs together, wrap the mattress around the cot, and place in the carrier bag.

How should I clean the travel cot?

Clean plastic parts with a damp cloth and soap. Clean textile parts with a damp cloth and a mild detergent. Do not expose to direct sunlight or heat sources.

What safety standards does the cot comply with?

The product complies with EN 716:2017-07, the European safety standard for domestic cots and travel cots.

Can I use an additional mattress in the cot?

No, do not use more than one mattress in the cot. Only use the mattress provided to avoid suffocation hazards.

Is it safe to leave my child unattended in the cot?

Never leave your child unattended. Always keep the child in view. Ensure the cot is away from loose cords, blinds, or heat sources.

What should I do if a part is damaged or missing?

Do not use the cot if any part is broken, torn, or missing. Only use spare parts approved by the manufacturer. Contact Caretero or the distributor for replacements.

USER MANUAL Basic Plus Caretero

IMPORTANT! Please read these instructions carefully before the first use of the product. This manual should be kept for future use.

Line drawing of a rectangular metal tray or container with side supports and a curved door (no text or symbols)

CARETERO

best for babies

Basic Plus

Thank you for choosing the Caretero Basic Plus travel cot.

You bought a modern, high quality product.

We are sure it will help your child in safe, harmonious growth.

We encourage you to learn about our full offer on our website: www.caretero.pl

Should you have any remarks about this product, feel free to share them with us.

Caretero Team.

Learn more about brand Caretero. Scan the code QR.

DISTRIBUTOR:

IKS 2 - Children's Goods Distribution Centre 9 Rybnicka Street, 43-190 Mikolow, Poland [phone]

e-mail: [e-mail], www.caretero.pl

Line drawing of a hand holding a container with a handle, showing a curved arrow indicating motion (no text or symbols)

Line drawing of a sewing machine needle stitching fabric (no text or symbols)

Simple line drawing of a rectangular frame with a black arrow pointing to the top section (no text or symbols)

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Line drawing of a wooden bench with a flat top and side supports (no text or symbols)

Technical line drawing of a mechanical assembly with dashed lines indicating hidden edges (no text or symbols)

Line drawing of a person using a backpack to lift a cup, showing hand placement and motion arrows (no text or symbols)

WAŻNE. ZACHOWAĆ DO PÓŻNIEJ-SZEGO STOSOWANIA, UWAŻNIE PRZECZYTAĆ.

NIEWŁAŚCIWY MONTAŻ MOŻE SPRAWIĆ, ŻE ŁÓŻKO BĘDZIE STANOWIĆ ZAGROŻENIE.

OSTRZEŻENIA

• Never leave your child unattended. Always keep your child in view.
• Never leave items inside the cot that may act as support for the baby's feet and aid the baby in climbing out of the cot.
• Keep the cot away from any loose cables or cords.
• The thickness of the mattress should be such, that the inner height of the product (measured from the upper layer of the mattress to the the upper edges of the cot's sides) is at least 500mm in the lowest setting and at least 200mm of the highest setting of the floor. This is to minimize the risk of the baby falling-out of the cot.
  • Mattress nominal length 120cm, width 60cm.
• Inspect the product for damaged hardware, loose joints, missing parts or sharp edges. The cot should not be used if the fabric is torn or damaged.
• Before each use, please check that all the upper egdes of the cot are properly locked.
• Discontinue using the cot when the child reaches 86cm in height, weighs more than 14kg or is able to climb out.
• Never put more than one child at once into the cot.
• When folded, store away from children.
• A cot is only ready for use when the locking mechanisms are engaged. Check carefully that locking systems are fully engaged before using the folding cot.
• Never leave the cot exposed to direct sunlight. Never put fingers inside the corners or any other moving parts of the cot while folding and unfolding the cot.
• Never use playard without a mattress. Always use the mattress provided with fixings to the underside. This travel cot is sold with a base hardcover mattress specifically designed to avoid any danger of suffocation. Only use the mattress provided.
  • Product complies with: EN 716:2017-07.

WARNING: Be aware of the risk of open fire and other sources of strong heat such as electric bar fires, gas fires etc. in the near vicinity of the cot.

WARNING: Do not use the cot if any parts is broken, torn or missing and use only spare parts approved by the manufacturer.

WARNING: Do not leave anything in the cot or place the cot close to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords etc.

WARNING: Do not use more than one mattress in the cot.

2 UNFOLDING THE COT

EN

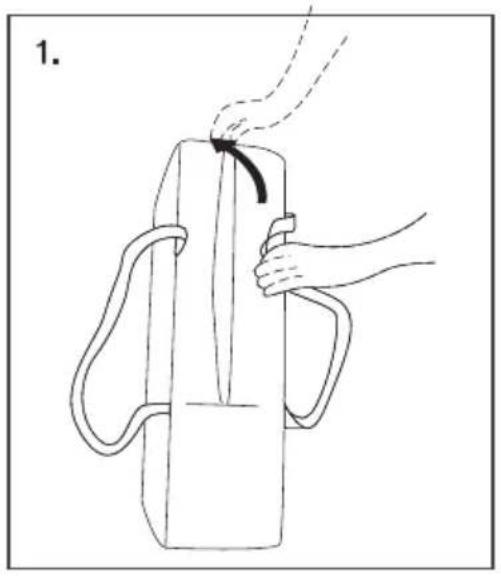

Unfasten the zipper on the carrier bag and take the cot out of the bag (1).

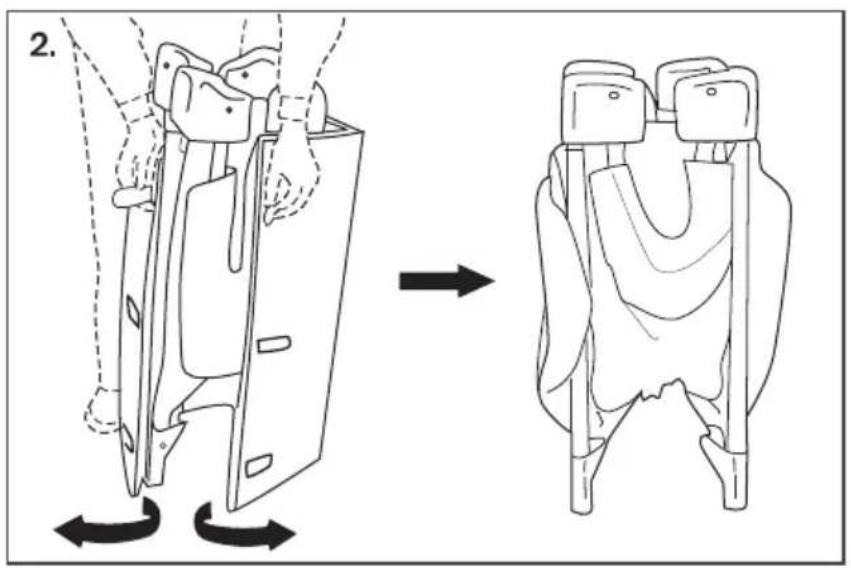

Unfasten the velcro staps on the mattress wrapping the cot (2). Take the cot out and put the mattress aside.

Unfold all four corners of the cot, so you can grab the locks in the middle of the sides of the cot.

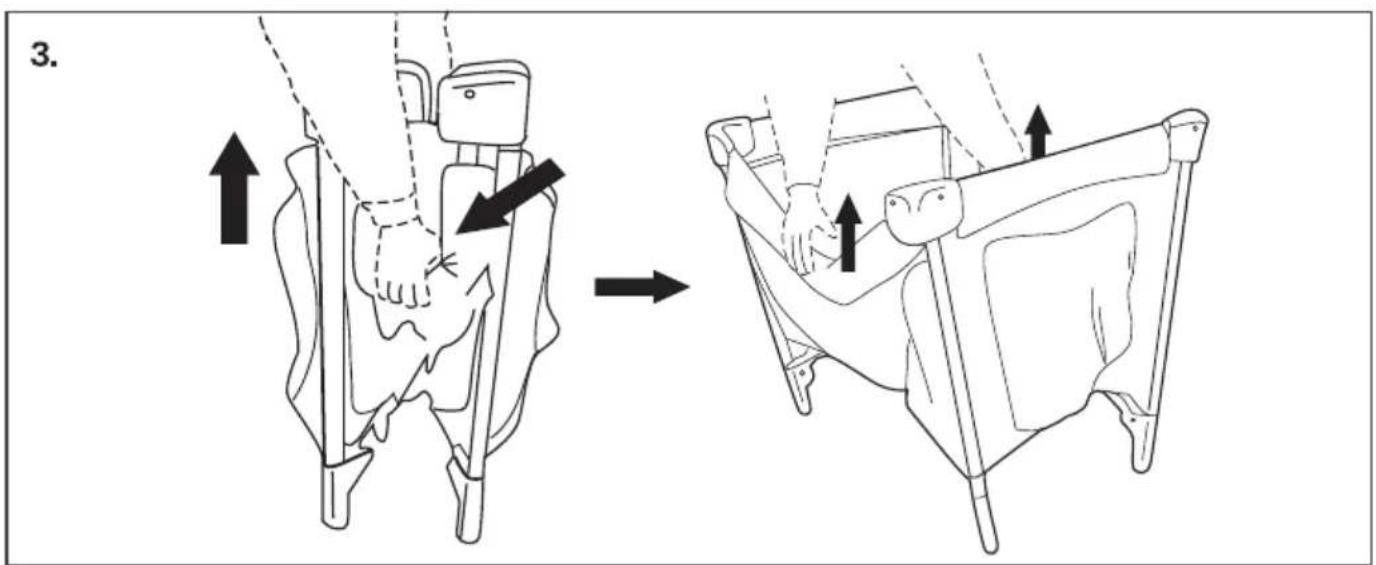

With a firm move, lift the cot's sides until they lock (3). Lift the long sides first, then the short sides.

WARNING: Before using the cot, please make sure that the side rails are correctly locked!

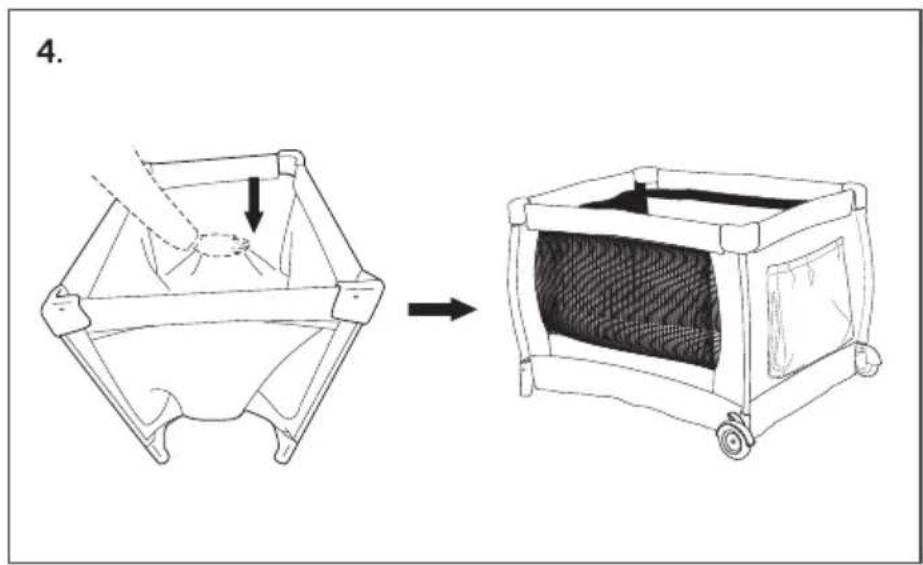

Press on the center of the cot's floor until it is fully flat and locked (4). Make sure the cot is stable.

Place the mattress in the cot with the soft side upwards. Attach the mattress to the floor with the velcro straps located under the mattress.

3 INSTALLING THE SECOND FLOOR LEVEL

EN

Remove the mattress from the cot and put it aside.

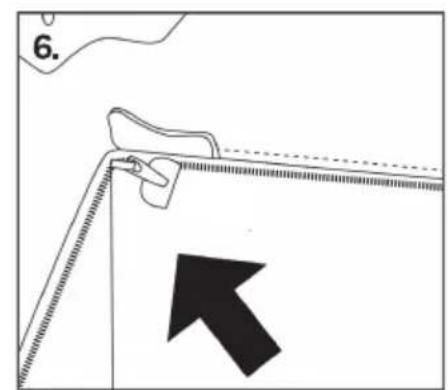

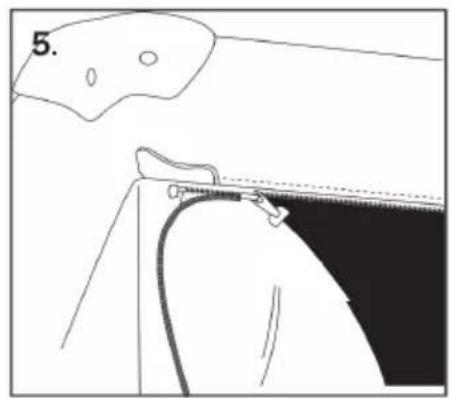

Place the second floor in the cot and fasten it by zip fastener on whole length (5). Secure the lock with a plastic clip (6). Make sure the floor is firmly attached.

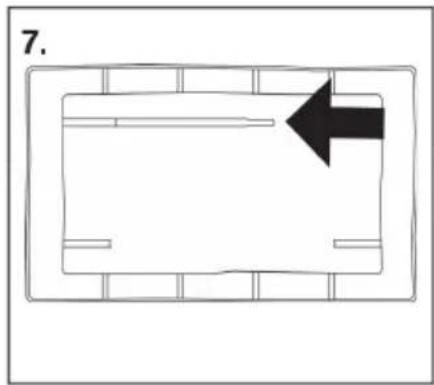

Take out the metal tubes from the package. Place the tubes in the fabric tunnels with the cut ends facing the center of the bed (7). Connect the narrow end with the wide tubing end (8).

Make sure the tubes are firmly connected and lay them on the second floor.

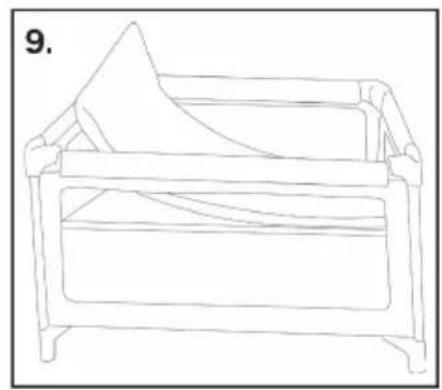

Place the mattress in the cot with the soft side facing up and press down to ensure a snug fit (9).

WARNING! The second floor is only suitable for a child up to six months old.

WARNING! The mattress can only be placed on a metal frame made of tubes.

WARNING! Do not leave your child unattended when using a second floor.

4 FOLDING THE COT

EN

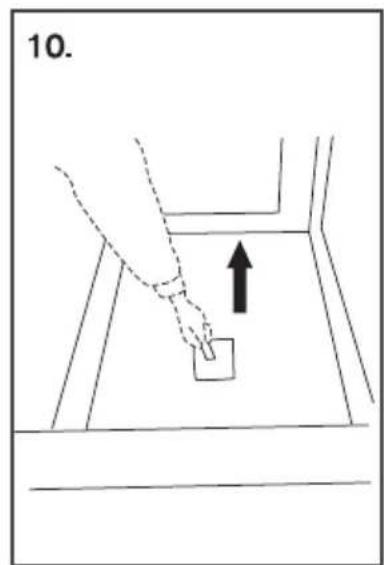

Remove the mattress and lay it aside. Lift the middle of the cot's floor as high as possible (10).

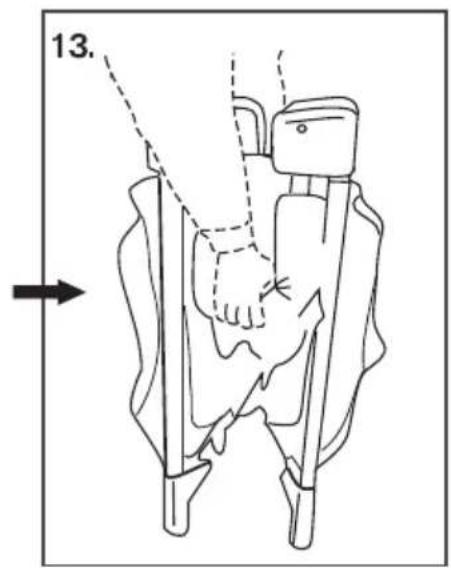

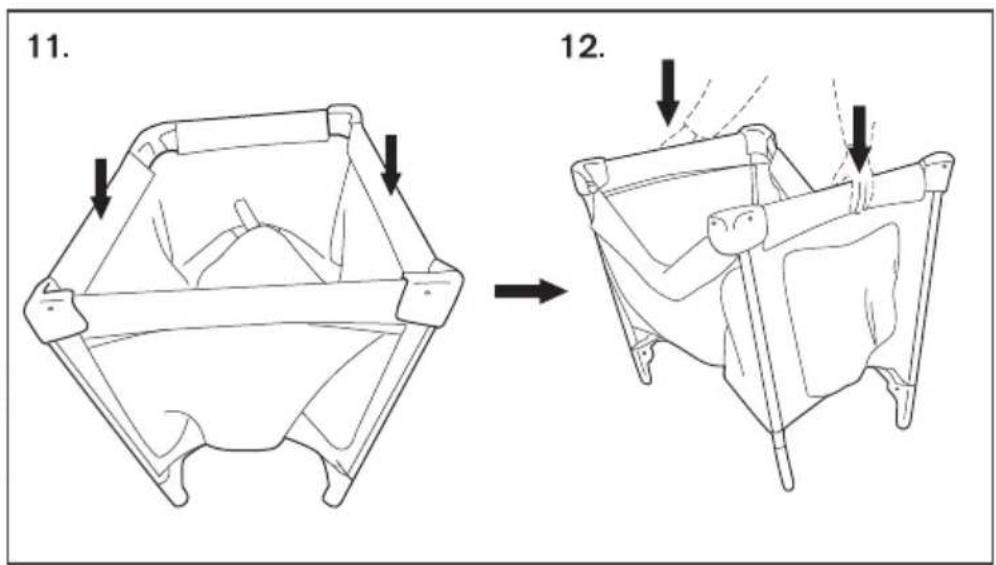

Locate the buttons on the bottom of the locks in the middle of each side of the cot (11). Press the buttons on both long sides of the cot and lower the sides (12). Repeat these actions for the short sides (13).

WARNING: The buttons are located under the upholstery on the cot's sides. The cot's center must be raised high for the buttons to work properly. Never use force as this may damage the cot.

If pressing the buttons does not allow to fold the sides, press the cot's base down and repeat all above steps.

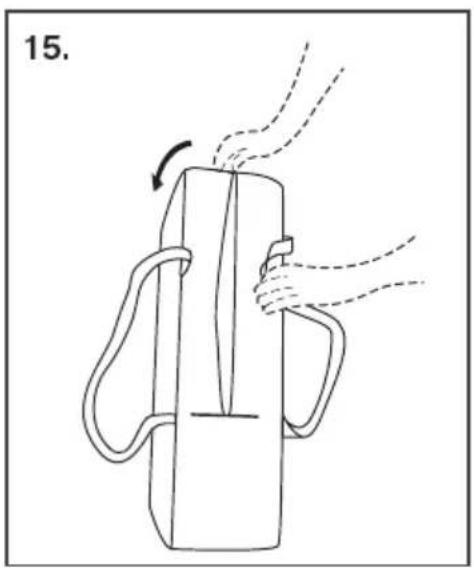

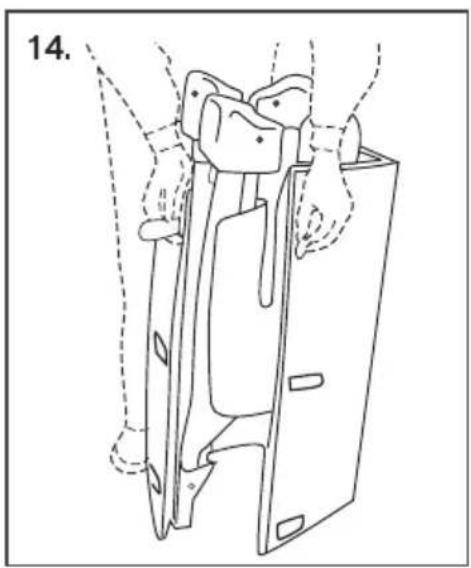

Fold all cot's legs together. Take the mattress and wrap it around the cot (14). Lock the package by fastening the velcro straps on the mattress. Put the cot into the carrier bag and fasten the zipper (15).

5 CLEANING AND MAINTENANCE

EN

Clean the plastic parts with damp cloth and soap.

The textiles should be cleaned with a damp cloth and a mild detergent.

Do not place the cot in direct sunlight or near heat sources. It may damage the cot.

The cot is designed to be used inside buildings, in room temperature.
