Petiot C170 - Kettle Eldom - Free user manual and instructions

Product Type	Electric Kettle
Brand	Eldom
Model	Petiot C170
Capacity	1.7 Liters
Power Consumption	2200 Watts
Voltage	220-240 V~
Frequency	50/60 Hz
Housing Material	Stainless Steel / Plastic
Heating Element	Concealed (stainless steel base)
Cord Length	0.75 Meters
Weight	1.0 kg
Dimensions (H x W x D)	24 x 22 x 18 cm
Automatic Shut-Off	Yes, after boiling or when empty
Boil-Dry Protection	Yes
Overheat Protection	Yes
360° Swivel Base	Yes, cordless pouring
Water Level Indicator	Transparent window with markings
Lid Opening	One-touch button with wide opening
Filter	Removable mesh limescale filter
Non-Slip Feet	Yes
Cord Storage	Integrated wrap under base
Keep Warm Function	No

Frequently Asked Questions - Petiot C170 Eldom

What is the capacity of the Eldom Petiot C170 kettle?

The kettle has a capacity of 1.7 liters, suitable for up to 7 cups of water.

How do I descale the kettle?

Fill the kettle with a mixture of vinegar and water (1:2 ratio) or use a commercial descaling solution. Boil, let sit for 15 minutes, then rinse thoroughly. Repeat if necessary.

Can I boil less than 0.5 liters of water?

It is not recommended to boil less than 0.5 liters as the heating element may be exposed, risking damage or dry boiling.

Why does the kettle shut off before the water boils?

This may be due to limescale buildup on the heating element or the thermostat. Descale the kettle to resolve the issue.

Is it safe to leave the kettle on the base after boiling?

Yes, the kettle has automatic shut-off and boil-dry protection. Once the water boils, it switches off and can remain on the base safely.

How do I clean the filter?

Remove the limescale filter from the spout. Rinse under running water and scrub gently with a soft brush. Reinsert after drying.

What does the water level indicator show?

The transparent window shows the current water level in liters and cups. Ensure you fill between the MIN (0.5L) and MAX (1.7L) marks.

Can I use the kettle for other liquids besides water?

No, only heat water. Other liquids may damage the appliance or cause hazardous boiling over.

How to store the power cord?

Wrap the cord around the cord storage feature under the base. Keep it tidy to avoid tangling.

Does the kettle have a keep warm function?

No, the Petiot C170 does not have a keep warm function. It only boils water and automatically switches off.

USER MANUAL Petiot C170 Eldom

White and blue electric kettle with digital display showing reading range from 0.4 to 1.0 l/min, no visible text or symbols on device body

CZAJNIK BEZPRZEWODOWY • CORDLESS KETTLE •

Please read all these instructions carefully before using this appliance.

1. Carefully read all instructions before using the appliance.
2. Connect the kettle only to a suitably earthed socket compatible with the parameters indicated in the instructions.
3. The appliance should be placed on a stable and dry surface.
4. Before operating, make sure that there is water inside the kettle. You should not switch the kettle on when empty.
5. You must not exceed the maximum water level mark. Filling over the maximum mark on the exterior of the kettle may result in the boiling water splashing out from the kettle (which may result in a short-circuit).
6. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
7. Do not leave the kettle unattended when in use, when plugged-in or containing hot water, the kettle may expose children to hazard, if left unattended.
8. Never immerse the kettle in water while washing-up.
9. You should be cautious about the steam coming from the kettle during the heating process.
10. The appliance is made of materials which can be recycled.

11. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

12. This appliance is designed for domestic use only; when used for industrial purposes outside the product's specifications, or used not in accordance with the instructions, no liability is assumed and the warranty is nullified.

13. Never use the kettle if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.

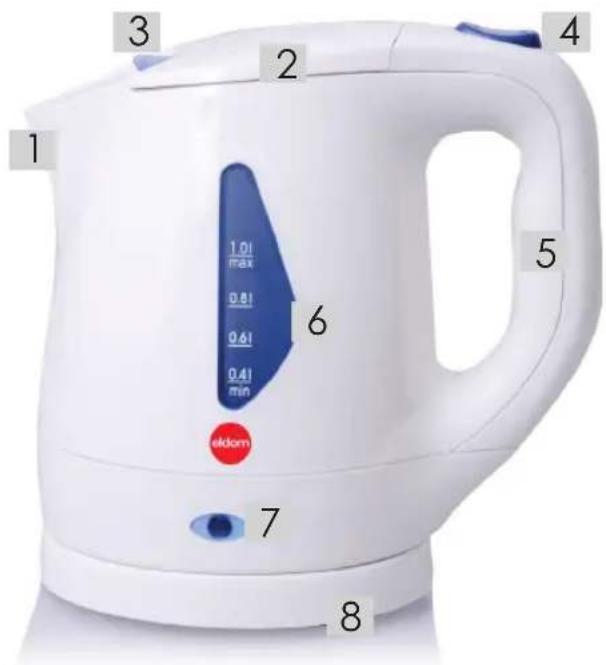

GENERAL DESCRIPTION

1. Spout + net filter
2. Opening lid
3. Lid release button
4. On/off switch
5. Handle
6. Water level indicator
7. Control lamp
8. Rotating base

TECHNICAL DATA

• power: 850 W
• mains voltage: 230V \~ 50Hz
• 1 litre capacity

OPERATION

Cordless kettle C170 is for boiling water.

It is possible to boil 0.4 – 1 litre of water in the kettle.

The kettle base (8) must be put on a flat and dry surface.

In the base there is some space for an excess cord. It is important for the cord to be led from the base (8) through a special groove so that the appliance could be stable.

Before using the kettle for the first time fill it up (2-3 times) with water, boil the water and thenempty the kettle.

The kettle can be filled with water directly through the spout (1) or after opening the lid (2). In order to open the lid (2) you must press the button (3).

The kettle must not be filled up when on the base.

The highest (max) and lowest (min) permissible water level is shown inside the kettle

The kettle starts working after putting the switch (4).

The kettle working is signalled by the control lamp (7).

The kettle switches off automatically after the water has boiled.

You can stop heating water at any time by putting the switch (4).

CLEANING AND MAINTENANCE

• allow the unit to cool down completely before cleaning,
• do not immerse the kettle in water while washing up,
• the outside of the kettle may be wiped over with a damp cloth and washing-up liquid,
• water stains inside the kettle can be removed by rubbing with a cloth moisten with white vinegar; rinse the inside with water afterwards,

• limescale should be removed in the following way:

• fill the kettle with 0.5 litre of water and bring it to boil,

• switch the kettle off and disconnect the kettle from the power supply,
• pour 0.1 litre of white vinegar into the kettle,
• allow to stand overnight,
• discard the solution and rinse the inside with water,
• fill the kettle with 0,6 litre of water and bring to boil,

• discard the water and rinse the inside with water.

• no timely removal of the scale from the heating element results in the heating element's quicker wear,

• any damage resulting from applying harsh descalling products available in the market are not covered by the producer's warranty,
• if the power cord is damaged, it can be replaced only by an especially constructed one (with appropriate plugs and endings).

FILTER

The filter does not remove the scale, but it prevents any deposits from getting inside the kettle while the water is being poured in.

The filter should be cleaned regularly.

Hard water may block the filter after boiling water a couple of times.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee. Warranty details in the appendix
