Frano C341 - Kettle Eldom - Free user manual and instructions

Product Type	Cordless Kettle
Brand	Eldom
Model	Frano C341
Capacity	1.7 litres (0.5 – 1.7 L)
Power Rating	2000 W
Voltage	230 V ~ 50 Hz
Mains Protection	10 A
Insulation Class	I
Water Level Indicator	Yes, on exterior
Automatic Shut-off	Yes
Lid	Push-button release
Spout	With mesh filter
Base	Included, with cord storage
Handle	Yes
Filter	Removable mesh filter for scale
Minimum Water Level	0.5 litre
Maximum Water Level	1.7 litre
Cleaning	Wipe exterior with damp cloth and mild detergent; descale with vinegar
Safety	Do not immerse; do not operate empty; use only with supplied base
Warranty	Domestic use only; warranty details in appendix

Frequently Asked Questions - Frano C341 Eldom

What is the capacity of the Eldom Frano C341 kettle?

The kettle has a capacity of 1.7 litres with a minimum water level of 0.5 litre.

How do I descale the kettle?

Fill the kettle with 0.5 litre of water and bring to boil. Add 0.1 litre of white vinegar, let stand overnight, discard, rinse. For heavy scale, use 0.5 litre of vinegar, boil, leave 30 minutes, boil again, rinse.

Can I immerse the kettle in water for cleaning?

No, never immerse the kettle or its base in water. Only wipe the exterior with a damp cloth.

What should I do if the kettle does not turn on?

Ensure the kettle is properly placed on the base, the switch is set to '1', and the power cord is intact. If still not working, contact an authorized service centre.

How does the automatic shut-off work?

The kettle automatically switches off when the water reaches boiling point. You can also manually switch it to '0' at any time.

Is the filter removable?

Yes, the mesh filter at the spout is removable for cleaning. Rinse with water or clean with a soft brush.

What type of power cord does it have?

The cord has storage in the base. If damaged, it must be replaced with a special cord by an authorized service.

Can I boil less than 0.5 litre of water?

No, the minimum water level is 0.5 litre to ensure safe operation. Boiling less may damage the kettle.

Is the kettle suitable for commercial use?

No, it is intended for domestic use only. Industrial use voids the warranty and may be unsafe.

How do I open the lid?

Press the lid release handle (button) located on top of the handle to open the lid. Close it by pressing down until it clicks.

USER MANUAL Frano C341 Eldom

White kettle with red control knob and 'eldom' brand logo (no visible text or symbols on body)

Eldom Sp. z o.o.

Close-up of a black and white kitchen blender with a circular button (no text or symbols visible)

fot. 1

Close-up of a white ceramic or plastic object with a curved lid and flared rim (no text or symbols visible)

- carefully read all instructions before using the appliance,

- connect the kettle only to a suitably earthed socket compatible with the parameters indicated in the instructions,

- The appliance should be placed on a stable and dry surface,

- before operating, make sure that there is water inside the kettle. You should not switch the kettle on when empty,

- you must not exceed the maximum water level mark. Filling over the maximum mark on the exterior of the kettle may result in the boiling water splashing out from the kettle (which may result in a short-circuit),

- The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance.

Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

- do not leave the kettle unattended when in use, when plugged-in or containing hot water, the kettle may expose children to hazard, if left unattended,

- never immerse the kettle in water while washing-up,

- you should be cautious about the steam coming from the kettle during the heating process,

- this appliance is designed for domestic use only; when used for industrial purposes outside the product's specifications, or used not in accordance with the instructions, no liability is assumed and the warranty is nullified,

- Do not use the appliance, if the power cord is damaged or if the appliance fell down or was otherwise damaged. The appliance should be repaired by an authorised Service Centre; a list of Service Centres can be found in the attachment and on the website www.eldom.eu.

SAFETY INSTRUCTIONS

• The appliance can be repaired only in an authorised Service Centre. Any modernisation or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.
• The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.
• this kettle must be used with the power base supplied

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use.
• improper use will nullify the guarantee. Warranty details in the appendix

Operating instruction

CORDLESS KETTLE C341

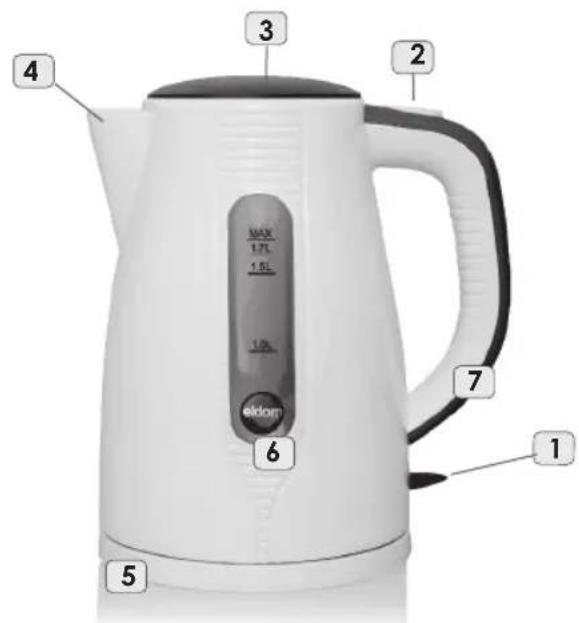

General description

1. On/off switch
2. Lid release handle
3. Opening lid
4. Spout + net filter
5. Base
6. Water level indicator
7. Handle

Technical data

• power: 2000W
• mains voltage: 230V \~ 50Hz
• 1.7 litre capacity
• mains protection: 10 A
• protection insulation class I

HOW TO USE THE APPLIANCE

Cordless kettle C341 is for boiling water. It is possible to boil 0.5 – 1.7 litre of water in the kettle.

The kettle base (5) must be put on a flat and dry surface. In the base there is some space for an excess cord. It is important for the cord to be led from

the base (5) through a special groove so that the appliance could be stable.

Before using the kettle for the first time fill it up (2-3 times) with water, boil the water and then empty the kettle.

The kettle can be filled with water directly through the spout (4) or after opening the lid (3). In order to open the lid (3) you must press the button (2) (photo 1).

The lid should be closed by pressing until you hear it snapp.

The kettle must not be filled up when on the base.

The minimum level of boiling water is 0.5 l. The maximum water level (1.7 l) is marked on the indicator (6).

The kettle starts working after putting the switch (1) in the position '1'.

The kettle working is signalled by the control lamp.

The kettle switches off automatically after the water has boiled.

You can stop heating water at any time by putting the switch (1) in the position '0'.

Cleaning and maintenance

• allow the unit to cool down completely before cleaning,
• do not immerse the kettle in water while washing up,
• the outside of the kettle may be wiped over with a damp cloth and washing-up liquid,
• water stains inside the kettle can be removed by rubbing with a cloth moisten with white vinegar; rinse the inside with water afterwards.

• limescale should be removed in the following way:

• fill the kettle with 0.5 litre of water and bring

• switch the kettle off and disconnect the kett the power supply,
• pour 0.1 litre of white vinegar into the kettle,
• allow to stand overnight,
• discard the solution and rinse the inside with water,
• fill the kettle with 1 litre of water and bring to boil,
• discard the water and rinse the inside with water.

it to boil, le from

Close-up of a black and white kitchen kettle with a circular button (no text or symbols visible)

photo 1

If the scale is persistent, the cleaning should be done in the following way:

• fill the kettle with 0.5 litre of white vinegar,
• bring the vinegar to boil and leave the hot solution inside the kettle for about 30 minutes.
• bring the vinegar to boil again,
• discard the vinegar and rinse the inside with water,
• fill the kettle with 1.0 litre of water and bring it to boil,

• discard the water and rinse the inside with water.

• no timely removal of the scale from the heating element results in the heating element's quicker wear,

• any damage resulting from applying harsh descalling products available in the market are not covered by the producer's warranty,
• if the power cord is damaged, it can be replaced only by an especially constructed one (with appropriate plugs and endings).

Close-up of a white ceramic cup with a lid and side ridged rim (no text or symbols visible)

FILTER

The filter provided is made of mesh retaining scale deposits. The filter does not remove the scale, but it prevents any deposits from getting inside the kettle while the water is being poured in. The filter should be cleaned regularly.

Hard water may block the filter after boiling water a couple of times. The filter can be removed and rinsed with water or cleaned with a soft brush.

BEZPEČNOSTNÍ POKYNY

Close-up of a black and white kitchen kettle with a circular button handle (no text or symbols visible)

foto 1

Close-up of a black and white kitchen kettle with a circular button (no text or symbols visible)

Fot. 1

Close-up of a black and white kitchen kettle with a circular button (no text or symbols visible)

фото 1

УХОД И ОБСЛУЖИВАНИЕ

Close-up of a black and white kitchen blender handle with a circular button (no text or symbols visible)

fot. 1

ČISTENIE A ÚDRŽBA

Close-up of a black and white kitchen kettle with a circular button (no text or symbols visible)

KÖRNYEZETVÉDELEM

Close-up of a black and white kitchen kettle with a circular button handle (no text or symbols visible)

foto 1

Close-up of a white ceramic or ceramic object with a curved lid and flared rim (no text or symbols visible)

_

| _

一

1

Pure grid lines without any text, numbers, or symbols

Pure grid lines without any text, numbers, or symbols

KARTA GWARANCYJNA

WAŻNA Z DOWODEM ZAKUPU

CZAJNIK C341
