CS7K - Kettle Eldom - Free user manual and instructions

Product Type	Electric Kettle
Brand	Eldom
Model	CS7K
Capacity	1.7 L
Power Rating	2200 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (approx.)	22 cm (height) x 16 cm (diameter)
Weight (approx.)	0.8 kg
Material	Stainless Steel Body
Heating Element	Concealed, Rapid Boil
Base Type	360° Cordless Swivel Base
Auto Shut-Off	Yes, after boiling
Boil-Dry Protection	Yes
Water Level Indicator	Yes, transparent window with markings
Lid Type	Pop-up with wide opening for easy filling and cleaning
Filter	Removable scale filter
Keep Warm Function	No (standard model)
Indicator Light	Yes, power on/off
Cord Length	Approx. 70 cm
Cleaning	Wipe with damp cloth; descale regularly with vinegar or citric acid
Safety	Auto shut-off, boil-dry protection, heat-resistant handle

Frequently Asked Questions - CS7K Eldom

How do I descale the Eldom CS7K kettle?

To descale, fill the kettle halfway with equal parts water and white vinegar or use a descaling solution. Boil, let sit for 15 minutes, then rinse thoroughly. Repeat if necessary. Regular descaling prevents limescale buildup.

What is the maximum capacity of the kettle?

The maximum capacity is 1.7 liters. Do not fill beyond the max mark to avoid spillage during boiling.

Can I open the lid while the kettle is boiling?

It is not recommended to open the lid during boiling as steam can cause burns. Wait until the kettle has automatically switched off before opening.

Why does my kettle turn off before boiling?

This may be due to insufficient water (activates boil-dry protection) or limescale buildup. Ensure at least 0.5 L of water and descale regularly.

How do I clean the filter?

Remove the removable scale filter from the spout and rinse under running water. For stubborn deposits, soak in vinegar solution before rinsing.

Is the base cordless?

Yes, the kettle sits on a 360° cordless swivel base, allowing easy lifting and placing from any angle.

What safety features does the CS7K have?

It includes auto shut-off after boiling and boil-dry protection that switches off if there is no water.

Can I boil milk or other liquids?

No, this kettle is designed for water only. Milk or other liquids can cause damage and safety hazards.

How long does it take to boil full capacity?

With 2200 W power, it typically takes about 3-4 minutes to boil 1.7 L of water.

What do I do if the kettle leaks?

Check that the lid is properly closed and the spout filter is correctly installed. If leaking persists, contact Eldom customer service for repairs.

USER MANUAL CS7K Eldom

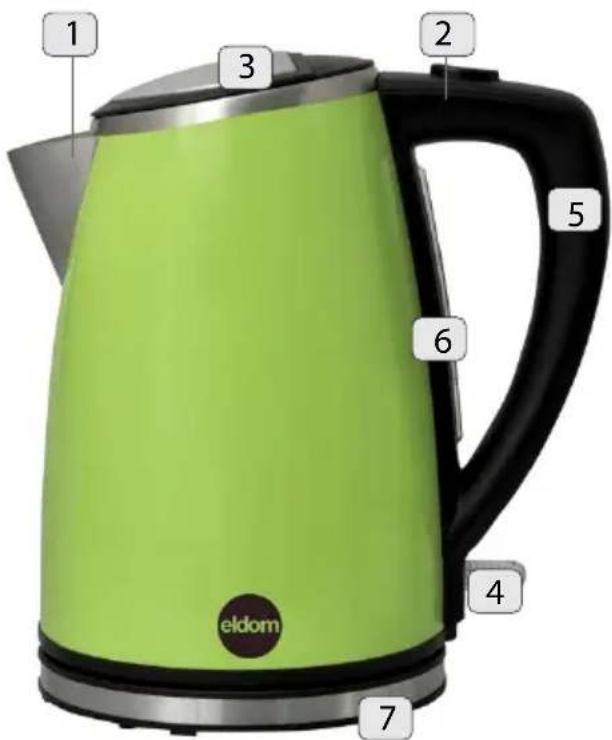

Green and black electric kettle with 'eldom' branding, no visible text or symbols on the device itself.

WSKAZÓWKI BEZPIECZEŃSTWA

- carefully read all instructions before using the appliance,

- connect the kettle only to a suitably earthed socket compatible with the parameters indicated in the instructions,

- The appliance should be placed on a stable and dry surface,

- before operating, make sure that there is water inside the kettle. You should not switch the kettle on when empty,

- you must not exceed the maximum water level mark. Filling over the maximum mark on the exterior of the kettle may result in the boiling water splashing out from the kettle (which may result in a short-circuit),

- The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

- do not leave the kettle unattended when in use, when plugged-in or containing hot water, the kettle may expose children to hazard, if left unattended,

- never immerse the kettle in water while washing-up,

- you should be cautious about the steam coming from the kettle during the heating process,

- this appliance is designed for domestic use only; when used for industrial purposes outside the product's specifications, or used not in accordance with the instructions, no liability is assumed and the warranty is nullified,

- never use the kettle if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu,

SAFETY INSTRUCTIONS

• refer servicing to an authorized service centre.
  Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard,
• this kettle must be used with the power base supplied

CLEANING AND MAINTENANCE

• allow the unit to cool down completely before cleaning,
• do not immerse the kettle in water while washing up,
• the outside of the kettle may be wiped over with a damp cloth and washing-up liquid,
• water stains inside the kettle can be removed by rubbing with a cloth moisten with white vinegar; rinse the inside with water afterwards,
• limescale should be removed in the following way:
• fill the kettle with 0.75 litre of water and bring it to boil,
• switch the kettle off and disconnect the kettle from the power supply,
• pour 0.1 litre of white vinegar into the kettle,
• allow to stand overnight,
• discard the solution and rinse the inside with water,
• fill the kettle with 1 litre of water and bring to boil,
• discard the water and rinse the inside with water.
• no timely removal of the scale from the heating element results in the heating element's quicker wear,
• any damage resulting from applying harsh descalling products available in the market are not covered by the producer's warranty,
• if the power cord is damaged, it can be replaced only by an especially constructed one (with appropriate plugs and endings).

FILTER

The filter provided is made of mesh retaining scale deposits. The filter does not remove the scale, but it prevents any deposits from getting inside the kettle while the water is being poured in.

The filter should be cleaned regularly.

Hard water may block the filter after boiling water a couple of times. The filter can be removed and rinsed with water or cleaned with a soft brush.

1. Spout + net filter
2. Lid release button
3. Opening lid
4. On/off switch + control lamp
5. Handle
6. Water level indicator
7. Rotating base

TECHNICAL DATA

• power: 2000W
• mains voltage: 230V \~ 50Hz
• 1.7 litre capacity
• mains protection: 10 A
• protection insulation class I

HOW TO USE THE APPLIANCE

Cordless kettle CS7K is for boiling water.

It is possible to boil 0.7 - 1.7 litre of water in the kettle.

The kettle base (7) must be put on a flat and dry surface.

In the base there is some space for an excess cord. It is important for the cord to be led from the base (7) through a special groove so that the appliance could be stable.

Before using the kettle for the first time fill it up (2-3 times) with water, boil the water and then empty the kettle.

The kettle can be filled with water directly through the spout (1) or after opening the lid (3). In order to open the lid (3) you must press the button (2).

The kettle must not be filled up when on the base.

The kettle starts working after putting the switch (4).

The kettle working is signalled by the control lamp (4).

The kettle switches off automatically after the water has boiled.

You can stop heating water at any time by putting the switch (4).

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee. Warranty details in the appendix
