Franky C340 - Kettle Eldom - Free user manual and instructions

Product Type	Cordless Kettle
Brand	Eldom
Model	Franky C340
Capacity	1.7 L (min 0.5 L)
Power	2000 W
Voltage	230 V ~ 50 Hz
Current Protection	10 A
Insulation Class	I
Boil-Dry Protection	Automatic shut-off when boiling
Control Lamp	Yes, indicates operation
Lid Opening	Push-button release
Water Level Indicator	External, marks for min and max
Power Base	Separate with cord storage
Filter	Removable mesh filter for scale
Material	Plastic body, stainless steel heating element
Cleaning	Wipe exterior with damp cloth; descale with vinegar
Safety Features	Auto shut-off; do not immerse in water
Intended Use	Domestic only
Warranty	Valid for domestic use; modifications void

Frequently Asked Questions - Franky C340 Eldom

How do I descale the Eldom Franky C340 kettle?

To descale, fill the kettle with 0.5 L of water and bring to boil. Switch off and unplug, then add 0.1 L of white vinegar and let stand overnight. Discard the solution, rinse with water, then fill with 1 L of water, boil, and discard again. For stubborn scale, use 0.5 L of vinegar, boil, leave for 30 minutes, boil again, then rinse. Regular descaling prevents heating element damage.

How should I clean the filter?

The removable mesh filter should be cleaned regularly. Remove it and rinse under water or clean with a soft brush. Hard water may clog the filter after a few uses, so frequent cleaning is recommended to maintain performance.

What is the maximum capacity of the kettle?

The maximum capacity is 1.7 L, indicated on the water level indicator. The minimum amount to boil is 0.5 L to ensure safe operation.

Can I boil less than 0.5 L of water?

No, the minimum water level is 0.5 L. Boiling less may cause the kettle to overheat and damage the heating element. Always ensure the water level is above the minimum mark.

How do I open the lid?

Press the lid release button (button 2 on the handle) to open the lid. Close it by pressing down until you hear a snap. Do not fill the kettle while it is on the base.

Is the kettle suitable for professional or commercial use?

No, this kettle is designed for domestic use only. Using it for professional or industrial purposes voids the warranty and may cause safety hazards.

What should I do if the kettle does not turn on?

First, ensure the kettle is properly placed on the base and the plug is connected to a working socket. Check the on/off switch is set to 'I'. If it still does not work, the kettle may have a boil-dry protection feature; let it cool down before retrying. If the problem persists, contact an authorized service center.

How should I store the power cord?

The power base has a cord storage compartment underneath. Wind the excess cord into the base through the designated groove to keep the appliance stable and tidy.

Can I immerse the kettle in water for cleaning?

No, never immerse the kettle or base in water. Clean the exterior with a damp cloth and mild detergent. The interior can be wiped with a cloth moistened with white vinegar for stains.

What are the warranty conditions?

The warranty is valid only for domestic use. Improper use, modifications, or use of non-original parts nullifies the warranty. Details are provided in the warranty appendix. For repairs, contact an authorized Eldom service center.

USER MANUAL Franky C340 Eldom

White and red portable kettle with Max, 1.7L, 1.5L, 1.0L, and 'eldom' button (no visible text or symbols on device body)

WSKAZÓWKI BEZPIECZEŃSTWA

Close-up of a white and red electric kettle handle with a circular button (no text or symbols visible)

fot. 1

Close-up of a white garment collar with a curved collar and textured skirt (no text or symbols visible)

• carefully read all instructions before using the appliance,
• connect the kettle only to a suitably earfched socket compatible with the parameters indicated in the instructions,
• The appliance should be placed on a stable and dry surface,
• before operating, make sure that there is water inside the kettle. You should not switch the kettle on when empty,
• you must not exceed the maximum water level mark. Filling over the maximum mark on the exterior of the kettle may result in the boiling water splashing out from the kettle (which may result in a short-circuit),
• The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance.
  Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
• do not leave the kettle unattended when in use, when plugged-in or containing hot water, the kettle may expose children to hazard, if left unattended,
• never immerse the kettle in water while washing-up,
• you should be cautious about the steam coming from the kettle during the heating process,
• this appliance is designed for domestic use only; when used for industrial purposes outside the product's specifications, or used not in accordance with the instructions, no liability is assumed and the warranty is nullified,
• Do not use the appliance, if the power cord is damaged or if the appliance fell down or was otherwise damaged. The appliance should be repaired by an authorised Service Centre; a list of Service Centres can be found in the attachment and on the website www.eldom.eu.

SAFETY INSTRUCTIONS

• The appliance can be repaired only in an authorised Service Centre. Any modernisation or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.
• The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.
• this kettle must be used with the power base supplied

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

• this appliance is designed for domestic use only,
• it cannot be used for professional purposes or for other than the intended use,
• improper use will nullify the guarantee. Warranty details in the appendix

Operating instruction

CORDLESS KETTLE C340

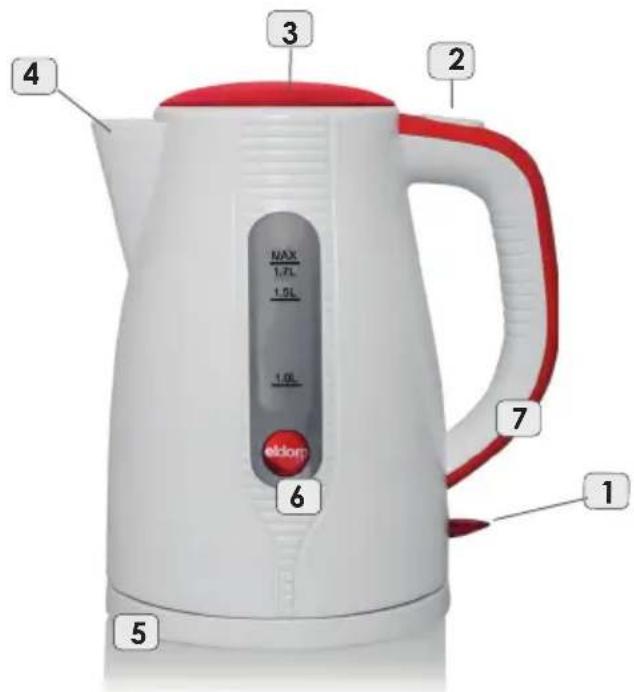

General description

1. On/off switch
2. Lid release handle
3. Opening lid
4. Spout + net filter
5. Base
6. Water level indicator
7. Handle

Technical data

• power: 2000W
• mains voltage: 230V \~ 50Hz
• 1.7 litre capacity
• mains protection: 10 A
• protection insulation class I

HOW TO USE THE APPLIANCE

Cordless kettle C330 is for boiling water. It is possible to boil 0.5 – 1.7 litre of water in the kettle.

The kettle base (5) must be put on a flat and dry surface. In the base there is some space for an excess cord. It is important for the cord to be led from the base (5) through a special groove so that the appliance could be stable.

Before using the kettle for the first time fill it up (2-3 times) with water, boil the water and then empty the kettle.

The kettle can be filled with water directly through the spout (4) or after opening the lid (3).

In order to open the lid (3) you must press the button (2) (photo 1).

The lid should be closed by pressing until you hear it snapp.

The kettle must not be filled up when on the base.

The minimum level of boiling water is 0.5 l. The maximum water level (1.7 l) is marked on the indicator (6).

The kettle starts working after putting the switch (1) in the position 'I'.

The kettle working is signalled by the control lamp.

The kettle switches off automatically after the water has boiled.

You can stop heating water at any time by putting the switch (1) in the position '0'.

Cleaning and maintenance

• allow the unit to cool down completely before cleaning,
• do not immerse the kettle in water while washing up,
• the outside of the kettle may be wiped over with a damp cloth and washing-up liquid,

- water stains inside the kettle can be removed by rubbing with a cloth moisten with white vinegar; rinse the inside with water afterwards,

- limescale should be removed in the following way:

- fill the kettle with 0.5 litre of water and bring it to boil,

- switch the kettle off and disconnect the kettle from the power supply,

- pour 0.1 litre of white vinegar into the kettle,

- allow to stand overnight,

- discard the solution and rinse the inside with water,

- fill the kettle with 1 litre of water and bring to boil,

- discard the water and rinse the inside with water.

Close-up of a white and red handheld electric shaver with a white handle (no text or symbols visible)

photo 1

If the scale is persistent, the cleaning should be done in the following way:

- fill the kettle with 0.5 litre of white vinegar,

- bring the vinegar to boil and leave the hot

solution inside the kettle for about 30 minutes,

• bring the vinegar to boil again,
• discard the vinegar and rinse the inside with water,
• fill the kettle with 1.0 litre of water and bring it to boil,
• discard the water and rinse the inside with water.

- no timely removal of the scale from the heating element results in the heating element's quicker wear,

• any damage resulting from applying harsh descalling products available in the market are not covered by the producer's warranty,
• if the power cord is damaged, it can be replaced only by an especially constructed one (with appropriate plugs and endings).

Close-up of a white ceramic or ceramic object with a curved lid and textured surface (no visible text or symbols)

FILTER

The filter provided is made of mesh retaining scale deposits. The filter does not remove the scale, but it prevents any deposits from getting inside the kettle while the water is being poured in.

The filter should be cleaned regularly.

Hard water may block the filter after boiling water a couple of times. The filter can be removed and rinsed with water or cleaned with a soft brush.
