Viollet HT230 - Tumble dryer Eldom - Free user manual and instructions

Product Type	Hair Dryer
Brand	Eldom
Model	Viollet HT230
Rated Power	2200 W
Voltage	220-240 V ~ 50 Hz
Speed Settings	2 (low and high)
Heat Settings	3 (low, medium, high)
Cool Shot Button	Yes (momentary cold air)
Styling Nozzle	Included (concentrator)
Hang Up Loop	Yes
Removable Air Intake Housing	Yes, for cleaning
Power Cord Length	Approx. 1.8 m
Weight	Approx. 0.5 kg
Dimensions (L x W x H)	Approx. 20 x 10 x 8 cm
Cleaning	Wipe with damp cloth; brush air vents; removable housing for deep cleaning
Safety Features	RCD recommended for bathroom use; do not immerse; unplug after use
Warranty	Household use only; void if misused
Spare Parts	Only from authorised service; power cord must be replaced by professional
Intended Use	Drying and styling human hair

Frequently Asked Questions - Viollet HT230 Eldom

How do I use the cool shot button?

Press the Cool Shot button (marked with a snowflake) while drying to release a burst of cold air. This helps set your hairstyle in place.

Can I use this hair dryer while in the shower or bath?

No, never use the hair dryer near water, such as in a bathtub, shower, or filled sink. Unplug it after use in a bathroom.

How do I clean the air intake?

Unplug the dryer and let it cool. Remove the removable air intake housing (part 7) by pressing the tabs and sliding it forward. Clean the filter with a soft brush.

What should I do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by an authorised service centre to avoid hazards. Contact Eldom support for locations.

Is the hair dryer suitable for children?

Yes, children aged 8 and above can use it under supervision. Children should not clean or maintain it unsupervised.

How do I select the correct heat and speed?

Use the on/off switch (1) to choose low or high speed. Then adjust the heat switch (2): low for fine hair, medium for normal, high for thick or wet hair.

Can I use the hair dryer on artificial hair or pets?

No, the appliance is designed only for human hair. Do not use on wigs, extensions, or animals.

What does the warranty cover?

The warranty covers manufacturing defects for personal household use. Professional use or misuse voids the warranty.

Why does the dryer shut off during use?

If it overheats, the thermal cut-out may activate. Switch it off, unplug, and let it cool for several minutes before restarting.

Can I use a voltage converter abroad?

The dryer is designed for 220-240V AC only. Using a converter may damage it or cause safety issues. Check local voltage before use.

USER MANUAL Viollet HT230 Eldom

Black and white illustration of a hair dryer with decorative band and logo (no text or symbols on body)

Please read all these instructions carefully before using this appliance.

1. The appliance must be connected to the mains whose current is compliant with the parameters on the housing.

2. For additional protection, it is advisable to equip the electrical installation of the bathroom with a safeguard a residual current device (RCD) with a triggering rated differential current not greater than 30 mA. Consult a qualified electrician.

3. The appliance can be used by children aged 8 and older, by persons with limited physical and mental capabilities, and by persons who have no experience nor knowledge of the equipment, only under supervision or if instructed on the safe use of the appliance in way that guarantees that the associated risks are understood. Children shall not play with the appliance. Children should not clean nor maintain the appliance without supervision.

4. The appliance heats up to high temperatures when used. Avoid contact with the skin and the power cord.

5. Always unplug the appliance before cleaning or maintenance, in case of malfunction, and after use. Do not leave the appliance plugged in, if it is not in use, even for a short time.

6. Always disconnect the appliance from the mains by pulling the plug, not the power cord.

7. In case of hair styling, choose appropriate duration so as not to overheat the hair.

8. Do not use the brush for artificial hair or for grooming animals.

9. Do not immerse in water or spray any liquids onto the appliance.

10. Do not use the appliance if it is wet, do not operate it with wet hands, near showers, tub water, sink water or water in any other container.

11. If the appliance is used in a bathroom, unplug it after use. The proximity of water presents a hazard, even if the appliance is switched off.

12. Never leave the switched on appliance unattended.
13. Before putting the appliance away for storage, wait until it cools down.
14. Regularly inspect the power cord and the entire appliance for any damage. Do not use damaged appliance.
15. Do not insert the appliance into flames or any other source of heat.
16. To avoid any risks, if the power cord is damaged, it should be replaced with a new one at an authorised Manufacturer's Servicing Point. The list of Servicing Points can be found in the attachment and on www.eldom.eu.
17. The appliance can be repaired only at an authorised servicing centre. Any upgrades or the use of non-original spare parts or components is forbidden and poses a hazard for the user.
18. Eldom Sp. z o. o. is not liable for any damage resulting from improper use of the appliance.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recovered or recycled
• the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment

WARRANTY

• the appliance is intended for personal use at a household,
• it is not intended for professional purposes,
• in case of misuse, the warranty is rendered null and void.

CAUTION:

Do not use the appliance near bathtubs, showers, swimming pools and similar water reservoirs.

EN

INSTRUCTION MANUAL

HAIR DRYER HT230

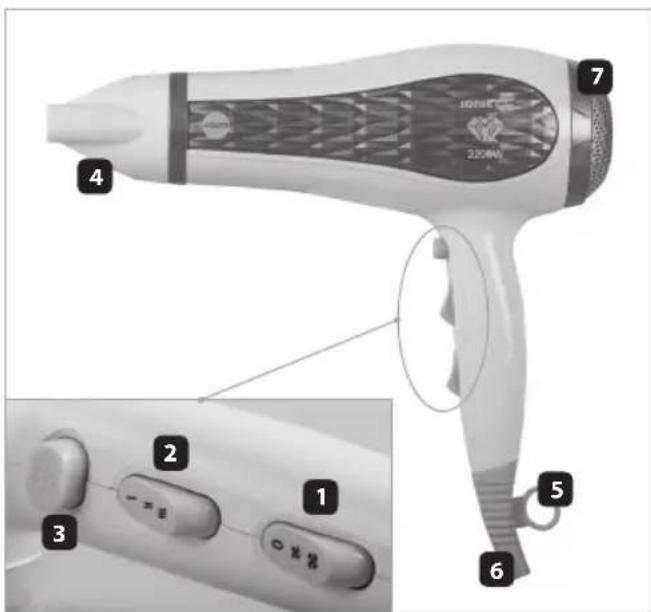

GENERAL DESCRIPTION

1. On/Off switch with power settings
2. Heat level switch
3. "Cool shot"
4. Styling nozzle
5. Hang up loop
6. Power cord
7. Removable air intake housing

TECHNICAL DETAILS

• rated power: 2200W
• mains supply: 220-240V \~ 50Hz

OPERATION GUIDE

The hair dryer is designed for drying hair. Before connecting the hair-dryer to power supply be sure that the on/off switch (1) is set to "0" position. After plugging the appliance into correctly installed power socket rated to 230V and 50Hz it can be turned with the on/off switch (1).

0 - the hair-dryer off
- low speed
- high speed

Temperature of the airflow can be adjusted by the switch (2):

• low heat for not very wet and not very thick hair or for short hair
  ss - medium temperature
  sss - high temperature. Fast drying of wet or thick hair

Pushing the „ ^♦ ” (3) button decrease the temperature of the air that comes out of the hair-dryer.

CLEANING AND MAINTANANCE

• before cleaning unplug the hair-dryer and wait until it cools down completely
• never immerse the hair-dryer in water
• casing and power cord can be cleaned with soft dry or slightly damp cloth
• the air inlet and outlet should be cleaned with soft brush
• Air intake can be cleaned after the removal of the housing (7). In order to remove the housing, you should press the elements and move it forward.
