Type	Oil-filled radiator
Model	ROVI HO70C
Brand	Eldom
Rated Power	1500 W
Power Settings	600 W (I), 900 W (II), 1500 W (I+II)
Power Supply	230 V ~ 50 Hz
Thermostat	Adjustable, with MIN/MAX positions
Heating Elements	7 oil-filled fins
Safety Features	Overheat protection, tip-over switch
Controls	Power switches (I, II) and thermostat knob
Indicator Light	Red LED for operation
Handle	Top handle for carrying
Castors	4 wheels with metal bases, removable
Cord Storage	Wrap-around bracket with socket
Ventilation	Openings at top and bottom
Recommended Placement	Vertical, on flat stable surface, min. 2 m from flammable objects
Cleaning	Wipe with damp cloth; do not immerse
Protection Class	IPX0 (not waterproof)
Intended Use	Indoor residential heating
Estimated Dimensions (H x W x D)	Approx. 650 x 400 x 250 mm
Estimated Weight	Approx. 12 kg

Frequently Asked Questions - ROVI HO70C Eldom

How do I assemble the wheels on my Eldom ROVI HO70C oil heater?

Lay the heater on its back on a soft surface. Attach the metal castor bases using the provided clamps and nuts as shown in the manual (Fig. 2). Then insert the castor wheels into the bases and tighten with the nuts. Ensure the bases are spaced as in the diagram (Fig. 1) before tightening.

What are the power settings and how do I select them?

The heater has two power switches: 'I' for 600 W, 'II' for 900 W. Pressing both gives a total of 1500 W. Select the desired setting with the rocker switches before adjusting the thermostat.

How does the thermostat work?

Turn the thermostat knob to your desired temperature. The heater will cycle on and off to maintain that temperature. The maximum temperature is reached when the knob is set to 'MAX' and both power switches are on.

What safety features does the ROVI HO70C have?

It has overheat protection that cuts power if the internal temperature gets too high, and a tip-over switch that shuts it off if the heater is knocked over. After activation, set the thermostat to MIN, unplug, let it cool, and eliminate the cause before restarting.

Can I use this heater in a bathroom or outdoors?

No. The manual explicitly states not to use it close to showers, tubs, washbasins, swimming pools, or outdoors. It is designed only for indoor residential use on dry floors.

How do I clean the oil heater?

Unplug the heater and let it cool completely. Wipe the enclosure with a damp cloth. Do not use harsh chemicals or immerse the heater in water. Do not allow water to enter the ventilation openings.

Why does the heater turn off by itself during use?

This is likely due to the overheat protection activating. Possible causes: the heater is covered, ventilation is blocked, or it is too close to a wall or furniture. Set thermostat to MIN, unplug, remove the obstruction, let it cool for at least 10 minutes, then restart.

What should I do if I smell burning or see smoke?

Immediately unplug the heater from the mains. Do not use water. If safe, move the heater to a well-ventilated area away from flammable materials. Contact Eldom service or a qualified technician. Do not use until inspected.

Is the heater safe to use around children or pets?

The manual warns that the surface gets very hot during operation. Keep children and animals away from the device. Also, do not leave the heater unattended while on.

What is the warranty and what does it cover?

The warranty applies only to private household use, not professional use. It is void if the device is misused or damaged by improper operation. For repairs, contact an authorized service point listed on www.eldom.eu. Do not attempt to repair yourself.

USER MANUAL ROVI HO70C Eldom

Black and silver portable solar oil heater with cooling fans and wheels (no visible text or symbols)

GRZEJNIK OLEJOWY

OIL FILLED RADIATOR

OLEJOVÝ RADIÁTOR

ÖLHEIZKÖRPER

1. Read thoroughly this manual before the first use of the unit.
2. The device should be connected to the power supply grid compatible with current parameters stated on the enclosure.
3. Always disconnect the device from the power supply before cleaning and maintenance, in case of abnormal operation and after its use.
4. Always disconnect the device from the power supply pulling the plug, and not the power supply cord.
5. Never use the device close to a shower, a tub, a washbasin, a swimming pool, etc.
6. The device must not be immersed in water or sprinkled.
7. Do not operate the device close to flammable objects like furniture, bedclothes, paper, clothing, curtains, carpets, etc. and materials that may be deformed.
8. Do not use in rooms of increased risk of gas explosion and where flammable solvents, enamels or adhesives are used.
9. Do not use in open air.
10. Use only in a vertical position.
11. Do not touch the device with wet or moist hands or feet.
12. Handle the device only by the handle (2)
13. Do not allow children or animals access the device. During the operation of the device, temperature of the surface of the heater may be quite high.
14. Do not cover the device with clothing and other textiles when in use.
15. Do not use the device to dry clothing.
16. Do not run the power supply cord above the heater and exhaust openings of warm air.
17. This equipment may be used by children of at least 8 years old and by persons with reduced physical and mental capacity and persons with no experience and knowledge of the equipment if the supervision or instruction is provided

for use of the equipment in a safe way, so that the related hazards are understandable. Children should not play with the equipment. Children without supervision should not clean and maintain the equipment.

1. The device must not be left operating without supervision.
2. When the device is not used, disconnect it from the power supply source.
3. Leave the device to cool down before putting it into storage.
4. Check regularly whether the power supply cord and the whole device are not damaged. The device must not be switched on if any damages are detected.
5. Never use the unit when the power cord is damaged or when the device was dropped or damaged in any way.
6. If any oil is leaking, contact the service point.
7. Only an authorised service point can repair the equipment. The list of the service points is provided in the annex and in the website www.eldom.eu Any modernisations or using of non-original spare parts or elements of the device is forbidden and threatens safety of its use.

Eldom Sp. z o.o. shall not be responsible for any damages resulting from improper use of the device.

CLEANING AND MAINTENANCE

• Disconnect the device from the power supply before cleaning.
• The device must not be immersed in water.
• Do not use cleaning agents and products that are strong or destructive to the surface.
• Wipe the enclosure with damp cloth.

PROTECTION OF THE ENVIRONMENT

• The device is made of materials that may be subjected to further processing or recycling.
• It should be handed over to the relevant point dealing with collection and recycling of electrical and electronic devices.

GUARANTEE

• The device is intended for private household use.
• It may not be used for professional applications.
• The guarantee shall become void if the device is operated improperly.

OPERATING INSTRUCTION OIL FILLED RADIATOR HO70B/HO70C

EN

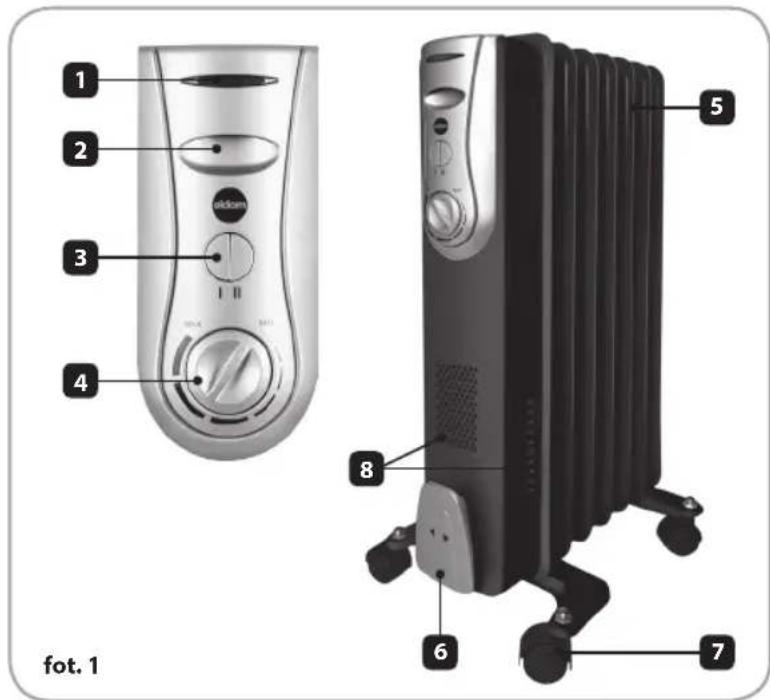

GENERAL DESCRIPTION

1. Indicator light
2. Handle
3. Power supply switch
4. Thermostat
5. Heating fins
6. Place for winding the cord with the socet for the plug
7. Castors
8. Ventilation openings

TECHNICAL DETAILS

• Rated power: 1500W
• Mains supply: 230V \~ 50Hz

INTENDED USE

The HO70 oil heater is intended for heating residential premises. It has been produced to the highest requirements and use of advanced technology. Due to the manufacture pursuant to high standards, it is safe and easy in use.

USING THE DEVICE

• After unpacking the device, make sure if it was not damaged during the transport. In case of any doubts, refrain from its use until contacting a service point.
  • Install the feet with castors (7) - fot. 2
• Place the unit on a flat, stable and heat-resistant floor, min. 2 m away from furniture and flammable objects,
• Set the thermostat (4) in the "MIN" position,
• Connect the device to the power supply source of the parameters compliant with those stated in the user guide.
  • Using the switch (3) select the heating power:

- "I" for 600 W

"II" for 900 W

- "I"+"II" for 1500 W

• The device will start when temperature is selected with the thermostat knob (4). Setting the highest temperature of operation is done with the thermostat knob set in the "MAX" position and switching on both buttons (3)
  • Operation of the device is signalled with the indicating lamp (1).

The device is operating only whe set vertically. It has a safeguard cutting off the power supply when it is overturned.

During operation of the device, do not cover the heater with clothing or other textiles. Do not cover ventilation openings.

The device has a thermal safeguard cutting off the power supply when it is overheated. In this case, set the thermostat knob in the "MIN" position, disconnect the device from the power supply and eliminate the cause of overheating. Leave the device to cool down before switching the device on again.

INSTALLATION

1. Carefully place the device with its feet upwards (soft surface is best used to avoid damaging of the protection coat).

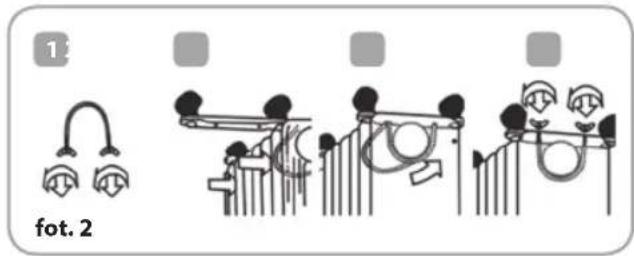

2. Install the metal castor bases with clamps and nuts: fot. 2. The bases should be spaced as in fot. 1.
3. Set the castors in the installed bases and tighten with the enclosed nuts.
4. Turn the heater back to the proper vertical position.
