Product Type	Petrol Motor Tiller (Rototiller)
Brand	Einhell
Model	BMH 436
Engine	1-cylinder 4-stroke OHV
Engine Power	3 kW / 4.1 HP
Working Width	36 cm
Tines	4 pieces, diameter 26 cm
Forward Gears	1
Starting System	Reverse starting device (recoil)
Fuel	Normal unleaded gasoline
Weight	37.2 kg
Packing Dimensions (L x W x H)	700 x 690 x 410 mm
Handle	Ergonomically designed, height adjustable
Guidance Wheel	Tiltable for easy transport
Safety Features	Dead man's control (chopping knife stop), brake skid
Throttle Control	Located on handle
Accessories Available	Spare knife (Art.-No.: 34.302.45)
Recommended Use	Soil cultivation, turning soil, ground protection
Special Features	Quiet running, high motor reserve, long service life

Frequently Asked Questions - BMH 436 EINHELL

What type of fuel does the Einhell BMH 436 use?

The Einhell BMH 436 uses normal unleaded gasoline. Do not use leaded fuel.

How do I start the rototiller?

It uses a reverse starting device (recoil). Pull the starter cord firmly while holding the throttle control.

What is the working width of the BMH 436?

The working width is 36 cm (approx. 14.2 inches).

How many tines does it have and what is their diameter?

It has 4 tines with a diameter of 26 cm each.

Is the handle adjustable?

Yes, the handles are ergonomically designed and height adjustable for operator comfort.

What safety features are included?

It includes a dead man's control that stops the chopping knife when released, and a brake skid for added safety.

Can I replace the tines?

Yes, replacement tines (spare knife) are available as accessory, Art.-No.: 34.302.45.

How heavy is the rototiller?

It weighs 37.2 kg (approx. 82 lbs).

What are the dimensions of the packaging?

The packing dimensions are 700 x 690 x 410 mm (L x W x H).

How do I transport the rototiller?

Use the tiltable guidance wheel to easily move it around when not in use.

USER MANUAL BMH 436 EINHELL

Petrol Motor Tiller BMH 436

Art.-No.: 34.302.47

bar code: 4006825508710

sales unit: 1 pc

The powerful motor with its technical perfection and reliability, quiet running, high motor reserve and long service life makes it really economical. The special formed tilling tines allow ground protection but effective turning of the soil. The motort tiller is equipped with ergonomically designed, in height adjustable handles. The tiltable guidance wheel makes change of location a practical affair.

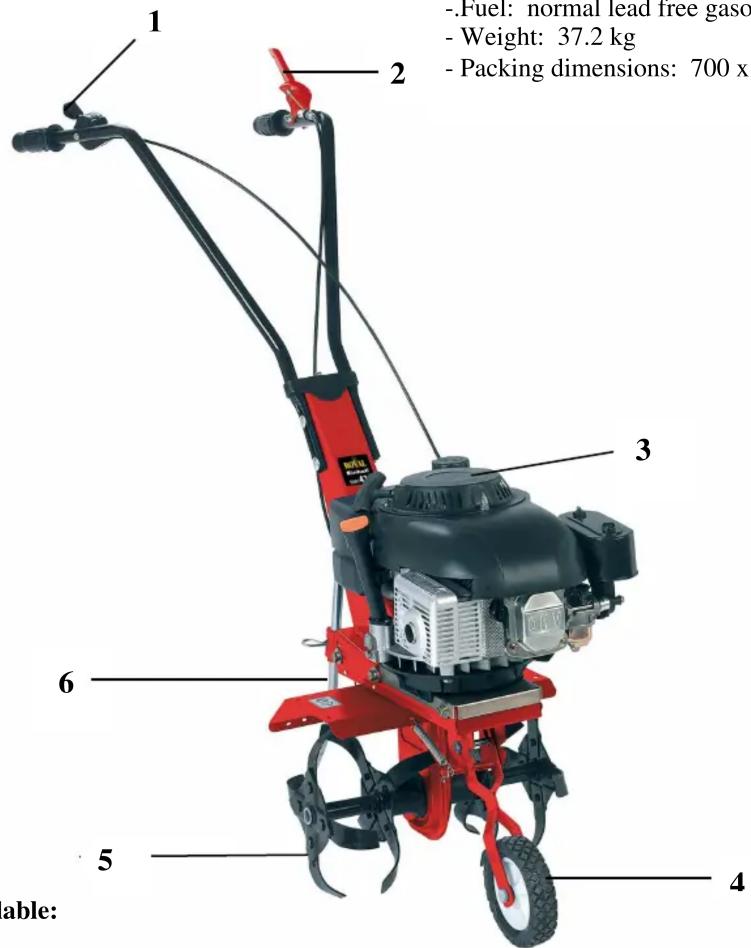

Features:

• Throttle control (1)
• Chopping knife stop due dead man's control (2)
• 1 cylinder 4-stroke-engine (3)
• Tiltable guidance wheel (4)
• Chopping knife (5)
• Brake skid (6)

Technical data:

• Motor: 4-stroke-OHV
• Motor power: 3 KW / 4,1 HP(horse power)
• Operating width: 36 cm
• Tines: 4 pcs / ∅ 26 cm
• Forward gear: 1
• Starting system: Reverse starting device
  -.Fuel: normal lead free gasoline
• Weight: 37.2 kg
• Packing dimensions: 700 x 690 x 410 mm

As special accessory available:

Spare knife

Art.-No.: 34.302.45

bar code: 4006825343120
