TVH24P452T - TV GoGen - Free user manual and instructions
Find the device manual for free TVH24P452T GoGen in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | LED TV |
| Screen Size | 24 inches (60.96 cm) |
| Display Resolution | 1366 x 768 pixels (HD Ready) |
| Display Technology | LED-backlit LCD |
| Refresh Rate | 60 Hz |
| Sound Output | 2 x 8 W stereo speakers |
| Power Consumption (Operation) | 30 W (typical) |
| Power Consumption (Standby) | ≤0.5 W |
| Weight (Without Stand) | 2.8 kg |
| Weight (With Stand) | 3.2 kg |
| Dimensions (Without Stand) | 55.6 x 33.2 x 6.4 cm |
| Dimensions (With Stand) | 55.6 x 39.5 x 17.8 cm |
| VESA Mount Pattern | 100 x 100 mm (M4 screws) |
| Connectivity | 2x HDMI, 1x USB 2.0, 1x VGA, 1x CI slot, 1x RF antenna, 1x composite video (AV), 1x headphone jack |
| Remote Control | Infrared remote included (batteries not included) |
| Operating Environment | Temperature: 0°C to 40°C, Humidity: 20%‑80% (non‑condensing) |
| Spare Parts Availability | Remote, power cord, stand base, and wall mount bracket available from manufacturer or authorized resellers |
| Repairability Index | 5.8 / 10 (based on standard EU rating, replaceable components: power supply, main board, display panel not easily replaced) |
| Energy Class | F (EU energy labeling for 24″ HD TVs) |
Frequently Asked Questions - TVH24P452T GoGen
How do I turn on the TV for the first time?
Connect the TV to a power outlet, press the power button on the remote or the TV panel, then follow the on-screen setup wizard to select language, country, and tune channels.
How do I change the input source to HDMI or USB?
Press the Source or Input button on the remote control repeatedly until you see the desired input (e.g., HDMI1, USB) on the screen. Confirm by pressing OK.
What should I do if there is no picture but sound works?
Check that the correct input source is selected. Ensure the connected device is powered on and properly connected. Try a different cable or input port. If the issue persists, perform a factory reset via the settings menu.
How do I clean the TV screen?
Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. For stubborn spots, lightly dampen the cloth with water (do not spray directly). Never use alcohol, ammonia, or abrasive cleaners.

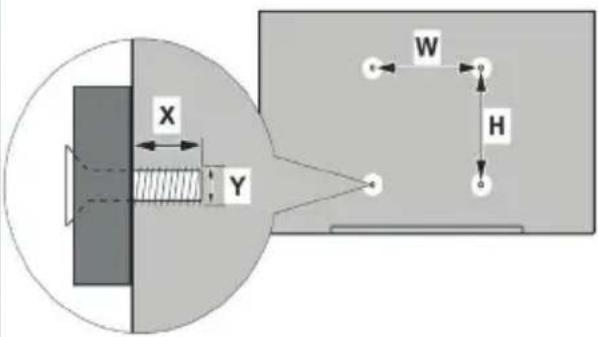

Can I wall mount this TV?
Yes, this TV supports VESA 100x100 mm wall mount. Use a compatible wall mount bracket (not included) and secure it to a solid wall. Follow the wall mount instructions carefully to avoid damage.
Why won't my remote control work?
First, check if the batteries are installed correctly and not depleted. Replace them if needed. Make sure nothing is blocking the infrared sensor on the TV. If still not working, try using the TV's physical buttons to navigate.
How do I perform a factory reset?
Go to Settings > System > Factory Reset (or similar). Enter the default PIN (usually 0000 or 1234). Confirm the reset. The TV will restart and revert to original settings.
How do I connect an external antenna or cable?
Connect the coaxial cable from your antenna or cable outlet to the RF ANTENNA port on the back of the TV. Then go to Settings > Channels > Auto Tuning to scan for available channels.
What should I do if the TV freezes or is unresponsive?
Unplug the TV from the power outlet for 30 seconds, then plug it back in and turn it on. This will clear temporary glitches. If the problem recurs, consider a factory reset.
How do I enable energy saving mode?
Press the Menu button on the remote, navigate to Picture or System settings, and select Energy Saving (or similar). Choose an option like Low, Medium, or Auto to reduce power consumption.
User questions about TVH24P452T GoGen
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
