Product Type	Freestanding Washing Machine
Brand / Model	Exquisit WA57014-020A
Capacity (Cotton)	7 kg
Maximum Spin Speed	1400 rpm
Temperature Range	Cold, 20°C, 40°C, 60°C, 90°C
Number of Washing Programmes	12 (Cotton, ECO40-60, Sportswear, Duvet, Baby Linen, Steam, Mix, Quick 15', 20°C, Wool, Rinse & Spin, Spin)
Special Programmes	Drum Cleaning, Prewash, Steam, Start Time Delay
Control Panel	Dial and push buttons with LED display
Child Lock	Yes, via delay start button
Door Lock	Automatic locking during operation
Water Connection	Cold water only, 3/4" hose connection
Drain Hose Max Height	125 cm
Power Supply	220-240 V ~ 50 Hz (typical, confirm with rating plate)
Energy Consumption (Cotton 40°C)	Approx. 0.25 kWh per cycle (half load)
Annual Energy Consumption	Not specified
Noise Level (Spin)	Not specified
Lint Filter Cleaning	Every 10 washes recommended
Detergent Compartments	3 (main wash, prewash, fabric softener)
Transport Bolts	4, must be removed before use
Installation Clearance (sides/rear)	2 cm sides, 10 cm rear
Warranty	24 months (Germany/Austria), 12 months commercial use
Spare Parts Availability	Minimum 10 years after last unit placed on market
Dimensions (H x W x D)	Not specified in manual (typical compact model, refer to product page)
Weight	Not specified

Frequently Asked Questions - WA57014-020A Exquisit

How do I open the door after a wash cycle?

Wait 2-3 minutes after the programme ends for the door lock to release. If still stuck, check if laundry is caught between door and seal. Never force the door open.

Why does my washing machine vibrate heavily during spin?

Common causes: transport bolts not removed, uneven floor, or overloading. Ensure the machine is level and feet are locked. Also check that the drain hose is not higher than 1 m.

What does error code IE mean?

IE stands for water inlet error. Check if the water tap is open, the inlet hose is not kinked or frozen, and the inlet strainer is clean.

How do I clean the lint filter?

Unplug the machine, open the flap at bottom right, pull out the drain hose to drain water, unscrew the filter counterclockwise, remove debris, then reinsert and turn clockwise until tight. Clean every 10 washes.

Can I wash a duvet in this machine?

Yes, use the Duvet programme. Max capacity 5 kg. Do not overfill to avoid strong vibrations.

How do I activate the child lock?

After starting a programme, press the Start Time Delay button for at least 3 seconds. All buttons except On/Off become locked. Repeat to deactivate.

What detergent should I use?

Use a low-suds detergent suitable for automatic washers. Dosage depends on water hardness, load size, and soil level. Avoid chlorine- or sulfur-based detergents.

Why is water not draining?

Check if the drain hose is kinked or blocked. Clean the lint filter. Also ensure the drain hose end is not immersed in water. If error OE appears, refer to manual.

Can I pause a running programme?

Press the Start/Pause button. The machine will pause. Press again to resume. Note: door cannot be opened immediately; wait for safety unlock.

What is the maximum spin speed for delicate fabrics?

For wool and delicate items, use the Wool programme with max spin speed 800 rpm. You can also manually reduce spin speed on other programmes.

USER MANUAL WA57014-020A Exquisit

10.1 Intended use 31
10.2 Safety and responsibility 32
10.3 Safety and warnings.... 32
10.4 General safety instructions...... 32

11. Assembly and installation 33

11.1 Location of the washing machine. 34
11.2 Align the appliance.... 34
11.3 Water inlet and outlet.... 34

1. Putting into operation ....36
   12.1 Electrical connection....36
   12.2 First wash 36
   12.3 Load washing drum 36

13. Washing programmes...... 38

13.1 Select temperature....39
13.2 Description Washing programmes 39
13.3 Start washing programme ....40
13.4 Textile care symbols ...... 41
13.5 Tips for staintreatment....43

14. Cleaning and Maintenance ..... 44

1. Troubleshooting......46
2. After Sales Service...... 48
3. Warranty terms 49
4. Disposal 50

1 Sicherheit

Illustration of a washing machine with hand gestures and a magnified view showing the process (no text or symbols)

Diagram of a washing machine next to a U-shaped pipe with 30cm height measurement (no text or symbols on the diagram itself)

Line drawing of a kitchen sink with faucet and drain (no text or symbols)

3 Inbetriebnahme

Illustration of a hand using a tool to interact with a mechanical component (no text or symbols visible)

Illustration showing a hand holding a circular knob next to a faucet with a curved arrow indicating rotation (no text or symbols)

Flusensieb reinigen

It is essential to read the instruction manual carefully before operating the appliance.

The instruction manual contains important safety information for the installation, operation and maintenance of the appliance. Proper operation makes a major contribution to efficient energy use and minimises the energy consumption of the appliance.

Improper use of the appliance can be dangerous, particularly for children.

Keep the instruction manual for future reference and pass it on to any subsequent owners.

The manufacturer is working constantly on the further development of all types and models. We therefore reserve the right to make changes in form, equipment and technology.

CE Conformity

At the time of its placement on the market, this appliance conforms to the requirements laid down in the Council directives on the approximation of the laws of the Member States relating to electromagnetic compatibility, Directive 2014/30/EU, and relating to the making available on the market of electrical operating equipment designed for use within certain voltage limits, Directive 2014/35/EU.

This unit is marked with the CE mark and has a

Declaration of conformity for inspection by the competent market surveillance authorities.

Getting to know your appliance

The unit description summarises all important information and serves as a quick overview and familiarisation with the unit and its functions.

Scope of supply

1 Water inlet hose

4 cover caps

1. Instruction manual

1 service card

1 mounting key

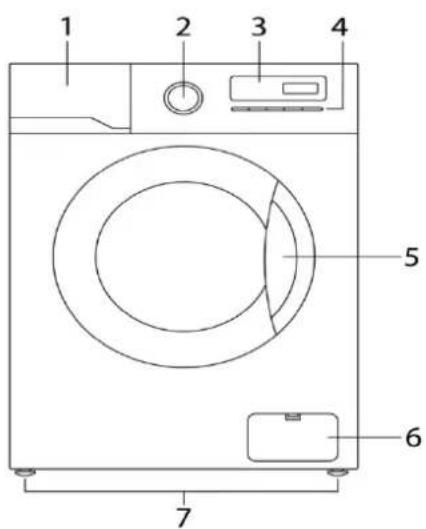

1) Detergent compartment
2) Programme selection knob
3) Display
4) Additional functions
5) Appliance door
6) Flap lint filter
7) Adjustable feet

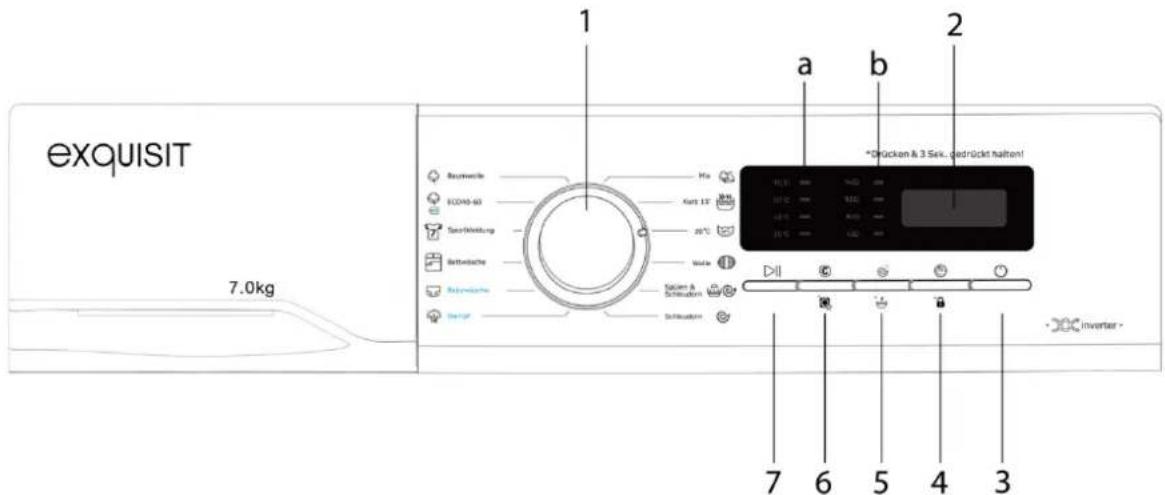

Control panel

- Selects the programme - see chapter 4 Washing programmes.

2) Display

a. Temperature
b. Spin speed

3) On/ OFF ON/OFF

- Switches the power supply on or off.

4) Start time delay / *Child lock

- Selects the time delay.

- The delay time refers to the end of the respective programme.

5) Spin speed / Prewash

• Switches the function on or off.
• Select the speed according to the capacity and the type of clothing.
• Different operations require different speed ranges, but the speed of the drum cleaning cannot be selected.

6) Temperature / *Drum cleaning

• Selects the water temperature according to the type and degree of soiling.
• Different operations require different water temperature ranges, for some there is no choice.

7) Start/Pause

• Starts operation after a break.
• Press the button during operation to pause, press it again to continue.

*Child lock

- Protects the operation of the washing machine by children.

10 Security

For safe and proper use of the appliance, read the instruction manual and other documentation accompanying the product and keep in a safe place for future reference. All safety instructions in this instruction manual are marked with a warning symbol. They draw your attention to potential hazards. Be sure to read and observe this information.

Explanation of the safety instructions

DANGER

Indicates a hazardous situation which, if not avoided, will lead to very serious injuries or even death!

WARNING

Indicates a hazardous situation which, if not avoided, can lead to very serious injuries or even death!

CAUTION

Indicates a hazardous situation which, if not avoided, can lead to minor or moderate injuries!

ATTENTION

Indicates a situation which, if not avoided, will lead to material damage.

ELECTRIC SHOCK HAZARD!

RISK OF SCALDING!

FIRE HAZARD!

➢ Information and instructions to be observed.
- Indicates a list
√ Indicates inspection steps in sequence

1. Indicates work steps in sequence
   → Describes the response of the appliance to the work step

10.1 Intended use

The washing machine is intended for private household use. Every other form of use is not considered an intended use. If the appliance is used for other purposes or in any way other than as described in this instruction manual, the manufacturer can assume no liability for any damage resulting from such use.

The intended use also implies compliance with the operating and maintenance conditions prescribed by the manufacturer. For safety reasons, modifications or alterations to the appliance are not permitted.

10.2 Safety and responsibility

Safety of children and persons with limited capabilities

DANGER

RISK OF SUFFOCATION!

Packaging materials (e.g. plastic film, polystyrene) can be dangerous for children. Keep packaging materials out of the reach of children.

This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge Unless they are under supervision by a person responsible for their safety.

10.3 Safety and warnings

DANGER

RISK OF ELECTRIC SHOCK!

• Never hold the plug of the mains cable with damp or wet hands when plugging in or unplugging the appliance.
• Install and connect the appliance only in accordance with the description in the instruction manual.
• In an emergency, pull the plug out of the plug socket immediately.
• Do not pull the plug out of the plug socket with the cable.
• Remove the plug from the plug socket before starting cleaning or service work.
• A damaged power supply cable must be replaced by our After Sales Service without delay.
• If the cable or plug is damaged, do not use the appliance any more.
• Do not carry out any work on the appliance other than the cleaning and service work described in this instruction manual.

10.4 General safety instructions

• Remove the mains plug from the plug socket or switch off the power supply before starting cleaning or service work.
• A damaged power supply cable must be replaced by the supplier, dealer or after-sales service without delay. If cable or plug are damaged, do not use the appliance any longer.
• Do not carry out any work on the appliance other than the cleaning and service work described in these operating instructions.
• Never leave the Washing machine switched on unnecessarily.
• Close the water tap when the appliance is not in use.
• Clean the outside of the Washing machine with a damp cloth, do not use abrasive cleaners.
• The appliance door is equipped with an automatic locking system. The appliance door can only be opened approx. 2-3 minutes after the end of the washing process.
• Never open the door by force or when there is still water in the appliance
• If necessary, the mains cable can be replaced by the customer service.
• Do not reach into the rotating drum. There is a risk of injury!

ATTENTION

Do not climb on the washing machine.

11 Assembly and installation

Unpacking the appliance

The packaging materials must be undamaged. Inspect the appliance for transport damage. On no account should a damaged appliance be connected to the mains power supply. In case of damage, contact the supplier.

WARNING

Risk of suffocation!

Packaging materials (e.g. plastic film, polystyrene) can be dangerous for children. Keep packaging materials out of the reach of children! Removing transport protection The appliance and some of the interior parts are secured for transport. Remove all adhesive tapes and transport bolts.

ATTENTION

APPLIANCE DAMAGE!

There is a risk that the washing machine will move a lot during the spin cycle. When setting up on an existing plinth (concrete plinth or brick plinth), secure the appliance with clamping straps.

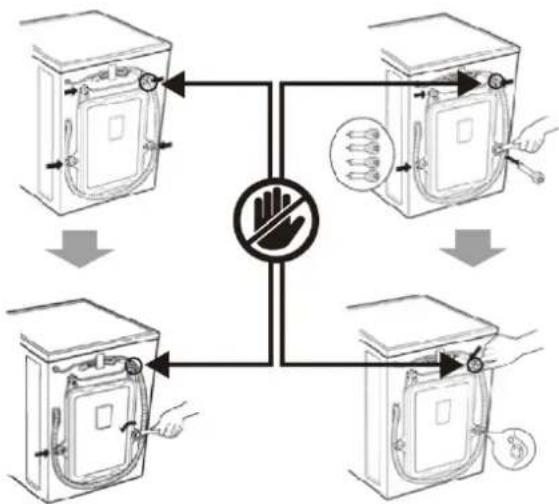

Loosen the four transport bolts with the spanner.

Do not dismantle the fixed device of the drain pipe.

Turn the bolt rubber slightly and then pull it out.

Close the screw holes with the caps provided.

➢ Transport bolts that are not removed cause violent vibrations and noise.

Keep the transport locks for further transport of the unit.

11.1 Location of the washing machine

√ Check the place where the washing machine is to be installed. Make sure that everything necessary for the correct set-up is available.

√ Place the washing machine on a horizontal, solid floor. Placing the unit on an unsuitable floor could cause strong vibrations, considerable noise and a malfunction.

√ Leave sufficient free space: right and left 2 cm rear 10 cm

The washing machine must not wobble.

All adjustable feet must have firm contact with the floor.

Do not place pieces of wood or similar underneath.

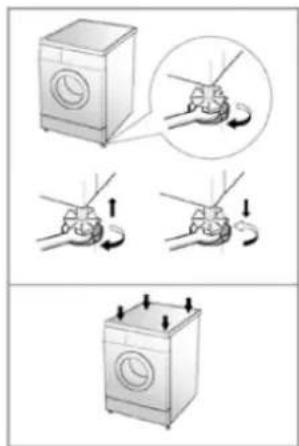

11.2 Align the appliance

It is important to align the appliance, otherwise it will vibrate during spinning and the bearings may wear out prematurely. If the floor is uneven, level the appliance with the front feet.

Adjust the feet so that the appliance is balanced and stable on the floor.

1. Loosen the lock nut (A) of one stand with the supplied assembly spanner.

2. Adjust the height (see fig.).

3. Check the horizontal position.

4. Adjust another stand.

5. Tighten the lock nuts with the assembly spanner.

Illustration of a washing machine with hand gestures and a magnified view showing the process (no text or symbols)

11.3 Water inlet and outlet

Connect the water inlet hose to the back of the appliance.

Water inlet: cold water only

Faucet: 34 " hose screw connection

There are two seals in the connections of both pipe ends to prevent water from escaping.

Assembly and installation

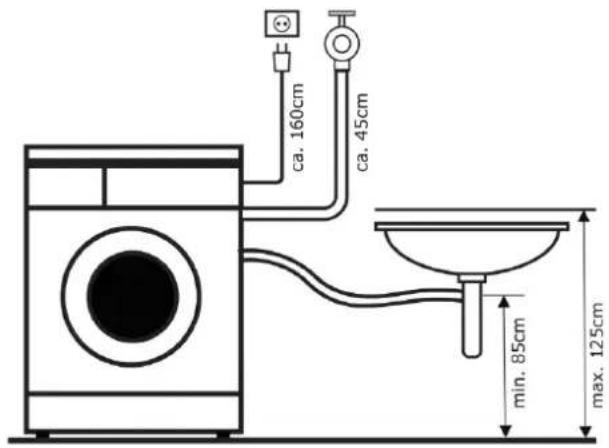

Connection diagram - cold water connection

Line drawing of a kitchen sink with faucet and sink (no text or symbols)

The connection to the water tap is made with the hose supplied by the manufacturer. Connect the bent end to the back of the unit and the straight part to the water tap.

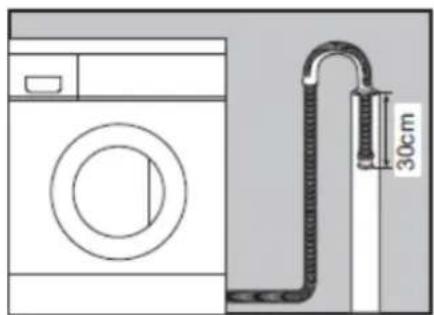

Use elbow

Diagram of a washing machine connected to a 30cm pipe with a hose (no text or symbols)

1. Place the drain hose in position with the elbow.

2. Mount the manifold approx. 80 - 100 cm above the floor.

3. Ensure that the hose cannot fall on the floor and that the escaping water drains off safely.

Prevent water leakage

Both union nuts are provided with a seal each. Tighten the union nut well with the seal.

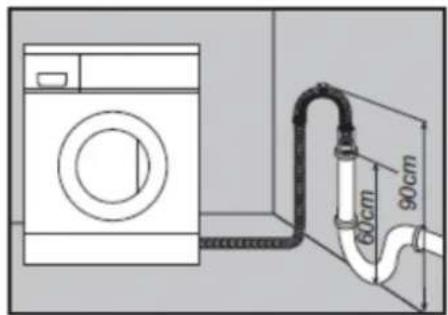

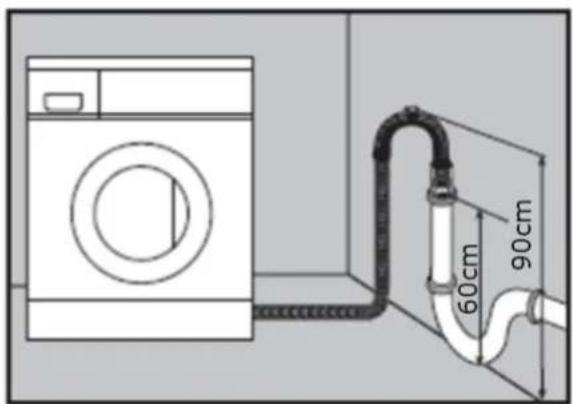

Water drain

Secure the water drainage hose with a lifting rope (not included in the scope of delivery) if this is e.g. directed into a washbasin.

If the Washing machine is connected to a built-in pump-out system, check that the latter is equipped with a vent hole to avoid simultaneous water inflow and pump-out (siphon effect).

12.1 Electrical connection

Have all electrical connections made by a specialist and in compliance with the manufacturer's instructions and local safety regulations.

• For information on voltage, power consumption and fuse protection, see technical data.
• Connection may only be made via a properly installed and earthed protective contact socket.
• Earthing is required by law.
• The manufacturer declines all responsibility for any damage to persons, pets or property resulting from failure to comply with the above instructions.
• Do not use multiple socket strips or power extension cables.
• Access to the mains plug must be guaranteed at all times after installation or it must be possible to achieve mains disconnection via a two-pole switch.
• Do not operate the appliance if it has been damaged during transport. In this case, notify the customer service.
• Have the mains cable replaced only by the customer service.
• Use the appliance only in the household and for the specified purpose.
• Switch on the unit by inserting the mains plug into the socket.

12.2 First wash

To remove the factory dirt and grease residues from the drum, start a wash cycle with a little detergent, without textiles. Prepare laundry

• Close zips, press studs and hooks so that they do not get caught in other textiles.
• Remove needles, buckles and other hard objects so that they do not scratch the interior of the washing machine.
• Empty your pockets. Roll down cuffs and turn synthetic fabrics inside out to avoid linting.
• Tie down ribbons and sashes so they don't get tangled.
  • Pre-treat stains.
• Separate heavily soiled textiles from lightly soiled ones.
• Separate dark and light colours as well as colour-fast and non-colour-fast textiles.

12.3 Load washing drum

• Place laundry loosely in the washing machine so that the textiles are cleaned optimally and remain crease-free.
• Load the appliance correctly and select the appropriate setting for the amount of laundry.
  • Overloading and a setting for the laundry quantity that is too low can:
  • reduce the washing result, promote creasing,
  • produce an excessive amount of lint.
• Mix large and small textiles in each load. Distribute everything evenly to maintain balance in the appliance. An uneven load may cause the appliance to vibrate when spinning.
• For a load with only a few small textiles, a shorter washing time is sufficient.
• Never put laundry in the machine that has been sprayed with petrol. Filler compartments for detergent

Use the three compartments as follows:

1. Detergent for main wash cycle
2. Detergent for prewash
3. Fabric softener

Putting into operation

It is important to use the right amount of detergent depending on the type of laundry. This depends on the following factors:

Water Hardness

Depending on the PH value in your region, you may need more or less detergent. Ask at the waterworks.

Pollution level

More detergent is needed for heavily soiled laundry.

Laundry quantity

The smaller the amount of washing, the smaller the amount of detergent should be.

• Do not use detergents that contain chlorine and sulphur.
• Follow the dosage recommendation on the detergent pack.
• Overdosing leads to extreme foaming and causes the colours of your laundry to fade over time.
• Add liquid softener to the softener compartment.
• Do not exceed the maximum level line. Overfilling can cause stains to appear on the garments.
• Do not open the detergent compartment while water is running in.

13 Washing programmes

Washing programme	Symbols	Washing temperature optional	Detergent compartment			Nominal capacity Washing/Drying in kg 1)	Spin speed in revolutions per minute 3)"	Energy consumption in kWh per cycle	Energy consumption in kWh per cycle	Highest Washing temperature** °C
			VW (1)	HW (2)	FW
Cotton		Cold, 20, 40, 60, 90	√	√	√	7	1000	0.25	60	82
ECO40-60	[IMAGE]	40, 60	√	√	√	7	1400	0.45	37	60
Sportswear		Cold, 20, 40	×	√	√	4	1000	0.23	60	40
Duvet	[4TGB]	Cold, 20, 40, 60, 90	×	√	√	5	1400	1.20	70	82
Baby linen		40, 60, 90	√	√	√	4	1000	1.10	70	82
Steam		Cold, 20, 40, 60, 90	×	√	√	5	800	0.23	60	82
Mix		Cold, 20, 40	√	√	√	7	1000	0.30	50	40
Quick 15^		Cold, 20, 40	×	√	√	2	800	0.05	35	40
20°C		20	×	√	√	7	1000	0.55	45	20
Woll		Cold, 20, 40	×	√	√	2	800	0.06	35	40
Rinse & Spin		/	×	×	√	7	1000	0.07	30	/
Spin		/	×	×	×	7	1000	0.05	/	/
Washing drum cleaning		/	×	√	√	/	800	0.15	20	/

Washing programmes

VW = Prewash

HW = Main wash

FW = Fine detergent chamber

** These values are approximate and may differ from actual use**

The most efficient programmes for cotton laundry

The following programmes are suitable for cleaning normally soiled cotton textiles and are the most efficient in terms of combined energy and water consumption.

PROGRAMME	Nominal capacity	Highest temperature within the treated textiles (°C)	Spin speed	Programme duration in minutes	Residual moisture in % /	Energy consumption in kWh per cycle
	1/2 load	40	1400	166	55.19	0.37
	1/4 load	40	1400	156	57.11	0.19

13.1 Select temperature

The correct temperature depends on the material, the quantity and the degree of soiling of the laundry items to be washed:

90°C	Heavily soiled boiled laundry white, cotton or linen (e.g. cloths, bed linen, aprons)
60°C	Moderately soiled coloureds, synthetics (e.g. pyjamas)Lightly soiled boiled laundry (e.g. underwear)
40°C, 30°C, cold	Lightly to normally soiled coloureds, synthetics, wool.It is recommended to wash wool cold or at 30 °C.

13.2 Description Washing programmes

The right programme depends on the material, the quantity and the degree of soiling of the laundry items to be washed:

Cotton

This programme is suitable for moderately or lightly soiled garments, such as bed linen, underwear, towels and shirts, etc.

Sportswear

This programme is suitable for machine-washable sportswear.

Duvet

This programme is suitable for bed linen, sheets, curtains, etc. Do not overfill the drum to avoid strong vibrations.

Baby linen

This programme is suitable for washing clothes that need a high temperature to fight bacteria and mites (e.g. for babies or allergy sufferers).

When the programme has finished, carefully open the appliance door, release the steam and then take out the wet clothes.

Steam

The steam function heats the inside of the drum, which improves the washing performance. This programme is suitable for easy-care laundry such as cotton.

Mix

This programme is suitable for different materials such as cotton and synthetics (do not wash items together that can easily stain).

Quick 15'

This programme is suitable for clothes that are changed frequently, are not too dirty and thin clothes.

20°C

This programme is suitable for very lightly soiled clothes.

Wool

This programme is suitable for wool fibres, such as machine washable wool fabrics, etc.

Rinse & Spin

The machine does not wash, but only rinses and spins.

You can set the spin speed to the highest level.

Temperature selection is not possible as this programme does not include a wash cycle.

Spin

The machine does not wash, but only spins.

During the spin cycle, the actual spin speed may differ from the speed according to the programme, as the washing machine adjusts the speed according to the balance of the laundry.

13.3 Start washing programme

1. Place textiles in the drum.
2. Close the door.
3. Switch on the appliance with the ON/OFF button.
4. Add detergent to the main wash and prewash compartments.

(Only add detergent for prewash if a prewash is also selected).

1. Select the washing programme with the programme selector knob.

2. Press the Start/Pause button to start the washing process.

3. The current programme status is shown on the display.
4. When the washing programme has finished, a signal tone sounds.

➢ Turn on the water connection before starting the appliance.
While the washing programme is active, there is no possibility to select an additional function.

Prewash

For particularly heavily soiled laundry (blood, protein stains, etc.), select the prewash function.

1. Select the washing programme with the programme selector knob.
2. Press the button Spin speed for 3 seconds to activate the Prewash function.
3. Press Start/Pause to start the pre-wash process.

The Prewash function is selectable for all programmes except Spin, Short and Rinse & Spin.

Washing programmes

Start time delay

Select this function to start the washing programme at a later time.

Activate / deactivate

1. Select the washing programme with the programme selector knob.
2. Press the start time delay button to set the desired start time in hours. The hours are shown on the display. Press Start/Pause.
3. Washing programme with start time delay is activated.

Press the START TIME DEL AY button to deactivate the start time delay function.

When the start time delay is activated, you can open the drum until before the wash cycle starts (e.g. to add laundry items).

Child lock

This function prevents children from using the washing machine or reprogramming settings.

Activate / deactivate

1. After starting a washing programme, press the Delay start button for at least 3 seconds.
   → All keys except the ON/OFF key are locked.

Press the START TIME DELAY button for at least 3 sec. to deactivate the child lock.

When the appliance has finished the washing programme, all buttons except the ON/OFF button are locked if the child lock is active.

1. Switch the unit off with the On/Off button and then switch it on again.
2. Press the Start Time Delay button for at least 3 sec. to release the child lock.

13.4 Textile care symbols

The textile care symbols commonly used today were introduced by the International Organisation for Textile Care Marks GINETEXH (Groupement International d'Etiquetage pour l'Entretien des Textiles) based in Paris in 1975. They are laid down in an ISO standard (ISO 3758) from 1991 and the Euro standard EN 23758 from 1994. This standard is binding for all European countries (EU) and also applies in Switzerland and Israel.

WASH

Machine wash. The digit indicates the highest possible washing temperature.

Machine wash. The bar under the container means gentle spin.

Machine wash. Interrupted bar (sometimes also double bar): Particularly gentle washing - delicate wash cycle or wool wash cycle only (at 30 degrees, other temperatures accordingly)

Hand wash. cold or lukewarm, max. 40 °C, better 30 °C

Washing programmes

Cold wash

(No symbol according to ISO 3758; however, it is often used)

Do not wash

That usually means cleaning. Sometimes the St. Andrew's cross is replaced by an x or xx.

No hand wash

Do not wring

This symbol is not common in Europe, but is mainly used in Japan.

Bleaching

Bleaching with chlorine is no longer common. If bleaching is explicitly prohibited, however, stain salts and bleaching stain removers should also be used with caution.

Bleaching allowed

Chlorine bleach possible

Chlorine bleaching not possible (Bleaching with chlorine is no longer common)

Ironing

Iron hot - maximum temperature: 200°C

Iron warm - maximum temperature: 150°C

Iron lukewarm - maximum temperature: 110°C

Do not iron

Dry cleaning

Gentle cleaning (two bars: gentle cleaning)

Cleaning with all commonly used solvents (obsolete, no longer permitted)

Cleaning with hydrocarbon solvent

Cleaning with perchloroethylene

Professional wet cleaning

No dry cleaning

Drying laundry

Washing programmes

Drum drying possible

Drum drying at high temperatures

Drum drying at low temperature

Do not tumble dry

13.5 Tips for staintreatment

• Stained, heavily soiled or oily textiles may need to be pre-treated or soaked.
• Soaking helps remove protein-based stains such as blood, milk or grass.
• Pre-treatment helps to loosen soiling before washing.
- Use warm water to soak or pre-treat textiles with stains. Hot water can fix stains.
- Most stains are easier to remove when they are still fresh.
- Before stain treatment, clarify what kind of stain it is, how old the stain is, what kind of fabric it is and whether this fabric is colourfast. (Check the care label)
- Washing and drying can fix certain stains.
- Start with cold or warm water.
- If it is recommended to use bleach, it is important to choose one that will not affect the fabric.
- Place the affected area with the stain facing downwards on a paper towel or white cloth.
- Apply stain remover to the stain from behind. In this way, the stain is pressed out of the fabric instead of through it.

Below you will find the most common measures to treat stains. After the treatment wash at the maximum temperature allowed for the fabric.

Blood	Rinse immediately with COLD water or soak with bile soap.
Chewing gum	Let the chewing gum harden with ice in a plastic bag. Scrape off as much as possible and dab with benzine.
Cocoa, chocolate	Dab with COLD water or soak with bile soap. If the stain remains stubborn, rub in some detergent and rinse in cold water.
Coffee	Wipe quickly and rinse in COLD water. If the stain remains stubborn, rub in some detergent.
Cream/Milk	Wipe quickly and rinse in COLD water. If the stain remains stubborn, rub in some detergent.
Ice cream	Dab with benzine.
Deodorant	Rub with vinegar and then rinse in COLD water.
egg	Soak with COLD bile soap, rinse.
Fabric softener	Rub with a bar of soap.
Fruit stains	Treat immediately with COLD water. If the stain remains stubborn, rub in some detergent.
Grass	Dab with benzine. Rub with bile soap.
Grease and oil	Place the affected area with the stain facing downwards on an absorbent cloth and treat from the reverse side. Dab with benzine or dry cleaning agent.
Iron or rust	Apply lemon juice and salt and place in the sun.
Lipstick	Dab with methylated spirits or wash with WARM water with detergent. Moisten the spot with lemon juice, let it dry in the sun. If the stain remains stubborn and the fabric allows it, use bleach.
Mud	Brush off dried mud. Rinse in COLD water.If the stain remains stubborn, rub in some detergent.
Oil paints	Scrape off fresh paint, dab with a non-flammable dry cleaning agent.
Watercolours	Treat garment while still damp and rinse in WARM water.
Burn marks	Dampen cloth with hydrogen peroxide, place on affected area and iron hot over it.

14 Cleaning and Maintenance

DANGER

RISK OF ELECTRIC SHOCK!

Remove the mains plug from the plug socket before starting cleaning or service work. Do not place heavy objects or heat sources on the top plate of the appliance to avoid deformation of the top plate.

• Wash the outside of the housing with a soft cloth and a little detergent. Do not use petrol or other organic solvents for cleaning so as not to damage the surface.
• Porthole gets very hot at high washing temperature. Keep babies and children away from the machine.
• Do not use the appliance near flammable or explosive gases.
• Have a damaged mains cable replaced by the manufacturer or an approved technical service centre.

Clean housing

Proper care of the appliance can increase its lifespan.

Clean the housing with a soft cloth and, if necessary, with a little mild detergent solution and then rub dry.

Wipe away excess water immediately.

Clean drum

- If rust appears inside the drum due to metal parts, remove it immediately with chlorine-free cleaning agents.

Clean the door sealing ring

After washing, check the door seal ring and remove paper and foreign objects if necessary.

Clean detergent filling chambers

After a certain time, detergent and fabric softener leave residues in the detergent compartments.

1. Pull out the detergent compartment.
2. Remove the insert of the fabric softener compartment. To do this, press the latch of the insert downwards, see arrow.
3. Push up and remove the inset.
4. Clean all chambers of the detergent compartment under running water.
5. Detergent can also accumulate in the rear opening of the detergent compartment. Clean off detergent residues with a brush as needed.
6. Replace the insert of the fabric softener compartment
7. Insert the detergent compartment into the appliance and close it.

Clean water inlet strainer

Diagram of a printer or printer with an arrow indicating left motion (no text or symbols present)

Illustration of a hand using a tool to cut or remove a component, no text or symbols visible

After a certain time, detergents and fabric softeners leave residues. The following cleaning is therefore recommended every six months/year.

1. Pull out the mains plug.
2. Remove the inlet hose from the water tap.
3. Clean the water inlet strainer under running water.
4. Connect the strainer.
5. Unscrew the water inlet from the back of the unit.
6. Remove the filter net from the water valve.
7. Clean the sieve under running water.
8. Insert the sieve.
9. Screw the water inlet in.
10. Open the water supply and make sure that the connection is tight.

Illustration showing a hand holding a small circular object next to a faucet and a curved arrow (no text or symbols)

Clean the lint filter

The lint filter is used to catch foreign objects such as threads, coins, needles, buttons, etc. If the lint filter is not cleaned regularly (about every 10 washes), a drainage problem could occur.

• Pull out the mains plug.
• Open the flap (5) at the bottom right of the front of the unit.
• Pull out the drain hose and let the water drain into a container provided.
• Unscrew the lint filter counterclockwise.
• Remove all foreign bodies from the strainer.
• Insert the lint filter after cleaning and turn it clockwise until it is tightly closed again.
• Close the flap (5).

15 Troubleshooting

PROBLEM	CAUSE/REMEDY
Door cannot be opened	A washing programme is running.Clothes are caught between the door and the door seal.
Washing machine does not start	Is there a power failure?Is the mains cable correctly plugged into a socket?Have you switched on the machine?Is the Start/Pause button pressed?Is a start time delay programmed?
Textiles are not spun at all or not spun sufficiently	A programme without spinning or with reduced spinning speed is programmed.The spin safety device has detected poor distribution of textiles in the drum: Re-load textiles and programme a new spin cycle.
Washing machine vibrates and is too loud	Is the drain hose placed higher than 1 m above the floor?Have the transport locks been removed?
Washing machine does not pump out the water	Has a flush stop been programmed?Is the drain hose frozen or blocked by dirt?Is the drain hose kinked or deformed?Is the end of the drain hose immersed in water?Is there excessive dirt in the lint filter?
Drum is blocked	Check if a piece of laundry is trapped.

PROBLEM	DISPLAY
Water inlet	IE	Is the inlet hose connected and the water tap turned on?Is the water inlet hose kinked or frozen?Has the water supply been turned off?Is the strainer of the inlet hose clogged by foreign objects?
Water drain	OE	Is the drain hose connected too high?See chapter Setting up the unitIs the water inlet hose kinked or frozen?Has the water supply been turned off?Is the strainer of the inlet hose clogged by foreign objects? Clean the drain hose.
Water on the floor		Pull out the mains plug and close the water supply.Check the seals and screw connections of the water supply hose.
Appliance door	EN	Check that the door is closed correctly.
Slingshot problem	UE	Have the transport locks been removed?Is the machine set up stably?Are the lock nuts of the adjustable feet tightened?
Water runs out		Close the stopcock, pull out the mains plug and contact customer service.
No heating up	T. E	Pull out the mains plug and contact customer service
Continuous water supply	FE	Pull out the mains plug and close the water supply. Contact After Sales Service.
Drum does not rotate	LE or CE	Pull out the mains plug and close the water supply. Contact After Sales Service.
No skidding		Close the stopcock, disconnect the mains plug and contact customer service.
Too much foaming		Too much foaming detergent may have been added.

16 After Sales Service

If the fault has not been rectified using the above instructions, contact After Sales Service. On no account should you carry out any further work, particularly not on the electrical parts of the appliance.

- A visit by an After Sales Service technician is not free of charge even during the warranty period in the event of incorrect operation or one of the faults described above.

Responsible After Sales Service:

EGS GmbH

Dieselstraße 1

33397 Rietberg / GERMANY

Service telephone

for Germany 02944 9716-791

for Austria 0820 200 170

E-mail: [e-mail]

Internet: www.egs-gmbh.de

Enter repair orders online

Keep the following information ready for quick processing of the repair order:

• Model
• Batch

together with your full address, telephone number and a description of the fault.

The appliance-specific data can be found on the type plate inside the appliance or on the rear of the appliance.

Spare parts

The following spare parts are available from After Sales Service (depending on the appliance):

• Motor and motor carbons; power transmission between motor and drum; pumps; shock absorbers and springs; washing drum, bearing cross with ball bearings (individually or as a repair kit);
• Radiators and heating elements, including heat pumps (individually or as a repair kit); piping and associated equipment, including all hoses, valves, filters and aquastops (individually or as a repair kit); circuit boards
  • Electronic displays; pressure switches; thermostats and sensors
• Software and firmware, including reset software
• Door, door hinge and door seals, other seals, door lock assembly and plastic accessories such as detergent dispenser

Spare parts are available 10 years after the last appliance of a model has been placed on the market.

17 Warranty terms

As the buyer of an Exquisit appliance, you are entitled to the statutory warranties arising from the purchase contract with your dealer. In addition, we grant you a warranty on the following terms:

Warranty period

The warranty period is 24 months from the date of purchase (proof of purchase must be presented). During the first 6 months, After Sales Service will fix defects in the appliance free of charge. on condition that the appliance is accessible for repairs without any great effort. During the following 18 months, the buyer is obliged to prove that the defect already existed at the time of delivery.

In the case of commercial use (e.g. in hotels, canteens) or joint use by several households, the warranty period is 12 months from the date of purchase (proof of purchase must be presented). During the first 6 months, After Sales Service will fix defects in the appliance free of charge. on condition that the appliance is accessible for repairs without any great effort. During the following 6 months, the buyer is obliged to prove that the defect already existed at the time of delivery.

The claim under warranty does not prolong the warranty period for either the appliance or for newly installed parts.

Scope of the defect remedy

Within the periods indicated, we will remedy all defects in the appliance that are demonstrably attributable to poor workmanship or material flaws. Replaced parts become our property.

The warranty does not cover:

Normal wear and tear, intentional or negligent damage, damage caused by non-compliance with the operating instructions, improper set-up or installation or by connection to incorrect mains voltage, damage due to chemical or electrothermal effects or due to other abnormal environmental conditions, glass, paint or enamel damage and possible colour differences as well as defective bulbs.

Defects in the appliance resulting from transport damage are also not covered. We will also not provide any services if - without our special, written approval - work has been carried out on the Exquisit appliance by unauthorised persons or if parts of foreign origin have been used. This limitation shall not apply to faultless work carried out by a qualified person using our original parts to adapt the appliance to the technical safety regulations of another EU member state.

Scope

Our warranty applies to appliances purchased and in operation in the Federal Republic of Germany or Austria.

In the case of complaints about defective appliances, the sender's and recipient's addresses must be in the Federal Republic of Germany or Austria.

For appliances purchased and operated in other European countries, the warranty conditions of the seller apply.

For repairs outside the warranty period:

If an appliance is repaired, the repair invoices are payable immediately without deduction.

If an appliance is inspected or a started repair is not completed, flat-rate travelling expenses and labour costs will be invoiced.

Advice from our After Sales Service centre is free of charge (see chapter "After Sales Service").

Disposal of packaging materials

Sort packaging materials before disposal. Paper and cardboard with the waste paper and plastic film in the recycled materials bin.

Disposing of old appliances (EN)

Old appliances must not be disposed of with household waste

The symbol of the crossed-out wheeled bin on the product or its packaging means that the appliance must not be disposed of with household waste but requires separate disposal. You can return the old appliance free of charge to a suitable municipal collection point for old electrical and electronic equipment, e.g. a recycling centre.

You can obtain the addresses from your city administration or local government.

Alternatively, you can return old electrical appliances with an edge length of up to 25 cm free of charge to retailers with a sales area for electrical and electronic equipment of at least 400 m ^2 or food retailers with a total sales area of at least 800 m ^2 who offer electrical and electronic equipment at least several times a year.

Larger old appliances can be returned free of charge to an appropriate retailer when purchasing a new appliance of the same type that performs essentially the same functions as the new appliance. Please contact your dealer regarding the modalities of returning an old appliance when delivering the new appliance.

Please remove - if possible - all (rechargeable) batteries as well as all lamps that can be removed without destroying them before disposing of the product.

Please note that you are responsible for deleting personal data from the appliance to be disposed of.

Children can often not recognise the hazards associated with household appliances. Ensure the necessary supervision and do not let children play with the appliance.

Disposing of old appliances

The symbol of the crossed-out wheeled bin on the product or its packaging means that the appliance must not be disposed of with household waste but requires separate disposal. You can return the old appliance free of charge to a suitable municipal collection point for old electrical and electronic equipment, e.g. a recycling centre. You can obtain the addresses from your city administration or local government.

Alternatively, you can return old electrical appliances free of charge when you buy a new appliance of the same type and with the same function from an offline retailer. Please contact your dealer regarding the modalities of returning an old appliance when delivering the new appliance.

Please remove - if possible - all (rechargeable) batteries as well as all lamps that can be removed without destroying them before disposing of the product.

Please note that you are responsible for deleting personal data from the appliance to be disposed of.

The appliance may contain substances that can endanger the environment and human health if disposed of incorrectly. Material recycling helps to reduce waste and conserve resources. By collecting old appliances separately and recycling them, you help prevent negative impacts on the environment and human health.

exquisit

GGV HANDELSGES. MBH & CO. KG AUGUST-THYSSEN-STR. 8

D-41564 KAARST GERMANY

WA57014-020A_BDA_DE-EN_E1-0-REV-2023-11.docx
