Product Type	Upright Freezer
Brand	Hanseatic
Model	HGS8555CI
Dimensions (H×W×D)	850 mm × 550 mm × 580 mm
Net Weight	33 kg
Power Supply	220-240 V ~ / 50 Hz / 0.6 A
Rated Power	90 W
Refrigerant	R600a (isobutane), 57 g
Climate Class	N-ST-T (+16 °C to +43 °C)
Temperature Control	Adjustable from MIN to MAX (ideal -18 °C)
Freezer Baskets	3 included
Ice Cube Tray	Included
Door Hinge	Reversible (right-handed as delivered)
Adjustable Feet	2 front screw feet for leveling
Defrosting	Manual defrost when frost layer > 5 mm
Cleaning	Use mild pH-neutral detergent; avoid abrasives
Safety Features	Flammable refrigerant warning; child safety supervision required
Spare Parts Availability	At least 7 years after last model production; door seals 10 years
Warranty	Through retailer; contact customer service
Energy Efficiency Class	Not specified in manual

Frequently Asked Questions - HGS8555CI Hanseatic

How do I set the temperature on the Hanseatic HGS8555CI freezer?

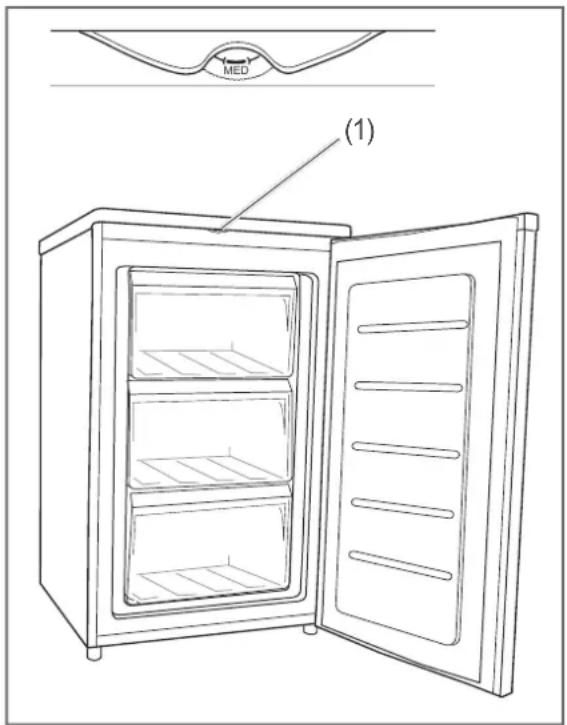

Turn the temperature controller (1) from MIN to MAX. The ideal setting for normal use is MED, achieving -18 °C. For lower temperatures, turn towards MAX. Avoid frequent door opening to maintain temperature.

How often should I defrost the freezer?

Defrost when the ice layer reaches about 5 mm thickness. Set temperature to MAX 3 hours before, then turn to MIN and unplug. Remove food, place a bowl of hot water inside, and leave the door open. Scrape stubborn ice with a plastic scraper; do not use sharp objects.

Can I change the door opening direction?

Yes, the door hinge is reversible. You will need a cross-head screwdriver, 8 and 10 mm wrenches. Follow the step-by-step instructions in the manual starting from page EN-15. Remember to unplug the appliance before starting.

Why is my freezer making unusual noises?

Normal operating sounds include humming (compressor), flowing (refrigerant), and clicking (relay). If noises become disturbing, check that the freezer is level and stable. Remove any objects on top. If problem persists, contact service.

What should I do during a power failure?

Keep the door closed. Frozen food can stay cold for several hours depending on the ambient temperature. If the failure is prolonged, move food to another freezer or cool place. Check the type plate for maximum storage time in case of fault.

How do I clean the freezer interior?

Unplug the appliance, remove all food and baskets. Wash interior with warm water and mild detergent, adding a few drops of vinegar to prevent mold. Dry thoroughly. Clean door seals with clean water only. Do not use abrasive cleaners.

What is the maximum freezing capacity of this freezer?

The exact freezing capacity is indicated on the type plate inside the appliance. For optimal results, freeze only up to that quantity in a 24-hour period. Placing larger amounts may take longer and affect existing frozen food.

How do I make ice cubes?

Fill the included ice cube tray to 3/4 with potable water and place it in the freezer. To remove cubes, gently twist the tray or hold it under running water for a few seconds. Do not consume ice made from stale or impure water.

What should I check if the freezer is not cooling sufficiently?

Check that the door is fully closed and the seal is clean and tight. Ensure the temperature controller is not set too low (MIN). Verify the appliance is not near a heat source and has proper ventilation. Allow 24 hours for temperature to stabilize.

Does the Hanseatic HGS8555CI have a child lock?

No, the freezer does not have a child lock. Children aged 8 and above may use the appliance under supervision. Always keep the door closed to prevent accidents. Do not allow children to play with the appliance.

USER MANUAL HGS8555CI Hanseatic

Line drawing of an open refrigerator with two doors and three shelves (no text or symbols)

Gebrauchsanleitung

Gefrierschrank

Inhaltsverzeichnis

Line drawing of an open refrigerator with a side view of its internal storage tray and a separate electrical socket (no text or symbols)

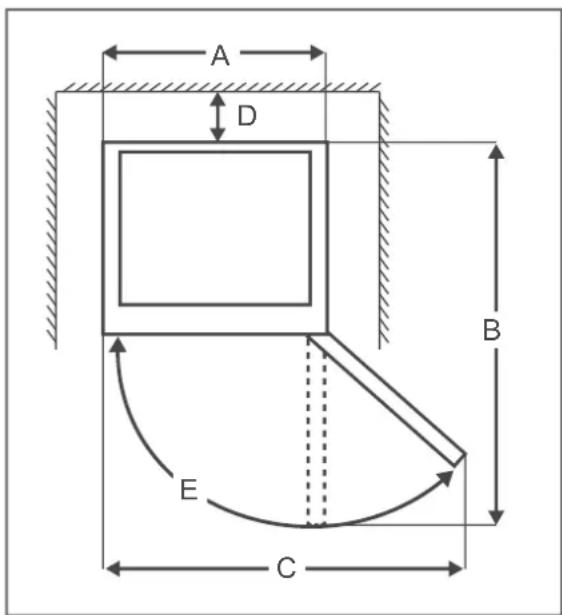

C: 91,5 cm D: ≥ 5,0 cm

E: 110-125°

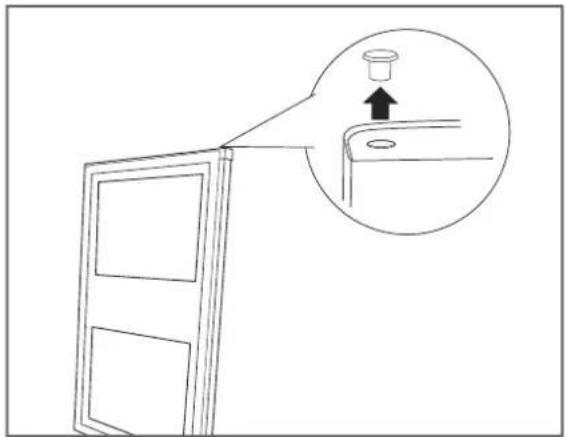

Line drawing of a door with an inset showing a cup and a bracket (no text or symbols)

Line drawing of a device with a screwdriver and directional arrows indicating rotation (no text or symbols)

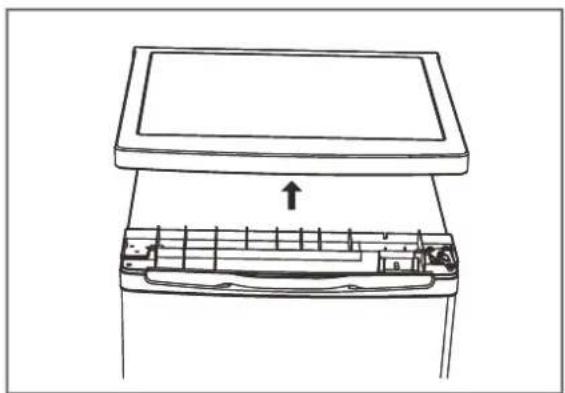

Line drawing of a mechanical device with an open lid and internal components, no text or symbols present

Technical line drawing of a car front panel with internal compartments and mounting points (no text or symbols)

Line drawing of a vehicle front panel with a black arrow indicating clockwise motion (no text or symbols)

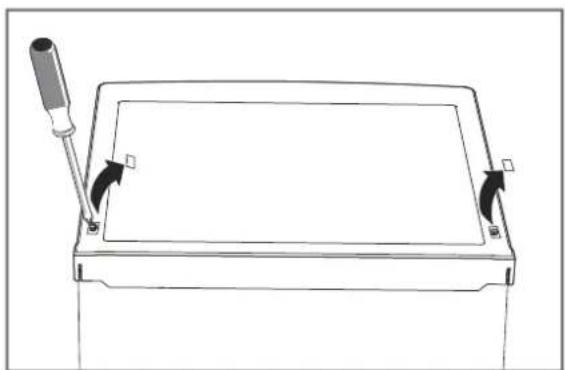

Line drawing of a device with a screwdriver and two square buttons on a base (no text or symbols)

Technical line drawing of a mechanical assembly with two hanging components and directional arrows indicating movement (no text or symbols)

Line drawing of a rectangular frame with a small protrusion and a small knob on top (no text or symbols)

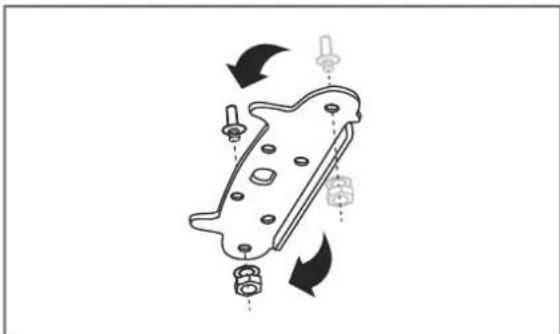

Line drawing of a mechanical bracket with mounting holes and a small inset component (no text or symbols)

Mechanical component diagram showing a bracket with multiple bolts and rotating arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with two pulleys and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical bracket with an inset showing a cylindrical component being inserted (no text or symbols)

Simple line drawing of a mechanical component with a button and curved base (no text or symbols)

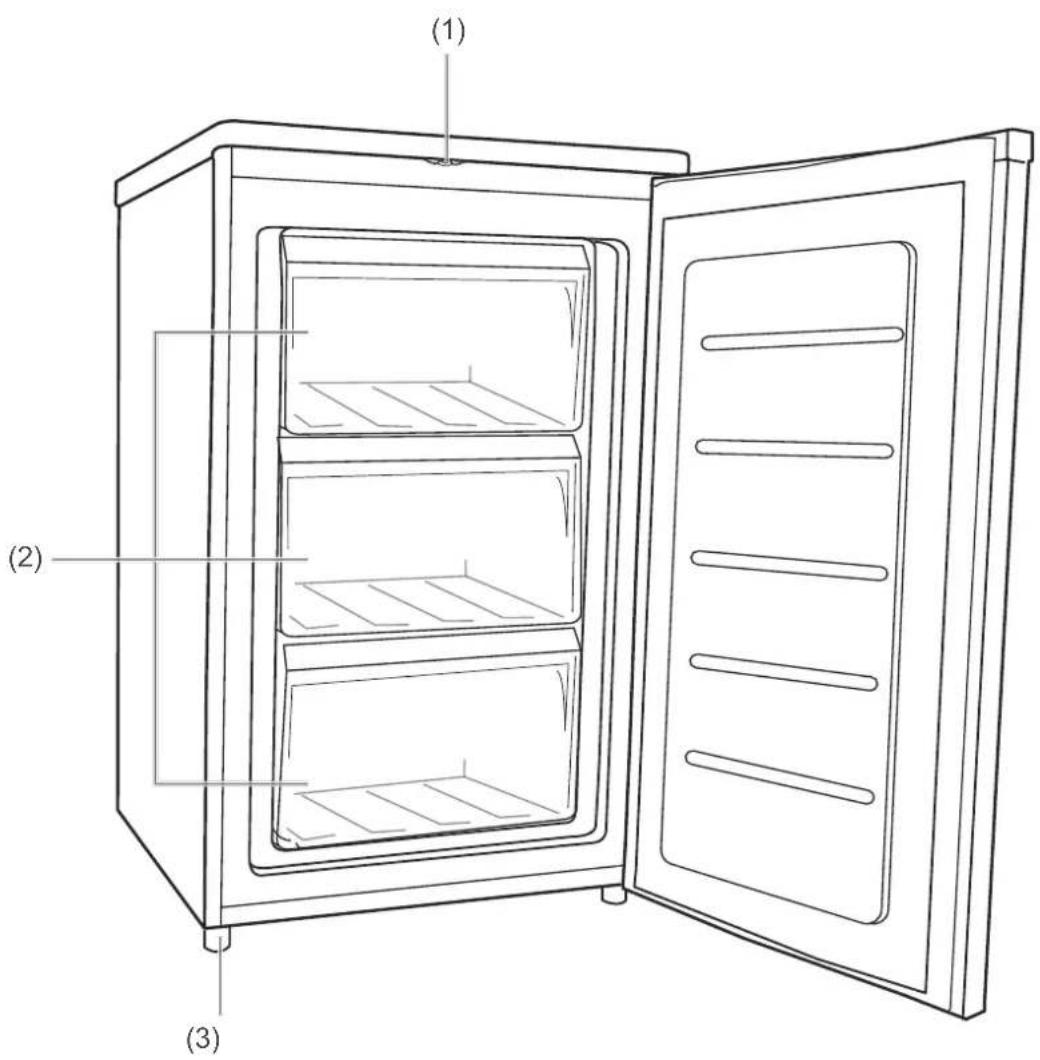

Line drawing of an open refrigerator with labeled door and interior compartments (no text or symbols beyond label)

So geht's

Line drawing of an open refrigerator with three shelves and one door (no text or symbols)

User manual

Manual/version:

2001-00991_EN_20240306

Order no.:

28784636,74616803

Reproduction, even of excerpts,

is not permitted!

Freezer

Table of contents

Please read through the safety instructions and user manual carefully before using the appli-

ance. This is the only way you can use all the functions reliably. Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

You can find more information on setting up the appliance and starting it up for the first time from page EN-11.

Explanation of terms and

symbols, definitions..... EN-3

Explanation of terms ..... EN-3

Explanation of symbols ..... EN-3

Definitions..... EN-3

Safety EN-4

Intended use..... EN-4

Safety notices....EN-4

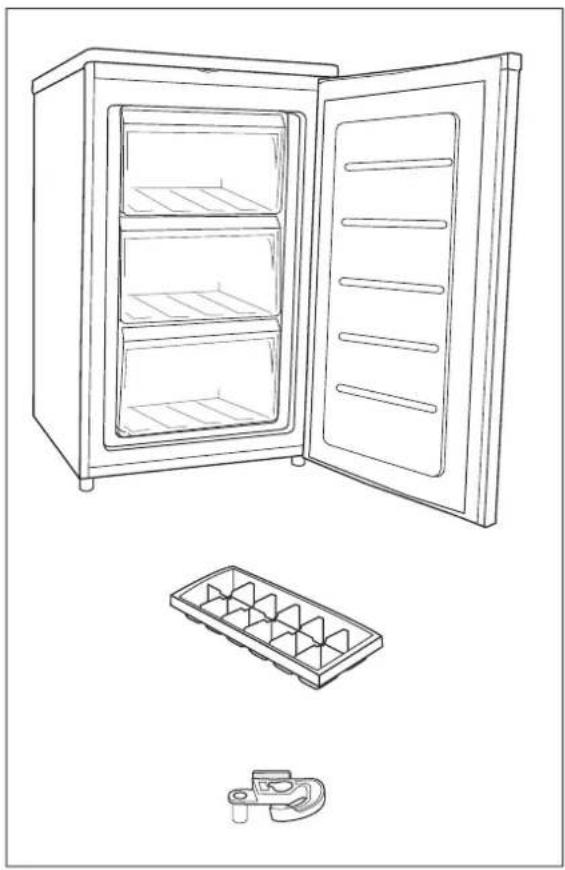

Delivery.... EN-10

Package contents.....EN-10

Check the delivery ..... EN-10

Start-up....EN-11

Before starting to use the

appliance....EN-11

Moving and unpacking.....EN-11

About climate categories ..... EN-12

Choose a suitable location.....EN-13

Setting up and aligning the

appliance EN-14

Cleaning before use..... EN-14

Connecting the appliance to

electricity EN-14

Changing the door hinges ..... EN-15

Positioning the freezer ..... EN-18

Appliance parts/control elements...EN-19

Operation EN-20

Before getting started.....EN-20

Setting the temperature ..... EN-20

Switch off/shutdown...... EN-21

Freezing foods / storing frozen

foods EN-22

Storing frozen food.....EN-24

Defrosting food.... EN-24

Preparing ice cubes ..... EN-24

Care and maintenance ..... EN-25

Checking and cleaning door seals . . EN-25

Cleaning the exterior ..... EN-25

Defrost and clean appliance ..... EN-25

Troubleshooting table ..... EN-28

Service EN-29

Waste prevention, free return

and disposal ..... EN-30

Appendix.... EN-32

Product fiche concerning

Regulation (EU) No. 2019/2016... EN-32

Technical specifications ..... EN-32

Explanation of terms and symbols, definitions

Explanation of terms

The following signal terms can be found in this user manual.

WARNING

This signal term indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This signal term indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This signal term warns against possible damage to property.

Explanation of symbols

The following symbols can be found in this user manual and/or on the appliance:

This symbol refers to useful additional information.

Caution: Fire hazard/flammable materials!

"4 star" symbol: Freezer at -18^ or colder

Definitions

“Food” refers to foods, ingredients and drinks including wine and other things mainly intended for consumption, which require refrigeration at certain temperatures.

"Food to be frozen" means fresh, room-temperature food to be frozen throughout as quickly as possible – for best results "flash-frozen".

"Deep-frozen food" means food which has already been frozen and for which the cool chain should not be broken.

Safety

Intended use

The purpose of this appliance is to

– store ordinary commercially available deep-frozen food,
– freeze fresh food from room temperature,
- make ice cubes.

This appliance is designed for use at ambient temperatures of +16 °C to +43 °C.

The appliance is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).

The appliance is not suitable for storing blood reserves, medical products, laboratory samples, etc.

This cooling appliance is not designed for use as a built-in appliance.

The interior light must be used only to illuminate the interior of the appliance. It is not suitable for lighting a room.

Persons who are unable to operate the appliance safely due to their physical, sensory or mental abilities or lack of knowledge must be supervised during use.

Do not make any technical changes to the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Use the appliance only as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Safety notices

In this chapter, you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, setup etc.

Risks to children and certain groups of individuals

WARNING

Risk of suffocation for children!

Children can become entangled in the packaging film or swallow small parts and suffocate.

■ Do not allow children to play with the packaging film.
■ Prevent children from pulling small parts off the appliance or putting them in their mouths.
■ When disposing of the appliance, en sure that children cannot suffocate inside the appliance (e.g. do not remove the fridge and freezer drawers, unscrew the appliance door/cover).

CAUTION

Risk of injury!

Children and certain groups of people have a higher risk of being injured when handling the appliance.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children from 3 to 8 years are allowed to load and unload refrigerating appliances.
■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision.

Risks in handling household electrical appliances

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to use the appliance, if it

– shows visible signs of damage, e.g. the supply cord is defective,
- starts smoking or there is a smell of burning,
– makes unfamiliar noises.

In such cases, remove the mains plug from the socket or unscrew/isolate the fuse and contact our Service Department (see „Service“ on page EN-29).

■ The appliance corresponds to -protection class I and may be connected only to a socket with a protective conductor that has been properly installed. When connecting the appliance, make sure that the voltage is correct. More detailed information about this can be found on the nameplate.
■ To disconnect this appliance from the power supply, pull the mains plug out

of the socket. The appliance must, therefore, be connected to an easily accessible socket so that it can be quickly disconnected from the power supply in the event of malfunction.

■ Since all poles of the appliance can not be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see „Service“ on page EN-29).

■ When positioning the appliance; en sure the supply cord is not trapped or damaged. Do not kink the supply cord or lay it over sharp edges.
■ Do not locate multiple portable sock et-outlets or portable power supplies at the rear of the appliance.
- Keep the supply cord away from naked flames and hot surfaces.
■ Always pull on the mains plug and not the mains cable.
■ Never touch the mains plug with wet hands.
■ Never immerse the mains cable or plug in water or any other liquids.
■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair the appliance yourself.

■ Inspections and repairs to the appliance may only be carried out by authorised specialists. Please contact our Service Department if necessary (see „Intended use“ on page EN-4).
■ Only parts corresponding to the original appliance specifications may be used for repairs.
■ In the event of a fault, as well as before extensive cleaning, pull out the mains plug or isolate/unscrew the fuse.
■ Do not put any objects in or through the housing openings, and also ensure that children cannot insert any objects into them.
- Do not remove the cover from the interior lighting. Do not attempt to replace the interior light. Please contact our Service Department if necessary (see „Intended use“ on page EN-4).
- Check the appliance regularly for damage.

WARNING

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Risks associated with using refrigerants

WARNING

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally friendly, but flammable and – as a mixture of air and gas – explosive refrigerant R600a (isobutane).

■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
■ Do not damage the refrigerant circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.
■ Ensure that none of the cooling fins or tubes on a cooling appliance are damaged prior to the point of proper disposal.
■ To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m ^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found on the type plate.
■ To avoid the formation of sparks, do not pull out the mains plug in the event of a gas leak.

■ Dispose of old electrical appliances at an authorised collection or return point.
■ Only use original accessories.

WARNING

Health hazard!

Spurting refrigerant can damage the eyes.

■ If refrigerant comes into contact with the eyes or mucous membranes, immediately flush eyes with clean water and seek medical attention.

WARNING

Health hazard!

High concentrations of refrigerant vapour can cause dizziness, headaches, nausea or asphyxiation.

■ Do not inhale refrigerant vapour.
■ Immediately air the room if refrigerant leaks.

Risks associated with chemical substances

CAUTION

Risk of explosion!

Improper handling of chemical substances can lead to explosions.

■ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance, as they can form ignitable gas-air mixtures.
■ Never use defrosting sprays to de frost. They can generate explosive gases.

CAUTION

Risk of fire and health hazard!

The thermal insulation and the interior are scratch and heat-sensitive and can melt or catch fire.

Plastics such as those used in thermal insulation can release toxic fumes if they melt or catch fire.

■ Do not use any electric heating equipment, knives or devices with an open flame such as candles.
■ Do not use electrical appliances in side the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Keep the appliance away from open flames and hot surfaces.

Risks in handling freezers

CAUTION

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

CAUTION

Health hazard!

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. This can then lead to an increase in temperature inside the appliance.

- Always ensure the prescribed ambient temperature is maintained (see „Intended use“ on page EN-4).

CAUTION

Health hazard!

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

■ In particular, pack raw meat and fish carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.

■ Abide by the storage times recommended by food manufacturers.

■ Pay attention to the star classifications in the freezer and the resulting storage periods for freezer products.

■ One-, two- and three-star compartments are not suitable for the freezing of fresh food.

■ Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).

If there is a power failure, the frozen food may remain sufficiently cold for some time (see “Storage time in the event of a power failure” on the type plate of the appliance). In case of prolonged power failure or malfunction of the appliance, remove the stored frozen food from the appliance and store it in a sufficiently cool place or in another cooling appliance.
■ After a malfunction, check whether the stored food is still edible. Consume thawed and defrosted foods immediately, do not refreeze.
■ Use only potable water to make ice cubes.

CAUTION

Risk of injury from frozen goods!

Improper handling of the appliance may result in injury. There is a risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.
- Let ice cubes or ice lollies thaw a little before eating, do not put into your mouth straight from the freezer.

NOTICE

Risk of damage to property!

If the cooling appliance has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

■ If possible, transport the appliance only in a vertical position.
- Keep the appliance in a standing position for two hours before turning it on. The lubricant will flow back into the compressor during this time.

NOTICE

Risk of damage to property!

Improper handling of the appliance can lead to property damage.

■ Place the appliance only on a-level and firm surface that can support the weight of the appliance when it is filled.
■ Do not use sharp or pointed objects to unpack it.
■ When cleaning, please note:

– Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

- Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.

– Use only soft cloths.

Delivery

Line drawing of an open refrigerator with a side view showing its internal compartments and a small ice grater (no text or symbols)

You will find the type plate inside your appliance.

Package contents

1× freezer
3× freezer baskets
1× Ice cube container
1× plastic insert

Check the delivery

1. Move the appliance to a suitable place and unpack it (see „Start-up“ on page EN-11).
2. Remove all parts of the packaging, plastic profiles, tape and foam padding.
3. Check that the delivery is complete.
4. Check whether the appliance was damaged during transit.
5. If the delivery is incomplete or the appliance has been damaged during transit, please contact our service department (see „Service“ on page EN-29).

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Never use a damaged appliance.

Start-up

Before starting to use the appliance

- Read chapter „Safety“ on page EN-4, in particular the safety instructions.

Moving and unpacking

WARNING

Risk of suffocation!

Children can become entangled in the packaging film or swallow small parts and suffocate.

■ Do not allow children to play with the packaging film.
■ Prevent children from pulling small parts from the device or taking them out of the accessory bag and putting them in their mouths.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Ask another person to help with moving and installation.
- Check that entry route and installation location are free of obstacles (e.g. closed doors or objects lying on the floor).
■ Bases, doors, etc. must not be used as steps or for support purposes.

CAUTION

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally-friendly, but flammable refrigerant R600a (isobutane).

• Keep the appliance away from open flames and hot surfaces.
  ■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
• Do not damage the refrigerant circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.
  ■ Refrigerant is flammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.
  ■ To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m³ per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found in the technical data at the end of this user manual.
• Do not place heat-emitting appliances such as microwaves, toasters etc. on the appliance and do not operate any electrical appliances inside the appliance.

NOTICE

Health hazard!

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see „Intended use“ on page EN-4).

! NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

■ Where possible, keep the cooling unit level when transporting it.
■ Do not use sharp or pointed objects to unpack it.

1. Move the appliance using a dolly or with a second person.
2. Unpack the appliance and carefully remove all packaging, plastic moulding, adhesive strips, protective film and foam padding from the inside, outside and back of the appliance.

About climate categories

- Always ensure the prescribed ambient temperature is maintained (see „Intended use“ on page EN-4).

Climate category means that the appliance is intended for operation at the specified ambient temperature (see table ‘climate categories’). If the room temperature drops significantly below this, the unit will not switch on as often. This indicates that an unwelcome increase in temperature may occur.

‘Climate categories’ table
Zone description Code Definition
Extended temperate zone	SN	This refrigerator is designed for use at ambient temperatures of +10 °C to +32 °C.
Temperate zone	N	This refrigerator is designed for use at ambient temperatures of +16 °C to +32 °C.
Subtropical zone	ST	This refrigerator is designed for use at ambient temperatures of +16 °C to +38 °C.
Tropical zone	T	This refrigerator is designed for use at ambient temperatures of +16 °C to +43 °C.

Choose a suitable location

CAUTION

Health hazard!

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see „Intended use“ on page EN-4).

CAUTION

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally friendly, but flammable refrigerant R600a (isobutane).

• Keep the appliance away from open flames and hot surfaces.
  ■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
  ■ Do not damage the refrigerant circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.
  ■ Refrigerant is flammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.
  ■ To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m^3 per 8 g of

refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found in the technical data at the end of this user manual.

■ To avoid the formation of sparks, do not pull out the mains plug in the event of a gas leak.

NOTICE

Risk of damage!

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see „Intended use“ on page EN-4).

Space requirement according to appliance dimensions

A: 54.5 cm B: 107 cm

C: 91.5 cm D: ≥ 5.0

E: 110-125° cm

• To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 3m^3 .
  – The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.
• Suitable locations are dry, well-ventilated areas that are cool if possible.
  – Unsuitable locations are ones with direct sunlight or which are directly next to an oven, hob or radiator.
  – The following minimum distances must be maintained:

– from electrical hobs 3 cm
– from oil and coal burning stoves 30cm
– from other cooling appliances 2 cm
– from washing machines/dishwashers 2 cm
- If you would like to reduce these distances, you can fit an insulation plate between the appliances.
- If underfloor heating is installed at the setup location, place the cooling appliance on an insulation plate made from solid material.

Setting up and aligning the appliance

1. Place the appliance on as flat and as firm a base as possible.
2. To ensure adequate air circulation,

– the entire space above the appliance must be clear.
– the appliance should not stand directly against the wall (leave a minimum clearance of 5 cm)
– the clearance between the ventilation slots and the wall, units or other appliances must be at least 15 cm.

1. Check the position with a spirit level.

2. Level out any unevenness on the ground using both of the front screw feet.

3. Close the door.

4. Tilt the appliance backwards slightly and screw/unscrew the screw feet.
5. Stand the appliance back up again and check the alignment with a spirit level. Repeat the process until the appliance is standing up vertically. The appliance should not move when opening the door.

Cleaning before use

In order to remove the odour which is present with all new appliances, wipe the interior space and the freezer baskets (2) prior to first use with a water and vinegar solution. Then wipe it out with clean water and dry all of the parts off afterwards.

Connecting the appliance to electricity

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not operate or continue to use the appliance, if it

– shows visible signs of damage, e.g. the power cord is defective,
- starts smoking or there is a smell of burning,
- makes unfamiliar noises.

In such cases, pull out the mains plug or unscrew/isolate the fuse and contact our service department (see page EN-29).

- Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.

■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; this includes fuses, circuit breakers and contactors.
■ When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not kink the supply cord or lay it over sharp edges.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Connect the appliance only to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

NOTICE

Risk of damage!

If the refrigerator has been transported horizontally, lubricant from the compressor may have got into the refrigeration circuit.

- Allow the appliance to stand upright for approx. 2 hours after transport and before connecting. This allows the lubricant enough time to flow back into the compressor.

- Insert the mains plug into an easily accessible and properly installed socket (220-240 V\~ / 50 Hz).

You will find all important information operation from page EN-20.

Changing the door hinges

The door hinges are on the right upon delivery. As changing the door hinges requires some manual skills, please read through the steps of the procedure beforehand. To change the door hinges, you will need the following tools:

• Cross-head screwdriver
• 8 and 10 mm open-end wrench or socket wrench

WARNING

Risk of electric shock!

To change the door hinges you will need to remove the cover from the appliance. Live parts can become accessible by doing so.

■ Pull the mains plug out of the socket before starting to change the door hinges.

Line drawing of a door with an inset showing a cup and a bracket, no text or symbols present

1. Pull out the blind plug from the top of the door.

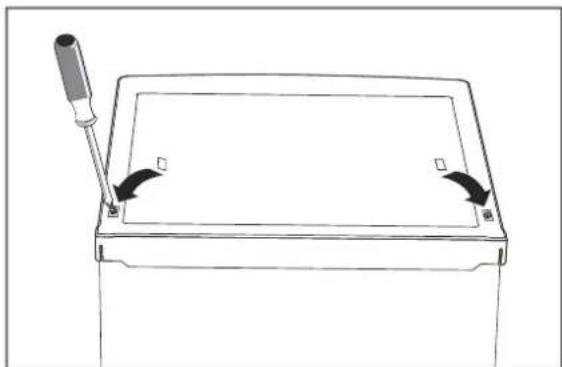

Line drawing of a device with a screwdriver and directional arrows indicating motion (no text or symbols)

1. Loosen both screw covers on the top of the cover using a flat-head screwdriver.
2. Unscrew the two screws (on the left and right) from the top of the cover. To do this, use a cross-head screwdriver.

Line drawing of a mechanical device with an open lid and internal components, no text or symbols present

1. Lever out the two sides of the cover on the front slightly and lift the cover up. In doing so, ensure you do not damage the temperature controller (1).

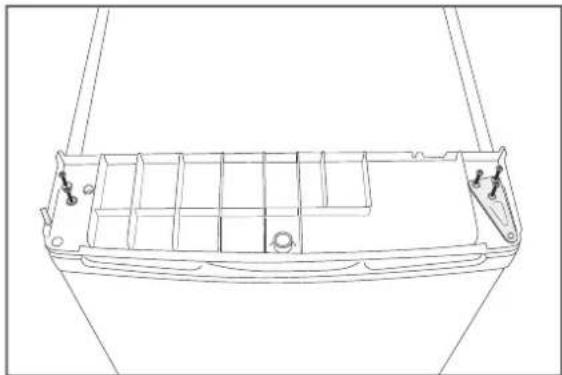

Technical line drawing of a car front panel with internal compartments and mounting points (no text or symbols)

1. Unscrew the three fixing screws for the hinge plate and the two screws on the opposite side. To do this, use an 8 mm spanner or a cross-head screwdriver. Remove the hinge plate.

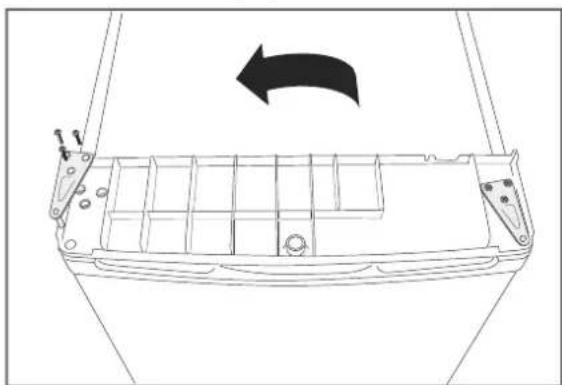

Line drawing of a vehicle's rear compartment with a black arrow indicating clockwise motion (no text or symbols)

1. Screw the hinge plate as well as the two screws back onto the respective opposite side.

Line drawing of a device with a screwdriver and two curved arrows indicating rotation or movement (no text or symbols)

1. Place the cover back on the freezer. Push down on both sides (left and right) of the front of the cover until you hear it click into place.

2. Screw the two screws tightly back onto the cover. To do this, use a cross-head screwdriver. Secure the two screw covers.

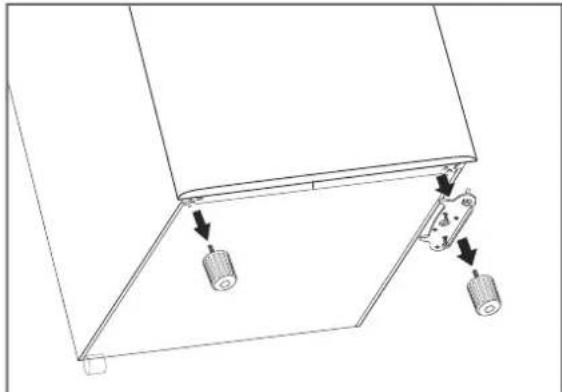

Technical diagram of a mechanical assembly with two hanging components and directional arrows indicating motion (no text or symbols)

1. Tip the freezer backwards (maximum 45^ ) so that you can also move the lower door hinge.
2. Unscrew the two front screw feet (3).
3. Unscrew the lower hinge plate. To do this, use an 8 mm spanner or a cross-head screwdriver.
4. Remove the door.

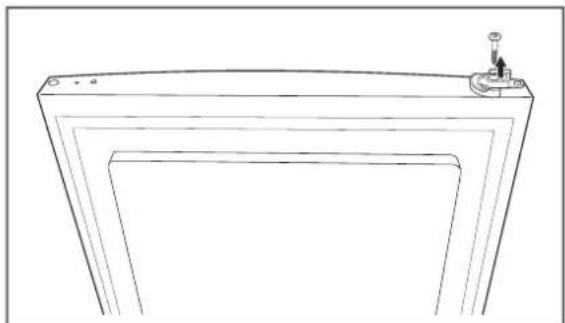

Line drawing of a rectangular frame with a small protrusion and a small inset detail (no text or symbols)

1. Remove the plastic insert from the underside of the door.

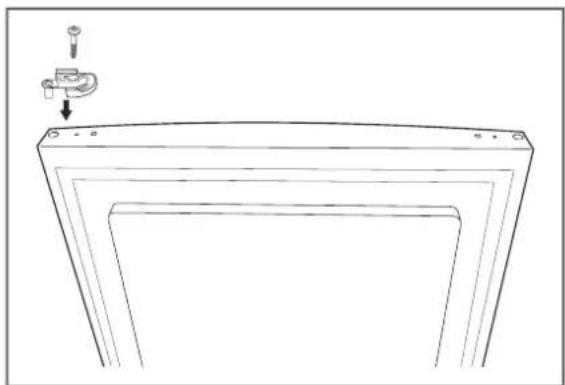

Line drawing of a wooden frame with a small mechanical component attached (no text or symbols)

1. Insert the loose plastic insert supplied into the new hinge stop side and firmly screw in.

Mechanical component diagram showing a piston, bolts, and housing with directional arrows indicating motion (no text or labels)

1. Turn the lower hinge plate. Loosen the hinge bolts with a 10 mm spanner. Loosen the screws and reinsert the screws and the hinge bolts from the other side.

Technical diagram of a mechanical assembly with two rollers and directional arrows indicating movement (no text or symbols)

1. Replace the door.
2. Screw the hinge plate tightly back onto the opposite side. Make sure that the hinge pin is in the hinge bushing of the door.

Use the screwdriver to tighten the screws by just 2 to 3 turns, and then use the 8 mm spanner to tighten them fully.

The door will now function properly again.

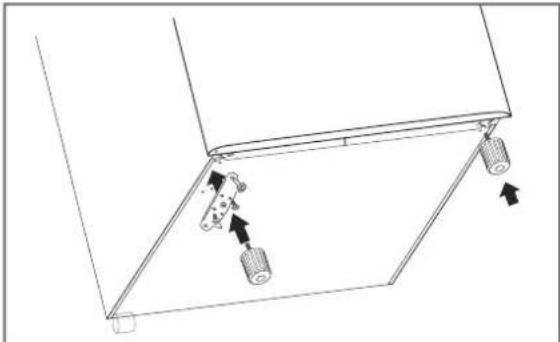

1. Screw both screw feet securely back onto the freezer.
2. Carefully stand the freezer upright.

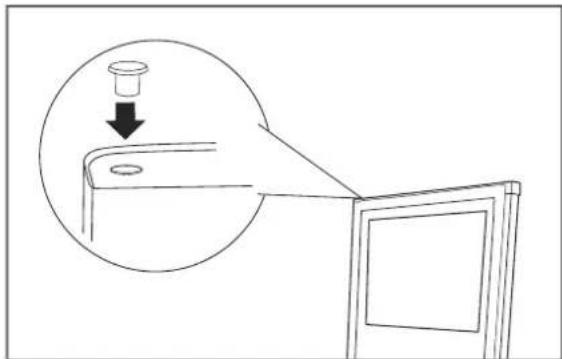

Technical line drawing of a mechanical bracket with an inset showing a pin insertion (no text or symbols)

1. Reinsert the blind plug on the opposite side of the door.

You have successfully changed the door hinges.

Positioning the freezer

The freezer must stand on a level, solid surface. For the best result, check the position of the appliance with a spirit level. When you open the door, the freezer should not move. You can balance out unevenness in the surface with the two front adjusting feet.

Simple line drawing of a mechanical component with a highlighted section showing internal structure (no text or symbols)

1. Close the freezer door.
2. Tilt the freezer backwards slightly.
3. As required, turn the screw feet (3) inward or outward.
4. Stand the freezer straight up once again and check its alignment with a spirit level.
5. Repeat these steps until the freezer is level.

Appliance parts/control elements

(1) Temperature controller
(2) Freezer basket, 3×
(3) Screw foot, 2×

Operation

Before getting started

• Read chapter „Safety“ on page EN-4, in particular the safety instructions.
• Set up and connect the appliance as described in chapter „Start-up“ on page EN-11.

Setting the temperature

CAUTION

Health hazard!

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see „Intended use“ on page EN-4).

You can set the temperature with the help of the temperature controller (1). The cooling power is variable and adjustable from "MIN" to "MAX". "MAX" is the lowest temperature.

The ideal temperature in the freezer compartment is -18^ . At the prescribed ambient temperature, the setting 'MED' will suffice if you do not open the door too often and always close it correctly. Otherwise the energy consumption and the temperature in the freezer may rise.

Line drawing of an open refrigerator with labeled door and interior compartments (no text or symbols beyond label)

What you need to do

1. Insert the mains plug into an easily accessible socket (220–240 V\~/50 Hz 0,6 A).
   The appliance is then switched on. The compressor starts to work, the refrigerant flows through the pipes and a quiet humming sound can be heard.
   If the appliance is making unusual noises, check that it is stable and remove any objects that may be on top of it.

2. Set the temperature controller to "MED". If the ambient temperature changes, adapt the temperature setting, e.g. in the summer in the direction "MAX".

If you set a lower temperature, you will need higher cooling performance.

This increases the energy consumption.

Switch off/shutdown

If you do not want to use the empty freezer for an extended period, switch it off in the following way:

1. Pull the mains plug out of the socket to switch off the freezer.
   Notice: If you set the temperature controller (1) to "MIN", the freezer is not switched off.
2. Remove all food from the freezer and store it in a cool place so that the food does not spoil.
3. Remove the freezer baskets (2).
4. Clean the freezer.
5. Leave the door open slightly to avoid mould formation in the interior.
   You have now decommissioned the freezer.

Freezing foods / storing frozen foods

WARNING

Risk of explosion!

Improper handling of the appliance may lead to an explosion.

■ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance, as they can form ignitable gas-air mixtures.

CAUTION

Health hazard!

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ In particular, pack raw meat and fish carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
■ Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
■ Abide by the storage times recommended by food manufacturers.
■ Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).
■ If there is a power failure, the frozen food may remain sufficiently cold for some time. In case of prolonged power failure or malfunction of the appliance, remove the stored frozen food

from the appliance and store it in a sufficiently cool place or in another cooling appliance. The maximum storage time in the event of a fault is shown on the appliance's type plate.

■ After a malfunction, check whether the stored food is still edible. Consume thawed and defrosted foods immediately, do not refreeze.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury. Risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.
■ Let ice cubes or ice lollies thaw a little before eating, do not put into your mouth straight from the freezer.

- Follow the instructions in this chapter to store your food for the longest possible time in the best possible way.

Freezing food

Freezing means reducing the core temperature of fresh, room-temperature food to frozen as quickly as possible – for best results "flash-frozen". If not cooled quickly enough, the food will be "killed by frost", i.e. the structure will be destroyed. A constant storage temperature of -18 ^ is needed to maintain

the food's consistency, taste and nutritional value.

Freezing food has a positive effect on its shelf life. This will also help you avoid food waste.

- Set the temperature in the freezer to -18^ and fill it in such a way that the temperature conditions inside are optimally utilised, guaranteeing optimal food storage: Place food to be frozen in the freezer.

Preparing the food

• Only freeze high quality food.
• Freeze fresh and prepared food dry and unseasoned. Unsalted foods are more durable.
• Allow prepared food to cool before freezing. This not only saves power, but also prevents excessive frost formation in the freezer.
• Carbonated drinks are not suitable for freezing because the carbon dioxide escapes during freezing.

Suitable packaging

Packaging is important when freezing. This will protect against oxidation, penetration by microbes, transfer of odours and flavourings and drying out (freezer burn).

• Only use packaging material that is strong, impermeable to air and liquid, not too stiff and labelled. It should be designated as suitable for freezer use.
• Use plastic clips, rubber bands or adhesive tapes to seal.

Portions

• Use flat portions as much as possible; these freeze through to the core faster.
• Expel the air from the freezer bag as this causes the contents to dry out and takes up space.
• Fill liquid containers no more than 34 full, because liquids expand when frozen.
• Do not store glass or metal containers containing liquids such as water, lemonade, beer, etc. Water expands when frozen and may burst the container.

Only high percentage alcohol (from 40 % volume) should be frozen; make sure that it is tightly sealed.

- Label the frozen food by type, quantity, amount and expiry date. Use waterproof marker pens or adhesive labels wherever possible.

How to pack the freezer properly

Freeze smaller quantities

Once the freezer temperature is -18^ , you can freeze fresh, room-temperature foods.

Freezing capacity

You can find information concerning the freezing capacity of your appliance on the type plate of your appliance.

- Adhere to the maximum freezing capacity wherever possible.

Up to the maximum indicated freezing capacity:

If you adhere to the maximum freezing capacity, the goods will freeze the quickest. The temperature in the freezer briefly rises after placing fresh goods inside. After another 12 hours, the goods are frozen to the core.

Above the maximum indicated freezing capacity:

If you want to freeze more food in one go as an exception, freezing will take longer. Keep fresh goods out of contact with existing frozen foods, as the frozen foods could start to defrost. If contact with stored food can not be avoided, we recommend that you create a cold reserve in the freezer before freezing the fresh goods.

Storing frozen food

The deep-freeze chain must not be broken between the manufacturer and your freezer. The temperature of the frozen food must always be at least -18^ .

Therefore,

• do not buy any goods that

– are in frosty, over-icy chests.
- are stacked above the stipulated high-load marker.
– partially clumped (particularly easy to identify with berries and vegetables).
– have snow and juice traces.

- Transport frozen foods in special styrofoam boxes or insulated bags.

- Observe the storage conditions and times on the packaging.

Defrosting food

- Observe the following basic rules when defrosting food:

• To defrost food, remove it from the freezer and let it defrost at room temperature or in the refrigerator.
  – Always defrost meat, poultry and fish in the refrigerator. Make sure that the frozen food is not immersed in its own thawing liquid.
• To defrost food quickly, use the defrost function on your microwave, for example. Observe the manufacturer's instructions and note that bacteria and germs can form in this way.
• If you only want to defrost part of a pack, remove the portion you need and immediately close the rest of the pack. In this way, you will avoid “freezer burn” and will reduce ice formation on the remaining foods.

Cook or use thawed foods as soon as possible. Dispose of the defrosting liquid.

Preparing ice cubes

CAUTION

Health hazard!

Consuming ice cubes which have been prepared using impure or standing water can damage health. Incorrect handling can lead to risks of causing food poisoning.

■ Use only potable water to make ice cubes.

• Fill an ice cube container to the 3 / 4 level with fresh drinking water and place it in the freezer compartment.
• The ice cubes are best removed by bending the ice cube container slightly or holding it under running water for a short while.

Care and maintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Before cleaning, unplug the mains plug from the socket or isolate/un-screw the fuse.
■ When pulling the mains plug out of the socket, always take hold of the mains plug itself and never pull the mains cable.

CAUTION

Risk of injury!

Danger to children and people with impaired physical, sensory or mental abilities!

■ Cleaning and user maintenance shall not be made by children without supervision.

NOTICE

Risk of damage!

The surfaces and appliance parts can be damaged through improper handling.

■ Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
■ Door seals and plastic parts are -sensitive to oil and grease. Remove contaminants as quickly as possible.
■ Only use soft cloths.

Checking and cleaning door seals

The door seals must be checked regularly so that no air can enter the appliance.

1. To test them, clamp a thin piece of paper in various places between the door seal and frame of the appliance. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Warm the seal in the appropriate places carefully with a hair dryer and pull it out with your fingers.
3. Only clean dirty seals with clean water.

Cleaning the exterior

– Painted surfaces

Use only light pH-neutral soapy water.

Defrost and clean appliance

WARNING

Risk of explosion and injury!

Improper handling of the appliance can lead to serious injuries and damage!

■ Never use defrosting sprays. They can generate explosive gases.
■ The thermal insulation of your appliance is made of sensitive insulating material. Therefore, do not use any electrical heating equipment, ice scrapers, knives, defrosting sprays, boiling water or any kind of aid with an naked flame, for example candles, to speed up the defrosting process. The thermal insulation and the interior are scratch and heat-sensitive and can melt.

WARNING

Health hazard!

An increase in the temperature of the frozen food during defrosting can shorten the shelf-life of the frozen food.

■ Ensure that the frozen food is kept sufficiently cool during defrosting.

CAUTION

Risk of injury!

Improper handling of the appliance can lead to skin damage and injuries.

■ Never touch the inside walls or frozen food with wet hands. Injuries can also occur with dry hands though.
■ Use a dry towel to remove the frozen food.

NOTICE

Risk of damage!

Improper handling of the appliance can lead to property damage.

When cleaning, please note:

■ Defrost the appliance before it forms a layer of ice and frost of more than 5 mm. Excessive ice formation inside the appliance can break the door.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ Defrost the appliance in winter when the outside temperature is low. You can then store the food on a balcony

or similar while you are cleaning the appliance. Otherwise, you can wrap the frozen food thickly in newspaper and place it in another freezer in a cool room. You also have the option of using an insulated bag.

Moisture from food and ambient air forms frost on the inside of the appliance. At least once a year, remove ice and frost from the inner walls, at the latest when the layer of frost is approx. 4 mm thick. Otherwise the ice forms a layer of insulation, which impedes the cooling output and increases electricity consumption.

Preparation:

- Set the temperature controller (1) to "MAX" at least 3 hours before cleaning. This way, the frozen food retains a level of coldness and does not thaw so fast.

Defrosting:

1. Set the temperature controller to "MIN".
2. Disconnect the mains plug from the socket.
3. Remove the frozen food. Wrap it thickly in newspaper and place it in a cool room or in a fridge.
4. Remove the freezer baskets (2).
5. Place a bowl of hot but not boiling water in the freezer. This will accelerate the defrosting process.
6. Leave the door open while defrosting and place a floor cloth in front of the appliance to catch thaw water which may come out. The defrosting time depends on the thickness of the ice layer. Experience dictates that it is possible to start cleaning after approx. 1 hour.
7. Carefully scrape off any stubborn ice with a plastic ice scraper.
8. Wipe down the inside with warm water and washing-up liquid. When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.

9. Only clean the door seals with clean water; they are sensitive to oil and fat.

10. Rub everything completely dry, including the door seals, and allow to air briefly.

11. Replace the freezer baskets in the freezer.
12. Place the frozen food back in the freezer.
13. Plug the mains plug back into the socket and turn the temperature controller to the "MAX" level.
14. As soon as a temperature of -18 ^ has been reached, turn the temperature controller back to the usual position.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips, explanations
Compressor is off.	No electricity to socket. Check the socket with another appliance.
	Mains plug is loose. Check the tightness of the mains plug.
Appliance cools too quickly.	The temperature controller is set at too high a level.	Select a lower setting (see „Setting the temperature“ on page EN-20).
The appliance doesn’t cool sufficiently.	The temperature setting is set too low.	Select a higher setting (see „Setting the temperature“ on page EN-20).
	Door not tightly closed or door seal is not completely tight.	See ‘Checking and cleaning door seals’ on page EN-25.
	The appliance is near a heat source.	Place insulation plate between the appliances or change location.
	Food has been stored warm.	Only store cooled foods.
	Too many goods frozen. Observe maximum freezing capacity (see type plate).
	Ambient temperature too low or too high.	Ensure the ambient temperature is within range (see „Intended use“ on page EN-4).
	Compressor seems defective.	Adjust the temperature controller to ‘MAX’. If the compressor does not switch on within an hour, please contact our Service department (see page EN-29).
Appliance is making a noise.	Operating noises are functional and are not a sign of malfunction.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Compressor is switching on or off.
	Disturbing noises. Check that it is stable.

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household.

If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period.

Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

In order for us to help you quickly, please tell us:

Name of appliance Colour Model Order number
hanseatic Freezer	White HGS8555CW 28784636
	Stainless steel HG$8555CI 74616803

Advice, complaints and orders

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

You can find the contact details of your product advisor online on the service pages of your mail order company. The various sections of product advice are listed here.

Please have your appliance invoice ready.

For more information, visit www.hanseatic.de

Repairs and spare parts

You can prevent waste by having your defective appliances repaired. Please contact our Customer Service department.

Please have your appliance invoice ready (date of purchase and item no.).

Spare parts are available for a minimum period of seven years after the final version of the model has been placed on the market. Door seals are available for a period of ten years.

Customers in Germany

Place an order at

by E-mail: [e-mail]

Phone [phone]

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Waste prevention, free return and disposal

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our customer service if your product is faulty.

More information can be found in the brochure "Waste Prevention Programme – of the German Government with the Involvement of the Federal States".

Free return of old electrical appliances

Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface > 100 cm ^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.

In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.

Disposal

Disposing of old electrical devices in an environmentally friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old elec-

trical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Don't forget to erase data!

If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment.

Batteries and rechargeable batteries, lamps and bulbs

If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that batteries and rechargeable batteries must not be disposed of with other household waste.

Consumers are required by law to bring all batteries and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point oper-

ated by their communal authority or borough or to a retailer, so that they can be disposed of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.

Batteries and rechargeable batteries can be returned free of charge.

Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.

There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the poles of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.

Before disposing of the appliance, batteries and rechargeable batteries which are not permanently built into the appliance must be removed and disposed of separately.

Please only dispose of batteries and rechargeable batteries in a discharged state!

If possible, use rechargeable batteries in place of disposable batteries.

*) labelled with:

Cd = Cadmium

Hg = Mercury

Pb = Lead

Packaging

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend keeping the packaging, at least during the warranty period. If the appliance needs to

be sent out for repairs, only the original packaging will provide sufficient protection. If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Appendix

Product fiche concerning Regulation (EU) No. 2019/2016

The product fiche for your device is available online.

Go to https://eprel.ec.europa.eu and enter the model identifier of your device to access the product fiche.

The model identifier for your device can be found under Technical specifications.

Technical specifications

Item number	7461680328784636
Name of appliance	Upright Freezer
Model identifier	HGS8555CIHGS8555CW
Device measurements (Height × Width × Depth)	850 mm × 550 mm × 580 mm
Unloaded weight	33 kg
Refrigerant	R600a
Filling capacity refrigerant	57 g
Foaming agent	cyclopentane
Rated power	90 W
Supply voltage / frequency / rated current	220-240 V ~ / 50 Hz / 0,6 A
Protection class	I
Climate class: N-ST-T. This appliance is intended to be used at an ambient temperature between +16 °C and +43 °C.
