Product Type	Freestanding Refrigerator
Brand	ECG
Model	ERB 21700 WF
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	50 kg
Power Supply	220-240 V, 50 Hz
Energy Class	A+
Climate Class	N
Temperature Range	0°C to 8°C
Defrosting	Manual defrost required
Reversible Door	Yes
Adjustable Thermostat	Yes
Number of Shelves	3 glass shelves
Door Shelves	2
Crisper Drawer	1
Interior Light	Yes
Cooling Method	Static cooling
Refrigerant	R600a
Noise Level	42 dB
Maintenance	Clean with mild detergent; defrost periodically
Safety Features	Thermal overload protection; non-toxic refrigerant
Spare Parts Availability	Available from manufacturer
Repairability Index	6.5/10 (estimated)
Accessories Included	Egg tray, ice cube tray

Frequently Asked Questions - ERB 21700 WF ECG

How do I install the refrigerator?

Place the refrigerator on a level surface away from direct sunlight and heat sources. Allow at least 10 cm of space behind and on sides for ventilation. Plug into a grounded outlet and wait 2 hours before loading food.

What is the ideal temperature setting?

The recommended temperature is between 0°C and 8°C. Use the thermostat dial to adjust: a higher number means colder. Aim for 4°C for optimal food preservation.

Why is my refrigerator making unusual noises?

Noises like gurgling or clicking are normal due to the refrigerant cycle. If you hear a loud buzzing, check if the refrigerator is level or if objects are touching the compressor. Persistent loud noises may require service.

Can I reverse the door opening direction?

Yes, the door is reversible. Remove the door, unscrew the hinges, and reassemble on the opposite side. Refer to the manual for detailed steps. Ensure the door is properly aligned to prevent air leaks.

How do I clean the refrigerator?

Unplug the appliance before cleaning. Use a soft cloth with mild soapy water for interior and exterior. Do not use abrasive cleaners. Clean the condenser coils every 6 months to maintain efficiency.

How often should I defrost the refrigerator?

This model requires manual defrosting when ice buildup exceeds 5 mm. To defrost, unplug the appliance, remove food, and let ice melt naturally. Do not use sharp objects to remove ice.

What should I do if the refrigerator is not cooling?

First, check if it is plugged in and the thermostat is set correctly. Ensure ventilation openings are not blocked. If the problem persists, the compressor or thermostat may be faulty; contact a technician.

How can I save energy with this refrigerator?

Place the refrigerator away from heat sources, keep the door sealed properly, and avoid overfilling. Defrost regularly and set the temperature to 4°C. Allow hot food to cool before placing inside.

What is the storage capacity of this refrigerator?

The refrigerator has a net capacity of approximately 200 liters. This allows storage of about 100 items (cans, bottles, etc. distributed across shelves and door bins).

Does the refrigerator come with a warranty?

Yes, ECG offers a 2-year warranty from the date of purchase. The warranty covers manufacturing defects but not damage from misuse. Keep your receipt as proof of purchase.

USER MANUAL ERB 21700 WF ECG

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damage caused during transportation, improper use, voltage fluctuation or any change or modification of any part of the appliance. To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Do not operate the device if the cord is damaged. All repairs or adjustments including cord replacements shall be performed by a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
3. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock. Do not immerse cord or plug in water!
4. Do not use the appliance in humid environments or in areas where there may be gas leakage or contact with an explosive atmosphere. Do not touch the cord or the device with wet hands. Risk of electric shock.
5. The power cord must remain accessible once the device is installed. Do not shorten the cable and do not use splitters in electric outlets. Do not allow the cord to touch hot surfaces or place the cord over sharp edges.
6. Do not switch the appliance on or off by plugging in or pulling out the power supply plug. Do not remove the power cord from the

outlet by yanking the cord. Unplug the power cord from the outlet by grasping the plug.

1. Do not insert any objects into the device or place any objects on the device (e.g. vases, cups, etc.). Never cover the ventilation openings!
2. Do not use other electrical appliances or freezing equipment in the appliance.
3. If this appliance is replacing an old appliance with a lock, make the lock of the old appliance inoperational to prevent children from locking themselves inside (e.g. when playing).
4. Do not use mechanical devices or other artificial means to speed up defrosting. Do not use electrical appliances in the food storage area. Protect the cooling circuit of the appliance against damage.
5. Do not allow children to play with the appliance. Also, they may not sit on the shelves and hang on the door of the appliance.
6. Do not use sharp metal objects to remove ice in the refrigerator, as they can damage the freezing circuits and cause irreparable damage to the equipment. If necessary, use a plastic scraper.
7. Do not store explosive materials such as sprays with propellant in the appliance.
8. Do not place containers (glass bottles or cans) with liquids in the freezer. The container could burst.
9. Bottles containing liquids with high alcohol content must be properly closed and placed vertically when stored.
10. Do not expose the appliance to direct sunlight, do not use it outside and do not expose it to rain.
11. Do not touch the cooling surfaces with wet hands. Risk of injury.
12. Do not consume the ice removed from the freezer.
13. This appliance is designed for domestic use and for use in similar places, such as:

- Kitchenettes in shops, offices and other workplaces

- appliances used by guests in hotels, motels and other residential areas.

- appliances used in bed and breakfast residences

1. This appliance may be used by children under 8 years of age and older and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if supervised or instructed to use the appliance in a safe manner and understand the potential hazards. Children shall not play with the appliance. User cleaning and maintenance must not be performed by unsupervised children.
2. Children aged 3 to 8 years can insert and remove food from refrigerating appliances.
3. Child supervision is essential to prevent them from playing with the appliance.
4. The manufacturer is not liable for any damage caused by improper grounding/use.

5. It is necessary to keep free the ventilation openings in the cover or in the construction of the appliance.
   To prevent food contamination, please follow these recommendations:

6. Opening the door for a long time can cause a significant increase in the temperature inside the appliance.

7. Regularly clean surfaces and accessible drainage systems that may come into contact with food.
8. Clean water containers if not used for 48 h; flush the water system connected to the water supply if the water has not flowed for 5 days.
9. Store raw meat and fish in the refrigerator in suitable containers so that they do not come into contact with or drip into other foodstuffs.
10. Two-star freezing compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
11. One-, two- and three-star compartments are not suitable for freezing fresh food.
12. If the refrigerating appliance is left empty for a long time, turn it off, defrost, clean, dry and leave the door open to prevent mold formation inside the appliance.

RISK OF FIRE!

WARNING: RISK OF FIRE/FLAMMABLE MATERIALS

This appliance contains R600a (isobutane coolant), natural (natural) gas that is very environmentally friendly but flammable. When transporting and installing the appliance it is necessary to ensure that none of the parts of the cooling circuit is damaged. In case of damage limit the flame and ventilate for several minutes the space where the appliance is located.

The cooling system contains high-pressure coolant. Do not manipulate the system. It must only be repaired by a qualified person.

When replacing the interior lighting of the refrigerator, always unplug the refrigerator - otherwise there is a risk of electric shock. • If the replacement of the interior lighting is too complicated for you, contact your service representative. • If the products are equipped with LEDs, do not remove the lighting cover and LED yourself. – contact your service representatives.

REPLACING THE LED BULB: Do not remove the indicator cover or indicator yourself when the internal or external LEDs no longer operate. Contact the service representatives.

The description and information of the appliance may vary according to the type of model. This appliance is not intended for use as a built-in appliance.

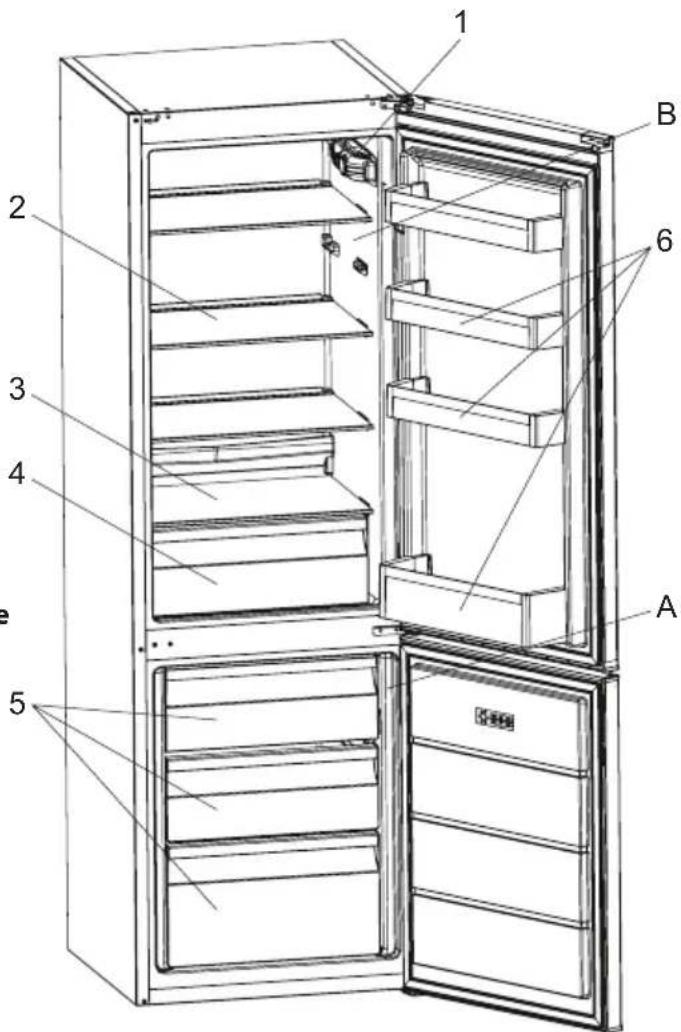

DESCRIPTION

This description only applies to information regarding the components for the appliance.

Individual parts may differ according to the particular appliance model.

A) Freezer

B) Refrigerator

1. Thermostat (on the right side)
2. Refrigerator shelves
3. Cover of storage space for fresh vegetables and fruits
4. Drawer for storing fresh fruit and vegetables
5. Freezer drawer / Tilting cover
6. Door compartments

* differs according to the specific model of the appliance – see information sheet

INSTALLING AND TURNING ON THE APPLIANCE

• You can contact the service technicians to install and turn on the device properly.
• Before connecting the electricity, make sure that the voltage stated on the label corresponds to the voltage in the socket / voltage for the electricity system in the building.
• The outlet must be accessible after installing the appliance.

Installing the device

- Place the refrigerator away from any sources of heat and in a well-ventilated position. The refrigerator should be located a minimum of 50 cm away from radiators, gas stoves and other heat sources, and 5 cm away from electric stoves.

- Leave free space of minimum 15 cm above the appliance.

- Connect the plastic spacer to the condenser on the rear wall of the refrigerator to prevent the refrigerator from leaning against the wall and thereby reduce its power.

- Do not place heavy items on the refrigerator.

- If the appliance is installed beside another refrigerator or freezer, keep a minimum distance of 2 cm to prevent vapour condensation.

- The refrigerator must stand firmly in a horizontal position. Use the two adjustable front feet for levelling.

Two identical diagrams of a coiled tube with two circular objects inside, each with a curved arrow indicating direction (no text or symbols)

TRANSPORT AND RELOCATION

Transport and relocation

• Store the original packaging and foam polystyrene (PS) if they are needed.
• When transporting the appliance, secure with a wide strap or strong rope and follow the instructions on the package.
• Before transport or relocation secure or remove all movable items (i.e. shelves, drawer for fresh fruit and vegetables...).

Simple line drawing of two children playing a board game (no text or symbols)

Before switching on

• Leave the product to rest for at least 3 hours from the time it was transported to your home.
- You may detect a slight odour when you first switch it on. This odour will disappear once the appliance starts to cool.

VARIOUS FUNCTIONS AND OPTIONS

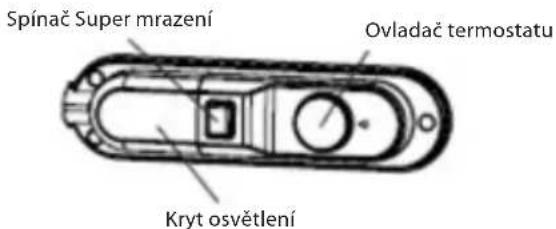

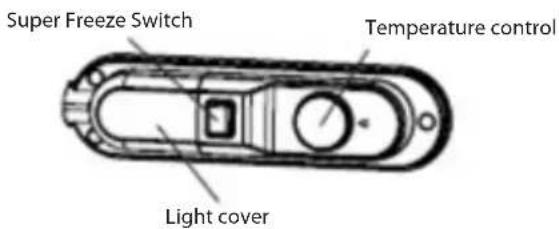

Setting of the thermostat

Line drawing of a handheld electronic device with ports and a central lens (no text or symbols)

The freezer and refrigerator thermostat automatically regulates the internal temperature. You can set lower temperature by turning the knob from position 1 to 5.

Setting the freezer and refrigerator thermostat

0: Off

1-2: For short-term storage of food in the freezer (knob from minimum to medium).

3-4: For long-term storage of food in a freezer (knob to medium value).

5: To freeze fresh foods. After reaching the cold state, it is necessary to set the knob to the previous position.

Super Freeze* This switch is used for the super freeze function. For maximum freezing capacity, please turn on this switch 24 hours before loading fresh food. After placing fresh food in the freezer, it is generally sufficient to leave the switch in the ON position for 24 hours. To save energy, turn off this switch 24 hours after insertion of fresh food.

* differs according to the specific model of the appliance – see information sheet

Turn on the appliance

• On first switch-on, the appliance should be operated continuously for at least 24 hours until it has cooled to a sufficient temperature.
• During this time do not open the door too often. Fill the appliance with foods.
• If you turn off or unplug the appliance, wait at least 5 minutes before restarting or turning it on to avoid damage to the compressor.
• Your refrigerator is designed to operate at the ambient temperature specified in standards according to the climatic class indicated on the rating plate. We do not recommend operating the refrigerator in an environment that is not within the stated range due to effect on its efficiency.

Climate classes and their description

T (tropical): This refrigerator is intended for use at ambient temperatures between 16 °C and 43 °C. ST (subtropical): This refrigerator is intended for use at ambient temperatures between 16 °C and 38 °C.

N (normal): This refrigerator is intended for use at ambient temperatures between 16 °C and 32 °C.

SN (subnormal): This refrigerator is intended for use at ambient temperatures between 10 °C and 32 °C.

Climatic classes Surrounding

T 16 up to 43°C

ST 16 up to 38°C

N 16 up to 32°C

SN 10 up to 32°C

STORING FOOD

Cooling compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.
• Never put warm foods in the refrigerator. These should first cool down at room temperature and then be placed so as to ensure adequate air circulation in the refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.
• Meat and clean fish (packed in a package or plastic foil) can be placed in the refrigerator, which can be used in 1–2 days.
  • Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables.
• Under normal operating conditions, it is sufficient to adjust the temperature of the refrigerator to +4^ .
• The temperature of the cooling compartment should be in the range of 0–8 °C, fresh foods are frozen and rotten at temperatures below 0 °C, and bacteria increase and food spoils at temperatures above 8 °C.
• Do not refrigerate hot foods, let them cool to room temperature. Hot foods increase the temperature of the refrigerator and can cause food poisoning or unnecessary food spoilage.
• Meat, fish and similar foods should be stored in chiller and vegetables in the vegetable compartment (if applicable).
• Do not store meat products with fruit and vegetables to avoid cross-contamination.
• Food in a refrigerator should be stored in closed containers or other suitable packaging so as not to release odours and moisture into the refrigerator.

Freezer compartment

- The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice.

- Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.

- Do not put fresh and frozen food next to each other. The frozen food may thaw.

• When freezing fresh food (such as meat, fish or chopped meat), cut them into parts that can be used at the same time.
• Storing frozen food: instructions are usually stated on the packages, which must be followed. If there is no information on the packaging, food should not be stored for longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable temperature and that the packaging is not damaged.
• Frozen food should be kept in suitable packages to retain the quality and should be returned to the freezer compartment as soon as possible.
• If a package of frozen food shows moisture or abnormal bulging, it is probable that it was stored at the wrong temperature and the content is spoiled.
• The storage period for frozen food depends on the room temperature, the thermostat setting, the frequency of opening the door of the freezer, the type of food and the time of transporting the product from the shop to the household. Always follow the instructions printed on the packaging and never exceed the maximum storage time stated on the package.
  • To achieve the ideal appliance efficiency and maximum freezing capacity, set the refrigerator to 4^ C for 24 hours before placing fresh food in the freezer.
  • Usually, changing the setting to 2^ C for 24 hours is sufficient when fresh food is placed in the freezer. You can lower the setting if necessary after 24 hours.

CLEANING AND MAINTENANCE

• Before cleaning, disconnect the appliance from the electricity socket.
• Do not clean the appliance with water.
• The refrigerator and the freezer should be periodically cleaned using a lukewarm water solution and edible soda.
• Clean accessories separately using soapy water. Do not use a washing machine.
• Do not use abrasive products, detergents, and soaps. After washing, rinse with clean water and dry thoroughly. After cleaning, use dry hands to plug the appliance into the electricity socket.
• Clean the condenser (the back part of the appliance) using a brush a minimum of once a year. This will increase productivity and save energy.

Recommendation

If you are not using the appliance for a long time (for example during summer holidays), disconnect the refrigerator from the power supply, clean it and leave the door open. This will prevent the origination of mould and odour.

Illustration showing hands cleaning a cardboard box with a smiley face, no text or symbols present

Illustration of two cartoon kitchen appliances: a smiling refrigerator and a smiling refrigerator with food items (no text or symbols)

Cartoon illustration of a smiling refrigerator with a sad face and two smaller objects beside it (no text or symbols)

Defrosting the refrigerator

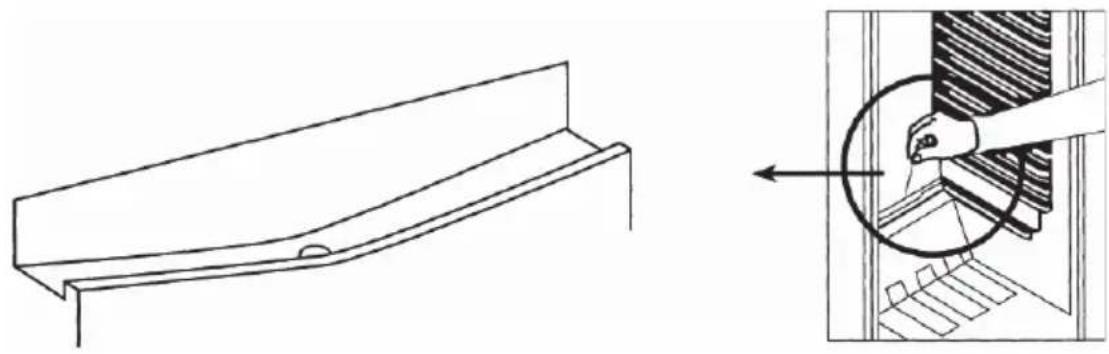

• Defrosting occurs automatically during operation in part of the refrigerator; water flows into the evaporation channel and is automatically evaporated.
• The evaporator channel and the hole for collecting water (in the rear part of the shelf for fresh foods) should be periodically cleaned. This will prevent the accumulation of water in the lower part.

Technical line drawing of a structural component and its magnified cross-section showing internal components (no text or symbols)

Freezer defrosting

• Frost build-up in a freezer must be periodically removed at least twice a year.
• Do not use sharp metal objects to remove the frost build-up. They can break a circuit and cause irreparable damage to the appliance. Use a plastic scraper.
• Defrosting should be carried out when the frost on the shelves becomes thicker than 5 mm.
  • The day before defrosting set the thermostat to the S position to freeze the food completely.
• During defrosting, the frozen food should be packed into several layers of paper and stored in a cold place. This will keep the temperature of your food low for a long time.
• Set the thermostat to the position 0, disconnect the appliance from the power supply and leave the door open until the defrosting is complete.
  • To speed up the defrosting process, place one or more containers with hot water in the freezer.
• Carefully dry the inside of the appliance with a clean cloth or sponge.
• When the defrosting is complete, put the food back into the freezer, set the thermostat to the max. position, and keep in mind that it is necessary to consume the food within short time.

Lighting (if available)

When the product is first connected to the mains, the interior lighting may be delayed by 1 minute due to opening tests.

Replacement of the bulb in the refrigerator

For models that have a bulb*

Technical line drawing of a mechanical component with internal cavities and housing (no text or symbols)

1. Unplug the appliance from the power supply.
2. Press the hooks on the sides of the top of the cover and remove the bulb cover.
3. Replace the defective bulb with a new one with maximum power 15 W.
4. Install the bulb cover and connect the appliance to the power supply after 5 minutes.

For models with LED lighting\*

Do not replace the LED lighting yourself. Contact the service representatives.

* differs according to the specific model of the appliance – see information sheet

Reversing the door opening

If you need to change the direction of opening the door, consult your service technician.

TROUBLESHOOTING

If the refrigerator does not work correctly, before calling a service technician, check the appliance according to the following instructions:

The refrigerator does not work

Check that:

• The electricity supply is not interrupted.
- The main switch for the electric current is not off.
- the thermostat is not set to 0 position,
- The electricity socket is working. To check, plug another appliance that you know is working into the same socket.

The performance of the refrigerator is low

Check that:

• there is not too much food placed in the appliance,
• is the thermostat set to position 1 (if yes, set the thermostat to a higher value)
  • is the door properly closed,
• isn't there dust on the condenser,
• is there is enough space around the rear and side walls to circulate the air.

The refrigerator is noisy

Cooling gas, which circulates in the refrigerator, may cause a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is completely normal. If these sounds are different, make sure that:

• the appliance is in the horizontal position,
• It is not in contact with the rear side.
• Parts of the appliance do not vibrate.

Water is in the lower part of the refrigerator

Check that:

- The water drain hole for the defrosting is not clogged (use a defrosting drain plug to drain water and clean the hole).

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directives on electromagnetic compatibility and electrical safety. This product meets the requirements for heavy metals in electrical equipment.

08/05

The operating manual is available on internet at www.ecg-electro.eu.

Changes of text and technical parameters reserved.

Old refrigerators and freezers contain insulating gases and freezing medium, which must be disposed of. Entrust the disposal to a competent local waste disposal service. If in doubt, contact your local authorities or your vendor. Make sure that the pipes of the cooling unit, which will be removed by the appropriate waste disposal, service are not damaged.

SICHERHEITSHINWEISE

WARNUNG:BRANDGEFAHR/BRENNBARE STOFFE

Simple line drawing of two children playing a board game (no text or symbols)

Vor dem Einschalten

Technical line drawing of a mechanical component with internal gear and housing (no text or symbols)

Illustration showing three different hand positions: a smiling square, a hand holding a phone, and a cartoon box with a face and a tool (no text or symbols)

Illustration of two cartoon kitchen utensils: one with a smiling refrigerator and brush, the other with a closed refrigerator and cleaning tools (no text or symbols)

Cartoon illustration of a smiling refrigerator and two smaller objects (no text or symbols)

Technical line drawing of a structural component and its magnified cross-section showing internal components (no text or symbols)

Technical line drawing of a mechanical component with internal cavities and housing (no text or symbols)

VÝSTRAHA: NEBEZPEČÍ OHNĚ / HOŘLAVÉ MATERIÁLY

Two abstract diagrams showing curved lines and circular shapes with arrows, no text or symbols present

Simple line drawing of two children playing a board game (no text or symbols)

Před zapnutím

Technical line drawing of a mechanical component with no visible text or symbols

Illustration showing two hand gestures: one holding a square with a smiley face, the other drawing a face inside a box with a smiling face (no text or symbols)

Illustration of two cartoon kitchen appliances: a smiling refrigerator and a smiling refrigerator with food items (no text or symbols)

Cartoon illustration of a refrigerator with a sad face and two smaller bags nearby (no text or symbols)

Technical line drawing of a structural beam and its cross-section showing internal components (no text or symbols)

Technical line drawing of a mechanical component with internal cavities and housing (no text or symbols)

VÝSTRAHA:NEBEZPEČENSTVOOHŇA/ HORĽAVÉ MATERIÁLY

Two identical diagrams showing a coiled tube with two circular objects inside, each with a small arrow pointing to its surface (no text or symbols)

PREPRAVA A PREMIESTNENIE

Preprava a premiestnenie

Simple line drawing of two children playing a board game (no text or symbols)

Pred zapnutím

Line drawing of a handheld electronic device with ports and a central lens (no text or symbols)

Prepínač Super mrazenie

Technical line drawing of a mechanical component with no visible text or symbols

Kryt osvetlenia

Illustration showing two hand gestures: one holding a smiling emoji, the other with a surprised face inside a box (no text or symbols)

Cartoon illustration of a refrigerator and its kitchen appliance (no text or symbols)

Cartoon illustration of a refrigerator with a sad face and two smaller bags nearby (no text or symbols)

Odmrazovanie chladničky

Technical line drawing of a structural component and its magnified view showing internal components (no text or symbols)

Odmrazovanie mrazničky

Technical line drawing of a mechanical component with internal cavities and housing (no text or symbols)
