2.0 Stereo 00051660 - Soundcard HAMA - Free user manual and instructions

Product Type	USB Sound Card
Brand	Hama
Model	2.0 Stereo 00051660

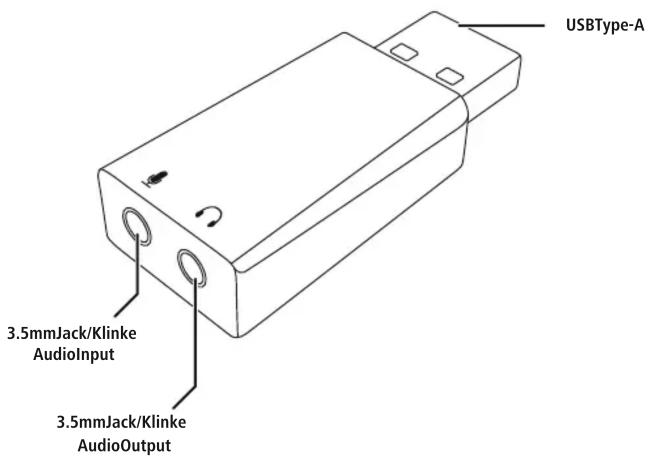

Connections	USB Type-A (input), 3.5 mm headphone output, 3.5 mm microphone input
Power Supply	USB powered (5V, bus-powered)
Audio Format	2.0 stereo, 16-bit
Sample Rate	Up to 48 kHz
Signal-to-Noise Ratio (SNR)	≥ 90 dB
Dimensions (approx.)	2.5 × 1.5 × 0.5 cm
Weight (approx.)	10 g
Operating System Compatibility	Windows, macOS, Linux
Driver Requirement	Plug & Play (no driver installation required for most OS)
Color	Black (typical)
Material	Plastic
Indicator Light	None (assumed)
Warranty Disclaimer	No liability for improper use; see manual for details

Frequently Asked Questions - 2.0 Stereo 00051660 HAMA

Is the Hama 2.0 Stereo sound card compatible with Windows 10?

Yes, it is typically plug-and-play with Windows 10. No additional drivers are required.

Can I use this sound card with a Mac?

Yes, it works with macOS without installing drivers. Just plug it into a USB port.

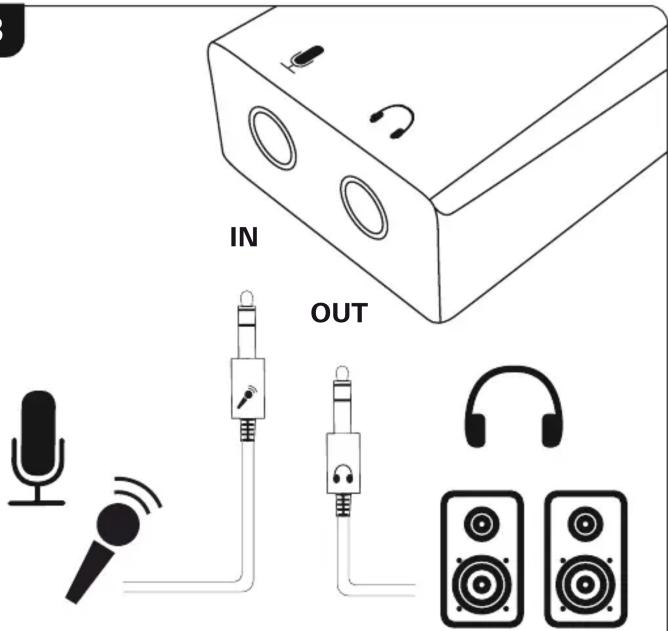

How do I connect headphones and a microphone?

Connect your headphones to the 3.5 mm Audio Output jack (green) and your microphone to the 3.5 mm Audio Input jack (pink).

Does this sound card support surround sound?

No, it is a 2.0 stereo sound card and does not support surround sound.

Why is there no sound coming from my speakers?

Ensure the sound card is properly inserted, the speakers are connected to the output jack, and the system's playback device is set to the USB sound card. Also check volume levels.

Can I use this sound card on Linux?

Yes, it is generally recognized as a generic USB audio device and works with ALSA or PulseAudio.

Is there a volume control on the device?

No, the Hama 2.0 Stereo sound card does not have a physical volume control. Adjust volume via your operating system.

What should I do if I hear static noise?

Try using a different USB port, avoid long cable extensions, and ensure the audio cable is not damaged. Move the device away from electrical interference.

Does the sound card require external power?

No, it is powered directly through the USB port. No external power supply is needed.

Can I use this device with a PS4 or Xbox?

It may work with PS4 or Xbox One if the console supports USB audio devices, but official support is not guaranteed. Check your console's compatibility.

USER MANUAL 2.0 Stereo 00051660 HAMA

86652Monheim/Germany

www.hama.com

RaccoltaCarta

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general term of delivery and payment are applied.

USBSoundCard

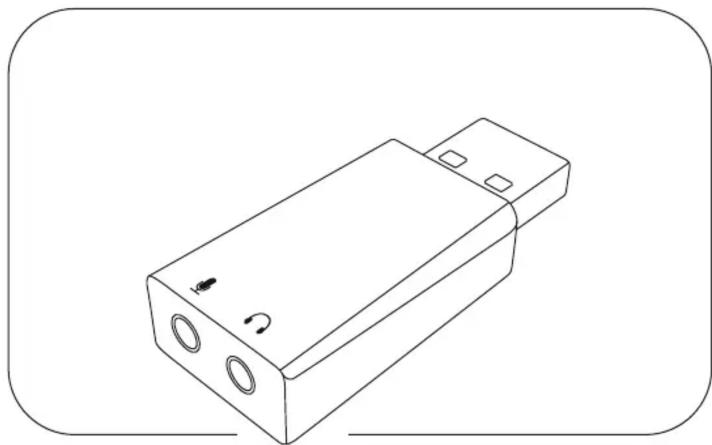

Line drawing of a rectangular electronic device with two circular ports and a handle (no text or symbols)

A

B

GB WarrantyDisclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper useoftheproductorfromfailuretoobservetheoperatinginstructionsand/orsafetynotes.
