Product Type	Managed Gigabit PoE+ Switch
Model	EdgeSwitch ES-16-150W
Ports	16 x Gigabit RJ45 (PoE+)
PoE Budget	150W total
Switching Capacity	32 Gbps
Forwarding Rate	23.8 Mpps
Layer	Layer 2+ (Routed access)
Management	Web UI, CLI (SSH, Telnet), SNMP, REST API
VLAN Support	802.1Q VLAN, up to 256 VLANs
Dimensions	443 x 200 x 44 mm (1U rackmount)
Weight	2.5 kg
Power Supply	AC 100-240V, 50/60 Hz, internal
Power Consumption	≤ 20W (no PoE), ≤ 170W (max)
Cooling	1 x built-in fan (variable speed)
Operating Temperature	-5°C to 45°C
Safety Certifications	CE, FCC, UL, IC
Warranty	1 year limited warranty

Frequently Asked Questions - EdgeSwitch ES-16-150W Ubiquiti Networks

How to access the EdgeSwitch web interface?

Connect your computer to one of the switch ports. The default IP is 192.168.1.20. Open a browser and enter that IP. Use ubnt as username and ubnt as password.

What is the PoE budget of the ES-16-150W?

The total PoE budget is 150W. Each port can deliver up to 30W (PoE+) at 802.3af/at standards.

Can I stack multiple EdgeSwitch units?

No, the ES-16-150W does not support physical stacking. However, you can manage multiple switches via the EdgeSwitch interface or using UNMS.

How to reset the switch to factory defaults?

Press and hold the Reset button (located on the front panel) for about 10 seconds until the system LED turns off and then flashes. Release the button and wait for the switch to reboot.

Does the switch support VLAN configuration?

Yes, it supports IEEE 802.1Q VLANs with up to 256 VLAN groups and 4096 VLAN IDs. You can configure VLANs via the web UI or CLI.

What is the default username and password?

Default username: ubnt; default password: ubnt. It is strongly recommended to change the password after initial setup.

Can I use the switch without a PoE power injector?

Yes, the switch has a built-in power supply and includes PoE+ ports. You can connect PoE devices directly without external injectors, as long as total power does not exceed 150W.

How many PoE devices can I power?

It depends on the power consumption of each device. With the 150W budget, you could power up to 5 devices at 30W each, or more lower-power devices like IP cameras (typically 5-15W).

Is the switch fanless?

No, it has a built-in fan that adjusts speed based on temperature. The fan is quiet under normal load but may become audible under heavy PoE load.

Can I update the firmware?

Yes, firmware updates are available from the Ubiquiti support website. You can upload the firmware via the web interface under System > Maintenance or via CLI using the fwupdate command.

USER MANUAL EdgeSwitch ES-16-150W Ubiquiti Networks

Three black electronic components: a network switch, a front panel with mounting holes, and a cluster of small circular elements (no text or symbols visible)

EdgeSwitch ES-16-150W Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)

Three black electrical connectors and a separate cable, displayed against white background (no text or symbols)

Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord

Rubber Feet (Qty. 4)

Installation Requirements

• Phillips screwdriver (for rack or wall mounting)
- Standard-sized, 19" wide rack with a minimum of 1U height available (for rack mounting)
- For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
- For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the power supply.

We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable

Note: Although the cabling can be located outdoors, the EdgeSwitch itself should be housed inside a protective enclosure.

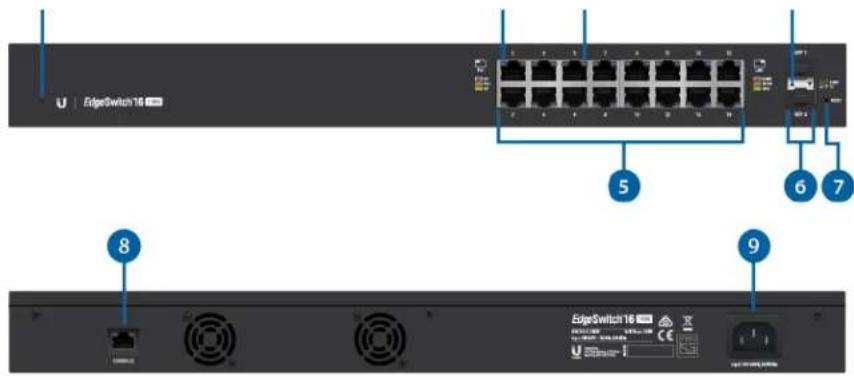

Hardware Overview

ES-16-150W Quick Start Guide

1 System LED
Note: The System LED functionality has been updated with firmware v1.8.0. We recommend that you update the EdgeSwitch to the latest firmware.
Flashing White Bootup in progress.
White	Ready for use, not connected to Ubiquiti® Network Management System (UNMSTM). See "UNMS Management".
Blue Ready for use, connected to UNMS.
Steady Blue with Occasional Flashing	Ready for use, unable to connect to UNMS, check connection to UNMS server.
Quickly Flashing Blue Used to locate a device in UNMS.
Alternating Blue/White	Firmware upgrade in progress.
2 RJ45 PoE LED (Ports 1 - 16)
Off No PoE
Amber IEEE 802.3af/802.3at
Green 24V Passive
3 RJ45 Speed/Link/Activity LED (Ports 1 - 16)
Off No Link
Amber	Link Established at 10/100 MbpsFlashing Indicates Activity
Green	Link Established at 1000 Mbps (1 Gbps)Flashing Indicates Activity
4 SFP Speed/Link/Activity LED (Ports 1 - 2)
Off No Link
Green	Link Established at 1 GbpsFlashing Indicates Activity

ES-16-150W Quick Start Guide

RJ45 ports support 10/100/1000 Ethernet connections.

6 SFP (Ports 1 - 2)

Hot-swappable SFP ports support 1 Gbps connections.

7 Reset Button

Click here to learn how to reset an EdgeSwitch to factory defaults.

8 Console Port

RJ45 serial console port for Command Line Interface (CLI) management.

9 Power Port

Connect the included Power Cord to the Power port.

Hardware Installation

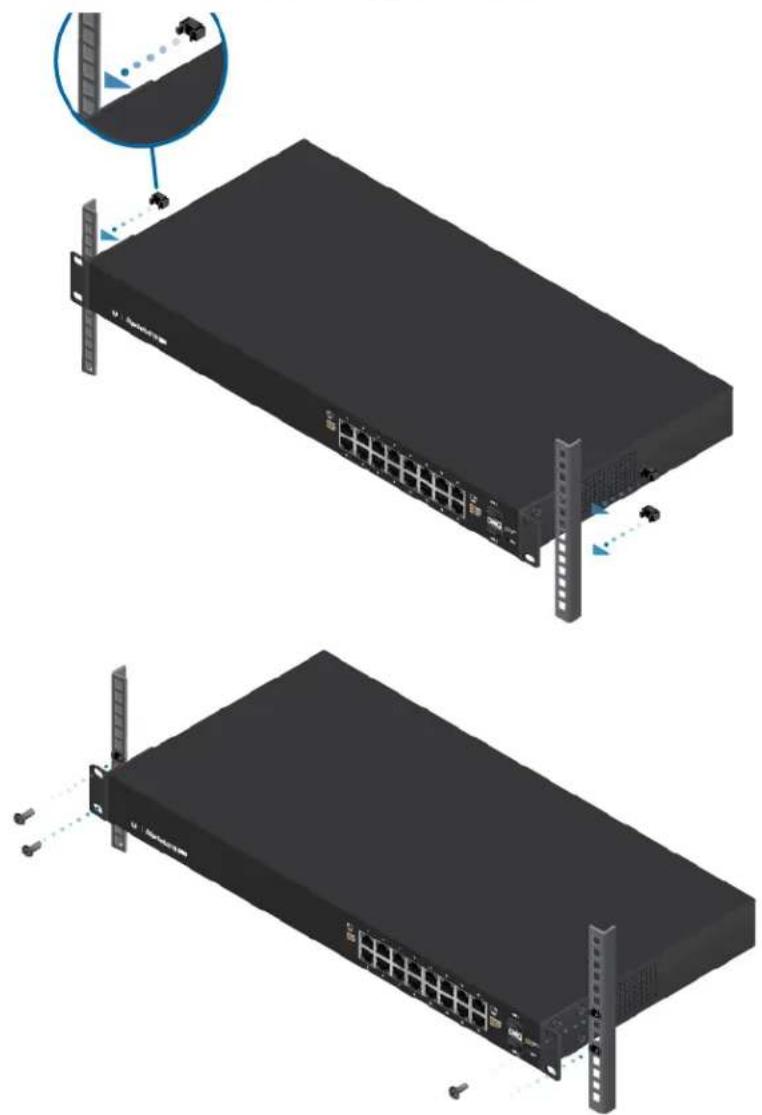

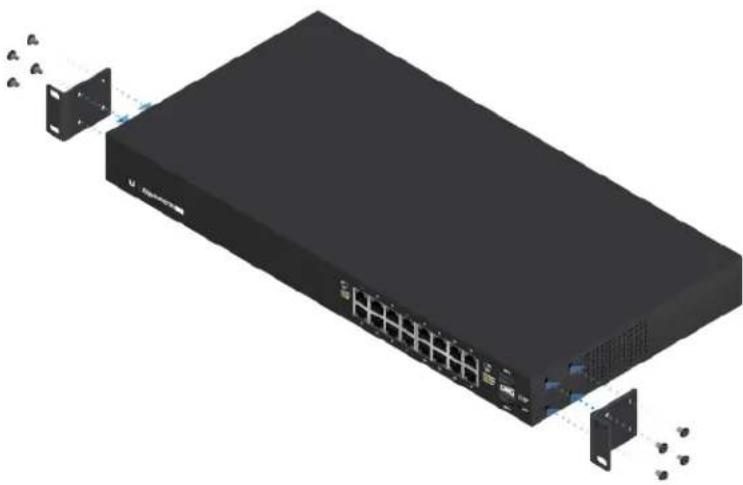

Rack Mounting

1.

3D rendering of a black server rack with multiple Ethernet ports and external connectors (no text or symbols visible)

2.

3D rendering of a black server rack with multiple Ethernet ports and mounting connectors (no text or symbols visible)

OR

ES-16-150W Quick Start Guide

Two views of a black network switch device with ports and connectors, shown from different angles (no text or symbols visible)

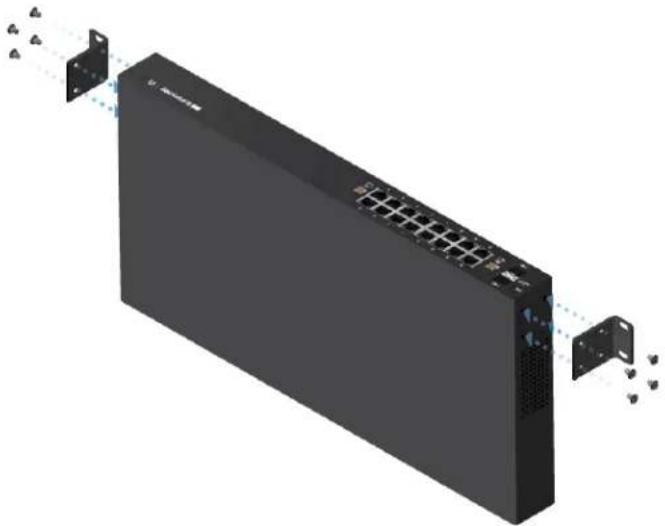

Wall Mounting

1.

3D rendering of a black server rack with ventilation grilles and mounting brackets (no text or symbols visible)

2.

ES-16-150W Quick Start Guide

3D rendering of a black server rack with ventilation grilles and cooling fins, shown with directional arrows indicating flow or movement (no text or symbols)

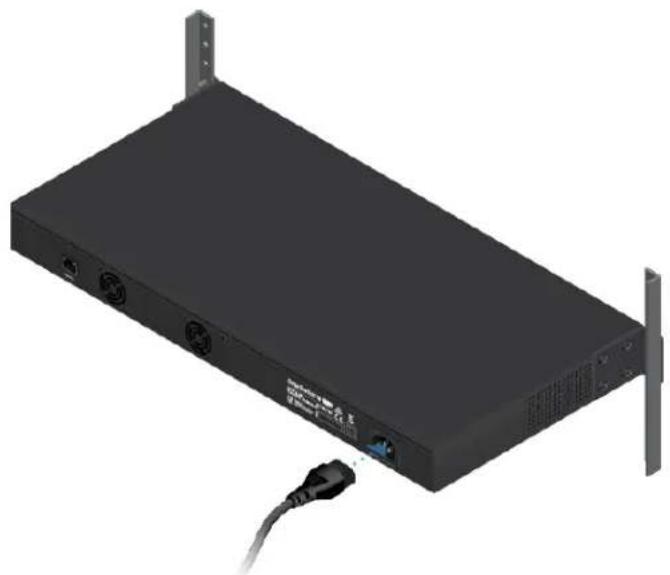

Connecting Power

1.

3D rendering of a black server rack with attached cable and ports, no visible text or symbols

2.

Exterior view of a gray rectangular electronic device with multiple power outlets and a black plug (no text or symbols visible)

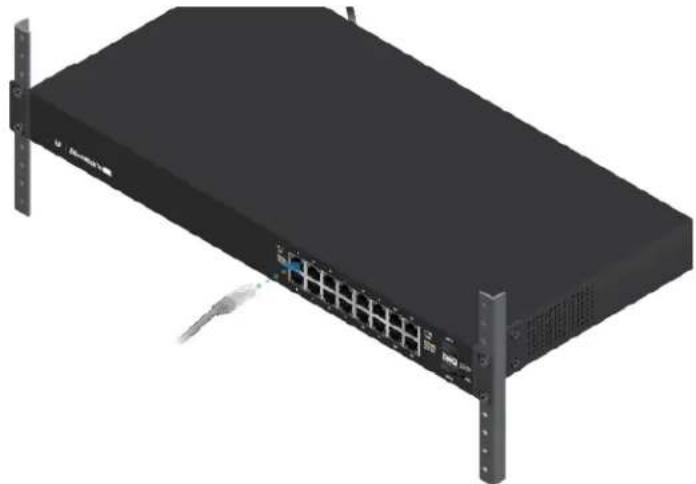

Connecting Ethernet

ES-16-150W Quick Start Guide

3D rendering of a black server rack with multiple Ethernet ports and ventilation slots (no visible text or labels)

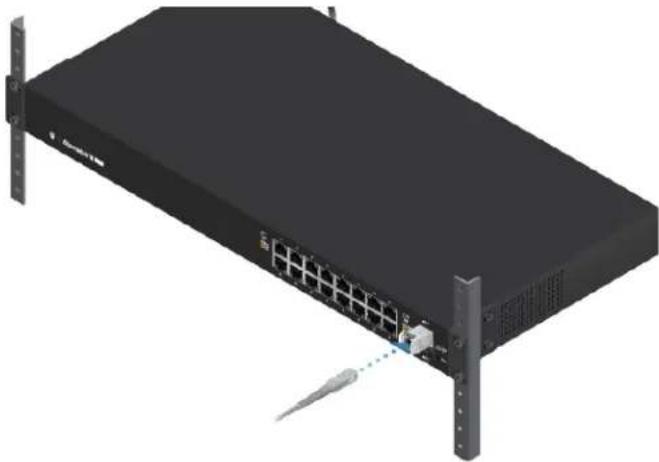

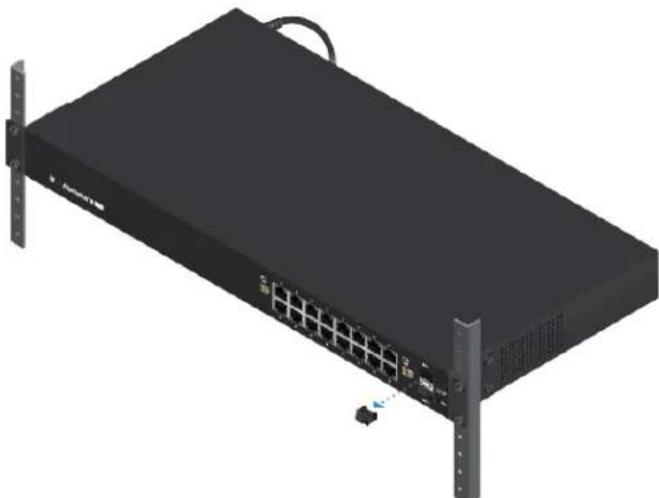

Connecting SFP

1.

3D rendering of a black server rack with multiple Ethernet ports and a terminal panel (no visible text or labels)

2.

3D rendering of a black server rack with multiple Ethernet ports and a cable outlet (no visible text or labels)

3.

ES-16-150W Quick Start Guide

3D rendering of a black server rack with multiple Ethernet ports and a screwdriver inserted (no text or symbols visible)

For information about compatible fiber SFP modules, visit: ubnt.link/SFP_DAC_Compatibility

Accessing the Configuration Interface

By default, the EdgeSwitch will try to get its IP address automatically using DHCP. If that fails, then it will use the default fallback IP address, 192.168.1.2. Proceed to the appropriate section, DHCP or "Fallback IP Address":

DHCP

Use one of the following methods:

• Set up the DHCP server to provide a specific IP address to the EdgeSwitch based on its MAC address (on the label).
• Let the EdgeSwitch obtain an IP address and then check the DHCP server to see which IP address was assigned.

To log in, follow these steps:

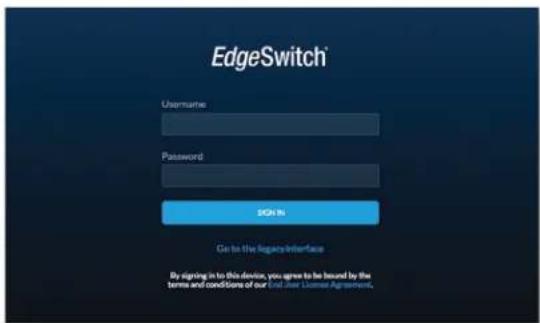

1. Launch your web browser. Type the appropriate IP address in the address field. Press enter (PC) or return (Mac).
2. Enter ubnt in the Username and Password fields. Click Sign In.

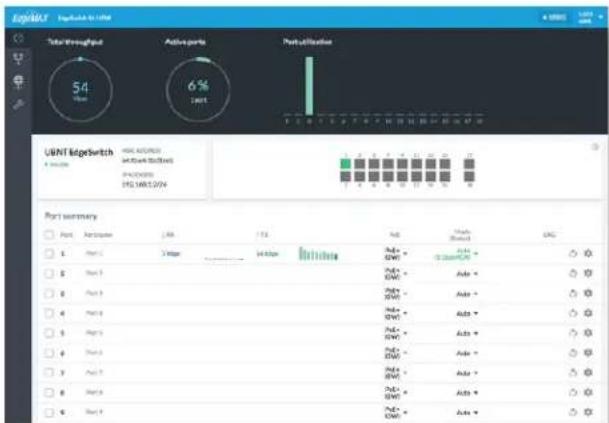

1. The EdgeSwitch Configuration Interface will appear. Customize additional settings as needed.

ES-16-150W Quick Start Guide

For more information, refer to the EdgeSwitch documentation, which is available at ui.com/download/edgemax

Fallback IP Address

1. Ensure that your computer (or other host machine) is connected to the EdgeSwitch.
2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
3. Launch your web browser. Type the appropriate IP address in the address field (192.168.1.2 is the default fallback IP address). Press enter (PC) or return (Mac).

1. Enter ubnt in the Username and Password fields. Click Sign In.

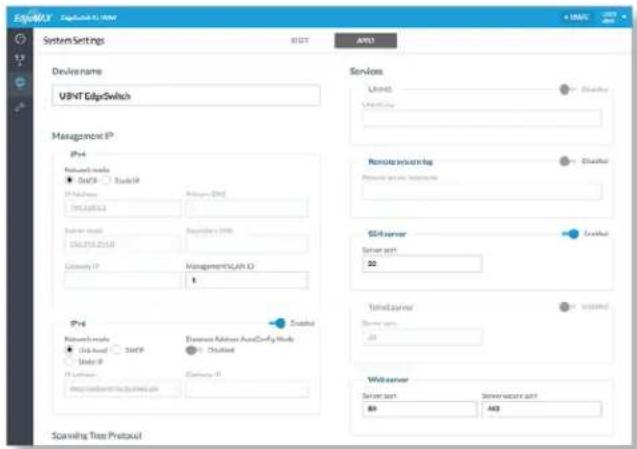

1. The EdgeSwitch Configuration Interface will appear. Go to Settings

ES-16-150W Quick Start Guide

Note: If you change the IP settings, then the session will be cut off, and you will need to reconnect to the EdgeSwitch using the new IP address.

Customize additional settings as needed. For more information, refer to the EdgeSwitch documentation, which is available at: ui.com/download/edgemax

UNMS Management

You can also manage your device using UNMS, which lets you configure, monitor, upgrade, and back up your devices using a single application. Get started at www.unms.com

Specifications

ES-16-150W
Dimensions 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight 2.80 kg (6.17 lb)With Mount Brackets 2.89 kg (6.37 lb)
Total Non-Blocking Line Rate 18 Gbps
Max. Power Consumption 150W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W DC
Shock and Vibration ETSI300-019-1.4 Standard
LEDs Per PortRJ45 Data Ports PoE, Speed/Link/ActivitySFP Data Ports Speed/Link/Activity
Networking Interfaces (16) 10/100/1000 Mbps RJ45 Ports(2) 1 Gbps SFP Ports
Management Interface (1) RJ45 Serial Port,Ethernet In/Out Band
PoE Interfaces PoE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)24VDC Passive PoE (pins 4, 5+; 7, 8-)
Voltage Range802.3at Mode 50-57V24V Passive PoE	20-27V
Max. Wattage per PortPoE+Passive PoE	34.2W17W
Rack-Mount	Yes, 1U High

ES-16-150W Quick Start Guide

Operating Temperature -5 to 40°C (23 to 104°F)

Operating Humidity 5 to 95% Noncondensing

Certifications CE, FCC, IC

Safety Notices

1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.

WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow.

WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

WARNING: Do not use this product in location that can be submerged by water.

WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer's label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet.
   a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
   b. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.
   c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment.
   d. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.
   e. Protective bonding must be installed in accordance with local national wiring rules and regulations.

Limited Warranty

ui.com/support/warranty

The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.

Compliance

FCC

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

ES-16-150W Quick Start Guide

against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

ISED Canada

CAN ICES-3(A)/NMB-3(A)

Australia and New Zealand

Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

CE Marking

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

WEEE Compliance Statement

Declaration of Conformity

Online Resources

© 2021 Ubiquiti Inc. All rights reserved.
