Product Type	PoE Switch
Model	LS105LP
Brand	TP-Link
Ports	5 10/100Mbps RJ45 ports (4 PoE ports + 1 uplink)
PoE Standard	IEEE 802.3af (up to 15.4W per port)
PoE Power Budget	Up to 61.6W (4 ports × 15.4W)
Extend Mode	Yes, up to 250 m at 10 Mbps
QoS	802.1p/DSCP priority queuing
Switching Capacity	1.0 Gbps
MAC Address Table	2K entries
Power Supply	External power adapter, input 100-240V AC 50/60Hz
Dimensions (W×D×H)	100 × 70 × 25 mm (3.94 × 2.76 × 0.98 in)
Weight	0.2 kg (0.44 lbs)
Installation	Plug and play, no configuration required
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% non-condensing
Special Features	PoE Auto Recovery, Extend Mode, Auto MDI/MDIX
Package Contents	LS105LP, power adapter, user manual

Frequently Asked Questions - LS105LP TP-LINK

How many PoE ports does the TP-Link LS105LP have?

The LS105LP has 4 PoE ports (ports 1-4) and 1 uplink port (port 5). All ports are 10/100Mbps.

What is the PoE power budget of the LS105LP?

Each PoE port can deliver up to 15.4W (802.3af). The total PoE power budget is 61.6W when all four ports are used.

Does the LS105LP support 802.3at (PoE+)?

No, the LS105LP only supports IEEE 802.3af (PoE). For 802.3at support, consider other models like LS108GP.

How do I enable Extend Mode on the LS105LP?

Extend Mode is typically enabled via a physical switch on the device or through the web interface. It extends the data and power transmission distance to 250 m at 10 Mbps.

What is the maximum cable distance for normal operation?

Standard operation supports 100 m (328 ft) over Cat5e or better cable. With Extend Mode enabled, distance can reach up to 250 m.

Does the LS105LP require configuration?

No, the LS105LP is a plug-and-play switch. It automatically detects and powers PoE devices without any manual configuration.

Can I connect a non-PoE device to a PoE port?

Yes, the switch automatically detects if the connected device is PoE-compliant. Non-PoE devices will receive only data, not power, and are safe to connect.

What is the switching capacity of the LS105LP?

The switching capacity is 1.0 Gbps, which is sufficient for 5 ports of 10/100Mbps full-duplex.

How do I reset the LS105LP to factory defaults?

If the switch has a reset button, press and hold it for about 10 seconds while the device is powered on. Release when the LEDs flash.

Does the LS105LP support VLAN or Isolation Mode?

No, the LS105LP does not support VLAN or Isolation Mode. These features are available on models like LS109P and LS1210GP.

USER MANUAL LS105LP TP-LINK

LS106LP/LS108GP LS109P/LS1210GP

Overview

The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Highlights

• With multiple PoE ports, transfer data and power on one single cable
• Working with IEEE 802.3af /at compliant PDs, expand your network*
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Up to 250 m data and power transmission under Extend Mode** specially designed for surveillance system
• Isolation Mode (for LS109P&LS1210GP only) allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and play, no configuration and installation required

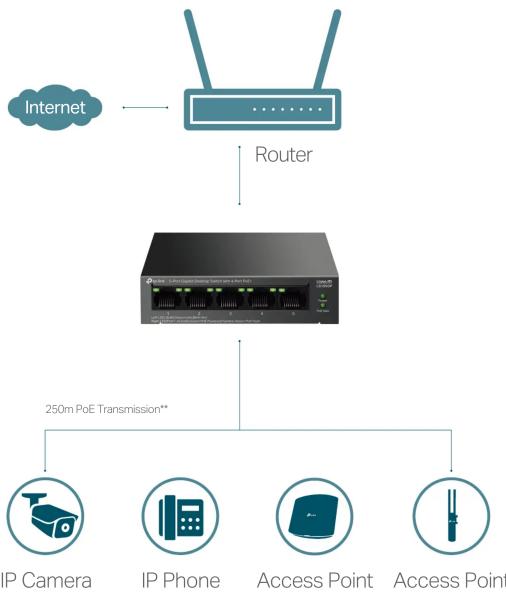

Network Diagram

Note: LS105GP is used for demonstration


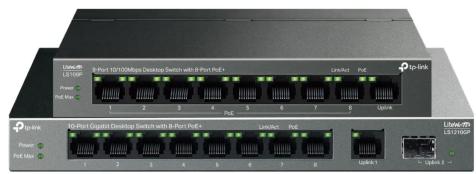

Product Pictures
Model LS105LP LS106LP LS109P LS105GP LS108GP LS1210GP
Standards IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3af				IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE 802.1p			IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.3z
Interface		5 10/100 Mbps RJ45 Ports	6 10/100 Mbps RJ45 Ports	9 10/100 Mbps RJ45 Ports	5 10/100/1000 Mbps RJ45 Ports	8 10/100/1000 Mbps RJ45 Ports	9 10/100/1000 Mbps RJ45 Ports 1 1000 Mbps SFP port
Network Media (Cable)		10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)			10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5e cable or above (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)
PoE	PoE Standard	PoE Standard: IEEE 802.3af		IEEE 802.3af, IEEE 802.3at
	PoE Port	Port 1-4, up to 15.4 W per port		Port 1-8, up to 30 W per port	Port 1-4, up to 30 W per port	Port 1-8, up to 30 W per port
	PoE Power Budget	41 W***		63 W***	65 W***	62 W***	61W***
Auto Negotiation		Yes
Auto MDI/MDIX		Yes
Max Power Consumption		2.40 W (220 V/50 Hz no PD connected)46.45 W (220 V/50 Hz with 41 W PD connected)	2.53 W (220 V/50 Hz no PD connected)47.76 W (220 V/50 Hz with 41 W PD connected)	3.67 W (220 V/50 Hz no PD connected)73.24 W (220 V/50 Hz with 63 W PD connected)	4 W (220 V/50 Hz no PD connected)74.46 W (220 V/50 Hz with 65 W PD connected)	5.53 W (220 V/50 Hz no PD connected)71.61 W (220 V/50 Hz with 62W PD connected)	7.3 W (220 V/50 Hz no PD connected)76.96 W (220 V/50 Hz with 61 W PD connected)
Max Heat Dissipation		8.15 BTUh (220 V/50 Hz no PD connected)157.93 BTUh (220 V/50 Hz with 41 W PD connected)	8.61 BTUh (220 V/50 Hz no PD connected)162.38 BTUh (220 V/50 Hz with 41 W PD connected)	12.48 BTUh (220 V/50 Hz no PD connected)249 BTUh (220 V/50 Hz with 63 W PD connected)	13.6 BTUh (220 V/50 Hz no PD connected)253.16 BTUh (220 V/50 Hz with 65 W PD connected)	18.81 BTUh (220 V/50 Hz no PD connected)243.47 BTUh (220 V/50 Hz with 62W PD connected)	24.82 BTUh (220 V/50 Hz no PD connected)261.66 BTUh (220 V/50 Hz with 61 W PD connected)
Forwarding Mode		Store and Forward
Switch Capacity		1 Gbps	1.2 Gbps	1.8 Gbps	10 Gbps	16 Gbps	20 Gbps
MAC Address Table		2k, Auto-learning, Auto-aging				4k, Auto-learning, Auto-aging
Extend Mode		YES (Ports 1-4)		YES (Ports 1-4/Ports 1-8)	YES (Ports 1-2)		YES (Ports 1-4)
Isolation Mode		No		YES (Ports 1-8)	No		YES (Ports 1-8)
PoE Auto Recovery		YES (Ports 1-4)	YES (Ports 1-4)	YES (Ports 1-8)	YES (Ports 1-4)	YES (Ports 1-8)
Flow Conrol		Yes
Fan Quantity		0
LED		Power, Link/Act, PoE Status, PoE MAX
Dimensions		3.9*3.9*1.0 in.(99.8 x 98 x 25 mm)	6.2*4.0*1.0 in.(158 x 101 x 25 mm)	6.7x3.9x1.1 in.(171 x 98 x 27 mm)	3.9*3.9*1.0 in.(99.8 x 98 x 25 mm)	6.2*3.9*1.0 in.(158 x 99 x 25 mm)	8.2*4.9*1.0 in.(209 x 126 x 26 mm)
Certifications		CE, FCC, RoHS

Note:
* LS105LP and LS106LP only support IEEE 802.3af, and provide PoE Power up to 15.4W for each PoE port; other switches support IEEE 802.3af/at, and provide PoE Power up to 30W for each PoE port.
** The speed of the ports which are under extend mode will be downgraded to 10Mbps. Actual transmission distance may vary from the quality of the cables.
*** PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
