ORYX GamePad - Controller Niceboy - Free user manual and instructions

Product Type	Wireless Gamepad
Model	ORYX GamePad
Brand	Niceboy
Dimensions (approx.)	150 x 100 x 60 mm (5.9 x 3.9 x 2.4 in)
Weight (approx.)	200 g (7.1 oz)
Power Source	Built-in rechargeable lithium battery, 800 mAh
Charging Port	USB Type-C
Connectivity	Bluetooth 5.0
Compatibility	Windows, Android, iOS
Controls	Dual analog sticks, D-pad, A/B/X/Y buttons, bumpers, triggers, Start/Select
Vibration Feedback	Dual vibration motors
Additional Features	Motion sensor, programmable buttons, LED indicators
Cleaning and Maintenance	Wipe with a soft dry cloth. Do not use liquids or solvents.
Safety Precautions	Keep away from moisture and extreme temperatures. Do not disassemble.
Spare Parts Availability	Not available; device is not user-serviceable.
Repairability	Not designed for repair; replace if defective.
Warranty	24 months (subject to local regulations)
General Information	Designed for gaming on multiple platforms. Instructions included.

Frequently Asked Questions - ORYX GamePad Niceboy

How do I connect the ORYX GamePad to my PC?

Turn on the controller by pressing the Home button. Put it in pairing mode by holding the Pair button (usually located on top) until the LED blinks. On your PC, go to Bluetooth settings, search for devices, and select ORYX GamePad.

How do I charge the controller?

Use the included USB-C cable to connect the controller to a USB power source (e.g., computer or charger). The LED will indicate charging status. Full charge takes about 2-3 hours.

Can I use the controller with my smartphone?

Yes, the ORYX GamePad is compatible with Android and iOS devices via Bluetooth. Ensure your phone's OS supports game controllers.

How do I pair the controller with my Android device?

Enable Bluetooth on your Android device. Put the controller in pairing mode (press and hold the Pair button). Select ORYX GamePad from the list of available devices.

What is the battery life of the ORYX GamePad?

The built-in battery provides approximately 8-10 hours of continuous gameplay on a full charge, depending on usage.

How do I reset the controller?

If the controller becomes unresponsive, press the reset button (small pinhole) with a paperclip for 3 seconds. This will restore factory settings.

Does the controller support vibration?

Yes, the ORYX GamePad features dual vibration motors for immersive haptic feedback. Vibration can be adjusted or turned off in compatible games.

Can I use the controller while charging?

Yes, the controller can be used in wired mode while connected via USB. This also allows for lag-free gaming.

Is the controller compatible with Nintendo Switch?

The ORYX GamePad is primarily designed for PC, Android, and iOS. It may not be natively compatible with Nintendo Switch without additional adapters.

How do I clean the controller?

Wipe the surface with a soft, dry cloth. Do not use alcohol, solvents, or abrasive cleaners. Avoid getting moisture into the openings.

USER MANUAL ORYX GamePad Niceboy

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

PC with a free USB port

Windows, PS3, Android, iOS

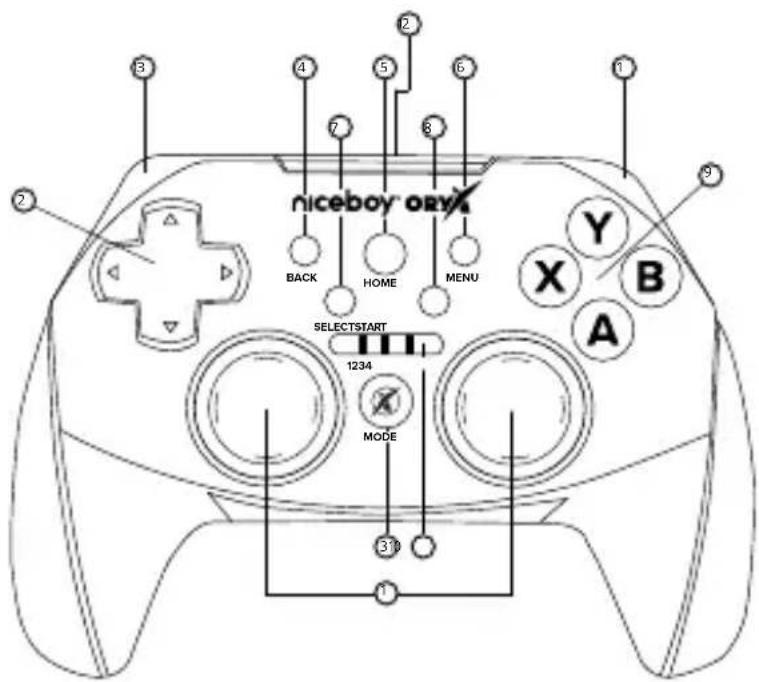

LAYOUT OVERVIEW

1. Analog stick
2. D-pad
3. Change mode button
4. Return button
5. Home button
6. Menu button
7. Select button
8. Start button
9. Action buttons
10. LED mode indicators
11. RB/RT button
12. Micro USB port
13. LB/LT button

CONTROLLER MODES

Android connection

With the controller switched off, hold the „A“ button along with the „MODE“ buttons until the LED indicators flash rapidly after a period of blinking slowly. In the Bluetooth settings of your phone, connect the controller to your device. When properly connected, the first LED on the controller should remain lit. Download „Shootingplus V3“ to map buttons for different games.

iOS connection

With the controller off, first press the „B“ button and then the „MODE“ button until the LED indicators switch from slow to fast flashes. You can release the buttons now; in the Bluetooth settings of your phone, connect the controller to your device. When properly connected, the fourth LED on the controller should remain lit.

PC connection via cable

Connect the switched off controller to the PC via USB. The controller will connect automatically and the first LED will light up.

PC wireless connection (dongle)

D-input - regular connection

Connect the 2.4Ghz USB Dongle to your PC. With the controller off, press the LB + MODE buttons for 3 seconds. Release the buttons; after 5 seconds, the controller should connect to the PC. When properly connected, the first and second LED should remain lit.

X-input - for Xbox mode

Press SELECT + Start buttons to switch between D-input and X-input mode

TV/Multimedia connection

Connect the 2.4Ghz USB Dongle to your device.

With the controller switched off, first click the „SELECT“ button and then the „MODE“ button.

Release the buttons; after 5 seconds, the controller should connect to the device. When properly connected, the second LED should remain lit.

PRODUCT SPECIFICATIONS

Voltage: DC 5V ±5G, current: ≤ 200mA

Dimensions: 155 x 105 x 62mm

Weight: 250 g

Number of buttons: 17

Connection: USB 2.0

OS requirements: Windows/IOS/Android/PS3/Android TV

Wireless connection range: up to 8 meters

Battery capacity: 400 mAh

Battery life: up to 10 hours

Battery fully charged in: 2 hours

COMPATIBILITY ISSUES?

If you have an older Windows operating system, you can use the Niceboy ORYX Gamepad driver software to install drivers (regarding the gamepad compatibility with PC), which can be downloaded from https://niceboy.cz/podpora/software. Certain games might not support the use of a controller. Certain games might support only a specific version of a controller.

ADDITIONAL INFORMATION

Avoid using the controller on places exposed to too low or high temperature (0 °C and more/45 °C and more) or humidity (20 % and less/ 90 % and more). Avoid storing the controller on places exposed to too low or high temperature (-20 °C and more/ 60 °C and more) or humidity (90 % and more). Keep the product away from rain, moisture, or liquids

RTB Media s.r.o. hereby declares that the type of radio equipment Niceboy ORYX GamePad complies with Directives 2014/53 / EU, 2014/30 / EU, 2014/35 / EU, and 2011/65 / EU. The full content of EU Declaration of Conformity is available on the following websites:

https://niceboy.eu/cs/podpora/prohlaseni-o-shode-mM38CtmYvX693IHwvu4CWpk3vjGrvnC

USER INFORMATION FOR DISPOSING ELECTRICAL AND ELECTRONIC DEVICES (HOME USE)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This symbol located on a product or in the product's original documentation means that the used electrical or electronic products may not be disposed together with the communal waste. In order to dispose of these products correctly, take them to a designated collection site, where they will be accepted for free. By disposing of a product in this way, you are helping to protect precious natural resources and helping to prevent any potential negative impacts on the environment and human health, which could be the result of incorrect waste disposal. You may receive more detailed information from your local authority or nearest collection site. According to national regulations, fines may also be given out to anyone who disposes of this type of waste incorrectly. User information for disposing electrical and electronic devices.

(Business and corporate use)

In order to correctly dispose of electrical and electronic devices for business and corporate use, refer to the product's manufacturer or importer. They will provide you with information regarding all disposal methods and, according to the date stated on the electrical or electronic device on the market, they will tell you who is responsible for financing the disposal of this electrical or electronic device. Information regarding disposal processes in other countries outside the EU. The symbol displayed above is only valid for countries within the European Union. For the correct disposal of electrical and electronic devices, request the relevant information from your local authorities or the device seller.

DE

LIEFERUMFANG

Controller Niceboy ORYX GamePad

USB Datenkabel

2.4 GHz USB Dongle

Telefonhalterung

SYSTEMANFORDERUNGEN

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Simple line drawing of a trash bin with no text or symbols

Simbol naveden na proizvodu ili u popratnoj dokumentaciji znači da je zabranje-no odlagati električne ili elektroničke proizvode zajedno s komunalnim otpadom. Pobrinite se za pravilnu likvidaciju otpada: dotrajali proizvod predajte besplatno u ovlašteni centar za skupljanje otpada. Propisnom likvidacijom dotrajalog proizvo-da ćete doprinijeti očuvanju skupocjenih prirodnih izvora te prevenciji negativnih utjecaja na okoliš i ljudsko zdravlje zbog nepravilne likvidacije otpada. Za više informacija obratite se nadležnom lokalnom uredu ili mjestu zbrinjavanja. Nepravilno zbrinjavanje ove vrste otpada kažnjava se sukladno nacionalnim propisima. Informacije za korisnika o načinu zbrinjavanja električnih i elektronskih uređaja

(Poslovna uporaba)

Vezano za pravilno zbrinjavanje dotrajale električne/elektronske opreme za poslovnu upotrebu i upotrebu u tvorničkim pogonima obratite se proizvođaču ili uvozniku ovog proizvoda. Pro- izvođač će Vam pružiti informacije o načinu zbrinjavanja proizvoda i obavijestit će vas o tome tko je dužan osigurati zbrinjavanje ovog električnog uređaja ovisno o datumu uvođenja pro- izvoda na tržište. Informacije o zbrinjavanju dotrajalog proizvoda u ostalim zemljama (izvan EU). Gore navedeni simbol važi samo u Europskoj uniji. Za više informacija o pravilnom zbrinjavanju električnih i elektronskih uređaja se obratite prodavatelju ili dobavljaču.

PL

ZAWARTOŚĆ OPAKOWANIA

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)
