RoboStar iQ700 - Vacuum Cleaner TESLA - Free user manual and instructions

Product Type	Robot Vacuum Cleaner with Mopping
Brand	TESLA
Model	RoboStar iQ700
Navigation	Laser Navigation (LDS)
Cleaning Modes	Auto, Spot, Scheduled
Mopping Function	Yes, with microfibre mop & water tank
Dust Tank Capacity	~300 ml
Water Tank Capacity	~200 ml
Battery Type	Rechargeable Li-Ion
Charging Time	~4-5 hours
Runtime	~120 minutes (estimated)
Filtration	Primary filter + HEPA filter
HEPA Filter Life	Replace every 6 months
Connectivity	Wi-Fi 2.4 GHz (802.11 b/g/n), Bluetooth
App Control	Smart Life app (Android & iOS)
Sensors	Anti-fall, cliff, front bumper, laser distance
Dimensions (L x W x H)	~320 x 320 x 80 mm
Weight	~3 kg
Power Adapter Input	100-240V AC
Recommended Room Temperature	0°C to 40°C
Floor Types	Hard floors, low-pile carpets
Warranty	2 years (standard)

Frequently Asked Questions - RoboStar iQ700 TESLA

How do I connect the robot to the Smart Life app?

Ensure your phone has Bluetooth and Wi-Fi enabled. Install the Smart Life app, create an account, and log in. Turn on the robot with the main switch (button 3). In the app, tap '+' and select 'Vacuum cleaner (Wi-Fi)' under 'Small Home Appliances'. Enter your Wi-Fi password (2.4 GHz only). Press and hold button 4 on the robot for 5 seconds until the buttons flash. Follow the in-app instructions to complete pairing in AP mode.

How do I set up scheduled cleaning?

Open the Smart Life app and go to the robot's control page. Tap 'Settings' and find 'Schedule' or 'Scheduled Cleaning'. Set the desired time and days. The robot must remain in the charging station with sufficient battery and connected to Wi-Fi for the schedule to work.

How do I use the mopping function?

Ensure the robot is off and outside the charging station. Remove the dust/water tank, open the cap, and fill the water tank with clean water (or non-foaming floor cleaner). Attach the microfibre mop cloth to the holder and reinsert the tank. In the app, select a mopping mode and adjust water level (3 levels). Do not charge with water in the tank.

How do I clean the HEPA filter?

Remove the dust/water tank and take out the HEPA filter. Rinse it under clean running water only – do not use brushes or cleaning agents. Let it air dry completely (avoid direct sunlight) before reinstalling. Clean the filter weekly and replace every 6 months.

Why is my robot not returning to the charging station?

Check that the charging station is properly connected to power and has at least 1.5 m clearance in front and 0.5 m on sides. Ensure the robot's charging contacts are clean. The station should not be near mirrors or reflective surfaces. If the robot is on a different floor, it may not find its way back.

How often should I replace the HEPA filter?

The HEPA filter should be replaced every 6 months for optimal performance. Clean it weekly by rinsing with water. Using a dirty or clogged filter can reduce suction and may damage the robot.

What should I do if the robot gets stuck?

Press the '3' button to pause or '4' to return to base. Remove any obstructions such as cables, loose rugs, or small objects. Ensure the cliff sensors are clean. If the robot is stuck on a threshold, consider using a ramp or adjusting the room layout.

Can I use the robot on carpets?

Yes, the RoboStar iQ700 can clean low-pile carpets. Avoid high-pile or shag carpets as they may cause the robot to get stuck. For carpets, do not use the mopping function. The robot will automatically adjust suction when transitioning from hard floors to carpets.

Why is my robot not connecting to Wi-Fi?

Ensure your Wi-Fi network is 2.4 GHz with WPA1 or WPA2 security. Place the robot near the router during setup. Disable VPNs or firewalls on your phone. Enable location (GPS) and nearby devices permissions for the app. If still failing, restart the router and the robot, then try pairing again.

How do I reset the robot?

To reset the robot vacuum cleaner, press and hold the button 6 (resetting) for 5 seconds. Alternatively, you can turn off the main switch (button 3) and wait 30 seconds before turning it back on. This will clear temporary errors and restore factory settings.

USER MANUAL RoboStar iQ700 TESLA

1 Primární filtr

2 HEPA filtr

3 Otvor na vodu

ANDROID

iOS

Line drawings of a robotic vacuum cleaner with open lid, showing internal components and assembly (no text or symbols)

Illustration of a car interior with water spray and cleaning steps (no text or symbols)

Three technical line drawings showing mechanical assembly: a circular device with internal components, a handheld tool with rotating arm, and a hand holding a tool (no text or symbols present)

thank you for choosing the TESLA RoboStar iQ700.

Before using the robot vacuum cleaner, please read the safe use policy thoroughly and follow all normal safety rules.

IMPORTANT SAFETY NOTICES

This is a complex electromechanical device, please pay attention to the following instructions:

• The device is intended for indoor use only at room temperature (max. 40°C).
• Before use, make sure the dirt tray and filter are installed correctly.
- Use only original accessories that are designed for this model.
- Use only the charging station supplied with this device to recharge the battery.
- Do not touch parts that are connected to the mains if your hands are wet.
- Do not leave the device unattended in the presence of children, do not use it where a small child is sleeping.
- Do not open or repair the device, as this will expose you to the risk of electric shock and loss of warranty.
- Keep the equipment away from flammable and volatile substances.
- Do not use the device in excessively hot, dusty or humid environments.
- Avoid radiant heat on the plastic surface of the appliance.
- Do not use the device near objects with water that could damage it.
- Do not immerse the device even partially in water and do not clean it with water, it is not waterproof.
- Do not use the device on wet floors.
- Do not suck liquids, burning cigarettes, matches, flammable substances, shards, sharp objects, flour, cement, plaster, nails, loose materials, large pieces of paper, plastic bags or other objects that may damage the equipment.
- The device is not intended for use in elevated locations without barriers - built-in floor, staircase, balcony, furniture, etc. The device is equipped with anti-fall sensors, but there may be circumstances when the control system misjudges the situation (dirty sensor, current sensor malfunction, light glare, dirt trapped, etc.) and does not prevent (stop) the fall. In such cases, the seller cannot accept any claims by the buyer for damage to the equipment caused in this way.
- The manufacturer and importer in the European Union is not liable for damages caused by the operation of the equipment, such as injury, scalding, fire, injury, damage to other items, etc.

PACKAGING CONTENT

Please check carefully that you have unpacked all the supplied accessories, we recommend that you keep the original carton, user manual and packing material during the warranty period.

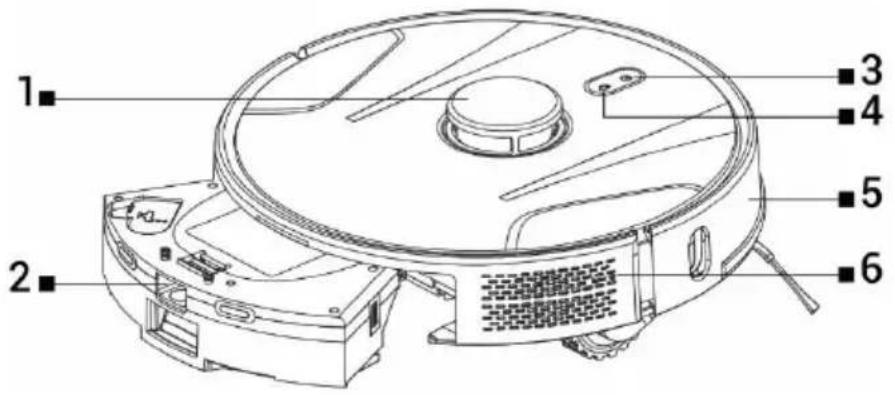

DESCRIPTION

1 Laser signal transmitter

2 Dust and water tank

3 Start/Stop

4 Return to the charging station

5 Front bumper

6 Resetting the vacuum cleaner

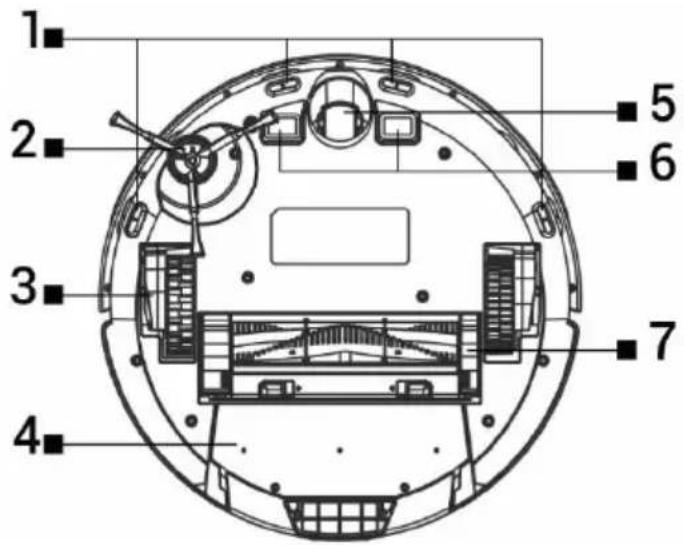

1 Sensors

2 Side brush

3 Wheel (2x)

4 Dust/water tank

5 Front wheel

6 Charging contacts

7 Central cleaning brush

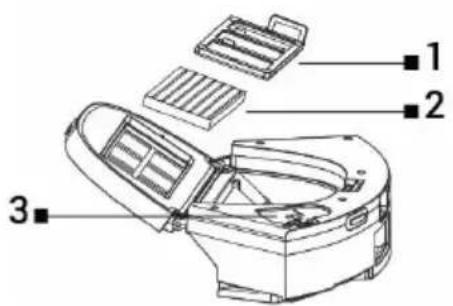

DUST/WATER TANK

1 Primary filter

2 HEPA filter

3 Water hole

4 Release buttons

5 Microfibre mop

BEFORE THE FIRST CLEANING

• Put on the side cleaning brush.
• Remove the two foam stops located on the side of the robotic vacuum cleaner bumper.
• Charge the robot vacuum cleaner battery.
• Before cleaning, prepare the room so that there are no objects left on the floor that may interfere with the operation of the robot vacuum cleaner (large papers, cables, stickers, small objects, improperly placed carpet, etc.). Move chairs and other large objects away so that the robot vacuum cleaner can easily reach inaccessible areas. Also remove objects that may damage the robot vacuum during operation.
• Direct sunlight can cause reduced sensitivity of the robot vacuum cleaner's infrared sensors, please avoid direct sunlight.
• Black furniture may not be properly detected due to the physical nature of infrared sensors. Therefore, a slight impact may occur which will be attenuated by the front bumper.

BATTERY CHARGING

There must be no obstructions in front of the charging station within 1.5 metres or 0.5 metres to the sides. No mirrors or other objects with a strong reflection can be placed in the area of the charging station 15 cm above the ground. The charging station should not be exposed to direct sunlight. Make sure that the charging station is within range of a good and strong Wi-Fi signal so that it can connect to a Wi-Fi network while charging.

• Plug the charging station into an electrical socket.
• Place the robotic vacuum cleaner in the charging station so that the charging connectors lightly touch the contacts on the charging station. The robot vacuum's battery will automatically begin charging and the illuminated edge of the "3" and "4" buttons on the top panel of the robot vacuum will slowly flash blue. When the battery is fully charged, it will glow permanently blue.

APP - CONTROL THE ROBOTIC VACUUM CLEANER WITH YOUR PHONE

• Turn on Bluetooth on your phone.
• Install the robotic vacuum cleaner control app on your smartphone and follow the guide to connect your smartphone and the robotic vacuum cleaner.

ANDROID

search Google Play for "Smart Life"

APPLE

Search the Apple Store for "Smart Life"

- Create your account in the "Smart Life" app and log in.

- Enable all the permissions that the application requires:

ANDROID - enable the "Location" and "Nearby Devices" permissions.

APPLE - enable the "Location", "Bluetooth" and "Local network" permissions.

• Switch on the robot vacuum cleaner using the main switch "3".
• After logging into the "Smart Life" app, click on the "+" icon on the top right and then click on "Add Device".
• Select your "Vacuum cleaner (Wi-Fi)" device in "Small Home Appliances".
• Enter the password for your Wi-Fi network to which you are connected and hold the "4" button on the robot vacuum cleaner for 5 seconds.
• The illuminated edge of the buttons on the robot vacuum cleaner will flash, click "Next" and "Reset the device" will appear on the display. Click "Next" (only applies to Android version, on iOS click "Confirmation light flashes"), the connection method will be displayed, click "AP Mode" and then click "Connect".
• Switch to the Wi-Fi network settings and click on the Wi-Fi network "SmartLife", after connecting to this Wi-Fi network, return to the app with the "Back" button and the robot vacuum cleaner will start connecting to the app.
• After successful pairing, a green icon will appear next to the name and your "TESLA RoboStar iQ700" robot vacuum cleaner has been successfully added to the app.
• Click on "Done", it is now possible to control the selected functions of the robot vacuum cleaner with your smartphone.

With the software-intensive nature of the operating system and Google/Apple's requirements for application security, it is necessary to periodically adjust application functionality. Also keep your phone's operating system updated to the latest version. The app requires Android 10 or higher, otherwise its functionality cannot be guaranteed. The app is constantly evolving and features may be changed, added or removed at any time.

APPLICATION TROUBLESHOOTING

• Make sure the Wi-Fi coverage for your smartphone and robot vacuum cleaner is good and strong enough. The first time you set up your robot vacuum cleaner, do so near your Wi-Fi router.
  • Make sure "Location" (GPS) is enabled on your smartphone.
• Make sure the third-party app (VPN, antivirus, firewall, etc.) is not blocking access to your smartphone.
• Try connecting to a different Wi-Fi router or Wi-Fi hotspot on a different smartphone to rule out an error on your internet connection.
• You have too many devices connected to your Wi-Fi router, or a new device is blocked from connecting to it.
• Reset your Wi-Fi router.

Note: Make sure the charging station is within range of a good, strong Wi-Fi signal so it can connect to a Wi-Fi network while charging. The robotic vacuum cleaner also needs this Wi-Fi connection while it is charging so that it is properly oriented and available to start cleaning. A Wi-Fi network operating at 2.4 GHz and WPA1 or WPA2 security is supported.

FIRST USE

During the first cleaning, the TESLA robotic vacuum cleaner maps the room and saves a map of the

cleaned area when the cleaning is complete. The robot vacuum cleaner should always be in the charging station and its battery should be fully charged when the cleaning starts.

• Press the "3" button on the robotic vacuum cleaner to start Smart Cleaning (Auto), in which the TESLA robotic vacuum cleaner uses advanced laser navigation for optimised movement in space. This is the most commonly used cleaning method.
• This Smart Cleaning can also be started in the app, click on "Auto" and then on "Start". To pause/stop the cleaning, press "3" on the robot vacuum cleaner again or click on "Pause" in the app.

SPOT CLEANING

Click on "Site Cleaning" in the app. Use your finger to select the location on the map that you want the robot vacuum cleaner to clean. The robotic vacuum cleaner will drive from the charging station to the designated location on the map and clean the area around the designated location, approximately 1.6 x 1.6 metres. When the cleaning is complete, the robotic vacuum cleaner returns to the charging station.

SCHEDULED CLEANING

The robotic vacuum cleaner can be programmed to clean automatically once a day at a set time, even when no one is home. This option can be found in the app under "Settings". If you switch off the robot vacuum cleaner by pressing the "3" button on the robot vacuum cleaner, the scheduled cleaning will not be carried out, it must be set up again.

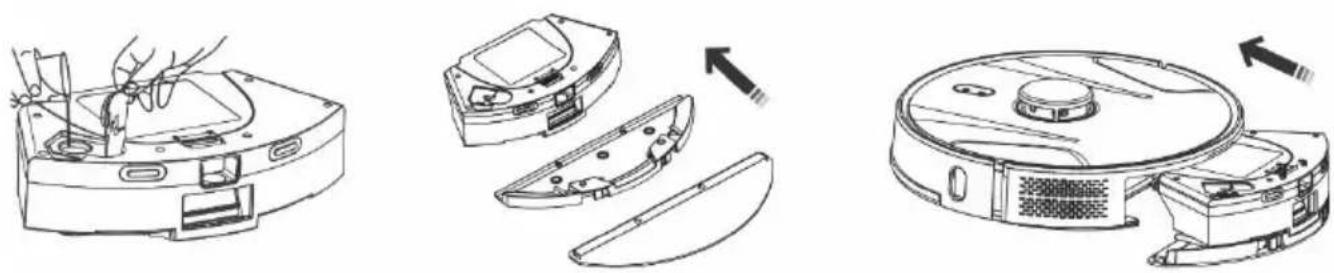

WATER MOP

Place the robot vacuum cleaner outside the charging station and press the "3" button to turn it off.

Line drawings of a robotic vacuum cleaner with open lid, showing internal components and assembly (no text or symbols)

• Open the plastic cap and fill the water tank. Only refill the water tank after removing the tank from the body of the robot vacuum cleaner. A slight leakage of residual water may occur when handling the tank. In this case, wipe up the spillage immediately with a dry cloth.
  • Install the mop cloth on the mop holder. Lightly dampen the mop cloth with water for faster and smoother wiping. If the mop cloth is dirty after cleaning, you can gently wash it in lukewarm water.
• Carefully insert the tray with the mop cloth holder installed into the body of the robot vacuum cleaner. Do not pour water over the robot vacuum cleaner or its interior, the robot vacuum cleaner is not waterproof.

- Three levels of water wipe cleaning can be set in the phone app.

• Do not leave the robotic vacuum cleaner standing still or with water residue in the water tank.

- Keep enough water in the water tank for wiping, or rinse the mop if necessary.

- When you have finished cleaning, always empty the remaining water from the water tank, rinse it and dry the mop cloth.

• We recommend wiping the floor with clean lukewarm water, as the cleaner may cause foaming and worsen the water dripping onto the mop cloth or cause streaks on the floor after it has dried.

• Pour only non-foaming floor cleaners into the water tank and follow the manufacturer's recommended dilution, do not use concentrated cleaners. Do not use perfumes, stain removers or substances containing alcohol and chemicals.
• To get the best result when wiping with water, we recommend using this function in one room and then moving to the next room.
  • For safety reasons, do not charge the battery with the water tank filled with water.

RETURN TO THE CHARGING STATION

The robot vacuum cleaner will search for a charging station after pressing the "4" button on the robotic vacuum cleaner or clicking "Charge" in the app. In standby mode, the robot vacuum cleaner has very low power consumption, so we recommend not switching off the power supply to the charging station.

UPDATING THE FIRMWARE OF THE ROBOTIC VACUUM CLEANER

The firmware of the robotic vacuum cleaner is continuously improved. If a new firmware version is available, you will be offered the option to download the update and install it on the robot vacuum cleaner in the app.

MAINTENANCE

ATTENTION! We recommend regular maintenance for the most efficient cleaning. INSUFFICIENT MAINTENANCE CAN LEAD TO DAMAGE TO THE ROBOTIC VACUUM CLEANER AND LOSS OF WARRANTY.

Before performing cleaning and maintenance, switch off the robotic vacuum cleaner by pressing the "3" button. Wipe the top cover of the robot vacuum cleaner with a soft dry or slightly damp cloth. Do not use cleaning agents to clean the surface of the robot vacuum cleaner, you could damage the surface.

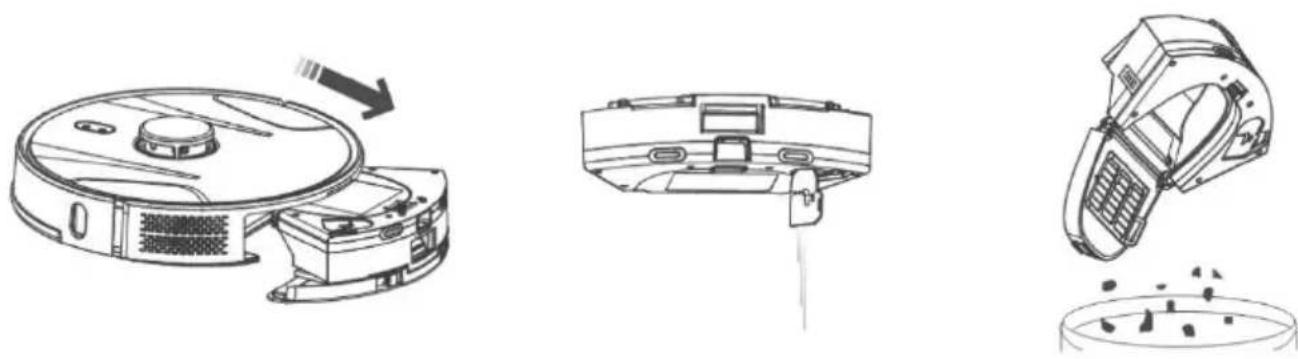

DUST/WATER TANK - clean after every cleaning

Technical line drawings of a robotic vacuum cleaner, showing front, side, and top views with no text or symbols

• The fill level of the Dust/water tank significantly affects the suction performance of the robotic vacuum cleaner and the quality of cleaning.
• If you wash the Dust/water tray with water, dry it carefully before reinstalling it in the robotic vacuum cleaner.

Press the release button to remove the dust/water tank, pour out the residual water and empty the dust into the waste bin. We recommend washing the "Primary Filter" and the dust tray with clean water every 14 days.

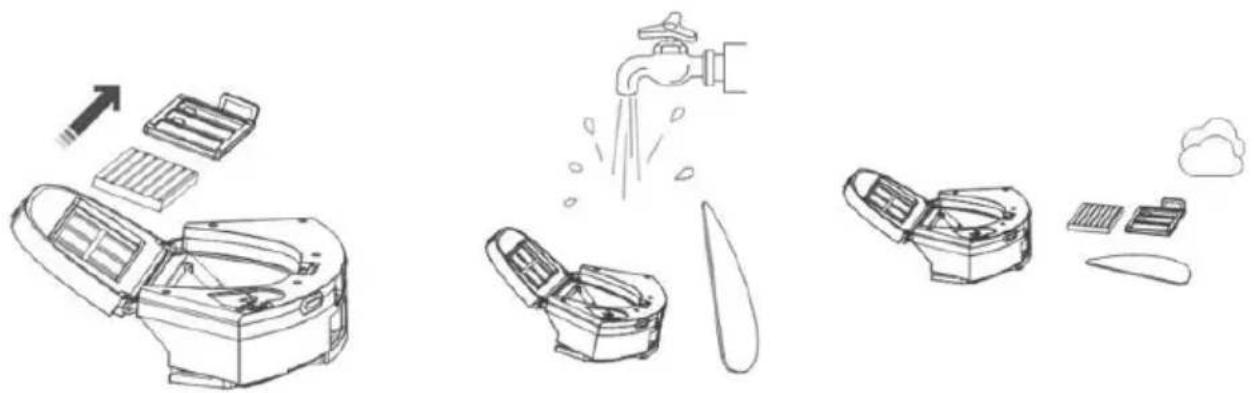

HEPA FILTER - cleaning 1 time per week

Illustration of a car interior with water drop, faucet, and fan components (no text or symbols)

• Do not clean the HEPA filter with your fingers or a brush, only with a stream of clean water (do not use cleaning agents) or vacuum it with a conventional vacuum cleaner.
• Allow the HEPA filter to dry thoroughly, never install a HEPA filter that is wet in a robot vacuum cleaner!
• Do not expose the primary filter and HEPA filter to sunlight.
• Vacuuming with a dirty HEPA filter or without a HEPA filter inserted can damage the robot vacuum cleaner.
  • We recommend changing the HEPA filter every 6 months.

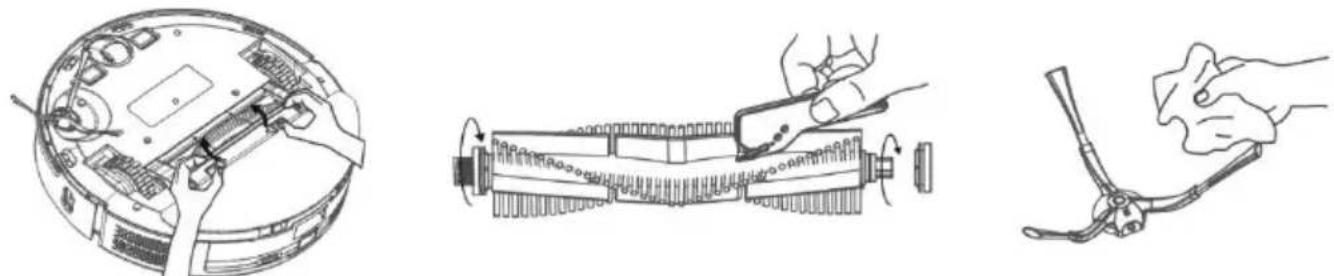

CENTRAL CLEANING BRUSH AND SIDE CLEANING BRUSH - cleaning 1 time per week

Three technical line drawings showing mechanical assembly: a circular device with internal components, a handheld tool with rotating arm, and a hand holding a tool (no text or symbols present)

Remove the central cleaning brush by pressing the two tabs on the brush cover. Use the cleaning tool to remove any hair tangled in the main brush. Keep the center cleaning brush free of large amounts of hair, dust, cotton, etc. Check the side cleaning brush together with the air intake opening according to the intensity of the dirt, at least once a week, and remove tangled hair and other dirt.

Front wheel: Use a flathead screwdriver to insert under the rubber wheel and move upwards to remove it. After cleaning, insert it back in until you hear a click. Also clean the wheel axle.

Floor sensors: once a week, clean the four sensors on the bottom of the robot vacuum cleaner with a soft, dry cloth. Check that the front bumper, under which the impact sensor is located, is not blocked.

TROUBLESHOOTING

The Problem	Solution
After installing the app and pairing the mobile phone with the robot vacuum cleaner, the vacuum cleaner is "Not Connected".	Turn your Wi-Fi router on and off, remove your robot vacuum cleaner from the app and try pairing it again. We recommend that you always stay close to your robot vacuum cleaner while pairing Wi-Fi router.
The robotic vacuum cleaner does not start cleaning.	The robot vacuum cleaner has a weak battery. Charge the battery to full capacity before starting cleaning.The battery is too hot. Use the robot vacuum cleaner in temperatures of 0°C ~ 40°C.
The robot vacuum cleaner cannot be charged.	The charging station is not connected to the mains. Make sure the power cable is properly connected.The charging electrodes have poor contact with the robot vacuum cleaner. Clean the electrodes on the robot vacuum cleaner and on the charging base.
The robotic vacuum cleaner will not return to the charging base.	Make sure that there is enough space around the charging station and that the detection zone of the charging station is clear.
The robot vacuum cleaner is offline (not connected to a Wi-Fi router).	Make sure your Wi-Fi network is properly set up and fully functional. The robot vacuum cleaner should be within range of a good, strong Wi-Fi signal from your Wi-Fi router at all times.
The vacuuming is very loud.	Clean the central cleaning brush, the side brush, the wheels, the underside of the robot vacuum cleaner and the front bumper.
Poor quality of cleaning.	Empty the dust tray. Clean or replace the HEPA filter and clean the central cleaning brush.
The robotic vacuum cleaner will not start the scheduled cleaning.	If the battery of the robot vacuum cleaner is low, cleaning will not start. Please charge the battery to full capacity.Scheduled cleaning will not synchronise correctly between the robot vacuum cleaner and your mobile phone if the robot vacuum cleaner is disconnected from the Wi-Fi network. Therefore, keep the robot vacuum cleaner within range of a good and strong Wi-Fi signal from your Wi-Fi router at all times.
The vacuum cleaner battery cannot be charged	Make sure the charging contacts are properly connected when parked in the charging base.The charging base should always be connected to the mains, do not switch it off. The robot vacuum cleaner is then always ready for the next cleaning with a fully charged battery.

BATTERY CARE

• If you will be transporting the robot vacuum cleaner or will not be using it for a long time, switch it off.
  • Recharge the battery again to full capacity after three months without use.

- If you do not use the robot vacuum cleaner for a long time, switch it off and disconnect the charging station from the mains. However, you should still fully charge the vacuum cleaner once every three months to prevent the battery from completely draining.

TECHNICAL SUPPORT

Need help with the setup and operation of the TESLA RoboStar iQ700?

Contact us at www.tesla-electronics.eu.

CONSUMABLES

Consumables (HEPA filter, microfibre mop, cleaning brush, dust bags and many more) can be purchased at the official TESLA store eshop.tesla-electronics.eu.

WARRANTY REPAIR

For warranty repairs, contact the dealer where you purchased your TESLA product.

EXCLUSIONS FROM WARRANTY

• If the equipment or parts of it have worn out as a result of normal use. Typical wear and tear of the equipment or part of the equipment due to normal use includes, for example, battery drainage or reduction of battery or accumulator capacity by the end of the normal service life of 6 months, wear and tear of the display parts of the equipment, mechanical wear and tear of the remote controls and their surfaces, filter wear and tear, wear and tear of the supply cables, etc.
• Failure to follow the "Important Safety Instructions" in the User Manual.
  • Electromechanical or mechanical damage to the equipment caused by improper use.
  • Damage caused by natural elements such as water, fire, static electricity, power surges, etc.
• Damage caused by unauthorised repair.
• Unreadable device serial number.

DECLARATION OF CONFORMITY

We, TESLA Electronics LTD, declare that this equipment complies with the essential requirements and other relevant provisions of the standards and regulations relevant to the type of equipment.

This product meets the requirements of the European Union.

Please check your local separate collection system for electrical and electronic products. Please follow local regulations and do not dispose of old products in your regular household waste. Proper disposal of old product helps to avoid potential negative consequences for the environment and human health.

As the product is being developed and improved, we reserve the right to modify the user manual. The latest version of this user manual can always be found at www.tesla-electronics.eu.

Design and specifications are subject to change without notice, typographical errors reserved.

GE

1 Primärer Filter

2 HEPA-Filter

3 Wasserloch

4 Tasten freigeben

5 Mikrofasermopp

APPLE

Line drawings of a robotic vacuum cleaner with internal components and a close-up view of its interior (no text or symbols)

Illustration of four different kitchen utensils and a faucet, showing different interior compartments (no text or symbols)

Three technical line drawings showing hands operating a device with a circular base, a mechanical component, and a tool (no text or symbols present)

1 Elsödleges szürő

2 HEPA szűrő

3 Víznyílás

4 Kioldógombok

ANDROID

keressen a Google Play-ben a "Smart Life" keresőre

APPLE

Line drawings of a robotic vacuum cleaner with open lid, showing internal components and assembly (no text or symbols)

Technical line drawings of a robotic vacuum cleaner, showing front, side, and top views with no text or symbols

Illustration of a car interior with water drop, faucet, and fan components (no text or symbols)

Three technical line drawings showing mechanical assembly: a circular device with internal components, a handheld tool with rotating arm, and a hand holding a tool (no text or symbols present)

1 Filtr główny

2 Filtr HEPA

3 Otwór wodny

ANDROID

APPLE

ROZWIĄZYWANIE PROBLEMÓW APLIKACJI

Line drawings of a robotic vacuum cleaner with open lid, showing internal components and assembly (no text or symbols)

Line drawings of various household appliances and fixtures including a water tap, bathtub, and cloud (no text or symbols)

Technical line drawings of three mechanical assembly steps: disc, tool, and clamp (no text or symbols)

RECIPIENT PENTRU MURDĂRIE/APĂ

1 Filtru primar

2 Filtru HEPA

3 Gaura de apă

4 Butoane de eliberare

ANDROID

APPLE

Line drawings of three different robotic vacuum cleaner designs (no text or symbols)

Illustration of household appliances including a washing machine, water tap, and kitchenware (no text or symbols)

Three technical line drawings showing a device's internal components and assembly steps (no text or symbols present)

1 Primárny filter

2 HEPA filter

3 Otvor na vodu

4 Uvolňovacie tlačidlá

5 Mop z mikrovlákna

PRED PRVÝM ÚKLIDOM

ANDROID

APPLE

vyhl'adajte v Apple Store „Smart Life“

Line drawings of a robotic vacuum cleaner with open lid, showing internal components and assembly (no text or symbols)

Line drawings of various household appliances and fixtures including a water tap, air purifier, and kitchen appliance (no text or symbols)

Technical line drawings of three mechanical assembly steps: disc opening, tool pressing, and clamp (no text or symbols)
