USER MANUAL Be Active Chipolino

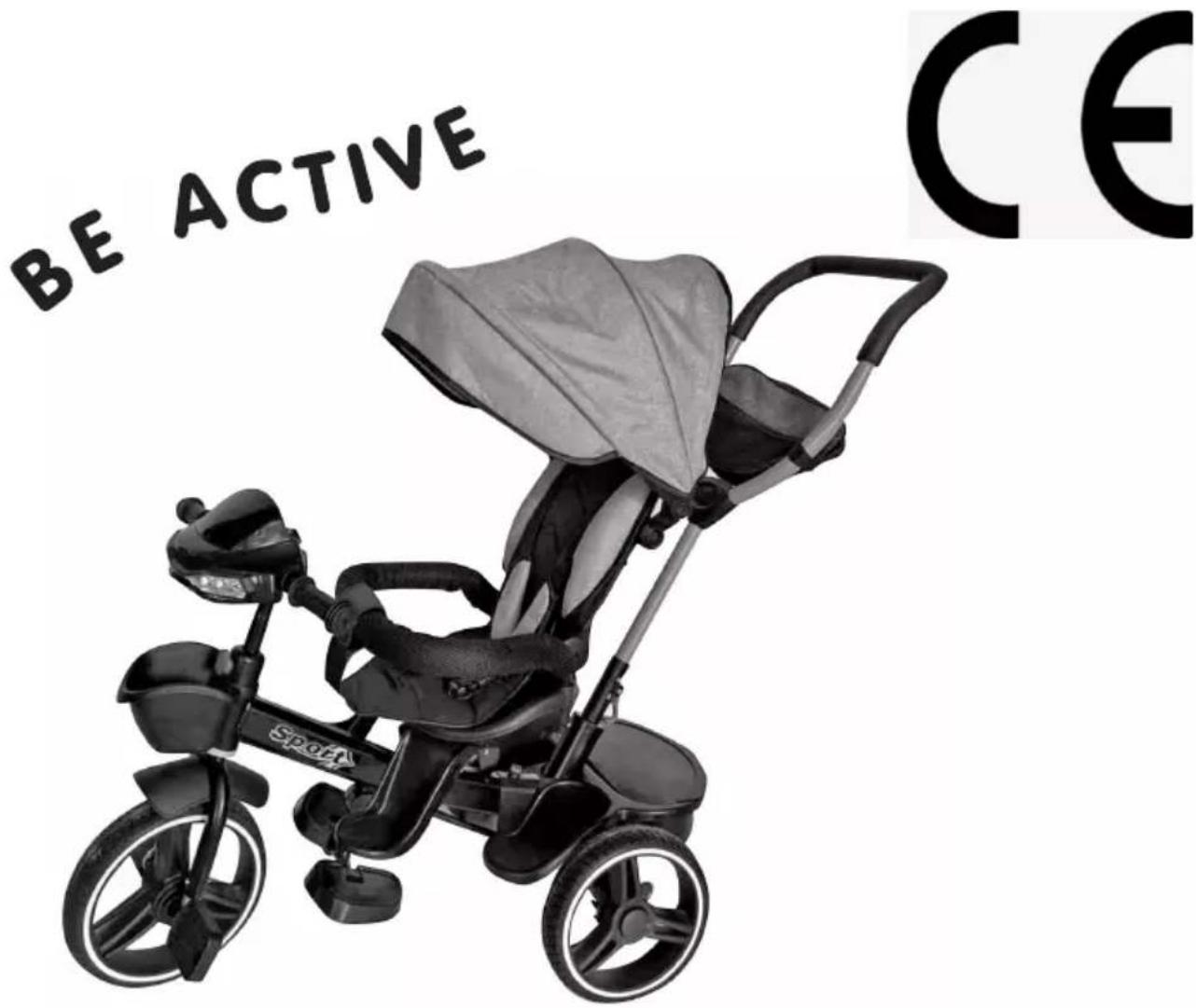

INSTRUCTION MANUAL FOR

KIDS' TOY TRICYCLE

„BE ACTIVE”

This product is produced in accordance with requirements of Toy safety Directive 2009/48/EC of the European Parliament and the Council, Regulation regarding Essential Requirements and Conformity Assessment of Toys, Regulation regarding Conformity Marking and the standards applicable for this toy.

Chipolino is

CAUTION! WARNINGS!

CAUTION! USE ONLY UNDER DIRECT ADULT SUPERVISION!
CAUTION! THIS TOY HAS NO BRAKES!
CAUTION! THE TOY IS NOT SUITBALE FOR CHILDREN UNDER 1,5 YEARS!
✿ CAUTION! USE FOR CHILDREN OLDER THAN 1,5 YEARS AND WEIGHT UP TO 25kg.
✿ CAUTION! DO NOT USE FOR CHILDREN OVER 25KG – DANGER OF OVERLOADING THE TOY!
✿ CAUTION! BEFORE USING THE TRICYCLE, TEACH THE CHILD THE CORRECT WAY TO USE IT AND THE SAFETY RULES.
✿ CAUTION! USE THE TOY ONLY FOR ITS PURPOSE.
✿ CAUTION! USE THE TOY ONLY DURING THE DAY ON EVEN PLAYGROUNDS AND AT A SAFE DISTANCE FROM STREETS OR ROAD LANES FOR VEHICLES.
✿ CAUTION! TO AVOID THE DANGER OF INJURY ALWAYS REMOVE THE PUSH HANDLE WHENEVER THE CHILD IS RIDING THE TOY ON HIS OWN!
CAUTION! KEEP AWAY FROM FIRE OR OTHER HEAT SOURCES!
◆ Adult assembly required!
DO NOT allow presence of children under 3 years before assembly of the TOY is complete. In this way, you will avoid their access to small or loose parts!
The TOY is intended for one child at a time ONLY!
DO NOT let other children push the tricycle!
- The TOY is NOT suitable for running or skating!
Discontinue using the TOY if you find missing or damaged parts.
DO NOT let the child stand on the footrest or the seat to avoid injury.
The child must wear shoes when using the TOY!
DO NOT tie strings or accessories to the TOY in order to avoid the risk of suffocation.
DO NOT place more than 0,2 kg load in the front storage basket and no more than 0,5 kg load in the rear basket.
DO NOT put items or luggage in the handle bar or the parent handle in order to avoid risk of injury resulting from the toy's instability and tipping over!
DO NOT place items or heavy objects in the TOY or on it during storage or transportation to avoid damage to the frame.
DO NOT use another transport means to move the TOY by pulling it.
DO NOT allow the child using the TOY or other children around it to touch the wheels or put items in them.
◆ Use away from rivers, pools, stairs or hurdles!
Do not make changes or modifications to the TOY frame! If necessary, contact the retailer or an authorized service center for advice and repair.
Use only spare parts, which are approved by the producer and recommended by the distributor or company service! The producer revokes all responsibility in case parts different from the original ones have been used.
- Keep nylon packages away from children to avoid risk of suffocation!
A reminder that the toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.

IMPORTANT! WARNINGS AND GUIDELINES FOR BATTERY USE

• After installation of batteries, always secure the battery compartment with the cover.
  Do not allow children to access or play with the batteries!
• Use only batteries of the designated type and power.
  Do not use batteries of different types.
  Do not short circuit the contact surfaces!
  ◆ Follow the designated polarity in the battery compartment.
  ❖ Remove damaged or worn out batteries.
  ❖ Remove the batteries when the product will not be used for long time.
  Do not throw the batteries in open fire. Do not take the batteries to pieces.

CAUTION! Waste from depleted or unusable batteries must be disposed of separately. It is forbidden to throw them out in containers for household waste. Dispose of the batteries only at the specified places.

✿ Non-rechargeable batteries are not to be recharged ;
For electric toys using rechargeable batteries, the batteries ,the batteries shold be charged under adult supervision. For batteries charged using a battery charger for use by children , "Batteries are only to be charged by persons of at least 8 years old";

- Different types of batteries or new and used batteries are not to be mixed;

✿ Exhausted batteries are to be removed from the toy;

- The supply terminals are not to be short-circuited

PRODUCT FEATURES

This is a functional TOY whose purpose is to create in the child initial skills to coordinate its arms and feet when riding a tricycle or bicycle.

IMPORTANT! Remove the parent handle when you are sure that the child can ride the tricycle on his own and unaided.

• Suitable for children older than 1,5 years with weight up to 25 kg;
• Can be driven by the child using the pedals;
  ✿ Seat rotates at 360° degrees;
  ❖ Musical box with melodies and lights;
  Can be pushed by an adult and the child lays his feet on the foot rest;
  Safety bumper;
  Parking device;
  ◆ Backrest adjustment;
  ❖ Movable foot rest;
  ◆ Upper leg rest;
  ◆ Adjustable canopy;
  ◆ Front and rear storage baskets.

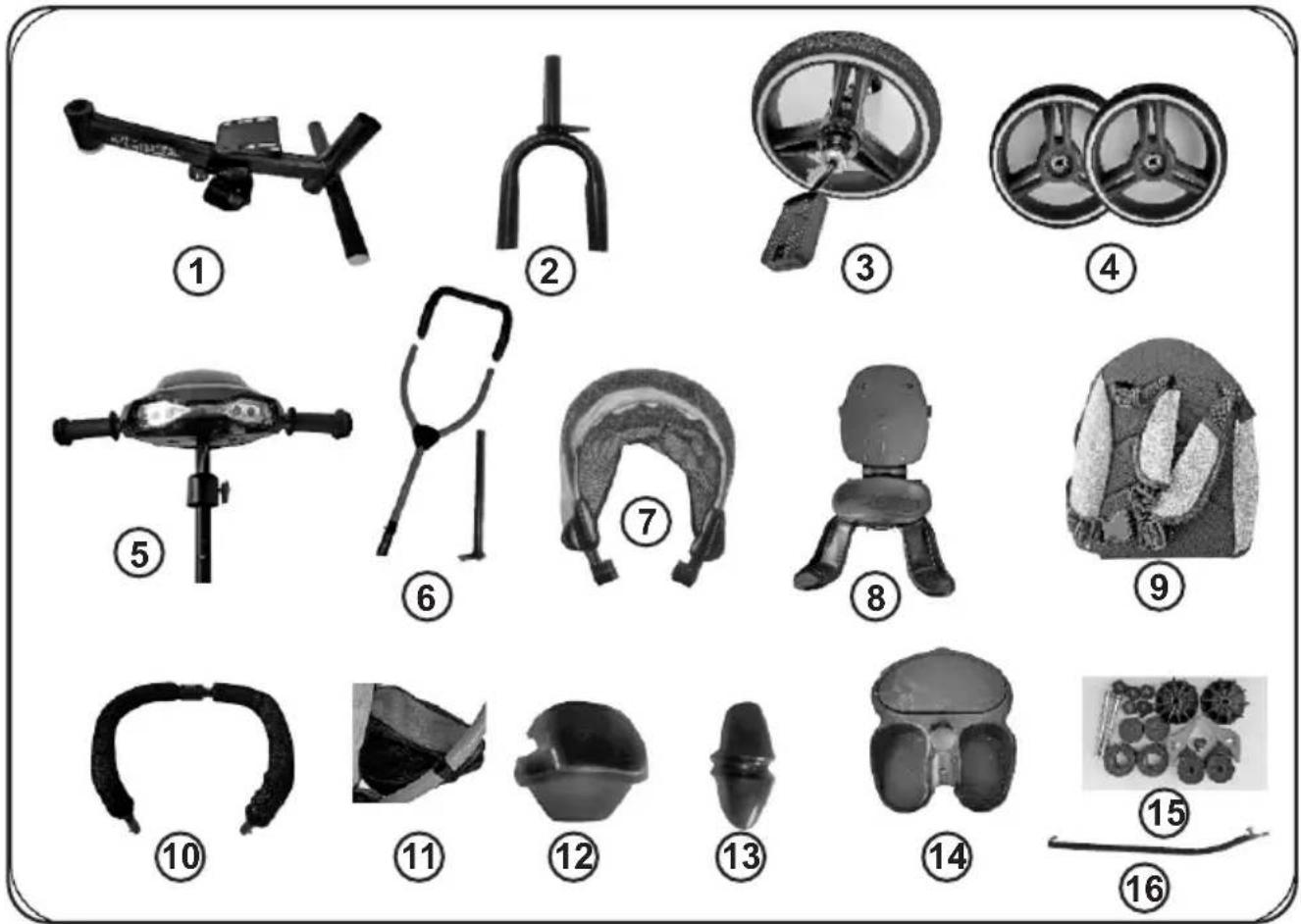

1 Frame 9 Fabric cover
2 Fork 10 Front guards
3 Front wheel 11 Accessories bag
4 Rear wheels 12 Front storage basket
5 Steering bar with musical box 13 Mud guard
6 Parent handle 14 Rear basket with foot rest
7 Canopy 15 Accessories
8 Seat with upper leg rest 16 Guiding rod

Please, make sure if these parts are in the package.

Some of the parts may be pre-installed by the manufacturer.

ASSEMBLY INSTRUCTIONS

IMPORTANT! Follow exactly the instructions given and check the pictures. Keep your hands from entrapment!

IMPORTANT! AFTER EACH OPERATION, MAKE SURE THAT YOU HAVE FOLLOWED THE INSTRUCTIONS CORRECTLY AND THE FIXING IS STABLE!

CAUTION! Make sure all fixings are tight but not overtighten them. If some parts are loose this could cause disintegration of the tricycle and injury to your child.

Necessary tools: wrench and screwdriver (not included).

ASSEMBLY

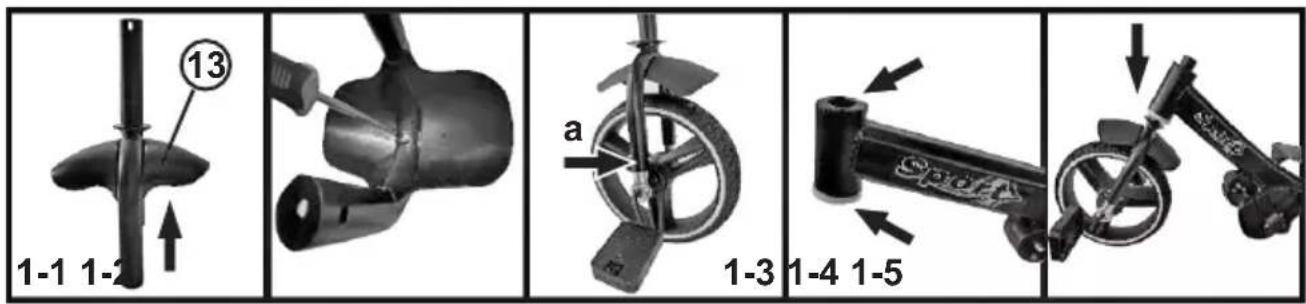

1. ASSEMBLY OF FORK (WITH FRONT WHEEL AND MUD GUARD) TO THE TUBE ON FRAME

1-1 - Place the mud guard (13) between both tubes of fork, as shown in the figure.
1-2 - Fix the mud guard with a screw by using a screwdriver.
1-3 – Place the front wheel to the tubes of fork. Press the pins (a) and insert them inwards until they jump out of the openings. By fixing you will hear a click sound.
1-4 – Place the covers (from accessories set - 15) on front tubes of frame as shown in the figure.
1-5 - Thread the fork tube through the front tube of frame.

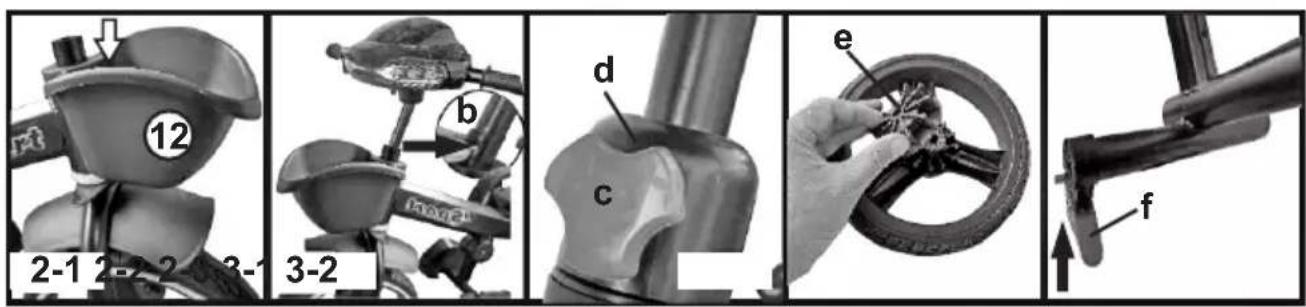

2. ASSEMBLY OF THE HANDLEBAR

2-1 - Place the front basket onto the tube of fork.
2-2 – Install the steering bar to the fork, press the pins (b) and join the steering bar and the fork. By fixing you will hear a click sound and pins will show through the openings.
2-3 - Place the decorative cover (d) and tighten the screw with plastic head (c) to fix it.

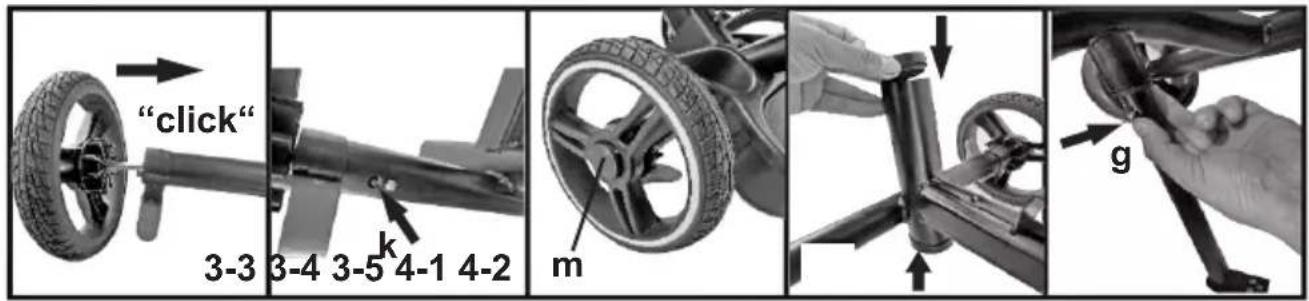

3. ASSEMBLY OF REAR WHEELS AND PARKING DEVICE

3-1 - Place the part (e) from accessories set to rear wheel, so they match. Place the part (e) from accessories set to the other rear wheel.
3-2 - Align parking device (f) to the rear part of the frame as figure shows and insert it.
3-3 – Place the rear axis to the rear wheel and insert them with pressure to the frame until you hear a click and they fix.

Note: Make sure that wheel is fixed by trying to pull it out from the frame. Install the other rear wheel following the same order of actions.

3-4 - To remove the each of the rear wheels, press the button (k) and remove the wheel.
3-5 – Press with light pressure the decorative cap (m) from accessories set on each of the wheels.

4. INSTALLING THE DOWN PART OF THE PARENT PUSH HANDLE

4-1 – Place both plastic washers at both sides of the frame as shown in the figure.
4-2 – Press pin (g) and thread the down part of the parent push handle through the slot at the frame, as shown in the figure.

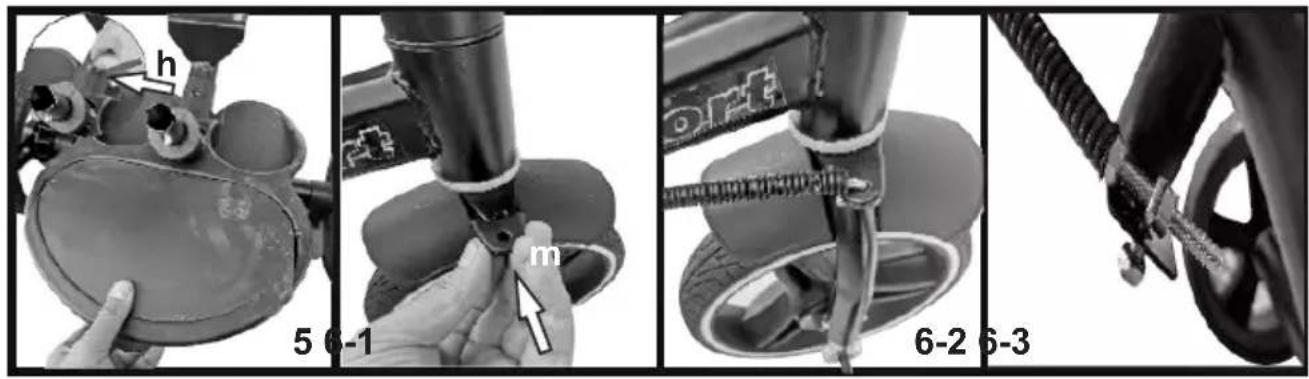

5. INSTALLING THE REAR STORAGE BASKET

Place the rear basket to rear part of the frame and fix with the screw with plastic head (h).

6. INSTALLING THE GUIDING AXLE

6-1 - Place the cover (n) at the plate of the fork.
6-2 - Insert the bent end of the guiding axle in the corresponding opening in the plate of the fork (with installed cover).
6-3 – Unfold the foot rest. Place the other end of the guiding axle in the plate in the lower part of the push handle and fix it with a nut – you will need a wrench to do this.

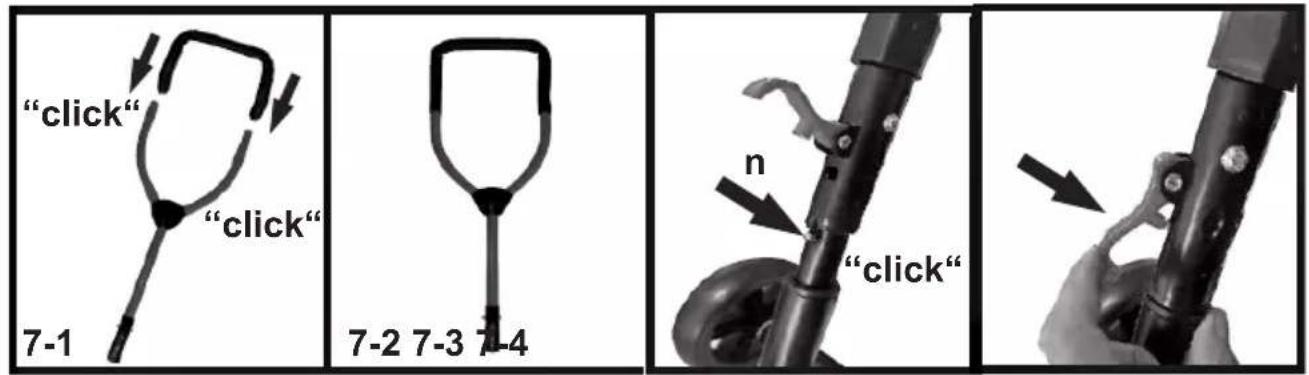

7. INSTALLING THE UPPER PART OF PARENT PUSH HANDLE

7-1 and 7-2 – Press pins and insert the tubes of upper part of handle, as shown in the figure until you hear a clock sound and pins jump out of the openings.
7-3 – Press pins the pin (n) and insert the upper part of the handle into the down part of the handle until you hear a click sound and pin jumps out of the opening.

To remove the handle, move the red lever down and press the pin and then remove both parts of the parent handle.

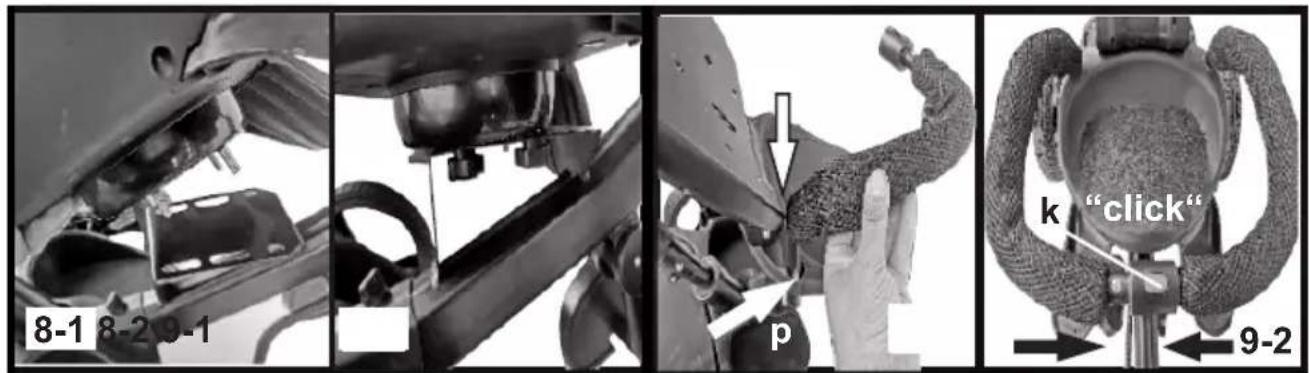

8. INSTALLING THE SEAT

8-1 - Place the seat on the frame (screws must go through the slots) and
8-2 - Fix the seat with the nuts with plastic head.

9. ASSEMBLY OF FRONT BUMPER

9-1 – Press the pin (p) and insert the shoulder of bumper guard into the slot of frame until you hear a click a sound and pin shows from the slot. Assemble the other shoulder of bumper guard on other side as well.
9-2 – Rotate both shoulders and fix them one to another. By locking you will hear a click sound. To unlock the bumper, press the button (k) and set both shoulders out.

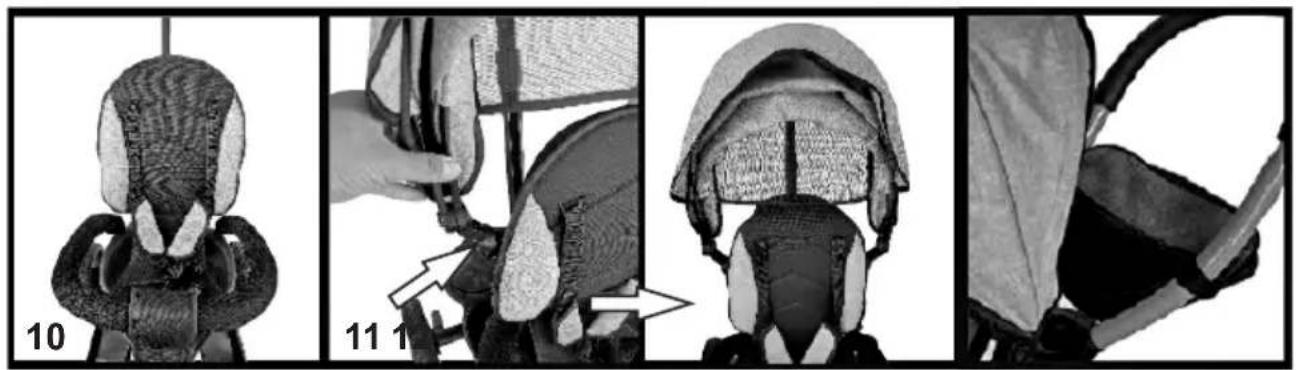

10. PLACING THE FABRIC PART

Place the fabric part on the seat, as shown in the figure. Fix the fabric cover with Velcro straps at the back of the seat. Unlock the bumper guard and thread the crotch fabric onto one of the bumper guards' shoulders. Then lock again both shoulders of bumper guard.

11. ASSEMBLY OF CANOPY

11-1 - Insert the two ends of the canopy in the corresponding grooves on both sides of the seat as shown in the figure.
11-2 - Assembled canopy.

12. ACCESSORY BAG INSTALLATION

Place the accessory bag at the parent handle, as shown in the figure. Fix it with Velcro straps at both sides by wrapping them around the tubes.

FUNCTIONS

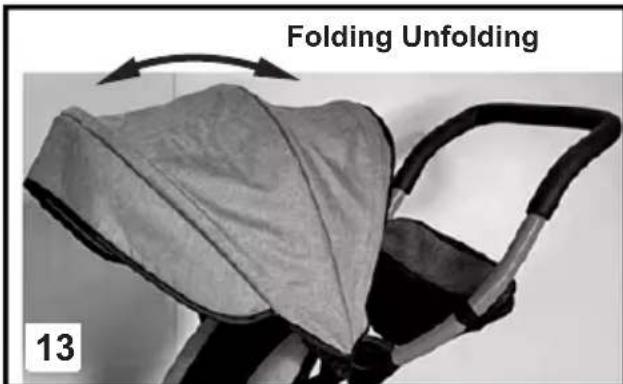

13. UNFOLD AND FOLD THE CANOPY

Pull the canopy with your hand to unfold it and push it back to fold it.

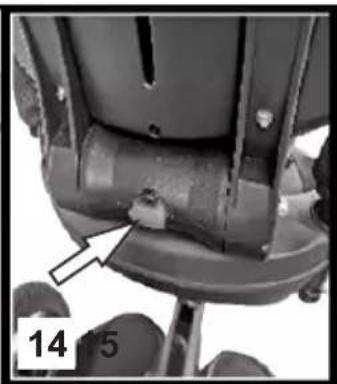

14. BACKREST ADJUSTMENT

Press the red button at the back of the seat and set the backrest in required position – upright or reclined.

15. ROTATING THE SEAT AT 360°

ATTENTION! To rotate the seat at 360 degree, you have to remove the upper leg rest from the seat first!

Press down the red lever under the seat and rotate the seat in the desired position.

After rotation, the seat may be fixed in two directions – FORWARD (facing to the front) and REARWARD (facing to the back). When the position is fixed, you will hear a click sound.

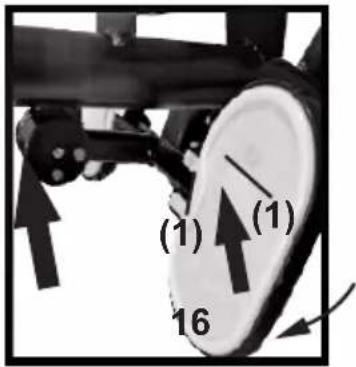

16. FOLDING THE FOOT REST

Fold the two steps on the footrest with your hand. Press the button (1) and shift the foot rest up. When the footrest is fixed you will hear a click.

To open the foot rest, press the button (1) and shift the foot rest down.

CAUTION! When the parent pushes the tricycle, use the foot rest in open position. When the child rides the tricycle, fold the foot rests.

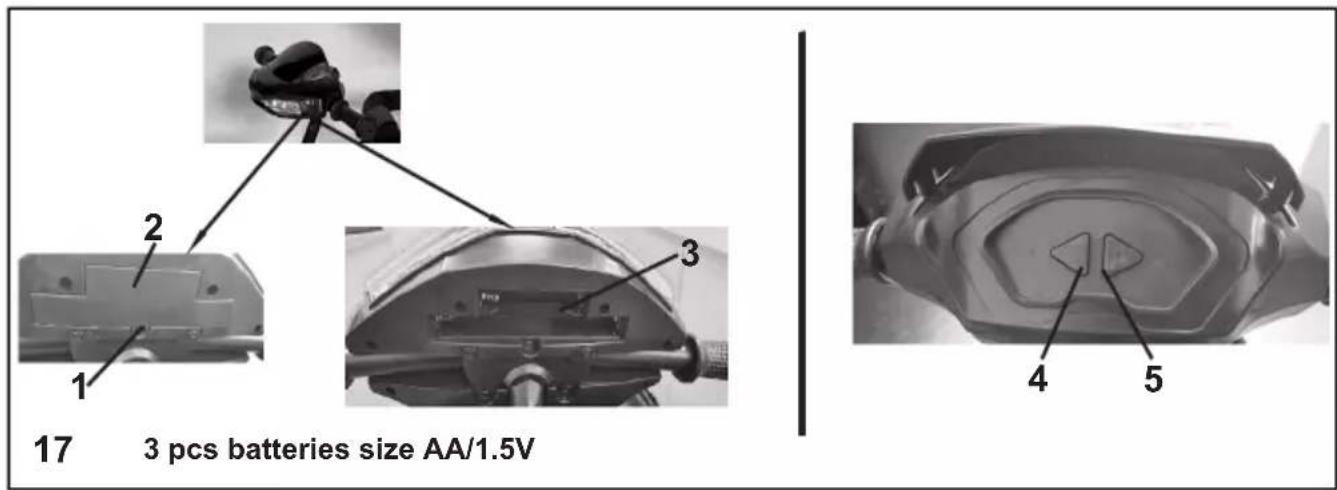

17. MUSICAL BOX

Press the button 4 and 5 - melodies and lights start.

To use this function, you have to install 3 pcs batteries size AA/1.5V in battery compartment:

1. Untighten the screw (1) and cover (2) by using a screwdriver and remove it.
   Note: Cover of battery compartment (3) is located at down part of the musical box.
2. Install 3 pcs batteries size AA/1.5V in battery compartment obeying the shown polarity.
3. Press one of the buttons to check if functions are activated.
4. Place back the cover (2) of batteries compartment (3) and fix with screw (1).

WARNING! The push handle may be removed after you are sure that the child can drive the tricycle on his own.

Close-up of a mechanical component with no visible text or symbols

Close-up of a mechanical component with an arrow pointing to a detail (no visible text or symbols)

MAINTENANCE GUIDELINES

Periodically check the good working order of the tricycle parts.
Do not wash it and do not soak it in water. Use a soft damp cloth and water or neutral liquid detergent.
Do not use aggressive detergents, containing abrasive particles, ammonia, bleach or spirits.
◆ Regularly oil the moving parts.
Do not use on sand.
Do not store the tricycle in hot environment, in order to avoid the plastic parts from deforming.
- Store the product in clean and dry place indoors. Do not expose to direct sunlight, moisture or harsh weather!
❖ Always let the tricycle to dry out fully before storing or using it, in order to avoid mold and rust.
- Contact your authorized dealer if consultation or repair is needed.

Materials used: plastic, metal, textile and textile filling—100% polyester.

Pure electrical circuit symbols without any text or labels

TRKBA024xxxx/ X4

АРТИКУЛ: ДЕТСКА ИГРАЧКА ТРИКОЛКА „MAX SPORT“ ITEM: TOY FOR KIDS TRICYCLE „MAX SPORT“

Прогукмов номер/Item number:TRKMS024xxxx

Suitable for children aged 1.5 years and up, weighing not more than 25 kg.

Recommended age of child from 1.5 up to 5 years.

Materials used: plastic, metal, polyester.

THIS TOY IS NOT EQUIPPED WITH A BRAKE! KEEP AWAY FROM FIRE!

FOLLOW THE INSTRUCITONS AND RECOMMENDATIONS IN THE USER'S MANUAL!
