Product Type	LED Par Fixture (Wash Light)
Model	Mega 64 Profile EP
Brand	Eliminator Lighting
Light Source	12 x 4W Quad RGB+UV (4-in-1) LEDs
Beam Angle	25 degrees
Power Consumption	54W Max
Power Supply	AC 100V-240V, 50/60Hz (auto-switching)
DMX Channels	4, 5, 6, 9, or 10 channels (selectable)
Operating Modes	RGB+UV Dimmer, Sound Active, Auto Run, Static Color, DMX Control
Control Protocol	DMX-512
DMX Connection	3-pin XLR (male input, female output)
Remote Control	Compatible with ADJ LED RC2 (sold separately, IR up to 30 ft)
Display	4-button LED display with menu navigation
Strobe/Rate	LED pulse and strobe effect, adjustable speed
Dimming	0-100% electronic dimming with selectable curves
Color Macros	64 built-in color macros
Beam Angle	25 degrees
Light Output	3,520 lux @ 2m; 820 lux @ 4m
Refresh Rate	504Hz (flicker-free)
Power Daisy Chain	Up to 12 units (IEC in/out)
Mounting	Scissor yoke for hanging/floor use; safety cable required
Dimensions (LxWxH)	10.5 x 10.25 x 4.5 inches (261 x 260 x 110 mm)
Weight	5 lbs (2.1 kg)
Fuse	2A, replaceable
Warranty	2 years limited (USA), 1 year for lasers and LEDs

Frequently Asked Questions - Mega 64 Profile EP Eliminator Lighting

How do I set the DMX address on the Mega 64 Profile EP?

Press the MODE button until 'd.XXX' appears. Use UP/DOWN to select the desired DMX address (001-512). Then press SETUP to choose the DMX channel mode (Ch04, Ch05, Ch06, Ch09, Ch10).

What are the different operating modes available?

The fixture has five modes: RGB+UV Dimmer (adjust each color), Sound Active (reacts to sound with 16 modes), Auto Run (fade/change programs), Static Color (64 colors with strobe), and DMX (full control via DMX controller).

Can I control this fixture without a DMX controller?

Yes, it can be used in stand-alone modes (Sound Active, Auto Run, Static Color). You can also use the optional ADJ LED RC2 infrared remote (sold separately) for wireless control.

How do I clean the Mega 64 Profile EP?

Disconnect power. Use a soft cloth with normal glass cleaner to wipe the casing and optical lenses. Ensure all parts are completely dry before reconnecting. Clean periodically based on environment (smoke, dust).

What is the maximum number of units I can daisy chain for power?

You can daisy chain up to 12 units using the IEC power input/output. After that, use a new power outlet. Only connect identical models.

How do I replace the fuse?

Disconnect power and remove the power cord. The fuse holder is inside the power socket. Gently pry it out with a flat-head screwdriver, replace the fuse with a 2A fuse (spare included in holder), and reinsert.

What is the warranty coverage?

This product carries a 2-year limited warranty (USA only). It covers manufacturing defects. Proof of purchase is required. Contact customer support for a Return Authorization (RA#) before returning.

My fixture is not responding to DMX. What should I check?

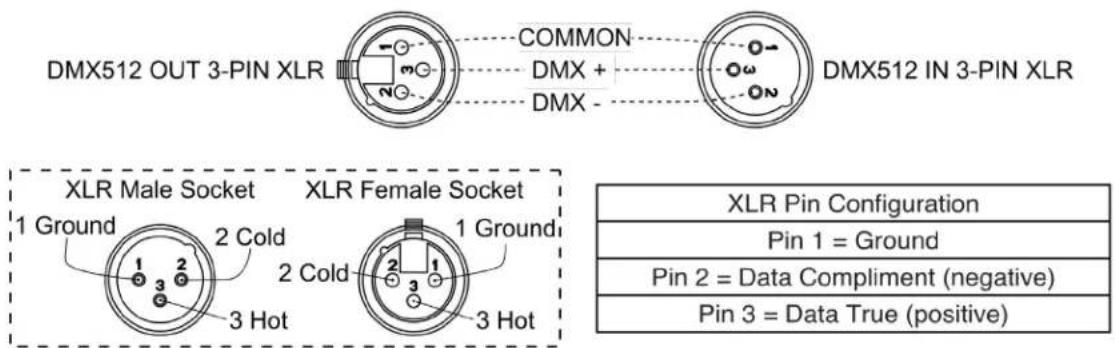

Verify DMX cables are properly connected (pin 3 is data +). Ensure the DMX address is set correctly and the controller is on. Check that the terminator is used on long runs (120 ohm resistor between pins 2 & 3).

How do I set up Primary-Secondary mode?

Daisy chain units via XLR. Set the first unit (primary) to your desired mode (e.g., Auto Run). Set all secondary units to DMX address mode (any address). Secondary units will follow the primary's built-in programs.

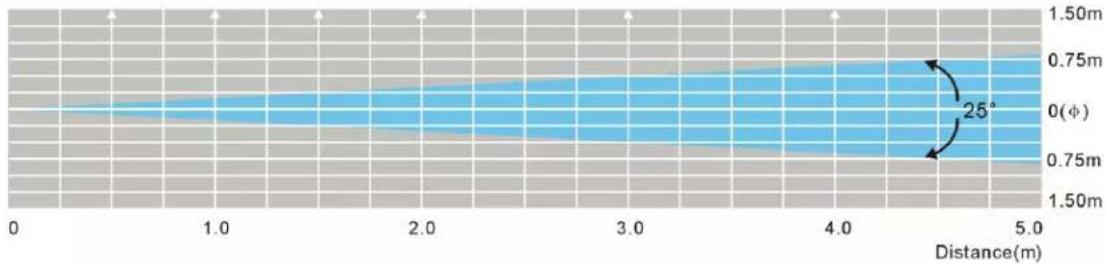

What is the beam angle and light output?

The beam angle is 25 degrees. Light output: 3,520 lux at 2 meters, 820 lux at 4 meters. This makes it suitable for wash lighting on stages or architectural walls.

USER MANUAL Mega 64 Profile EP Eliminator Lighting

Black optical laser headlamp with green laser diodes (no text or symbols visible)

MEGA 64 PROFILE EP

User Manual

©2023 Eliminator Lighting all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. Eliminator logo and identifying product names and numbers herein are trademarks of Eliminator Lighting. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-Eliminator brands and product names are trademarks or registered trademarks of their respective companies.

Eliminator Lighting and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.

Eliminator Lighting

6122 S. Eastern Ave. Los Angeles, CA. 90040

323-582-2650 | Fax [phone] | www.adj.com | [e-mail]

ADJ SUPPLY Europe B.V

Junostraat 2 6468 EW Kerkrade, The Netherlands

[phone] | Fax [phone]

www.adj.eu | [e-mail]

ADJ PRODUCTS GROUP Mexico

AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000

[phone]

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document may be available online.

Please check www.adj.com for the latest revision/update of this manual before beginning installation and/or programming.

Date	Document Version	Software Version >	DMX Channel Mode Notes
09/12/23 1	.0 1.07 4 / 5	/ 6 / 9 / 10 Ch	Initial release

CONTENTS

Introduction 4

Limited Warranty (USA Only) 5

Warranty Registration | Features 6

Safety Guidelines 7

Overview 9

Installation 10

System Menu 12

Operation Instructions 13

Primary-Secondary Configuration 16

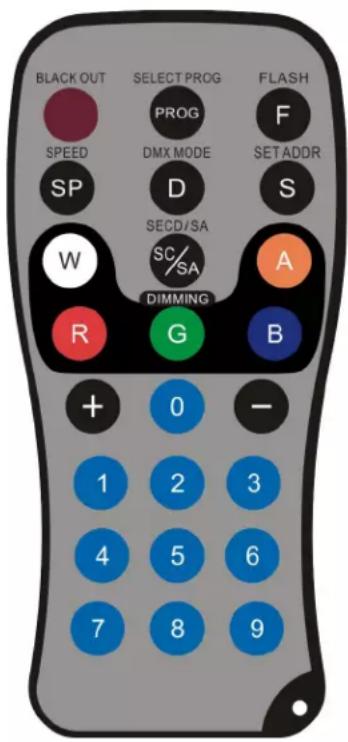

ADJ LED RC2 17

DMX Setup 19

DMX Traits 22

Color Macros Chart 25

Photometric Chart I Dimmer Curve Chart 27

Power Cord Daisy Chain | Fuse Replacement | Cleaning 28

Trouble Shooting 29

Specifications

30

INTRODUCTION

UNPACKING

Thank you for purchasing the Mega 64 Profile EP by Eliminator Lighting. Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact. In the event that damage is been found or parts are missing, please contact our toll free customer support number for further instructions. Do not return this unit to your dealer without first contacting customer support.

INTRODUCTION

This device is a DMX intelligent, high powered LED par fixture, and can be used in stand alone mode or connected in a primary/secondary configuration. This wash has five operating modes: Sound Active mode, Auto Run mode, RGB + UV Dimmer mode, Static Color mode, and DMX control mode. To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. These instructions contain important safety information regarding the use and maintenance of this unit. Please keep this manual with the unit for future reference.

CUSTOMER SUPPORT

Tel: [phone] | Fax: [phone]

www.adj.com | [e-mail]

Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, as doing so will void your manufacturer's warranty. In the event that your unit requires service, please contact Eliminator Lighting for assistance.

PLEASE recycle the shipping carton when ever possible.

LIMITED WARRANTY (USA ONLY)

A. Eliminator Lighting, an ADJ Products, LLC brand, hereby warrants, to the original purchaser, Eliminator Lighting products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner's responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.

B. For warranty service, you must obtain a Return Authorization number (RA#) before sending back the product-please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to the Eliminator Lighting factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Eliminator Lighting will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product. If any accessories are shipped with the product, Eliminator Lighting shall have no liability whatsoever for loss of or damage to any such accessories, or for the safe return thereof.

C. This warranty is void of the serial number has been altered or removed; if the product is modified in any manner which Eliminator Lighting concludes, after inspection, affects the reliability of the product, if the product has been repaired or service by anyone other than ADJ Products, LLC factory unless prior written authorization was issued to purchaser by Eliminator Lighting; if the product is damaged because not properly maintained as set forth in the instruction manual.

D. This is not a service contact, and this warranty does not include maintenance, cleaning or periodic check up. During the period specified above, Eliminator Lighting will replace defective parts at its expense with new or refurbished parts, and will absorb all expenses for warrant service and repair labor by reason of defects in material or workmanship. The sole responsibility of Eliminator Lighting under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of Eliminator Lighting. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.

E. Eliminator Lighting reserves the right to make changes in design and/or improvements upon its products without any obligation to include these changes in any products theretofore manufactured.

F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable law, all implied warranties made by Eliminator Lighting in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty period set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or fitness, shall apply to this product after said period has expired. The consumer's and/or Dealer's sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Eliminator Lighting be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.

G. This warranty is the only written warranty applicable to Eliminator Lighting products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

LIMITED WARRANTY PERIODS

- All Eliminator Lighting products (except laser diodes) = 1-year (365 days) Limited Warranty (Such as: Special Effect Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands etc. excluding LED and lamps)

- Laser Products = 1 Year (365 Days) Limited Warranty (excludes laser diodes which have 6 month limited warranty)

- Batteries = 180 Day Limited Warranty (excluding batteries which have a 180 day limited warranty)

WARRANTY REGISTRATION

This device carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief description of the problem as well as the R.A. number must also be written down on a piece of paper included in the shipping carton. If the unit is under warranty, you must provide a copy of your proof of purchase invoice. You may obtain an R.A. number by contacting our customer support team on our customer support number. All packages returned to the service department not displaying an R.A. number on the outside of the package will be returned to the ship-per.

FEATURES

• Multi-Colors
• Five Operating Modes
  • Electronic Dimming 0-100%
  • Built in Microphone
• DMX-512 protocol
  • 3-Pin DMX Connection
• Five DMX Modes: 4 Channel Mode, 5 Channel Mode, 6 Channel Mode, 9 Channel Mode, and 10 Channel Mode.
• ADJ LED RC2 compatible (Not Included)
  • Power Cord Daisy Chain (see Power Cord Daisy Chain section of this manual)

SAFETY GUIDELINES

CAUTION

HIGH INTENSITY ULTRAVIOLET LIGHT

Symmetrical starburst graphic with central 'UV' label (no additional text or symbols)

AVOID DIRECT EYE & SKIN EXPOSURE. WEAR PROPER EYE & SKIN PROTECTION. SEE MANUAL FOR SAFETY INSTRUCTIONS.

RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION!

FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER.

WEAR PROPER EYE AND SKIN PROTECTION. AVOID PROLONGED PERIODS OF EXPOSURE TO UV COLOR FILTER.

AVOID WEARING WHITE COLOR CLOTHING AND/OR USING UV PAINTS ON SKIN. AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES LESS THAN 11 feet (3.3m).

DO NOT OPERATE FIXTURE WITH DAMAGED/MISSING EXTERNAL COVERS.

DO NOT LOOK DIRECTLY INTO THE UV LIGHT AND/OR VIEW UV LIGHT DIRECTLY WITH OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.

INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY EXPERIENCE DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET UV LIGHT EMITTED FROM THE UV LED.

SAFETY GUIDELINES

• To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture
- Do not spill water or other liquids into or on to your unit.
- Do not attempt to operate this unit if the power cord has been frayed or broken.
- Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.
- Disconnect from main power before making any type of connection.
- Do not remove the cover for any reason. There are no user serviceable parts inside.
- Never operate this unit with the cover removed.
- Never plug this unit in to a dimmer pack.
- Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6" (15cm) between this device and a wall.
- Do not attempt to operate this unit if it has been damaged in any way.
• This unit is intended for indoor use only, and use of this product outdoors voids all warranties.
- During long periods of non-use, disconnect the unit from main power.
• Always mount this unit in safe and stable matter.
- Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the point at which they exit from the unit.
- Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the Cleaning section of this manual for details.
- Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
- The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.
B. Objects have fallen onto, or liquid has been spilled into, the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in performance.

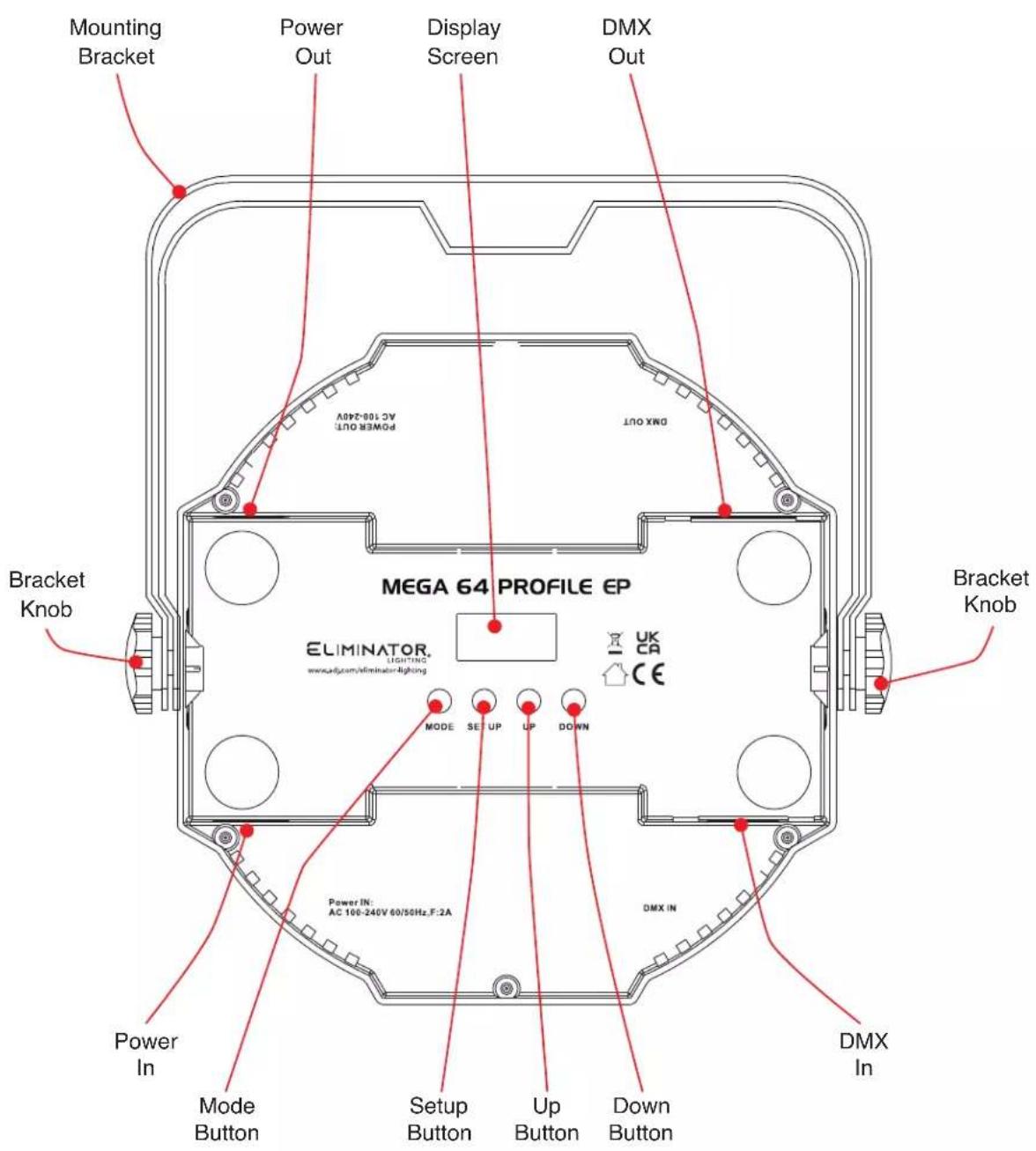

OVERVIEW

INSTALLATION

This unit should be mounted using a mounting clamp (not provided) and affixing it to the mounting bracket that is provided with the unit. Always ensure that the unit is firmly fixed in order to avoid vibration and slipping during operation. Always ensure that the structure to which you are attaching the unit is secure and is able to support at least 10 times the unit's weight. Also, always use a safety cable that can support at least 12 times the weight of the unit when installing the fixture. The equipment must be installed by a professional, and it must be installed in a place where it is out of the reach of the general public.

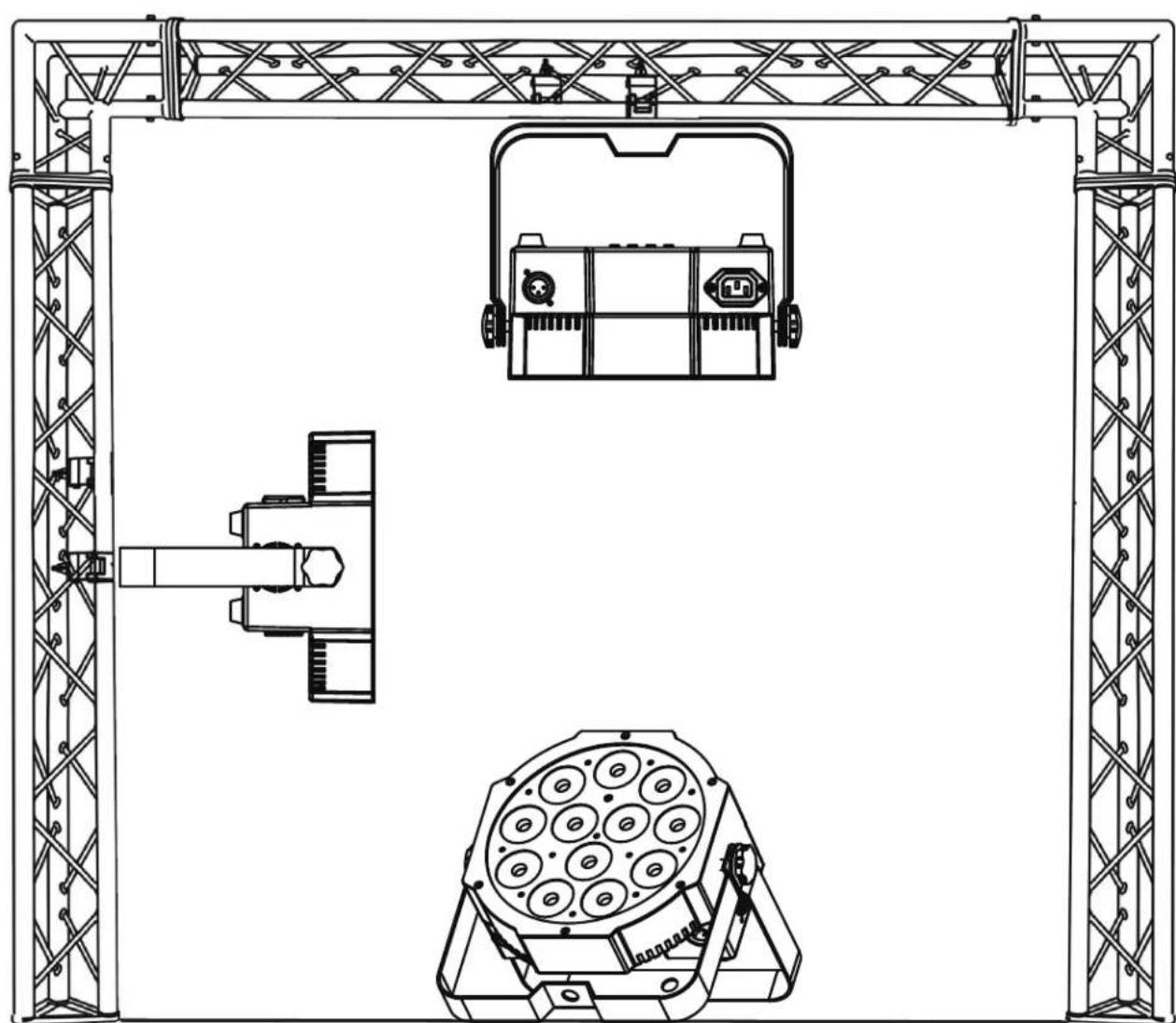

The unit is fully operational in three different mounting positions: hanging upside-down from the ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decorations, etc). Always use and install a safety cable (not included) as a safety measure to prevent accidental damage and/or injury in the event the clamp fails.

Technical line drawing of a mechanical assembly with three views: front frame, top view of a mounted device, and side view of a multi-lens mounted device (no text or symbols present)

INSTALLATION

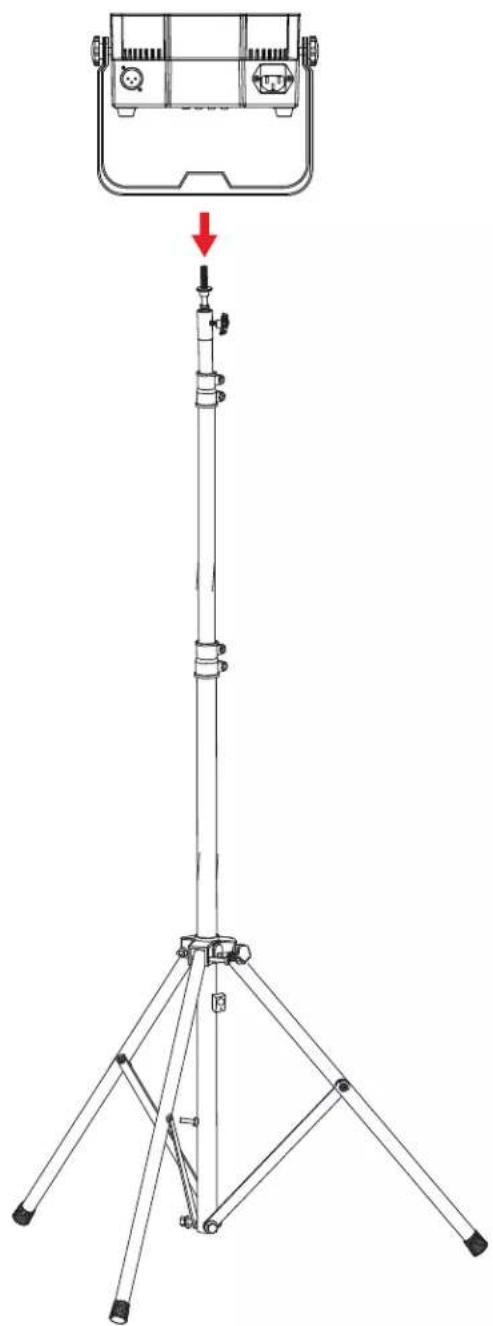

STAND MOUNTING

This unit can also be installed atop a tripod stand. Simply secure the bracket to the bottom face of the device, then insert the threaded bolt on the top of the tripod stand through the hole in the bracket. Tighten the nut onto the threaded bolt to secure the mounted device in place.

Technical line drawing of a tripod-mounted surveying instrument with a red arrow indicating downward motion (no text or symbols present)

CAUTION!

MAKE SURE THAT THE TRIPOD LEGS AND ALL TELESCOPING ELEMENTS OF THE TRIPOD STAND ARE LOCKED IN PLACE BEFORE INSTALLING THE DEVICE ATOP THE STAND!

POSITION THE TRIPOD STAND AND MOUNTED DEVICE ONLY ON FLAT, STABLE SURFACES! DEPLOY TRIPOD LEGS FULLY IN ORDER TO MAXIMIZE STABILITY!

SYSTEM MENU

MODE SETUP	UP / DOWN DESC	RIPTION
DMX Mode	d.xxx d.001 ~ d.51	2 Set DMX starting address
	Ch.xx	Ch.04 4-channel DMX mode
		Ch.05 5-channel DMX mode
		Ch.06 6-channel DMX mode
		Ch.09 9-channel DMX mode
		Ch.10 10-channel DMX mode
	blAc / LAST / ProG	blAc	Unit switches all LEDs off if DMX signal is lost/interrupted
		LAST	Unit holds last state before signal was lost if DMX signal is lost/interrupted
		ProG	Unit runs internal programs if DMX signal is lost/interrupted
	dr-x dr-0 ~ dr-4 Select dimmer curve
Dimmer Mode	r.xxx r.000 ~ r.255	Adjust red intensity
	G.xxx G.000 ~ G.255	Adjust green intensity
	b.xxx b.000 ~ b.255	Adjust blue intensity
	u.xxx u.000 ~ u.255	Adjust UV intensity
	FS.xx FS.00 ~ FS.15		Adjust flash speed (FS.00 is off, FS.01 is slowest, FS.15 is fastest)
Sound Mode	So.xx So.01 ~ So.16	Select from 16 available sound modes
	SJ-x SJ-1 ~ SJ-8		Adjust sound active sensitivity (SJ-1 is least sensitive, SJ-8 is most sensitive)
Auto Run Mode	AF.xx	AF.01 ~ AF.16	Select from 16 available dreaming modes
	AJ.xx	AJ.01 ~ AJ.16	Select from 16 available jumping modes
	A-JF		Select dreaming/jumping mode, in which the two modes run in a continuous cycle
	SP.xx	SP.01 ~ SP.16	Adjust speed of auto run mode
Static Color Select Mode	CL.xx CL.00 ~ CL.64	Select from 64 static colors
	FS.xx FS.00 ~ FS.15		Adjust flash speed (FS.00 is off, FS.01 is slowest, FS.15 is fastest)
Other Mode	d.xx	don	LED display always on
		doFF	LED display off
	Ir.xx	Iron	IR remote function on
		IroF	IR remote function off
	Stnd / rEv	Stnd	Normal display orientation
		rEv	Inverted display orientation
	dEFA		Reset unit to default settings

OPERATING INSTRUCTIONS

System Menu: The display will lock after 30 seconds, press the MODE button for 3 seconds to unlock.

DMX Mode:

Operating through a DMX controller gives the user the freedom to create custom programs tailored to their own individual needs. This function also allows you to use your fixtures as spot lights. 5 DMX modes are available: 4 channel mode, 5 channel mode, 6 channel mode, 9 channel mode, and a 10 channel mode. Refer to the DMX Traits section of this manual for detailed information.

1. To run your fixture in DMX mode, press the MODE button until "d.XXX" is displayed, where "XXX" represents the currently selected DMX address. Use the UP or DOWN buttons to select your desired DMX address, then press the SETUP button to select your DMX Channel mode.

2. Use the UP or DOWN buttons to scroll through the DMX Channel modes. The Channel modes are listed below:

3. "Ch04" = 4 Channel DMX Mode.

4. "Ch05" = 5 Channel DMX Mode.
5. "Ch06" = 6 Channel DMX Mode.
6. "Ch09" = 9 Channel DMX Mode.

7. "Ch10" = 10 Channel DMX Mode.

8. Plug in the fixture via the XLR connections to any standard DMX controller.

DMX State:

This setting defines the way the fixture will behave in the event that the DMX signal is lost or interrupted, or which operating mode the unit will return to when power is applied.

1. Plug the fixture in and press the MODE button until "d.XXX" is displayed. "XXX" represents the currently selected DMX address.

2. Press the SET UP button so that "nodn" is displayed. Use the UP and DOWN buttons to scroll through the DMX states.

3. "bLAC" (Blackout) - If the DMX signal is lost or interrupted, the unit will automatically go into stand by mode.

4. "LAST" (Last State) - If the DMX signal is lost or interrupted, the fixture will stay in the last DMX set up.

5. "ProG" (Auto Run) - If the DMX signal is lost or interrupted, the unit will automatically go into Auto Run mode.

6. Use the UP and DOWN buttons to find your desired DMX state and press SET UP to confirm and exit.

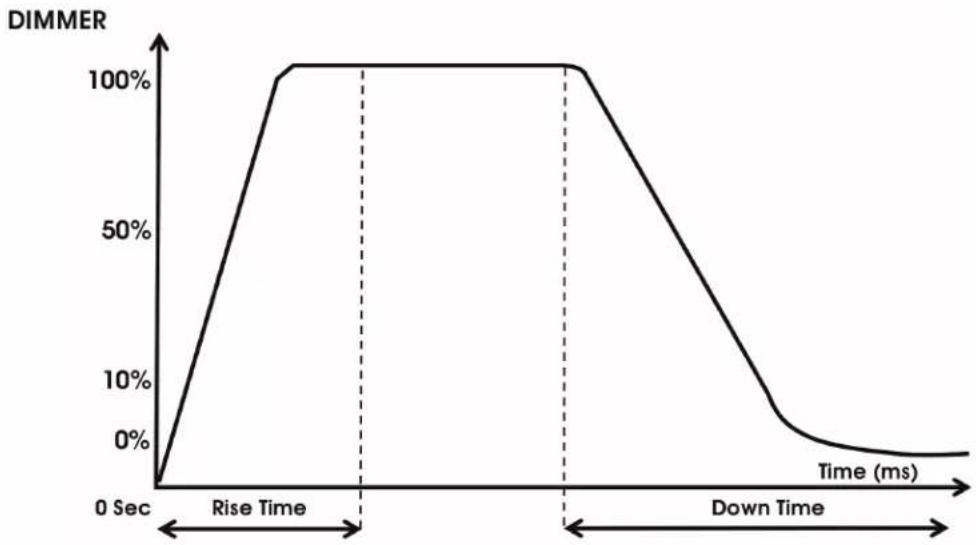

Dimmer Curve:

This is used to set the dimming curve used with DMX mode. Please refer to the Dimmer Curve Chart section of this manual for detailed information.

1. Plug the fixture in and press the MODE button until "DMX MODE" is displayed.

2. Press the SET UP button until "dr-X" is displayed. "X" represents the displayed dimmer curve (0-4).

3. 0 - Standard
   • 1 - Stage
   • 2 - TV
   • 3 - Architectural
   • 4 - Theatre

4. Press the UP or DOWN buttons to scroll through and select your desired dimming curve.

OPERATING INSTRUCTIONS

Operating Modes:

The Mega Par Profile Plus has five operating modes:

• Sound-Active mode - The unit will react to sound, chasing through the built in programs. There are 16 selectable sound active modes.
  • Color Macro Mode - Choose from 64 color options.
  • Auto Mode - Choose from 3 Auto Modes.
• RGB+UV Dimmer Mode - Choose one of the four colors to remain static or adjust the intensity of each color to make your desired color.
• DMX control mode - This function will allow you to control each individual DMX traits using a standard DMX 512 controller.

RGB+UV Dimmer Mode:

1. Plug the fixture in and press the MODE button until the desired color mode is shown on the display. Options are as follows:

2. "r.XXX" = Red dimming mode.

3. "G.XXX" = Green dimming mode.
4. "b.XXX" = Blue dimming mode.

5. "u.XXX" = UV dimming mode.

6. Once the desired color option is shown on the display, press the UP and DOWN buttons to adjust intensity.

7. Activate strobing by pressing the SET UP button to enter the Flash (strobe) mode.

8. "FS.XX" will be displayed, indicating that the unit is in Flash mode. The Flash can be adjusted between "FS.00" (flash off) to "FS.15" (fastest flash).

Sound Active Mode:

When this mode is activated, the fixture will react to sound and chase through the different colors.

1. Plug the fixture in and press the MODE button until "SoXX" is displayed. "XX" represents the sound active mode (1-16) that is currently selected. The fixture will now change in response to sound inputs.
2. Press the SET UP button to adjust the sound sensitivity. "SJ-X" should be displayed. Use the UP or DOWN buttons to adjust the sensitivity. "SJ-1" is the lowest sensitivity, and "SJ-8" is the highest.

Auto Run Mode:

There are 3 Auto Run Modes to choose from: Color Fade, Color Change, and both modes running together. The running speed is adjustable in all 3 modes.

1. Plug the fixture in and press the MODE button until either "AFXX", "AJXX", or "A-JF" is displayed.
2. AFXX = Color Fade mode, with 16 Color Fade modes to choose from. Use the UP or DOWN buttons to scroll through the different modes.
3. AJXX = Color Change mode, with 16 Color Change modes to choose from. Use the UP or DOWN buttons to scroll through the different modes.

4. A-JF = Both Color Fade and Color Change modes running.

5. After you have chosen your desired running mode, press the SET UP button until "SP.XX" is displayed. Use the UP and DOWN buttons to set the running speed of the selected program, with selectable values ranging from "SP.01" (slowest) to "SP.16" (fastest). Press the SET UP button to return to your desired AutoRun Mode.

OPERATING INSTRUCTIONS

Static Color Mode:

1. Plug the fixture in and press the MODE button until "CLXX" is displayed.
2. There are 64 colors to choose from. Select your desired color by pressing the UP and DOWN buttons.
3. Activate strobing by pressing the SET UP button to enter the Flash (strobe) mode. "FS.XX" will be displayed, indicating that the unit is in flash mode. The Flash can be adjusted between "FS.00" (flash off) to "FS.15" (fastest flash).

LED Display On/Off:

To set the LED display to turn off after 10 seconds, press the MODE button until "don" is displayed, then press the UP button to display "doff". The display will turn off after 10s. The display can be turned back on by pressing any button. To set the display press the MODE button until "dXX" is displayed. Use the UP or DOWN buttons to select either:

• “don” = LED display on at all times.
• “doFF” = LED display shuts off after 10 seconds.

ADJ LED RC2:

This function is used to activate or deactivate the ADJ LED RC2 (Remote Control). When this function is activated, you can control the fixture using the ADJ LED RC2. Refer to the ADJ LED RC2 section of this manual for detailed information about controls and functions.

1. Plug the fixture in and press the MODE button until "dXX" is displayed. "XX" represents either "on" or "oFF".
2. Press the SET UP button until "IrXX" is displayed. "XX" represents either "on" or "oF". Press the UP or DOWN buttons to either activate the remote function (On) or deactivate it (Off).

LED Display Inversion:

Flip the display 180^ so that the display can be read when the unit is upside down.

1. Plug the fixture in and press the MODE button until "dXX" is displayed. "XX" represents either "on" or "oFF".
2. Press the SET UP button until "Stnd" is displayed.
3. Press the UP or DOWN buttons to reverse the display 180°.

Default Running Mode:

When activated, all fixture settings will return to their default factory values.

1. Plug the fixture in and press the MODE button until "dXX" is displayed. "XX" represents either "on" or "oFF".
2. Press the SET UP button until "dEFA" is displayed.
3. Press the UP and DOWN buttons simultaneously, then press the MODE button to exit.

PRIMARY-SECONDARY CONFIGURATION

This function will allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit, and the others will react to the controlling unit's built-in programs. Any unit can act as a Primary or a Secondary, but only one unit in a given system can be programmed to act as the Primary

Connections and Settings:

1. Daisy chain your units via the XLR connectors on the rear panel of each unit. Use standard XLR data cables to link your units together. Remember that the male XLR connector is the input and the female XLR connector is the output. The first unit in the chain (primary) will use the female XLR connector only, and the last unit in the chain will use the male XLR connector only.
2. Connect the first secondary unit to the primary.
3. Set the primary unit to your desired mode of operation, then set the secondary unit(s) to the DMX address setting. The secondary unit(s) will now follow the primary.

ADJ LED RC2

The ADJ LED RC2 infrared remote (sold separately) controls many different functions and gives the user complete control of this device. The controller must be aimed at the front of the fixture, and maximum range is 30 feet. To use the ADJ LED RC2, the fixture's infrared receiver must first be activated, as explained in the Operation Instructions section of this manual. Please note that the unit will only respond to remote inputs when the unit is in Master mode.

BLACKOUT - Press this button to blackout the fixture.

PROGRAM SELECTION - This button will let you access color change mode, color fade mode, auto run mode, or static color mode. Each press of this button will cycle to the next mode in sequence. Once the desired mode has been selected, use the “+” or “-” buttons to scroll through the programs or static colors, or use the number keys to select the desired program or color. When using the auto run, color fade, or color change, press the Speed button, then use the “+” or “-” to adjust the running speed. The unit’s LEDs will flash different colors to indicate the selected mode, as follows:

• Red LEDs flash = Color Fade Mode.
• Green LEDs flash = Color Change Mode.
• Blue LEDs flash = Auto Run Mode.
• UV LED flashes = Static Color Mode.

FLASH - This button activates the strobe effect. You can control the flash rate by pressing the “+” and “-” buttons. Press this button again to exit strobe mode.

SPEED - Press this button and use the “+” & “-” buttons to adjust the speed of the auto run, color change, and color fade, or adjust the sound sensitivity in sound active mode.

DMX MODE - Press this button to scroll through DMX addressing, DMX Channel mode, DMX last state setting, and dimming curves. When your desired menu/submenu is found, use the “+” & “-” buttons to scroll through the settings. Refer to the DMX Traits section of this manual for detailed information. Selected DMX mode is indicated by the fixture LEDs as follows:

All LEDs = 4 DMX Channel mode.

Red LEDs = 5 DMX Channel mode.

Green LEDs = 6 DMX Channel mode.

Blue LEDs = 9 DMX Channel mode.

UV LEDs = 10 DMX Channels mode.

SECD/SA (SOUND ACTIVE) - Use this button to activate sound active mode. In sound active mode, use the “+” and “-” buttons to scroll through the 16 sound active programs, or select the desired program using the number keys. Press the Speed button to and use the “+” and “-” buttons to adjust the sound sensitivity.

SET ADDRESS - Press this button to set the DMX address, then use the number keys to enter in a 3-digit value for the desired DMX address. For example, to set the unit to a DMX address of 1, press the SET ADDRESS button, then key in "0 - 0 - 1" using the number keys.

R G B A - Press the button representing the desired color, then press the “+” or “-” to adjust the brightness. Please note that “A” selects UV dimmer mode.

ADJ LED RC2

“+” and “-” - Use these buttons to adjust the flash rate, speed of the built-in programs, sound sensitivity, and program selection.

DMX CONTROL:

Operating through an DMX controller gives the user the freedom to create custom programs tailored to their own individual needs. Follow the directions below to set your DMX channel mode and address.

1. Before connecting to a DMX controller, please select your desired mode by pressing the DMX Mode button, then use the "+" or "-" buttons to scroll through and select your desired DMX Channel Mode. Set the mode before you address the fixture.
2. After you have selected your mode, set the DMX address for the fixture by pressing the "S" button. The LEDs will flash 2-3 times and all the red LED's will illuminate. Use the number buttons key in a 3-digit DMX address. Please note that when setting the DMX address, an LED will glow each time a number is pressed, then all LEDs will flash 2-3 times when you have set the DMX address correctly.

3. Now you may connect the fixture to any standard DMX controller via the XLR connections.

4. All LEDs flash = 4-channel mode.

5. Red LEDs flash = 5-channel mode.
6. Green LEDs flash = 6-channel mode.
7. Blue LEDs flash = 9-channel mode.
8. UV LED flashes = 10-channel mode.

DMX SETUP

Power Supply: This device contains an automatic voltage switch, which will automatically sense the voltage when it is plugged into the power source. With this switch, there is no need to worry about the correct power voltage, and this unit can be plugged in almost anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA "IN" and DATA "OUT" XLR terminals located on all DMX fixtures (most controllers only have a DATA "OUT" terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation): This unit can be controlled via DMX-512 protocol and features 5 selectable DMX modes. Please refer to the DMX Traits section of this manual for detailed information. The DMX address can be set using the controls on the rear panel of the unit. Your unit and your DMX controller require a 3-pin XLR connector for data input/output. We recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). Your cables should be made with a male XLR connector on one end and a female XLR connector on the other. Also remember that DMX cable must be daisy chained and cannot be split.

Close-up of two black electronic connectors with metallic pins, no visible text or symbols

DMX SETUP

Notice: Be sure to the figures below when making your own cables. Do not use the ground lug on the XLR connector. Do not connect the cable's shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR's outer casing. Grounding the shield could cause a short circuit and erratic behavior.

Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

A DMX512 terminator reduces signal errors, avoiding most signal reflection interference. Connect PIN 2 (DMX-) and PIN 3 (DMX+) of the last fixture in series with a 120 Ohm, 1/4 W Resistor to terminate the DMX512.

5-Pin XLR DMX Connectors: Some manufacturers use 5-pin DMX-512 data cables for DATA transmission in place of 3-pin. 5-pin DMX fixtures may be integrated into a 3-pin DMX line with a 5-pin to 3-pin adapter cable. These adapters are readily available at most electronics stores. Follow the chart below for a proper conversion.

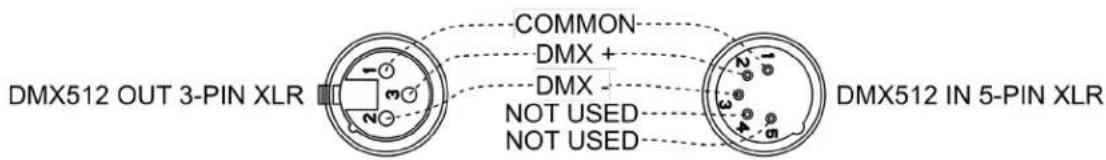

3-Pin XLR to 5-Pin XLR Conversion
Ground/Shield	Pin 1	Pin 1
Data Compliment (- signal)	Pin 2	Pin 2
Data True (+ signal)	Pin 3	Pin 3
Not Used		Do Not Use
Not Used		Do Not Use

DMX SETUP

DMX Addressing:

All fixtures should be given a DMX starting address when using a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control signal sent out from the DMX controller. The assignment of this starting DMX address is achieved by setting the correct DMX address on the digital control display on the fixture.

You can set the same starting address for all fixtures or a group of fixtures, or set different addresses for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react in the same way; in other words, changing the settings of one channel will affect all the fixtures simultaneously.

If you set each fixture to a different DMX address, each unit will start to “listen” to the channel number you have set, based on the quantity of DMX channels of each fixture. That means changing the settings of one channel will only affect the selected fixture. For instance, when this unit is set to 6 Channel mode, you should set the starting DMX address of the first unit to 1, the second unit to 7 (1 + 6), the third unit to 13 (1 + 6 + 6), the fourth unit to 19 (1 + 6 + 6 + 6), etc...

Channel Mode	Unit 1 Address Unit 2 Address Unit 3 Address Unit 4 Address
4Ch 1 5 9 13
5Ch 1 6 11 16
6Ch 1 7	13	19
9Ch 1 10	19	28
10Ch	1	11	21	31

DMX TRAITS

CHANNEL					DMX VALUES	FUNCTION
4Ch 5	Ch 6Ch	9Ch 10	Ch
1 1 1	1 1 000	- 255	Red, 0%	to 100%
2 2 2	2 2 000	- 255	Green, 0%	to 100%
3 3 3	3 3 000	- 255	Blue, 0%	to 100%
4 4 4	4 4 000	- 255	UV, 0% to	100%
		5 5 5				Shutter / Strobe
					000 - 031 LED Off
					032 - 063 LED On
					064 - 095strobing, slow to fast
					096 - 127 LED On
					128 - 159 strobe Pulse, slow to fast
					160 - 191 LED On
					192 - 223 Random Strobe, slow to fast
					224 - 255 LED On
	5 6 6	6 000	- 255 Master Dimmer, 0% to			100%
			7	7		Program Selection Mode
					000 - 051 Dimming Mode
					052 - 102 Color Macro Mode
					103 - 153 Color Change Mode
					154 - 204 Color Fade Mode
					205 - 255 Sound Active Mode
			8	8		Color Macros / Programs / Sound Activity
					000 - 255	Color Macro Mode, see Color Macro Chart section of this manual
						Color Change Program Mode
					000 - 015 Color Change 1
					016 - 031 Color Change 2
					032 - 047 Color Change 3
					048 - 063 Color Change 4
					064 - 079 Color Change 5
					080 - 095 Color Change 6
					096 - 111 Color Change 7
					112 - 127 Color Change 8
					128 - 143 Color Change 9
					144 - 159 Color Change 10
					160 - 175 Color Change 11
					176 - 191 Color Change 12
					192 - 207 Color Change 13
					208 - 223 Color Change 14
					224 - 239 Color Change 15
					240 - 255 Color Change 16
CONTINUED ON NEXT PAGE

DMX TRAITS

CHANNEL					DMX VALUES	FUNCTION
4Ch 5	Ch 6Ch	9Ch 10	Ch
			8	8		Color Fade Program Mode
					000 - 015 Color Fade 1
					016 - 031 Color Fade 2
					032 - 047 Color Fade 3
					048 - 063 Color Fade 4
					064 - 079 Color Fade 5
					080 - 095 Color Fade 6
					096 - 111 Color Fade 7
					112 - 127 Color Fade 8
					128 - 143 Color Fade 9
					144 - 159 Color Fade 10
					160 - 175 Color Fade 11
					176 - 191 Color Fade 12
					192 - 207 Color Fade 13
					208 - 223 Color Fade 14
					224 - 239 Color Fade 15
					240 - 255 Color Fade 16
						Sound Active Mode
					000 - 015 ound Active Mode 1
					016 - 031ound Active Mode 2
					032 - 047 ound Active Mode 3
					048 - 063ound Active Mode 4
					064 - 079 ound Active Mode 5
					080 - 095ound Active Mode 6
					096 - 111 ound Active Mode 7
					112 - 127ound Active Mode 8
					128 - 143 ound Active Mode 9
					144 - 159ound Active Mode 10
					160 - 175 ound Active Mode 11
					176 - 191ound Active Mode 12
					192 - 207 ound Active Mode 13
					208 - 223ound Active Mode 14
					224 - 239 ound Active Mode 15
					240 - 255ound Active Mode 16
			9	9		Program Speed / Sound Sensitivity
					000 - 255 Program Speed, slow to fast
					000 - 255 $ound Sensitivity, least to most sensitive
CONTINUED ON NEXT PAGE

DMX TRAITS

CHANNEL					DMX VALUES	FUNCTION
4Ch 5	Ch 6Ch	9Ch 10	Ch
				10		Dimmer Curves
					000 - 020 standard
					021 - 040stage
					041 - 060 TV
					061 - 080 Architectural
					081 - 100 Theatre
					101 - 255 Default to unit setting

NOTES:

• When Channel 7 is between the values of 000 - 051, Channels 1-4 are used, and Channel 5 will control strobing.
• When Channel 7 is between the values of 052 - 102, Channel 8 is in Color Macros Mode, and Channel 5 will control strobing.
• When Channel 7 is between the values of 103 - 153, Channel 8 is in Color Change Mode, and Channel 9 will control the color change speed.
• When Channel 7 is between the values of 154 - 204, Channel 8 is in Color Fade Mode, and Channel 9 will control the color fade speed.
• When Channel 7 is between the values of 205 - 255, Channel 8 is in Sound Active Mode, and Channel 9 will control the sound sensitivity.

COLOR MACROS CHART

COLOR NO. D	MX VALUES	COLOR INTENSITY
		RED GREEN BLUE UV
Color0 (off) 00	0 0 0 0 0
Color1 001	004 80 255 234 80
Color2 005	008 80 255 164 80
Color3 009	012 77 255 112 77
Color4 013	016 117 255 83	83
Color5 017	020 160 255 77	77
Color6 021	024 223 255 83	83
Color7 025	028 255 243 77	77
Color8 029	032 255 200 74	74
Color9 033	036 255 166 77	77
Color10	037 - 040 255	125 74	74
Color11	041 - 044	255	97	77	74
Color12	045 - 048	255	71	77	71
Color13	049 - 052 255	83 134 83
Color14	053 - 056 255	93 182 93
Color15	057 - 060 255	96 236 96
Color16	061 - 064 238	93 255 93
Color17	065 - 068 196	87 255 87
Color18	069 - 072 150	90 255 90
Color19	073 - 076 100	77 255 77
Color20	077 - 080 77 100	255 77
Color21	081 - 084 67 148	255 67
Color22	085 - 088 77 195	255 77
Color23	089 - 092 77 234	255 77
Color24	093 - 096 158	255 144 144
Color25	097 - 100 255	251 153 153
Color26	101 - 104 255	175 147 147
Color27	105 - 108 255	138 186 138
Color28	109 - 112 255	147 251 147
Color29	113 - 116	151 138	255 138
Color30	117 - 120 151	138 255 138
Color31	121 - 124 138	169 255 138
Color32	125 - 128 255	255 255 255
Color33	129 - 132 255	206 143	0
Color34	133 - 136 254	177 153	0
Color35	137 - 140	254	192	138	0
Color36	141 - 144 254	165 98	0
CONTINUED ON NEXT PAGE

COLOR MACROS CHART

COLOR NO. D	DMX VALUES	COLOR INTENSITY
		RED GREEN BLUE UV
Color37 145	- 148 254 121 0 0
Color38 149	- 152 176 17 0 0
Color39 153	- 156 96 0 11 0
Color40 157	- 160 234 139 171 0
Color41 161	- 164 224 5 97 0
Color42 165	- 168 175 77 173 0
Color43 169	- 172 119 130 199 0
Color44 173	- 176 147 164 212 0
Color45 177	- 180 88 2 163 0
Color46 181	- 184 0 3	8 86 0
Color47 185	- 188 0 1	42 208 0
Color48 189	- 192 52 148 209 0
Color49 193	- 196 1 1	34 201 0
Color50 197	- 200 0 1	45 212 0
Color51 201	- 204 255 0 0 0
Color52 205	- 208 0 2	55 0 0
Color53	209 - 212	0	83	115	0
Color54 213	- 216 0 9	7 166 0
Color55 217	- 220 1 1	00 167 0
Color56 221	- 224 0 4	0 86 0
Color57 225	- 228 209 219 182 0
Color58 229	- 232 42 165 85 0
Color59 233	- 236 0 4	6 35 0
Color60 237	- 240 8 1	07 222 0
Color61 241	- 244 107 156 231 0
Color62 245	- 248 165 198 247 0
Color63 249	- 252 0 0	255 0
Color64 253	- 255 0 0	0 255

PHOTOMETRIC CHART

R	D25	3940	1324	615	361	209	lux
G	D25	2860	1014	424	230	149.9
B	D25	3160	1158	440	240	148
UV	D25	862	243	112	61.4	39
RGB+UV	D25	11720	3520	1346	820	508

DIMMER CURVE CHART

Dimming Curve Ramp Effect	0 sec Fade Time		1 sec Fade Time
	255		255
	Rise Time (ms)	Down Time (ms)	Rise Time (ms)	Down Time (ms)
Standard (default)	0	0	0	0
Stage	780	1100	1540	1660
TV	1180	1520	1860	1940
Architectural	1380	1730	2040	2120
Theatre	1580	1940	2230	2280

POWER CORD DAISY CHAIN

This feature allows multiple units to be linked together by way of the power input and output sockets. The maximum number of devices that can be connected in this manner is 12 units.

After this quantity has been reached, a new power outlet must be used to accommodate additional devices.

Linked devices must be of the same make and model type. DO NOT mix devices!

FUSE REPLACEMENT

Disconnect the unit from its power source, and remove the power cord from the unit. Locate the fuse holder is located inside the power socket and use a flat-head screw driver to gently pry out the fuse holder. Remove the bad fuse and replace with a new one. Please note that the fuse holder also has a holder for a spare fuse.

CLEANING

Due to fog residue, smoke, and dust, cleaning the internal and external optical lenses must be carried out periodically to optimize light output.

- Periodically use normal glass cleaner and a soft cloth to wipe down the outside casing and external optics.

• Always be sure to dry all parts completely before plugging the unit back in.

Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew).

TROUBLE SHOOTING

Listed below are a few common problems the user may encounter, with possible solutions.

Unit does not respond to DMX:

Check that the DMX cables are connected and wired correctly (pin 3 is "hot"; on some other DMX devices pin 2 may be "hot"). Also, check that all cables are connected to the right connectors, as the order in which the inputs and outputs are connected can affect the operation of the device.

Unit does not respond to sound:

• Quiet or high pitched sounds will not activate the unit.
  • Make sure that Sound Active mode is activated.

SPECIFICATIONS

• Ultra bright flat Par 64 with 12 x 4W Quad (RGB+UV 4-IN-1) LEDs
• Smooth RGB Color Mixing (fast or slow color change operation) with no RGB+UV shadows
  • Power & DMX Ins/Outs are intelligently designed to sit sideways so the unit can be set flat on the ground
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
  • 5 DMX Channel Modes: 4/5/6/9/10 Channels
• 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode (16 Color Change Programs, 16 Color Fade Programs, & Color Change & Fade Combination), Static Color Mode, & DMX Controlled
• Stand Alone or Primary/Secondary Configuration
• Beam Angle: 25 degrees
  • 4-Button DMX LED Display
  • 64 built-in Color Macros
• Flicker Free
• Refresh Rate: 504Hz
• DMX-512 protocol
  • LED Pulse and strobe effect
• Linkable via 3-pin XLR cable
  • With Wired Digital Communication Network
  • Electronic Dimming: 0-100%
• Includes scissor yoke to hang on truss, mount on a wall or set on the ground
  • Long Life LEDs (50,000 hrs.)
  • Power Draw: 54W Max
• IEC AC input and output on rear to daisy chain power (Up to 12 Mega 64 Profile Plus fixture's)
• Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./10M (sold separately)
  • Light output: 3,520 LUX @ 2M; 820 LUX @ 4M (25-degree beam)
  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Power cable length: 1.8 meter (IEC)
• Dimensions (LxWxH): 10.5" x 10.25" x 4.5"/ 261 x 260 x 110mm
• Fuse: 2Amp
  • Weight: 5 lbs./2.1 kg.

This page intentionally left blank.
