i-DDQ10 - 10714 Sd - Washing machine Hiberg - Free user manual and instructions

Type	Freestanding washing machine
Brand	Hiberg
Model	i-DDQ10 - 10714 Sd
Capacity	10 kg
Maximum Spin Speed	1400 rpm
Energy Efficiency Class	A+++
Noise Level (Wash/Spin)	56 dB / 76 dB
Annual Energy Consumption	190 kWh
Annual Water Consumption	9900 L
Dimensions (H x W x D)	85 x 60 x 58 cm
Net Weight	75 kg
Drum Material	Stainless steel
Number of Programs	15
Display	LED digital display
Child Lock	Yes
Delay Start	Up to 24 hours
Voltage / Frequency	220-240 V / 50 Hz
Power Consumption (Wash/Standby)	1750 W / 0.5 W
Water Connection	Cold water only
Warranty	2 years
Included Accessories	Hose, manual, fixing kit

Frequently Asked Questions - i-DDQ10 - 10714 Sd Hiberg

How do I install the washing machine?

Ensure the machine is on a level surface. Connect the inlet hose to a cold water tap, fit the drain hose to a suitable drain, and plug into a grounded outlet. Remove transit bolts before use.

What does the error code E1 mean?

Error E1 indicates a water drainage problem. Check the drain hose for kinks or blockages, and ensure the filter is clean. If persistent, contact support.

Can I wash a duvet in this machine?

Yes, if the duvet is machine-washable and fits comfortably. Use the Duvet program or a gentle cycle with reduced spin speed to avoid imbalance.

How often should I clean the drum?

Run a drum clean cycle every 30 washes using a machine cleaner or hot water and vinegar. This prevents mold and odors.

What is the maximum spin speed for delicate fabrics?

For delicates, select a spin speed of 600-800 rpm to protect fibers. The machine will default to low spin for these programs.

How do I unlock the child lock?

Press and hold the Child Lock button for 3 seconds. The indicator light will turn off, and the controls become active.

Why is the machine not starting?

Check if the door is fully closed, the water tap is open, and the machine is plugged in. Also ensure the child lock is not activated.

Can I pause the cycle to add laundry?

Yes, press the Pause button. Wait until the door unlocks (if water level is low) then open the door. Add items and close, then press Start to resume.

What detergent type should I use?

Use high-efficiency (HE) detergent designed for automatic washers. For front-loaders, a low-suds powder or liquid is recommended.

How do I clean the filter?

Open the filter cover at the bottom front. Place a tray to catch water, unscrew the filter counterclockwise, remove any debris, replace and tighten. Do this monthly.

USER MANUAL i-DDQ10 - 10714 Sd Hiberg

Illustration of two people pushing a large box with a circular vent, no text or symbols present

Simple line drawing of a box with a cross symbol below it (no text or labels)

Two workers in hard hats exchanging a large diamond-shaped object (no text or symbols visible)

Simple line drawing of a washing machine with a black X mark on its side (no text or symbols)

Simple line drawing of a washing machine with a black X mark symbol (no text or labels)

Simple line drawing of a washing machine with a black X mark symbol (no text or labels)

1

2

Close-up of a mechanical component with a wrench and circular head, no visible text or symbols

Рис. 1

Close-up of a metallic mechanical knob with a black arrow pointing to a small metallic part (no text or symbols visible)

Рис. 2

Close-up of a white object with a black circular hole and an arrow pointing to it, partially overlaid by a striped pattern (no text or symbols)

Рис. 3

Примечание:

Line drawing of a rectangular industrial or mechanical component with a coiled pipe and flanges (no text or symbols)

1

Illustration of two faucet systems in a tiled room (no text or symbols)

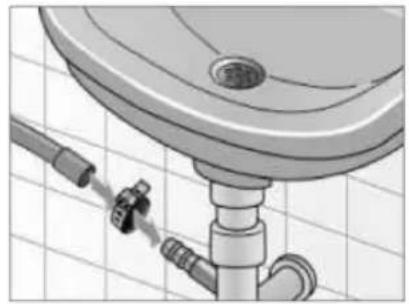

Diagram of a bathroom sink with pipe and valve, no text or symbols present

Diagram of a curved pipe or arch structure with directional arrows indicating flow or movement (no text or symbols)

Illustration of a bathroom sink with faucet and drain, no text or symbols present

Illustration of clothing items being processed from a container (no text or symbols)
