Product Type	Weather Station
Brand	Sencor
Model	SWS TH5800
Compatible Models	Sencor SWS 5800
Dimensions (W x H x D)	67 x 106 x 35 mm
Weight	74 g
Power Supply	2 x AA 1.5V batteries (not included)
Transmission Frequency	433.92 MHz
Number of Channels	3 (selectable)
Transmission Range	Up to 100 m (open area)
Temperature Measurement Range	-20 °C to +50 °C
Humidity Measurement Range	0 % to 99 %
Operating Temperature Range	-40 °C to 70 °C
Display Features	Transmission indication LED, selected channel, temperature and humidity display
Wall Mountable	Yes (with wall mount hole)
Low Battery Indication	Yes (on main unit)
Reset Button	Yes
Channel Selection	Slide switch
Environmental Protection	Avoid direct sunlight and rain; not waterproof
Cleaning Instructions	Wipe with a soft, dry cloth; do not use abrasive cleaners
Certifications	Complies with EU Directive 2014/53/EU
Warranty	24 months from date of purchase
Manufacturer	FAST ČR, a.s., Czech Republic

Frequently Asked Questions - SWS TH5800 SENCOR

How do I set up the SWS TH5800 sensor?

Insert 2 AA batteries into the sensor observing polarity. Use the CHANNEL slide switch to select channel 1, 2, or 3 before inserting batteries. The sensor will automatically transmit temperature and humidity to the main unit.

What is the maximum transmission range of the sensor?

The transmission range is up to 100 meters in open area without obstacles like buildings or trees. In real conditions, the range may be reduced to about 70 meters.

How do I select a different channel for the sensor?

Use the CHANNEL slide switch located above the battery compartment to select channel 1, 2, or 3. Ensure each sensor is set to a different channel if using multiple sensors.

What type of batteries does the sensor require?

The sensor requires 2 x AA 1.5V batteries (alkaline recommended). Batteries are not included.

What is the temperature measurement range of the sensor?

The sensor measures temperatures from -20 °C to +50 °C. Outside this range, the sensor may not work properly.

What should I do if the sensor stops transmitting?

Check the batteries and replace if the low battery icon appears on the main unit. Ensure the sensor is within range and not blocked by obstacles. Press the RESET button on the sensor if needed.

How should I mount the sensor?

Use the wall mount hole on the back to securely mount the sensor on a horizontal surface. Avoid placing it near metal frames or interference sources like computers or TVs.

Can the sensor be used outdoors in rain?

The sensor is not waterproof. Do not expose it to direct sunlight or rain. Install it in a sheltered location protected from the elements.

How do I clean the sensor?

Clean the sensor with a soft, dry cloth. Do not use abrasive or corrosive cleaners, as they may scratch plastic parts or damage electronics.

What is the warranty period for the SWS TH5800?

The product comes with a 24-month warranty from the date of purchase for domestic use. Warranty covers defects in materials and workmanship under normal use.

USER MANUAL SWS TH5800 SENCOR

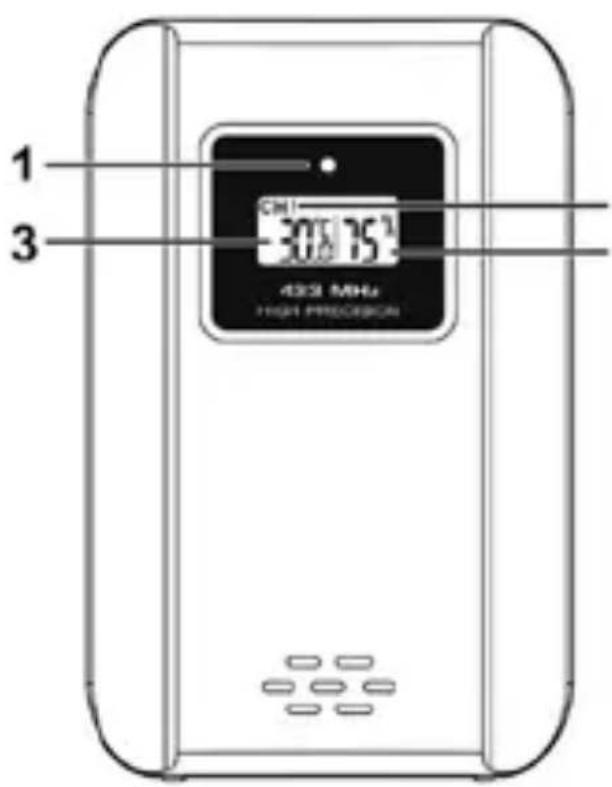

1: Transmission Indication LED
2: Selected Channel
3: Temperature display
4: Humidity display

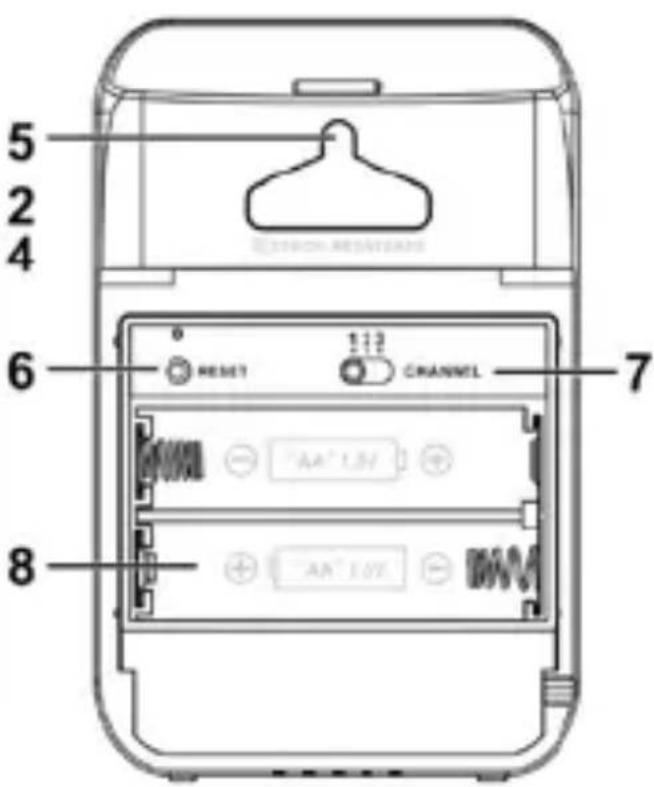

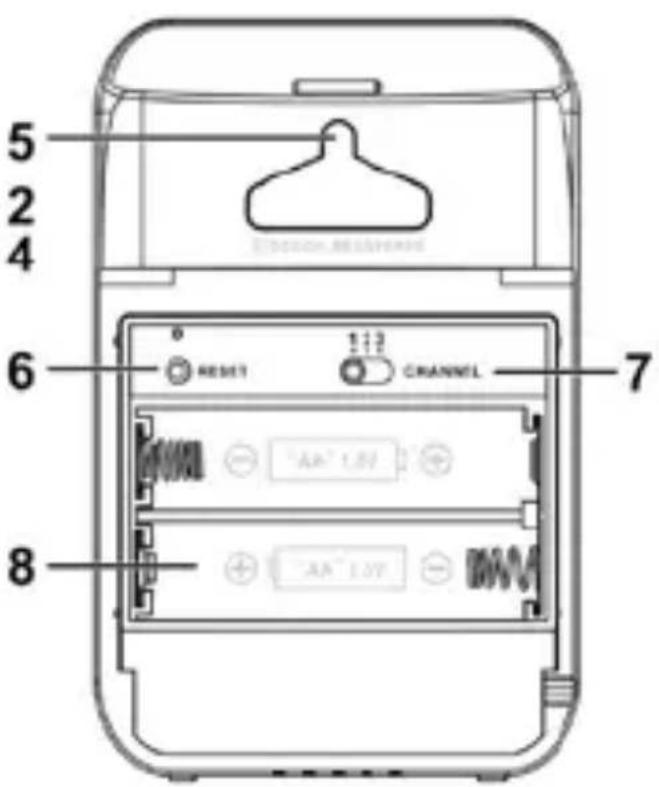

5: Wall mount hole

6: “RESET” button
7: "CHANNEL" Slide switch
8: Battery compartment

GETTING STARTED

● Batteries compartment (8) of sensor is locating behind the back cover.
- Insert 2 x AA batteries observing polarity [ “+” and “−” marks]
- The sensors will automatically transmit temperature and humidity signal to the main unit after batteries inserted, slide switch to select the Channel 1, 2, 3 to ensure each sensor is transmitting different channel's signal before inserting batteries. The channel select switch (7) is above the battery compartment of sensor.

● The remote sensor should be securely mounted onto a horizontal surface.
Transmissions between receiver and transmitter can reach up to 70m in open area. Open area means there are no interfering obstacles such as buildings, trees, vehicles, high voltage lines, etc.
- Once the low battery icon appears at receiver, indicating that outdoor sensor is in low battery status, the batteries should be replaced.
- The sensor's temperature measurable range is -20^ 50^ . When temperature is lower than -20^ , or higher than +50^ , the sensor might not work properly.
- Sensor's humidity measurable range is 0% \~ 99%.

PRECAUTIONS

• Avoid placing the unit near interference sources/metal frames such as computer or TV sets.
  ● The outdoor sensor must not be set up and installed under water. Set it up in away direct sunlight and Rain
• Never clean the device using abrasive or corrosive materials or products. Abrasive cleaning agents may scratch plastic parts and corrode electronic circuits

SPECIFICATIONS

For use with the models: SWS 5800

Operating Temperature Range: -40^ 70^

Operating Humidity Range: 0% \~ 99%

RF Transmission Frequency: 433,92 MHz

No. of Selected Channels: 3

RF Transmission Range: Maximum 100 Meters

Power Source: 2 x Battery Type AA 1,5 V (Batteries Not Included)

Dimensions: (w / h / d) 67 x 106 x 35 mm

Weight: 74 g

INSTRUCTIONS AND INFORMATION ON THE DISPOSAL OF DISCARDED PACKAGING MATERIALS

Take the packaging material to a collection yard for disposal.

DISPOSAL OF DISCARDED ELECTRICAL AND ELECTRONIC EQUIPMENT

Simple line drawing of a trash bin with no text or symbols

This symbol on the product, accessory or packaging indicates that the product must not be treated as normal household waste. Please dispose of this product in a collection yard designated for the recycling of electrical and electronic equipment. In some EU countries or in some European countries, you can return your products to your local retailer when you buy an equivalent new product. Correct disposal of this product helps save valuable natural resources and prevents possible adverse impacts on the environment and human health that might be caused by improper waste disposal. Please contact your local authority or the nearest waste collection yard for further details. Improper disposal of this type of waste may be subject to a legal fine.

For companies in the European Union

If you need to dispose of electrical or electronic equipment, ask your dealer or supplier for the necessary information.

Disposal in countries outside the European Union

To dispose of this product, please ask your local authorities or dealer for the necessary information on correct disposal.

This product complies with EU requirements.

FAST ČR, a. s. hereby declares that the radio device type SWS TH5800 complies with Directive 2014/53/EU. For full version of the EU declaration of conformity, please refer to the website:

www.sencor.cz

Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make such changes.

The original version is in Czech.

Manufacturer: FAST ČR, a.s., U Sanitasu 1621, Říčany 251 01, Czech Republic

Authorized service centers: Visit www.sencor.com for detailed information about authorized service centers.

SENCOR®

EN Warranty conditions

Warranty card is not a part of the device packaging.

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking over the product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation.

This warranty is void especially if apply as follows:

■ Defects which were put on sale.
■ Wear-out or damage caused by common use.
The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for.
The product was damaged by uncared-for or insufficient maintenance.
The product was damaged by dirt, accident of force majeure (natural disaster, fire, and flood).
■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc.
The product was mechanically damaged (e.g. broken button, fall).
■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes).
■ Repair, modification or other failure action to the product by unauthorized person.
■ End-user did not prove enough his right to claim (time and place of purchase).
■ Data on presented documents differs from data on products.
Cases when the claiming product cannot be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).

Manufacturer:

FAST ČR, a.s., U Sanitasu 1621, Řičany 251 01, Czech Republic

Visit www.sencor.com for detailed information about authorized service centers.

The original version of the instructions is in the Czech language, other language versions are made by the appropriate translation.
