Product Type	Espresso coffee machine for pods
Brand	Caffe Borbone
Model	Didi
Dimensions (W x H x D)	12.5 x 21.5 x 30.4 cm
Weight	3.1 kg
Power Supply	230 V ~ 50/60 Hz
Power Consumption	450 W
Pump Pressure	15 bar
Water Tank Capacity	0.8 litres
Pod Compatibility	44 mm ESE pods
Safety Devices	Thermofuse
Power Cable Length	0.8 m
Body Material	Metal and Thermoplastic
Control Panel	Front
Stand-by Function	Auto shut-off after 30 min inactivity
Descaling Interval	Every 3-4 months
Warranty Duration	24 months from purchase date
Certifications	CE, RoHS (EU Directive 2015/863)
Intended Use	Home or office use only

Frequently Asked Questions - Didi Caffe Borbone

What type of pods can I use with the Didi coffee maker?

Only 44 mm ESE pods should be used. Do not insert fingers or other objects into the pod compartment.

How do I descale the machine?

Descale every 3-4 months using a non-toxic descaling product for coffee machines. Pour the descaling solution into the water tank, dispense it intermittently, then rinse with fresh water. Do not use vinegar.

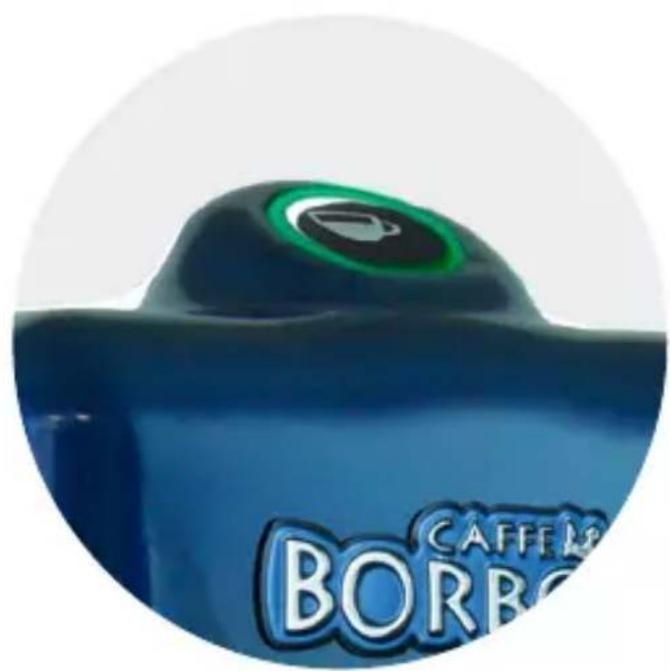

What does the LED indicator mean?

A slow flashing LED (1 sec on/off) indicates heating and stand-by mode. When the LED is steady, the machine is ready to dispense coffee. Fast flashing indicates professional mode (stand-by disabled).

How do I enable or disable the stand-by function?

With the machine off, press and hold the dispensing button while turning on the switch. The LED will flash slowly (stand-by active) or quickly (stand-by disabled). To change mode, press the dispense button again, then turn off and on to confirm.

What should I do if the machine does not turn on?

Check that the machine is properly connected to a power outlet and that the main switch is in the I position. If it still does not work, contact an authorized service center.

Why is the pump very noisy?

This is usually due to insufficient water in the tank. Fill the tank with fresh drinking water up to 2 cm below the edge.

How do I clean the pod holder?

Lift the lever, remove the steel shower filter, wash the seat and filter with a sponge and cold/warm water, then reassemble. Do not use solvents or aggressive chemicals.

Can I use regular coffee grounds instead of pods?

No, the machine is designed exclusively for 44 mm ESE pods. Using other materials may damage the machine and void the warranty.

What is the warranty period and what does it cover?

The warranty covers defects in construction, labour, and materials for 24 months from purchase. It does not cover consumables, limescale damage, or damage from improper use.

What should I do if coffee flows out from the edges?

This may indicate a dirty or worn boiler gasket. Contact an authorized service center for replacement.

USER MANUAL Didi Caffe Borbone

operating instructions

Fig. 7-A Fig. 7-B

AVVERTENZA:

Fig. 7-C Fig. 7-D

STAND-BY

Compact Size, Great in Taste.

Table of contents

30 Safety regulations
38 Warranty
39 How to read and use the instruction manual
40 Information on machine maintenance service
40 General information
42 Technical data
43 Installation
46 Coffee dispensing
48 Cleaning
48 Decalcification
49 Service at regular intervals
49 Legal information
50 Troubleshooting
52 Declaration of conformity

ATTENTION:

Before operating the coffee machine or its parts, carefully consult this manual.

ATTENZIONE:

This documentation may not be copied, photocopied, reproduced, translated or reduced in any way, either in part or in full, without written authorisation from Didiesse S.r.l.

1. Safety regulations

DANGER:

Never put live parts in contact with water: danger of short circuit!

Superheated steam and/or hot water can cause burns!

ATTENTION: INTENDED USE

The Didì espresso coffee machine is intended for home or office use only. It is forbidden to make technical modifications or to use it in a manner that is prohibited. The coffee machine must only be used by adults.

DANGER: CURRENT POWER SUPPLY

Connect the coffee machine exclusively to a suitable power outlet: the supply voltage must correspond to that shown on the plate of the machine. Arrange for defective cables and plugs to be replaced immediately by authorised service centres. Do not use the machine if a defect is found on the power cord. Do not run the power cord through corners, across sharp edges or over very

hot objects and protect it from oil. Do not pull and/or lift the coffee machine by holding it by the cord. Do not pull the plug out by the cord or touch it with wet hands. Do not allow the power cord to hang freely from tables or shelves.

WARNING: USING THE MACHINE

This appliance may be used by children of at least 8 years of age, provided that they are supervised, have received instructions on how to use the machine and are fully aware of the related dangers. Cleaning and maintenance should not be performed by children unless they are over 8 years of age and are supervised by an adult. Keep the appliance and cord out of the reach of children under 8 years of age. Appliances may only be used by persons with reduced physical, sensory or mental capabilities or lacking in experience and knowledge if they are supervised or instructed on use of the appliance in a safe manner in order to be able to understand the related hazards.

WARNING: PROTECTION OF OTHERS

Make sure that no child has the opportunity to play with the coffee machine. Children are unaware of the danger associated with appliances. Do not leave the materials used to pack the machine within the reach of children.

ATTENTION: RISK OF BURNS

Avoid directing the jet of hot water against yourself and/or others. Always use the appropriate handles or knobs. Never remove the pod-holder when dispensing coffee. During heating of the coffee dispensing group, drops of hot water may come out.

NOTE: LOCATION

Place the coffee machine in a safe place, where no-one can tip it over or be hurt by it. Superheated water may leak: danger of burns! Do not keep the machine below 0°C; there is a danger that frost may damage it. Do not use the coffee machine outdoors. Do not place the machine on very hot surfaces and near naked flames to prevent the outer casing from melting or, in any case, from being damaged.

WARNING: CLEANING

Before cleaning the machine, it is essential to disengage the switch and then disconnect the plug from the power socket. In addition, wait for the machine to cool down. Never immerse the machine in water! It is strictly forbidden to try to intervene inside the machine.

WARNING: SPACE FOR USE AND MAINTENANCE

The following are recommended for correct and efficient operation of the coffee machine:

• choose a well-levelled support surface;
• choose an environment that is sufficiently lit, hygienic and with an easy to reach power outlet;
• ensure a minimum distance from the walls of the machine.

NOTE: STORING THE MACHINE

When the machine remains unused for a prolonged period, deactivate it by unplugging it from the power socket.

Store in a dry place that is not accessible to children. Protect it from dust and dirt.

WARNING: REPAIRS / MAINTENANCEE

In case of faults, defects or a suspected defect after falling, immediately disconnect the plug from

the socket. Never place a faulty machine into operation. Only authorised service centres may perform interventions and repairs. In the case of interventions not carried out to a professional standard, the company declines all responsibility for any damage.

WARNING: WATER TANK

Only fill the circuits of the coffee machine with fresh, non-carbonated drinking water.

WARNING: POD COMPARTMENT

Only 44 mm ESE pods should be inserted into the pod compartment, according to the specifications described in this manual, or similar product expressly authorised by Didiesse S.r.l.

Do not insert fingers or any other object. Pods should only be used once.

NOTE: EXTINGUISHING FIRES

In case of fire, use carbon dioxide (CO ₂ extinguishers. Do not use water or powder extinguishers.

MACHINE DISPOSAL END-OF-LIFE

Pursuant to art. 13 of Italian Legislative Decree 151/2005 “Implementation of Directives 2002/95/EC, 2002/96/EC and 2003/108/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and the disposal of waste”. The crossed-out bin symbol on the equipment or on its packaging indicates that the product, at the end of its useful life, must be collected separately from other waste. The user must therefore transfer the equipment at the end of its life to the appropriate electronic and electrotechnical waste collection centres, or return it to the retailer when purchasing a new piece of equipment of an equivalent type, on a one-to-one basis. Adequate separate collection for subsequent commissioning of the equipment disposed of for recycling, treatment and environmentally compatible disposal helps to avoid possible negative effects on the environment and on health and promotes the reuse and/or recy-

cling of materials that compose the equipment. Improper disposal of the product by the user entails application of the administrative sanctions provided for by the current legislation.

2. Warranty

The warranty on machine components covers defects in construction, labour and/or materials.

This warranty starts from the date shown on the relevant delivery note and has a duration of 24 months from the date of purchase, unless otherwise indicated during the stipulation of the contract to which reference is made for further details.

Didiesse S.r.l. will replace any part of the machine sent to us free of charge, provided it is found defective after inspections carried out at the Didiesse S.r.l. plant and by personnel authorised by the same company.

In this regard, it should be noted that in order to comply with the warranty conditions, the Customer, in case of a fault, must send to and collect the appliance from the headquarters of Didiesse S.r.l. or service centre indicated by the same by calling the free-phone number:

800 217 661.

Consumables, and therefore subject to wear and tear during normal operation of the machine, under the conditions provided for in this manual, are not covered by this warranty.

The warranty does not cover any damage caused by:

• faults related to the breakage or loss of gaskets (pod O-Ring);
• transportation and/or handling (if these interventions are the responsibility of the customer);
• customer errors due to incorrect use of the coffee machine;
• failure to perform the maintenance as provided for in this manual;
• faults due to obstructions caused by limescale accumulations;
• faults caused by electrical shocks and short circuits;
• faults and/or breakages not attributable to its malfunction;
• reasons not dependent on the manufacturer.

In addition, tampering, modifications not expressly authorised by the manufacturer, use in extreme environmental conditions, improper use with respect to what is provided for in this manual (e.g. the machine must only work with pods) and failure to comply with the instructions provided in the manual will also be considered cause for immediate revocation of the warranty. This warranty is valid from the moment the coffee machine becomes the property of the buyer/user, who undertakes to use it according to the recommendations of Didiesse S.r.l.

The company cannot in any way be held liable for any commercial and/or image damage

nor for damage to property and persons caused by improper use or connection of the coffee machine. Any dispute between Didiesse S.r.l. and the buyer will be resolved by arbitration or the Court of Naples will have jurisdiction. These points are extracted from the general terms and conditions of sale which form an integral and substantial part of the following paragraph.

It is therefore necessary to refer to it for any additional considerations not listed therein.

3. How to read and use the instruction manual

The purpose of this manual is essentially to provide users with as complete a guide as possible, instructing them on use of the coffee machine and providing a detailed plan on what and how many interventions are needed for improved and lasting operation.

NOTE:

Therefore, consider the instruction manual as an integral part of the machine, and keep it for the duration of its operating life, requesting additional copies if it is lost.

All parts of this manual must be intact and legible and must be consulted whenever necessary. The description and images in this documentation are not binding. Didiesse S.r.l. reserves the right to make any changes it deems necessary.

The following symbols will be used in the manual to highlight particularly important indications and warnings:

ATTENTION:

this symbol indicates accident-prevention rules for the operator.

WARNING:

this symbol indicates that there is a possibility of causing damage to the machine and/or to its components.

CAUTION:

this symbol indicates that the description provides information about the operation in progress.

DANGER:

this symbol indicates the existence of a serious risk that is highly likely to cause death or serious injury if appropriate precautions are not taken.

NOTE:

this symbol provides useful information.

4. Information on machine maintenance service

Below is the information on the Companies and personnel, authorised and recommended by Didiesse S.r.l., to carry out the technical warranty service and maintenance of the machine:

• Didiesse S.r.l. personnel;
  • authorised centres indicated by Didiesse S.r.l.

5. General information

The Didi coffee machine is suitable for the preparation of 1 cup of coffee.

The controls on the front of the appliance are marked with easy-to-interpret symbols.

The machine has been designed for domestic use and is not suitable for continuous professional operation.

ATTENTION:

no liability is accepted for any damage in the event of:

• incorrect use not in accordance with the intended purposes;
  • repairs not carried out at authorised service centres;
  • tampering with the power cord;
  • tampering with any component of the machine;

• the use of non-original spare parts and accessories;

• failure to perform decalcification;
  • storage in rooms below 0° C;
  • the use of pods other than those indicated.

In these cases the warranty is voided.

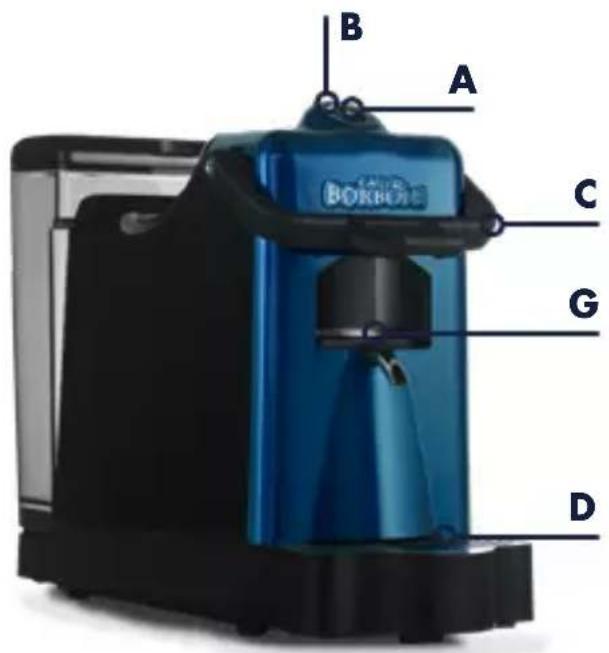

Fig. 5-A Fig. 5-B

Legend of machine components:

A. dispensing start/stop;
B. temperature/stand-by signalling;
C. extraction chamber closing lever;
D. collection tray;
E. water tank lid;
F. 0/1 power switch;
G. extraction chamber/pod holder/shower filter.

6. Technical data

Voltage 230 V ~ 50/60 Hz

Body material Metal and Thermoplastic

Machine size ( w*h*d ) 12.5 x 21.5 x 30.4 cm

Weight 3.1 kg

Power 450 W

Power cable length 0.8 m

Control panel Front

Power supply See plate on the appliance

Pump pressure 15 bar

Safety devices Thermofuse

Power cable at least H05VV-F 3G 1 mm

Water tank capacity 0.8 litres

Subject to construction and execution changes due to technological progress. Machine compliant with the European Directive 2014/30/EU (Electromagnetic Compatibility Directive) and with the 2014/35/EU ("Low Voltage" Directive).

7. Installation

For your own safety and for that of third parties, strictly follow the "Safety standards" reported in chapter 1.

INSTALLATION WARNINGS

Before installing the machine, follow these safety instructions:

• place the machine in a safe place;
  • make sure that children do not have the opportunity to play with the machine;
• prevent the machine from being placed on very hot surfaces or near naked flames.

WARNING:

place the machine on a flat and stable surface, away from water and heat sources. Disconnect the power supply, if present. Lift the machine with extreme caution, using both hands.

The coffee machine is now ready to be connected to the mains.

CONNECTION TO THE MAINS

WARNING:

electrical current can be dangerous! Consequently, always strictly observe the safety regulations described in chapter 1 of this manual.

Never use faulty cables! Defective cables and plugs must be replaced immediately by authorised service centres.

The voltage of the device has been set at the factory. Check that the mains voltage corresponds to the indications on the identification plate located on the bottom of the appliance. Check that the main switch is not pressed before connecting the machine to the mains. Plug the plug into a suitable power outlet.

WATER FILLING AND MACHINE START-UP

Referring to figs. 7-A and 7-B, remove the tank from its seat, lift the closure cap and fill it up to 2 cm below the edge.

Then return the cap to the tank and refit it in the appropriate housing.

The tank is equipped with a self-closing valve.

Fig. 7-A Fig. 7-B

WARNING:

only water at room temperature, drinkable and not sparkling should be introduced into the tank. Hot water as well as other liquids can damage the machine and tank. Do not operate the machine without water: always make sure there is sufficient water inside the tank.

Once this simple operation has been performed and after making sure that the Didi coffee machine in your possession complies with the power parameters provided by the local

electrical distribution network (230 V – 50 Hz), insert the power plug into a power outlet, then position the switch in position I (Fig. 7-C) to start the coffee group. To be able to switch to coffee dispensing it is necessary to wait for the LED light inside the button to become steady (Fig. 7-D).

At this point the machine is ready to dispense coffee.

Fig. 7-C Fig. 7-D

STAND-BY

The Didi espresso coffee machine is equipped with an electronic temperature management system. This system allows auto shutdown in the event of inactivity, thereby cancelling the power consumption. When the machine is switched on, the button LED on the front will flash slowly, 1 sec. on, 1 sec. off. This flashing indicates heating of the coffee group and the active home mode (stand-by active). Once the optimal temperature has been reached, the LED will stop flashing, instead emitting a steady light. Before this condition, it will not be possible to dispense coffee. If the machine remains unused for a period of 30 minutes, the electronic system will disconnect the voltage from the resistor.

Enable or disable the stand-by function by proceeding as follows:

1. with the machine switched off, press and hold the dispensing button and simultaneously turn on the machine with the 0/1 switch located under the tank. The edge of the button will flash slowly.
2. to change mode press the dispense button. The button will start flashing quickly. To confirm deactivation of stand-by, switch off the machine again with the switch under the tank. When powered back on, a quick flash will indicate that the operation was successful.

To return to home mode, repeat the power operation and press the dispensing button, remembering the flashing modes. Slow flashing indicates home mode (stand-by active) while fast flashing, professional mode (stand-by disabled).

8. Coffee dispensing

ATTENTION:

only pods with a diameter of 44 mm should be inserted into the pod compartment. Single-dose pods are designed to dispense only one coffee/product. Do not reuse them after use. Inserting 2 or more pods causes the machine to malfunction.

The following operations must be carried out in sequence:

1. turn the closing lever from the bottom upwards and insert the pod into the pod-holder compartment located at the extraction chamber (see fig. 8-A);
2. turn the closing lever downwards, to the point where it locks, signalled by a click;
3. place the cup/glass under the coffee dispensing spout (see fig. 8-B);

4. in any case check that the indicator light on the button is steady;

5. press the coffee dispensing button and wait for the desired quantity to be dispensed (see fig. 8-C);

6. at the end of dispensing the desired quantity of coffee, deactivate the dispensing button and raise the lever C upwards again, so that the pod can finally be removed from the compartment at the extraction chamber.

Fig. 8-A - ignition

Fig. 8-B - preparation

Fig. 8-C - dispensing

ATTENTION:

during coffee dispensing do not bring lever C to the rest position.

NOTE:

It is absolutely forbidden to use solvents, alcohol or aggressive substances or ovens for drying of the machine components. Wash the components (excluding electrical) with cold/lukewarm water and non-abrasive cloths/sponges.

9. Cleaning

ATTENTION:

• maintenance and cleaning can only be carried out when the machine is cold and disconnected from the mains;
  • do not immerse the machine in water;
• do not use sharp objects or harsh chemicals (solvents) for cleaning;
  • do not dry the machine and/or its components using a microwave and/or conventional oven;
• use a soft cloth dampened with water to clean the appliance.

To clean the pod holder (see fig. 5-A) in necessary to lift the lever and lift the steel shower filter from the plastic seat. Wash the seat and the shower filter with a sponge and reassemble the pod holder by joining the steel part with the plastic one.

Empty and wash the collection tray on a daily basis (see fig. 5-A).

Each time a new pod is inserted, check correct insertion of the same in place: incorrect insertion could result in damage to the kinematics of the extraction chamber.

10. Decalcification

To avoid the formation of limescale (cause of pump breakage, pipe obstruction, etc.) it is advisable to perform a descaling treatment every 3 – 4 months.

To perform this operation yourself, it is possible to use a non-toxic and/or non-harmful decalcifying product for coffee machines, commonly available on the market, with the following methods of use:

1. remove the tank, empty it if full, pour the entire contents of the decalcifier bottle into it;
2. reposition the tank in place;
3. press the dispensing button to pour the solution inside the machine;
4. gradually remove the descaling solution by means of a container positioned under the coffee dispensing spout;
5. intermittently dispense the descaling agent, approximately 75 ml at a time, leaving it to act for around 5 to 10 minutes and repeat the operation until the descaling solution is depleted;
6. remove the tank, wash it with running water and reposition it in place;

7. dispense approximately 1 water tank intermittently (30 seconds on - 30 seconds off);

8. after completing these operations, refill the tank with drinking water to dispense the coffee.

NOTE:

the procedure indicated refers to use of the BOMBA PLUS decalcifier, which can be purchased directly from our online store www.didiessesrl.eu.

For the use of other types of descaler refer to the label on the chosen product.

ATTENTION:

Under no circumstances should vinegar be used as a descaler.

The descaling solution must be disposed of in accordance with the manufacturer's instructions and/or with the regulations in force in the country of use.

11. Service at regular intervals

Service at regular intervals by an Authorised Service Centre prolongs the life and reliability of the machine.

Store the original packaging that can be used as protection during transportation.

12. Legal information

These operating instructions contain the information necessary for correct use, for the operational functions and for precise maintenance of the appliance. This knowledge and observance of the indications represent the premise for safe use and ensures safety at all times. For further information, or if particular problems arise which it is considered have not been adequately explained in these operating instructions, please contact Didiesse S.r.l. directly. We also point out that the content of these operating instructions is not part of a previous or existing convention, agreement or legal contract and does not change the substance thereof. All obligations of the manufacturer are based on the relevant contract of sale which also contains the complete and exclusive regulations regarding warranty services. The contractual warranty rules are neither limited nor extended according to these explanations. The operating instructions contain copyrighted information. It is not permitted to photocopy or translate them into another language without the prior written agreement of the Manufacturer.

13. Troubleshooting

FAULTS POSSIBLE CAUSES SOLUTION
The machine does not turn on	Machine not connected to the electricity grid	Connect the machine to the electricity grid
The pump is very noisy Insufficient water in the tank		Top up the tank with fresh drinking water
The coffee is too cold Temperature probe faulty Contact a service centre
The loading lever does not reach the dispensing position	Pod inserted incorrectly	Repeat the sequence, lever in rest position, lever in dispensing position
	Used pod	Return the lever to the rest position and insert a new pod
The coffee flows out too quickly, creamy coffee is not dispensed	Grinding too coarse Use a different blend
	Old or unsuitable coffee Use a different blend
The coffee is not dispensed or is dispensed only in droplets	Insufficient water Top up with water
	Dispenser clogged	Perform a coffee dispenser washing cycle
Coffee is not dispensed and steam comes out of the pod insertion compartment	The loading lever has not been brought correctly into the dispensing position	Move the lever into the dispensing position
	Machine calcified Decalcify the machine
Coffee flows out from the edges	Boiler gasket dirty or worn	Contact a service centre

For faults not covered in the afore-mentioned table or in the event that the suggested solutions cannot resolve them, contact Didiesse S.r.l. technical support directly.

14. Declaration of conformity

CE

EU DECLARATION of CONFORMITY

The company:

Didiesse S.r.l.

Zona Industriale ASI Pascarola

80023 Caivano (NA)

Italy

www.didiessesrl.eu

"Didi" coffee machine Declares that the product:

Delegated directive (UE) 2015/863

Lead (0.1%)

Mercury (0.1%)

Cadmium (0.01%)

Hexavalent chromium (0.1%)

EN 50581:2012

Polybrominated biphenyls (PBB) (0.1%)

Polybrominated diphenyl ethers (PBDE) (0.1%)

Bis (2-ethylhexyl) phthalate (DEHP) (0.1%)

Benzylbutylphthalate (BBP) (0.1%)

Dibutylphthalate (DBP) (0.1%)

Diisobutylphthalate (DIBP) (0.1%)

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Caivano (NA), 01/08/2020

Didiesse S.r.l.

Technical Office

Alessandro Corsuto

DECLARATION OF CONFORMITY OF MATERIALS AND ITEMS INTENDED TO COME INTO CONTACT WITH FOOD

1. We hereby declare that the material provided to you:

Coffee machine - Didì model

complies with:

The following EC Community legislation:

• Regulation 1935/2004/EC
• Regulation 2023/2006/EC
• Regulation 10/2011/EC and subsequent amendments and additions

And with the following Italian legislation:

• Italian Presidential Decree 777/82 and subsequent amendments and additions
- Italian Ministerial Decree 21/03/1973 and subsequent amendments and additions (including Italian Ministerial Decree 195 of 06/08/2015 for steel components)
• Italian Ministerial Decree 76 of 18/04/2007
• D.M.174 del 06/04/2004

1. The afore-mentioned item is made of a variety of materials, including:

2. Steel

3. Aluminium
4. Brass
5. Silicone

6. Rubber
   • Different kinds of polymers

7. This declaration is valid from the date below and will be replaced in case of significant changes in the production of the item that is capable of changing certain essential requirements for compliance or in case of modification and updating of the legislative references mentioned in this declaration such as to require a new verification for compliance purposes. Appropriate documentation is available for the Competent Authorities who request it, to demonstrate such adequacy.

Caivano (NA), 12/07/2021 Didiesse S.r.l.

Technical Office

Alessandro Corsuto

GUARDA

LE VIDEO

ISTRUZIONI

WATCH

THE VIDEO

TUTORIAL

FSC

MISTO

FSC C109161

80023 - Caivano (NA) - Italy

T. 081 559 52 38 - F. 081 06 05 866

Numero Verde: 800 217 661

[e-mail] | www.didiessesrl.eu

80023 - Caivano (NA) - Italy

[phone]

Numero Verde: 800 711 760
