Ater C470 - Kettle Eldom - Free user manual and instructions

Product Type	Electric Kettle
Brand	Eldom
Model	Ater C470
Capacity	1.7 L
Power	2200 W
Voltage	220-240 V ~ 50/60 Hz
Material	Stainless Steel
Base Type	360° Swivel Base
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Filter	Removable Limescale Filter
Cord Length	0.75 m
Weight	1.2 kg
Dimensions (HxWxD)	25 x 22 x 22 cm
Water Level Indicator	Yes
Illuminated Power Switch	Yes
Overheat Protection	Yes
Cleaning	Descaling recommended regularly
Spare Parts Availability	Yes, through authorized service

Frequently Asked Questions - Ater C470 Eldom

How do I descale the kettle?

Use a mixture of water and white vinegar or citric acid. Fill the kettle halfway, boil, let it sit for 30 minutes, then rinse thoroughly.

What is the maximum water capacity?

The maximum capacity is 1.7 liters. Do not overfill to avoid spillage when boiling.

Can I boil milk or other liquids?

No, this kettle is designed for water only. Other liquids may damage the heating element or cause fires.

Why does my kettle turn off before boiling?

This may be due to limescale buildup. Descale the kettle. If problem persists, check the power base connection.

How do I clean the filter?

Remove the filter by pressing the release tab. Rinse under running water or use a soft brush. Replace when dry.

Is the kettle safe if it boils dry?

It has boil-dry protection to automatically shut off and prevent overheating. However, avoid empty boiling.

What should I do if the kettle won't heat?

Check the power cord, ensure the base is plugged in, and the kettle is properly seated. Reset the kettle by unplugging for 10 seconds.

Can I use the kettle on a power strip?

Yes, but use a power strip rated for at least 2500W to handle the 2200W load safely.

How long does it take to boil water?

Typically 3-4 minutes for 1 liter of water depending on starting temperature.

Where can I buy spare parts?

Contact Eldom customer service or authorized dealers. The lid, filter, and base are available separately.

USER MANUAL Ater C470 Eldom

Carefully read all instructions before using the appliance.

1. Connect the kettle only to a suitably earthed socket compatible with the parameters indicated in the instructions.
2. The appliance should be placed on a stable and dry surface.
3. Before operating, make sure that there is water inside the kettle. You should not switch the kettle on when empty.
4. You must not exceed the maximum water level mark. Filling over the maximum mark on the exterior of the kettle may result in the boiling water splashing out from the kettle (which may result in a short-circuit).
5. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
6. Do not leave the kettle unattended when in use, when plugged-in or containing hot water, the kettle may expose children to hazard, if left unattended.
7. Never immerse the kettle in water while washing-up.
8. You should be cautious about the steam coming from the kettle during the heating process.

9. This appliance is designed for domestic use only; when used for industrial purposes outside the product's specifications, or used not in accordance with the instructions, no liability is assumed and the warranty is nullified.

10. Never use the kettle if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.

11. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.
12. This kettle must be used with the power base supplied.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recycled.
• It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.

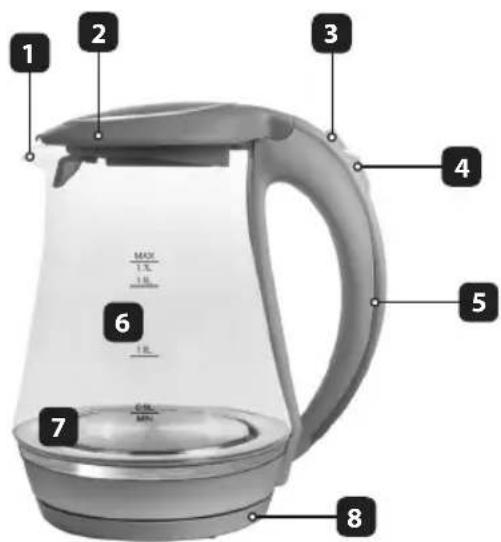

■ General description

1. Spout
2. Opening lid + net filter
3. Lid release button
4. On/off switch
5. Handle
6. Water level indicator
7. Glass body with blue LED light
8. Rotating base

TECHNICAL DATA

• power: 1850-2200W
• mains voltage: 220-240V \~ 50Hz
• 1,7 litre capacity
• mains protection: 10 A
• protection insulation class I

HOW TO USE THE APPLIANCE

Cordless kettle C470 is for boiling water. It is possible to boil 0.5 – 1.7 litre of water in the kettle. The kettle base (8) must be put on a flat and dry surface. In the base there is some space for an excess cord. It is important for the cord to be led from the base (8) through a special groove so that the appliance could be stable.

Before using the kettle for the first time fill it up (2-3 times) with water, boil the water and then empty the kettle.

The kettle can be filled with water directly through the spout (1) or after opening the lid (2). In order to open the lid (2) you must press the button (3). The kettle must not be filled up when on the base. The kettle starts working after putting the switch (4) in the position '1'. Operation of the device is indicated by illumination of the tank (7). The kettle switches off automatically after the water has boiled. You can stop heating water at any time by putting the switch (4) in the position '0'.

CLEANING AND MAINTENANCE

• Allow the unit to cool down completely before cleaning.
• Do not immerse the kettle in water while washing up.
• The outside of the kettle may be wiped over with a damp cloth and washing-up liquid.
• Water stains inside the kettle can be removed by rubbing with a cloth moisten with white vinegar; rinse the inside with water afterwards.

Limescale should be removed in the following way:

• Fill the kettle with 0.75 litre of water and bring it to boil.
• Switch the kettle off and disconnect the kettle from the power supply.
• Pour 0.1 litre of white vinegar into the kettle.
• Allow to stand overnight.
• Discard the solution and rinse the inside with water.

• Fill the kettle with 1 litre of water and bring to boil.

• Discard the water and rinse the inside with water.

• No timely removal of the scale from the heating element results in the heating element's quicker wear.
• Any damage resulting from applying harsh descalling products available in the market are not covered by the producer's warranty.
• If the power cord is damaged, it can be replaced only by an especially constructed one (with appropriate plugs and endings).

FILTER

The filter provided is made of mesh retaining scale deposits. The filter does not remove the scale, but it prevents any deposits from getting inside the kettle while the water is being poured in. The filter should be cleaned regularly. Hard water may block the filter after boiling water a couple of times.
